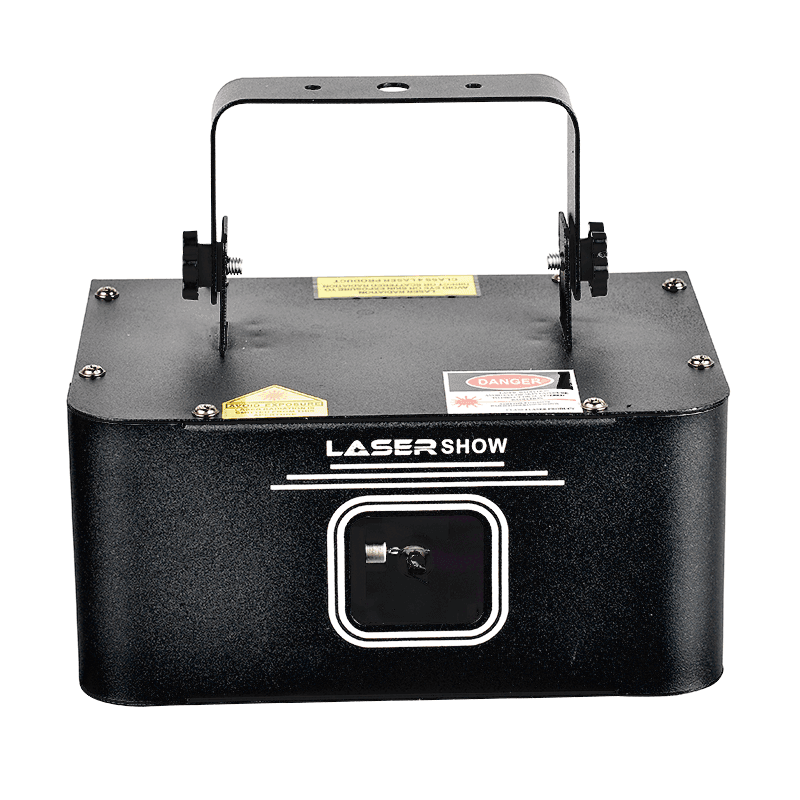

ZT-2WRGB 2W Animation Laser Light Projector

ZT-2WRGB 2W Animation Laser Light Projector – Stunning Laser Effects for DJ, Party, Bar, and Wedding Events

The ZT-2WRGB 2W Animation Laser Light Projector is a compact full-colour RGB laser designed for DJs, discos, KTV venues, bars, weddings and music events. Its 2000mW RGB output combines 638nm red, 520nm green and 445nm blue laser sources with a 15K scanning galvanometer for animated patterns, moving graphics and aerial laser effects, while DMX512, sound-active and automatic operation provide flexible show control.

Technical Specifications

Full-Colour 2W RGB Laser Output

The ZT-2WRGB uses a documented 2000mW RGB laser system.

Its three primary wavelengths are:

• Red: 638nm

• Green: 520nm

• Blue: 445nm

Combining red, green and blue allows the projector to create full-colour laser effects instead of being limited to a single colour or basic red/green combinations.

This gives lighting operators more flexibility for:

• DJ performances

• Nightclubs

• Wedding entertainment

• Concert stages

• Bars

• KTV rooms

• Music events

• Private parties

The 2W specification describes the complete RGB laser output published by the supplier. Individual red, green and blue diode wattages are not provided and should not be guessed.

638nm Red Laser

The red laser operates at a published wavelength of 638nm.

Compared with some deeper-red laser wavelengths, 638nm produces a visually distinctive red colour suitable for animation, geometric patterns and aerial effects.

It can be combined with green and blue to produce a wider range of mixed colours.

520nm Green Laser

The green source is specified at 520nm.

Green laser output is highly visible to the human eye and forms an important part of full-colour RGB animation.

It works particularly well for:

• Geometric patterns

• Moving lines

• Beam effects

• Colour mixing

• Music-responsive sequences

445nm Blue Laser

The blue source operates at 445nm.

This provides deep blue laser output that can operate independently or combine with the red and green sources to create additional colours.

Blue effects work especially well in clubs and concerts where darker surrounding conditions allow the laser projections to stand out clearly.

RGB Colour Mixing

Using all three laser wavelengths together allows the fixture to produce multiple mixed colours.

Potential visual looks include:

• Red

• Green

• Blue

• Cyan-style combinations

• Magenta-style combinations

• Yellow-style combinations

• Mixed full-colour effects

The exact colour-mixing behaviour depends on the projector's modulation and internal programming.

Because the exact supplier page does not specify TTL versus analogue modulation, Stagify should not claim smooth analogue colour fading unless the physical fixture confirms it.

Animation and Pattern Projection

Unlike a simple multi-hole laser that mainly produces dots or fixed beams, the ZT-2WRGB is designed as an animation laser projector.

The scanning system moves the laser rapidly enough to create visible shapes and animated effects.

The supplier confirms built-in:

• Animation effects

• Pattern effects

• Sweeping laser effects

This makes the model more useful for entertainment environments where the projection needs to change continuously rather than remain as a static beam.

Built-In Patterns for Standalone Shows

The projector includes preloaded animations and patterns, allowing it to produce effects without requiring the user to create every animation manually.

This is particularly useful for:

• Mobile DJs

• Wedding entertainment

• Bars

• KTV rooms

• Smaller clubs

Built-in content reduces setup time where sophisticated custom laser programming is unnecessary.

For more controlled event cues, DMX512 can be used instead.

15K High-Speed Scanning Galvanometer

The exact supplier specification lists a 15K high-speed scanning galvanometer.

The scanner is the mechanism responsible for rapidly positioning the laser beam to create lines, patterns and animation.

A 15K scanner makes this product suitable for built-in entertainment graphics and moving laser effects.

It should not be confused with higher-end 30K or 40K professional graphics projectors designed for demanding ILDA artwork.

For buyers, the distinction is important.

Choose the ZT-2WRGB for:

• DJ animation effects

• Club patterns

• Wedding entertainment

• Built-in graphics

• General laser-show effects

Choose a confirmed higher-speed ILDA animation laser where extremely detailed graphics, text or logos are the primary requirement.

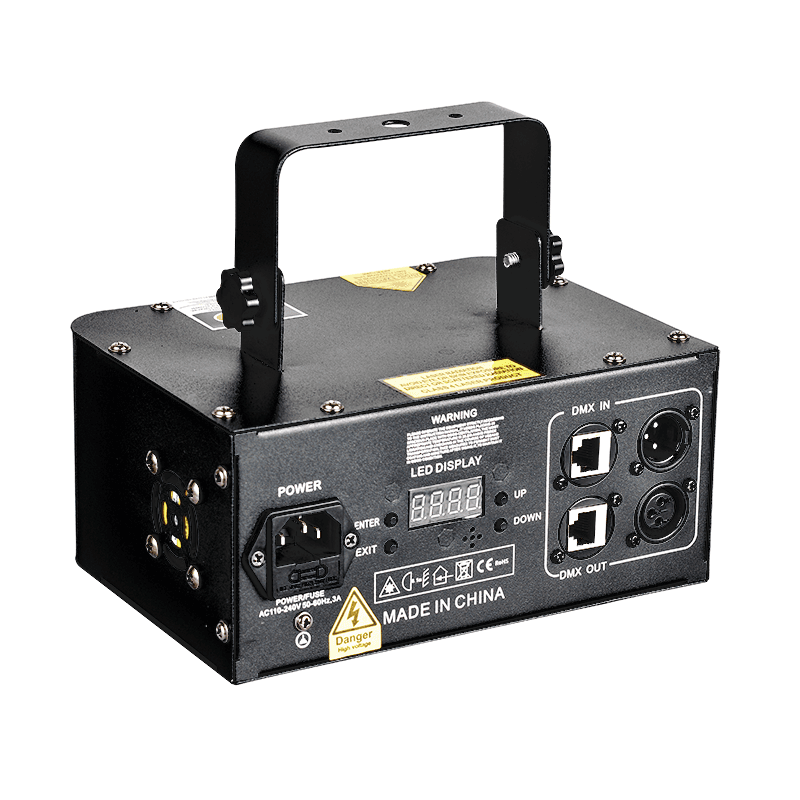

DMX512 Control

The projector supports DMX512, allowing it to integrate with a professional lighting-control system.

A DMX console can coordinate the laser with:

• Moving head beams

• Moving washes

• LED PAR lights

• Pixel bars

• Strobes

• Other laser fixtures

This makes it easier to synchronise laser effects with other lighting cues during a performance.

The exact DMX channel count is not published on the current technical specification.

Stagify should therefore not copy a channel number from another 2W RGB animation laser.

Voice / Sound-Activated Control

The exact specification confirms Voice Control, which is commonly used as a sound-responsive operating mode.

Sound activation allows built-in effects to respond to music without continuous console programming.

This can be practical for:

• DJs

• Clubs

• Bars

• Parties

• Wedding entertainment

• KTV rooms

For programmed concerts or structured events where precise timing matters, DMX control provides greater consistency.

Automatic Operation

The projector also supports Automatic mode.

Auto operation allows built-in laser sequences to run without an external lighting controller.

This makes the fixture easier to use in smaller setups where the operator wants:

• Fast installation

• Built-in effects

• Continuous animation

• Minimal programming

The same projector can later be moved into a DMX-controlled system when greater show control is required.

Network Port Control

The exact supplier specification lists a network port as one of the available control methods.

However, it does not identify:

• Connector type

• Network protocol

• Software

• Art-Net

• ILDA-over-network

• Ethernet control standard

For this reason, Stagify should publish only Network Port unless the actual product manual confirms the technology behind that connection.

This avoids incorrectly presenting the port as Art-Net or another professional protocol.

ILDA Compatibility Is Not Yet Confirmed

A separate UAE retailer title refers to the ZT-2WRGB as “ILDA/DMX.”

However, that retailer's own detailed specification lists only DMX512 and standalone operation, while the exact supplier technical table says Voice, Auto, DMX512 and Network Port.

Because no verified:

• DB25 ILDA connector

• ILDA protocol specification

• ILDA software support

• ILDA scanner configuration

is published for the exact SKU, do not advertise this model as ILDA-compatible yet.

The physical rear panel or user manual should be checked first.

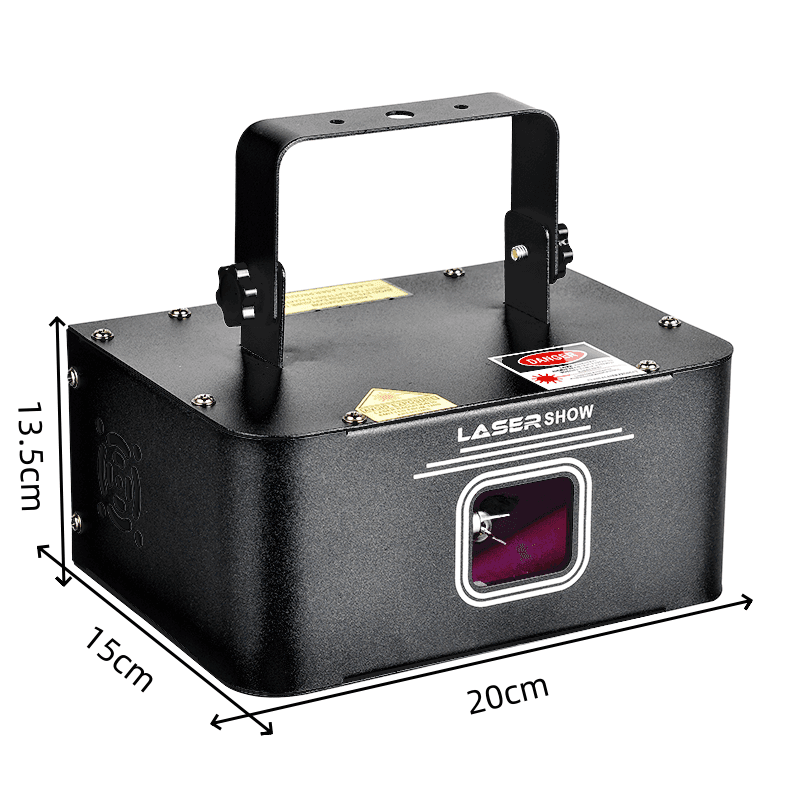

Compact 200 × 150 × 135MM Chassis

The exact supplier publishes a chassis size of approximately:

200 × 150 × 135 mm

This makes the ZT-2WRGB a compact animation projector.

The smaller format is useful for mobile event companies that regularly carry lighting between venues.

Compact size can help reduce:

• Flight-case space

• Vehicle storage

• Setup footprint

• Warehouse space

The projector still requires secure professional installation because of its laser output.

Lightweight 1.7KG Design

The documented net weight is approximately 1.7 kg.

Gross packed weight is approximately 2.2 kg.

For mobile DJs and rental companies, the relatively low weight makes the unit easy to transport alongside other effects fixtures.

The published inner-box dimensions are approximately:

275 × 210 × 185 mm

These are packaging dimensions and should not be confused with the fixture's actual 200 × 150 × 135 mm chassis size.

Only 20W Total Electrical Consumption

Despite the 2W optical laser-output designation, the complete fixture's published electrical consumption is only 20W.

These are two different measurements:

2W / 2000mW:
Laser optical output specification.

20W:
Total electrical fixture consumption.

For preliminary power calculations:

• 2 projectors = approx. 40W

• 4 projectors = approx. 80W

• 8 projectors = approx. 160W

Other stage equipment must also be included when planning the complete event power load.

AC100–240V / 50–60Hz Wide-Voltage Input

The laser projector supports AC100–240V at 50/60Hz.

This range covers standard UAE 220–240V / 50Hz mains power.

The exact plug supplied with Stagify stock should still be checked before stating that a UAE Type G plug is included.

Useful for DJ Performances

The ZT-2WRGB is particularly well suited to DJ setups because it combines:

• Full-colour RGB output

• Built-in animation

• Sound activation

• DMX512

• Compact dimensions

• Low electrical consumption

A DJ can use automatic or sound-responsive effects for smaller events and switch to DMX programming for larger productions.

Club and Disco Applications

In clubs and discos, the projector can create animated patterns across controlled projection surfaces or properly designed aerial zones.

Several units can be combined with:

• Haze

• Moving heads

• Strobes

• LED effects

to create layered lighting looks.

Controlled haze can make laser beams more visible through the air, particularly in darker environments.

KTV and Karaoke Venues

KTV rooms and karaoke entertainment venues can use the projector to add animated effects around music performances.

The compact chassis makes it easier to install in smaller spaces than large touring laser systems.

However, the same laser safety principles still apply regardless of venue size.

A small room does not make a 2W laser safe for uncontrolled audience exposure.

Wedding Entertainment

The projector can also be used during the entertainment portion of weddings for:

• Couple entrances

• DJ performances

• Dance-floor sequences

• Stage reveals

• Entertainment finales

For formal ceremonies and speeches, conventional wash and profile fixtures remain better suited to illuminating people.

The ZT-2WRGB should be treated as an entertainment effect rather than a general-purpose stage light.

Animation Laser vs Multi-Eye Laser

The ZT-2WRGB performs a different job from an eight-eye or multi-hole laser.

Choose the ZT-2WRGB when you need:

• Scanned animations

• Built-in patterns

• Geometric effects

• One full-colour projection system

• Compact animation laser

Choose a multi-eye laser when you need:

• Several simultaneous laser apertures

• Broad aerial beam arrays

• Multiple parallel or moving beams

• A larger physical beam spread

This gives each laser type a separate role within the Stagify catalogue.

ZT-2WRGB vs 10W Animation Laser

This 2W projector is also distinct from Stagify's higher-output animation lasers.

Choose the ZT-2WRGB when:

• Compact size matters

• 2W RGB output suits the venue

• Lower electrical consumption is useful

• Built-in animation is the priority

• Mobile DJ and wedding work is common

Choose a 10W+ laser when:

• The venue is substantially larger

• Higher optical output is specifically required

• A more advanced professional laser platform is needed

Higher power also increases safety and regulatory responsibilities.

Best For

The ZT-2WRGB 2W Animation Laser is particularly suitable for:

• Mobile DJs

• Nightclubs

• Discos

• KTV venues

• Karaoke bars

• Wedding entertainment

• Music parties

• Live events

• Bars and lounges

• Event-production companies

• AV rental companies

• Indoor laser shows

What's Included

The exact supplier package confirms:

• 1 × ZT-2WRGB Laser Light

• 1 × User Manual

• 1 × Power Cable

No flight case, DMX cable, clamp, safety cable or external controller is listed in the standard package.

Those accessories should only be shown as included if Stagify bundles them separately.

What Is the Laser Power?

The manufacturer specifies RGB 2000mW / 2W total laser power.

Individual red, green and blue power values are not published.

What Laser Wavelengths Does It Use?

The confirmed wavelengths are:

• Red: 638nm

• Green: 520nm

• Blue: 445nm

What Is the Scanner Speed?

The product uses a 15K high-speed scanning galvanometer.

Do not advertise 20K, 30K or 40K scanning, as those specifications belong to other laser platforms.

Does It Support DMX512?

Yes.

DMX512 is explicitly confirmed.

The exact DMX channel count is not currently published and should be checked from the user manual.

Can It Work Without DMX?

Yes.

The projector supports:

• Voice / Sound control

• Automatic operation

• DMX512

• Network-port control

This makes it suitable for both standalone and externally controlled installations.

Does It Have Built-In Animations?

Yes.

The supplier confirms preloaded animation and pattern effects for standalone entertainment use.

Does It Support ILDA?

Not yet confirmed.

A secondary UAE listing uses “ILDA/DMX” in its heading, but the detailed specifications do not document an ILDA connector.

The exact supplier lists only Voice, Auto, DMX512 and Network Port.

Check the physical rear panel or manufacturer manual before adding ILDA to the Stagify specification.

Is the Network Port Art-Net?

No specific network protocol is documented.

Do not advertise:

• Art-Net

• sACN

• Ethernet control

• ILDA network control

until the manufacturer confirms what the network port supports.

Does It Work on UAE Power?

Yes.

The confirmed AC100–240V / 50–60Hz range includes standard UAE 220–240V / 50Hz mains power.

The exact supplied plug type should still be physically checked.

Can It Be Used Outdoors?

No outdoor IP rating is published for this exact SKU.

It should therefore not be described as waterproof or weather-resistant.

Use it in dry, controlled environments unless separate manufacturer documentation provides a suitable IP rating.

Is a 2W Laser High Power?

Yes.

A 2W / 2000mW entertainment laser is far above the output level of ordinary low-power consumer laser products.

FDA currently defines a high-power laser light-show projector as one incorporating a laser with maximum radiation output greater than 5mW.

That does not establish the exact class printed on this ZT-2WRGB fixture. The physical manufacturer's safety label should be checked before Stagify publishes a Class 3B or Class 4 designation.

Laser Safety Requirements

This projector should be treated as professional laser-show equipment.

Improperly handled entertainment lasers can cause:

• Eye injury

• Skin burns

• Fire hazards

• Distraction or temporary vision impairment

The FDA specifically warns that hazardous laser light-show beams should be kept away from audiences.

For professional use:

• Check the manufacturer's laser-class label before operation.

• Establish controlled projection zones.

• Do not deliberately scan hazardous output across audience eye level.

• Keep beams away from staff and performers.

• Avoid uncontrolled reflections from mirrors or polished surfaces.

• Use appropriately rated mounting hardware.

• Add secondary safety retention for overhead installation.

• Prevent unauthorised access to the projector.

• Use trained laser-show personnel.

• Confirm venue and authority requirements before each show.

Atmospheric haze can improve beam visibility but does not reduce the hazard of direct laser exposure.

Dubai Laser Display Approval

Professional laser displays in Dubai may require approval from the Dubai Civil Aviation Authority (DCAA).

DCAA's published service specifically enables customers to obtain a No Objection Certificate for laser or pyrotechnic displays in the Emirate of Dubai.

Event organisers should confirm whether their planned show requires the NOC, particularly where laser beams may enter open air or potentially affect aviation.

ZT-2WRGB Animation Laser in the UAE

Stagify supplies animation lasers, laser effects and professional stage-lighting equipment across the UAE for DJs, wedding companies, clubs, venues and event-production businesses.

The ZT-2WRGB fills a clear compact-animation role in the range: 2W RGB output, verified 638/520/445nm wavelengths, 15K scanning and DMX/standalone control in a 1.7 kg projector.

Contact Stagify for current availability and confirmation of the physical laser-class label, DMX personality and network-port functionality before ordering.
