Truss Top Section for Truss Chain Hoist

Truss Top Section for Chain Hoist – F34 Ground Support Rigging UAE

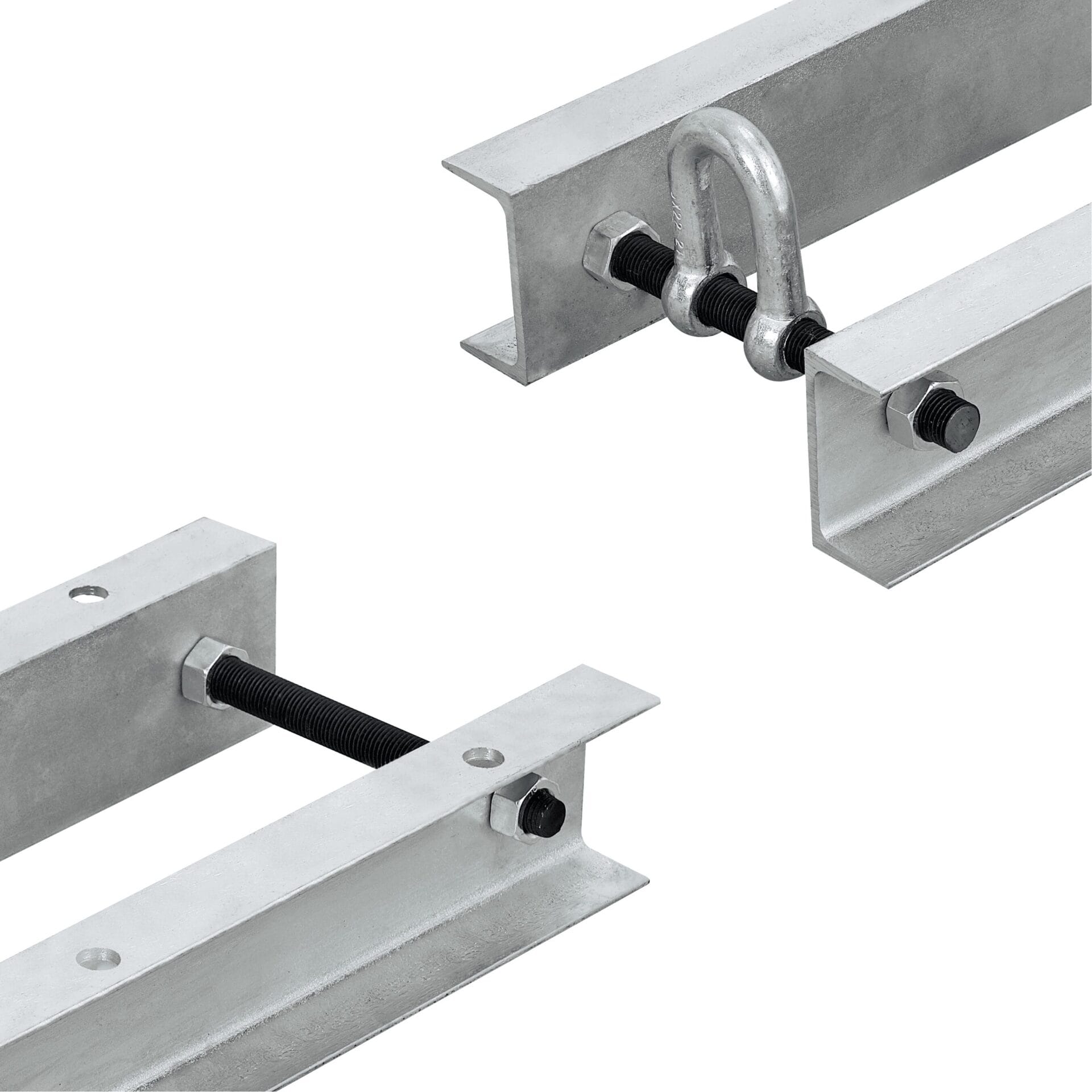

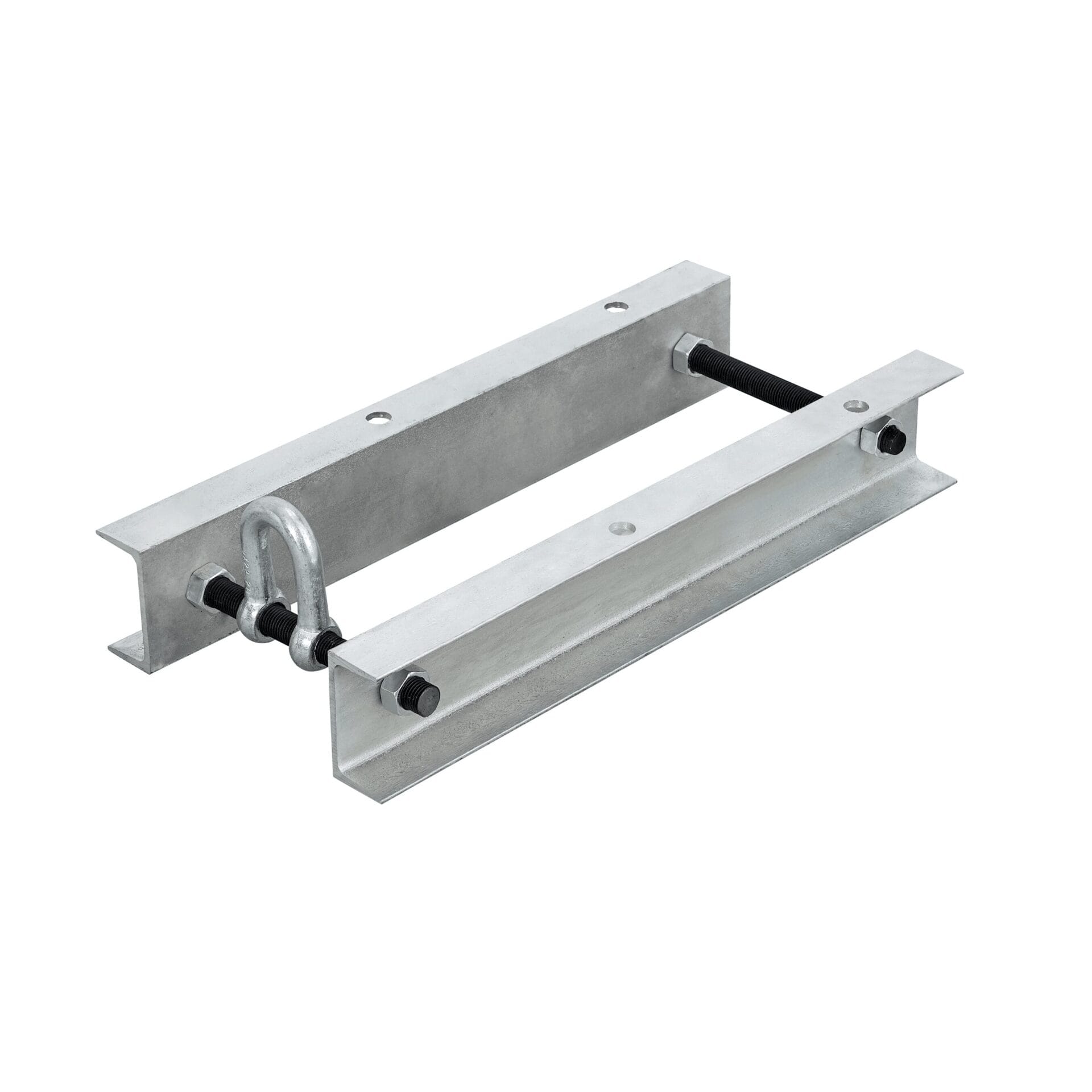

The Truss Top Section for Chain Hoist is designed for F34-style 12-inch ground-support truss towers using manual or electric chain-hoist lifting systems. Built around 290 × 290 mm square-truss geometry, the top section creates the upper lifting point required to raise sleeve blocks, lighting grids and stage truss structures during professional event installations.

Technical Specifications

Built for Professional Truss Lifting Systems

A ground-support tower requires a dedicated top section to create a controlled lifting path for the chain-hoist system. Installed at the top of an F34-compatible tower, this component allows the hoist system to raise a sleeve block and the horizontal truss structure attached to it.

The 290 × 290 mm F34 geometry makes this top section suitable for one of the most commonly used square-truss formats in professional event production. It is designed around standard conical connections, allowing it to integrate with compatible tower truss components without relying on improvised attachment points.

The top section can be used with either a manual chain hoist or an electric motor hoist rated up to 1 ton, making it practical for different production workflows. Manual hoists are commonly used for smaller installations and controlled setup environments, while electric motors can provide faster lifting during larger or repeated event builds.

For rental companies and event-production crews, the top section becomes part of a complete ground-support system that normally includes the tower truss, base, outriggers, sleeve block, hoist and horizontal truss structure.

Because the component forms part of a load-bearing system, its working load must always be considered together with the limits of the complete tower, hoist, sleeve block, connectors and supporting structure. Installation and load planning should be carried out by qualified rigging personnel.

Designed for F34 290 × 290 mm Truss Systems

The top section is intended for F34-format square truss measuring approximately 290 × 290 mm.

F34-style systems typically use approximately 50 mm main tubes with conical coupler connections, making them widely used for modular stage, lighting and ground-support structures.

Correct geometry is important because a top section cannot safely be selected by appearance alone. The tower dimensions, connector standard and sleeve-block system must all be compatible.

Manual and Electric Chain Hoist Compatibility

This top section is designed to support professional lifting workflows using either:

• Manual chain hoists

• Electric motor chain hoists

• Hoist systems rated up to 1 ton

• Ground-support sleeve-block systems

• Compatible F34 tower truss

The hoist should always be selected according to the complete engineered load of the structure rather than the weight of individual lighting fixtures alone.

Best For

The Truss Top Section for Chain Hoist is suitable for:

• Concert and live-event truss systems

• Wedding stage structures

• Corporate event productions

• Stage lighting grids

• Ground-support towers

• Exhibition structures

• LED screen support structures

• Temporary stage roof systems

• AV installation companies

• Event-equipment rental companies

• Professional production and rigging crews

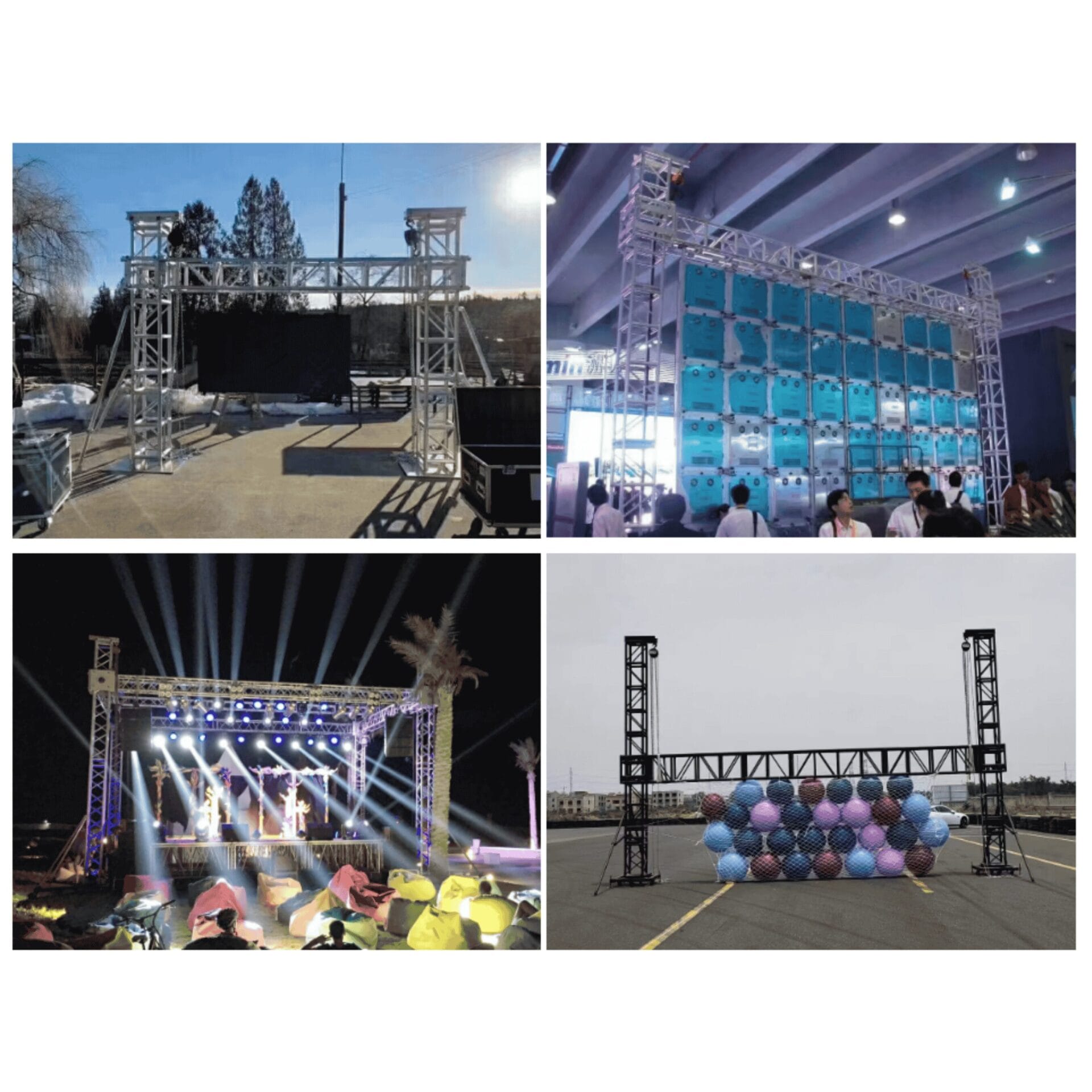

Ground Support and Stage Roof Applications

Ground-support systems allow horizontal truss structures to be assembled closer to working height before being raised into position.

A typical system combines the top section, vertical tower truss, sleeve block, chain hoist, base and outriggers. The horizontal lighting or roof truss attaches to the sleeve block, which then travels vertically along the tower during lifting.

This arrangement is commonly used when building lighting grids, stage roofs, exhibition structures and other temporary production systems where controlled vertical lifting is required.

What's in the Box

Package configuration may include:

• 1 × Truss top section

• Integrated hoist-routing hardware

• Truss connection hardware

Chain hoist, sleeve block, tower sections, base, outriggers and other ground-support components are generally separate parts of the complete rigging system unless specifically included with the selected package.

Compatible Equipment

The Truss Top Section can form part of a professional system using:

• F34 290 × 290 mm square truss

• Ground-support tower truss

• Sleeve blocks

• Manual chain hoists

• Electric chain motors

• Tower bases

• Outriggers

• Truss hinges

• Horizontal lighting truss

• Stage roof structures

• LED screen truss structures

All components should use compatible geometry, connection standards and load ratings.

How Does a Truss Top Section Work?

The top section mounts to the upper end of a ground-support tower and provides the routing or attachment arrangement required by the hoist system.

The chain hoist is then used to raise the sleeve block and attached horizontal truss along the tower until the structure reaches its required working height.

What Size Truss Is This Top Section Designed For?

This configuration is designed around F34 12-inch-class square truss with approximately 290 × 290 mm external geometry.

Before installation, verify that the tower truss and connector system use the same F34-compatible dimensions.

Can I Use a Manual Chain Hoist?

Yes. This type of F34 top section is designed for manual chain-hoist operation as well as compatible electric motor hoists.

Professional F34 top-section systems are commonly specified for hoists rated up to 1 ton / 1,000 kg.

Can I Use an Electric Chain Hoist?

Yes. Compatible electric chain motors can be used where the complete lifting system has been designed for the intended load.

The motor capacity, tower rating, sleeve block, connections and overall structure must all be considered before lifting.

What Is the Maximum Hoist Capacity?

Professional F34 chain-hoist top sections of this configuration are specified for manual or electric chain hoists up to 1 ton.

This does not mean every complete tower installation automatically has a 1,000 kg safe working load. The permissible system load is determined by the lowest-rated component and the engineering of the complete structure.

Is This Suitable for Outdoor Events?

Truss ground-support systems are commonly used for both indoor and outdoor event structures, but outdoor installations require additional structural planning.

Wind loading, ballast, outriggers, ground conditions, weather exposure and the complete structural design must be assessed by qualified personnel before use.

Does This Top Section Fit Every 290 mm Truss?

Not automatically. Although many professional systems use F34-style 290 × 290 mm geometry and conical couplers, compatibility between different manufacturers and systems must still be checked.

Never force connectors or substitute incompatible rigging hardware.

Rigging & Safety Requirements

The Truss Top Section is a load-bearing rigging component and should only be installed as part of a properly designed ground-support system.

Installation should be performed by qualified rigging personnel. Always follow the working-load limits of the top section, tower truss, sleeve block, chain hoist, connectors, base and outriggers.

Do not exceed the lowest rated component in the system. Outdoor structures also require proper assessment of wind loading, ballast and ground conditions.
