Truss Steel Base with Wheels for Aluminum Truss

Truss Steel Base with Wheels for Aluminum Truss UAE

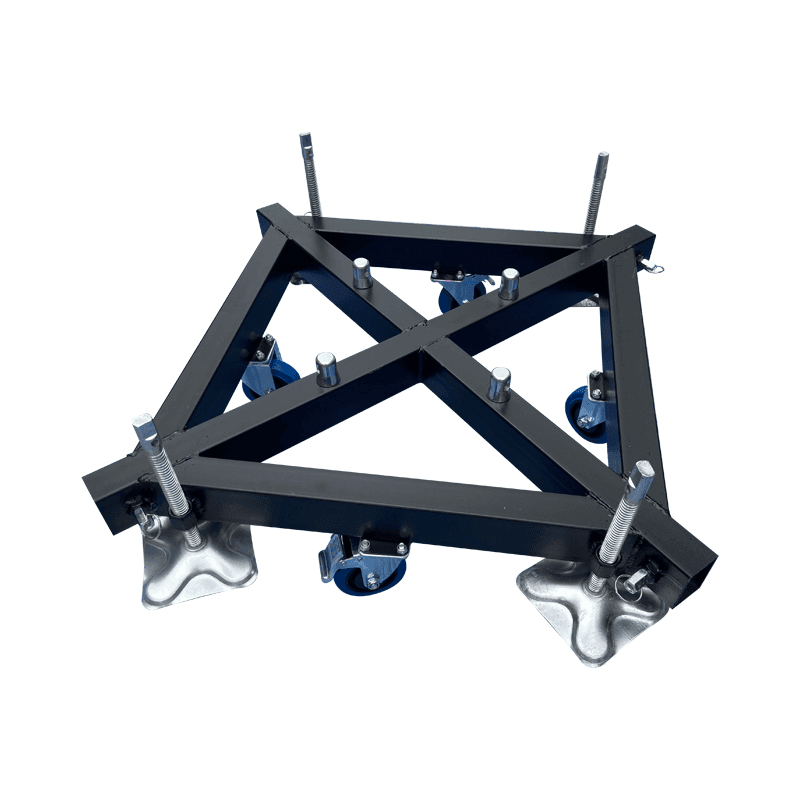

The Truss Steel Base with Wheels for Aluminum Truss is a heavy-duty mobile ground-support base designed for professional stage and event truss tower systems. Built from black-coated steel, it combines a 710 × 710 mm footprint, four castor wheels and four truss connection points to provide a movable foundation for aluminium truss towers used in lighting, stage and roof structures.

Technical Specifications

Heavy-Duty Base for Aluminium Truss Towers

A vertical truss tower needs a stable foundation before it can become part of a professional ground-support structure. This steel truss base provides the lower support point for the tower while giving production crews the added convenience of a mobile wheeled design.

The 710 × 710 mm steel frame creates a broad support area beneath the vertical truss. At 23 kg, the base adds useful mass at ground level while remaining practical for touring and rental applications.

Four half connectors provide the connection points required to install the vertical pillar truss onto the base. The system can then be combined with appropriate outriggers, stabilisers and additional ground-support components according to the structure being built.

Its black-coated steel construction is particularly practical for professional event environments where components are repeatedly transported, assembled and dismantled.

2,000KG Rated Capacity

The documented base configuration has a stated 2,000 kg capacity, providing a heavy-duty foundation for professional truss tower applications.

This figure applies to the base component itself and should never be interpreted as permission to place 2,000 kg on a complete truss structure automatically.

The allowable load of an assembled system depends on the vertical truss, sleeve block, top section, hoist, outriggers, tower height, load distribution and engineering of the complete structure.

The lowest-rated component determines the practical system limit.

Four Castor Wheels for Easier Positioning

Four integrated castors make the base easier to reposition while the truss system is being prepared.

For production and rental crews, this is useful when assembling tower components inside:

• Ballrooms

• Exhibition halls

• Production warehouses

• Theatre stages

• Event venues

• Temporary production spaces

A wheeled base can reduce the amount of manual carrying required when moving unloaded or appropriately configured truss towers over suitable level surfaces.

The wheels are intended for positioning and transport convenience. They do not replace the stabilisation, outrigger, ballast or engineering requirements of the final installed structure.

Four Half Connectors for Truss Installation

The base is equipped with four half connectors for attaching the compatible vertical truss tower.

Half connectors create a dedicated connection between the base and the four main chords of a compatible box-truss section.

Correct connector spacing is essential. Always verify the truss geometry and connection system before combining components from different truss ranges.

Black-Coated Steel Construction

Steel is used for this type of tower base because the lower section of a ground-support system benefits from additional mass and structural rigidity.

The black-coated finish provides a discreet appearance beneath aluminium truss structures while helping protect the steel surface during repeated professional use.

This makes the base particularly suitable for rental inventories where equipment is regularly loaded into vehicles, transported between venues and assembled for different event configurations.

Designed for Complete Ground-Support Systems

The steel base forms the bottom component of a larger ground-support tower.

A professional configuration may include:

• Steel truss base with wheels

• Aluminium vertical tower truss

• Truss sleeve block

• Truss top section

• Manual or electric chain hoist

• Outriggers

• Stabiliser bars

• Horizontal aluminium truss

• Appropriate connection hardware

• Ballast where required

These components work together to create a tower system capable of raising and supporting horizontal stage or lighting truss structures.

Best For

The Truss Steel Base with Wheels is suitable for:

• Ground-support truss towers

• Stage lighting grids

• Concert productions

• Wedding stage setups

• Corporate events

• Exhibition structures

• Temporary stage roofs

• LED screen structures

• Theatre productions

• AV installation companies

• Event-equipment rental companies

• Professional production contractors

What's Included & Compatibility

The base configuration includes:

• 1 × steel ground-support base

• 4 × castor wheels

• 4 × half truss connectors

The base is intended to work with compatible:

• Aluminium box truss towers

• Sleeve blocks

• Truss top sections

• Chain-hoist systems

• Ground-support outriggers

• Stabiliser bars

• Horizontal stage truss

Truss sections, sleeve blocks, hoists, outriggers and other tower components are separate unless specifically included with the ordered system.

What Is a Steel Truss Base Used For?

A steel truss base provides the ground-level foundation for a vertical aluminium truss tower.

The tower connects to the base before additional ground-support components such as sleeve blocks, top sections, outriggers and hoists are installed.

What Are the Dimensions of the Truss Base?

The documented configuration measures 710 × 710 × 250 mm.

Its broad square footprint is designed to support professional tower-truss installations while providing attachment points for the vertical truss and associated support system.

How Much Does the Steel Truss Base Weigh?

The base has a documented self-weight of 23 kg.

The steel construction places useful mass at the bottom of the tower while remaining manageable for professional event-production and rental crews.

How Much Weight Can the Truss Base Support?

The documented base has a stated capacity of up to 2,000 kg.

However, the capacity of a complete truss structure must be calculated from the engineering limits of every connected component. Never use the base rating alone to determine the allowable suspended load.

Does the Truss Base Have Wheels?

Yes. The base uses four castor wheels to assist with positioning and handling during setup, dismantling and equipment movement.

The installed structure must still be correctly stabilised before loading or operation.

Does the Base Include Truss Connectors?

Yes. This configuration uses four half connectors for connecting the pillar or vertical box truss to the steel base.

Connector spacing and truss compatibility must be checked before installation.

Do I Still Need Outriggers?

For ground-support tower applications, outriggers or another engineered stabilisation method are typically required.

The required outrigger length, ballast and stabilisation arrangement depend on tower height, loading, structure dimensions and installation conditions.

Can This Base Be Used Outdoors?

It can form part of an outdoor ground-support system when the complete structure has been properly engineered for the installation.

Outdoor setups require additional consideration of wind loading, ballast, ground conditions, outriggers and weather exposure.

Rigging & Safety Requirements

The Truss Steel Base with Wheels is a load-bearing component of a professional ground-support system.

Installation should be carried out by qualified personnel familiar with aluminium truss, tower systems and stage rigging.

Do not determine the permissible load of a completed structure from the base's 2,000 kg capacity alone. Tower height, truss span, sleeve block, chain hoist, top section, outriggers, ballast, suspended equipment and environmental conditions must all be considered.

Castor wheels should not be treated as the primary stabilisation system for a loaded tower. The complete structure must be secured and stabilised according to its engineered configuration before equipment is lifted or suspended.

Order Truss Steel Bases with Wheels in the UAE

Stagify supplies professional truss, rigging and stage-production equipment across Dubai and the UAE for event companies, AV installers, venues, rental houses and production contractors.

This steel wheeled base can form part of a complete ground-support system alongside compatible aluminium tower truss, sleeve blocks, truss top sections, chain hoists and outriggers.
