Truss Sleeve Block 1-4 Directions

Truss Sleeve Block 1-4 Directions for Ground Support Systems UAE

The Truss Sleeve Block 1-4 Directions is a movable ground-support rigging component designed for F34-style 290 × 290 mm square truss tower systems. It allows horizontal truss sections to connect from one to four directions while travelling vertically along the tower during chain-hoist lifting, making it suitable for professional stage, lighting, roof and event-production structures.

Technical Specifications

How the Truss Sleeve Block Works

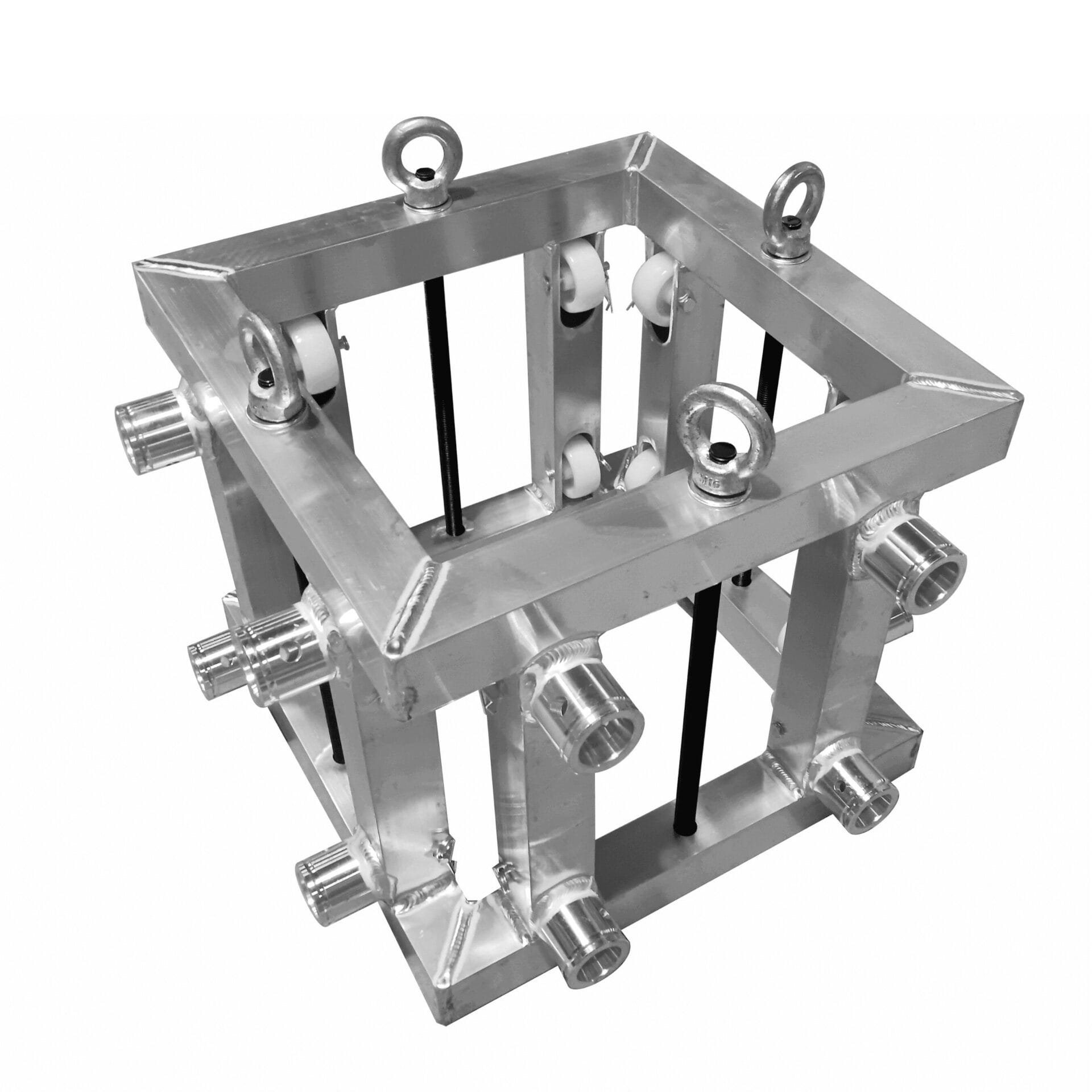

The sleeve block is the moving connection point of a ground-support tower system. It sits around the vertical tower truss while horizontal truss sections connect to its outer faces.

During installation, a compatible chain-hoist system raises the sleeve block along the tower. This allows lighting grids, roof structures or horizontal truss assemblies to be constructed closer to ground level before being lifted to their required working height.

The 1–4 direction configuration gives production crews more flexibility when designing ground-support layouts. A single truss section can be connected for a simple beam arrangement, while additional faces can be used to create two-way, three-way or four-way structures.

This makes the sleeve block particularly useful for modular event systems where the same tower components may need to support different layouts from one production to another.

1 to 4 Direction Truss Configuration

Unlike a fixed truss junction, the sleeve block can accommodate connections from multiple horizontal directions.

Depending on the stage design, it can be configured as:

• 1-way truss connection

• 2-way corner or straight configuration

• 3-way T-style configuration

• 4-way cross configuration

This versatility allows one sleeve-block system to support different stage, lighting and roof layouts without requiring a completely different tower arrangement for every production.

F34 290 × 290 mm Ground Support Format

This configuration is designed around the widely used F34-style 290 × 290 mm square truss format, commonly referred to as 12-inch truss.

F34 systems use modular truss sections and conical-style connection hardware, allowing production teams to build lighting grids, stage structures and temporary event installations from compatible components.

The sleeve block should always be matched to the tower truss dimensions, connector system and related ground-support components before installation.

Built for Chain-Hoist Tower Systems

A complete ground-support lifting system typically combines the sleeve block with:

• Vertical tower truss

• Truss top section

• Manual or electric chain hoist

• Tower base

• Outriggers

• Stabiliser components

• Hinge connections

• Horizontal square truss

As the chain hoist operates, the sleeve block travels vertically along the tower together with the attached horizontal truss structure.

This allows crews to assemble fixtures, cabling and selected stage equipment at a practical working height before raising the structure.

Flexible Connection for Event Structures

A four-direction sleeve block gives production companies greater flexibility when building temporary structures.

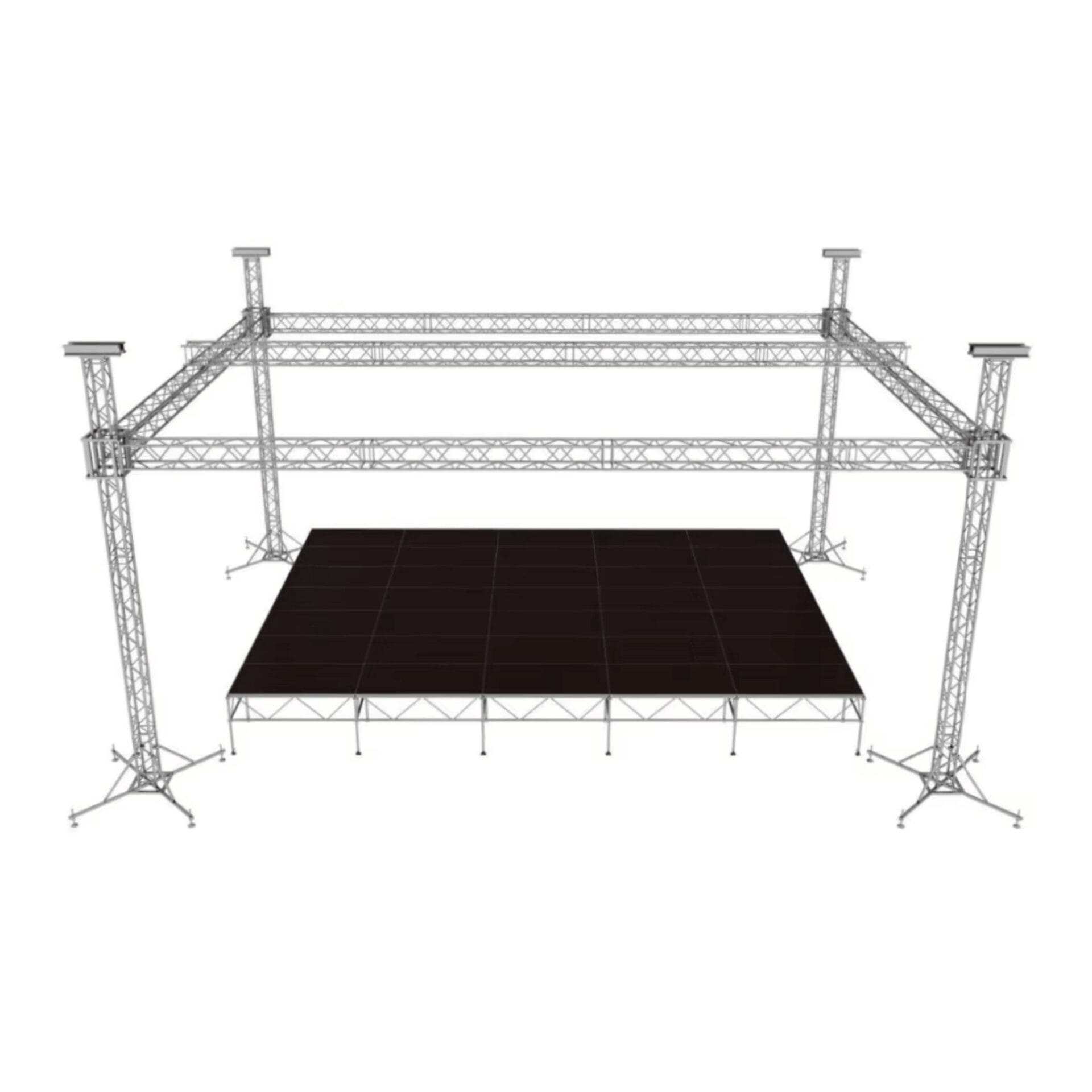

For example, a four-tower ground-support system can use sleeve blocks to connect the horizontal perimeter truss around a lighting grid. Different connection faces can also accommodate additional truss sections where the engineered design requires them.

This makes the system suitable for production companies that regularly build different event layouts and need reusable modular rigging components.

Best For

The Truss Sleeve Block 1-4 Directions is suited to:

• Ground-support lighting grids

• Concert and festival structures

• Wedding stage productions

• Corporate event stages

• Exhibition and trade-show structures

• Temporary stage roof systems

• LED screen support structures

• Theatre and performance setups

• AV installation projects

• Event-equipment rental companies

• Professional stage and rigging contractors

What's Included & Compatibility

The core product consists of the truss sleeve block assembly for a compatible ground-support tower system.

It is designed to work as part of a system that may include:

• F34-style 290 × 290 mm tower truss

• Compatible horizontal square truss

• Truss top section

• Chain hoist

• Ground-support base

• Outriggers and stabilisers

• Hinge connectors

• Conical connection hardware

• Approved rigging and safety components

Tower sections, chain hoists, bases, outriggers and horizontal truss are separate system components unless specifically included with the ordered package.

What Is a Truss Sleeve Block Used For?

A truss sleeve block connects horizontal truss sections to a vertical ground-support tower while allowing the connected structure to move vertically.

The chain-hoist system raises or lowers the sleeve block during stage and rigging installation.

How Many Directions Can This Sleeve Block Connect?

This sleeve block supports one to four horizontal connection directions.

It can therefore be incorporated into different ground-support layouts including single-direction, corner, T-style and four-way truss configurations.

What Size Truss Is It Designed For?

This configuration is based on F34-style 290 × 290 mm square truss, commonly described as 12-inch truss.

Connector dimensions and tower compatibility should still be checked before mixing components from different truss systems.

Does the Sleeve Block Move Up the Truss Tower?

Yes. Vertical movement is one of the main functions of a ground-support sleeve block.

The block surrounds the tower section and travels vertically as the compatible hoist system raises or lowers the attached horizontal truss structure.

Can It Be Used With a Chain Hoist?

Yes. Sleeve blocks are used as part of manual or electric chain-hoist ground-support tower systems.

The hoist, top section, sleeve block, tower and base must all be selected according to the engineered load and configuration of the complete structure.

What Is the Maximum Load Capacity?

The maximum permitted load cannot be determined from the sleeve block's four-way configuration alone.

Load capacity depends on the exact sleeve block, tower truss, top section, chain hoist, base, outriggers, connection hardware, tower height and complete structural design. Always follow the verified working-load data for the complete system.

Can the Sleeve Block Be Used Outdoors?

Ground-support truss systems can be engineered for outdoor events, but outdoor structures introduce additional forces from wind, roof coverings, banners and weather.

Outdoor installations require appropriate engineering, ballast, stabilisation and site assessment before use.

Rigging & Safety Requirements

The Truss Sleeve Block is a load-bearing stage-rigging component and must be installed by qualified personnel.

Never determine working load from the appearance or dimensions of the sleeve block alone. The maximum permissible load is governed by the complete engineered system and its lowest-rated component.

Tower height, base configuration, outriggers, ballast, hoist capacity, truss loading and environmental conditions must all be considered when designing a ground-support structure.

Do not substitute incompatible connectors or mix truss systems unless compatibility and structural performance have been properly verified.

Truss & Rigging Equipment in the UAE

Stagify supplies professional truss and rigging equipment across Dubai and the UAE for event-production companies, AV installers, venues, rental houses and professional stage contractors.

For complete ground-support installations, the sleeve block can be specified alongside compatible tower truss, top sections, chain hoists, bases, outriggers and horizontal truss systems.
