Truss Aluminum Base Plate

Truss Aluminum Base Plate – Secure and Stable Foundation for Your Stage Setup

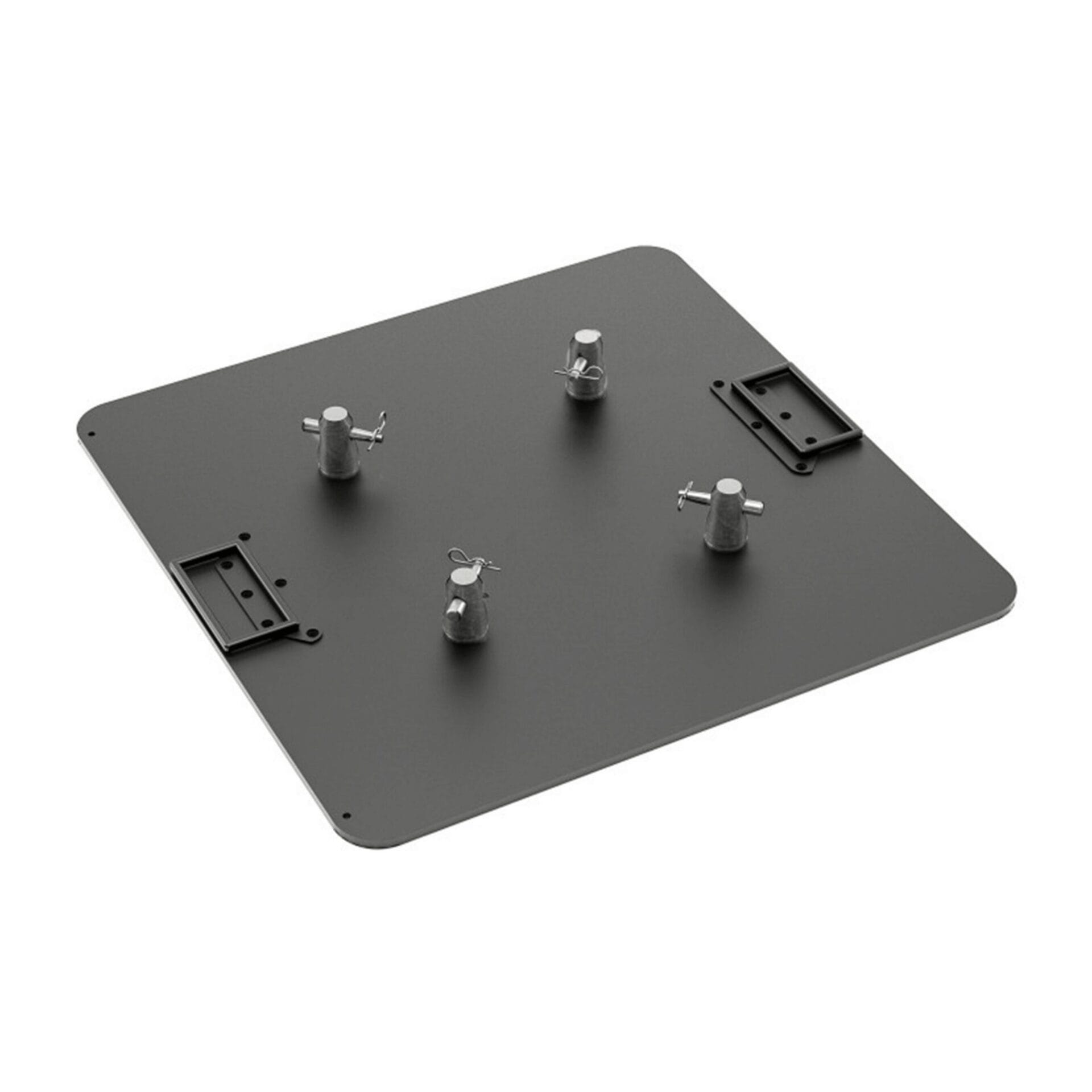

The Truss Aluminum Base Plate is a heavy-duty 610 × 610 mm foundation plate designed for professional F34 square and compatible triangular truss systems. Manufactured from 10 mm EN AW-6082 T6 aluminium and weighing approximately 10 kg, it creates a stable mounting platform for vertical truss towers, lighting totems, exhibition structures and professional event installations.

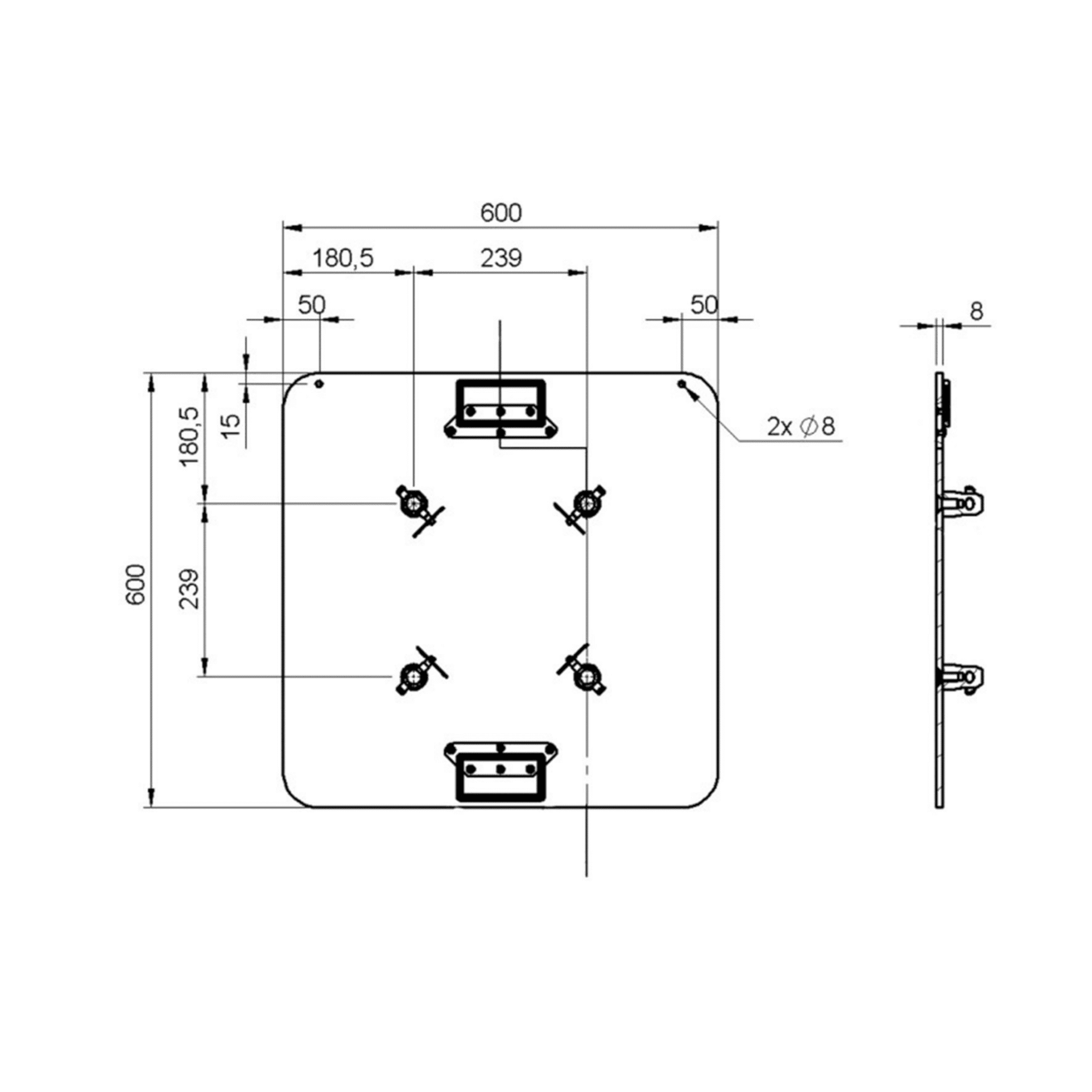

Technical Specifications

Stable Foundation for Vertical Truss Towers

A vertical aluminium truss tower requires a properly sized base to distribute the structure across the floor and provide a secure connection between the truss and supporting surface.

This 610 × 610 mm aluminium base plate provides a significantly larger footprint than compact 300 mm top plates, making it more suitable for the bottom of freestanding lighting towers and truss totems.

The plate is manufactured from 10 mm-thick aluminium, providing the rigidity needed for repeated professional event-production use while remaining substantially easier to handle than an equivalent steel plate.

At approximately 10 kg, the plate also adds useful weight at the bottom of a vertical truss structure without making transport unnecessarily difficult for production and rental crews.

EN AW-6082 T6 Aluminium Construction

The plate uses EN AW-6082 T6 aluminium, a high-strength aluminium alloy widely used across professional truss systems and structural event components.

This material provides a practical combination of:

• Structural strength

• Relatively low weight

• Corrosion resistance

• Good dimensional stability

• Durability for repeated installation

These characteristics make aluminium base plates especially useful for touring productions, rental inventories, exhibitions and temporary installations that are frequently assembled and dismantled.

610 × 610MM Base for 290MM Truss

The approximately 610 × 610 mm footprint gives a 290 mm-class truss tower a broader support area at floor level.

The base is designed around professional F34-style square truss geometry and can also be used with compatible triangular truss configurations where the connector layout matches.

Typical applications include:

• Moving-head lighting totems

• Wedding stage lighting

• Exhibition truss towers

• DJ lighting structures

• Corporate event displays

• Entrance structures

• Retail displays

• Stage lighting installations

• AV equipment structures

The larger footprint is particularly useful where a vertical truss needs greater stability than a compact 300 mm plate can provide.

10MM Plate Thickness

The 10 mm aluminium plate thickness gives the base greater rigidity than lightweight top plates commonly manufactured in 4 mm or 8 mm formats.

This matters at the bottom of a truss tower because the base must transfer forces between the vertical structure and the supporting surface.

The thicker plate also makes the product more suitable for repeated commercial use by production companies, venues and equipment-rental businesses.

Conical Truss Connection System

The base plate uses the conical connection system common to professional F34-style truss.

Compatible truss connectors attach the main chords of the vertical truss directly to the plate, creating a modular connection that can be assembled and removed without permanently modifying the truss.

A typical connection system uses:

• Half conical connectors

• Tapered truss pins

• Safety clips

• Compatible mounting hardware

The exact connector layout should always match the truss system being installed.

Designed for Truss Totems and Lighting Towers

One of the most common applications for an aluminium base plate is building a vertical truss totem.

A typical lighting totem consists of:

1. Aluminium base plate

2. Vertical F34 truss section

3. Aluminium top plate

4. Moving head or other compatible fixture

This creates a freestanding lighting position that can be used beside stages, DJ booths, wedding backdrops, entrances or exhibition displays.

Where the tower carries significant equipment or reaches greater heights, additional ballast or engineered stabilisation may be required.

Aluminum Base Plate vs Steel Truss Base

Aluminium and steel bases serve slightly different production requirements.

An aluminium base plate offers easier transportation and handling. A 610 mm professional aluminium plate can weigh around 10 kg, making it practical for rental crews who frequently load and unload equipment.

A comparable steel ground-support base can be considerably heavier and may incorporate wheels or outriggers for larger structural systems.

For lighting totems, exhibitions and portable vertical truss structures, aluminium is often the more practical option. Larger ground-support towers may require dedicated steel bases and engineered stabilisation.

Best For

The Truss Aluminum Base Plate is suitable for:

• Vertical F34 truss towers

• Moving-head lighting totems

• Wedding stage lighting

• Concert productions

• Corporate event setups

• DJ lighting structures

• Exhibition booths

• Trade-show displays

• Stage entrance structures

• Retail installations

• AV production companies

• Event-equipment rental businesses

• Professional lighting contractors

What's Included & Compatibility

The base plate configuration includes:

• 1 × aluminium truss base plate

• Compatible truss connection hardware

Designed for compatible:

• F34-style 290 mm square truss

• F32-style triangular truss

• Vertical lighting truss

• Truss totems

• Moving-head lighting structures

• Aluminium top plates

• Professional stage and exhibition structures

Lighting fixtures, vertical truss sections, ballast and other accessories are supplied separately unless specifically included with the ordered package.

What Is an Aluminum Truss Base Plate Used For?

An Aluminum Truss Base Plate creates the lower mounting surface for a vertical aluminium truss tower or lighting totem.

It connects the truss to a broad flat plate, helping distribute the structure over the supporting floor.

What Size Is the Truss Base Plate?

This professional configuration measures approximately 610 × 610 mm, equivalent to 24 × 24 inches.

The plate is 10 mm thick.

How Much Does the Aluminum Base Plate Weigh?

The documented 610 × 610 × 10 mm configuration weighs approximately 10 kg or 22 lb.

This provides additional mass at the base while remaining manageable for professional event-production crews.

What Type of Truss Fits the Base Plate?

The plate is designed primarily for F34-style 290 mm square aluminium truss.

Professional versions of this format can also support compatible F32 triangular truss when the connection layout matches.

Can I Use It for a Moving Head Lighting Totem?

Yes. Moving-head totems are one of the common applications for this type of aluminium truss base plate.

A vertical truss section can be mounted to the base with a suitable top plate installed above for the lighting fixture.

Does the Base Plate Include Truss Connectors?

Professional base plates in this configuration are supplied with the required truss connecting hardware.

Always verify that the connector type matches the exact truss system being used before installation.

Is a 610MM Base Plate More Stable Than a 300MM Plate?

A 610 × 610 mm base provides a significantly larger floor footprint than a compact 300 × 300 mm plate.

However, tower stability cannot be determined from base dimensions alone. Truss height, fixture weight, ballast, centre of gravity and environmental conditions all affect the stability of the complete structure.

How High Can I Build a Truss Tower on This Base?

There is no safe universal tower height that can be determined from the base plate alone.

Permitted height depends on the truss system, base configuration, attached equipment, ballast, load position and engineering of the complete installation.

Always use the truss manufacturer's structural data or a qualified rigging professional when designing taller or load-bearing structures.

What Is the Load Capacity of the Base Plate?

A standalone Safe Working Load should not be assigned to this plate independently of the complete truss system unless the manufacturer publishes one for the exact configuration.

The allowable load depends on the truss system, tower height, load position, connectors, base arrangement and structural design.

Use the applicable truss-system load tables rather than treating the base plate as an independently rated lifting component.

Can It Be Used Outdoors?

The aluminium plate itself can form part of an outdoor installation, but outdoor truss towers require additional structural consideration.

Wind loading, ballast, surface conditions, tower height and attached banners or fixtures can substantially affect stability. Outdoor structures should be designed and installed by qualified personnel.

Rigging & Safety Requirements

The Truss Aluminum Base Plate is a structural truss component and should be used as part of a properly planned installation.

Before every setup, inspect:

• Base plate condition

• Conical connectors

• Truss pins

• Safety clips

• Vertical truss

• Fixture mounting hardware

Do not use components showing cracks, deformation, damaged holes or excessive wear.

The dimensions or thickness of the plate alone do not determine the safe load or maximum tower height. The complete structure, including truss, base, ballast, fixtures and connection hardware, must be evaluated together.

Professional load-bearing truss structures should be installed and assessed by qualified rigging personnel.

Order Aluminum Truss Base Plates in the UAE

Stagify supplies professional truss, rigging and stage-production equipment across Dubai and the UAE for event-production companies, AV installers, DJs, venues, exhibition contractors and rental businesses.

The Truss Aluminum Base Plate can be combined with compatible F34 aluminium truss, top plates, lighting clamps and moving heads to create professional lighting towers and event structures.
