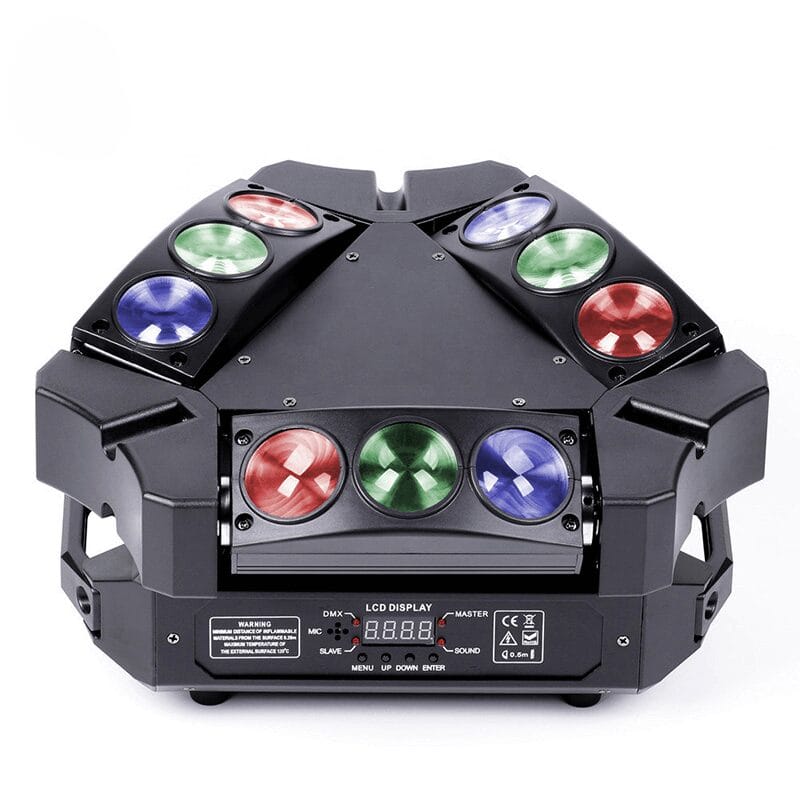

Three Side Spider 9 LED Moving Headlight

Three Side Spider 9 LED Moving Headlight – Dynamic Lighting for Unforgettable Effects

The Three Side Spider 9 LED Moving Headlight is a 180W multi-directional stage effect designed for DJs, clubs, concerts, wedding entertainment and live-performance environments. Its distinctive three-sided optical design uses nine LED sources to send moving coloured effects in several directions, creating a much more dynamic visual field than a conventional single-head wash or beam fixture.

With RGB colour mixing, DMX512 compatibility and motorised movement, the Spider light can work as a centrepiece effect above a dance floor, behind a DJ booth or within a larger stage-lighting rig. Its wide-voltage AC90–240V / 50–60Hz input also covers standard UAE mains supply.

Technical Specifications

Specification	Details
Product Type	Three-Side Spider LED Moving Effect
LED Quantity	9 LEDs
Colour System	RGB colour mixing
Published Fixture Power	180W
Control Protocol	DMX512
Movement	Motorised / moving effect
Optical Design	Three-sided, multi-directional
Input Voltage	AC90–240V
Frequency	50–60Hz
Product Dimensions	458 × 423 × 186 mm
Product Weight	10.6 kg
Recommended Use	DJs, clubs, concerts, stages and event entertainment
Environment	Dry indoor / protected installation recommended

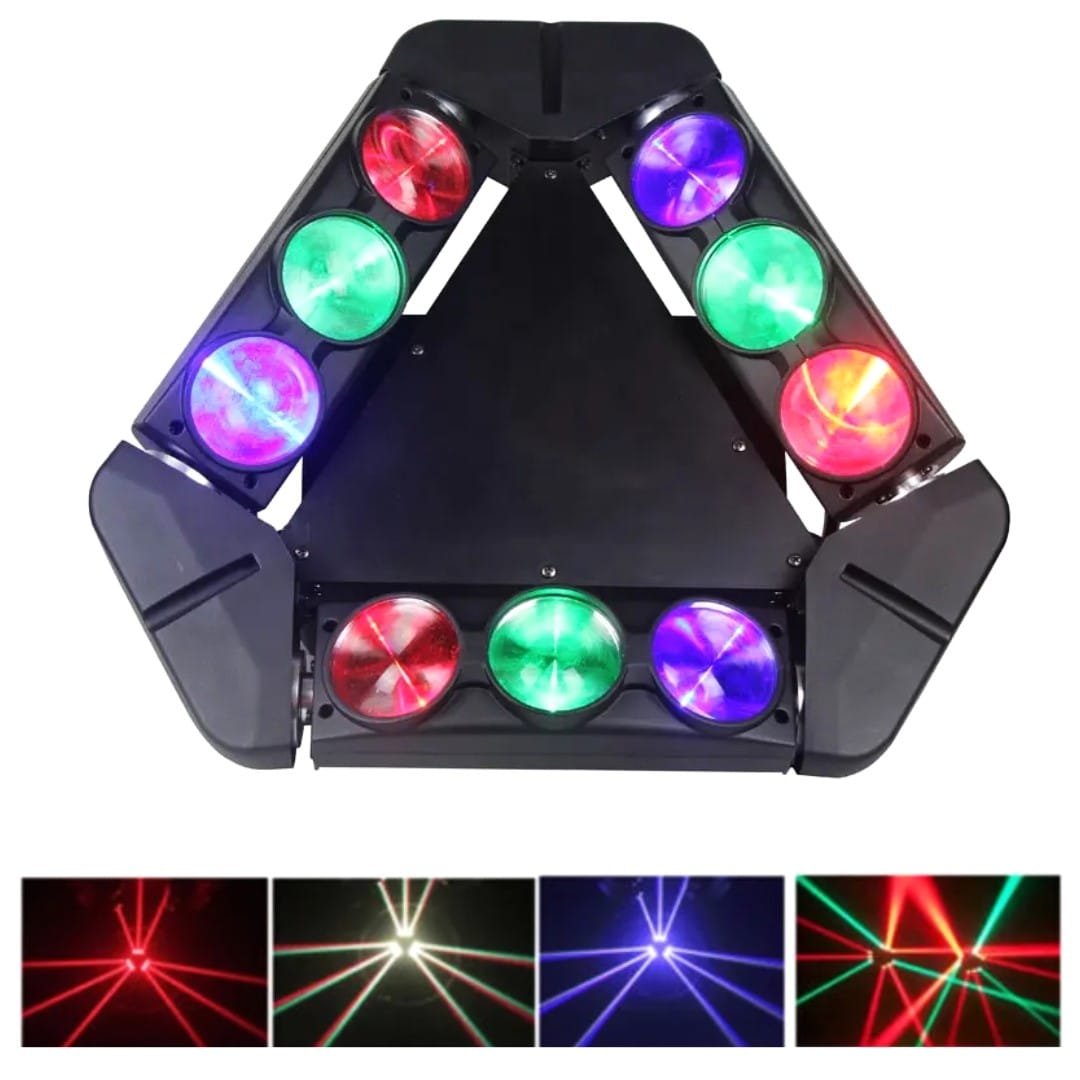

Three-Sided Spider Effect

The defining feature of this fixture is its three-sided moving architecture.

Rather than projecting all nine LEDs from one conventional head, the fixture distributes the light across three moving sections.

This allows the effect to spread in several directions around the venue.

Potential projection areas include:

• Dance floors

• Walls

• Ceilings

• Stage scenery

• DJ backdrops

• Club interiors

The result is better suited to creating movement and visual energy than a conventional static PAR fixture.

Nine LED Sources

The exact supplier confirms:

9 LED sources

arranged across the three-sided design.

This makes the fixture particularly suitable for chase-style and multi-directional moving effects.

However, the supplier does not publish the wattage of each LED.

For Stagify, use:

9 LEDs

rather than assuming:

• 9 × 10W

• 9 × 12W

• 9 × 15W

• 9 × 20W

even though similar Spider fixtures exist with those configurations.

Do Not Calculate LED Wattage from 180W

The supplier lists the complete product power as:

180W

That does not prove that each of the nine LEDs is rated at 20W.

A moving-effect fixture also consumes power through:

• Motors

• Control electronics

• Power supply

• Displays, if fitted

• Cooling components

Therefore:

180W fixture power ≠ confirmed 9 × 20W LEDs

Until the LED modules are physically identified, the individual wattage should remain unpublished.

RGB Colour Mixing

The exact supplier specifically confirms:

RGB colour mixing

providing red, green and blue as the documented colour system.

These colours can be combined to create a range of entertainment effects.

Typical visual combinations may include:

• Red

• Green

• Blue

• Yellow-style mixes

• Cyan-style mixes

• Magenta-style mixes

• Mixed white-style RGB output

The actual colour programmes depend on the fixture's operating controls.

RGB vs RGBW Requires Verification

This is one specification where it is important not to copy from another Spider fixture.

The exact supplier describes this SKU as:

RGB

However, independent three-side Spider platforms often use RGBW 4-in-1 LEDs.

For example, ABD Lighting lists a:

9 × 12W RGBW 4-in-1 Three Side Spider Moving Head Fixture.

ADJ's KAOS platform also uses nine RGBW LEDs.

Those products show that RGBW versions exist, but they do not prove this 180W Stagify/TOP PRO fixture uses white LEDs.

Therefore, publish:

RGB colour mixing

until the physical stock or manual confirms RGBW.

Multi-Directional Lighting

The supplier describes the three-sided design as providing 360-degree coverage.

That wording should be understood as marketing for its broad multi-directional effect rather than a confirmed numerical pan specification.

The fixture can direct effects toward several areas of a room instead of operating as a single fixed beam.

This makes it useful as:

• A dance-floor centrepiece

• Club ceiling effect

• DJ booth effect

• Rear-stage moving effect

• Entertainment-area feature light

Important 360° Clarification

The supplier says the three-sided design creates 360-degree coverage, but it does not publish:

• 360° pan

• Infinite pan

• Pan range

• Individual head rotation

• Tilt range

These are different technical specifications.

Therefore, Stagify should not convert the supplier's coverage claim into:

360° continuous pan

unless the manual confirms it.

The safer wording is:

Multi-directional three-sided moving effect

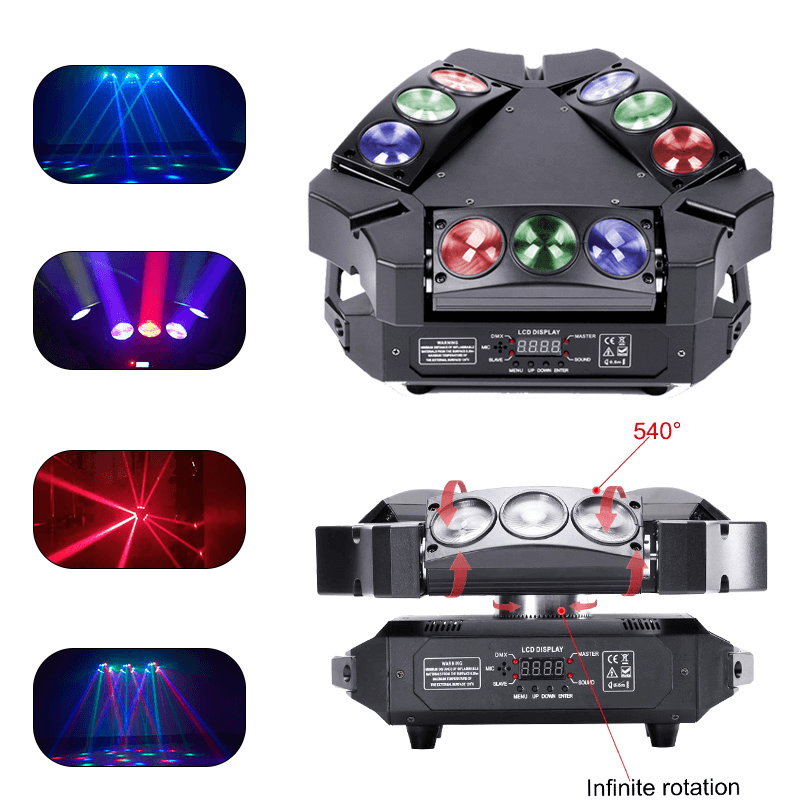

Motorised Movement

Smooth moving effects are explicitly promoted by the supplier.

Movement allows the fixture to redirect its coloured output throughout a performance.

This creates more visual activity than a fixed LED bar or PAR.

Movement can be used during:

• DJ music drops

• Dance performances

• Stage transitions

• Wedding entrances

• Club effects

• Concert sequences

Pan and Tilt Angles Are Not Confirmed

The exact supplier does not publish numerical motor ranges.

Do not automatically use figures such as:

• 540° pan

• 360° pan

• 180° tilt

• 60–150° tilt

from other Spider fixtures.

Those values vary considerably by platform.

For this product, keep the specification simply as:

Motorised moving effect

until the manual is checked.

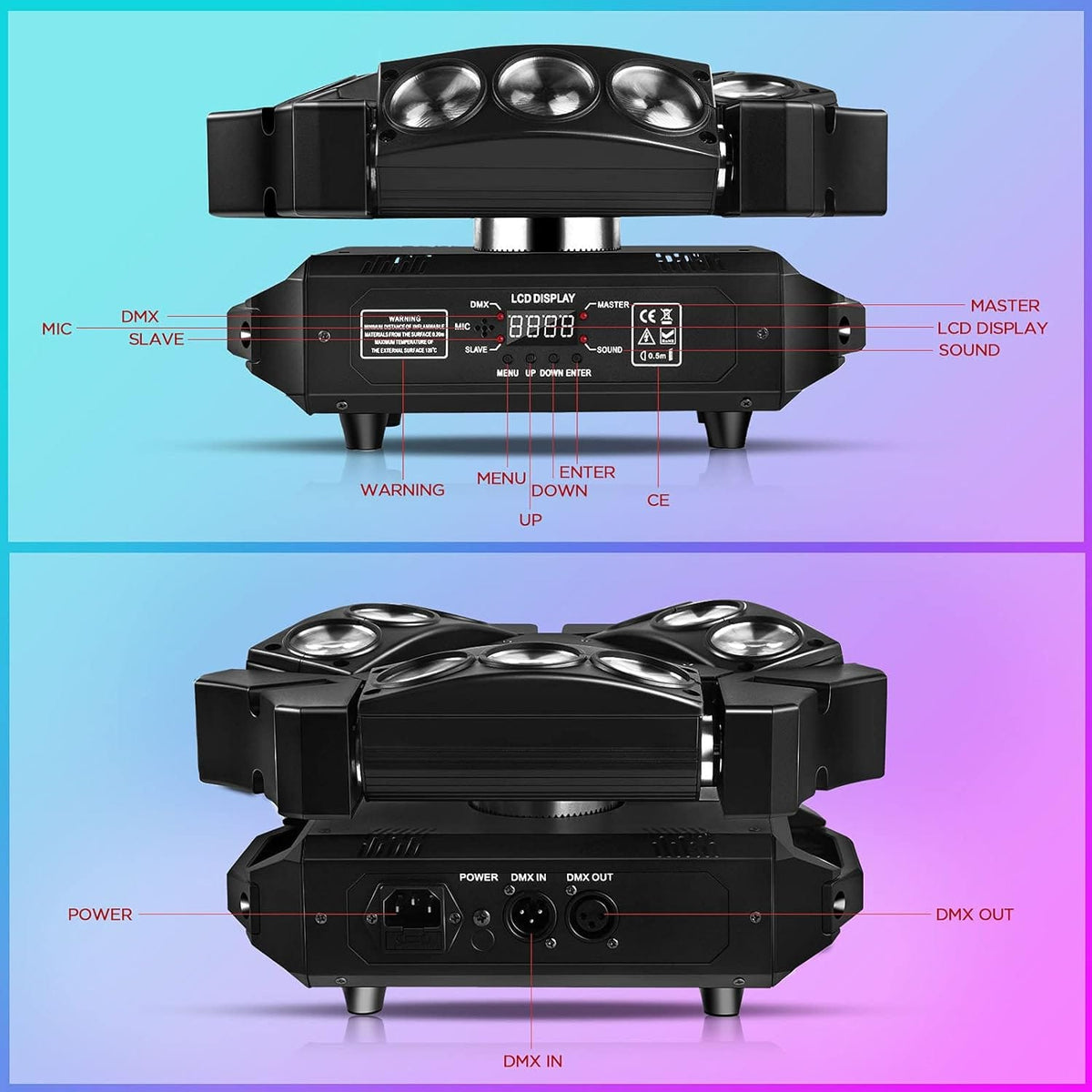

DMX512 Compatibility

The supplier explicitly confirms:

DMX512 compatibility

This allows the Spider fixture to integrate with a lighting controller and work alongside other stage equipment.

A programmed lighting system can include:

• Moving heads

• PAR fixtures

• Strobes

• Lasers

• Spider effects

• Wall washes

• Other DMX fixtures

DMX makes the fixture more suitable for repeatable event cues than a simple consumer party light.

DMX Channel Count Is Not Published

The exact supplier does not state how many DMX channels this unit uses.

This is especially important because similar three-sided fixtures vary greatly.

For example, the ADJ KAOS supports:

• 2CH

• 6CH

• 15CH

• 23CH

• 45CH

while other Spider platforms may use entirely different personalities.

Do not transfer any of those channel counts into this SKU.

Use:

DMX512 compatible

until the actual manual is available.

Why DMX Matters for a Spider Effect

A fixture with several moving light sections benefits from programmed control.

DMX can potentially coordinate functions involving:

• Colours

• Movement

• Chase effects

• Built-in programmes

• Effect speed

The exact control map should come from the supplied manual.

This is especially important when adding the fixture to an existing console library.

Suitable as a Centrepiece Effect

A Spider-style fixture works especially well where a single light needs to send effects across a wide entertainment space.

One unit can be positioned:

• Above a dance floor

• Above a DJ booth

• On rear truss

• In a club ceiling rig

• At the centre of a stage-effects setup

The multi-sided construction makes the fixture visually different from a conventional moving head that directs one beam from a single lens.

DJ Lighting Applications

For DJs, the Spider can provide the movement layer of a compact lighting setup.

A typical combination might include:

• Spider moving effect

• RGB/RGBW PAR lights

• Strobes

• Haze machine

The PAR fixtures provide background colour while the Spider adds moving multi-directional beams.

This creates a more varied setup than using only static colour washes.

Club and Nightclub Applications

The product is particularly relevant to nightclubs because the effect can spread around a room rather than staying focused in one direction.

Potential locations include:

• Central ceiling positions

• Rear DJ truss

• Dance-floor trussing

• Stage structures

Multiple fixtures may also be used for more symmetrical designs.

Wedding Entertainment

The Spider is better suited to the entertainment portion of a wedding than the formal illumination portion.

Useful moments can include:

• Couple entrance

• Dance-floor opening

• DJ set

• Entertainment sequence

• Finale

For:

• Speeches

• Photography

• Stage portraits

• General guest illumination

use dedicated wash, PAR or follow-spot fixtures instead.

Concert and Live-Stage Use

For live events, the fixture can add background movement around:

• Musicians

• DJs

• Dance groups

• Stage scenery

It should primarily be treated as an effect light rather than the main source for performer illumination.

RGB Spider vs Conventional Moving Head

A conventional moving head usually concentrates its optical output through one main lens.

The Three Side Spider is designed differently.

Its key advantage is:

multi-directional movement

rather than one traditional spot or beam.

Choose a Spider fixture when:

• Sweeping effects are the priority

• A centrepiece effect is required

• Multiple directions need visual activity

Choose a conventional moving head when:

• Precise beam positioning matters

• Gobo projection is required

• Spotlighting is the objective

• Long-distance projection is needed

Spider Effect vs Moving Head Wash

A moving wash is designed primarily to spread colour across performers or scenery.

The Spider is more effect-oriented.

Moving Wash:

• Broad colour coverage

• Stage illumination

• Smooth RGB/RGBW wash

Three Side Spider:

• Multi-directional moving output

• Dance-floor effects

• DJ and club movement

• Centrepiece lighting

The two fixture types can work together.

Spider Effect vs Beam Moving Head

Beam moving heads such as the 295W or 380W discharge fixtures are designed to produce narrow, long-distance aerial beams.

This Spider fixture serves a different role.

It prioritises:

• Multiple LED sources

• Multi-directional movement

• RGB colour

• Wide visual activity

rather than one extremely concentrated beam.

180W Published Fixture Power

The exact supplier specification lists:

180W

for the fixture.

Use this figure for basic electrical planning unless the physical rating label states otherwise.

For example:

2 fixtures: approximately 360W
4 fixtures: approximately 720W
6 fixtures: approximately 1.08kW

Other event equipment must be calculated separately.

Important 180W Cross-Check

The 180W specification deserves a stock check because the supplier's published dimensions and weight closely match another established Spider-style fixture.

ADJ's KAOS uses a very similar three-moving-bar layout and is documented at:

• 9 × 10W RGBW LEDs

• 140W maximum consumption

• 10.6 kg

• approximately the same chassis size.

The exact TOP PRO/Stagify supplier instead states:

180W

Therefore, Stagify should retain 180W as the exact supplier value but verify the physical nameplate before final publication.

Do not silently replace it with 140W.

Exact Dimensions

The supplier publishes:

45.8 × 42.3 × 18.6 cm

or:

458 × 423 × 186 mm

These are actual product dimensions according to the exact listing.

The unusual dimensions also provide a useful clue to the underlying fixture family.

10.6 kg Weight

The exact supplier lists:

10.6 kg

This is published simply as product weight.

Unlike some other products where the supplier specifically labels the value gross weight, this page does not identify 10.6 kg as packed weight.

It can therefore be listed as:

Weight: 10.6 kg

while avoiding stronger wording such as “net weight” unless the manual confirms it.

Rigging Considerations

At 10.6 kg, this fixture is substantially heavier than compact mini party lights.

For overhead installation:

• Use appropriately rated clamps.

• Use an independent secondary safety attachment.

• Confirm the truss or support structure.

• Secure power and DMX cabling.

• Leave sufficient movement clearance.

• Keep the fixture dry.

The moving sections must have enough clearance to operate without hitting:

• Truss

• Cables

• Décor

• Other fixtures

Movement Clearance Is Important

Because the fixture uses several moving sections, installation space matters.

Before operation:

• Run a full movement test.

• Confirm no moving section can contact a cable.

• Confirm neighbouring lights do not obstruct it.

• Keep decorations outside the movement area.

This is particularly important in low-ceiling club installations.

AC90–240V Wide-Voltage Input

The exact input specification is:

AC90–240V / 50–60Hz

This covers standard UAE:

220–240V / 50Hz

mains supply.

The documented electrical range therefore supports UAE operation.

UAE Plug Type Is Not Confirmed

The voltage range does not identify the included wall plug.

Do not advertise:

UAE/UK Type G plug included

until physical stock is checked.

Outdoor Claim Requires Caution

The supplier marketing says the fixture can be used for both indoor and outdoor events.

However, the page provides no IP rating.

This means the outdoor statement does not prove weather resistance.

For Stagify, the safer positioning is:

Dry indoor use or protected event environments

Do not advertise:

• IP65

• Waterproof

• Rainproof

• Weather-resistant

• Exposed outdoor operation

without an actual IP rating.

No IP Rating Confirmed

An IP rating is a technical enclosure-protection specification.

None is provided on the exact page.

Therefore, keep the fixture protected from:

• Rain

• Water spray

• Excess moisture

until the manufacturer documentation confirms otherwise.

Haze Can Improve Beam Visibility

A Spider effect becomes more visually pronounced when controlled atmospheric haze makes the beam paths visible through the air.

Without haze, effects may primarily appear on:

• Walls

• Floors

• Ceilings

• Scenery

With haze, the moving light paths themselves can become easier to see.

Before using haze:

• Confirm venue permission.

• Check fire-alarm requirements.

• Maintain clear emergency exits.

• Avoid excessive haze density.

Best For

The Three Side Spider 9 LED Moving Headlight is particularly suitable for:

• Mobile DJs

• Nightclubs

• Bars and lounges

• Dance floors

• Concerts

• Wedding entertainment

• Live performances

• Small and medium stages

• Event-production companies

• Lighting rental businesses

Its strongest catalogue role is as a multi-directional RGB moving effect rather than a conventional beam, spot or wash fixture.

What This Fixture Is Not Best For

Consider a different product where the job requires:

• Dedicated performer wash

• Follow-spot operation

• Precise spot projection

• Confirmed interchangeable gobos

• Long-distance discharge beam

• Outdoor rain exposure

• Battery operation

• High-CRI photography lighting

This fixture is primarily designed to create moving entertainment effects.

Three Side Spider vs LED Stage Moving Head DJ Light 4in1

The LED Stage Moving Head DJ Light 4in1 has a different visual architecture.

That model has confirmed:

• 10 × 12W RGBW LEDs

• Integrated red/green laser

• 22CH DMX

• 1–20 flashes/sec

• 0–100% dimming

Choose the 4in1 model where:

• Laser effects are wanted

• RGBW output matters

• A more detailed DMX specification is required

Choose the Three Side Spider where:

• Three-sided movement is the priority

• A central multi-directional effect is preferred

• The distinctive Spider-style look is required

Three Side Spider vs Mini Bee 6 Eye

The Mini Bee 6 Eye RGBW Moving Stage Light provides a smaller multi-beam alternative.

Choose Mini Bee when:

• Smaller size matters

• A compact multi-eye fixture is preferred

Choose the Three Side Spider when:

• A larger centrepiece is required

• Nine LED sources are preferred

• Three-sided effects are the desired visual style

Three Side Spider vs 295W Beam Moving Head

The 295W Beam Moving Head Stage Light is designed for narrow, high-intensity beam projection.

The Three Side Spider instead creates:

• Multiple LED effects

• Multiple movement directions

• RGB colour

• Broader entertainment coverage

The two fixtures serve fundamentally different jobs.

What's Included & Compatibility

Confirmed core product:

• 1 × Three Side Spider 9 LED Moving Headlight

Compatible system categories include:

• DMX512 lighting controllers

• DMX cabling

• Aluminium stage truss

• Rated clamps

• Secondary safety attachments

• Haze machines

• Other DMX stage lights

The exact supplier page does not provide a formal package list.

Do not promise the following as included until Stagify stock is inspected:

• Omega brackets

• Clamp

• Safety cable

• PowerCon lead

• DMX cable

• Remote control

• Flight case

How Many LEDs Does It Have?

The exact supplier confirms:

9 LEDs

What Is the Individual LED Wattage?

It is not published.

Do not calculate 180W ÷ 9 and describe the fixture as 9 × 20W.

The complete fixture also powers motors and electronics.

Is It RGB or RGBW?

The exact supplier says:

RGB colour mixing

RGBW versions of similar Three Side Spider fixtures exist, but white is not confirmed for this SKU.

How Much Power Does It Use?

The exact supplier lists:

180W

A physical nameplate check is recommended because similar hardware platforms are also sold with lower published consumption.

Does It Support DMX512?

Yes.

DMX512 compatibility is explicitly confirmed.

How Many DMX Channels Does It Use?

The exact channel count is not published.

Do not copy channel modes from ADJ KAOS or another Spider fixture.

Does It Have Sound-Activated Mode?

Sound control is not confirmed on the exact supplier page.

Do not add it based on other Spider fixtures.

Does It Support Master/Slave?

Master/Slave is not documented on the exact product page.

Does It Have Auto Mode?

Automatic operation is not explicitly documented as a hard specification.

Does It Have Strobe?

A strobe effect is not documented by the exact supplier.

Do not copy one from the ADJ or ABD platforms.

Does It Have Dimming?

A numerical dimming range is not published.

What Is the Beam Angle?

The exact supplier does not publish a beam angle.

Do not copy the 5° specification from the ADJ KAOS.

What Are the Pan and Tilt Angles?

No numerical pan or tilt ranges are published.

Does It Rotate 360 Degrees?

The supplier markets the three-sided arrangement as providing 360-degree coverage.

That is not the same as confirming 360° mechanical rotation.

What Are the Dimensions?

The exact size is:

458 × 423 × 186 mm

How Much Does It Weigh?

The supplier lists:

10.6 kg

Does It Work on UAE Voltage?

Yes.

The AC90–240V / 50–60Hz range covers normal UAE electrical supply.

The exact supplied plug type remains unconfirmed.

Can It Be Used Outdoors?

The supplier marketing mentions outdoor events, but there is no confirmed IP rating.

For catalogue accuracy, recommend dry indoor or properly protected installation rather than exposed outdoor operation.

Contact Stagify for current availability and confirmation of the exact supplied accessories before ordering.
