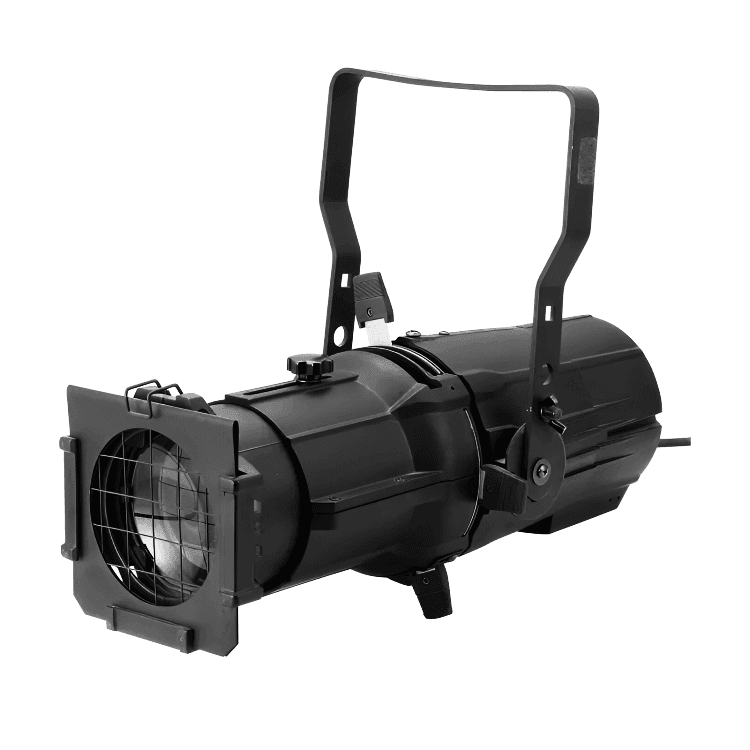

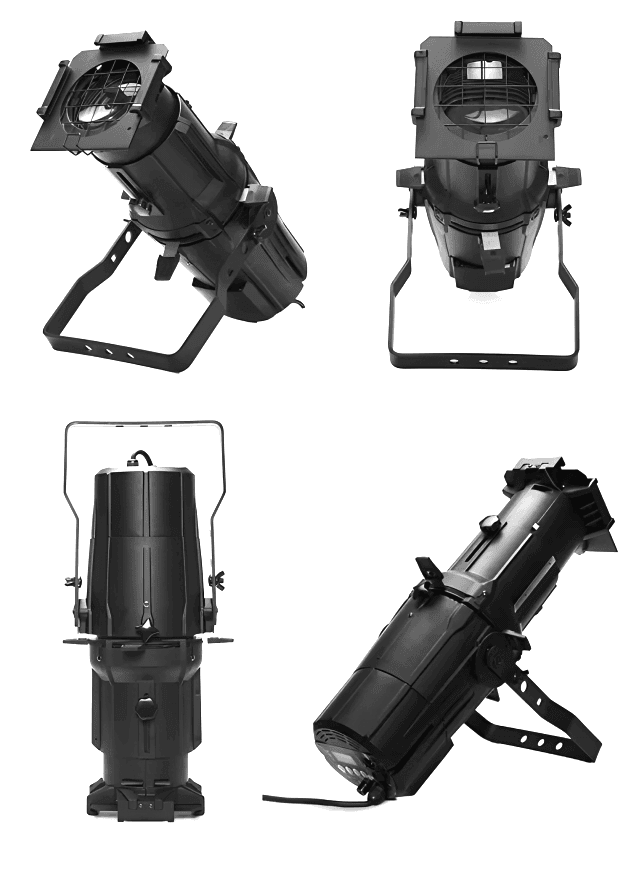

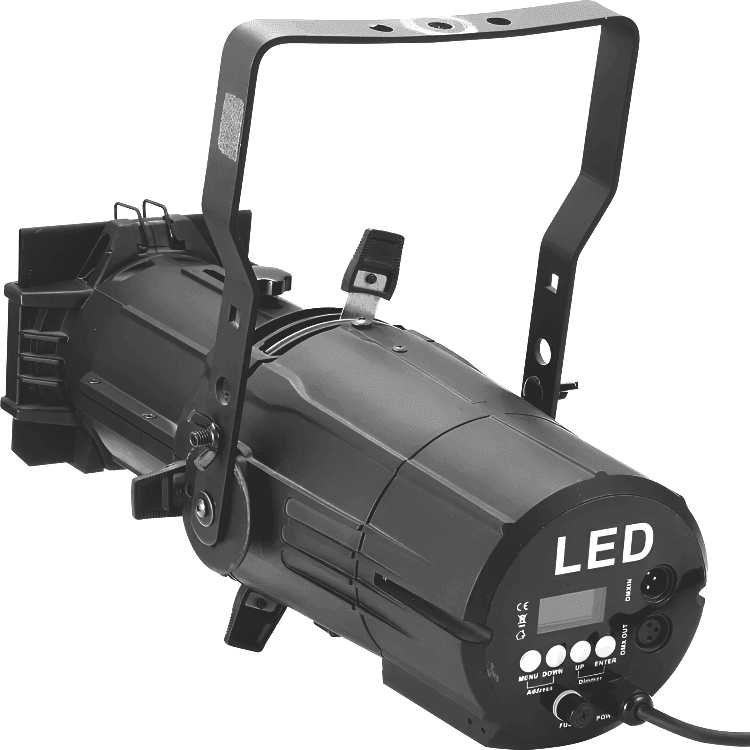

Stage LED Profile Light

Stage LED Profile Light

The Stage LED Profile Light is a 200W COB theatrical fixture designed for precise performer lighting, stage-area isolation and controlled white-light projection. With CRI ≥95, 3200K/5600K colour-temperature options, 19°/26°/36° optics, linear dimming and DMX512 control, it is suited to theatres, auditoriums, studios, wedding stages and professional event productions.

Technical Specifications

200W COB LED Source

The fixture uses a 200W COB LED source to produce concentrated white-light output for stage and studio applications.

Unlike a colour-changing effects fixture, a profile light is designed primarily around accurate placement and control of white light.

It is particularly useful for illuminating:

• Actors

• Speakers

• Singers

• Presenters

• Podiums

• Stage zones

• Scenic details

The concentrated optical system allows lighting designers to illuminate a specific area without washing the entire stage.

CRI ≥95 for Accurate Colour Rendering

A major advantage of this fixture is its published CRI of at least 95.

High CRI is especially useful when lighting:

• Faces

• Costumes

• Products

• Décor

• Theatre scenery

• Camera-facing presenters

A higher colour-rendering index helps skin tones and materials appear more natural than they may under lower-CRI entertainment lighting.

This makes the profile particularly relevant to theatres, corporate stages, studios and wedding productions where visual presentation matters.

3200K Warm White Option

The 3200K configuration produces warmer white light similar in appearance to traditional tungsten stage lighting.

Warm white works well for:

• Theatre productions

• Wedding stages

• Hospitality venues

• Warm scenic designs

• Musicians and performers

• Traditional décor

It can also help the fixture blend with other warm-white stage luminaires.

5600K Cool White Option

The 5600K configuration provides a cooler daylight-style white.

This is useful for:

• Corporate stages

• Studios

• Presentations

• Modern event designs

• Camera-facing applications

• Auditoriums

The cooler output can provide a cleaner appearance where the rest of the production is designed around daylight-balanced lighting.

Dual-Colour Configuration

The supplier also lists a 2-in-1 colour-temperature version.

Its DMX specification separates:

• 2 channels for single-colour operation

• 4 channels for dual-colour control

This indicates that different product configurations are available.

Before the Stagify product variant is published, confirm whether current stock is:

• 3200K only

• 5600K only

• Dual-colour 3200K/5600K

This is particularly important because buyers may choose the fixture specifically for its colour-temperature requirements.

19°, 26° and 36° Optical Options

The supplier lists three optical-angle options:

• 19°

• 26°

• 36°

These provide different coverage depending on mounting distance and stage size.

19°
Provides a tighter projection and is useful for longer throws or smaller isolated areas.

26°
Offers a middle ground between throw and coverage.

36°
Provides broader coverage for shorter-distance installations or larger stage zones.

The appropriate lens should be selected according to the venue and desired projection size.

Not a Conventional Wash Light

A profile fixture serves a different purpose from an LED PAR or Fresnel.

Its strength is controlled projection.

Choose a Stage LED Profile Light when you need:

• Defined lighting areas

• Performer isolation

• Precise stage coverage

• Controlled edges

• White key lighting

• Theatre-style lighting

Choose a PAR or moving wash when you need broad colour coverage across an entire stage.

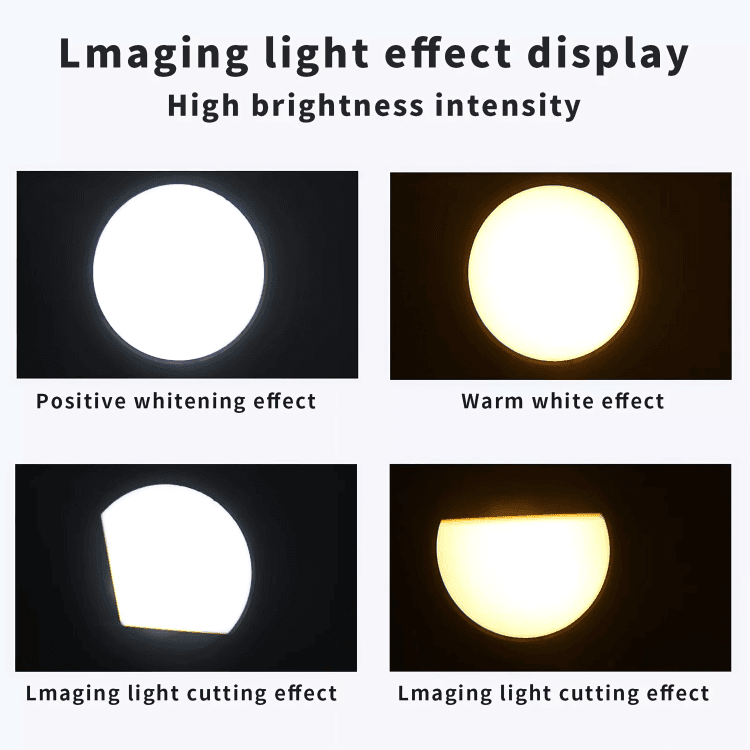

Cut-Off Light Control

The manufacturer lists cut-off light as one of the fixture's optical functions.

Profile fixtures are designed to provide more control over where light begins and ends compared with a standard flood or PAR.

This is useful when a lighting designer needs to illuminate a presenter without spilling unnecessary light onto:

• Projection screens

• Curtains

• Adjacent scenery

• LED displays

• Other stage zones

Controlled light placement is one of the main reasons profile fixtures remain important in theatre and corporate production.

Focused Light for Performers and Speakers

The fixture can be used to create a defined spotlight around a specific performer or presentation position.

Typical applications include:

• Theatre actors

• Conference speakers

• Wedding stages

• Lecterns

• Solo performers

• Musical ensembles

• Product displays

Multiple profile fixtures can be positioned from different angles to create a complete key, fill and stage-lighting system.

Soft-Light Capability

The supplier also lists a soft-light function.

This gives designers more flexibility when they do not want an extremely hard-edged projection.

A softer look can work well for:

• Corporate presentations

• Wedding stages

• Interviews

• Scenic illumination

• General performer lighting

The exact optical adjustment mechanism should be confirmed from the physical fixture and supplied lens assembly before publishing detailed focusing instructions.

0–100% Linear Dimming

The fixture provides 0–100% linear dimming.

This allows lighting operators to adjust output smoothly from blackout to full intensity.

Dimming is particularly important in theatre and live production because light levels may need to change gradually between scenes.

For example:

Presentation: moderate neutral white.

Performance entrance: gradual fade up.

Theatre transition: slow fade down.

Stage highlight: stronger focused output.

DMX control allows these transitions to become part of programmed show cues.

2-Channel Single-Colour DMX Mode

Single-colour versions use a documented 2-channel DMX configuration.

This keeps DMX consumption low when several profile fixtures are installed in one lighting system.

The exact channel assignments should be checked from the fixture manual before programming.

4-Channel Dual-Colour DMX Mode

The dual-colour configuration uses 4 DMX channels.

This provides additional control required by the 2-in-1 white-light system.

For installations using multiple warm/cool fixtures, the larger personality allows the lighting operator to manage the colour-temperature configuration from the lighting system.

DMX512 Integration

The fixture supports standard DMX512 control.

It can therefore operate alongside professional stage equipment such as:

• Moving head lights

• LED PAR fixtures

• Fresnels

• Blinders

• Other profile lights

A central lighting desk can coordinate profile intensity with the rest of the stage production.

This is particularly useful in theatre, auditorium and event environments where lighting changes need to follow programmed cues.

Standalone Operation

The supplier also confirms self-running operation.

This gives users a way to operate the fixture without a full DMX lighting console.

Standalone operation can be useful for:

• Small venues

• Permanent presentation setups

• Simple studio configurations

• Basic event installations

For theatre and professional live productions, DMX remains the preferred control method.

Master-Slave Operation

Multiple compatible fixtures can also operate in Master-Slave mode.

This allows linked units to follow a lead fixture.

For larger productions where each profile needs a different intensity or colour temperature, individual DMX control provides greater flexibility.

200W Rated Power

The complete fixture is rated at 200W.

For preliminary electrical planning:

• 2 fixtures = approximately 400W

• 4 fixtures = approximately 800W

• 8 fixtures = approximately 1.6kW

These figures cover the profile fixtures only.

LED screens, audio equipment, moving heads and other event equipment must also be included when calculating the total electrical load.

AC100–240V / 50–60Hz Input

The fixture accepts AC100–240V at 50/60Hz.

This range covers standard UAE 220–240V / 50Hz mains supply.

The exact plug supplied with Stagify inventory should still be physically checked before stating that a UAE Type G plug is included.

IP20 Indoor Fixture

The Stage LED Profile Light has a documented IP20 protection rating.

It is therefore intended for dry indoor environments such as:

• Theatres

• Studios

• Auditoriums

• Hotel ballrooms

• Conference halls

• Indoor stages

• Houses of worship

It should not be advertised as waterproof or weather-resistant.

For exposed outdoor productions, use a profile fixture with a confirmed outdoor IP rating.

590 × 265 × 265MM Housing

The fixture measures approximately:

590 × 265 × 265 mm

and has a documented net weight of:

6.8 kg

These figures are important when planning:

• Truss loads

• Flight cases

• Storage

• Transport

• Mounting positions

At 6.8 kg, overhead installation still requires appropriately rated mounting equipment and an independent secondary safety attachment.

Rated LED Life Up to 50,000 Hours

The manufacturer publishes a 50,000-hour LED life rating.

This represents the rated life of the LED source under appropriate operating conditions rather than a guarantee that every fixture will produce identical output for exactly 50,000 hours.

Actual service life can depend on:

• Operating temperature

• Usage duration

• Maintenance

• Power quality

• Heat management

LED technology avoids the frequent lamp replacement associated with older tungsten profile fixtures.

Profile Light vs LED PAR Light

These fixtures perform different jobs.

Choose the Stage LED Profile Light when you need:

• Precise white-light placement

• High CRI

• Controlled beam edges

• Performer isolation

• Theatre lighting

• Presenter lighting

Choose an LED PAR when you need:

• Broad colour washes

• RGB/RGBW effects

• Decorative stage colour

• General venue illumination

Both fixture types can be used together in a complete stage-lighting system.

Profile Light vs Follow Spot

A profile fixture is normally mounted in a fixed position and controlled from the lighting system.

A follow spot is designed for an operator to manually track a performer as they move.

Choose a profile light for repeatable fixed stage zones.

Choose a follow spot when the lighting needs to continuously follow performers across a large stage.

Best For

The Stage LED Profile Light is particularly suitable for:

• Theatres

• Auditoriums

• Studios

• Conference halls

• Houses of worship

• Wedding stages

• Corporate events

• Live performances

• Schools and universities

• Hotel ballrooms

• Event-production companies

• AV rental businesses

What's Included & Compatibility

Core product:

• 1 × Stage LED Profile Light

Compatible with suitable:

• DMX512 controllers

• Professional DMX cabling

• Aluminium stage truss

• Rated lighting clamps

• Secondary safety cables

• Professional event power systems

The exact supplier page does not clearly document:

• Gobo holder

• Gobo

• Iris

• Clamp

• Safety cable

• Flight case

These items should not be listed as included unless the physical Stagify package confirms them.

Can This Profile Light Project Gobos?

Profile lights are commonly designed to work with gobo accessories, and the supplier mentions gobo projection in its general product FAQ.

However, the exact specification table does not confirm a gobo holder or gobo as included.

Stagify should verify the physical fixture before advertising gobo compatibility or included accessories.

Is the Beam Angle Adjustable?

The exact technical specification lists 19°, 26° and 36° optional optical angles.

It does not publish a numerical motorised zoom range.

Stagify should therefore describe these as optical/lens options unless the physical unit confirms a zoom lens.

What CRI Does the Stage LED Profile Light Have?

The published CRI is ≥95.

This makes the fixture suitable for applications where accurate rendering of skin tones, costumes and scenery is important.

What Colour Temperatures Are Available?

The supplier lists:

• 3200K

• 5600K

• 2-in-1 configuration

The exact variant stocked by Stagify should be confirmed before publication.

Does It Support DMX512?

Yes.

The fixture supports standard DMX512.

The documented control configurations are:

• 2CH for single-colour

• 4CH for dual-colour

Can It Work Without DMX?

Yes.

The supplier lists:

• DMX512

• Self-running operation

• Master-Slave

Does It Work on UAE Power?

Yes.

The documented AC100–240V / 50–60Hz input covers UAE 220–240V / 50Hz mains power.

The supplied plug type still needs physical verification.

Can It Be Used Outdoors?

No.

The exact fixture is rated IP20 and should be used in dry indoor environments.

Do not expose it directly to rain or moisture.

Installation & Rigging

For overhead installation:

• Use an appropriately rated stage-light clamp.

• Use an independent secondary safety attachment.

• Verify the truss or support load capacity.

• Secure power and DMX cables.

• Maintain ventilation around the fixture.

• Keep the optical path unobstructed.

The 6.8 kg fixture weight must be included when calculating total truss loading.

Stage Profile Lighting in the UAE

Stagify supplies profile lights, theatre lighting and professional stage-lighting equipment across the UAE for venues, wedding companies, theatres, studios and production businesses.

This 200W fixture is positioned for buyers who need high-CRI white light and precise stage-area control, rather than broad RGB entertainment effects.

Contact Stagify to confirm the required 3200K/5600K configuration and 19°/26°/36° optical option before ordering.
