RGBW Outdoor LED City Color Light High Brightness

RGBW Outdoor LED City Color Light – High Brightness, Professional Outdoor Lighting

The RGBW Outdoor LED City Color Light High Brightness is a 480W architectural and event wash fixture built with 48 × 10W RGBW 4-in-1 LEDs. Its IP65 enclosure, 25°/45° optical options, DMX512 control and fanless natural-convection cooling make it suitable for building façades, outdoor stages, hotels, wedding venues and large event structures where broad, dependable colour coverage is required.

Technical Specifications

Specification	Details
Product Type	Outdoor LED City Color / Architectural Wash Light
Power Consumption	480W
LED Source	48 × 10W RGBW 4-in-1 LEDs
Colour System	RGBW
Colours	Red, Green, Blue, White
Beam Angle Options	25° / 45°
Dimming	0–100%
Effects	Dimmer, Strobe, Gradual Change, Rainbow
DMX Channels	4CH / 8CH
Control Protocol	DMX512
Operating Modes	DMX512, Sound Active, Auto, Master-Slave
LED Drive Current	500mA
Cooling	Natural Convection
Protection Rating	IP65
Input Voltage	AC100–240V, 50/60Hz
Internal Working Voltage	DC24V
Fixture Dimensions	680 × 370 × 280 mm
Net Weight	17.5 kg
Gross Weight	20 kg
Main Applications	Façades, outdoor stages, hotels, events and architectural lighting

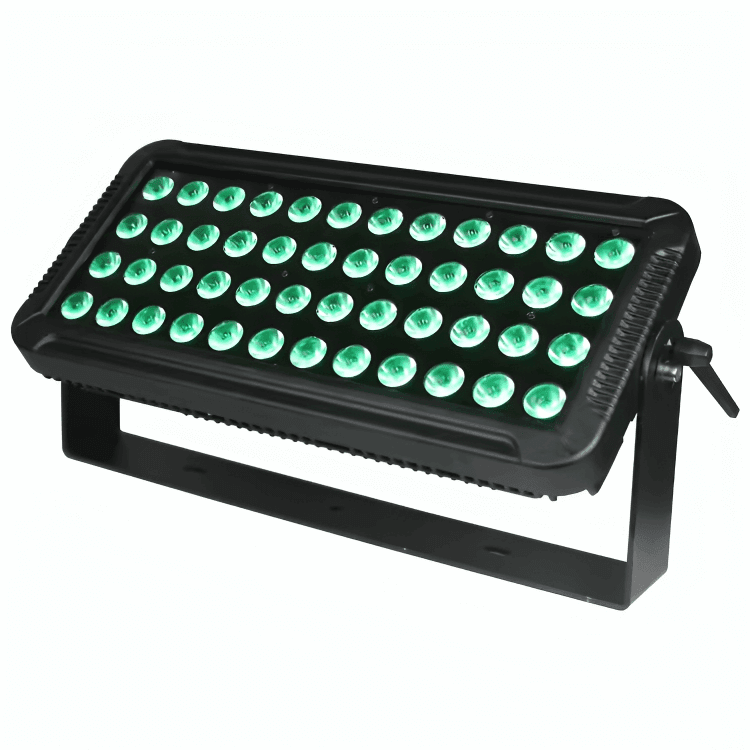

48 × 10W RGBW 4-in-1 LEDs

The fixture uses 48 high-power 10W RGBW 4-in-1 LEDs.

Each LED combines:

• Red

• Green

• Blue

• White

The RGBW system allows the fixture to produce saturated colour washes as well as dedicated white output.

This makes it suitable for applications such as:

• Building façades

• Hotel exteriors

• Outdoor stages

• Wedding venues

• Event entrances

• Architectural structures

• Large scenic walls

• Corporate events

The dedicated white channel also gives lighting designers more flexibility than a basic RGB-only outdoor wash.

480W Total Fixture Consumption

The complete fixture is rated at 480W power consumption.

This makes it significantly less power-demanding than Stagify's larger 120 × 10W City Color platform while still providing a substantial 48-LED outdoor wash array.

For preliminary electrical planning:

• 2 fixtures = approximately 960W

• 4 fixtures = approximately 1.92kW

• 8 fixtures = approximately 3.84kW

These figures cover the City Color fixtures only.

Other lighting, LED screens, audio systems and event equipment must also be included when calculating the complete electrical load.

RGBW Colour Mixing for Architectural Lighting

The four-colour LED system provides more flexibility than standard RGB.

The fixture can create:

• Saturated red

• Green

• Blue

• Dedicated white

• Mixed colours

• Pastel-style tones

• Smooth colour transitions

• Rainbow-style effects

This is particularly useful for architectural projects where the same building may need different colours for different events.

For example, a hotel façade can use one colour scheme for a corporate event and a completely different look for a wedding or public celebration.

25° and 45° Optical Options

The exact specification lists 25° and 45° beam-angle options.

These two optics suit different projection requirements.

25° Beam

Better suited to:

• More concentrated projection

• Longer-distance façade lighting

• Taller structures

• Narrower scenic areas

45° Beam

Better suited to:

• Wider walls

• Shorter throw distances

• Broad stage backgrounds

• Large event structures

These should be treated as optical options, not as a 25°–45° motorised zoom.

Stagify should confirm which optical version is physically stocked before assigning one specific angle to the Shopify variant.

Designed for Large Façade Colour Washes

City Color fixtures are designed differently from conventional LED PAR lights.

A PAR typically illuminates a relatively limited stage or scenic area.

A City Color light is intended to cover much larger surfaces such as:

• Buildings

• Hotel walls

• Event halls

• Large backdrops

• Outdoor structures

• Scenic façades

Several units can be spaced along a building to create a consistent architectural colour wash.

The required quantity depends on:

• Building width

• Fixture distance

• Selected beam angle

• Mounting position

• Desired intensity

• Surface colour and reflectivity

A site test is recommended before specifying a large permanent installation.

IP65 Outdoor Protection

The fixture carries a confirmed IP65 rating.

That makes it suitable for outdoor environments where dust and water exposure may occur.

An IP65 enclosure is designed to provide protection against:

• Dust ingress

• Water jets

• Typical outdoor event exposure

It does not mean the fixture is submersible.

The complete installation still needs appropriate outdoor:

• Power distribution

• Connectors

• Cables

• Junctions

• Mounting hardware

Outdoor lighting should always be treated as a complete system rather than relying only on the fixture's IP rating.

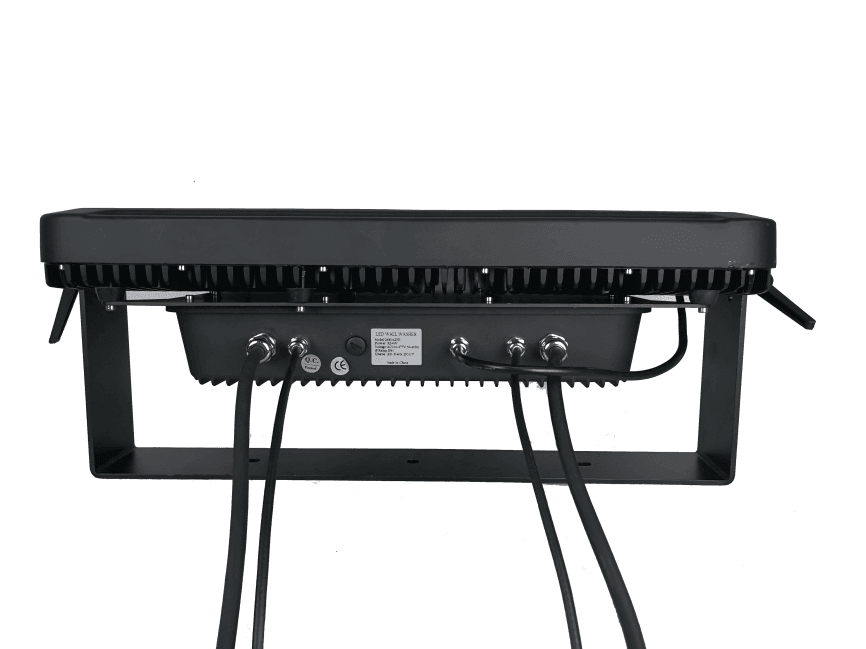

Waterproof Power and Signal Connections

The supplier specifically describes the fixture as using waterproof power and signal connectors.

This is particularly relevant for outdoor use because weather protection needs to extend beyond the light housing itself.

Connections should still be:

• Properly seated

• Locked where applicable

• Protected from standing water

• Inspected before use

• Kept free of damaged seals

Any replacement cable or adapter used with the fixture should also be suitable for the intended outdoor environment.

Natural-Convection Cooling

The fixture uses natural convection cooling rather than depending on a continuously operating cooling fan.

This provides two useful advantages.

First, it reduces operating noise.

Second, it removes one common moving component from the cooling system.

This makes the fixture particularly suitable for:

• Hotels

• Architectural installations

• Corporate events

• Formal outdoor ceremonies

• Noise-sensitive venues

Adequate airflow around the housing should still be maintained so heat can dissipate naturally.

Fanless Cooling for Quiet Installations

Architectural lights often run for extended periods.

A fanless cooling design can be useful because it avoids the constant mechanical sound associated with high-speed cooling fans.

This makes the fixture easier to position close to:

• Hotel entrances

• Guest areas

• Ceremonial stages

• Corporate event spaces

The aluminium heat-dissipation structure should remain unobstructed during operation.

0–100% Dimming

The matching 48×10W City Color platform provides 0–100% dimming, allowing the fixture to move from blackout to full intensity.

This can be useful for:

• Slow architectural fades

• Wedding entrances

• Stage transitions

• Corporate reveals

• Static colour scenes

Dimming also helps balance several fixtures positioned at different distances from the illuminated surface.

Strobe Effects

The fixture includes electronic strobe functionality.

Although architectural washing is its primary role, the strobe function allows the same product to become more active during:

• Outdoor concerts

• DJ events

• Festival stages

• Entertainment sequences

For permanent façade lighting, the fixture can simply remain in static or slowly changing colour modes.

Gradual Colour Change

Built-in gradual-change effects allow smooth transitions between colours.

This is useful when an installation should change appearance slowly instead of jumping immediately from one colour to another.

Typical applications include:

• Hotels

• Wedding venues

• Public buildings

• Outdoor scenic structures

Slow colour fades often work better for architectural lighting than fast entertainment-style effects.

Rainbow Effects

A built-in rainbow effect gives operators another automatic colour option.

This can be useful for:

• Entertainment events

• Festivals

• Parties

• Temporary architectural displays

For corporate projects requiring exact brand colours, direct DMX control provides more precise control than automatic rainbow programmes.

Macro Lighting Effects

The exact product description also confirms built-in macro lighting effects.

Macros can simplify programming where commonly used colour or transition effects need to be accessed quickly.

This is useful for event technicians who need to configure several City Color units without manually programming every intermediate colour state.

4-Channel DMX Mode

The fixture provides a 4CH DMX mode.

This is the more economical personality and is useful when many fixtures share a DMX universe.

For basic RGBW operation, four-channel control can keep programming straightforward.

8-Channel DMX Mode

An expanded 8CH DMX mode is also confirmed.

This provides additional control functions compared with the basic four-channel personality.

The exact channel assignments should follow the manual for the physical Stagify unit.

Do not assume a generic 8CH RGBW map because additional functions can differ between manufacturers.

DMX512 Professional Control

Standard DMX512 allows the fixture to integrate into larger professional lighting installations.

A central controller can coordinate multiple City Color lights with:

• LED wall washers

• Moving heads

• Outdoor PAR fixtures

• Pixel lights

• Stage effects

For architectural installations, individual DMX addresses can also allow different sections of a building to display different colours.

Sound-Activated Operation

The product supports Sound Active mode.

This gives the fixture an entertainment-oriented function where built-in effects respond to music.

Sound mode is particularly relevant to:

• Outdoor parties

• DJ stages

• Festival entertainment

• Wedding celebrations

For permanent architectural installations, DMX or automatic programmes are more appropriate.

Automatic Operation

Built-in Auto mode allows the fixture to run without an external DMX controller.

This is useful for simpler installations where the lighting only needs to cycle through built-in programmes.

Auto operation can work well for:

• Hotel façades

• Event entrances

• Decorative outdoor installations

• Smaller wedding venues

For precise colours and timed event cues, use DMX control.

Master-Slave Operation

Several matching City Color lights can operate in Master-Slave mode.

One fixture runs the selected programme while the others follow.

This can simplify installations where multiple units should produce the same colour and effect.

For independently controlled façade sections, assign the fixtures individually through DMX instead.

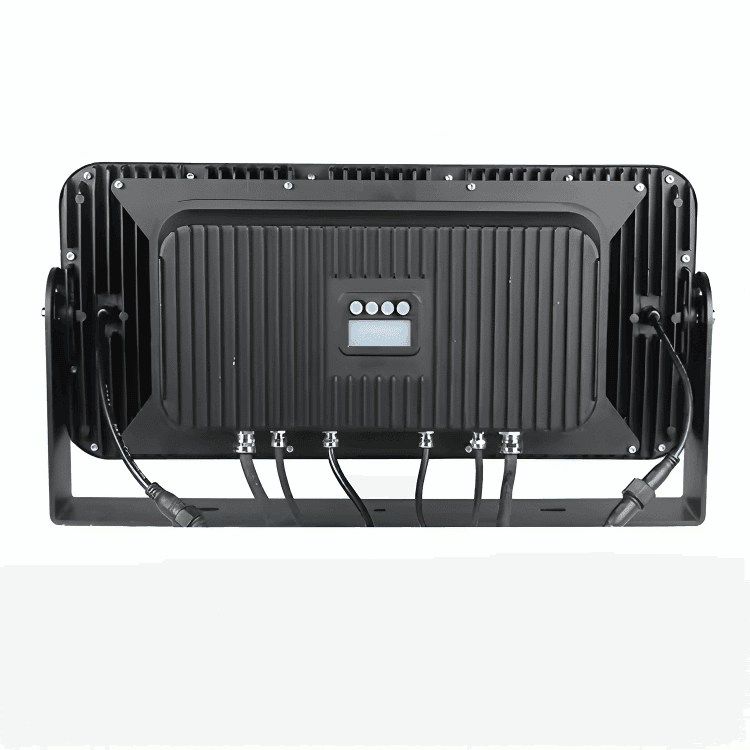

LED Display with 4-Key Menu

The supplier describes a built-in LED display with a four-key menu system.

This gives technicians direct access to fixture settings.

Typical configuration tasks can include:

• DMX address

• Channel mode

• Automatic programme

• Sound operation

• Master-Slave mode

The onboard interface allows setup even when a console is not connected.

AC100–240V / 50–60Hz Input

The fixture accepts AC100–240V at 50/60Hz.

This range covers standard UAE 220–240V / 50Hz mains power.

The supplier also specifies an internal DC24V working voltage.

The exact mains plug or outdoor connector supplied with Stagify inventory should still be physically confirmed before stating that a UAE Type G plug is included.

17.5KG Professional Outdoor Fixture

The confirmed net weight is approximately 17.5 kg.

Gross packed weight is approximately 20 kg.

The fixture measures approximately:

680 × 370 × 280 mm

This makes it a substantial architectural lighting product rather than a small portable PAR.

Its weight should be considered when planning:

• Ground support

• Elevated mounting

• Truss loading

• Transport

• Flight cases

• Permanent installation

High-Brightness Platform Without the Size of the 120-LED Model

Stagify also carries a much larger 120 × 10W City Color platform.

The two products should not be positioned as duplicates.

Choose this 48 × 10W City Color when:

• 480W power is sufficient

• A more manageable fixture is preferred

• Medium-to-large façades need colour washing

• Transport and electrical load matter

• 25°/45° optics fit the project

Choose the 120 × 10W City Color when:

• Larger-area output is required

• The installation needs the higher 1200W platform

• Major outdoor stages or very large architectural surfaces are involved

This gives the 48-LED model a clear mid-to-high-output architectural role in the Stagify catalogue.

City Color vs Outdoor LED PAR

An outdoor PAR and City Color fixture serve different scales.

Choose the City Color when you need:

• Large façade coverage

• Building illumination

• Wide architectural washes

• Higher total output

• Large outdoor scenic lighting

Choose an Outdoor PAR when you need:

• Smaller scenic areas

• Compact event lighting

• Localised colour washes

• Easier mobile deployment

The City Color is therefore better suited to larger surfaces and project-based installations.

City Color vs Wall Washer Bar

A linear wall washer distributes light along an elongated horizontal or vertical area.

A City Color fixture creates a broader flood-style projection.

Choose a wall washer for:

• Long linear façades

• Columns

• Architectural edges

• Controlled narrow wall coverage

Choose the City Color for:

• Large open walls

• Stage backgrounds

• Broad building surfaces

• Large scenic structures

A professional architectural project may use both.

Best For

The RGBW Outdoor LED City Color Light is particularly suited to:

• Building façades

• Hotels

• Outdoor wedding venues

• Concert stages

• Festivals

• Corporate events

• Event entrances

• Architectural structures

• Theme environments

• Event-production companies

• Lighting rental businesses

• Architectural lighting contractors

What's Included & Compatibility

Core product:

• 1 × RGBW Outdoor LED City Color Light High Brightness

Compatible with suitable:

• DMX512 lighting controllers

• Professional DMX cabling

• Outdoor-rated event power systems

• Structural mounting systems

• Appropriately rated clamps where applicable

The exact package contents are not clearly documented beyond the fixture itself.

Do not list a:

• Flight case

• DMX cable

• Safety cable

• Mounting clamp

• Remote control

as included unless actual Stagify inventory confirms it.

How Many LEDs Does the City Color Light Have?

The fixture uses 48 × 10W RGBW 4-in-1 LEDs.

This provides dedicated red, green, blue and white output from each LED package.

What Is the Total Power Consumption?

The complete fixture is rated at 480W.

Use this figure when calculating circuit loading.

Is the Light Waterproof?

The fixture carries a confirmed IP65 rating.

It is suitable for outdoor lighting applications when installed with appropriate outdoor-rated connections and electrical infrastructure.

IP65 does not mean the fixture can be submerged.

What Beam Angle Does It Have?

The product is offered with 25° or 45° optical options.

Confirm which version is stocked before choosing a fixture for a specific throw distance or coverage area.

Is the Beam Angle Motorised?

No motorised zoom is confirmed.

The specification describes 25° and 45° as selectable optical configurations.

Do not advertise 25°–45° motorised zoom.

Does It Support DMX512?

Yes.

The fixture supports:

• 4CH DMX

• 8CH DMX

It can also operate through Auto, Sound Active and Master-Slave modes.

Does It Work Without a Controller?

Yes.

Auto, Sound Active and Master-Slave operation are confirmed in addition to DMX512.

Does It Use a Cooling Fan?

The exact specification lists natural-convection cooling.

This is a fanless cooling approach and helps reduce operating noise.

Does It Work on UAE Power?

Yes.

Its AC100–240V / 50–60Hz input covers UAE 220–240V / 50Hz mains.

The exact supplied plug or power connector should still be checked on Stagify inventory.

Is It Suitable for Permanent Architectural Lighting?

Its RGBW output, DMX control and IP65 enclosure make it relevant to architectural projects.

Permanent installation should still consider:

• Mounting engineering

• Cable routing

• Outdoor connectors

• Electrical protection

• Drainage

• Maintenance access

A professional installation plan is recommended for long-term outdoor projects.

Outdoor Installation Requirements

Even with an IP65 fixture, installation quality matters.

For outdoor deployment:

• Use appropriately rated power distribution.

• Keep connectors correctly sealed.

• Secure the fixture against movement.

• Verify structural mounting capacity.

• Prevent cables from sitting in standing water.

• Maintain ventilation around the housing.

• Inspect seals and connectors periodically.

For elevated installation, appropriately rated mounting hardware and secondary retention should be used where required.

Professional City Color Lighting in the UAE

Stagify supplies professional City Color lights, waterproof stage lights and architectural lighting equipment across the UAE for hotels, wedding venues, production companies and outdoor lighting projects.

This 48×10W model is positioned as a 480W RGBW architectural wash with IP65 protection and 25°/45° optical choices, providing a more manageable alternative to Stagify's larger 120-LED City Color platform.

Contact Stagify for current availability and confirmation of the installed 25° or 45° optical configuration before ordering for an architectural or outdoor event project.
