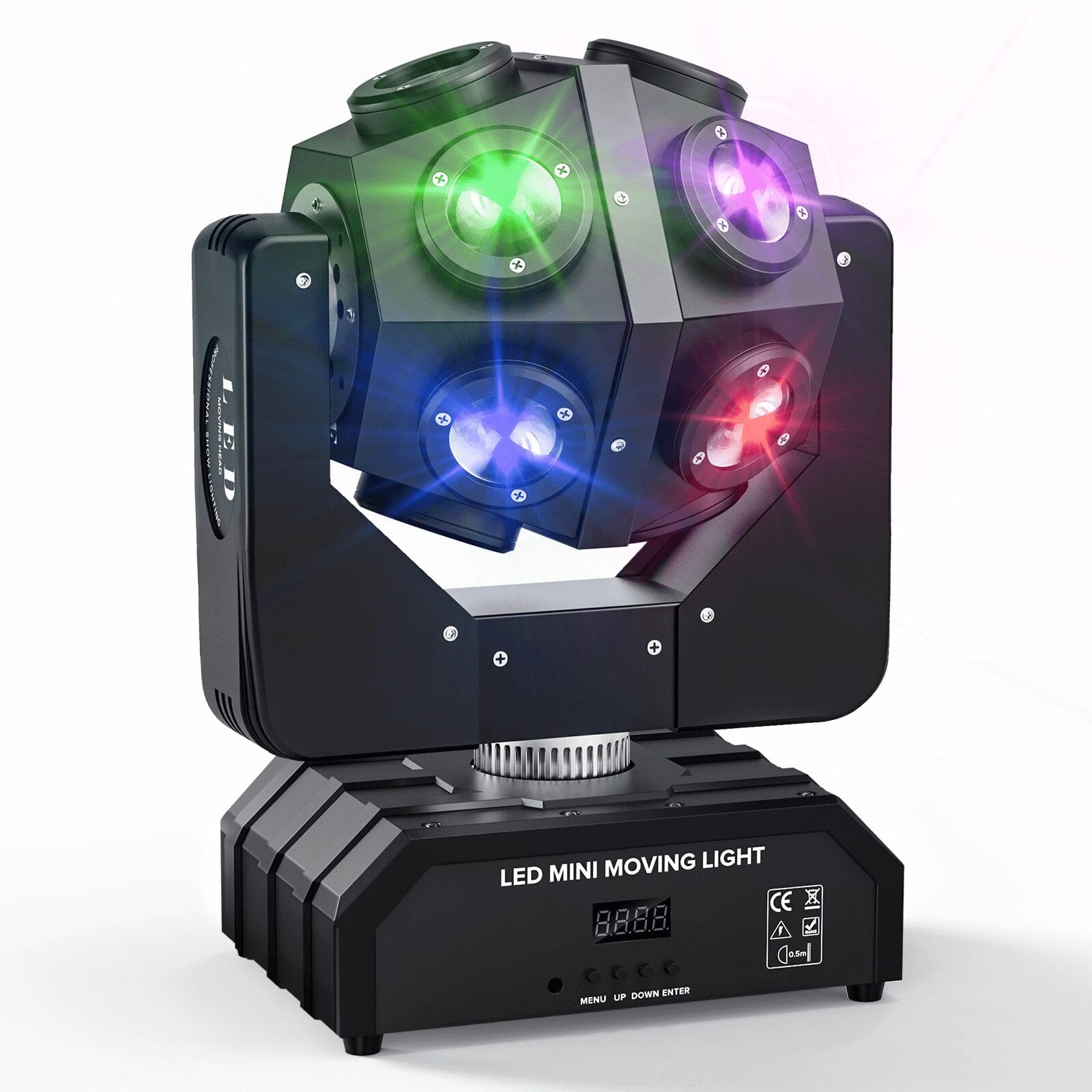

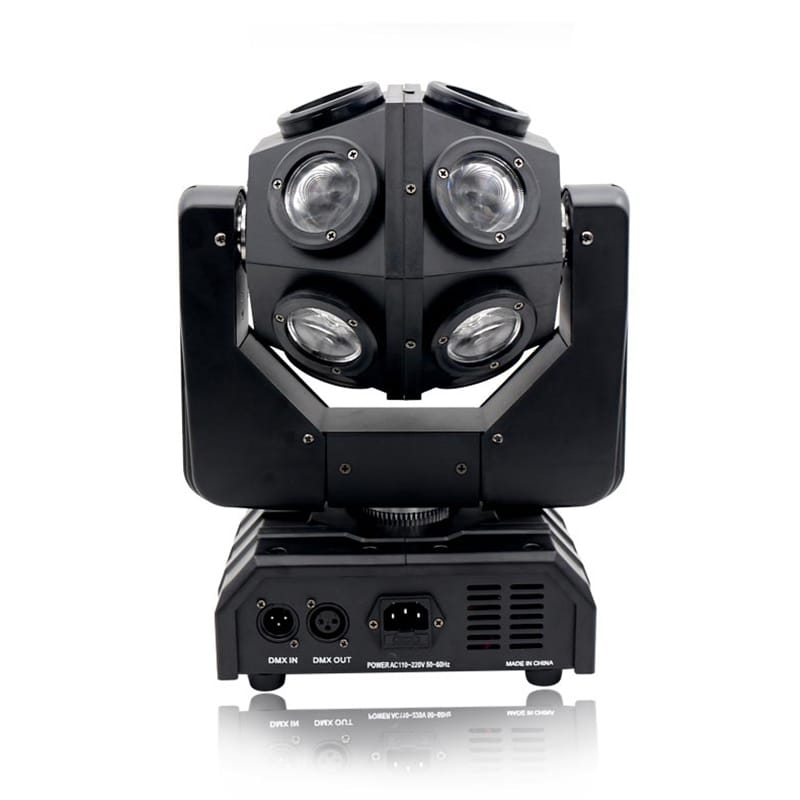

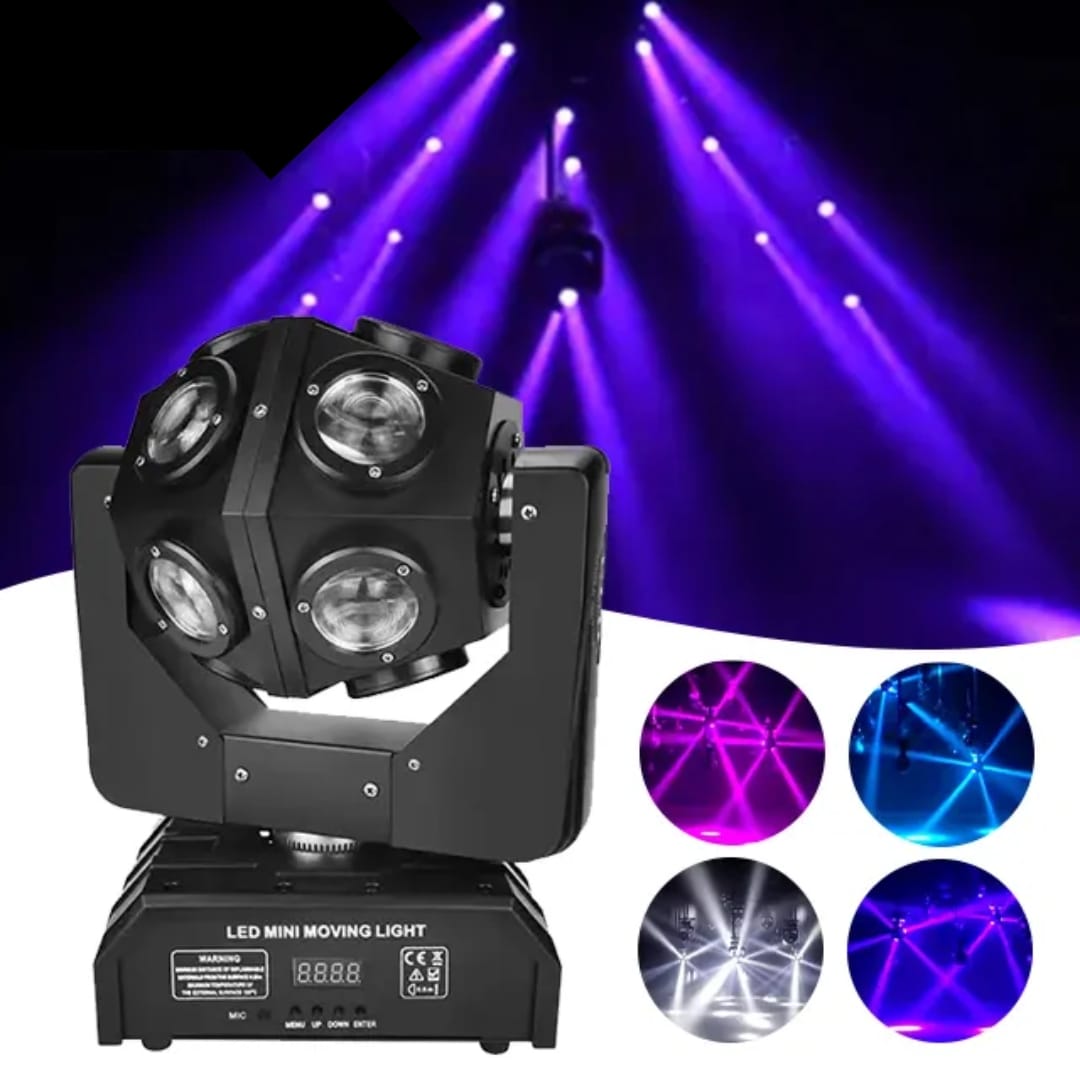

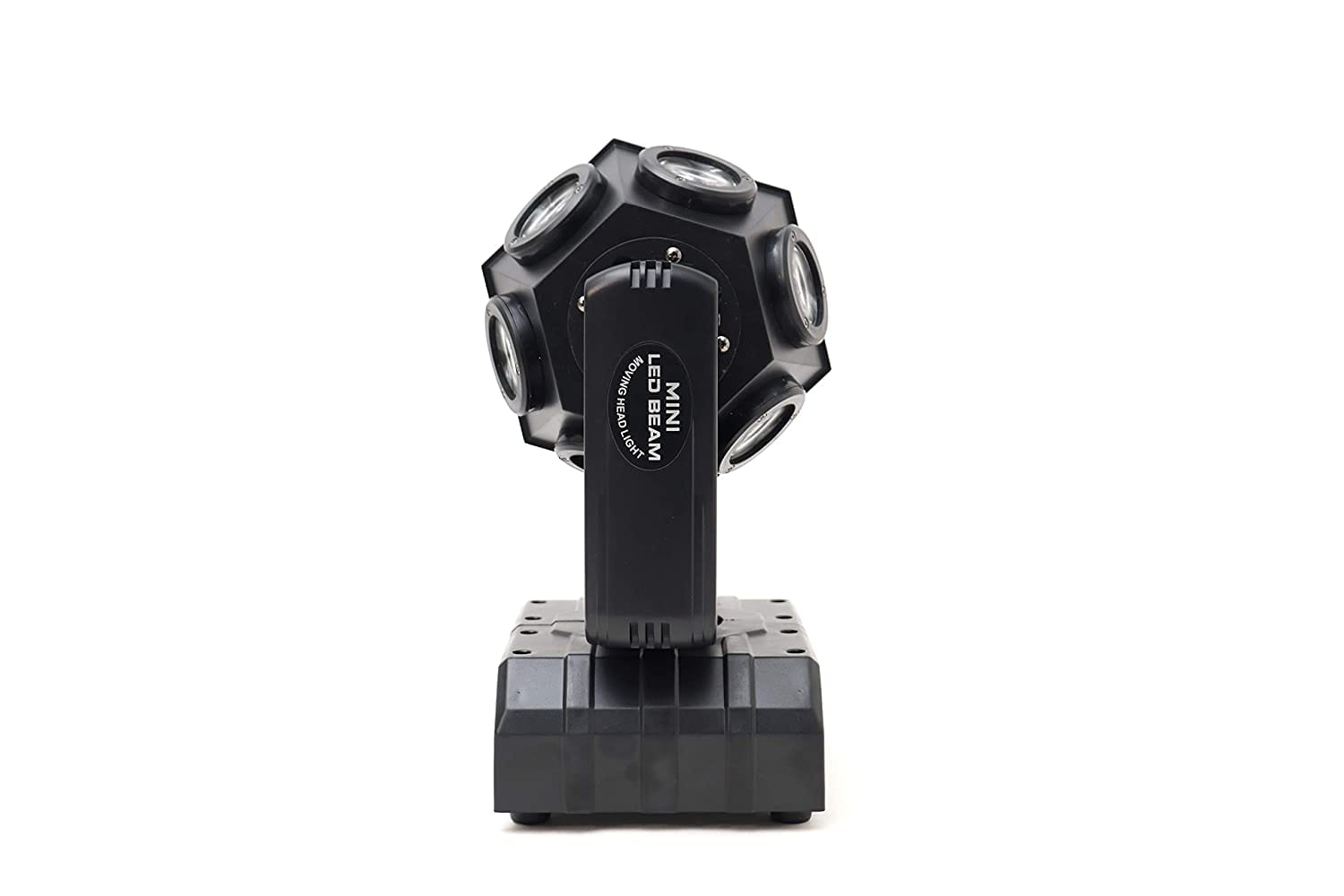

RGBW 12 LED Moving Head Light

RGBW 12 LED Moving Head Light – 12×10W Stage Light UAE

The RGBW 12 LED Moving Head Light is a 150W professional stage fixture built with twelve 10W RGBW 4-in-1 LEDs. It combines colour mixing, 540° pan, 270° tilt, DMX512 control and strobe effects in a compact moving-head format for weddings, DJ setups, clubs, stages and professional event-production applications.

Technical Specifications

These specifications are documented for the matching 12×10W RGBW moving-head configuration.

12 × 10W RGBW LED Colour System

The fixture uses twelve 10W RGBW 4-in-1 LEDs, combining red, green, blue and white light sources within each LED package.

RGBW technology gives lighting operators more flexibility than basic RGB fixtures because the dedicated white channel can produce cleaner whites and improve pastel colour mixing.

With a documented output of 4,500+ lumens and more than 40,500 lux at 2 metres, the fixture provides concentrated output for stage, dance-floor and entertainment lighting applications.

The 12-LED arrangement also creates a broader illuminated face than a single-source moving head, making it useful when dynamic colour effects are required across a stage or venue.

540° Pan and 270° Tilt Movement

The moving head provides 540° horizontal pan and 270° vertical tilt, allowing the beam to travel across a wide area rather than remaining fixed in one position.

This movement is useful for:

• Stage sweeps

• Dance-floor effects

• DJ performances

• Wedding entrances

• Concert lighting

• Club installations

• Corporate event productions

Fine movement control supports smoother positioning when the fixture is programmed through DMX.

For multi-fixture installations, several moving heads can be programmed to move together, alternate positions or create symmetrical lighting patterns across the stage.

DMX512, Auto, Sound and Master/Slave Control

The RGBW 12 LED Moving Head supports multiple operating modes:

• DMX control

• Automatic programs

• Sound-active operation

• Master/Slave synchronisation

The fixture uses a 15-channel DMX configuration, giving professional lighting operators control over movement, colours, dimming, strobe and other programmed functions.

For smaller events without a dedicated lighting controller, Auto or Sound mode can provide dynamic effects without complex programming.

Master/Slave mode is useful when several compatible fixtures need to perform synchronised effects.

0–100% Dimming and 0–20Hz Strobe

The electronic dimmer provides adjustment from 0–100%, allowing operators to control intensity according to the venue, scene or music.

A 0–20Hz strobe function adds fast flashing effects for DJ sets, dance floors, concerts and high-energy stage moments.

Using colour mixing, dimming, movement and strobe together allows one compact fixture to create multiple visual looks during the same production.

Compact 150W Moving Head for Event Production

Despite using twelve individual RGBW LED sources, the fixture remains compact at approximately 300 × 245 × 385 mm and weighs around 4.42 kg.

This size is practical for mobile DJs, smaller production companies and rental inventories where equipment needs to be transported and installed frequently.

Its AC110–240V 50/60Hz operating range also makes the fixture suitable for professional power environments across different markets, including UAE 220–240V supplies.

Best For

The RGBW 12 LED Moving Head Light is suitable for:

• Wedding stages and ballroom events

• DJ and mobile entertainment setups

• Nightclubs and lounges

• Concert stages

• Corporate events

• School and theatre productions

• Exhibition entertainment areas

• Dance floors

• Bars and entertainment venues

• AV rental companies

• Event-production companies

Installation & Compatibility

The moving head can be integrated into professional lighting setups using:

• DMX512 controllers

• Stage lighting truss

• Lighting stands

• Moving-head clamps

• Safety cables

• Compatible master/slave fixtures

• Stage lighting power distribution systems

For overhead installation, use an appropriate professional clamp and independent safety cable rated for the fixture and installation.

The fixture carries an IP20 rating, so it is intended for dry indoor environments rather than exposed outdoor or wet installations.

What Does RGBW Mean on This Moving Head Light?

RGBW stands for Red, Green, Blue and White.

The four colours can be mixed electronically to produce a wide variety of shades, while the dedicated white channel provides cleaner white output than relying only on mixed RGB.

How Powerful Is the RGBW 12 LED Moving Head?

The fixture uses 12 × 10W RGBW LEDs with a documented total fixture power of 150W.

Its published output is more than 4,500 lumens and approximately 40,500+ lux measured at 2 metres.

Does This Moving Head Support DMX512?

Yes. It supports DMX operation using a 15-channel control configuration.

It also supports Auto, Sound Active and Master/Slave modes for setups where full DMX programming is not required.

How Far Can the Moving Head Rotate?

The fixture provides 540° pan and 270° tilt.

This allows the head to cover a wide movement area across stages, dance floors and entertainment venues.

Does It Have a Strobe Effect?

Yes. The built-in flash/strobe function operates from 0 to 20Hz.

The fixture also supports 0–100% electronic dimming for intensity control.

Can It Be Used Outdoors?

The documented fixture carries an IP20 rating, so it should be treated as an indoor stage-lighting product.

For outdoor events, the fixture should only be used in a properly protected environment where it cannot be exposed to rain, moisture or excessive dust.

Order RGBW Moving Head Lights in the UAE

Stagify supplies professional moving head lights, stage lighting and event-production equipment across Dubai and the UAE for event companies, DJs, AV installers, venues and rental businesses.

The RGBW 12 LED Moving Head Light is a practical choice for productions requiring programmable colour, movement and strobe effects from a compact fixture.

contact Stagify for product compatibility and bulk-order support.
