RGB Colorful 54 LED Par Light With POWERCON

RGB Colorful 54 LED Par Light With POWERCON

The RGB Colorful 54 LED Par Light With POWERCON is a 180W stage wash fixture designed for wedding lighting, DJs, live stages, clubs, event décor and venue installations. Its 54 RGB LEDs, 25° beam angle, 0–100% electronic dimming, colour strobe and 15 built-in colour macros allow it to create both static colour washes and changing entertainment effects.

The fixture supports DMX512, Manual Colour, Colour Change, Colour Fade, Auto and Sound-Active operation, while a dual mounting bracket allows it to be positioned on the floor or suspended from suitable stage-lighting structures.

Technical Specifications

Specification	Details
Product Type	RGB LED PAR / Stage Wash Light
LED Quantity	54 LEDs
Colour System	RGB – Red, Green & Blue
Maximum Power Draw	180W
Beam Angle	25°
Dimming	Electronic 0–100%
Built-In Colour Macros	15
Effects	Colour Strobe / Flicker-Free Operation
Control Protocol	DMX512
Operational Modes	Manual Colour / Colour Change / Colour Fade / Auto / Sound Active / DMX512
DMX Connection	3-pin XLR IN/OUT
Display	Rear 4-button LED DMX display
Mounting	Dual-bracket yoke
Power Linking	Rear power IN/OUT; connector type requires stock verification
Maximum Published Power Linking	Up to 6 units
Listed LED Lifespan	50,000 hours
Input Voltage	AC100–240V
Frequency	50–60Hz
Product Dimensions	235 × 235 × 295 mm
Product Weight	3.2 kg
Recommended Environment	Dry indoor stage and event applications

54 RGB LEDs for Stage Colour Wash

The fixture uses 54 high-brightness RGB LEDs to create colour across stages, backdrops, walls and event décor.

RGB combines three primary lighting colours:

• Red

• Green

• Blue

By adjusting the intensity of these colours, the fixture can create a range of mixed looks for entertainment and decorative lighting.

This makes it useful where the production needs more than a single fixed white light.

Important RGB Specification Clarification

The product should currently be described as an RGB PAR light.

The supplier's product title and descriptive copy both identify the fixture as RGB, and the exact specification refers to smooth RGB colour mixing.

However, one line in the technical table describes the source as:

“QUAD LED (3-in-1)”

Those terms conflict technically.

A 3-in-1 LED normally describes an RGB package containing:

• Red

• Green

• Blue

The term “QUAD” is generally associated with a four-colour LED package.

Because no dedicated white or amber channel is actually identified for this SKU, Stagify should not change the specification to RGBW or RGBA until the physical LEDs or DMX manual confirm a fourth colour.

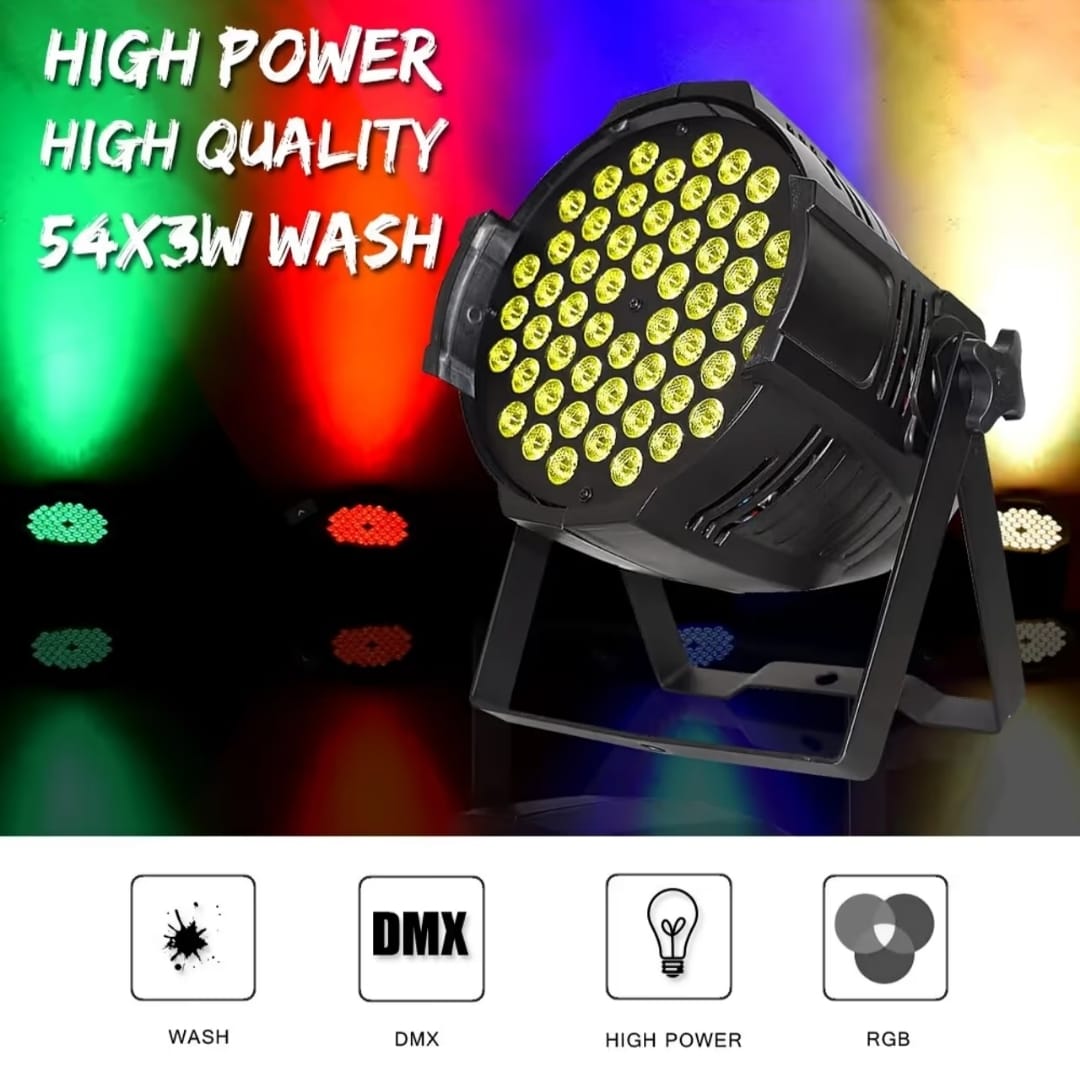

Do Not Invent 54 × 3W

There are many similar 54-LED PAR fixtures on the market using 54 × 3W LEDs and approximately 180W total consumption.

However, the exact supplier page for this SKU does not explicitly state the wattage of each individual LED.

Therefore, publish:

54 RGB LEDs

and:

180W maximum fixture power

but do not automatically advertise:

54 × 3W LEDs

unless the physical product or manual confirms that configuration.

180W Maximum Power Draw

The exact specification lists:

Power Draw: 180W max

This is the correct figure for electrical load planning.

For example:

• 2 fixtures: up to approximately 360W

• 4 fixtures: up to approximately 720W

• 6 fixtures: up to approximately 1.08kW

Other stage equipment must be included separately when calculating the complete event circuit.

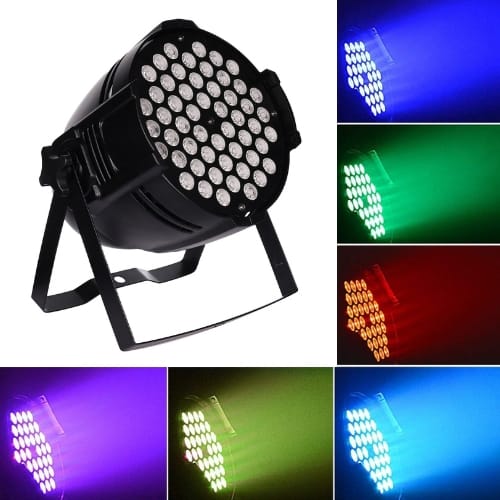

25° Beam Angle

The fixture has a confirmed 25-degree beam angle.

This gives the PAR a moderately focused wash rather than an extremely wide flood.

A 25° PAR can work well for:

• Wedding backdrops

• Small and medium stages

• DJ booths

• Drapes

• Scenic structures

• Walls

• Truss lighting

• Performers at suitable distances

The illuminated area becomes wider as the distance between the fixture and target increases.

Stage and Backdrop Washing

One of the strongest uses for this PAR is creating a layer of background colour.

Several fixtures can be positioned across a stage to illuminate:

• Curtains

• Fabric backdrops

• Stage walls

• Logo panels

• Scenic structures

• DJ backgrounds

Using multiple fixtures generally creates more even coverage than relying on one PAR in the centre.

Wedding Lighting Applications

RGB PAR lights are particularly useful for weddings because the same fixtures can create different looks during different portions of the event.

For example:

Guest arrival: softer static colour
Couple entrance: brighter coordinated colour
Dinner: slower fades
Entertainment: faster colour changes and Sound-Active effects
Dance floor: stronger RGB effects and strobe accents

Several PAR fixtures can be positioned around the wedding stage or décor to maintain a consistent colour theme.

DJ Booth Lighting

For DJs, the PAR works well as a base layer of colour.

Moving heads, lasers and strobes provide movement, while PAR lights can maintain colour across the background.

A small DJ rig might combine:

• RGB PAR lights

• Moving head effects

• Laser effects

• Strobes

• Haze

The PARs provide the colour wash while the other fixtures create movement and aerial effects.

15 Built-In Colour Macros

The fixture includes 15 built-in colour macros.

These provide preset colour looks without requiring the operator to manually calculate every RGB value.

Macros can be useful for:

• Quick event setup

• DJs

• Small venues

• Basic standalone operation

• Testing fixtures before installation

For precise colour matching across several fixtures, DMX control provides better repeatability.

Smooth RGB Colour Mixing

Smooth RGB mixing is specifically listed in the supplier specification.

The fixture supports both slower and faster colour-changing operation.

This allows it to create:

• Static colours

• Gradual transitions

• Faster entertainment changes

• Multi-colour sequences

The appropriate effect depends on the event.

Slow fades may work well for weddings and corporate dinners, while faster changes can suit DJs and nightlife environments.

Manual Colour Mode

Manual Colour Mode allows operators to select colour settings directly through the fixture rather than requiring an external lighting controller.

This can be useful when:

• Only one colour is needed

• The fixture is being used for uplighting

• A small event does not have a DMX console

• Technicians are testing equipment

For larger installations, DMX remains more efficient.

Colour Change Mode

The documented Colour Change Mode cycles between colour states automatically.

This provides a more active effect than maintaining one fixed colour.

It can work well for:

• Parties

• DJs

• Karaoke

• Bars

• Dance areas

Colour Fade Mode

The fixture also includes Colour Fade Mode.

Instead of changing abruptly, colours can transition more gradually.

This is particularly useful for:

• Wedding décor

• Hotel events

• Restaurants

• Corporate functions

• Ambient event lighting

A slow fade produces a different visual character from rapid party-style colour changes.

Automatic Programme Mode

The fixture supports Auto / Program Run operation.

This allows built-in programmes to run without a DMX console.

Auto mode is useful when customers want:

• Fast setup

• Continuous decorative lighting

• Built-in colour effects

• Minimal operator involvement

For coordinated stage cues, DMX512 should be used instead.

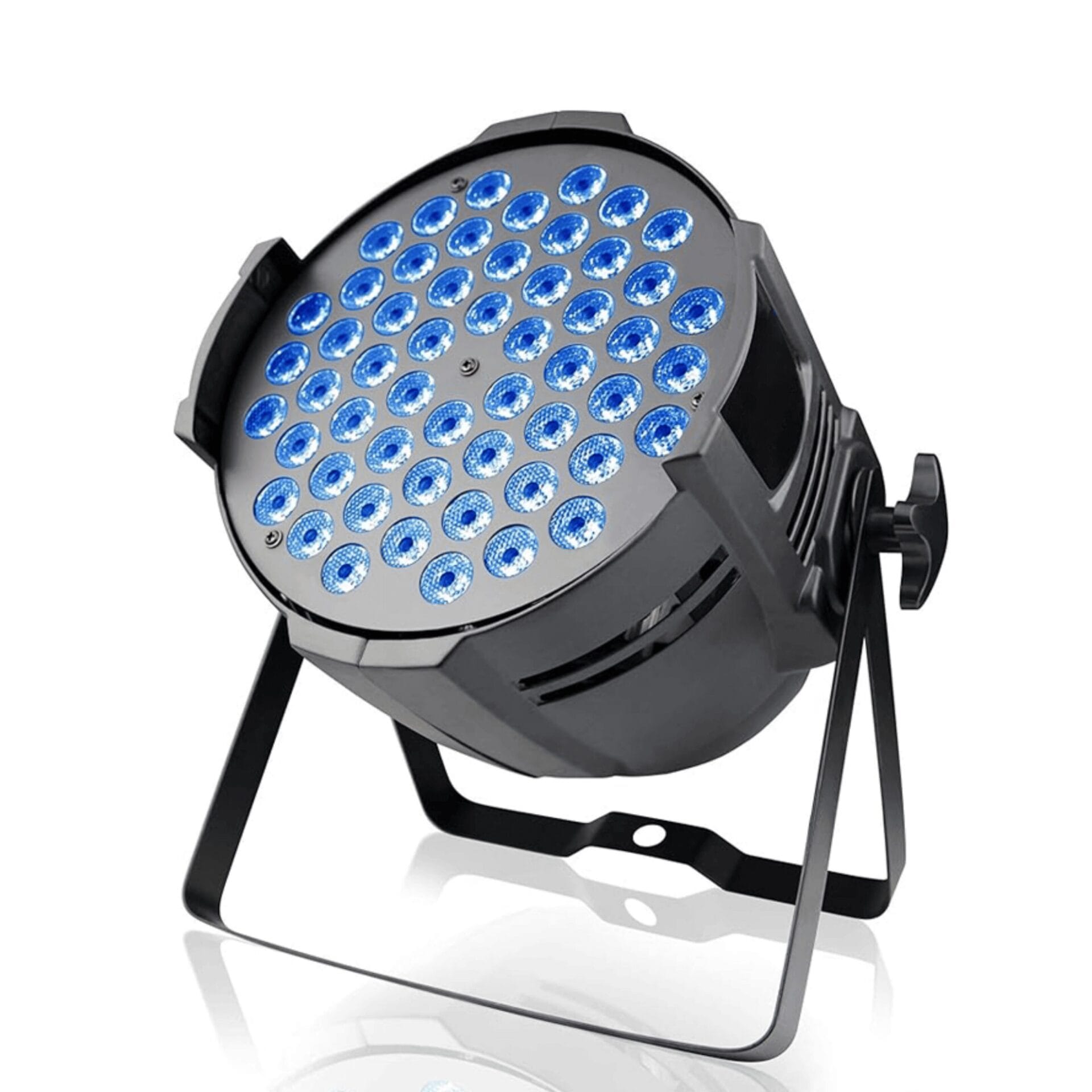

Sound-Activated Mode

Sound Active Mode is confirmed.

This allows the light to react to music or surrounding audio.

Sound activation can be useful for:

• Mobile DJs

• Dance floors

• Parties

• Wedding entertainment

• Clubs

• Karaoke venues

The fixture can respond to music without requiring an operator to trigger every colour change manually.

DMX512 Control

DMX512 allows the fixture to become part of a larger stage-lighting system.

A controller can coordinate several PAR lights alongside:

• Moving heads

• Strobes

• Laser lights

• Pixel effects

• Other wash fixtures

This provides repeatable lighting cues for professional event production.

DMX Channel Configuration Needs Clarification

The supplier table states:

“DMX Channel Modes: 8 channel modes”

The wording is ambiguous.

It may mean:

• One 8-channel DMX personality, or

• Multiple DMX personalities up to eight channels

The exact supplier page does not provide the complete channel map.

For this reason, the clean specification table should state:

DMX512

without converting the wording into a definite list of DMX personalities until the fixture menu or manual is checked.

3-Pin XLR DMX IN/OUT

The supplier confirms 3-pin XLR connections for DMX data IN and OUT.

This allows multiple fixtures to be linked through conventional DMX infrastructure.

A typical setup can connect:

Controller → PAR 1 → PAR 2 → PAR 3 → additional fixtures

Each unit can then be addressed according to the selected DMX personality.

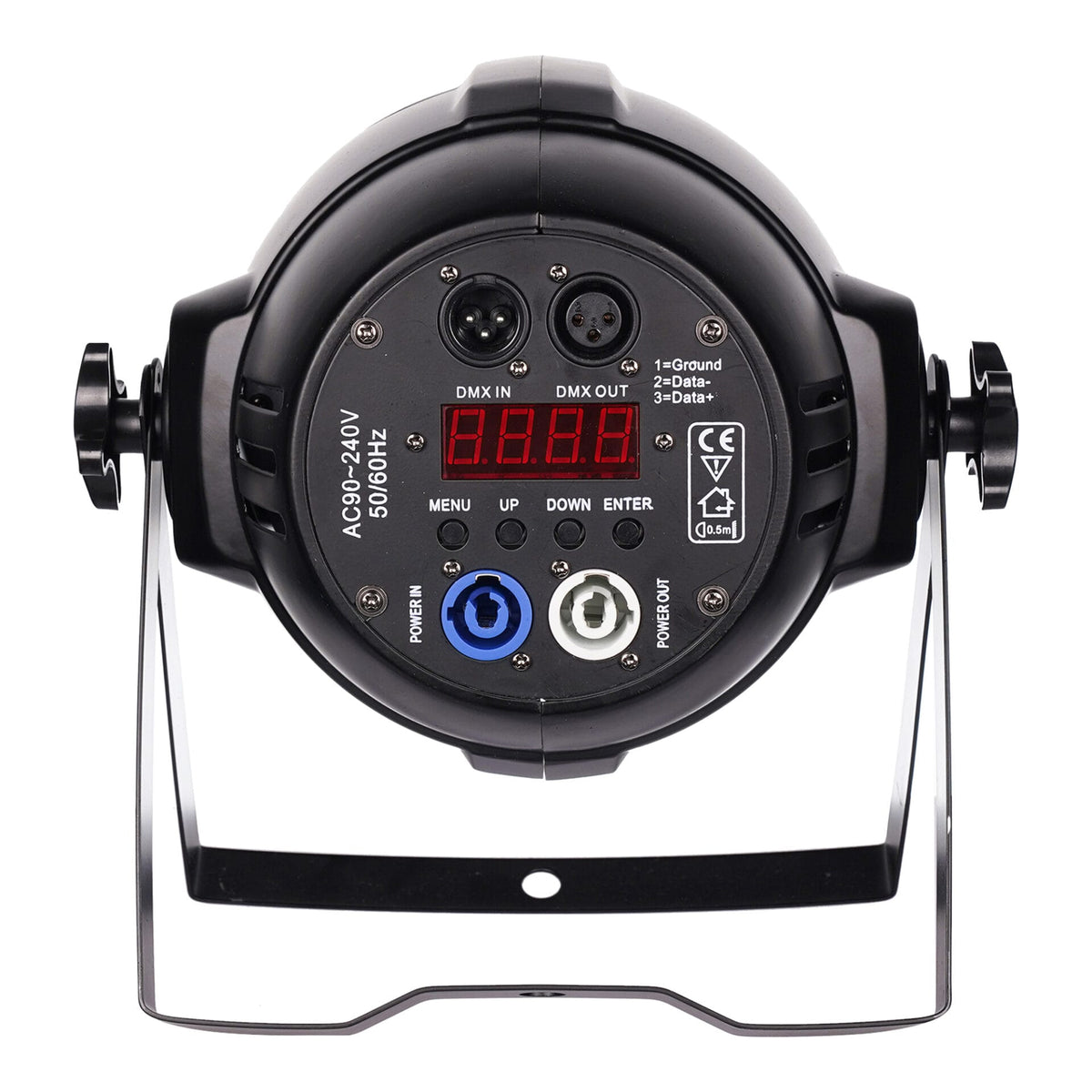

Rear 4-Button LED Display

A 4-button LED DMX display is located on the rear panel.

This provides access to fixture setup functions such as:

• DMX addressing

• Operating mode

• Automatic programmes

• Sound mode

• Manual colour settings

The exact menu structure should be taken from the physical fixture or supplied manual.

0–100% Electronic Dimming

The fixture supports:

0–100% electronic dimming

This allows intensity to be adjusted from blackout to full output.

Dimming is useful for:

• Wedding entrances

• Corporate presentations

• Stage transitions

• Background ambience

• Music build-ups

• Blackouts

It also helps several different types of lighting fixtures operate together without one source visually overpowering the rest of the setup.

Colour Strobe Effect

A colour strobe effect is confirmed.

Strobe can introduce faster flashing effects during:

• DJ drops

• Dance sequences

• Concert transitions

• Party finales

The supplier does not publish an exact strobe frequency in Hz.

Therefore, Stagify should not add a numerical range such as 0–20Hz or 0–30Hz based on another 54-LED PAR.

Flicker-Free Operation

The specification explicitly describes the fixture as flicker-free.

This can be useful where stage lighting may appear on:

• Event photography

• Smartphone video

• Social-media content

• Venue cameras

However, no PWM frequency or camera test specification is published.

Do not promise compatibility with every high-frame-rate broadcast or slow-motion camera configuration without testing.

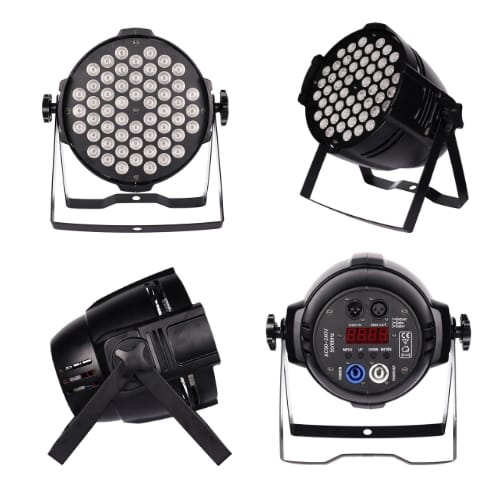

Dual-Bracket Yoke

The fixture uses a dual-bracket mounting yoke.

This allows it to be used in two common configurations.

Floor position:
The bracket can support the fixture as an uplight or floor-mounted wash.

Suspended position:
The fixture can be attached to appropriate stage-lighting hardware.

This flexibility makes the PAR useful for both temporary event setups and fixed venue installations.

Uplighting Applications

When positioned on the floor, the fixture can illuminate upward onto:

• Walls

• Curtains

• Columns

• Wedding décor

• Scenic panels

• DJ booths

This is especially useful for creating event colour without requiring every fixture to be installed overhead.

Truss Installation

The PAR can also be mounted on compatible aluminium stage truss.

For overhead installation:

• Use an appropriately rated clamp.

• Use a separate secondary safety attachment.

• Confirm the mounting structure.

• Secure cables.

• Keep the fixture dry.

• Maintain adequate ventilation.

Do not rely solely on the bracket tightening knob as the complete overhead safety system.

POWERCON vs IEC Connector Conflict

This is the most important specification to verify before publishing the final product page.

The exact product:

Title: says “With POWERCON”
Description: says POWERCON IN/OUT
Key Features: says POWERCON IN/OUT

However, the formal technical specification states:

“IEC AC IN/OUT outlets on rear”

and:

“AC100–240V, 50/60Hz (IEC power in/out)”

These are different connector systems.

Stagify should inspect the rear panel of the actual unit before publishing the connection type as a hard technical specification.

Do Not Assume PowerCon Just From the Product Name

Because the product name explicitly says POWERCON, it is reasonable to retain the existing catalogue title.

But the technical specification should not state:

Power Connector: PowerCon IN/OUT

until the physical unit confirms it.

For now, the safest specification is:

Power Linking: Rear power IN/OUT – connector type requires confirmation

Daisy-Chain Power Linking

The formal specification states that the rear power connections can daisy-chain:

up to 6 units

This can reduce the number of separate mains cable runs required in compatible installations.

Power linking should always follow:

• Manufacturer limits

• Cable ratings

• Circuit capacity

• Local electrical requirements

Do not exceed the published link limit simply because additional connectors physically fit.

AC100–240V Wide-Voltage Input

The fixture supports:

AC100–240V / 50–60Hz

This covers the UAE's normal 220–240V / 50Hz electrical system.

The actual wall plug or mains lead supplied with Stagify inventory is not documented.

Do not specifically claim an included UAE/UK Type G plug until current stock is checked.

Listed 50,000-Hour LED Life

The supplier lists an LED lifespan of:

50,000 hours

This should be treated as a manufacturer-rated LED-life figure rather than a guarantee that every part of the complete fixture will operate for exactly 50,000 hours.

Actual service life can be affected by:

• Heat

• Operating environment

• Power quality

• Maintenance

• LED drive level

• Dust accumulation

Fans, power supplies and other components may also have different service lives.

235 × 235 × 295 mm Body

The exact published dimensions are:

235 × 235 × 295 mm

or:

23.5 × 23.5 × 29.5 cm

This compact format makes the PAR suitable for:

• Mobile event rigs

• Wedding companies

• DJ equipment

• Venue installations

• Rental inventories

Several fixtures can be transported more easily than equivalent large moving-head systems.

3.2 kg Weight

The product weight is listed as:

3.2 kg

This makes it relatively manageable for portable event setups.

Rigging hardware should still be rated with a suitable safety margin rather than selected solely according to the fixture's nominal weight.

Suitable for Live Stage Events

For live shows, several PAR fixtures can create the underlying stage colour while other lights provide movement and beam effects.

Typical stage positions include:

• Rear truss

• Side truss

• Floor behind performers

• Scenic structures

• Stage wings

The 25° beam provides a useful balance between concentrated output and wash coverage.

Corporate Event Lighting

The fixture can also support corporate productions.

RGB control allows colours to be adjusted around:

• Brand themes

• Product launches

• Awards

• Speaker stages

• Conference backdrops

Exact brand colour matching should be checked visually because stage-light RGB mixing is not equivalent to calibrated print or display colour reproduction.

Club and Venue Installations

For clubs and entertainment venues, the fixture can remain part of a permanent indoor lighting rig.

DMX512 allows several units to be coordinated with:

• Moving lights

• Strobes

• Lasers

• Other PAR fixtures

Sound and Auto modes remain available where simpler operation is preferred.

Best For

The RGB Colorful 54 LED Par Light is suitable for:

• Weddings

• DJs

• Live stages

• Clubs

• Bars and lounges

• Corporate events

• Theatre-style entertainment

• Backdrop lighting

• Event décor

• Houses of worship

• Rental companies

• Event-production companies

Its clearest role is a 180W RGB stage wash fixture with 25° optics, DMX512 and multiple standalone operating modes.

What This Fixture Is Not Best For

Another fixture may be more appropriate where the application requires:

• Outdoor rain exposure

• Confirmed IP65 waterproofing

• Dedicated white RGBW output

• Battery-powered wireless uplighting

• Moving pan and tilt

• Narrow beam effects

• Pixel mapping

• High-CRI film lighting

This fixture is primarily a conventional indoor RGB PAR wash.

54 LED RGB PAR vs 36 LED RGBW PAR

Stagify also carries the 36 LEDs RGB Par Party Stage Light, which actually has a confirmed RGBW LED split.

Choose this 54 LED RGB PAR when:

• A larger 180W fixture is preferred

• 25° wash optics suit the installation

• 15 built-in colour macros are useful

• Power linking is important

• A fuller-size stage PAR format is required

Choose the 36 LED RGBW PAR when:

• Dedicated white LEDs are important

• A lower-power compact fixture is sufficient

• Portability is a higher priority

• Entry-level wash lighting is the objective

This comparison gives customers a meaningful choice beyond simply counting LEDs.

54 LED RGB PAR vs Waterproof 54 LED PAR

The Stagify range also includes a Waterproof 54 LED PAR Light Outdoor.

The key difference should be environmental protection.

This RGB 54 LED PAR:

• Intended for dry indoor use

• No confirmed IP rating

• Compact stage/event applications

Waterproof 54 LED PAR:

• Designed for outdoor applications

• Should be selected where a confirmed waterproof rating is required

Customers should not choose this indoor model for exposed outdoor work just because the LED count is the same.

No Outdoor IP Rating Confirmed

The exact supplier page does not publish an IP rating for this SKU.

Therefore, Stagify should position it for dry indoor use.

Do not advertise it as:

• Waterproof

• Rainproof

• IP65

• Weather-resistant

• Outdoor-rated

without additional manufacturer documentation.

Installation and Rigging

For safe installation:

• Use appropriate clamps for overhead mounting.

• Use an independent safety attachment.

• Check the truss or support structure.

• Secure power and DMX cables.

• Maintain clearance around the fixture.

• Protect it from moisture.

• Inspect mounting hardware before events.

Floor use should also ensure the dual bracket is stable and positioned where guests cannot easily knock the fixture over.

What's Included & Compatibility

Confirmed core product:

• 1 × RGB Colorful 54 LED Par Light

Compatible system categories include:

• DMX512 controllers

• 3-pin XLR DMX cabling

• Aluminium stage truss

• Lighting stands

• Rated clamps

• Secondary safety attachments

• Other DMX stage-lighting fixtures

The supplier page does not provide a reliable detailed packing list.

Do not advertise a:

• DMX cable

• Clamp

• Safety cable

• Remote control

• Flight case

as included unless current Stagify inventory confirms it.

How Many LEDs Does It Have?

The fixture is advertised with:

54 RGB LEDs

The individual LED wattage is not explicitly confirmed on the exact supplier page.

Is It RGB or RGBW?

The product title and colour-mixing specification identify it as RGB.

One technical field uses the contradictory phrase “QUAD LED (3-in-1)”, so do not upgrade the specification to RGBW until the physical unit confirms a dedicated fourth colour.

How Much Power Does It Use?

The exact specification lists:

180W maximum power draw

What Is the Beam Angle?

The fixture has a confirmed:

25° beam angle

Does It Support DMX512?

Yes.

DMX512 is explicitly confirmed.

How Many DMX Channels Does It Use?

The exact supplier wording says:

“8 channel modes”

but does not provide a clear channel map.

Check the actual menu/manual before publishing a definitive DMX personality list.

Does It Work Without DMX?

Yes.

Confirmed operating modes include:

• Manual Colour

• Colour Change

• Colour Fade

• Auto

• Sound Active

Does It React to Music?

Yes.

Sound Active Mode is confirmed.

Does It Have Built-In Colours?

Yes.

The supplier lists 15 built-in colour macros.

Does It Have Dimming?

Yes.

The exact dimming range is:

0–100% electronic dimming

Does It Have Strobe?

Yes.

A colour strobe effect is confirmed.

The exact strobe frequency is not published.

Is It Flicker-Free?

The exact specification identifies the fixture as flicker-free.

No PWM frequency is published, so specialist high-speed camera performance should be tested where required.

Does It Have Power Linking?

Yes.

Rear AC power IN/OUT and daisy chaining of up to 6 units are listed.

The exact connector type needs physical verification because the supplier page conflicts between PowerCon and IEC.

Does It Really Have POWERCON?

The product title, description and feature section say POWERCON IN/OUT.

However, the formal technical specification says IEC AC IN/OUT.

Check the actual Stagify unit before publishing the connector type as final.

Does It Work on UAE Power?

Yes.

The confirmed AC100–240V / 50–60Hz input range covers UAE mains voltage.

The supplied mains plug type is not documented.

What Are the Dimensions?

The exact published dimensions are:

235 × 235 × 295 mm

How Much Does It Weigh?

The supplier lists:

3.2 kg

Can It Be Used Outdoors?

No outdoor protection rating is confirmed for this exact SKU.

Use it in dry, protected environments unless additional documentation proves otherwise.

Contact Stagify with your dance-floor model or controller details to confirm compatibility before purchase.
