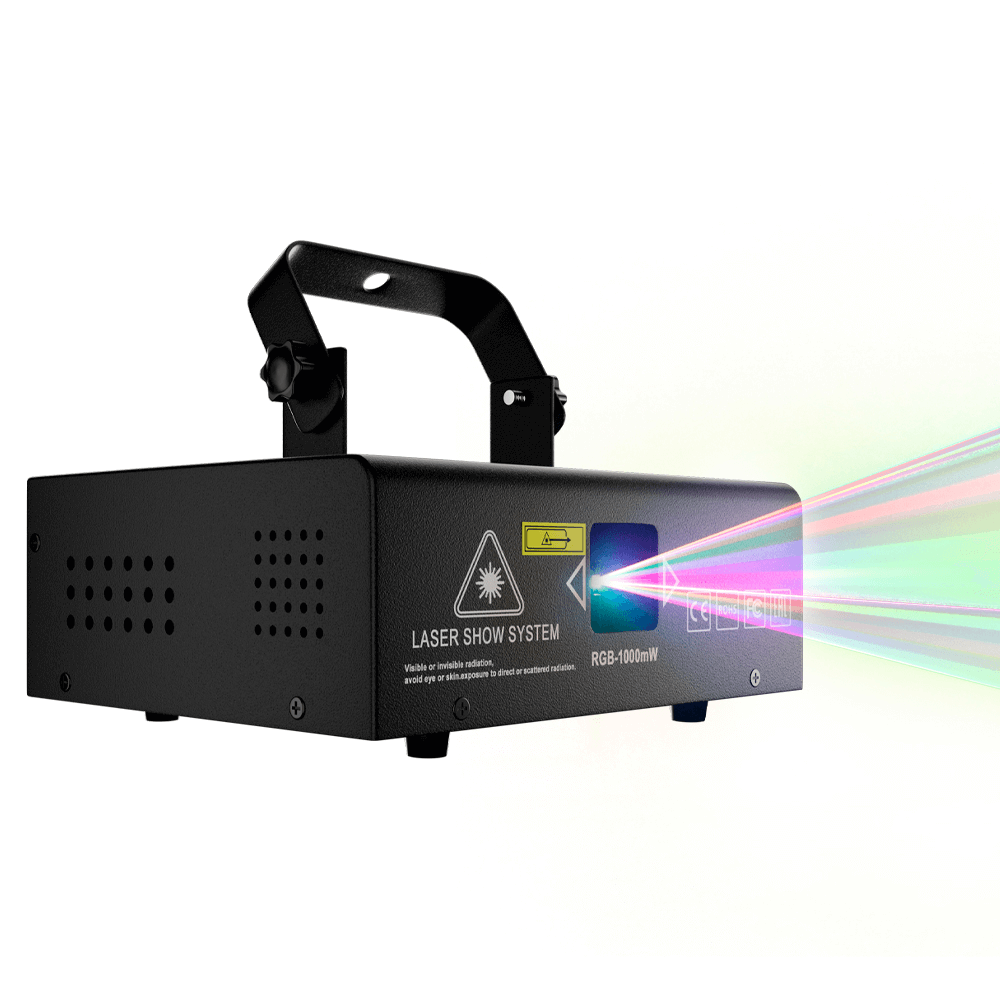

NEW RGB 1W LASER LIGHT For DJ Disco Wedding

NEW RGB 1W Laser Light for DJ Disco Wedding

The NEW RGB 1W Laser Light for DJ Disco Wedding is a compact full-colour animation laser designed for dance floors, wedding entertainment, DJs, clubs and indoor stage productions. Its supplier-rated 1W RGB laser system, 25KPPS scanning engine and library of more than 200 built-in patterns allow it to create coloured beams, geometric shapes and animated effects from a relatively compact 1.9 kg fixture.

DMX512, Sound, Auto and Master/Slave operation make it suitable for both programmed lighting rigs and simpler standalone event setups.

Technical Specifications

1W RGB Full-Colour Laser System

The fixture is built around a supplier-rated 1W RGB laser source.

RGB combines:

• Red

• Green

• Blue

These primary laser colours can be used individually or combined within the fixture's programmed effects to create a broader full-colour appearance.

Compared with basic red-and-green party lasers, RGB gives lighting designers more colour flexibility for wedding entertainment, DJ performances and stage backgrounds.

The supplier does not publish the individual optical power or wavelength of each RGB diode, so those figures should not be estimated from other 1W laser models.

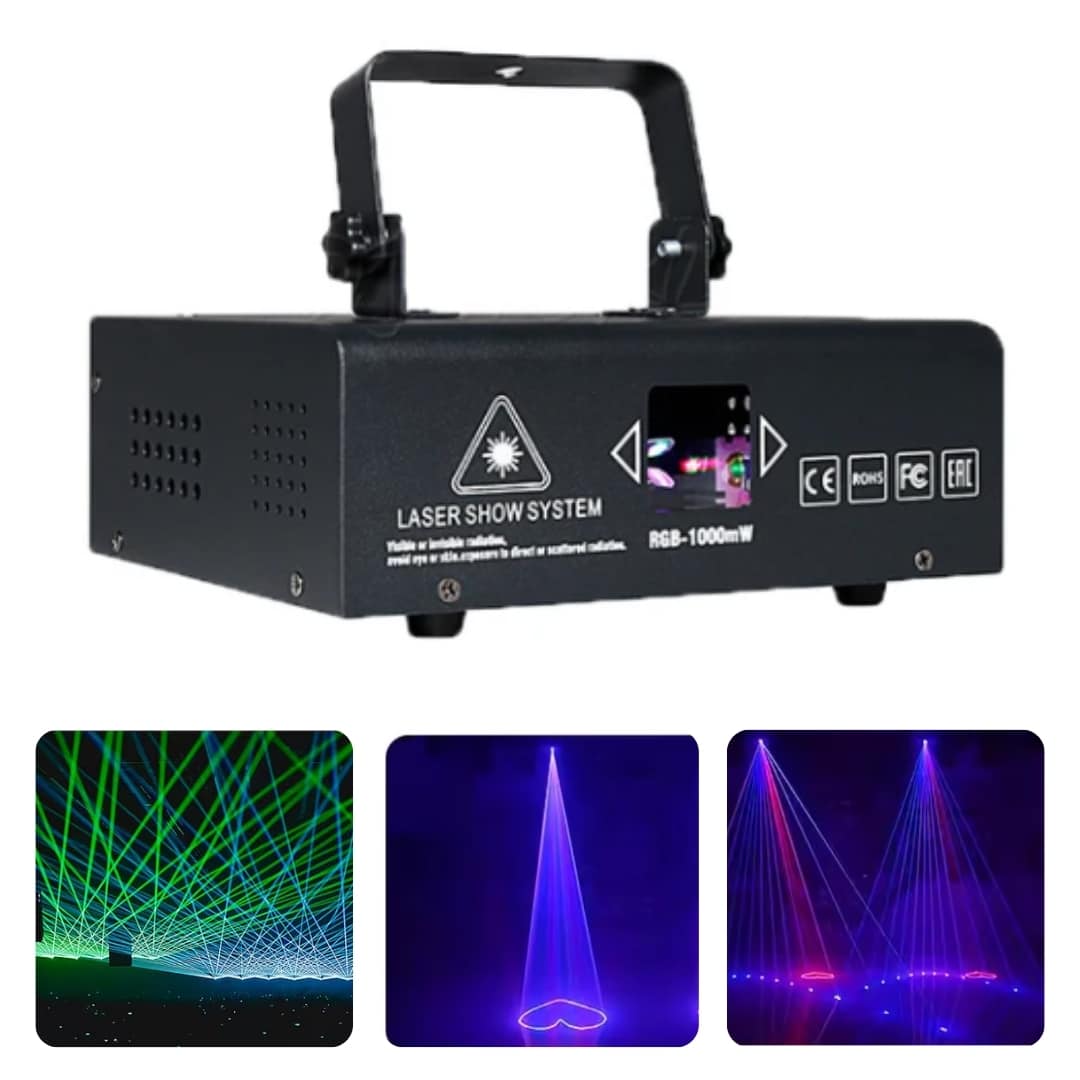

More Than 200 Built-In Laser Patterns

One of the key features of this model is its library of more than 200 built-in patterns.

These internal programmes allow the fixture to produce a variety of animation and geometric effects without requiring separate laser-design software.

Depending on the selected programme, the fixture can be used to create visual elements such as:

• Moving geometric forms

• Animated line effects

• Rotating shapes

• Colour-changing patterns

• Abstract laser graphics

• Music-responsive sequences

This makes it a useful step up from simple beam-only party lasers.

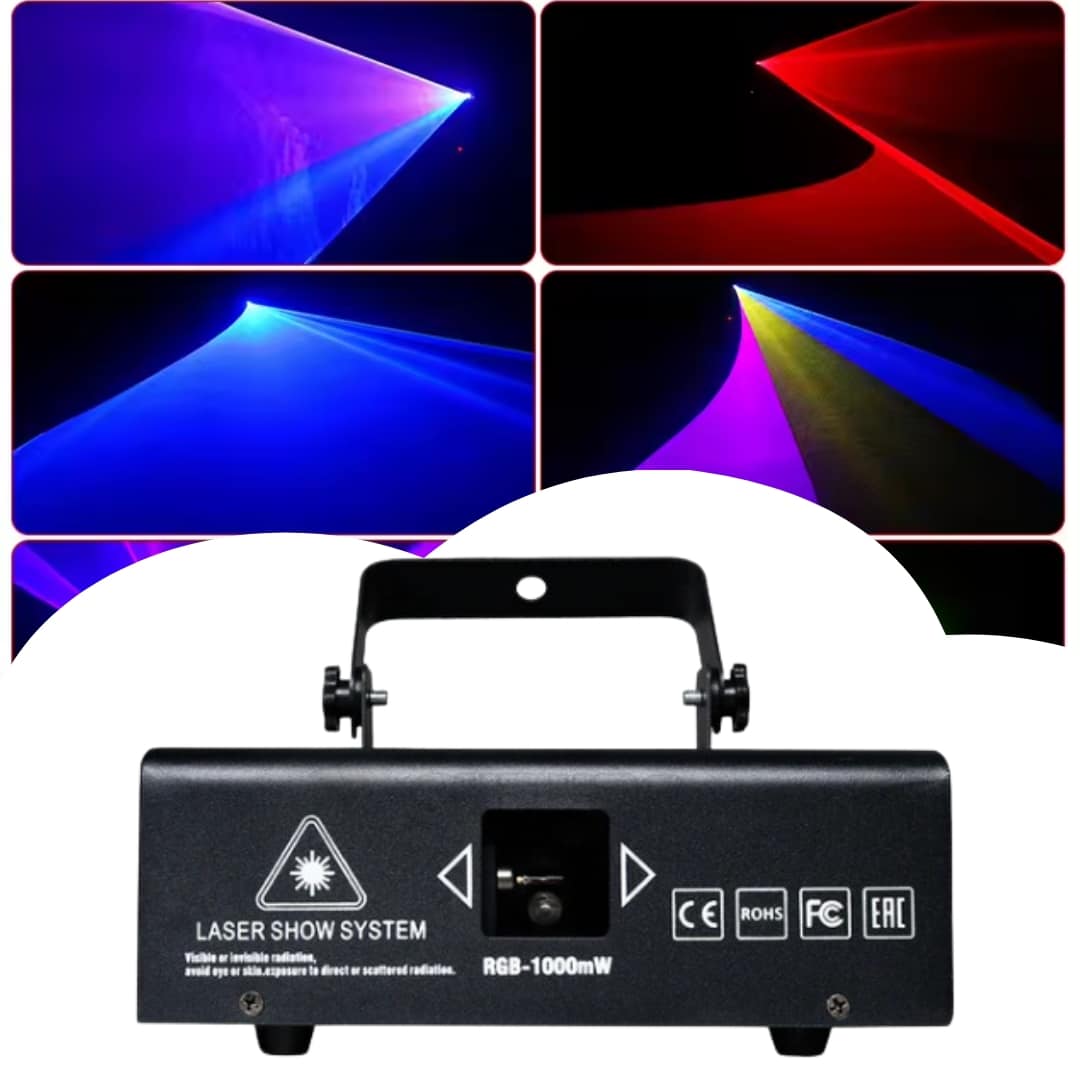

25KPPS High-Frequency Scanner

The laser uses a 25KPPS galvanometer scanning system.

KPPS refers to thousands of points per second and describes the speed at which the scanning system can move the laser beam to construct patterns.

A faster scanner can reproduce animated shapes more cleanly than basic stepper-motor laser effects.

The 25KPPS system therefore makes this fixture better suited to pattern and animation effects rather than only static dots or simple moving beams.

30° Scanning Angle

The documented scanning angle is 30 degrees.

This determines the available projection field of the scanner.

The final size of a projected pattern will also depend on:

• Projection distance

• Fixture position

• Surface location

• Selected effect

• Scanner programming

For stage installations, the laser can be positioned so the projected graphics land on a controlled scenic surface rather than uncontrolled audience areas.

Suitable for DJ Setups

A 1W RGB animation laser can add a different visual layer to a DJ lighting rig.

Moving heads and PAR lights mainly illuminate performers, scenery and the room. A scanning laser can instead create defined lines and animated patterns.

It can be positioned around:

• DJ booths

• Rear stage truss

• Dance-floor areas

• Scenic backdrops

• Video screens

• Side-stage structures

For mobile DJs, the 1.9 kg fixture weight also helps reduce the transport burden compared with larger multi-watt animation laser systems.

Wedding Dance-Floor Effects

The fixture is also suitable for controlled wedding entertainment lighting.

During formal portions of the event, the laser can remain off or operate with slower effects.

When the dance floor opens, RGB patterns can be introduced alongside moving heads, washes and atmospheric effects.

This makes one fixture useful across different portions of the same event without requiring it to operate continuously.

Useful for Clubs and Indoor Entertainment Venues

For clubs, lounges and indoor entertainment spaces, the RGB animation laser can become part of a repeatable installed lighting setup.

Multiple effects can be coordinated through DMX alongside:

• Moving head beams

• Moving washes

• LED PAR lights

• Strobes

• Pixel bars

• Other laser fixtures

The IP20 rating means the unit should remain inside a dry, protected environment.

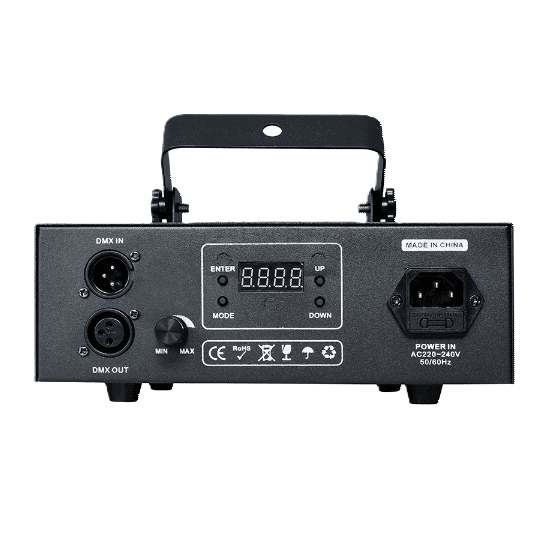

DMX512 Control

The fixture supports DMX512, allowing it to integrate into a conventional stage-lighting control system.

DMX operation is useful when laser effects need to happen at specific points in a performance.

For example, an operator can coordinate the laser with:

• Music drops

• Stage entrances

• Lighting blackouts

• Moving-head cues

• Strobe sequences

• Dance sections

This provides much greater show consistency than leaving the fixture entirely in automatic mode.

DMX Channel Information

The supplier specification currently lists the DMX configuration as:

“34/6 Channels.”

That wording likely refers to multiple DMX personalities, but the manufacturer documentation available for this exact SKU does not provide a corresponding channel map.

For that reason, the customer-facing technical table should simply state DMX512 until the supplied manual confirms the exact channel configuration.

Do not copy channel maps from another RGB animation laser solely because it also uses a 25KPPS scanner.

Sound-Activated Mode

The fixture includes a Sound or Voice Control mode.

In this configuration, built-in effects can respond to surrounding music.

This is useful for:

• Mobile DJs

• Wedding parties

• Private events

• Small clubs

• Dance floors

It allows the fixture to provide dynamic effects without requiring a dedicated lighting operator.

For precisely timed performances, DMX control remains the more appropriate option.

Automatic Mode

The supplier refers to a Self-Propelled mode, which is commonly used to describe automatic operation.

In Auto mode, the laser can cycle through its programmed effects independently.

This is useful when the goal is simple continuous entertainment lighting rather than cue-based show programming.

Master/Slave Operation

The fixture also supports Master/Slave mode.

This allows compatible fixtures to operate together without individually programming every unit through a lighting console.

Master/Slave operation can be practical when installing matching fixtures symmetrically:

• On both sides of a DJ booth

• Across rear truss

• Around a dance floor

• On either side of a wedding stage

For more complex installations, individual DMX control provides greater programming flexibility.

Animation Laser Rather Than a Simple Beam Effect

This product should be positioned differently from Stagify's simpler pattern or multi-lens party lasers.

Its important differentiators are:

25KPPS scanner + 200+ built-in patterns + RGB colour system.

These features give it more capability for creating recognisable scanned shapes and animations.

A simple multi-hole laser is generally better suited to spreading beams across a room.

This fixture is better suited when the customer specifically wants scanned patterns and animated laser effects.

Compact 340 mm Wide Housing

The documented fixture dimensions are:

340 × 168 × 103 mm

This gives the laser a relatively low-profile body compared with larger graphics-laser projectors.

The size is practical for:

• Mobile event racks

• DJ equipment cases

• Temporary installations

• Compact lighting truss

• Small venue installations

The complete fixture weighs approximately 1.9 kg.

Ferroalloy Housing

The exact specification identifies the enclosure as a ferroalloy outer shell.

A metal housing provides the structure required to protect the scanner and optical components during normal transport and installation.

The fixture should still be handled as precision optical equipment.

Avoid dropping, striking or transporting it loosely with heavy truss components or clamps.

AC90–240V Wide-Voltage Input

The fixture operates from:

AC90–240V / 50–60Hz

This voltage range covers the UAE's standard 220–240V / 50Hz electrical supply.

The supplied mains plug type is not documented on the exact product page.

Stagify should therefore confirm the physical inventory before stating that a UAE/UK Type G plug is included.

IP20 Indoor Protection

Unlike some outdoor laser projectors, this exact model has a documented IP20 protection rating.

It should therefore be used in dry indoor locations.

It should not be exposed to:

• Rain

• Water spray

• Outdoor moisture

• Unprotected pool areas

• Wet temporary stages

For outdoor events, an appropriately rated outdoor laser projector should be selected instead.

Operating Temperature

The published operating range is approximately:

-20°C to 40°C

For UAE indoor use, room temperature and fixture ventilation should still be considered carefully.

Do not block ventilation around the unit or position it immediately beside equipment producing significant heat.

The fixture's published 40°C upper operating limit also means it should not simply be assumed suitable for exposed outdoor summer environments.

Best For

The NEW RGB 1W Laser Light is particularly suited to:

• Wedding entertainment

• Mobile DJs

• Clubs

• Discos

• Dance floors

• Bars and lounges

• Live bands

• Indoor concerts

• Private events

• Corporate entertainment

• Event-production companies

• Small-to-medium indoor stages

It is especially useful when the production needs animated RGB patterns rather than only static or multi-beam laser effects.

Where It Fits Within the Stagify Laser Range

This 1W animation fixture sits between basic party effects and substantially higher-output professional laser projectors.

Choose this 1W RGB animation laser when:

• More than 200 preset patterns are useful

• Animated scanning effects are required

• A 25KPPS scanner is sufficient

• Compact dimensions matter

• The installation is indoors

• DMX integration is required

Consider a higher-output animation laser when:

• Working across very large venues

• Longer projection distances are required

• Greater optical power is necessary

• Advanced ILDA programming is required

• Custom logos or graphics must be created

• Large concert-scale effects are the goal

No ILDA interface is confirmed for this exact 1W fixture.

1W RGB Laser vs 9 Lens Pattern Flash Laser

These two fixtures serve different jobs.

The Pattern Flash RGB 9 Lens Laser is a compact pattern-and-strobe effect designed for quick party and DJ applications.

The 1W RGB Animation Laser uses a 25KPPS scanning system and more than 200 patterns, making it better positioned where animated laser graphics are a priority.

For customers comparing both products, this distinction should be made clear rather than presenting them as interchangeable versions of the same effect.

Using the Laser with Haze

Laser beams become more visible in the air when suitable atmospheric haze is present.

Without haze, much of the visible effect is concentrated where the beam reaches a surface.

With controlled haze, the path of the laser becomes easier to see.

For event installations:

• Check venue rules before using haze.

• Consider smoke detectors and fire-alarm systems.

• Maintain visibility of exits.

• Avoid excessive atmospheric density.

• Follow the haze machine manufacturer's operating instructions.

Haze should complement the laser rather than obscure the venue.

Laser Safety Requirements

A 1W laser projector requires careful installation and operation.

Do not deliberately direct laser output into people's eyes.

The installation should be arranged so projected beams and graphics remain within controlled areas and do not unintentionally enter audience eye level.

Before using the fixture commercially, check the physical product for:

• Laser classification

• Optical output label

• Aperture marking

• Manufacturer warnings

• Required safety distance

• Operating instructions

• Emergency or interlock controls, if fitted

The current supplier page does not provide a formal IEC laser class for this exact unit, so Stagify should not invent one.

Audience Scanning

The product should not be marketed for direct audience scanning.

Audience scanning is a specialised laser-show practice that requires exposure measurement, equipment controls, competent operators and compliance with applicable safety requirements.

For ordinary DJ, wedding and stage installations, the safer approach is to keep laser effects away from direct eye-level exposure.

Dubai Laser Display Approval

For commercial shows in Dubai, laser use may also involve regulatory requirements.

The Dubai Civil Aviation Authority provides a No Objection Certificate service for laser or pyrotechnic displays in the Emirate of Dubai. Event operators should confirm the requirements for the particular venue, location and show before operation.

Buying the fixture itself does not provide approval to operate a public laser display.

What's Included & Compatibility

Core product:

• 1 × NEW RGB 1W Laser Light

Compatible system categories include:

• DMX512 controllers

• 3-pin DMX infrastructure where supported by the physical fixture

• Stage truss

• Lighting stands

• Properly rated clamps

• Secondary safety attachments

• Haze machines

• Other DMX stage lighting

The supplier does not clearly document the full accessory package.

Do not list a remote control, DMX cable, power cable, flight case or specific mounting hardware as included until the actual Stagify package has been checked.

Does the Laser Really Have 1W Output?

The exact product title and supplier description market the fixture as a 1W RGB laser system.

However, the formal specification table does not break that 1W figure down into individual red, green and blue diode outputs.

Stagify should therefore publish the total 1W RGB rating but avoid inventing individual colour wattages.

What Colours Does It Produce?

The fixture uses an RGB laser system, providing red, green and blue as its primary colours.

Colour combinations can also be produced through the fixture's programmed animation effects.

How Many Patterns Are Built In?

The supplier specifies more than 200 built-in patterns.

This is one of the main differences between this fixture and simpler beam-only laser effects.

What Is the Scanner Speed?

The documented scanner frequency is 25KPPS.

This high-frequency galvanometer is responsible for drawing the fixture's scanned patterns and animations.

What Is the Scan Angle?

The published scanning angle is 30°.

Actual projected coverage changes depending on how far the laser is positioned from the projection surface.

Can It Work Without a DMX Controller?

Yes.

The fixture supports:

• Automatic operation

• Sound activation

• Master/Slave operation

as well as DMX512.

Can I Control It Through DMX?

Yes.

DMX512 control is confirmed.

The supplier currently writes the channel specification as “34/6 Channels”, but Stagify should verify the physical manual before publishing those as definite DMX modes.

Does It Support ILDA?

No ILDA connection or ILDA control capability is confirmed for this exact SKU.

Do not advertise custom ILDA graphics or software control unless the physical unit provides the necessary interface.

Can It Project Logos?

The fixture has more than 200 built-in patterns, but custom logo projection is not confirmed.

Customers requiring custom text, company logos or bespoke graphics should select a laser projector specifically supporting ILDA or another confirmed graphics-control platform.

Can It Be Used Outdoors?

No.

The exact fixture is rated IP20, which is intended for protected indoor environments.

It should not be marketed as waterproof or suitable for exposed outdoor use.

Does It Work on UAE Power?

Yes.

Its AC90–240V / 50–60Hz input range covers standard UAE 220–240V / 50Hz mains power.

The plug supplied with the product still needs to be confirmed from Stagify inventory.

Is the Laser Suitable for Weddings?

Yes, particularly for controlled indoor dance-floor and stage effects.

The RGB colours and built-in animations can complement moving heads and wedding entertainment lighting, provided the laser is installed and operated with appropriate safety controls.

Contact Stagify with your dance-floor model or controller details to confirm compatibility before purchase.
