Professional DMX Splitter 8 Way

Professional DMX Splitter 8 Way

The Professional DMX Splitter 8 Way is an active DMX512 distribution amplifier designed to divide one lighting-control signal into eight isolated output branches. With one 3-pin XLR input, eight 3-pin XLR outputs, signal isolation, a durable metal enclosure and AC90–240V operation, it is suited to concerts, wedding productions, theatres, clubs, rental racks and larger stage-lighting systems.

Technical Specifications

One DMX Input to Eight Output Branches

The splitter accepts one DMX512 signal from a lighting controller and distributes that signal across eight separate outputs.

This is useful when a lighting system becomes too large or physically spread out to operate conveniently as one long daisy-chain.

Instead of running:

Controller → Fixture → Fixture → Fixture → Fixture

the splitter allows the system to branch into several directions from one central point.

For example:

DMX Controller → 8-Way Splitter

Then separate outputs can feed:

• Beam moving heads

• Moving wash fixtures

• LED PAR lights

• Pixel bars

• Blinders

• Stage effects

• Architectural lighting

• Additional DMX equipment

This makes cable routing easier on large stages and event installations.

Eight Isolated DMX Outputs

The strongest feature of this splitter is its eight isolated DMX output branches.

Isolation helps separate the controller and different downstream lighting branches from one another.

This is particularly valuable when the stage system includes many fixtures distributed across different:

• Trusses

• Stage wings

• Floor positions

• DJ structures

• Scenic areas

• Venue zones

If one branch experiences a wiring or signal problem, isolation can help prevent that fault from directly affecting every other branch in the same way.

The exact supplier describes the unit as isolating both the controller from connected equipment and equipment branches from one another.

Active DMX Distribution Amplifier

This product is not simply a passive cable splitter.

The supplier specifies it as an 8-way DMX512 distribution amplifier.

An active splitter receives the incoming DMX signal and distributes regenerated output to multiple branches.

This can be especially useful on larger systems where signal reliability matters across:

• Long cable runs

• Multiple truss sections

• Large venue layouts

• Rental lighting rigs

• Permanent installations

It allows the lighting system to be divided logically instead of relying on one increasingly long serial DMX chain.

Why a DMX Splitter Is Useful

A simple lighting setup may only need one DMX cable running through several fixtures.

As the system expands, that approach becomes less practical.

An eight-way splitter helps organise the signal structure.

For example:

Output 1: Stage-left moving heads
Output 2: Stage-right moving heads
Output 3: Rear-truss washes
Output 4: Front lighting
Output 5: LED PAR fixtures
Output 6: Pixel bars
Output 7: Stage effects
Output 8: Spare or additional lighting branch

This makes troubleshooting and cable management considerably easier than putting every device onto one physical cable path.

A Splitter Does Not Create Additional DMX Universes

An important distinction is that this unit copies and distributes one DMX512 input signal.

It does not automatically create eight independent DMX universes.

All eight outputs receive the DMX data originating from the same input.

That means a fixture addressed as DMX channel 001 will respond to channel 001 whether it is connected to output 1, output 4 or output 8.

For additional independent universes, the lighting system requires a controller or network node capable of generating those separate universes.

More Than Eight Fixtures Can Be Used

The eight outputs should not be interpreted as an eight-fixture limit.

Each output is a DMX branch, and compatible fixtures can normally continue along that branch using standard DMX daisy-chaining.

For example:

Splitter Output 1 → Moving Head 1 → Moving Head 2 → Moving Head 3

Splitter Output 2 → PAR 1 → PAR 2 → PAR 3

The actual number of fixtures per branch should follow good DMX installation practice and the requirements of the connected equipment.

The exact supplier confirms that the splitter is designed to allow a larger number of DMX devices to be connected through distributed branches.

3-Pin XLR DMX Connections

The exact hardware specification uses:

• 1 × 3-pin male XLR DMX input

• 8 × 3-pin female XLR DMX outputs

This makes the splitter directly compatible with professional lighting equipment using 3-pin DMX connections.

Many stage-lighting fixtures in DJ, wedding and event-production systems use 3-pin XLR for DMX512.

Fixtures using 5-pin DMX connectors will require suitable DMX adapters or cabling.

Stagify should not claim native 5-pin connections because none are documented for this exact splitter.

Ideal for Moving Head Lighting Systems

Moving-head rigs are a strong application for an active DMX splitter.

A large wedding or concert setup might have moving lights installed across several different trusses.

Instead of routing the DMX signal from one distant truss to another, each section can receive its own output from the splitter.

For example:

• Front truss

• Rear truss

• Stage left

• Stage right

can each become a separate physical DMX branch while remaining under control from the same console.

Useful for Wedding Production

Wedding-production companies often build temporary lighting rigs in hotel ballrooms and event halls.

These installations may contain:

• Beam moving heads

• Wash lights

• LED PARs

• Blinders

• Pixel fixtures

• Effect lights

An 8-way DMX splitter provides a central signal-distribution point so the lighting system can be divided according to the venue layout.

This can make both installation and troubleshooting easier during time-sensitive event setups.

Concert and Touring Applications

Concert lighting systems frequently involve equipment spread over multiple stage positions.

An active splitter can separate different areas of the rig while maintaining one controller signal.

Typical branches may include:

• Ground fixtures

• Rear truss

• Side truss

• Front truss

• Scenic lighting

• Stage effects

A splitter is therefore less about adding lighting channels and more about creating a better physical DMX network.

Theatre and Auditorium Installations

Theatres can also benefit from distributed DMX topology.

Different outputs can be routed toward:

• Front-of-house lighting

• Stage electrics

• Side lighting

• Backstage positions

• Scenic fixtures

This allows the signal architecture to follow the physical layout of the venue.

For permanent installations, labelled splitter outputs can also simplify maintenance and fault finding.

Clubs and Entertainment Venues

A nightclub lighting system might include fixtures distributed around:

• Dance floor

• DJ booth

• Ceiling truss

• Stage

• VIP area

• Entrance zone

Running separate splitter outputs to these areas can make the DMX installation easier to manage than one continuous cable path travelling throughout the venue.

Multiple Splitters Can Be Interconnected

The exact specification confirms the possibility of interconnecting several devices.

This can be useful where the lighting system requires more distribution points.

For example, one splitter may distribute the main signal to different areas, while another unit is positioned farther into the installation to create additional branches.

The network should still be designed carefully rather than repeatedly splitting signals without a clear topology.

Built-In Signal Isolation

Electrical isolation is particularly important in professional lighting because connected fixtures may be located in different areas of a venue and connected to different power circuits.

The isolated output architecture helps separate DMX branches electrically.

A comparable professional 8-way splitter uses the same principle, with eight electrically isolated output channels designed to protect signal branches from interference or faults.

Metal Housing

The splitter uses a metal enclosure with electrostatic paint coating.

This provides a more appropriate construction for event-production use than a lightweight plastic signal box.

A metal chassis is useful where equipment may be:

• Installed in control racks

• Transported between events

• Stored in production warehouses

• Used in clubs

• Integrated into touring systems

The supplier does not explicitly specify a 19-inch rack format or rack-unit height, so Stagify should not describe this exact model as 1U rackmount until the physical chassis is checked.

Built-In Fuse

The exact product specification confirms that the splitter has a fuse.

The fuse provides electrical protection within the unit.

The supplier does not publish:

• Fuse current rating

• Fuse type

• Replacement specification

so those figures should be taken from the physical fuse holder, label or manual before replacement.

AC90–240V / 50–60Hz Power

The splitter operates from AC90–240V at 50/60Hz.

This range covers standard UAE 220–240V / 50Hz mains power.

It also makes the splitter suitable for professional touring systems operating in regions with different common mains voltages.

The exact mains connector and plug supplied with Stagify inventory should still be checked before stating that a UAE Type G cable is included.

No DMX Address Required

A DMX splitter normally operates as signal infrastructure rather than as a controllable lighting fixture.

It does not need to be assigned a DMX address simply to distribute the incoming signal.

The lighting controller sends DMX into the splitter, and the splitter routes that data to its eight outputs.

Individual lighting fixtures connected downstream still receive their own DMX addresses as usual.

DMX Splitter vs DMX Controller

These two products perform completely different functions.

DMX Controller:
Creates the DMX instructions used to control lights.

DMX Splitter:
Receives that existing DMX signal and distributes it to several physical branches.

The splitter therefore does not replace:

• A lighting console

• DMX programming

• Fixture addressing

It works between the controller and the fixtures.

DMX Splitter vs Passive Y-Split Cable

A professional active splitter is preferable to simply dividing the DMX cable using passive Y-adapters.

This unit is specifically designed as a powered distribution amplifier with isolated branches.

That gives the lighting system a deliberate signal topology rather than physically joining several DMX branches together without active signal management.

For professional event and installation work, an active splitter is the appropriate solution when one controller signal needs to travel in several directions.

Best For

The Professional DMX Splitter 8 Way is particularly suitable for:

• Wedding-production companies

• Concert lighting systems

• Nightclubs

• Theatres

• Auditoriums

• Hotel ballrooms

• Live-event production

• Rental companies

• Houses of worship

• AV installers

• Permanent venue lighting

• Larger DMX stage systems

What's Included & Compatibility

Core product:

• 1 × Professional DMX Splitter 8 Way

The unit is designed to work with:

• DMX512 lighting controllers

• 3-pin DMX cabling

• Beam moving heads

• Moving washes

• LED PAR lights

• Pixel fixtures

• Blinders

• DMX stage effects

• Other DMX512-compatible equipment

The exact supplier does not clearly document the standard package accessories.

Do not list a:

• Power adapter

• Mains cable

• DMX cable

• Rack screws

• Flight case

as included until the physical Stagify package is verified.

How Many DMX Outputs Does It Have?

The splitter provides eight DMX512 outputs.

Each output uses a 3-pin female XLR connector.

How Many DMX Inputs Does It Have?

There is one DMX input, using a 3-pin male XLR connector.

Does Every Output Receive the Same DMX Signal?

Yes.

The splitter distributes the incoming DMX512 signal across its eight output branches.

It does not create eight different DMX universes.

Are the Outputs Isolated?

Yes.

Isolation between the controller and connected equipment, as well as between output branches, is a documented feature of the exact product.

Does It Boost the DMX Signal?

The exact specification identifies the device as a DMX512 eight-way distribution amplifier.

Its purpose is active signal distribution rather than simple passive splitting.

Can I Connect More Than Eight Lights?

Yes.

Eight refers to the number of output branches, not necessarily the total number of fixtures.

Each branch can continue through compatible fixtures using normal DMX daisy-chaining.

Does It Support 5-Pin DMX?

The exact splitter is documented with 3-pin XLR connectors.

5-pin equipment would require compatible DMX adapters or cables.

Does It Support RDM?

RDM is not documented for this exact SKU.

Some modern splitters support bidirectional RDM, but that should not be assumed here.

Do not advertise RDM pass-through until the physical product or manufacturer manual confirms it.

Does It Have a DMX Thru Connection?

A dedicated DMX Thru connector is not listed in the exact supplier specification.

The documented connections are one input and eight outputs.

Do not add a separate Thru port based on another 8-way splitter model.

Is It Rack Mountable?

The published width is approximately 53 cm, but the supplier does not explicitly state 19-inch rack mounting or a 1U form factor.

Stagify should verify mounting ears and chassis format before advertising it as rackmount equipment.

Does It Work on UAE Power?

Yes.

The confirmed AC90–240V / 50–60Hz operating range covers UAE 220–240V / 50Hz mains power.

The exact supplied plug type remains to be checked.

Signal Setup Example

A typical professional installation could use:

Lighting Console

↓

Professional DMX Splitter 8 Way

↓

Output 1: Beam moving heads
Output 2: Moving wash fixtures
Output 3: LED PARs
Output 4: Pixel bars
Output 5: Blinders
Output 6: Stage effects
Output 7: Architectural lights
Output 8: Spare / additional branch

This arrangement makes it easier to trace and isolate the physical DMX network.

DMX Cable & Termination

Use proper DMX-rated data cable wherever possible.

Each downstream branch should be installed according to standard DMX network practice, including appropriate termination at the end of the line when required by the equipment and system design.

The exact splitter specification does not publish a built-in switchable terminator, so Stagify should not claim one.

Professional DMX Distribution in the UAE

Stagify supplies DMX controllers, signal distribution equipment and professional stage-lighting systems across the UAE for wedding companies, venues, clubs and event-production businesses.

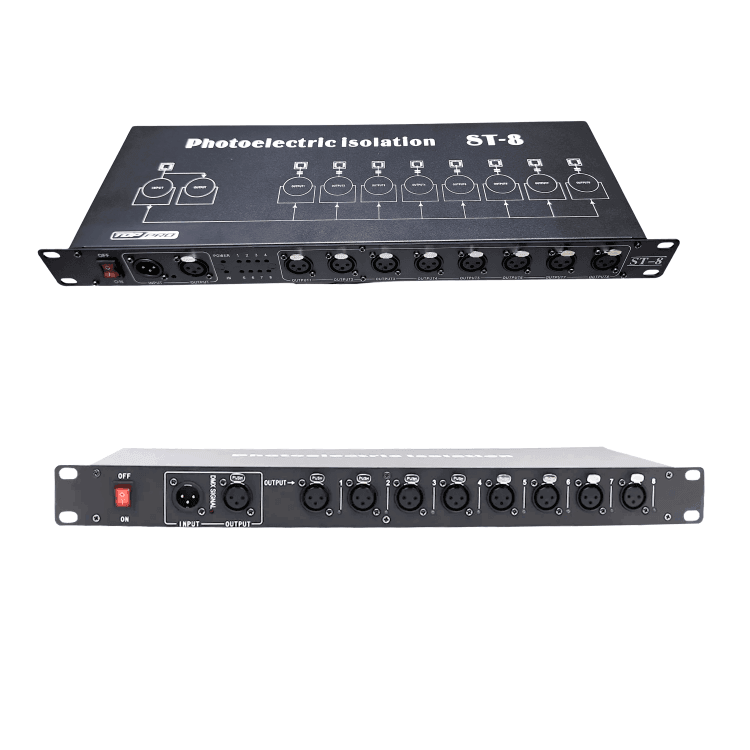

This 8-way splitter is positioned for lighting systems that have outgrown one simple DMX daisy-chain and need eight isolated signal branches from a single controller source.

Contact Stagify to confirm current stock, mains connection and package contents before integrating the splitter into a touring or permanent lighting system.
