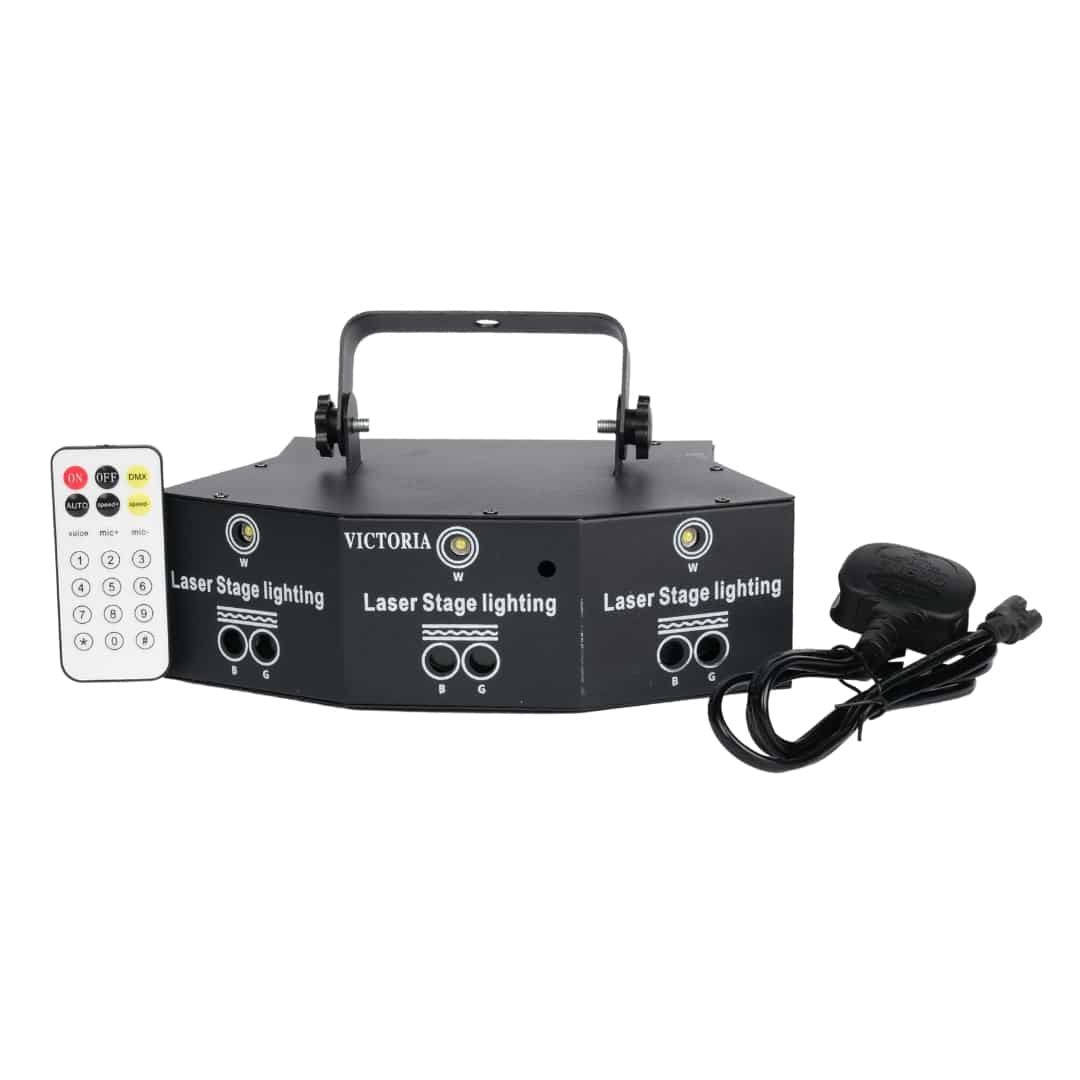

Pattern Flash RGB Animation Laser Light 9 Lens

Pattern Flash RGB Animation Laser Light 9 Lens – Dynamic Visual Effects for Your Event

The Pattern Flash RGB Animation Laser Light 9 Lens is a compact multi-effect laser fixture designed for DJs, parties, wedding entertainment, clubs and smaller indoor stages. It combines a nine-lens pattern-effect format with a supplier-listed 100mW RGB laser system and three 1W white strobe sources, giving operators coloured laser effects and flashing white accents from one lightweight unit.

With 10-channel DMX512, Auto, Sound and Master/Slave operation, the fixture can work independently for simple events or integrate into a larger lighting setup.

Technical Specifications

Compact Laser and Strobe Effect in One Fixture

This fixture combines two different types of stage effect.

The first is the RGB laser system, which produces coloured pattern and beam-style visual effects.

The second is a set of three 1W white strobe sources that can introduce bright flash accents around the laser effect.

Combining these functions allows one compact fixture to contribute both colour movement and rhythmic strobing.

This makes it particularly useful for smaller lighting rigs where transport space and fixture count matter.

Nine-Lens Pattern Effect Design

The front of the fixture uses a nine-lens visual layout intended to spread animated laser effects across a wider field than a single-aperture party laser.

This format can create moving and repeating patterns across:

• Dance floors

• DJ backdrops

• Walls

• Stage scenery

• Ceilings

• Entertainment areas

The exact manufacturer data does not identify nine separate laser diodes or specify independent output from every lens.

For that reason, the product should be marketed as a 9-lens pattern-effect laser, rather than claiming nine individually powered RGB lasers.

RGB Laser Effects

The unit incorporates an RGB laser source, allowing red, green and blue to form the core colour palette of the projected effects.

Depending on programme and control settings, these colours can contribute to animated patterns and changing visual sequences during music-driven events.

RGB output makes the fixture more flexible than basic red-and-green party lasers when a colourful effect is required.

The manufacturer does not publish individual:

• Red laser power

• Green laser power

• Blue laser power

• Laser wavelengths

• Beam divergence

• Scanner speed

These specifications should not be added until confirmed from the physical product label or manufacturer manual.

100mW Supplier-Listed Laser Source

The exact technical table lists the laser system as 100mW RGB.

This should not be confused with the fixture's 8W electrical power consumption.

Watts and milliwatts in this case refer to different measurements:

8W is the stated electrical power of the complete fixture.

100mW is the supplier-listed laser-source figure.

For product listings, these values should remain clearly separated so customers do not mistake the fixture for an 8W optical-output animation laser.

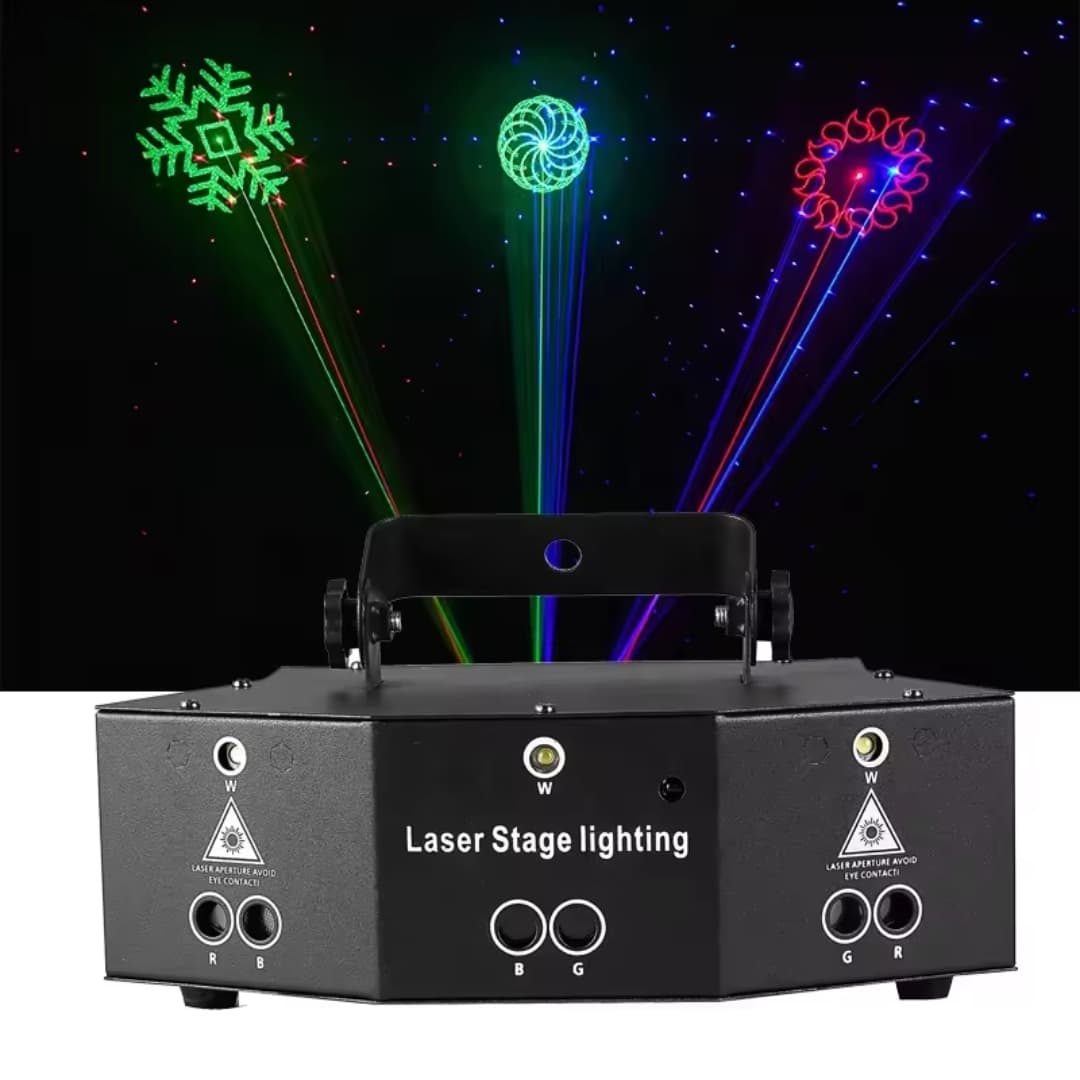

Three 1W White Strobe Sources

In addition to the RGB laser system, the fixture includes three 1W white stroboscopic light sources.

These provide a contrasting white flash effect alongside the coloured laser patterns.

The combination is useful during:

• DJ drops

• Music transitions

• Dance sections

• Party sequences

• Stage entrances

• Entertainment finales

The strobe effect can reach a published maximum rate of approximately 20 flashes per second.

0–100% Smooth Dimming

The published specification includes 0–100% dimming.

This gives the operator more flexibility than a simple on/off party effect.

For example, the fixture can be run at lower intensity during background entertainment and increased when the event moves into a dance or performance segment.

DMX control provides the most useful way to incorporate these intensity changes into programmed cues.

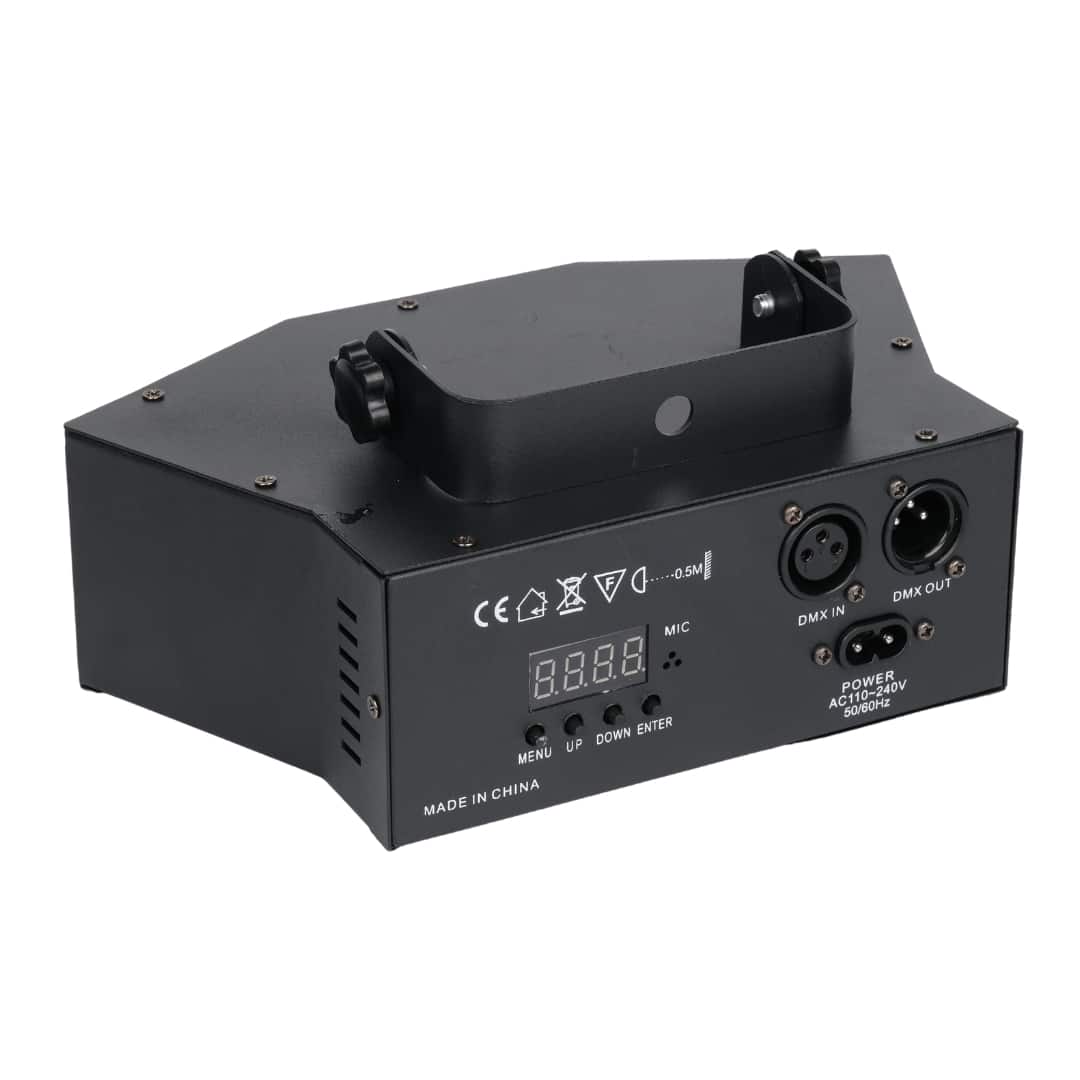

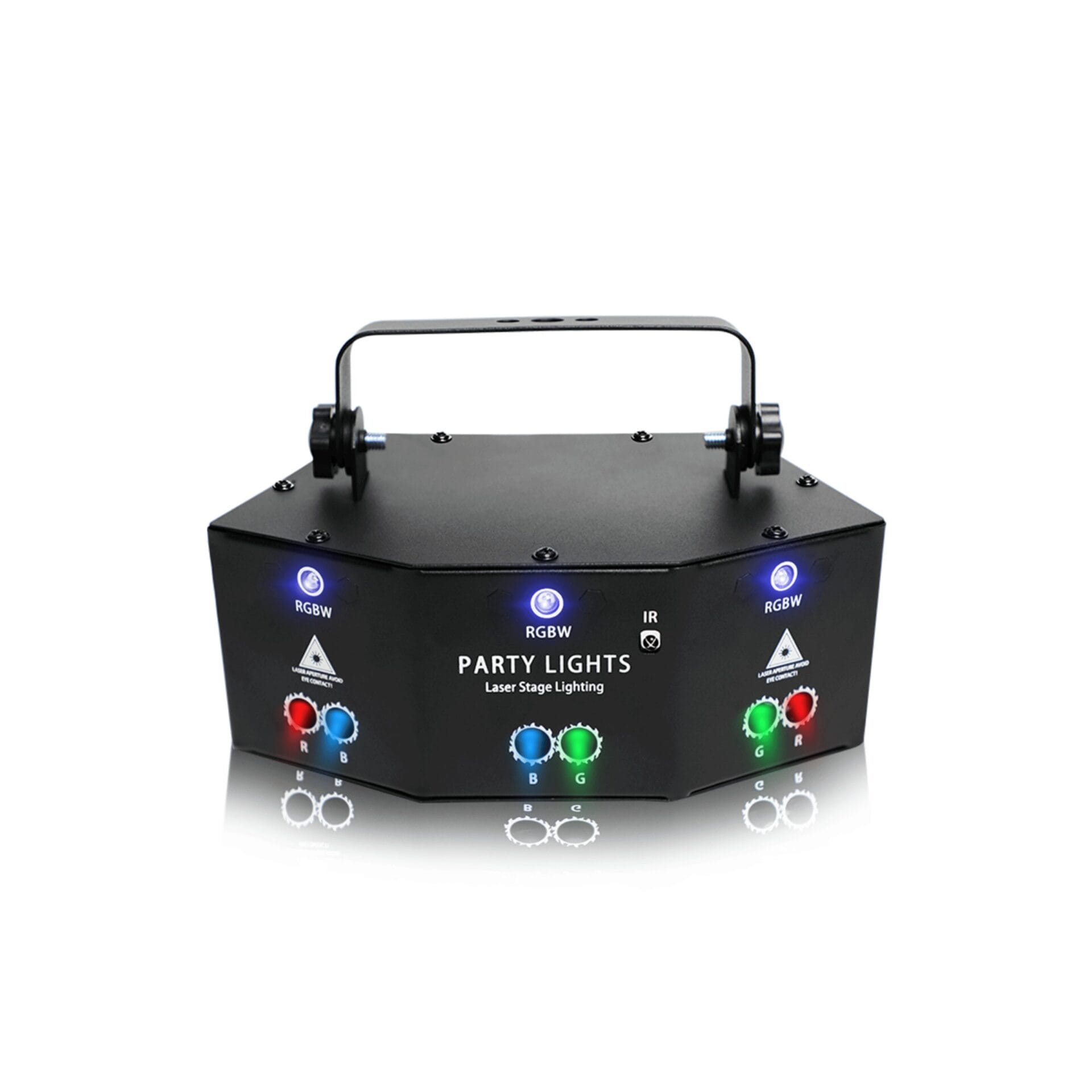

10-Channel DMX512 Control

The fixture uses 10 DMX channels according to the exact supplier specification.

This makes it relatively economical in terms of DMX universe usage.

A lighting operator can integrate several units alongside:

• Moving head beams

• LED PAR lights

• Moving washes

• Strobe fixtures

• Effect lights

• Fog or haze systems

The exact manufacturer channel map is not published on the current product page, so individual channel functions should not be listed until the supplied manual has been checked.

Automatic Operation

An Auto mode allows the fixture to generate built-in effects without continuous console control.

This can work well for:

• Small private parties

• Mobile DJs

• Casual entertainment

• Small venues

• Simple dance-floor setups

Auto operation reduces setup complexity where precise cue-by-cue programming is unnecessary.

For larger productions, DMX remains the better choice when effects need to synchronise with other fixtures.

Sound-Activated Operation

The Sound mode allows built-in effects to react to music.

This makes the unit useful for DJs and smaller entertainment venues that want responsive lighting without a dedicated lighting operator.

Typical applications include:

• Wedding entertainment

• Birthday parties

• DJ performances

• Lounges

• Small clubs

• Private events

Sound activation should be treated as a convenient standalone option rather than a replacement for programmed DMX control where accurate timing is required.

Master/Slave Operation

When several compatible units are used together, Master/Slave mode can simplify operation.

One fixture can provide the programme reference while other compatible units follow it.

This can be useful for symmetrical installations on either side of:

• DJ booths

• Small stages

• Dance floors

• Entertainment areas

It avoids the need to programme every fixture separately for straightforward repeated effects.

Lightweight 1.1 kg Design

The exact product weight is only 1.1 kg.

That makes this fixture considerably easier to transport than larger animation laser projectors.

The low weight is useful for:

• Mobile DJs

• Wedding production teams

• Small event companies

• Portable lighting systems

• Temporary entertainment installations

It is also practical where several effects need to travel in the same equipment case.

Low fixture weight does not, however, remove the need for correctly rated mounting hardware and secondary safety attachment when installed overhead.

AC95–245V Wide-Voltage Input

The laser fixture operates from AC95–245V / 50–60Hz.

This range covers the UAE's 220–240V / 50Hz mains supply.

The actual mains plug supplied with Stagify stock is not documented, so the product page should not state that a UK/UAE Type G plug is included until the physical inventory is checked.

Where This Fixture Fits in a Lighting Setup

This product is better positioned as a compact pattern-and-flash effect than as a high-output graphics laser projector.

It works well when the objective is:

• Adding colour to a small dance floor

• Creating music-responsive effects

• Adding laser patterns behind a DJ

• Supplementing moving heads

• Adding strobe accents

• Building a portable party-lighting package

Its low weight and 10-channel control make it particularly appropriate for mobile event setups.

What This Laser Is Not Designed to Replace

This distinction is important when customers compare different Stagify laser products.

The 9 Lens Pattern Flash Laser is not the preferred choice for large-scale programmed laser graphics or advanced animation shows.

For applications requiring:

• ILDA control

• High-speed galvanometer scanning

• Custom text or logo projection

• Detailed geometric graphics

• High optical output

• Long projection distances

• Large concert-scale laser effects

a dedicated RGB animation laser projector is the more appropriate product category.

No ILDA interface, scanner speed or custom graphics capability is confirmed for this exact fixture.

Best For

The Pattern Flash RGB Animation Laser Light 9 Lens is well suited to:

• Mobile DJs

• Wedding entertainment

• Parties

• Small clubs

• Lounges

• Bars

• Dance floors

• Live entertainment

• Private functions

• Event companies

• Small indoor stages

Its main advantage is combining RGB pattern effects, white strobe and multiple standalone control options in a compact 1.1 kg fixture.

Using Laser Effects with Haze

Laser effects become much more visible in the air when used with suitable atmospheric haze.

Without haze, projected patterns are generally more noticeable where they strike surfaces.

With controlled haze, the beam path itself becomes easier for the audience to see.

When using haze or fog:

• Check venue rules first.

• Consider smoke-detection systems.

• Avoid excessive atmospheric density.

• Maintain adequate visibility around entrances and exits.

A haze machine should be selected and operated independently according to the venue's requirements.

Laser Safety Is Essential

This fixture contains a real laser source and must be treated differently from an ordinary LED effect light.

Never deliberately aim laser output directly into people's eyes.

Installation should prevent the projected beams from entering uncontrolled audience areas, reflective surfaces or other locations where exposure could create a hazard.

The supplier does not publish the formal laser safety class for this exact unit.

Before commercial deployment, inspect the physical product for:

• Laser-class label

• Output information

• Warning labels

• Manufacturer instructions

• Required safety distances

• Aperture identification

Do not remove or cover safety labels on the fixture.

Dubai Laser Show Approval

Commercial laser displays in Dubai may require approval from the Dubai Civil Aviation Authority (DCAA) depending on the intended show and installation.

DCAA provides a specific service for obtaining a No Objection Certificate for laser or pyrotechnic displays in the Emirate of Dubai.

Event operators should therefore verify venue, aviation and local authority requirements before running a public laser display.

Purchasing a laser fixture does not itself constitute permission to operate a laser show.

Indoor Use Positioning

The supplier's marketing copy mentions outdoor events, but no IP protection rating is published for this exact model.

Stagify should therefore position it as a dry-environment indoor fixture unless an IP rating is subsequently confirmed from the manufacturer or physical product.

Do not market it as:

• Waterproof

• Rainproof

• Weather-resistant

• IP-rated

without supporting documentation.

What's Included & Compatibility

Core product:

• 1 × Pattern Flash RGB Animation Laser Light 9 Lens

It can be integrated with compatible:

• DMX512 controllers

• 3-pin DMX cabling

• Stage-lighting stands

• Truss systems

• Rated lighting clamps

• Secondary safety attachments

• Fog or haze machines

• Other DMX stage lights

The exact included accessory package is not clearly documented by the supplier, so power cables, remote controls, DMX cables or mounting accessories should not be advertised as included until Stagify stock is physically checked.

Is This a 10W Laser?

No.

The exact manufacturer-side specification lists the complete fixture at 8W electrical power and lists the RGB laser source as 100mW.

A separate retailer currently describes the unit as a 10W laser, but that conflicts with the exact product specification and should not be used for the Stagify technical table.

Does It Have Nine Separate RGB Lasers?

The product is marketed as a 9 Lens fixture, but the technical documentation does not confirm nine independent RGB laser modules.

It is safer and more accurate to describe it as a nine-lens pattern-effect design.

What Colours Does the Laser Produce?

The supplier identifies the laser system as RGB, meaning red, green and blue.

Individual wavelength and output specifications for each colour are not published for the exact product.

Does It Include a Strobe?

Yes.

The fixture includes three 1W white strobe sources, with a published strobe capability of up to approximately 20 flashes per second.

How Many DMX Channels Does It Use?

It operates with 10 DMX channels according to the exact technical specification.

The detailed channel function chart should be taken from the supplied product manual before creating custom fixture profiles.

Can It Run Without DMX?

Yes.

The fixture supports Auto, Sound and Master/Slave modes in addition to DMX512.

This makes it practical for both simple standalone setups and console-controlled lighting systems.

Does It Work on UAE Voltage?

Yes.

Its AC95–245V / 50–60Hz input range includes the UAE's 220–240V / 50Hz mains supply.

The supplied plug type is not currently confirmed.

Can It Be Used Outdoors?

An outdoor/IP rating has not been confirmed for this exact model.

Use it in dry, protected environments unless manufacturer documentation establishes a suitable IP rating.

Is It Suitable for Audience Scanning?

The product should not be promoted for audience scanning.

Laser installation and operation require appropriate safety planning, and beams should be positioned to avoid hazardous direct exposure.

Contact Stagify with your dance-floor model or controller details to confirm compatibility before purchase.
