Light Sky AQUAPEARL-PRO II Moving Head Wash Light

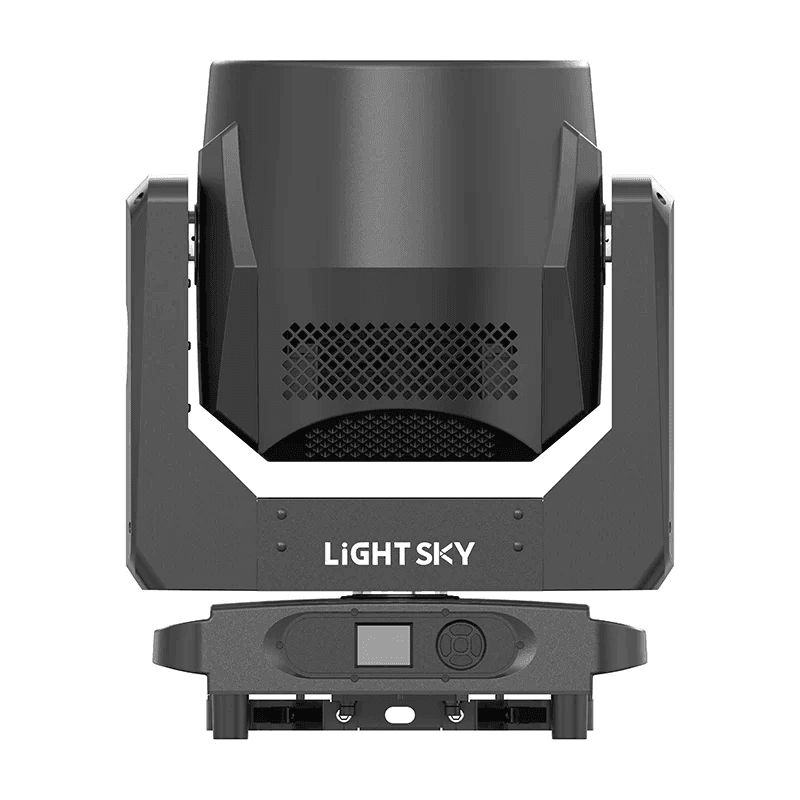

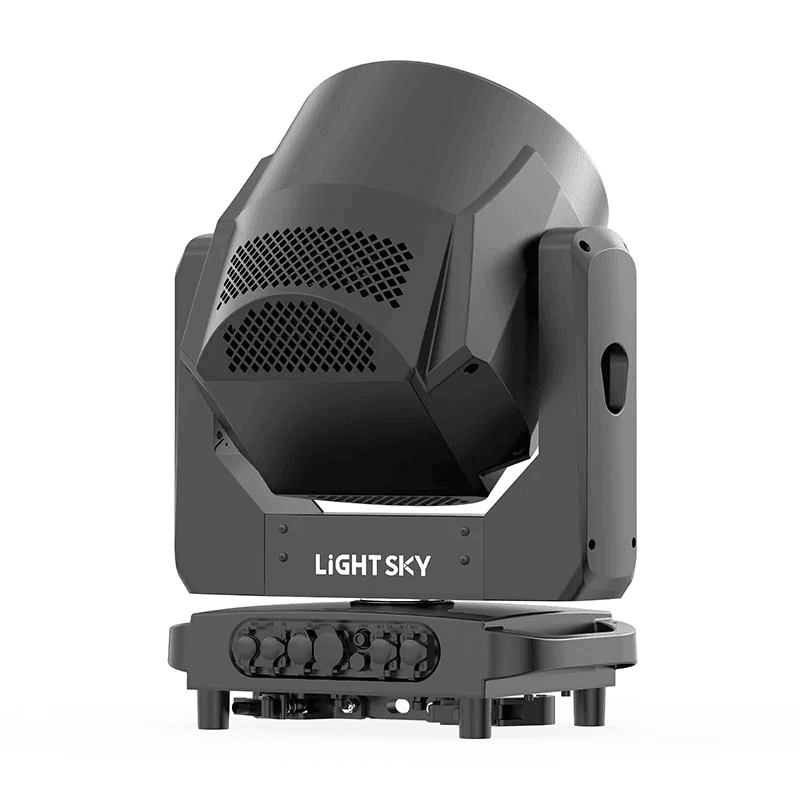

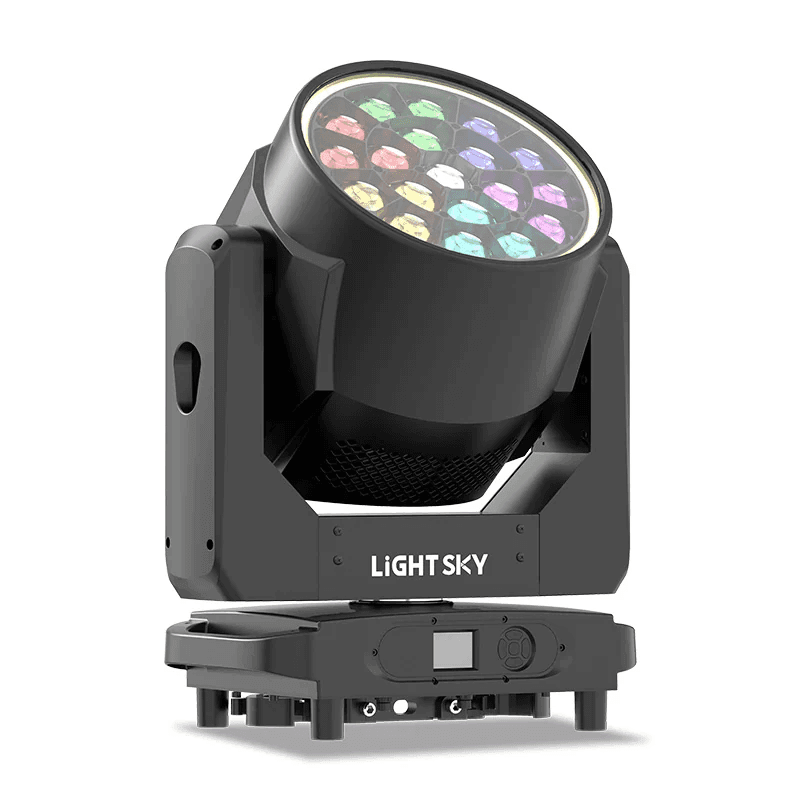

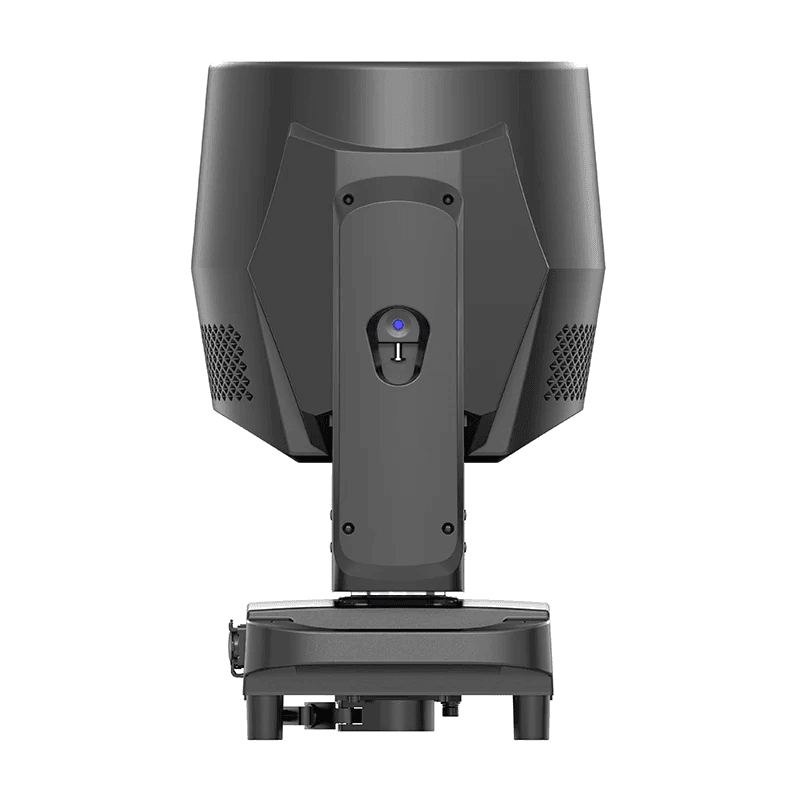

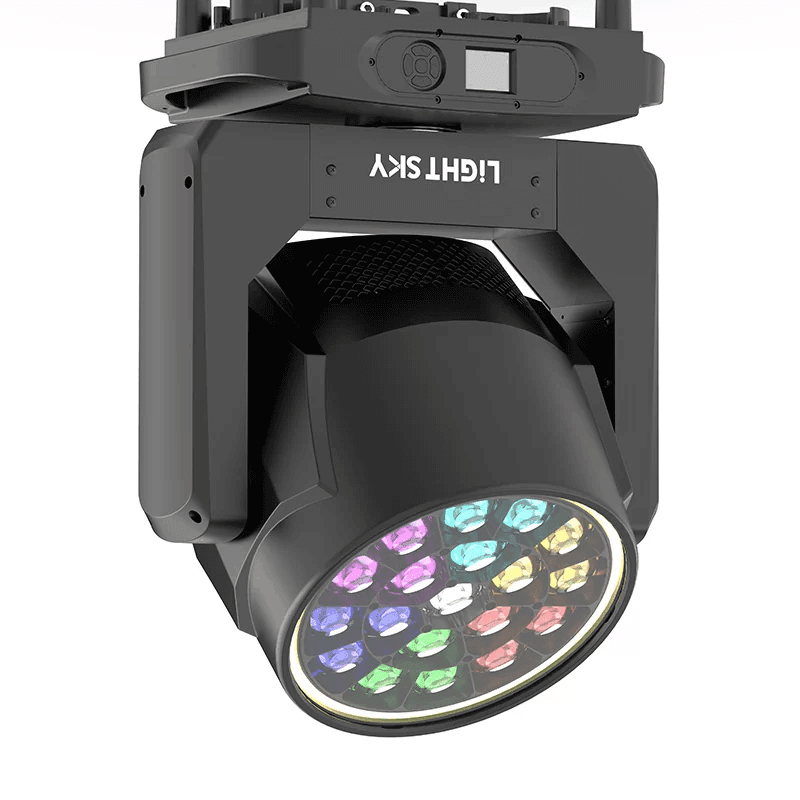

Light Sky AQUAPEARL-PRO II Moving Head Wash Light IP66 – 19×40W RGBW LED

The Light Sky AQUAPEARL-PRO II Moving Head Wash Light is an IP66-rated professional beam-and-wash fixture powered by 19 × 40W RGBW LEDs. It delivers 9,700 lumens, up to 32,000 lux at 5 metres, individual pixel control and a wide electronic zoom, making it suitable for concerts, outdoor stages, theatres, festivals and large event productions.

Technical Specifications

High-Output RGBW Wash with 19 Independent LEDs

The AQUAPEARL-PRO II uses 19 high-power 40W RGBW LEDs, giving lighting designers both strong stage coverage and detailed colour control from a single fixture.

Its uniform RGBW mixing system produces saturated colours, pastel tones and clean white variations across a colour-temperature range of 2,500K to 10,000K. This gives programmers flexibility to move from warm theatrical looks to cooler concert or broadcast-style scenes without changing fixtures.

Individual pixel control adds another creative layer. Each LED can be programmed separately for chases, gradients, segmented colour effects and animated patterns across the face of the fixture.

Instead of operating only as a conventional wash light, the fixture can therefore become part of the visual effect design itself.

9,700 Lumens and 32,000 Lux at 5 Metres

The optical system produces approximately 9,700 lumens, with a documented illuminance of 32,000 lux at 5 metres.

That output gives the unit enough intensity for professional environments where the wash must remain visible alongside other stage fixtures, LED screens and atmospheric effects.

For event-production teams, this means one fixture can handle several roles depending on programming and zoom position, including:

• Tight beam effects
• Stage colour washes
• Performer backlighting
• Audience effects
• Scenic lighting
• Architectural accents

The output can therefore be used creatively rather than dedicating separate fixtures to every lighting look.

Wide Electronic Zoom from Focused Beam to Broad Wash

A major advantage of the AQUAPEARL-PRO II is its linear electronic zoom system.

The fixture provides a beam angle of approximately 5°–25° and a wider zoom range reaching 7°–45°, allowing lighting designers to move between narrow, concentrated output and broad stage coverage.

At the tighter end, the fixture can create stronger aerial beams and defined effects through haze.

At wider settings, the same unit can spread colour across performers, stage scenery, walls or larger event areas.

This versatility is especially valuable for rental companies because one fixture can adapt to venues of different sizes without requiring a separate narrow-beam and wide-wash inventory.

Pixel Control and Rotating Front Lens Effects

The 19 LED cells can be controlled individually, allowing much more detailed programming than a standard single-zone RGBW wash.

Lighting designers can create:

• Pixel chases
• Colour waves
• Gradients
• Alternating colours
• Static macros
• Dynamic macros
• Rainbow sequences
• Rhythmic visual effects

The rotating front lens adds a further effect layer by transforming the optical output into moving vortex and kaleidoscope-style patterns.

This allows the fixture to shift from functional stage illumination into a highly visible effects fixture during musical drops, transitions and show moments.

Independently Controlled Front Halo

The luminous front ring can operate independently from the main 19-pixel LED array.

This gives designers a secondary visual surface that remains visible when audiences are looking directly at the fixture.

For concert stages and television-style productions, the front halo can be programmed for colour changes, accents and synchronized effects while the main LEDs continue producing the stage wash or beam.

The combination of pixel-controlled RGBW LEDs, rotating optics and an independent halo makes the fixture particularly effective when it is visible as part of the stage design rather than hidden above the audience.

DMX, RDM, Art-Net and sACN Control

The fixture is designed for professional lighting infrastructures rather than standalone operation only.

Control protocols include:

• DMX512
• RDM
• Art-Net
• sACN

Multiple DMX personalities are available, including 26CH, 28CH, 35CH, 98CH and 100CH modes.

Lower-channel modes are useful where console universes need to be conserved, while the expanded 98CH and 100CH modes provide greater access to individual pixel and effect parameters.

RDM allows compatible systems to manage fixture information remotely, while Art-Net and sACN make the AQUAPEARL-PRO II easier to integrate into larger Ethernet-based lighting networks.

Smooth Pan, Tilt and Dimming for Professional Programming

The motorised head provides 540° pan and 218° tilt, with both 8-bit and 16-bit precision available for detailed positioning.

Fine movement is particularly useful when multiple units must align consistently across a large stage or when slow movement is part of a programmed scene.

The electronic dimming system also provides:

• Four dimming curves
• Four dimming frequencies
• Four dimming speeds
• 1–30 Hz electronic strobe
• Random strobe effects

These controls allow operators to tune fixture behaviour for concerts, theatrical fades, camera environments or rapid music-driven programming.

IP66 Protection for Indoor and Outdoor Productions

An IP66 enclosure protects the fixture against dust and powerful water jets, making the AQUAPEARL-PRO II suitable for demanding production environments where conventional indoor moving heads may require additional protection.

Typical applications include:

• Outdoor concerts
• Festivals
• Temporary outdoor stages
• Theme parks
• Event structures
• Building illumination
• Indoor venues with demanding production conditions

The documented operating-temperature range is -20°C to 45°C, giving production companies additional flexibility across changing environmental conditions.

IP66 protection does not remove the need for proper power distribution, drainage, safe rigging and venue-specific electrical procedures.

Designed for Touring and Rental Applications

Despite the output and optical system, the fixture has a net weight of approximately 25 kg.

Its 440 × 333 × 567 mm body makes it manageable for professional touring and rental inventories while retaining the output expected from a 19-cell RGBW fixture.

An optional 2-in-1 flight case is also available from the manufacturer for transport and storage.

For rental businesses, the combination of IP66 construction, network control, multiple DMX personalities and both beam and wash functionality helps one fixture cover a wider range of jobs.

Best For

The AQUAPEARL-PRO II is especially suited to:

• Concert and festival stages
• Outdoor live productions
• Wedding and hotel ballroom lighting
• Corporate shows and product launches
• Theatre and performing arts venues
• Nightclubs and entertainment venues
• Broadcast and studio productions
• Theme parks and attractions
• Architectural lighting applications
• AV and event-production companies
• Professional lighting rental companies

What's Included & Compatibility

The manufacturer's factory configuration includes:

• 1 × AQUAPEARL-PRO II fixture
• 1 × power cable
• 1 × signal cable
• 2 × safety ropes
• 1 × lamp hook set

The fixture integrates with professional systems using:

• DMX512 lighting consoles
• RDM-compatible controllers
• Art-Net networks
• sACN networks
• Professional stage truss
• Appropriately rated lighting clamps
• Secondary safety attachments
• Haze systems for enhanced aerial beam visibility

An optional two-fixture flight case is available separately.

Does the AQUAPEARL-PRO II Work on UAE Power?

Yes. The fixture accepts AC 100–240V at 50/60Hz, so its electrical range covers UAE 220–240V / 50Hz mains power.

The exact plug fitted to Stagify stock should be confirmed before the product is published.

Is the AQUAPEARL-PRO II a Beam or Wash Light?

It performs both roles.

Its electronic zoom and optical system can produce tighter beam effects for aerial looks or expand into a broad RGBW wash for stages, scenery and event spaces.

Can Every LED Be Controlled Separately?

Yes. All 19 RGBW LED cells support individual pixel control.

Using the higher-channel DMX modes allows programmers to create detailed pixel chases, gradients, colour patterns and dynamic visual sequences.

Can This Moving Head Be Used Outdoors?

Yes. The fixture carries an IP66 protection rating and is designed for professional indoor and outdoor operation.

Outdoor installations must still follow proper rigging, electrical distribution and weather-safety procedures.

Does It Support Art-Net and Network-Based Lighting Control?

Yes. In addition to DMX512 and RDM, the fixture supports Art-Net and sACN, making it suitable for larger networked lighting systems and professional show-control environments.

Installation & Safety Requirements

The AQUAPEARL-PRO II weighs approximately 25 kg, so overhead installation requires appropriately rated truss, clamps and suspension hardware.

Use an independent secondary safety attachment whenever the fixture is installed overhead. The supporting truss, clamp, bracket and safety device must all be rated for the installed load.

Allow sufficient clearance around the fixture for its 540° pan and 218° tilt movement, and do not obstruct ventilation areas.

For outdoor projects, the IP66 enclosure protects the fixture itself, but power distribution, connectors and associated equipment must also be suitable for the installation environment.

Professional overhead installations should be carried out by personnel experienced with stage-lighting and truss systems.

Professional Moving Head Wash Lighting in the UAE

Stagify supplies professional moving head lights, stage lighting and event-production equipment across Dubai and the UAE for production companies, venues, AV installers, theatres and rental businesses.

The AQUAPEARL-PRO II is a strong choice for lighting teams that need a fixture capable of moving between high-output RGBW wash, tight beam effects, pixel animation and outdoor production without maintaining separate fixtures for each role.

Contact Stagify for current UAE availability, project quantities and compatibility support for larger lighting systems.
