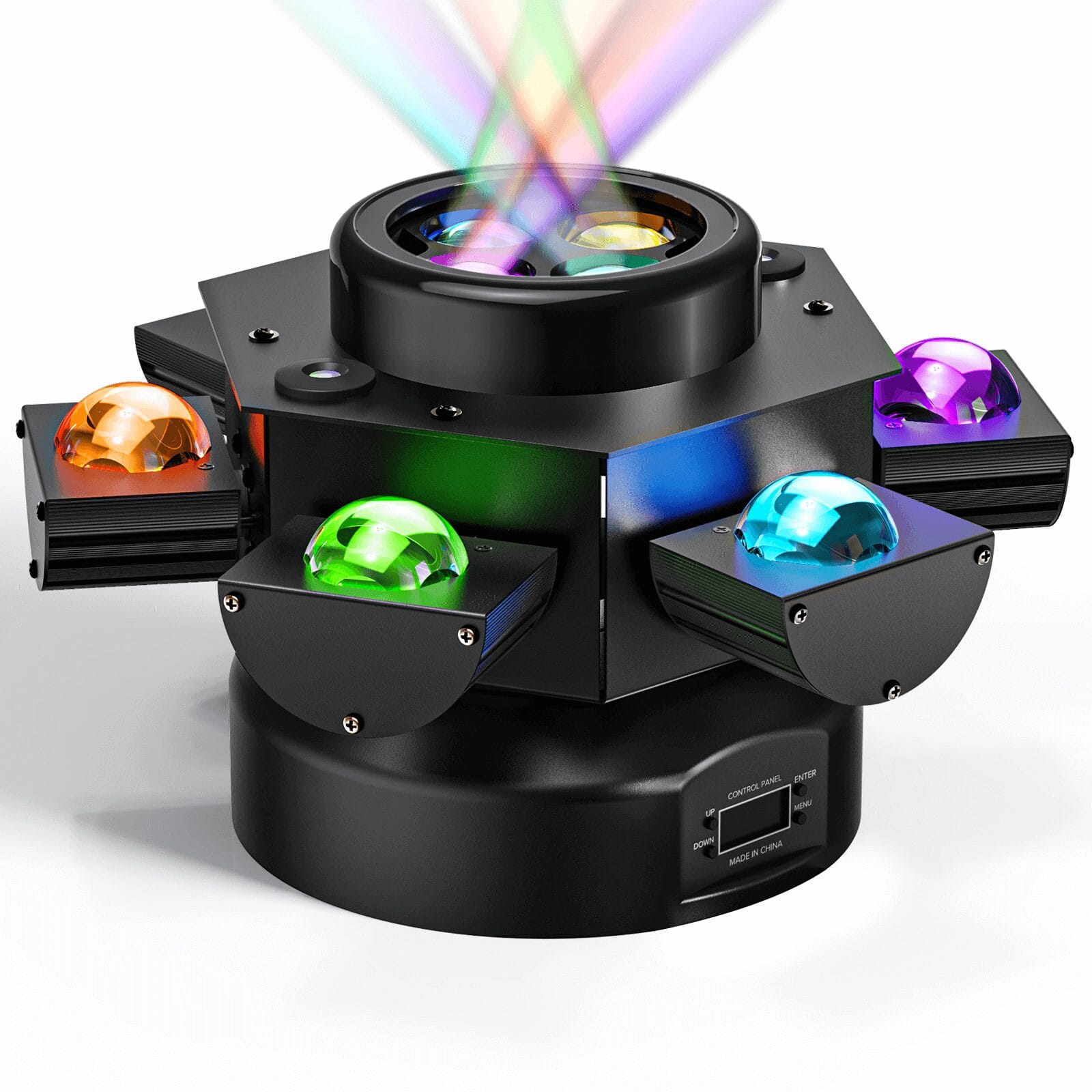

LED Stage Moving Head DJ Light 4in1

LED Stage Moving Head DJ Light 4in1 – Dynamic Lighting for DJ Performances and Events

The LED Stage Moving Head DJ Light 4in1 combines a 150W moving-head platform with 10 × 12W RGBW 4-in-1 LEDs and integrated red/green laser effects, making it suitable for DJs, wedding entertainment, clubs, bars and small to medium stage productions that need several visual textures from one fixture.

The light provides 22-channel DMX512 control, 0–100% linear dimming, 1–20 flashes per second, Auto, Sound-Activated and Master/Slave operation, plus adjustable moving-head pan and tilt. Its RGBW LED system can create colour wash and beam-style effects, while the dedicated red and green laser sources add sharper visual accents.

Technical Specifications

Specification	Details
Product Type	RGBW LED & Laser Moving Head Effect Light
Total Fixture Power	150W
LED Source	10 × 12W RGBW 4-in-1 LEDs
LED Colour System	RGBW
Red Laser	100mW
Green Laser	60mW
Nominal Listed Laser Total	160mW
DMX Channels	22CH
Control Protocol	DMX512
Control Modes	DMX512 / Auto / Master-Slave / Sound Active
Strobe	1–20 flashes/second
Dimming	0–100% linear dimming
Movement	Adjustable pan and tilt
DMX Connector	3-pin XLR
Display	LED display
Housing Colour	Black
Construction	Iron + plastic
Input Voltage	AC100–240V
Frequency	50–60Hz

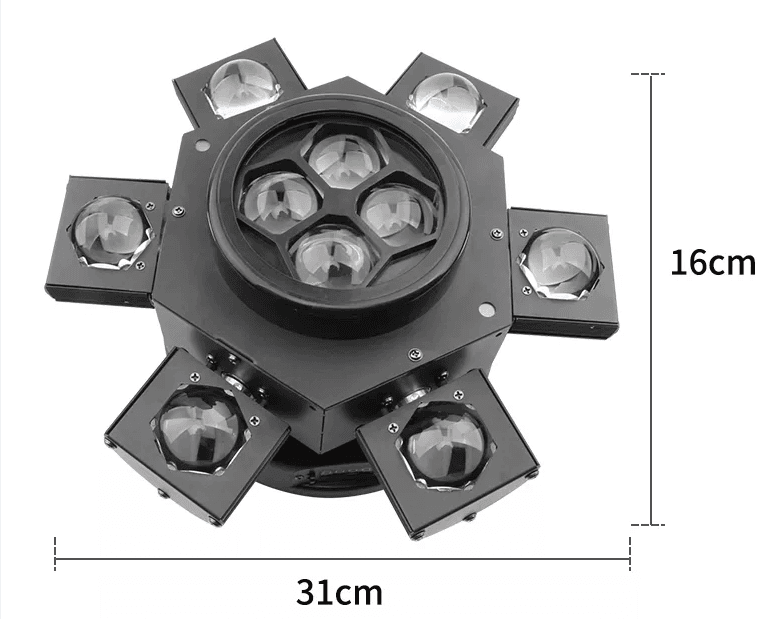

Packing Size	360 × 230 × 370 mm
Gross Weight	4.5 kg
Recommended Applications	DJs, weddings, clubs, bars and stage entertainment

10 × 12W RGBW 4-in-1 LED System

The main lighting section uses:

10 × 12W RGBW 4-in-1 LED beads

Each 4-in-1 package combines:

• Red

• Green

• Blue

• White

inside one LED source.

This is the technically supported meaning of RGBW 4-in-1 for this fixture.

The integrated white component gives the moving head more flexibility than a conventional RGB-only effect.

Important 4-in-1 Clarification

The supplier's marketing paragraph describes the product's “4-in-1” feature as a combination of:

• RGB colour mixing

• Strobe

• Gobo patterns

• Wash

However, its formal technical specification uses the wording:

10 pieces of 12W RGBW 4 IN 1 LED beads

An independently matching manufacturer identifies the same hardware as a 6 Head Bee Eye LED Beam Moving Head Light with:

• 10 × 12W RGBW 4-in-1 LEDs

• Red/green laser

• Beam

• Wash

and does not document a gobo wheel.

For Stagify, the safer technical interpretation is:

4-in-1 = RGBW LED technology

Do not claim a dedicated gobo wheel or replaceable gobo system until the actual unit/manual confirms one.

RGBW Colour Mixing

The RGBW architecture gives the fixture four physical colour components:

R – Red
G – Green
B – Blue
W – White

These channels can be used individually or mixed to create additional visual colours.

RGBW is particularly useful for entertainment lighting because it supports both saturated colours and a dedicated white component.

Dedicated White LED Component

A dedicated white component can be useful during:

• Stage entrances

• DJ highlights

• Wedding entertainment

• Performance transitions

• White flashing effects

• Mixed RGBW looks

This is different from an RGB-only fixture that creates a white-looking output by combining red, green and blue.

The exact white:

• Colour temperature

• CRI

• Lumen output

is not published.

Do not advertise a specific Kelvin or CRI figure.

120W Nominal LED Package Capacity

The LED system contains:

10 × 12W = 120W nominal LED-package capacity

while the complete fixture is rated at:

150W

The additional fixture power supports components such as:

• Laser modules

• Motors

• Control electronics

• Display

• Internal power system

For electrical planning, use the supplier's 150W complete fixture rating.

150W Total Fixture Power

The exact supplier and the matching Junman JM-LM09A manufacturer both list:

150W

as the fixture power.

For basic electrical planning:

2 fixtures: approximately 300W
4 fixtures: approximately 600W
6 fixtures: approximately 900W

These calculations cover only the moving-head fixtures.

Other stage equipment must be included separately.

Integrated Red and Green Laser Effects

In addition to the RGBW LED system, the fixture contains:

100mW red laser

and:

60mW green laser

These laser sources provide a sharper visual texture than the LED wash and beam effects.

This makes the fixture useful where one moving head needs to produce both:

• LED colour effects

• Laser accents

without adding a separate small laser fixture.

Nominal 160mW Listed Laser Output

The two supplier-listed laser modules total:

100mW Red + 60mW Green = 160mW nominal listed laser output

This should not be confused with the fixture's 150W electrical rating.

They measure completely different things:

150W = electrical fixture power
160mW = combined nominal listed laser-module output

Do not describe the fixture as a 160mW moving head overall.

Laser Wavelengths Are Not Published

The exact supplier specification provides laser power but does not publish:

• Red wavelength

• Green wavelength

Do not automatically insert common figures such as:

• 638nm

• 650nm

• 520nm

• 532nm

Laser-module wavelengths can change between production versions.

Use the physical laser-safety label as the final source.

Laser Class Is Not Confirmed

A formal laser class is also not published.

Do not assign:

• Class 2

• Class 3R

• Class 3B

based purely on the 100mW and 60mW module values.

The finished fixture's laser classification should be verified from the actual product label and manual.

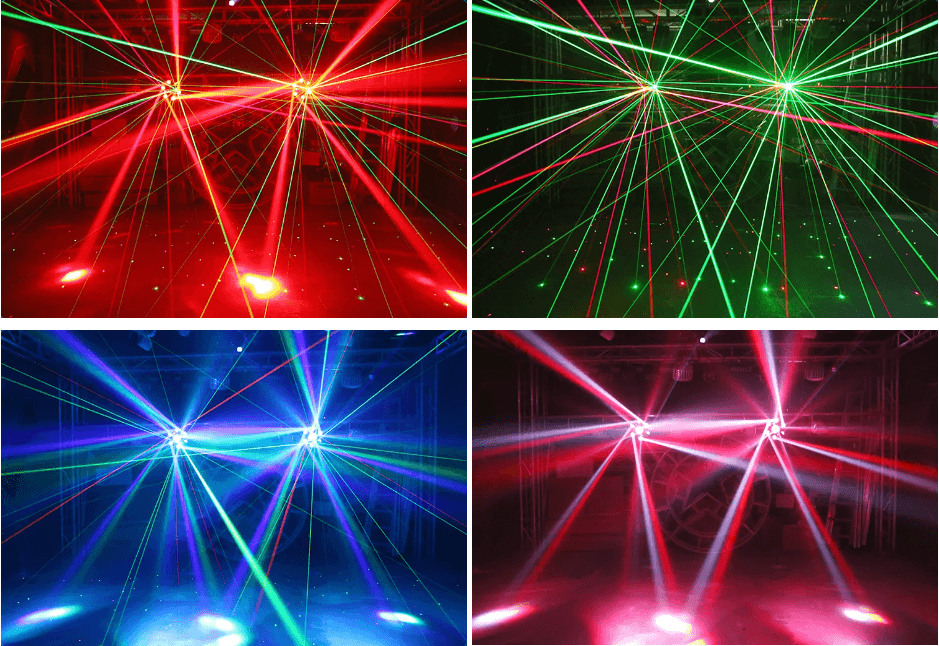

Beam and Wash Effects

The independent manufacturer of the exact matching JM-LM09A platform describes its main LED output as:

Beam and Wash

This is a more defensible product position than claiming a conventional spot/gobo system.

The RGBW LEDs can provide:

• Coloured beam-style effects

• Broader wash-style colour

• Moving RGBW patterns

• White effects

while the moving-head mechanism changes their direction around the venue.

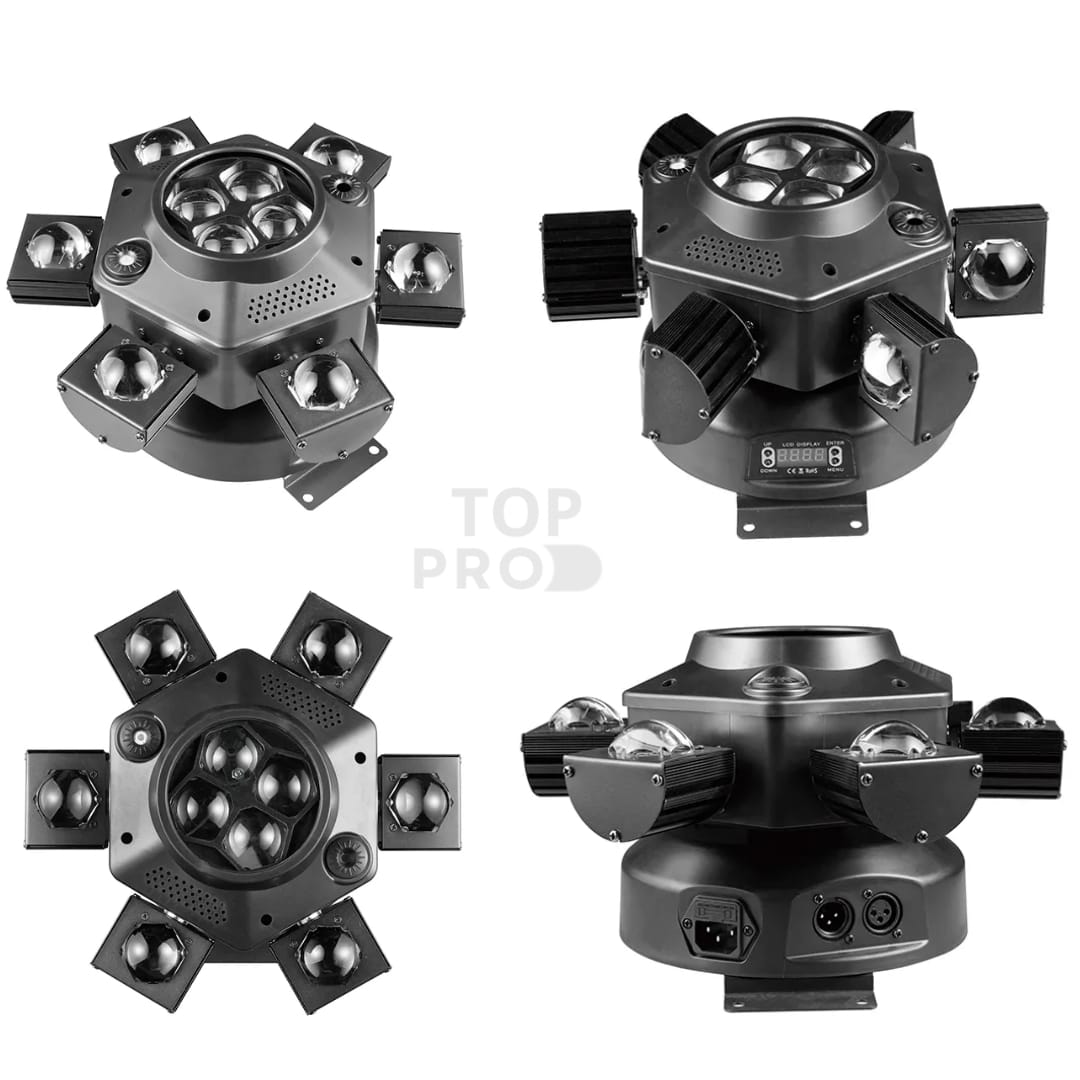

Bee Eye Hardware Platform

The independently matching manufacturer calls this platform:

6 Head Bee Eye LED Beam Moving Head Light

and assigns it model:

JM-LM09A

The unusual technical specification matches the Stagify/TOP PRO product field-for-field.

This is strong evidence of the underlying hardware family.

However, because the TOP PRO page itself does not publish a six-head count in its technical table, Stagify should verify the actual front optical arrangement before making “6 Head Bee Eye” a primary SEO specification.

What Is a Bee Eye Effect?

Bee-eye fixtures use multiple optical elements to create several visible beams or segments from one fixture.

Compared with a conventional single-lens moving wash, this can create a more dynamic visual appearance for:

• DJs

• Dance floors

• Clubs

• Stage backgrounds

The exact optical segmentation and rotation functions of this Stagify SKU should be confirmed from its physical unit before specific bee-eye movement claims are published.

Adjustable Pan and Tilt Movement

The supplier confirms:

Adjustable pan and tilt movement

This gives the fixture dynamic physical movement rather than a fixed projection direction.

The head can redirect effects around:

• Stage areas

• Dance floors

• Walls

• Ceilings

• DJ backdrops

This is one of the main advantages of a moving head over a conventional fixed PAR or effect light.

Pan and Tilt Angles Are Not Published

The exact supplier does not provide numerical movement ranges.

Therefore, do not automatically publish common moving-head values such as:

• 540° pan

• 270° tilt

• 180° tilt

unless the actual manual confirms them.

The correct customer-facing wording is:

Adjustable pan and tilt movement

No Pan/Tilt Speed Is Published

The supplier also does not state:

• Movement speed

• 8-bit/16-bit pan

• 8-bit/16-bit tilt

• Position correction

• Reset time

These specifications should remain unpublished until the DMX manual is available.

22-Channel DMX512 Control

The fixture provides:

22CH DMX512

This is a relatively detailed control architecture for a compact multi-effect moving head.

DMX can coordinate the fixture alongside:

• LED PAR lights

• Moving heads

• Strobes

• Laser fixtures

• Effect lights

• Haze machines

within a programmed stage-lighting system.

Why 22 Channels Matter

A fixture containing:

• Moving-head motors

• RGBW LED effects

• Laser

• Strobe

• Dimming

requires more control parameters than a simple fixed PAR.

The 22-channel architecture provides room for these different systems to be addressed from a lighting console.

However, the exact channel-by-channel map is not published on the product page.

Do not invent one.

Use the Actual DMX Manual

Before creating a permanent console personality, check the supplied manual for the exact:

• Pan channel

• Tilt channel

• RGBW functions

• Laser channels

• Strobe

• Dimmer

• Built-in programmes

A generic 22-channel moving-head profile may not correspond correctly to this fixture.

3-Pin XLR DMX Connection

The exact technical specification confirms:

3-pin XLR

for DMX.

This allows integration with common stage-lighting DMX infrastructure.

A typical data chain may be arranged as:

Controller → Fixture 1 → Fixture 2 → Fixture 3

while each unit uses an appropriate DMX address.

LED Control Display

A rear:

LED display

is confirmed.

This provides access to fixture setup functions such as:

• DMX addressing

• Auto mode

• Sound mode

• Master/Slave configuration

The precise menu options should be taken from the physical manual.

0–100% Linear Dimming

The exact specification confirms:

0–100% linear dimmer

This allows gradual intensity control from blackout through full output.

Dimming can be useful for:

• Wedding entrances

• Stage transitions

• DJ build-ups

• Slower event sections

• Blackout cues

It also makes the moving head easier to balance with other fixtures in a mixed lighting rig.

1–20 Flashes Per Second

The exact supplier and matching manufacturer both specify:

1–20 flashes per second

This provides a broad range of strobe speeds.

Slower flashing can be used for:

• Entrances

• Build-ups

• Dramatic cues

Faster flashing can support:

• DJ drops

• Dance sequences

• Performance finales

Strobe Safety

Rapid flashing effects can affect individuals who are sensitive to stroboscopic lighting.

Operators should use high-frequency strobe effects responsibly.

For public events:

• Avoid unnecessary continuous flashing.

• Coordinate strobe use with the venue.

• Consider audience sensitivity.

• Use high-speed effects only where appropriate.

Automatic Mode

The fixture supports:

Auto Mode

This allows built-in programmes to run without a lighting console.

Auto mode can be useful for:

• Small parties

• Bars

• DJs

• Karaoke

• Wedding entertainment

where detailed cue programming is unnecessary.

Sound-Activated Mode

Sound Active operation is also confirmed.

The fixture can respond to surrounding music and trigger its built-in effects.

This is particularly useful for:

• DJ sets

• Dance floors

• Clubs

• Parties

where music-responsive movement is wanted without manual programming.

Master/Slave Mode

Master/Slave control is confirmed.

Multiple matching fixtures can therefore operate together.

Potential arrangements include:

• Two moving heads around a DJ booth

• Two fixtures across rear stage

• Several units around a dance floor

For independent fixture programming, DMX512 is the better method.

No Remote Control Is Confirmed

The exact supplier FAQ uses the phrase “control remotely,” but explains this specifically through DMX512 compatibility.

That is not evidence of an included handheld remote.

The technical specification does not list:

• IR remote

• RF remote

• Wireless controller

Therefore, do not advertise a handheld remote as included.

150W Moving Head for DJ Applications

This fixture has a clear role in mobile and installed DJ systems.

The combination of:

• RGBW LEDs

• Laser effects

• Movement

• Strobe

• Sound mode

allows one fixture to contribute several layers of entertainment lighting.

A DJ setup could combine this moving head with:

• RGB PAR fixtures

• Additional moving heads

• Haze

• Dedicated strobes

for a fuller stage look.

Wedding Entertainment

For weddings, the fixture is particularly suited to the entertainment portion of the event.

Possible uses include:

• Couple entrance

• Dance-floor opening

• DJ performance

• Entertainment acts

• Finale

For speeches and photography, dedicated PAR, wash or follow-spot fixtures should provide the primary illumination.

Club and Bar Lighting

The fixture can also work as part of a permanent club lighting system.

DMX512 allows multiple units to be programmed around:

• DJ booths

• Dance floors

• Rear stages

• Ceiling rigs

Sound and Auto modes remain useful where simpler operation is preferred.

Concert and Stage Effects

For smaller and medium stage productions, the fixture can add:

• Moving RGBW colour

• Laser accents

• Strobe effects

• Dynamic background movement

It should primarily be considered an effects/moving-light fixture, rather than the sole source of performer front lighting.

Using Haze

Controlled haze can make both the LED beams and laser effects more visible through the air.

Without haze, much of the effect may appear mainly when it reaches:

• Floors

• Walls

• Ceilings

• Scenery

With haze, aerial beam paths can become more visible.

Before using haze:

• Confirm venue approval.

• Check fire-alarm requirements.

• Maintain clear emergency exits.

• Avoid excessive haze density.

Best For

The LED Stage Moving Head DJ Light 4in1 is particularly suitable for:

• Mobile DJs

• Weddings

• Clubs

• Bars and lounges

• Dance floors

• Small and medium stages

• Karaoke

• Entertainment venues

• Event-production companies

• Rental companies

Its strongest catalogue position is a 150W RGBW moving-head effect with integrated red/green laser, 22CH DMX and 1–20Hz-style strobe capability.

What This Fixture Is Not Best For

Consider another product when the application requires:

• Long-distance discharge-lamp beam projection

• Detailed interchangeable gobos

• Dedicated spot optics

• Full RGB animation laser graphics

• ILDA laser control

• Outdoor weather exposure

• High-CRI front lighting

• Confirmed pixel mapping

This model is primarily a RGBW beam/wash and laser entertainment moving head.

4-in-1 Moving Head vs Conventional Wash Moving Head

A conventional RGBW wash moving head focuses mainly on:

• Colour mixing

• Broad stage coverage

• Pan/tilt movement

This fixture adds a separate red/green laser effect alongside its RGBW LED system.

That makes it particularly useful when customers want a more entertainment-oriented visual rather than a pure wash fixture.

4-in-1 Moving Head vs 36×10W RGBW Zoom Wash

Stagify also carries the 36×10W RGBW LED Zoom Moving Wash.

Choose the 36×10W Zoom Wash when:

• Dedicated stage washing is the priority

• Motorised zoom is important

• Larger wash coverage is required

• Laser effects are unnecessary

Choose this 150W Moving Head DJ Light when:

• Compact multi-effect operation matters

• Red/green laser effects are wanted

• Strobe and sound operation are useful

• DJ and dance-floor applications are the priority

4-in-1 Moving Head vs 120W Spot LED Moving Head

The 120W Spot LED Moving Head Light is better positioned where customers require a more traditional spot fixture.

Choose the 120W Spot when:

• Focused spot projection matters

• Traditional spot-stage applications are required

Choose this model when:

• RGBW colour effects are the priority

• Integrated red/green laser is useful

• Beam/wash entertainment effects are preferred

4-in-1 Moving Head vs 295W Beam Moving Head

The 295W Beam Moving Head Stage Light serves a very different application.

The 295W model uses a discharge-lamp beam platform intended for narrow, high-intensity stage projection.

This LED model instead provides:

• RGBW colour

• LED efficiency

• Integrated laser effects

• Multi-effect DJ operation

For large concert beam effects, choose the 295W platform.

For clubs, DJs and more colourful multi-effect operation, this LED moving head is the more appropriate category.

Exact Hardware Cross-Check: JM-LM09A

The strongest independent match is the:

Guangzhou Junman JM-LM09A

sold as a:

6 Head Bee Eye LED Beam Moving Head Light

Its manufacturer specification exactly matches:

• AC100–240V / 50–60Hz

• 150W

• 10 × 12W RGBW 4-in-1 LEDs

• 100mW red laser

• 60mW green laser

• 22CH

• 1–20 flashes/sec

• 0–100% dimming

• 3-pin XLR

• DMX / Auto / Master-Slave / Sound

• Iron + plastic

• 36 × 23 × 37 cm packing

• 4.5 kg gross weight

This is a very strong hardware identification.

Product Dimensions vs Packing Dimensions

The supplier publishes:

36 × 23 × 37 cm

as:

Packing Size

These should not be treated as fixture dimensions.

The actual bare product dimensions are not published in the exact specification.

For Stagify, use:

Packing Size: 360 × 230 × 370 mm

and leave product dimensions out until the physical unit is measured.

4.5 kg Gross Weight

The exact supplier lists:

4.5 kg Gross Weight

This describes the packed unit.

It should not be converted into:

• Net weight

• Fixture weight

without physical confirmation.

The bare moving head will weigh less than the complete packed carton, but its exact net weight is not currently documented.

Iron and Plastic Construction

The formal technical specification identifies the fixture material as:

Iron + Plastic

This is confirmed by both the supplier and the exact matching manufacturer.

The housing colour is:

Black

These details can safely be included.

AC100–240V Wide-Voltage Input

The exact electrical input is:

AC100–240V / 50–60Hz

This range covers standard UAE:

220–240V / 50Hz

mains power.

Therefore, the published electrical specification supports UAE operation.

UAE Plug Type Is Not Confirmed

Although the voltage is compatible, the supplied wall plug is not documented.

Do not claim:

UAE/UK Type G plug included

unless current Stagify stock confirms it.

IP Rating Is Not Published

The exact supplier and matching manufacturer do not provide an IP rating.

Therefore, the fixture should be positioned for:

Dry indoor stage and entertainment use

unless additional manufacturer documentation proves otherwise.

Do not advertise:

• IP65

• Waterproof

• Rainproof

• Weather-resistant

without supporting documentation.

Laser Safety

This fixture contains genuine red and green laser sources.

Do not aim concentrated laser output into people's eyes.

Before commercial use, inspect the physical unit for:

• Laser classification

• Wavelength labels

• Aperture markings

• Safety warnings

• Interlock information, if applicable

The published module powers alone are not enough to establish the finished fixture's formal laser class.

Do Not Promote Audience Scanning

Stagify should not market this fixture for uncontrolled direct audience scanning.

Laser effects should be positioned to avoid direct eye exposure.

Audience scanning requires specialised laser-safety assessment and exposure control.

Dubai Laser Display Requirements

Public laser-display activities in Dubai may require approval from the Dubai Civil Aviation Authority depending on the installation and event.

Event organisers should confirm the applicable requirements before operating public laser displays.

Purchasing a laser-equipped moving head does not itself provide permission for unrestricted laser use.

Installation and Rigging

For overhead use:

• Use appropriately rated clamps.

• Use an independent secondary safety attachment.

• Confirm the supporting truss or structure.

• Secure the mains and DMX cabling.

• Maintain ventilation.

• Keep the unit dry.

• Position laser output safely.

The published 4.5 kg figure is gross packed weight, so final rigging calculations should use the actual bare fixture weight once confirmed.

What's Included & Compatibility

Confirmed core product:

• 1 × LED Stage Moving Head DJ Light 4in1

Compatible system categories include:

• DMX512 controllers

• 3-pin XLR DMX cabling

• Aluminium truss

• Lighting stands

• Rated clamps

• Secondary safety hardware

• Haze machines

• Other DMX stage lights

The supplier does not publish a complete package-accessory list.

Do not state that the following are included without checking current stock:

• Clamp

• Safety cable

• DMX cable

• Flight case

• Handheld remote

What Does 4-in-1 Mean?

The exact technical specification describes the LEDs as:

RGBW 4-in-1

meaning red, green, blue and white functions are combined within the LED package.

The supplier's marketing also uses “4-in-1” to describe several effects, but its formal hardware data does not confirm a conventional gobo system.

How Many LEDs Does It Have?

The fixture uses:

10 × 12W RGBW 4-in-1 LEDs

How Much Power Does It Use?

The complete fixture is rated at:

150W

Does It Have a Laser?

Yes.

The exact specification confirms:

• 100mW Red

• 60mW Green

What Is the Listed Combined Laser Power?

The two modules add to:

160mW nominal listed output

The formal laser class remains unconfirmed.

What Are the Laser Wavelengths?

The exact wavelengths are not published.

Check the physical safety label before adding wavelength figures.

Does It Have a Gobo Wheel?

A conventional gobo wheel is not confirmed by the formal technical specification.

The marketing paragraph says gobo patterns, but the exact matching JM-LM09A manufacturer describes the fixture as beam and wash and does not document a gobo wheel.

Do not publish a gobo count until physical verification.

Does It Provide Wash Lighting?

Yes.

The supplier describes wash effects, and the exact matching manufacturer identifies the platform as beam and wash.

Does It Move?

Yes.

Adjustable pan and tilt movement is explicitly confirmed.

What Are the Pan and Tilt Angles?

Numerical movement ranges are not published.

Do not automatically use 540°/270° from another moving head.

How Many DMX Channels Does It Use?

The exact specification confirms:

22CH

Which DMX Connector Does It Use?

The fixture uses:

3-pin XLR

Can It Work Without DMX?

Yes.

The exact modes include:

• Auto

• Sound Active

• Master/Slave

Does It Have Sound-Activated Mode?

Yes.

Sound Active operation is confirmed.

Does It Have Master/Slave?

Yes.

Master/Slave operation is confirmed.

Does It Have a Strobe?

Yes.

The exact flash range is:

1–20 flashes per second

Does It Have Dimming?

Yes.

The exact dimming range is:

0–100% linear

Does It Have a Display?

Yes.

An LED display is confirmed.

What Material Is the Fixture Made From?

The exact specification lists:

Iron and plastic

What Colour Is the Housing?

Black

is confirmed.

What Voltage Does It Use?

The exact specification is:

AC100–240V / 50–60Hz

Does It Work on UAE Voltage?

Yes.

The published input range covers normal UAE mains.

The supplied plug type remains unconfirmed.

What Are the Product Dimensions?

The actual bare-fixture dimensions are not published.

The available:

360 × 230 × 370 mm

figure is the packing size.

How Much Does It Weigh?

The exact supplier only publishes:

4.5 kg gross packed weight

The net fixture weight is not confirmed.

Is It Waterproof?

No IP rating is published.

Position it for dry indoor use.

Contact Stagify for current availability and confirmation of the exact supplied accessories before ordering.
