LED Moving Disco Stage Laser Light

LED Moving Disco Stage Laser Light – Create Stunning Visual Effects for Any Event

The LED Moving Disco Stage Laser Light is a moving bar-style effect fixture combining five 5W warm-white LED beams with four 500mW red laser sources. Designed for DJs, wedding entertainment, clubs, dance floors and indoor stage effects, it uses a 180° moving bar to sweep narrow LED beams and red laser effects through the venue.

With 15/23-channel DMX512, Manual, Automatic, Sound and Master/Slave control, the fixture can operate as part of a programmed stage-lighting system or run built-in effects for simpler entertainment setups.

Technical Specifications

Specification	Details
Product Type	Moving LED Beam & Laser Effect
Fixture Power	30W
LED Sources	5 × 5W warm-white LEDs
LED Colour	Warm White / Amber-Warm White
LED Beam Angle	3–5°
Laser Sources	4 × 500mW red lasers
Supplier-Listed Total Laser Output	2,000mW
Movement	180° moving laser/LED bar
DMX Modes	15CH / 23CH
Control Protocol	DMX512
Operating Modes	DMX / Manual / Auto / Sound / Master-Slave
Housing Material	Plastic and Metal
Operating Temperature	-20°C to 55°C
Product Dimensions	615 × 170 × 80 mm
Product Weight	4 kg
Housing Colour	Black
Input Voltage	AC110–220V
Frequency	50–60Hz
Usage Environment	Indoor

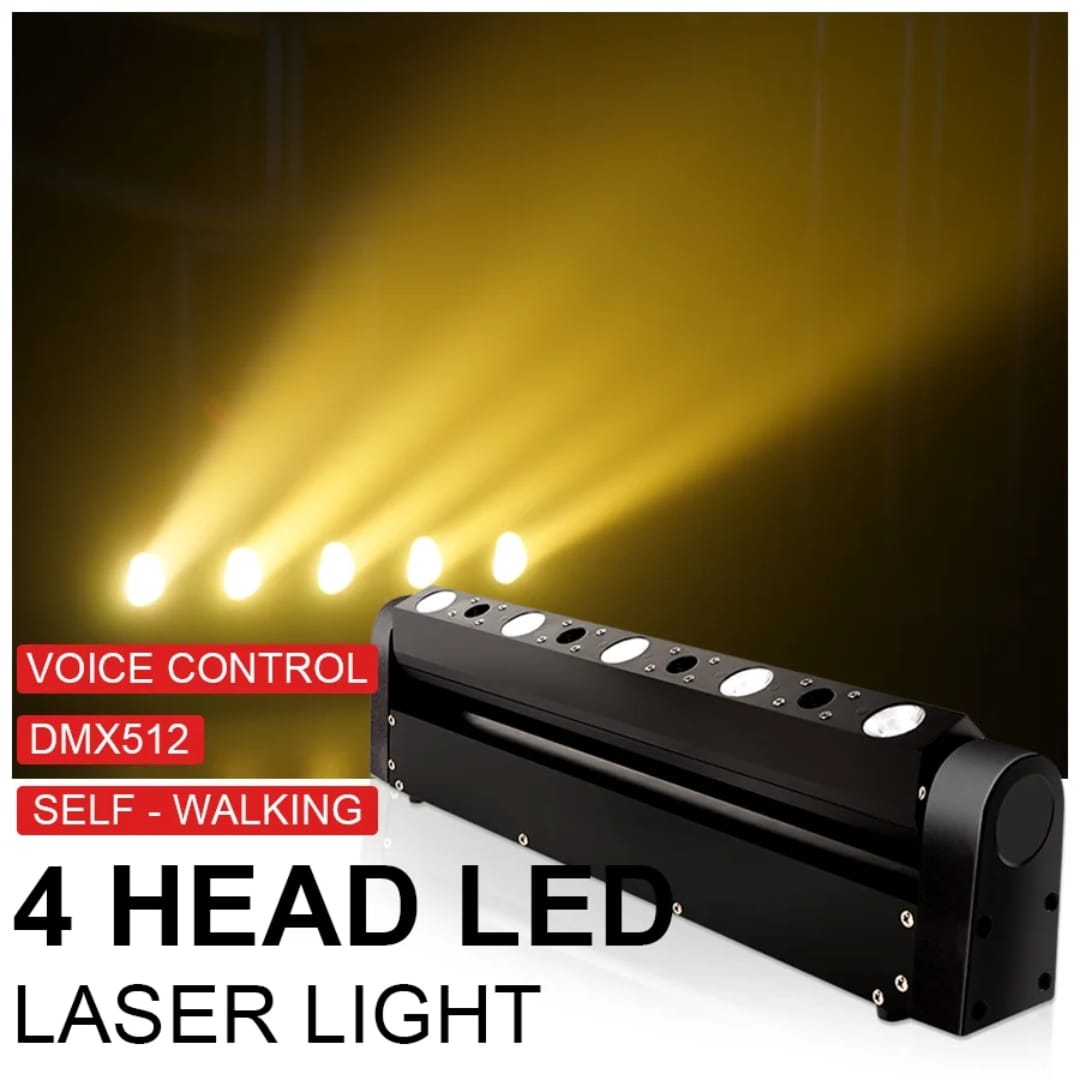

Five 5W Warm-White Beam LEDs

The LED section uses five 5W warm-white light sources arranged across the moving bar.

Each LED produces a documented narrow 3–5° beam, creating defined shafts of light rather than a broad wash.

This narrow-beam format makes the fixture useful for creating visible aerial effects around:

• DJ booths

• Dance floors

• Rear stage positions

• Clubs

• Wedding entertainment areas

• Live performances

With atmospheric haze, the five beams can become significantly easier to see through the air.

Warm-White Rather Than RGB LEDs

The exact specification is important here.

The supplier's marketing language mentions colourful effects, but the technical table identifies the five LED sources as:

5 × 5W Warm White

and describes them as amber warm-white LEDs.

Therefore, Stagify should not advertise the LED section as:

• RGB

• RGBW

• Multicolour LEDs

• Colour-mixing LEDs

unless the physical unit proves otherwise.

The confirmed LED effect is a narrow warm-white beam system.

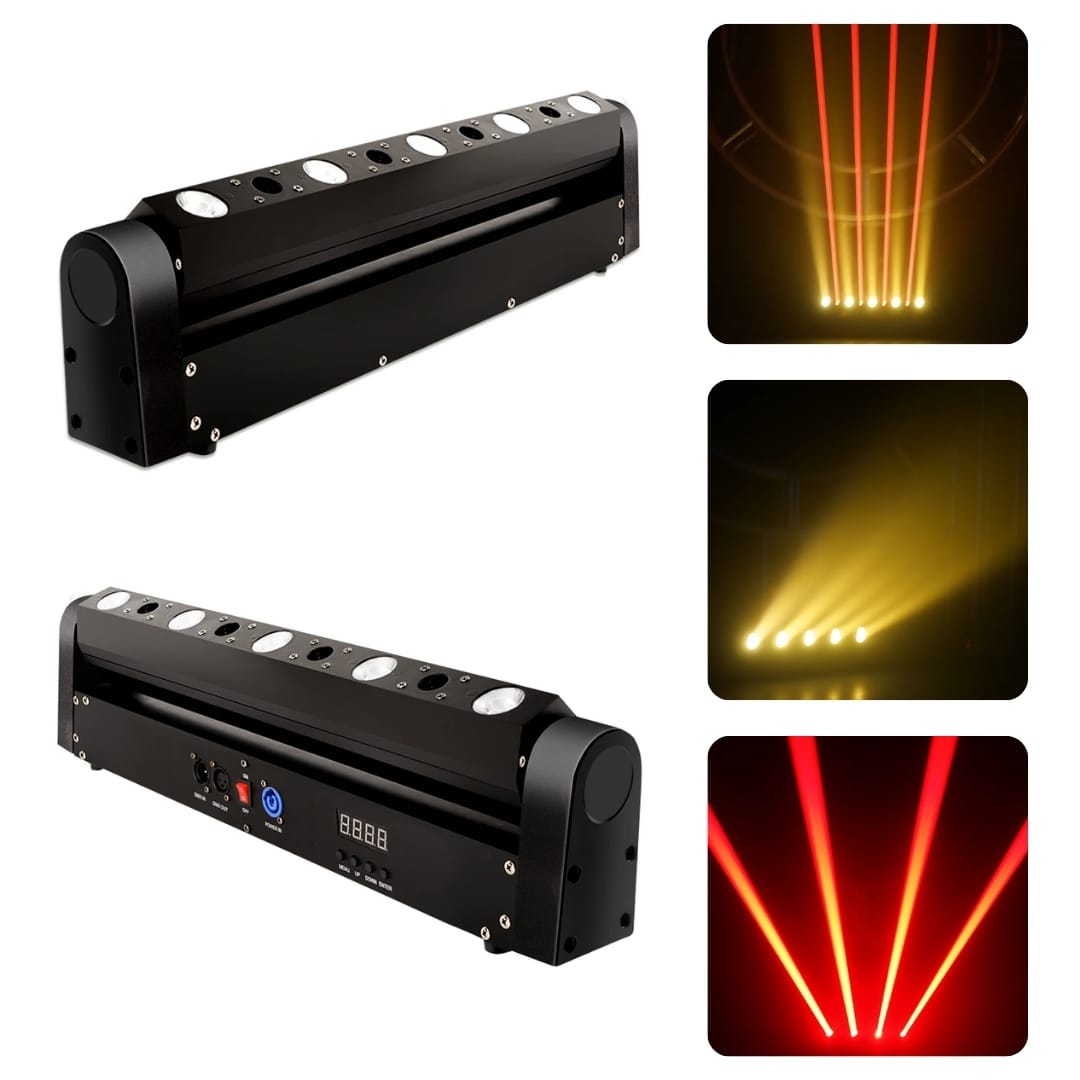

Four 500mW Red Laser Sources

Between the LED beam sources are four red laser modules, each rated at 500mW according to the supplier.

This produces a supplier-listed combined laser figure of:

4 × 500mW = 2,000mW

or 2W nominal total module output.

The laser section adds sharply defined red effects that contrast with the warmer white LED beams.

This combination creates a distinctive two-layer effect:

Warm-white moving beams + red laser beams

rather than a conventional RGB laser show.

2,000mW Supplier-Listed Laser Output

The exact specification lists:

Laser Power: 2000mW (500mW × 4 pcs)

This figure refers specifically to the laser modules.

It should not be confused with the fixture's electrical power consumption of 30W.

The product page should therefore clearly distinguish:

30W: complete fixture electrical power
2,000mW: supplier-listed combined laser output

These are two completely different measurements.

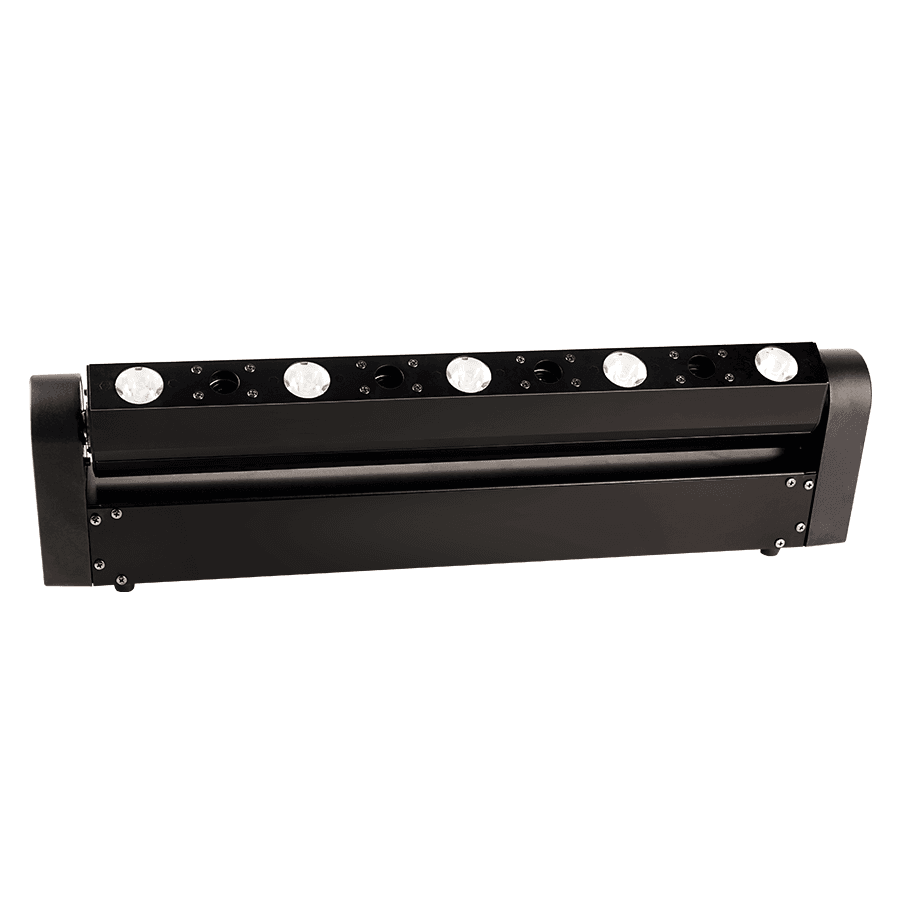

180° Moving Bar Effect

Rather than using a traditional moving-head yoke, this fixture uses a 180-degree moving laser globe/bar design.

The movement allows the entire arrangement of LEDs and lasers to change its projection direction.

As the bar moves, the five LED beams and four laser effects can sweep through different areas of the room.

This makes the product visually different from a fixed laser projector.

Bar-Style Movement vs Conventional Moving Head

This fixture should not be positioned as a standard pan-and-tilt moving head.

A conventional moving head normally uses separate:

• Pan movement

• Tilt movement

• Yoke assembly

This product instead uses a moving horizontal effect bar with approximately 180° movement.

Its purpose is primarily to create rhythmic sweeping effects rather than precisely position a spot beam anywhere across a stage.

Alternating Beam and Laser Layout

The combination of five LED sources and four lasers creates a useful repeated pattern across the bar.

The system can produce a visual sequence of:

LED – Laser – LED – Laser – LED – Laser – LED – Laser – LED

depending on the physical layout of the specific fixture.

This arrangement helps distribute both effect types across the bar instead of concentrating the lasers in only one part of the housing.

Narrow 3–5° LED Beams

The five warm-white LEDs have a documented 3–5° beam angle.

This is significantly narrower than a typical LED PAR light.

For comparison, a PAR may use a beam around 20–45° to create general wash coverage.

A 3–5° effect is instead intended to produce a more concentrated beam.

That makes this fixture better suited for aerial beam effects than for illuminating an entire stage evenly.

Suitable for Haze Effects

Narrow beams become much more noticeable when used with controlled atmospheric haze.

With suitable haze, the warm-white beams can appear as visible shafts moving through the room, while the red laser beams provide sharper lines.

This can work particularly well for:

• DJ performances

• Dance music

• Club lighting

• Wedding entertainment

• Stage entrances

• Party effects

Before using haze, check venue requirements and fire-alarm restrictions.

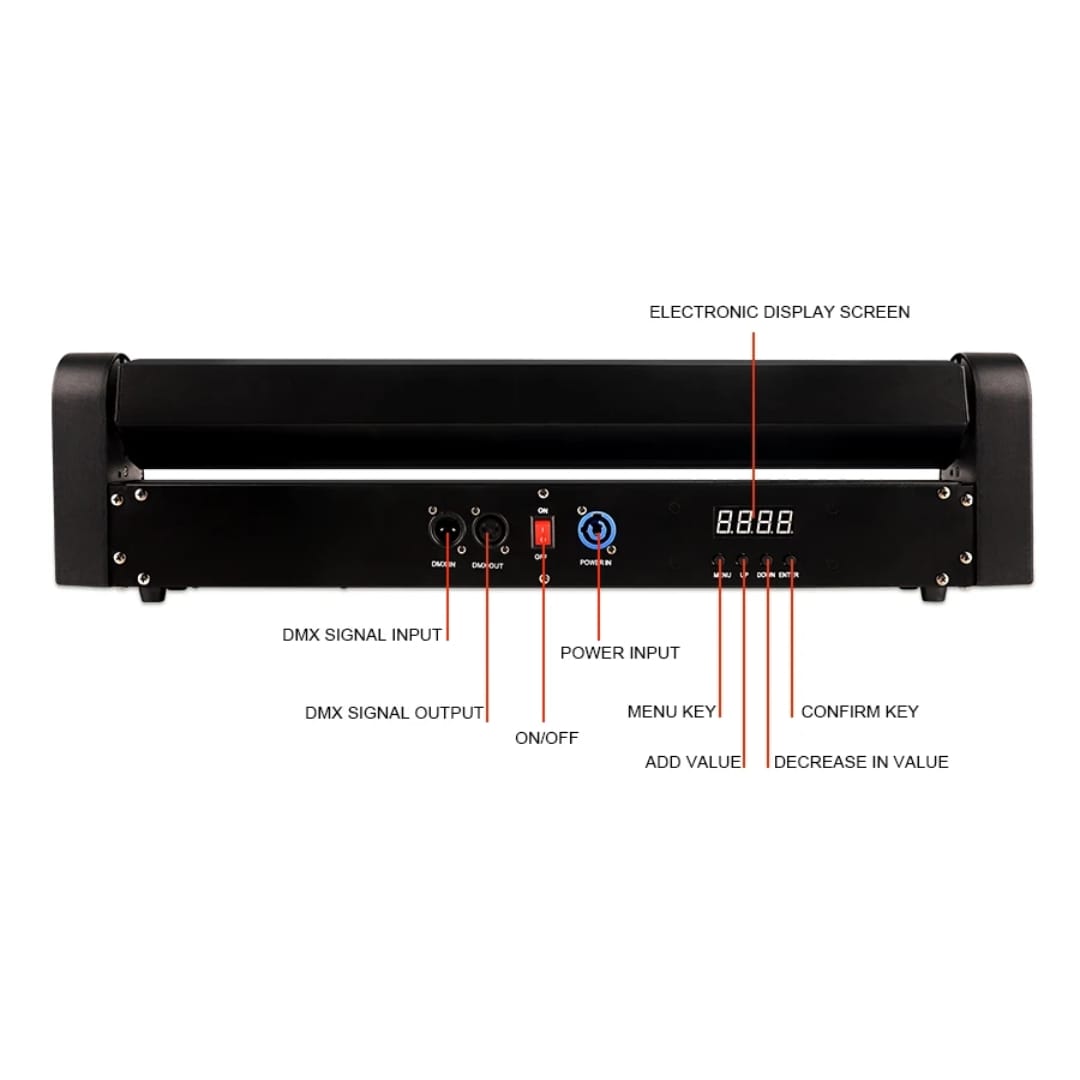

15CH and 23CH DMX Modes

The exact supplier specification lists 15/23 DMX channels.

Two DMX personalities provide flexibility depending on the control detail required.

The smaller mode can help conserve DMX addresses.

The larger mode may expose more detailed control of movement and individual effects.

The exact DMX channel map is not published on the supplier page, so Stagify should not invent individual channel assignments.

Use the physical product manual when building a fixture profile.

DMX512 Integration

DMX512 allows this moving laser bar to work alongside other stage-lighting equipment.

It can be integrated with:

• Moving head beams

• LED PAR lights

• Moving washes

• Strobes

• Other laser effects

• Pixel fixtures

This allows an operator to coordinate the beam and laser effects with the rest of an event.

For example, the bar can remain static during one section and introduce movement or lasers during a DJ drop.

Manual Control

The supplier also confirms Manual control.

This provides an option for configuring the fixture directly without relying completely on a DMX console.

Manual operation can be useful during:

• Testing

• Setup

• Small events

• Basic installations

The functions available manually should be confirmed from the supplied control-panel instructions.

Automatic Operation

An Automatic mode allows the fixture to run built-in effects independently.

This can be useful where a dedicated lighting operator is not available.

Typical applications include:

• Mobile DJs

• Private parties

• Small clubs

• Entertainment venues

• Wedding dance floors

For precisely repeated shows, DMX remains the preferred control method.

Sound-Activated DJ Rhythm Mode

The specification includes Voice Control / DJ Rhythm operation.

This is effectively the sound-active mode.

The fixture can respond to music and run compatible movement or lighting effects according to the audio environment.

Sound activation works particularly well for:

• DJs

• Dance floors

• Karaoke

• Party venues

• Wedding entertainment

It offers a simple music-responsive option without requiring cue-by-cue programming.

Master/Slave Operation

Master/Slave mode is also confirmed.

This is useful when several matching fixtures are installed together.

One fixture can generate the effect while compatible slave fixtures follow.

Possible arrangements include:

• Two units around a DJ booth

• Two fixtures on opposite sides of a dance floor

• Several units across rear stage truss

For individually controlled effects, DMX should be used instead.

30W Fixture Power

The complete fixture is specified at 30W power consumption.

This is relatively modest compared with large moving-head fixtures.

However, the fixture's purpose is not broad stage illumination.

Its power is divided across the LED, laser, control and movement systems to create a specialised disco effect.

For electrical planning, use the documented 30W fixture value rather than adding the LED and laser figures as if they represented total mains consumption.

Long 61.5cm Bar Design

The fixture measures approximately:

61.5 × 17 × 8 cm

This long, low-profile format helps distribute the nine optical sources across a wider physical span.

The bar design works well:

• Above DJ booths

• Across rear truss

• Above small dance floors

• Beside stage scenery

• In club installations

The fixture weighs approximately 4 kg.

Plastic and Metal Construction

The supplier lists a combination of plastic and metal construction.

This mixed housing keeps the fixture structurally suitable for its moving components while avoiding the mass of much larger touring moving heads.

It should still be treated as lighting equipment containing precision optical and laser components.

Avoid impacts during:

• Transport

• Installation

• Storage

• Loading and unloading

DJ Lighting Applications

The fixture is particularly suited to DJs because one unit can add several different visual elements:

• Narrow warm-white beams

• Red laser effects

• Bar movement

• Sound activation

• DMX programming

A pair of fixtures can create symmetrical effects on either side of a DJ position.

They can also supplement conventional PAR and moving-head lighting.

Wedding Entertainment

During weddings, this fixture is better suited to the entertainment and dance portion of the event than to formal ambient lighting.

Useful moments can include:

• Couple entrance

• Dance-floor opening

• DJ sets

• Entertainment performances

• Party finale

For speeches and photography, conventional warm-white or RGBW wash fixtures will generally provide more useful illumination.

Club and Disco Installations

The long moving-bar format is also suitable for clubs and entertainment venues.

Several units can be installed to create repeated sweeping effects above a dance floor.

DMX allows an operator to coordinate the movement with:

• Music

• Strobes

• Moving heads

• Colour washes

• Other effects

This can create a layered club-lighting environment without using the fixture as the main room illumination.

Best For

The LED Moving Disco Stage Laser Light is particularly suitable for:

• DJs

• Clubs

• Discos

• Wedding entertainment

• Dance floors

• Bars and lounges

• Live entertainment

• Parties

• Indoor stage shows

• Rental companies

• Event-production companies

Its main differentiator is the combination of five narrow warm-white beams, four 500mW red lasers and 180° bar movement.

What This Fixture Is Not Best For

This product should not be positioned as the solution for every lighting requirement.

Consider another fixture when the application requires:

• RGB colour mixing

• Full-colour RGB laser animation

• Custom logos or graphics

• ILDA laser programming

• Wide stage wash

• Performer front lighting

• Beam/spot/wash moving-head functions

• Outdoor weather protection

The product is a moving beam-and-red-laser effect, not a conventional RGB moving head.

Compared with the 3-in-1 Moving Head Disco Light

The previously listed 3-in-1 LED Moving Head Disco Light uses RGBW beam LEDs, laser effects and dedicated strobe sources.

This LED Moving Disco Stage Laser Light serves a different purpose.

This model provides:

• 5 × 5W narrow warm-white beams

• 4 × 500mW red lasers

• Long moving-bar design

• 180° movement

The 3-in-1 moving head provides:

• RGBW beam effects

• Red/green lasers

• Strobe effects

• Multi-axis moving-head-style movement

The moving laser bar is the better fit where repeated linear beam-and-laser sweeps are the desired visual.

Compared with a 1W RGB Animation Laser

The RGB 1W Animation Laser focuses on scanned graphics and built-in patterns.

This fixture instead creates a physical moving-bar effect using fixed-position LED and laser sources.

Choose the animation laser when customers require:

• RGB scanned graphics

• Geometric animation

• Pattern projection

Choose this moving bar when they require:

• Narrow beam sweeps

• Red laser lines

• Physical movement

• Multiple optical points across a long fixture

Indoor Use Only

The exact supplier specification clearly states:

Usage Environment: Indoor

No outdoor IP rating is published.

Therefore, do not market the unit as:

• Waterproof

• Rainproof

• Weather-resistant

• Outdoor-rated

Use it in dry, protected entertainment and stage environments.

Operating Temperature

The supplier publishes an operating range of:

-20°C to 55°C

This does not make the fixture weatherproof.

Temperature tolerance and water protection are separate specifications.

Even within the listed temperature range, maintain proper ventilation and keep the fixture protected from moisture.

Important UAE Voltage Check

The exact product specification states:

AC110–220V / 50–60Hz

This requires particular attention for UAE sales.

The UAE mains system operates around 230V / 50Hz, and supply can be above the 220V maximum stated on this product page.

Therefore, Stagify should not claim full UAE 220–240V compatibility based only on the current supplier specification.

Before publishing or connecting the unit locally, inspect the physical rating plate or manufacturer power supply documentation.

If the physical fixture states:

AC100–240V / 50–60Hz

then UAE compatibility can be published.

If it genuinely states only:

AC110–220V

the electrical version requires further technical confirmation before normal UAE mains use.

Laser Safety Is Essential

This fixture contains four genuine red laser sources rated at 500mW each.

Laser output at this level requires careful control.

Do not deliberately direct beams into people's eyes.

Installation should prevent uncontrolled direct eye exposure and avoid reflective surfaces that could redirect laser energy.

Before operation, inspect:

• Laser safety label

• Laser classification

• Aperture location

• Manufacturer warnings

• Interlock or safety controls, if provided

• Operating instructions

The supplier does not publish a formal IEC laser class for the complete fixture.

Do not assign a laser class based only on the module wattage.

Do Not Use for Audience Scanning

Stagify should not market this fixture for direct audience scanning.

Audience scanning is a specialised practice requiring exposure calculations, suitable equipment and competent laser-show operation.

For normal DJs, weddings and entertainment venues, the laser beams should be positioned away from direct audience eye-level exposure.

Dubai Laser Display Requirements

For public laser displays in Dubai, operators should also confirm regulatory requirements.

The Dubai Civil Aviation Authority provides a No Objection Certificate service for laser or pyrotechnic displays within the Emirate of Dubai.

Venue, event and aviation-related requirements should be checked before operating a commercial laser show.

Installation and Rigging

When installing the fixture overhead:

• Use appropriately rated clamps.

• Use a separate secondary safety attachment.

• Verify the truss or mounting point.

• Keep the moving bar clear of surrounding structures.

• Secure cables so they cannot interfere with movement.

• Maintain ventilation.

• Keep the fixture dry.

The complete unit weighs approximately 4 kg, and mounting hardware should be selected accordingly.

What's Included & Compatibility

Core product:

• 1 × LED Moving Disco Stage Laser Light

The fixture can be integrated with compatible:

• DMX512 controllers

• DMX cabling

• Stage truss

• Lighting stands

• Rated clamps

• Secondary safety attachments

• Haze machines

• Other DMX stage lights

The supplier does not document the complete carton contents.

Do not claim that a DMX cable, remote control, mounting clamp or specific mains lead is included without checking physical stock.

How Many LEDs Does It Have?

The fixture has five 5W warm-white LEDs.

The documented beam angle is approximately 3–5°.

How Many Lasers Does It Have?

There are four red laser sources.

Each is listed at 500mW.

What Is the Total Laser Power?

The supplier lists a combined nominal output of:

2,000mW

from the four 500mW laser modules.

Is It an RGB Laser?

No.

The exact technical specification only confirms red laser output.

Do not market it as RGB based on the supplier's generic “multi-colour” marketing language.

Are the LED Beams RGB?

No.

The five LEDs are specified as warm white / amber warm white.

How Much Power Does the Fixture Use?

Total electrical power consumption is listed as 30W.

What Is the LED Beam Angle?

The documented LED beam angle is:

3–5°

This gives the five LEDs a narrow beam-effect character.

How Far Does It Move?

The supplier describes a 180-degree moving laser globe/bar system.

This is not the same as a conventional 540° pan / 270° tilt moving head.

How Many DMX Channels Does It Use?

The exact specification lists:

• 15CH

• 23CH

The detailed channel functions should be confirmed from the supplied manual.

Can It Operate Without DMX?

Yes.

Confirmed modes include:

• Manual

• Automatic

• Sound / Voice Control

• Master/Slave

Does It React to Music?

Yes.

The supplier specifically lists Voice Control / DJ Rhythm operation.

What Are the Product Dimensions?

The documented dimensions are:

61.5 × 17 × 8 cm

How Much Does It Weigh?

The supplier lists the fixture at approximately:

4 kg

Can It Be Used Outdoors?

No.

The exact specification identifies the usage environment as indoor.

No outdoor IP rating is published.

Does It Work on UAE Voltage?

This requires verification.

The supplier currently lists AC110–220V / 50–60Hz, while UAE mains are nominally around 230V / 50Hz.

Check the physical rating plate before claiming compatibility or connecting the unit to local mains.

Can It Scan the Audience?

It should not be promoted or installed for uncontrolled direct audience scanning.

Laser positioning must prevent hazardous eye exposure.

Contact Stagify with your dance-floor model or controller details to confirm compatibility before purchase.
