LED Dance Floor 64 Pixels For Wedding Party Disco

LED Dance Floor 64 Pixels for Wedding, Party & Disco UAE

The LED Dance Floor 64 Pixels is a modular 50 × 50 cm RGB floor panel designed for weddings, parties, stages, discos and professional event installations. Each panel uses 64 SMD 5050 RGB LEDs, consumes 15W and supports DMX, sound, remote, automatic, SD, PC and MADRIX control for programmable floor effects.

Technical Specifications

These specifications are taken from the current listing for this exact product.

64 RGB Pixels for Dynamic Floor Effects

Each 50 × 50 cm panel contains 64 individually arranged RGB pixels using SMD 5050 LEDs. This creates an 8 × 8-style pixel area capable of producing colourful patterns, transitions and animated floor effects when connected to a compatible control system.

Unlike a simple illuminated floor that displays only a fixed colour, a pixel-based dance floor gives event operators much greater visual flexibility.

The RGB 3-in-1 LED configuration can combine red, green and blue light to create a wide range of colours. Multiple panels can be installed together to build a larger modular dance-floor area for weddings, concerts, hotel events or entertainment venues.

For event-production companies and rental businesses, the modular format also makes it easier to adapt the total floor size according to each venue.

50 × 50CM Modular Panel Design

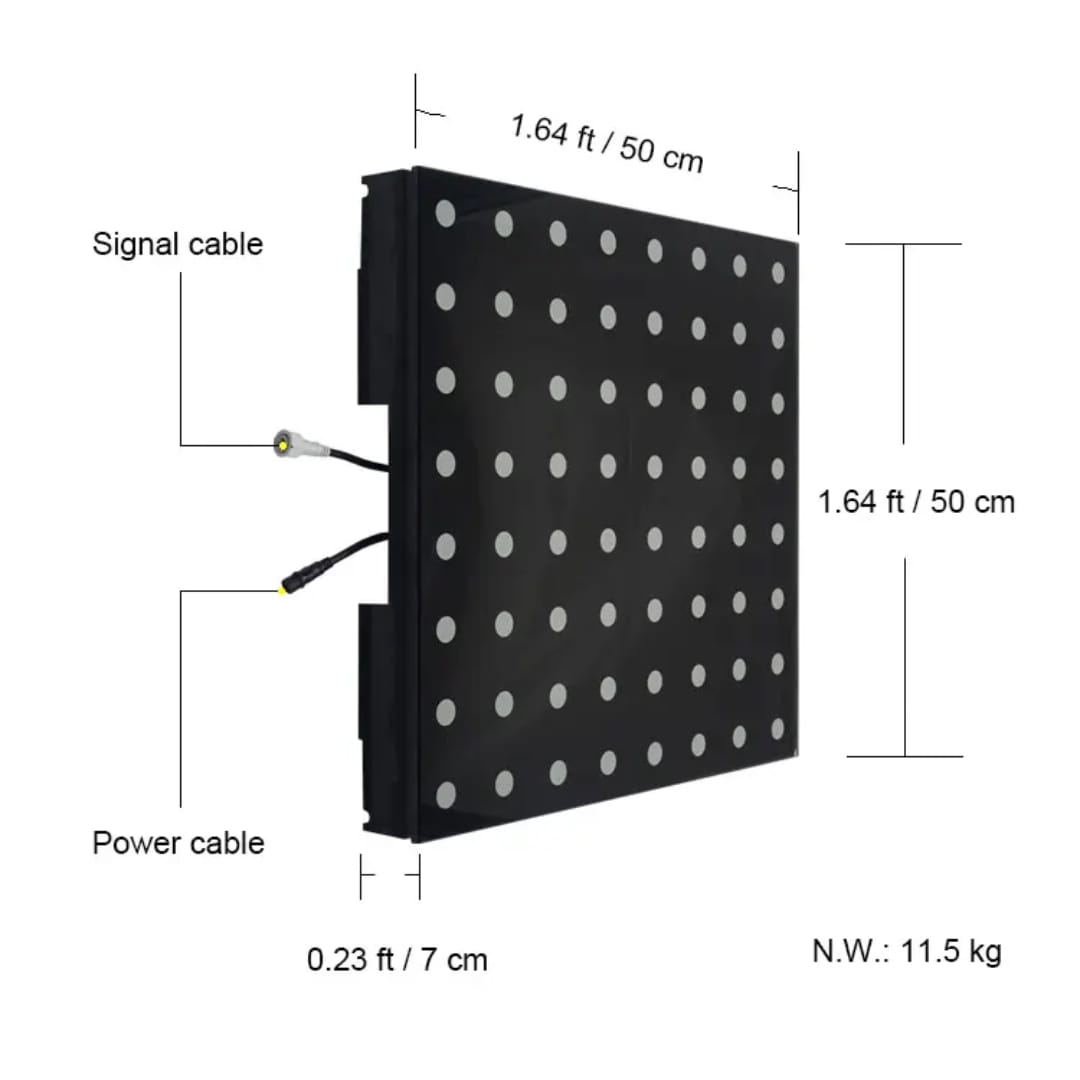

Each LED dance floor module measures 50 × 50 × 7 cm.

The 500 mm square format makes planning complete floor dimensions straightforward. For example:

• 2 × 2 panels create approximately 1 m²
• 4 × 4 panels create approximately 4 m²
• 6 × 6 panels create approximately 9 m²
• 8 × 8 panels create approximately 16 m²
• 10 × 10 panels create approximately 25 m²

This modular approach allows production companies to build different floor sizes without purchasing a completely separate system for every event.

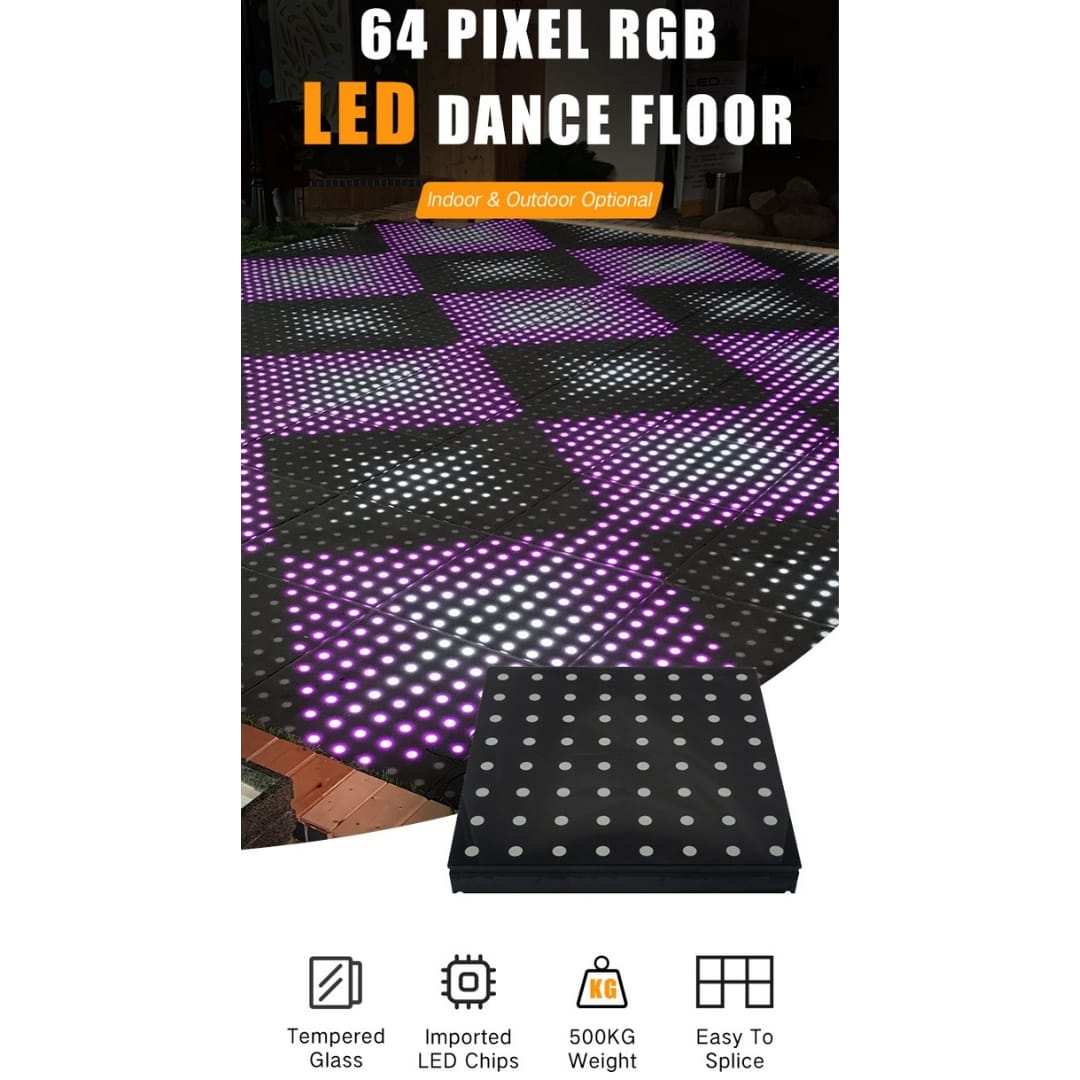

Tempered Glass Surface with 500KG/M² Load Capacity

The panel uses an ABS and tempered-glass surface construction and has a published load-bearing capacity of 500 kg/m².

Tempered glass provides the flat illuminated walking surface required for professional dance-floor installations while protecting the LED components underneath.

The published load rating makes the system suitable for normal event-floor applications when panels are correctly installed on an appropriate level surface.

The load capacity applies to the specified panel system. Point loads, uneven installation, damaged panels or unsupported edges can affect performance, so the complete floor should always be assembled according to its installation requirements.

Multiple Control Options

One of the main advantages of this 64-pixel dance floor is its range of control methods.

The product supports:

• SD control
• DMX control
• Sound control
• Remote control
• Automatic operation
• PC control
• MADRIX

This allows the dance floor to be configured for different levels of production complexity.

For smaller parties or mobile setups, automatic, remote or sound-responsive operation can provide straightforward effects.

For professional productions, DMX, PC and MADRIX control provide greater control over programmed sequences and synchronisation with other visual elements.

RGB 3-in-1 SMD 5050 LEDs

The panel uses 64 SMD 5050 RGB 3-in-1 LEDs.

SMD 5050 packages combine RGB colour channels within each LED package, allowing each pixel to generate multiple colour combinations rather than relying on separate single-colour lamps.

This gives the floor a cleaner pixel appearance and makes it suitable for colourful wedding themes, nightclub effects, stage productions and programmed entertainment environments.

Low 15W Power Consumption Per Panel

Each dance floor panel has a published 15W power consumption and accepts 90–240V AC at 50/60Hz through the system configuration.

The relatively low per-panel consumption is useful when building larger modular floors where dozens of panels may operate together.

For complete installations, the total electrical requirement should still be calculated from the number of panels, controllers, power supplies and other connected equipment.

Best For

The LED Dance Floor 64 Pixels is suitable for:

• Wedding dance floors
• Wedding entrances and first dances
• Parties and private events
• DJ performances
• Discos and nightclubs
• Concert stages
• Hotel ballrooms
• Corporate events
• Fashion shows and catwalks
• Entertainment venues
• Theatre productions
• Event-rental companies
• AV and production companies

Create Custom Wedding and Event Floors

For weddings, multiple panels can be combined to create an illuminated central dance floor that becomes part of the venue's overall visual design.

RGB pixel effects can complement stage lighting, moving heads, LED walls and other event lighting equipment.

With compatible computer or MADRIX programming, the floor can also form part of a more coordinated visual setup where patterns and animated effects are controlled alongside other stage elements.

This makes the system useful for production companies that need more than a simple white or static illuminated dance floor.

What's Included & Compatibility

The primary product is the 50 × 50 cm 64-pixel LED dance floor panel.

It is designed to form part of a modular system using compatible:

• LED dance floor panels
• Dance floor controllers
• Power supplies

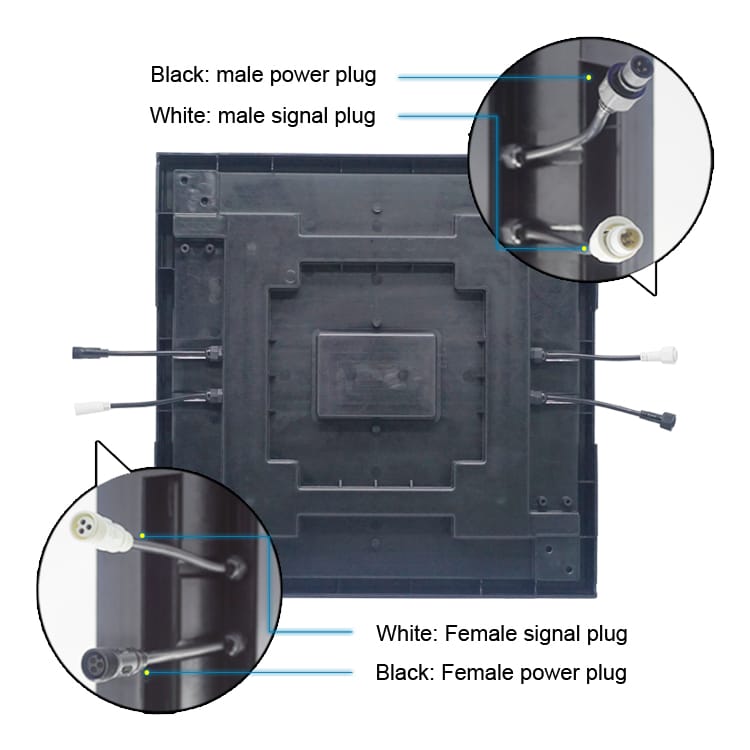

• Power and signal connections
• DMX controllers
• PC control systems
• MADRIX software-based systems
• Remote control systems

The exact controller, power-supply and cable package required depends on the total number of panels in the complete floor installation.

How Many Pixels Are in Each LED Dance Floor Panel?

Each panel contains 64 RGB pixels using 64 SMD 5050 RGB LEDs.

The pixel arrangement allows the panel to generate colourful patterns and programmed effects instead of operating only as a single illuminated tile.

What Size Is Each LED Dance Floor Panel?

Each module measures 50 × 50 × 7 cm.

Four panels therefore cover approximately one square metre when arranged as a 2 × 2 group.

How Much Weight Can the LED Dance Floor Support?

The published load-bearing specification is 500 kg/m².

The floor should still be installed on a flat, suitable surface, and damaged or incorrectly supported panels should not be used.

Can the Dance Floor Work With DMX?

Yes. The control specification includes DMX control, alongside SD, sound, remote, automatic, PC and MADRIX operation.

This makes it suitable for both straightforward event setups and more advanced professional lighting productions.

Can I Control the Floor With MADRIX?

Yes. MADRIX control is listed as a supported control option for this product.

This provides event-production teams with additional programming options when building larger pixel-based lighting installations.

Is This LED Dance Floor Suitable for Weddings?

Yes. Wedding events are one of the main applications for this product.

Multiple 50 × 50 cm panels can be combined to create a larger illuminated floor for first dances, guest dancing, wedding entrances and entertainment areas.

Can Multiple Panels Be Connected Together?

Yes. The product is designed as a modular LED dance floor system, so multiple panels can be combined to achieve the required floor dimensions.

The controller and power configuration should be selected according to the final number of panels.

Does the Dance Floor Respond to Music?

Yes. Sound control is included among the published control modes.

This allows compatible effects to respond to music, which is useful for DJ setups, parties, discos and entertainment venues.

Installation & Safety

LED dance floor panels should be installed on a flat, stable and properly prepared surface. All panel connections should be secured before the floor is opened for guest use.

The complete electrical load must be calculated according to the number of panels and associated power/control equipment.

Although the published product specification lists a waterproof rating of IP55–IP67, the complete installation's resistance to water also depends on connectors, controllers, power supplies and cabling. Do not assume that the complete assembled system can be exposed to water solely from the panel rating.

Inspect tempered-glass surfaces, connectors and panel edges before each installation, particularly for rental equipment that is regularly transported and assembled.

Order 64-Pixel LED Dance Floors in the UAE

Stagify supplies professional LED dance floors, stage lighting and event-production equipment across Dubai and the UAE for wedding companies, event planners, hotels, venues, DJs, AV contractors and rental businesses.

The 64-pixel modular system can be configured into different floor dimensions according to the event space and production requirements.

Contact Stagify for help calculating the required number of panels, controllers and accessories for a complete wedding or event dance-floor project.
