LED Controller for Dance Floor

LED Controller for Dance Floor

The LED Controller for Dance Floor is a compact control unit designed to manage animated lighting effects for compatible LED dance-floor systems. With SD-card data input, low ≤5W controller power consumption and AC100–240V input, it provides a central control point for creating dynamic patterns and event-floor lighting for weddings, clubs, parties and entertainment venues.

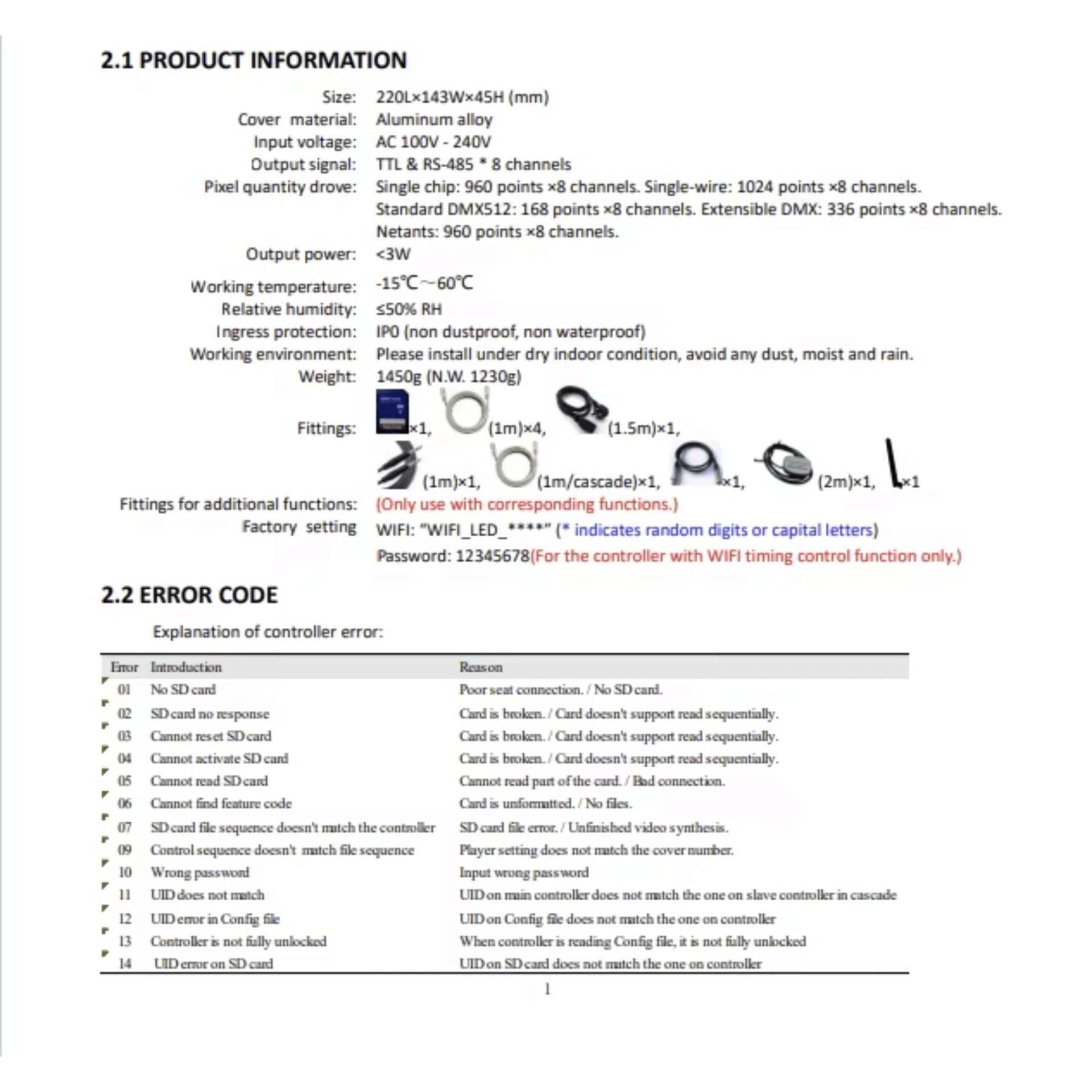

Technical Specifications

Central Control for LED Dance Floors

An LED dance floor is made from illuminated panels that need instructions telling the LEDs what colours, patterns or animations to display.

The LED Dance Floor Controller acts as the control point between the programmed effect data and a compatible dance-floor system.

This makes it useful for installations such as:

• Wedding dance floors

• Hotel ballrooms

• Nightclubs

• DJ events

• Corporate events

• Parties

• Event-rental setups

• Entertainment venues

Rather than operating individual floor panels separately, the controller is intended to coordinate the visual effect across the connected installation.

SD Card Data Input

The exact technical specification lists:

Data Input: SD card (16G)

This provides storage/data input for the controller's lighting content.

For event-production companies, SD-based control can be useful because programmed content can remain associated with the controller rather than depending entirely on a separate computer during every installation.

The exact supplier specification does not clarify whether:

• A 16GB card is included

• 16GB is the maximum supported capacity

• Other SD-card sizes are supported

Stagify should therefore publish simply “SD Card (16G) data input” until the supplied package and manual are checked.

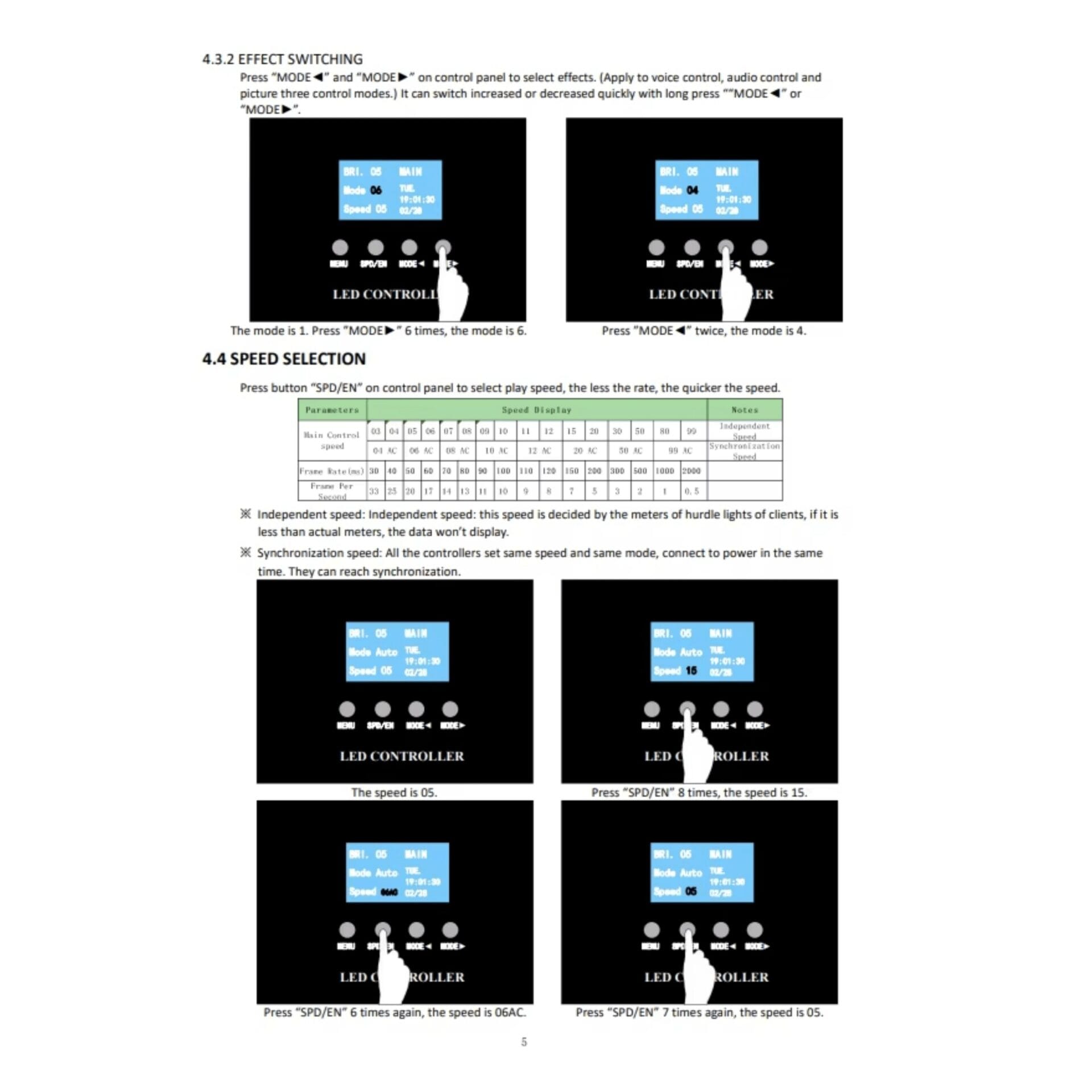

Dynamic Dance Floor Effects

The supplier describes the controller as capable of managing different visual parameters including:

• Colours

• Lighting patterns

• Effect speed

• Brightness

• Dynamic animations

These controls allow the same LED floor to create different looks throughout an event.

For example, a wedding production could use a slower decorative pattern during guest arrival and switch to faster animated effects once the dance floor opens.

A nightclub or DJ production could use more energetic sequences to complement music and performance lighting.

Music-Responsive Lighting

The supplier also describes music-responsive operation, allowing lighting behaviour to react to music.

This can be useful for:

• DJ performances

• Wedding entertainment

• Nightclubs

• Parties

• Dance events

Music-driven effects can help the floor become part of the overall entertainment environment instead of remaining on one static colour.

However, the exact page does not document the audio-input method or sensitivity controls.

For that reason, Stagify should not specify whether music detection uses an internal microphone, external audio input or another method until the physical controller is checked.

Designed for Event Dance Floors

A dedicated dance-floor controller is especially useful for rental and production companies that install and remove LED flooring regularly.

Typical event workflow may include:

1. Assemble compatible floor panels
Build the required dance-floor dimensions.

2. Complete power and data connections
Connect panels according to the floor manufacturer's wiring layout.

3. Connect the controller
Integrate the controller with the compatible floor system.

4. Load/select effects
Use the supported controller interface and SD data.

5. Test the complete floor
Check panel order, animation direction and all connections before guests enter the area.

The exact wiring sequence must follow the dance-floor system supplied with the controller.

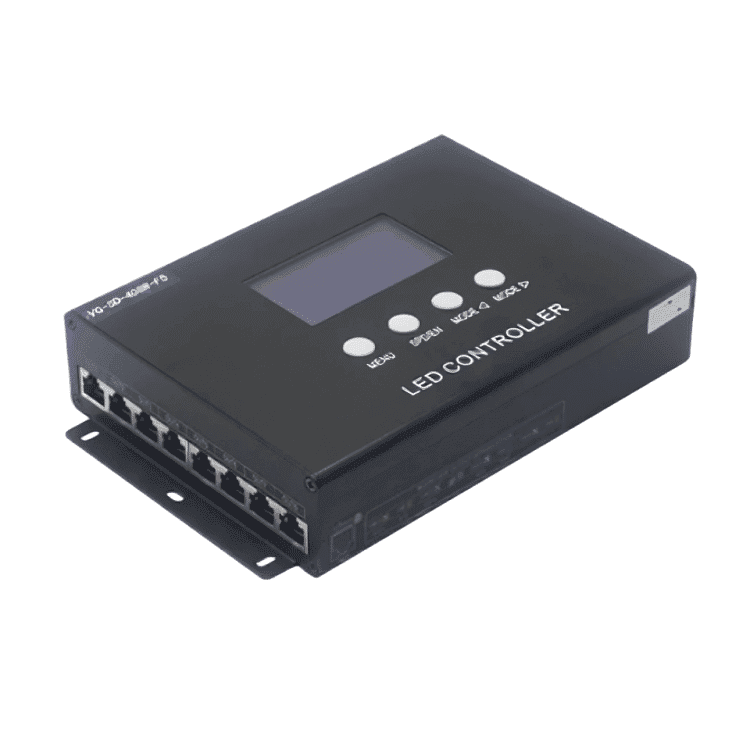

Compact 220 × 142 × 45 mm Design

The controller measures:

220 × 142 × 45 mm

This compact enclosure is easier to position around:

• DJ booths

• AV control areas

• Event racks

• Backstage technical positions

• Dance-floor control stations

Its small size also makes it practical for event companies transporting the controller between venues.

1.4 kg Weight

The documented controller weight is 1.4 kg.

Unlike dance-floor panels, which account for most of the system's transport weight, the controller is relatively compact and portable.

For rental companies, it can be stored separately with the floor's control and signal accessories.

≤5W Power Consumption

The controller itself has a documented power consumption of 5W or less.

This should not be confused with the electrical consumption of the complete LED dance floor.

The controller handles the control system, while the illuminated floor panels require their own suitable power system.

When calculating event power requirements, installers must therefore account for:

• Dance-floor panels

• Power supplies

• Controller

• Other stage lighting

• Audio equipment

• LED screens

• Event effects

The complete dance-floor electrical load cannot be calculated from the controller's ≤5W figure alone.

AC100–240V Input

The controller's published voltage range is AC100–240V.

This voltage range includes the nominal voltage used in the UAE.

However, the exact supplier specification does not publish the operating frequency.

Stagify should therefore check the power-supply label on actual inventory before explicitly stating AC230V/50Hz or full UAE mains compatibility.

The supplied plug type is also not documented.

DMX Control – Verify Before Publishing Technical Details

The supplier's descriptive copy states that the controller offers DMX control.

However, the formal specification table does not provide:

• DMX input/output connector

• Number of DMX channels

• DMX addressing information

• DMX mode

• DMX protocol mapping

For this reason, DMX can be mentioned as a supplier-described feature, but exact DMX specifications should not be added until the controller manual or physical connections are verified.

This prevents customers from assuming compatibility with a specific DMX console configuration that may not match the actual unit.

Remote Operation – Exact Type Not Confirmed

Remote operation is also mentioned in the supplier description.

The exact type is not documented.

It could potentially refer to a dedicated remote, software-based operation or another controller interface, but the source does not establish which.

Do not publish claims such as:

• RF remote included

• IR remote included

• Wi-Fi control

• Bluetooth control

• App control

unless the actual unit confirms them.

Compatibility Must Be Checked Before Ordering

This is an important point for this product.

Not every LED dance floor uses the same:

• LED chipset

• Data protocol

• Panel wiring

• Connector

• Pixel arrangement

• Controller architecture

The supplier describes this controller as compatible with LED dance floors, strips and panels, but it does not publish a technical compatibility list.

Therefore, customers should confirm their exact dance-floor model before purchasing the controller separately.

This is particularly important when replacing an existing controller.

A controller that physically looks similar does not automatically mean that its signal protocol matches the floor.

Best Fit

This controller is best suited to buyers who have a confirmed compatible LED dance-floor system and need a dedicated control unit for its lighting effects.

Typical users include:

• Wedding-event companies

• Dance-floor rental businesses

• DJs

• Hotels

• Nightclubs

• Event-production companies

• AV suppliers

• Entertainment venues

Not the Right Choice When

This controller should not be purchased solely on the basis of voltage or appearance if the customer's existing LED floor has not been identified.

It may not be suitable when:

• The LED protocol is unknown

• The floor uses a different proprietary controller

• Connector types do not match

• Panel resolution is unsupported

• A specific video processor is required

For replacement-controller orders, Stagify should ideally obtain photographs or technical details of the existing floor/controller before confirming compatibility.

LED Dance Floor Controller vs DMX Lighting Console

These products have different purposes.

A general DMX lighting console is designed to control stage fixtures such as:

• Moving heads

• PAR lights

• Strobes

• Blinders

• Effects

A dance-floor controller is designed around the LED floor's own pixel/panel system and programmed visual content.

Even where DMX integration is available, the dedicated floor controller may still be required to translate or manage the dance-floor effects.

LED Controller vs Dance Floor Power Supply

The controller is also not the same as the floor's power supply.

Controller:
Handles lighting instructions and effect data.

Power system:
Provides the electrical power needed by the LED panels.

A complete dance-floor setup can therefore require both.

Ideal Applications

The LED Controller for Dance Floor is suited to:

• Wedding dance floors

• Nightclubs

• DJ events

• Corporate celebrations

• Hotel ballrooms

• Private events

• Concert entertainment zones

• Event rentals

• Party venues

What's Included

Confirmed core product:

• 1 × LED Controller for Dance Floor

The exact source does not clearly confirm whether the package includes:

• 16GB SD card

• Remote control

• Power cable

• Data cable

• DMX cable

• Floor connection cable

• Power supply accessories

These should be checked on Stagify inventory before listing them as included.

Does the Controller Have an SD Card Input?

Yes.

The exact specification lists SD card (16G) as the data input.

How Much Power Does the Controller Use?

The controller itself is rated at ≤5W.

This does not include the power required by the connected LED dance-floor panels.

What Voltage Does It Use?

The published input voltage is AC100–240V.

Frequency and supplied plug type are not published on the exact product page.

Does It Support Music-Synchronised Effects?

The supplier describes a music sync mode where the floor lighting responds to music.

The exact sound-input method is not documented.

Does It Support DMX?

The supplier's product description says that DMX control is available, but the technical specification does not provide the channel count, connector type or DMX mapping.

Confirm those details before integrating it into a specific DMX system.

Does It Include Remote Control?

The supplier describes remote operation, but does not confirm the type of remote or whether one is included in the package.

Check physical stock before promising a remote to customers.

Can It Control Any LED Dance Floor?

Compatibility should not be assumed.

The floor's controller protocol, LEDs, wiring and interface must match.

Customers replacing an existing controller should provide their dance-floor specifications before ordering.

Can It Control LED Strips and Panels?

The supplier states that the controller is compatible with LED dance floors, strips and panels.

However, it does not provide supported IC/protocol numbers.

Therefore, compatibility with a specific strip or panel must be confirmed before purchase.

LED Dance Floor Control for UAE Events

The LED Controller for Dance Floor provides a compact control solution for compatible animated flooring used by wedding companies, DJs, clubs and event-production businesses.

Its confirmed SD-card data input, ≤5W controller consumption and compact 220 × 142 × 45 mm housing make it practical for portable event systems, while compatibility should always be checked against the exact LED floor before ordering.

Contact Stagify with your dance-floor model or controller details to confirm compatibility before purchase.
