Led Beam Strobe Moving 3 Head Light

LED Beam Strobe Moving 3 Head Light – Dynamic Lighting for Every Event

The LED Beam Strobe Moving 3 Head Light is a 180W multi-effect stage fixture combining three-head movement, 12 × 10W RGBW beam LEDs and 12 × 5W COB strobe LEDs. With a 13° beam, 540° horizontal movement, infinite vertical rotation and DMX512 control, it is designed for DJs, clubs, weddings, concerts and indoor entertainment stages.

Technical Specifications

Beam and Strobe Effects in One Moving Fixture

This three-head fixture combines two different types of stage lighting within one housing.

The RGBW LEDs create moving beam effects, while the dedicated COB LEDs add a separate strobe layer.

This allows lighting operators to create:

• Moving RGBW beams

• Fast strobe sequences

• Colour chases

• Pulse effects

• Sweeping movements

• Sound-responsive effects

• Dimmed scenic looks

For mobile DJs and event companies, combining these functions can reduce the number of separate effect fixtures required around a dance floor or small-to-medium stage.

12 × 10W RGBW 4-in-1 LEDs

The beam system uses 12 × 10W RGBW 4-in-1 LED sources.

RGBW combines:

• Red

• Green

• Blue

• White

The dedicated white component provides a cleaner neutral output alongside saturated RGB colours.

This gives the fixture flexibility for different event styles.

Wedding productions can use slower white or mixed-colour movement during formal sections, while DJs and clubs can switch to stronger RGB effects during entertainment.

13° Beam Angle for Defined Moving Effects

The documented beam angle is approximately 13°.

This creates a more concentrated effect than a conventional wide-angle PAR light while providing broader coverage than extremely narrow discharge beam fixtures.

The 13° optic works well for:

• Dance-floor effects

• DJ booths

• Wedding stages

• Club ceilings

• Performance areas

• Small concert stages

Controlled haze can make the moving beams more visible through the air, particularly in club and concert environments.

12 × 5W COB Strobe LEDs

A separate strobe system uses 12 × 5W COB LEDs.

These LEDs allow the fixture to introduce rapid flashing effects independently from its moving RGBW beams.

The strobe can be useful during:

• DJ drops

• Concert transitions

• Stage reveals

• Dance performances

• Club sequences

• Wedding entertainment

This gives the light a stronger high-energy role than a conventional moving beam fixture without a dedicated strobe section.

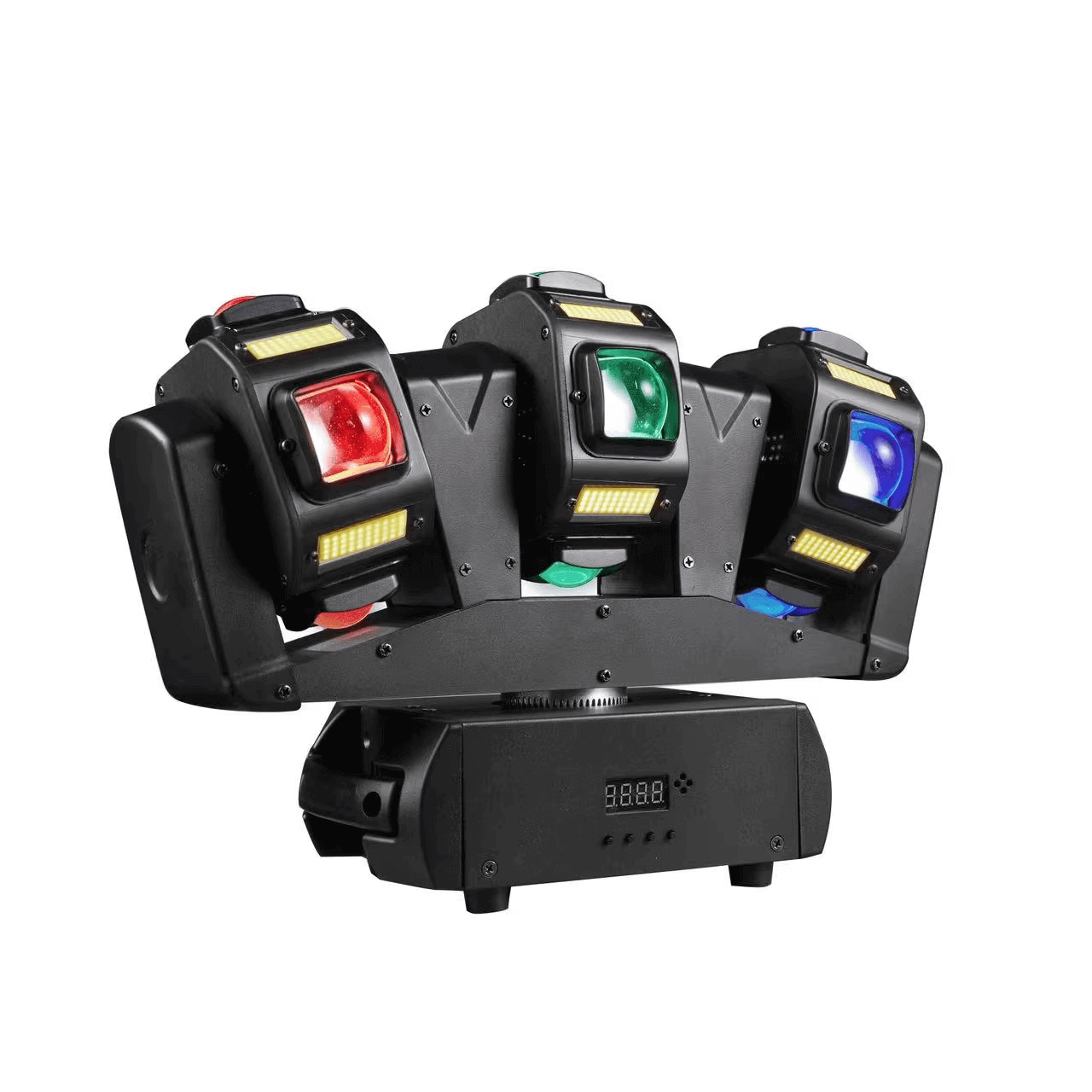

Three-Head Moving Design

The fixture uses a three-head configuration, allowing the light output to create a wider and more dynamic visual pattern than a single-head effect.

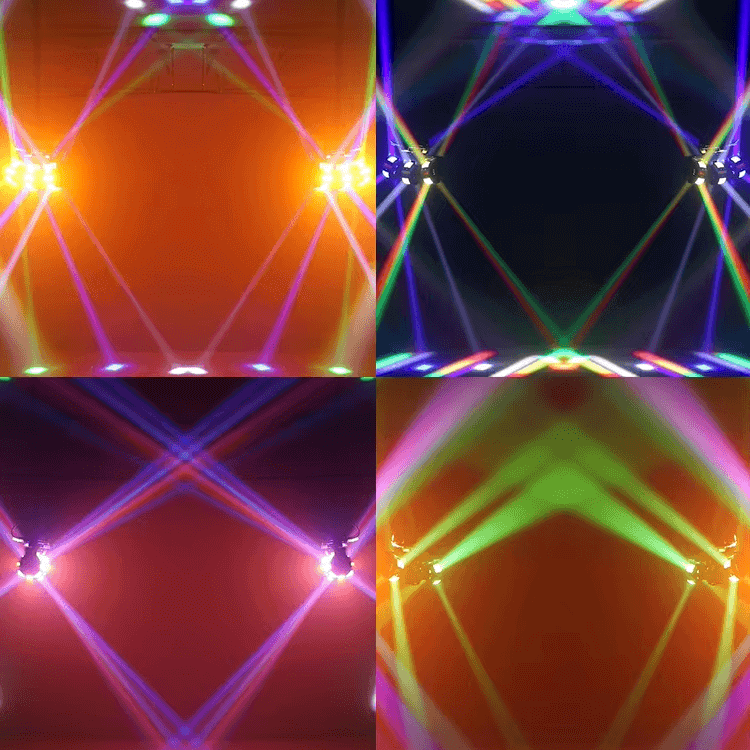

Three moving sections can produce overlapping beam positions across a stage or dance floor.

This format works particularly well when the fixture itself remains visible as part of the show.

Several units can be installed together to create:

• Mirrored effects

• Crossing beams

• Repeated movements

• Symmetrical stage patterns

• Fast music-driven sweeps

The multi-head layout makes this product particularly suitable for entertainment-focused lighting.

540° Horizontal Rotation

The X-axis provides approximately 540° of horizontal movement.

This gives the fixture a wide scanning area across the venue.

Programmers can direct moving effects toward different stage positions without manually repositioning the light.

The movement can be incorporated into slower scenic cues or faster entertainment sequences depending on the event.

Infinite Vertical Rotation

The Y-axis supports continuous or infinite rotation.

This gives the three-head effect a different movement style from conventional moving heads that stop and reverse after reaching a fixed tilt limit.

Continuous vertical rotation is particularly useful for:

• Repeating sweeps

• Rolling effects

• Fast DJ sequences

• Club lighting

• Dance-floor effects

Combined with the 540° horizontal movement, the fixture can create complex motion from a relatively compact body.

RGB Starry Centre Effect

The matching platform also includes an RGB starry-lighting effect in the centre section.

This adds another decorative visual layer around the moving beam and strobe functions.

The centre effect is useful when the audience can directly see the fixture, especially in:

• Nightclubs

• DJ booths

• Dance floors

• Parties

• Entertainment stages

Instead of the fixture body disappearing into the rig, the illuminated centre contributes to the overall stage design.

0–100% Linear Dimming

The RGBW beam section provides 0–100% linear dimming.

This gives the lighting operator control over intensity rather than requiring the fixture to remain at full brightness.

Different levels can be used throughout an event.

Guest arrival: lower output and slower movement.

Wedding entertainment: stronger colour and movement.

DJ performance: beams and strobe at more energetic settings.

Dimming also makes it easier to balance the fixture with other stage lights in a mixed rig.

9CH and 11CH DMX Modes

The matching technical manual documents 9-channel and 11-channel DMX control modes.

This gives the operator a choice between different programming configurations depending on the required control detail and available DMX address space.

DMX512 can be used to manage supported functions including:

• Colour

• Movement

• Dimming

• Strobe

• Effect functions

For multi-fixture systems, choose the channel mode before assigning DMX addresses.

DMX512 for Professional Control

DMX512 allows the three-head light to operate as part of a complete stage-lighting system.

A compatible lighting console can coordinate it with:

• Beam moving heads

• Moving washes

• LED PAR lights

• Pixel bars

• Strobes

• Other effect fixtures

This is useful for wedding, concert and club productions where multiple lighting effects need to change together according to programmed cues.

Sound-Activated Mode

The fixture supports sound-activated operation using an integrated microphone.

This allows built-in effects to react to music without requiring continuous console programming.

Sound mode is particularly useful for:

• Mobile DJs

• Clubs

• Parties

• Bars

• Wedding entertainment

For professional shows that require precise timing, DMX control provides more predictable results.

Automatic Operation

The built-in Auto mode runs pre-programmed movement, colour and effect sequences without an external lighting desk.

This is useful for venues or mobile setups where fast operation is more important than detailed show programming.

The fixture can therefore work both as a standalone entertainment light and as part of a professional DMX rig.

Master-Slave for Multiple Fixtures

Master-Slave mode allows compatible units to operate together.

One fixture runs the programme while connected fixtures follow its behaviour.

This is useful when installing matching units:

• Beside a DJ booth

• Across a wedding stage

• Around a dance floor

• On rear stage truss

For more complex movement and individual colour control, each fixture should instead be separately addressed through DMX.

Power In and Power Out

The matching fixture platform includes power input and output connections for linking compatible units.

This can simplify cabling where several lights are installed close together.

Any power linking must remain within the manufacturer's electrical limits.

Do not assume that every number of fixtures can be daisy-chained from one mains connection.

Electrical loading should be calculated using the documented 180W per fixture rating.

180W Total Fixture Power

The complete unit is specified at 180W.

For event-power calculations:

• 2 fixtures = approx. 360W

• 4 fixtures = approx. 720W

• 8 fixtures = approx. 1.44kW

These figures cover the three-head fixtures only.

Moving heads, speakers, LED screens, fog machines and other event equipment must be included when calculating the complete circuit load.

Compact Aluminium Housing

The matching unit uses an aluminium housing and measures approximately:

311 × 218 × 314 mm

with a weight of approximately:

4.87 kg

This makes it relatively compact for a three-head moving effect.

For mobile production businesses, size and weight influence:

• Vehicle space

• Flight-case capacity

• Setup time

• Warehouse storage

• Truss loading

The compact format is particularly useful for DJs and rental businesses deploying several fixtures.

AC110–240V Wide-Voltage Input

The verified electrical specification is AC110–240V at 50/60Hz.

This includes UAE 220–240V / 50Hz mains power.

The exact mains plug supplied with the Stagify stock should still be physically checked before claiming that a UAE Type G plug is included.

Where This Fixture Fits Best

This product is best positioned as an entertainment beam and strobe effect, rather than a general-purpose stage wash.

Choose it when the production needs:

• Moving RGBW beams

• Dedicated strobe effects

• Three-head movement

• Sound-active operation

• Compact DJ lighting

• DMX-controlled entertainment effects

Choose a moving wash when broad and even stage coverage is the priority.

Choose a high-output beam moving head when long-distance, extremely narrow aerial beams are required.

Choose a dedicated strobe when very high-intensity flashing is the main requirement.

Best For

The LED Beam Strobe Moving 3 Head Light is particularly suited to:

• Mobile DJs

• Nightclubs

• Discos

• Wedding entertainment

• Bars and lounges

• Live bands

• Concert stages

• Dance performances

• Party venues

• Event-production companies

• Lighting rental businesses

What's Included & Compatibility

Matching platform package includes:

• 1 × 3-Head Moving Beam/Strobe Light

• 1 × power cord

• 1 × mounting bracket

• 1 × instruction manual

Compatible with suitable:

• DMX512 lighting controllers

• Professional DMX cabling

• Aluminium stage truss

• Rated lighting clamps

• Independent safety cables

• Event power-distribution systems

• Controlled haze machines

Stagify should verify the actual package before listing any accessory as included on the final product page.

How Many Beam LEDs Does the Light Have?

The matching platform uses 12 × 10W RGBW 4-in-1 LEDs.

These provide the main coloured beam effects across the three-head fixture.

How Many Strobe LEDs Are Included?

The strobe section uses 12 × 5W COB LEDs.

These provide a dedicated flashing effect separate from the RGBW beam LEDs.

What Is the Beam Angle?

The documented beam angle is approximately 13°.

This gives the fixture a defined effect suitable for DJ stages, clubs and entertainment venues.

How Does the Moving System Work?

The documented movement includes:

• 540° horizontal rotation

• Infinite vertical rotation

This allows the fixture to create continuous moving effects rather than remaining in one fixed projection direction.

Does It Support DMX512?

Yes.

The matching technical documentation specifies 9CH and 11CH DMX modes, with control over functions including colour, movement, strobe and dimming.

Can It Work Without DMX?

Yes.

The fixture also supports:

• Auto

• Sound Active

• Master-Slave

This makes it suitable for both standalone DJ setups and professional console-controlled installations.

Is It Suitable for Weddings?

Yes, particularly during the entertainment portion of wedding events.

The RGBW beams and strobe effects work well around dance floors, DJs and live performances.

For speeches, ceremonies and general stage-face illumination, dedicated wash or profile fixtures should be used alongside it.

Does It Work on UAE Power?

Yes.

The verified AC110–240V / 50–60Hz input covers UAE 220–240V / 50Hz mains power.

The supplied plug type should still be checked on actual Stagify inventory.

Can It Be Used Outdoors?

The matching technical documentation specifically warns against rain and moisture and does not provide an outdoor IP rating.

The fixture should therefore not be marketed as waterproof or weather-resistant.

Use it in dry indoor environments unless the physical Stagify unit has separate manufacturer documentation confirming an IP classification.

Installation & Safety Requirements

For overhead installation, use properly rated professional rigging equipment.

Before operation:

• Verify the mounting bracket.

• Use an appropriate stage-light clamp.

• Add an independent secondary safety cable.

• Keep cables away from moving components.

• Maintain clearance for full movement.

• Keep ventilation areas unobstructed.

• Protect the fixture from water and moisture.

Because the vertical axis can rotate continuously, cable routing and surrounding clearance are especially important.

Professional overhead installation should be completed by personnel experienced with stage-lighting and rigging systems.

Professional 3-Head DJ Lighting in the UAE

Stagify supplies professional moving lights, DJ effects and stage-lighting equipment across the UAE for wedding companies, clubs, venues and production businesses.

This three-head platform is particularly useful when a setup needs moving RGBW beams and dedicated COB strobe effects from one compact DMX-controlled fixture.

Contact Stagify for current availability and to confirm the exact DMX profile, supplied plug and accessory package of the available unit.
