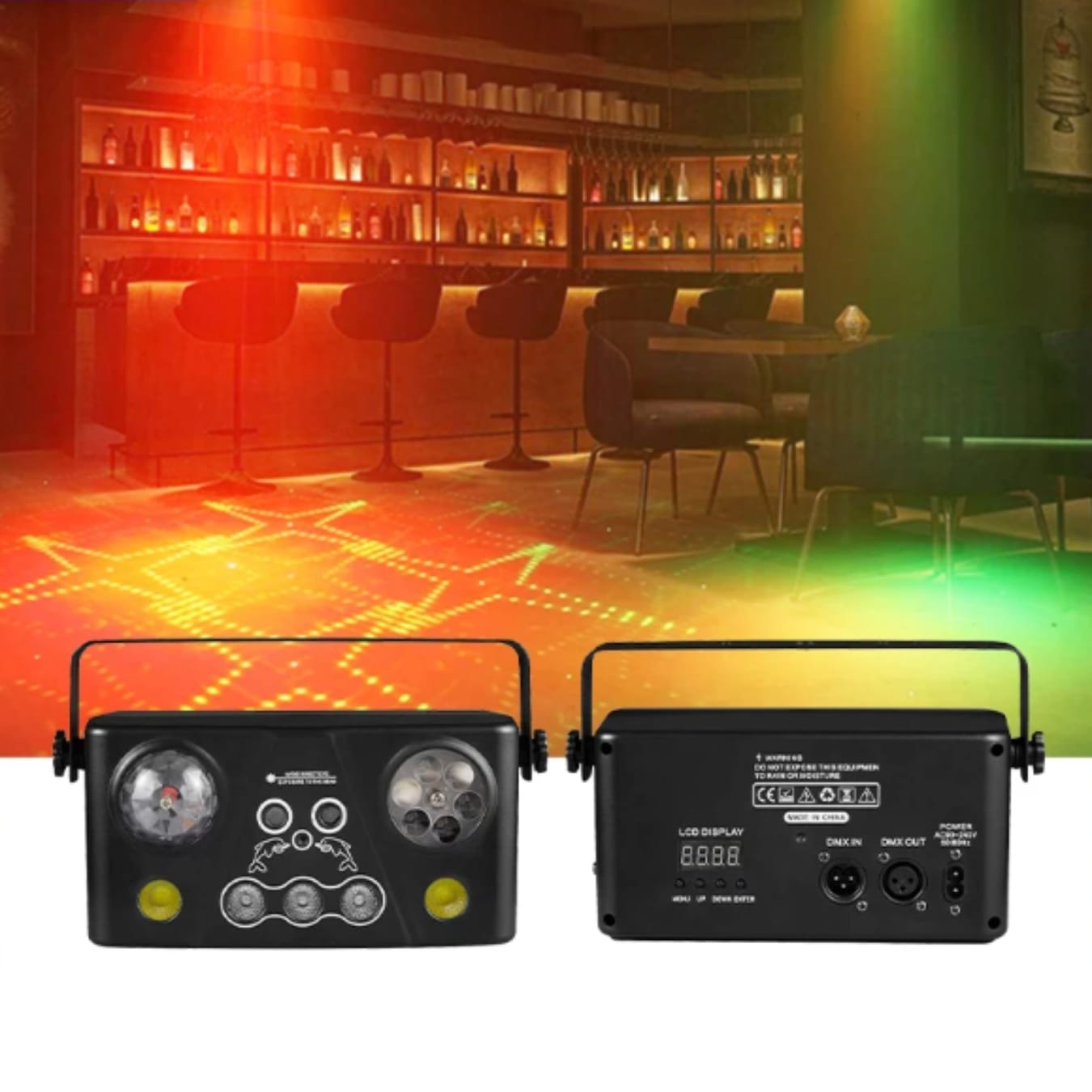

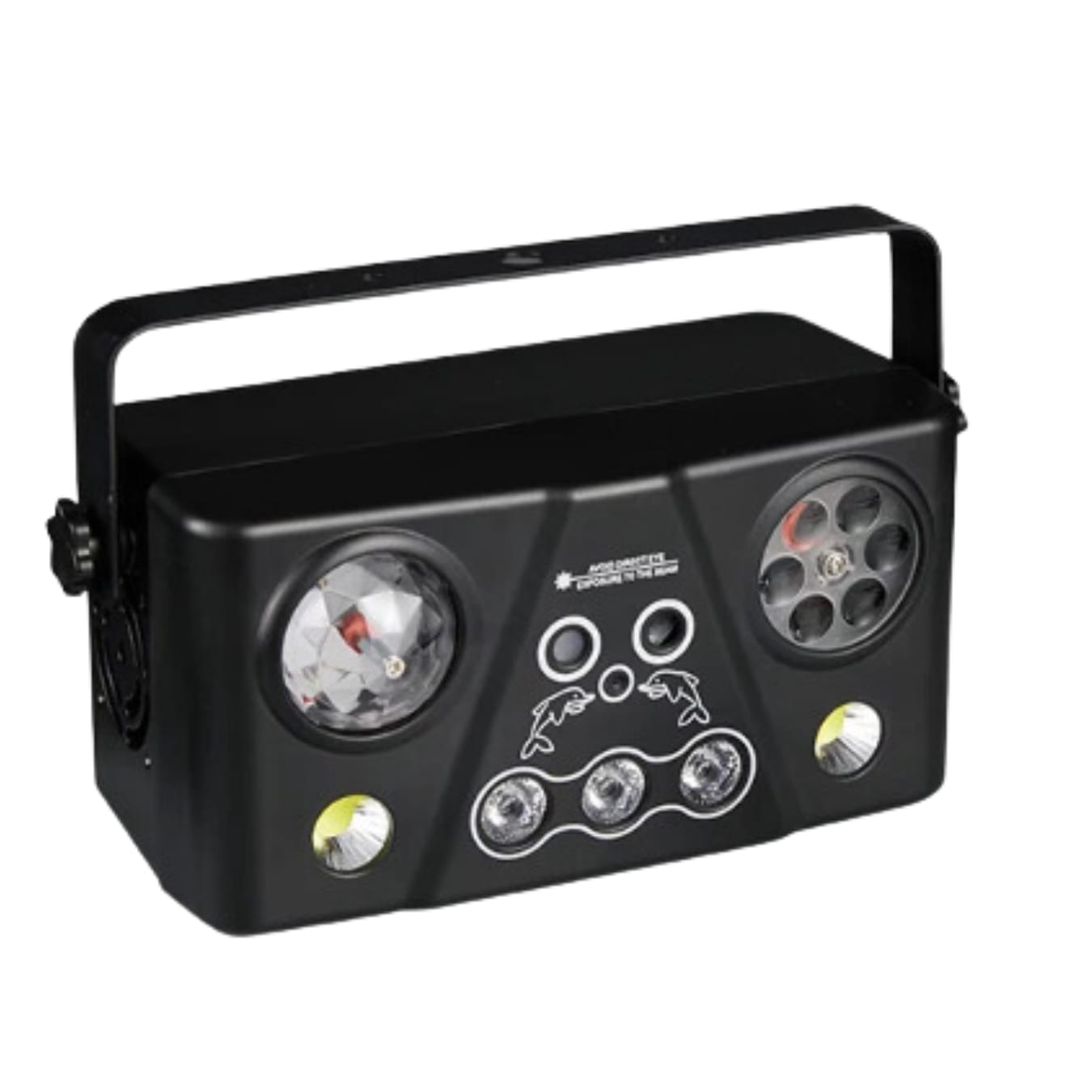

DISCO LAMP RGB DJ LED LIGHT 5 IN 1

The Disco Lamp RGB DJ LED Light 5 in 1 is a compact 30W multi-effect fixture designed for DJs, wedding entertainment, parties, bars, clubs and small indoor stages. It combines rotating RGB-style party effects, an RGB colour wash, dedicated white strobe LEDs and a red/green laser system inside one housing, allowing a single fixture to create several visual layers around a dance floor or DJ booth.

With 14-channel DMX512, Auto, Sound-Activated, Master/Slave and remote-control operation, the fixture can run as a simple plug-and-play party light or integrate into a larger DMX lighting setup.

Technical Specifications

Specification	Details
Product Type	5-in-1 DJ / Disco Multi-Effect Light
Rated Fixture Power	30W
Magic Ball Sources	3 × 3W 3535 Red / Green / Blue LEDs
Wash / Dyeing Sources	3 × 3W 3-in-1 LEDs
Strobe Sources	2 × 10W White LEDs
Green Laser	100mW
Red Laser	50mW
DMX Channels	14CH
Control Protocol	DMX512
Control Modes	DMX512 / Auto / Sound / Master-Slave / Remote
Cooling System	Forced-air fan cooling
Input Voltage	AC90–240V
Frequency	50–60Hz
Operating Environment	Indoor
Published Temperature Range	-20°C to 40°C
Gross Weight	1.25 kg
Package Size	240 × 170 × 160 mm
Recommended Applications	DJs, parties, weddings, clubs, bars and small indoor stages

Several Party Effects from One Compact Fixture

The purpose of this product is to reduce the number of separate effect fixtures needed in a smaller entertainment setup.

Instead of installing an individual:

• Magic-ball light

• Colour wash

• White strobe

• Red/green laser

• Additional rotating/pattern effect

the fixture combines several entertainment functions inside one compact housing.

This makes it especially useful for mobile DJs and small venues where:

• Rigging space is limited

• Setup time matters

• Transport space matters

• One fixture needs to create several different looks

Important 5-in-1 Effect Clarification

The existing product name and supplier marketing call the fixture 5 in 1.

However, there is conflicting wording between the supplier's marketing section and its formal hardware table.

The marketing copy describes:

• RGB wash

• Strobe

• UV

• Laser

• Beam

The technical specification instead documents:

• 3 × 3W RGB magic-ball LEDs

• 3 × 3W 3-in-1 wash LEDs

• 2 × 10W white strobe LEDs

• 100mW green laser

• 50mW red laser

A matching GHM-X530 platform also identifies rotating magic-ball/pattern effects, wash, strobe and red-green laser systems without documenting dedicated UV LEDs.

For Stagify, the safer approach is to retain the 5-in-1 catalogue name while describing the actual verified optical systems rather than promising UV capability.

Do Not Publish UV Until Physically Confirmed

A genuine UV effect requires a dedicated ultraviolet LED source.

The exact technical specification does not list:

• UV LEDs

• UV wavelength

• UV LED wattage

• Purple/UV channel

• Blacklight source

Therefore, the fixture should not be promoted as a UV blacklight based only on the marketing paragraph.

If current Stagify stock visibly contains a dedicated UV LED or the supplied manual identifies UV control, that feature can be restored.

Until then, leave UV out of the technical table.

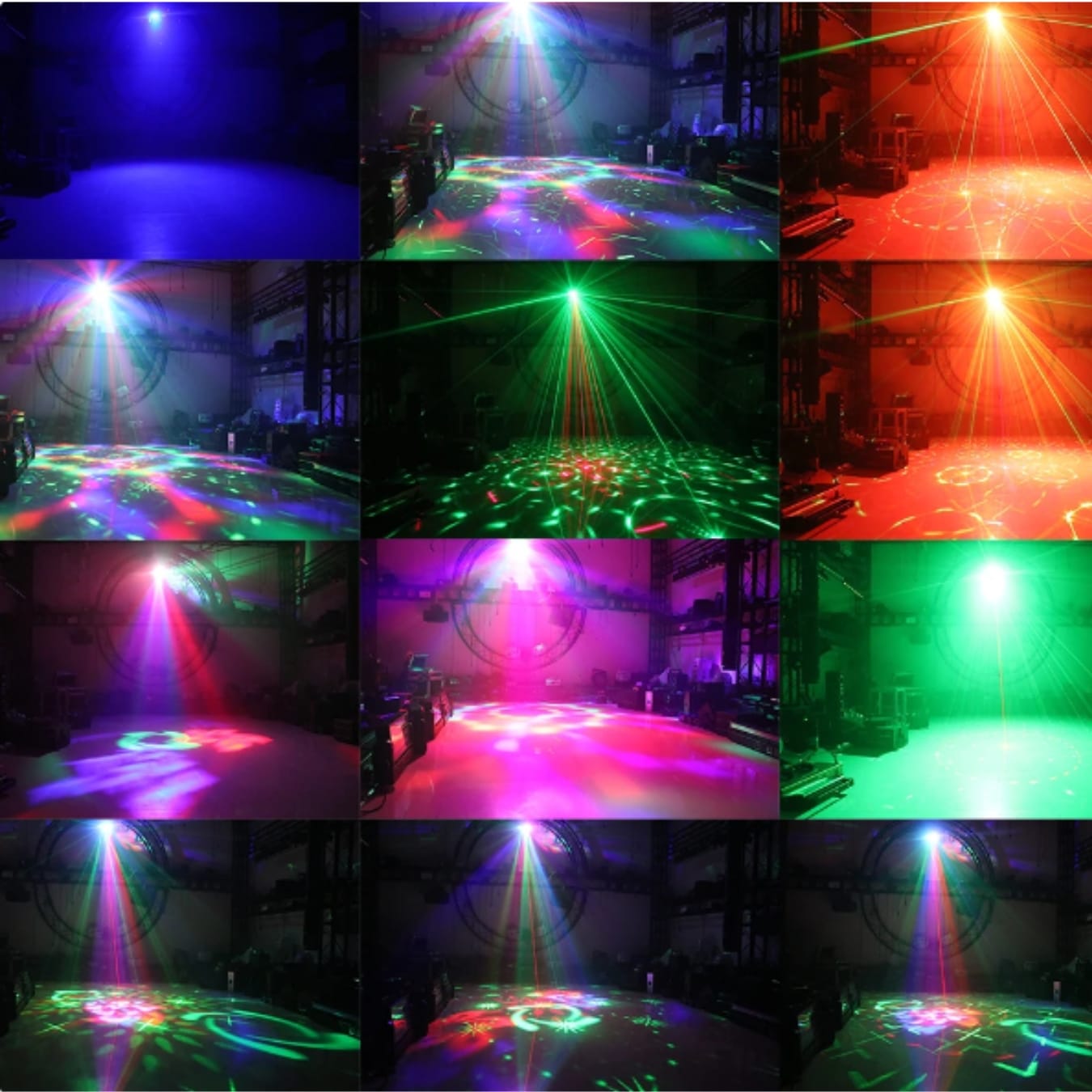

RGB Magic Ball Effect

The supplier lists:

3 × 3535 3W Red / Green / Blue LED beads

for the Magic Ball section.

These sources create the rotating disco-style effect.

Unlike a conventional PAR that illuminates one broad area, a magic-ball optical system distributes multiple moving points or beams around surrounding surfaces.

Possible projection areas include:

• Walls

• Ceilings

• Floors

• Dance floors

• DJ backdrops

• Party rooms

This produces a much more animated effect than a static colour wash.

Three Separate Red, Green and Blue Sources

The wording indicates three individual 3W LED sources associated with:

• Red

• Green

• Blue

The exact optical mechanism determines how these colours appear through the rotating effect.

Stagify should not automatically advertise these as:

3 × 3W RGB 3-in-1 LEDs

because the supplier's wording instead describes individual red/green/blue 3535 sources for the Magic Ball section.

RGB Wash / Dyeing Section

The second LED system uses:

3 × 3W 3-in-1 lamp beads

The supplier calls this function Dyeing, which is common translated stage-light terminology for a colour-wash effect.

For customers, the clearer phrase is:

RGB wash lighting

This component provides a broader colour layer than the sharper laser and magic-ball effects.

Why a Wash Effect Is Useful

Party-effect fixtures often look better when they combine both:

• Defined moving effects

• Background colour

The RGB wash can provide the underlying colour while the:

• Magic-ball beams

• Strobe

• Laser

create movement and visual accents.

This gives one fixture a more layered appearance.

Dedicated 2 × 10W White Strobe LEDs

The fixture contains:

2 × 10W white light beads

dedicated to the strobe section.

This is a substantial strobe component relative to the fixture's compact size.

The white flashing effect can be useful during:

• DJ drops

• Dance sequences

• Music transitions

• Stage entrances

• Party finales

The supplier does not publish the exact strobe frequency, so Stagify should not invent a Hz range.

White Strobe vs RGB Flashing

A dedicated white strobe creates a different look from rapidly flashing RGB LEDs.

White strobe effects tend to create a sharper visual interruption.

That can provide contrast between:

• Colourful wash sections

• Moving patterns

• Laser effects

and high-energy white flashes.

Red and Green Laser System

The laser section contains:

100mW Green Laser

and:

50mW Red Laser

according to the exact supplier technical table.

This adds sharper optical effects that contrast with the LED lighting systems.

Red and green laser effects can be particularly visible when used with controlled atmospheric haze.

150mW Nominal Listed Laser Modules

The supplier-listed module values total:

100mW green + 50mW red = 150mW nominal listed laser output

This should not be confused with the fixture's:

30W electrical power consumption

The two measurements describe different things.

30W = complete fixture electrical rating
150mW = sum of the supplier-listed red and green laser modules

Do not describe the complete fixture as a “150mW light”.

Laser Wavelengths Are Not Published

The exact product page does not specify:

• Red wavelength

• Green wavelength

Do not automatically write common values such as:

• 650nm red

• 532nm green

because laser modules can vary between production versions.

The wavelengths should be taken from the physical laser safety label or supplied manual.

Laser Class Is Not Published

The exact supplier also does not publish a formal IEC laser class.

Do not assign:

• Class 2

• Class 3R

• Class 3B

based only on the module power numbers.

The finished fixture's regulatory class should be verified from the physical safety label.

30W Rated Fixture Power

The exact supplier specification lists:

Rated Power: 30W

The independently matching GHM-X530 specification also lists 30W.

This figure should be used for basic fixture-load calculations.

For example:

2 fixtures: approximately 60W
4 fixtures: approximately 120W
8 fixtures: approximately 240W

Other stage equipment must be added separately.

Important Power-Specification Cross-Check

I also found another catalogue describing a very similar 5-in-1 architecture with:

• 14CH

• 1.25 kg gross weight

• 24 × 17 × 16 cm carton

• Red/green laser

• RGB wash

• White strobe

but that catalogue lists 60W and additional pattern LEDs.

That indicates more than one hardware revision exists.

For this Stagify/TOP PRO SKU, use the exact supplier's 30W figure rather than importing the 60W value from the other variant.

14-Channel DMX512 Control

The exact product uses:

14 DMX channels

with the standard DMX512 control protocol.

The matching GHM-X530 platform independently confirms the same 14-channel architecture.

This allows the light to work alongside:

• LED PAR fixtures

• Moving heads

• Strobes

• Other laser effects

• Derby lights

• Other DMX entertainment fixtures

Why 14CH Is Useful on a Multi-Effect Light

A multi-effect fixture contains several independent optical systems.

More channels can provide separate control over functions such as:

• Magic-ball effects

• Wash colours

• Strobe

• Laser

• Automatic programmes

• Movement

The exact 14-channel function map is not published on the TOP PRO page.

Stagify should therefore not invent channel assignments.

Use the manual supplied with the physical unit when programming a DMX console.

Automatic / Self-Propelled Mode

The supplier lists:

Self-Propelled

operation.

The more natural customer-facing term is:

Automatic Mode

This allows the fixture to run built-in programmes without an external DMX controller.

Auto operation is useful for:

• Birthday parties

• Small DJs

• Bars

• Karaoke

• Home events

• Wedding entertainment

Sound-Activated / Voice Control

Voice Control is also confirmed.

This is effectively Sound-Activated operation.

The fixture can respond to music and use its built-in programmes to create dynamic effects.

This makes it useful where a DJ wants music-responsive lighting without programming every cue manually.

Master/Slave Operation

Master/Slave control is confirmed.

Multiple matching fixtures can therefore work together.

Typical arrangements include:

• Two units around a DJ booth

• Two fixtures across a dance floor

• Several units across a small stage

For independent control of each fixture, DMX512 is more appropriate.

Remote Control Is Confirmed

Remote-control operation appears directly in the exact supplier control specification:

DMX-512 / Self-Propelled / Voice Control / Master-Slave / Remote Control

The matching GHM-X530 platform also confirms remote operation.

This makes the fixture easier to use at simple events where a DMX console is not available.

Remote Range Is Not Published

Although remote control is confirmed, the exact supplier does not publish:

• Wireless distance

• IR vs RF protocol

• Remote battery type

Do not advertise a specific 5m, 10m or 20m operating range without checking the remote.

Fan-Forced Cooling

The fixture uses a:

Fan-Forced Cooling System

according to both the exact supplier page and the matching GHM-X530 platform.

This helps remove heat generated by:

• LED sources

• Strobe LEDs

• Laser modules

• Control electronics

Cooling Maintenance

For normal operation:

• Keep the ventilation openings clear.

• Remove accumulated dust.

• Do not cover the fixture.

• Maintain airflow around the housing.

• Inspect the fan during regular maintenance.

This is particularly important in clubs where fixtures may run for several hours at a time.

Indoor Operating Environment

The exact specification states:

Indoor (-20°C to 40°C)

This provides two useful pieces of information.

First, the fixture is explicitly intended for indoor operation.

Second, the supplier lists an operating-temperature range from approximately:

-20°C to 40°C

Do Not Market as Outdoor-Rated

No IP rating is published.

The technical specification explicitly identifies the working environment as indoor.

Do not advertise this fixture as:

• Waterproof

• IP65

• Rainproof

• Weather-resistant

• Outdoor-rated

For outdoor events, use it only within an appropriately protected dry environment if permitted by the manufacturer.

AC90–240V Wide-Voltage Input

The exact electrical specification is:

AC90–240V / 50–60Hz

This range covers normal UAE:

220–240V / 50Hz

mains supply.

Therefore, the published voltage specification supports UAE use.

UAE Plug Type Is Not Confirmed

The exact wall plug supplied with TOP PRO/Stagify stock is not documented.

A matching NewFeel version is sold with a US power lead in some markets, showing that connector packages can vary by distributor.

Therefore, do not state:

UAE/UK Type G Plug Included

unless current inventory confirms it.

1.25 kg Gross Weight

The supplier lists:

Product Gross Weight: 1.25 kg

This is a gross packed weight, not necessarily the bare fixture's net weight.

Do not relabel 1.25 kg as:

Net Weight

or:

Fixture Weight

without checking the actual unit.

Likely Net Weight Requires Caution

A closely related 5-in-1 catalogue platform lists:

0.95 kg net / 1.25 kg gross

but because that version also has a different published 60W rating, its 0.95 kg net figure should not automatically be transferred to this 30W SKU.

For Stagify, keep:

Gross Weight: 1.25 kg

until the fixture is weighed.

24 × 17 × 16 cm Package Size

The exact supplier confirms:

24 × 17 × 16 cm

as the package size.

This should not be mistaken for the actual fixture dimensions.

Those figures describe the carton.

Product Dimensions Are Not Confirmed

The physical fixture size is not separately published on the exact TOP PRO page.

A related catalogue platform lists 22 × 17 × 20 cm, but that version has other differences.

Do not copy those dimensions into this SKU.

Keep only:

Package Size: 240 × 170 × 160 mm

in the confirmed technical data.

Compact Multi-Effect Design

Even without exact bare-fixture dimensions, the small carton size and low gross weight clearly position this as a portable effect light.

That makes it particularly suitable for:

• Mobile DJs

• Small event companies

• Karaoke venues

• Bars

• Birthday events

• Wedding entertainment

• Compact rental inventories

Mobile DJ Applications

This fixture has a particularly clear role in mobile DJ systems.

Instead of transporting several individual effect units, a DJ gets multiple optical systems from one device.

A compact rig could combine:

• 5-in-1 effect light

• Two or four PAR fixtures

• Haze machine

to create:

• Background colour

• Moving party effects

• White strobe

• Laser accents

Wedding Entertainment

For weddings, this light is better suited to the entertainment section than to formal stage illumination.

Possible cues include:

• Couple entrance

• Dance-floor opening

• DJ performance

• Party section

• Finale

For speeches and photography, dedicated PAR, wash or follow-spot lighting is more suitable.

Dance-Floor Lighting

The combination of several effects can add movement around a dance floor.

The RGB wash provides general colour while the other optical systems add:

• Rotating movement

• Flashing

• Laser effects

This makes the fixture more visually active than a conventional static PAR.

Clubs and Bars

The product can also work in smaller fixed installations.

Several units can be mounted around:

• DJ booths

• Dance areas

• Rear-stage structures

• Entertainment spaces

DMX512 can coordinate the fixtures with a venue's existing stage-lighting system.

Karaoke Applications

Sound-Activated and remote-control operation make the fixture practical for karaoke rooms.

It can run music-responsive effects without requiring a dedicated lighting technician.

For larger KTV installations, DMX can provide more consistent programming across several rooms or fixtures.

Birthday and Private Parties

The simple Auto, Sound and remote functions make the fixture accessible to users who do not own a lighting console.

It can provide a more developed effect than a basic consumer magic-ball light while still remaining relatively easy to operate.

Small Stage Applications

For small stages, use this fixture primarily as an effect light.

It can add:

• Colour

• Movement

• Strobe accents

• Laser accents

but it should not be relied on as the main performer illumination.

Use dedicated PAR or wash fixtures for faces and stage visibility.

Best For

The Disco Lamp RGB DJ LED Light 5 in 1 is particularly suitable for:

• Mobile DJs

• Weddings

• Birthday parties

• Dance floors

• Clubs

• Bars and lounges

• Karaoke

• Private parties

• Small stages

• Entertainment venues

• Small rental companies

Its main catalogue advantage is delivering multiple entertainment effects with 14CH DMX and several standalone control modes from one compact 30W fixture.

What This Fixture Is Not Best For

Consider another product when the requirement involves:

• Large concert-stage illumination

• Dedicated high-output wash

• Custom laser graphics

• ILDA control

• Confirmed UV blacklight

• Outdoor weather exposure

• Long-distance beam projection

• High-CRI performer lighting

• Silent studio operation

This model should be positioned as a compact multi-effect DJ and party fixture.

5-in-1 Disco Lamp vs Derby LED Butterfly 4-in-1

The Derby LED Butterfly Light 4 in 1 uses a different effect architecture.

The Derby has a confirmed:

• 2 × 10W RGBW Derby section

• 10W white strobe

• Red/green laser

• RGB chase LEDs

• 15CH DMX

This 5-in-1 Disco Lamp instead uses:

• RGB magic-ball effects

• 3 × 3W colour wash

• 2 × 10W white strobe

• 100mW green + 50mW red laser

• 14CH DMX

Choose the Derby when butterfly-style beams and RGB chase effects are preferred.

Choose this model when a compact magic-ball style multi-effect is the desired look.

5-in-1 Disco Lamp vs Disco Ball LED Patterns Light

The Disco Ball LED Patterns Light is another compact effects fixture but has a different technical platform.

That product provides:

• 30W

• 4 × 3W gobo LEDs

• 10W white flashing LED

• 30mW red-green beam

• 13CH DMX

This 5-in-1 product provides a stronger listed laser section and two dedicated 10W strobe LEDs.

The choice should be based on the desired effect style rather than simply the number of functions in the product name.

5-in-1 Disco Lamp vs Mini Magic Disco Ball

The Mini RGB LED Magic Disco Ball Light is a simpler entry-level product.

Choose the Mini Magic Ball when:

• Very simple party lighting is required

• DMX is unnecessary

• Lower complexity matters

Choose this 5-in-1 fixture when:

• DMX512 matters

• Laser effects are required

• Dedicated white strobe is useful

• Multiple lighting systems are wanted

Using Haze

Controlled atmospheric haze can make the laser and other narrow beam effects more visible through the air.

Without haze, many effects appear primarily when they hit:

• Walls

• Floors

• Ceilings

• Scenic surfaces

Before using haze:

• Confirm venue permission.

• Check fire-alarm requirements.

• Maintain clear emergency-exit visibility.

• Avoid excessive haze density.

Laser Safety

This fixture contains a real red/green laser system.

Avoid direct eye exposure.

Before commercial installation, inspect the actual product for:

• Laser safety label

• Laser class

• Wavelengths

• Aperture warning

• Manufacturer operating instructions

The supplier does not provide enough information to assign a formal laser class.

Do Not Promote Audience Scanning

The product should not be marketed for uncontrolled direct audience scanning.

Laser beam positioning should prevent direct eye exposure.

Audience scanning is a specialised laser-show practice that requires appropriate safety engineering and exposure control.

Dubai Laser Display Requirements

For public laser displays in Dubai, the Dubai Civil Aviation Authority provides a service for obtaining a No Objection Certificate for laser or pyrotechnic display activities in the Emirate of Dubai.

Event organisers should confirm applicable requirements for the actual venue, location and show before operating public laser effects.

Installation and Rigging

For overhead installation:

• Use appropriately rated mounting hardware.

• Use an independent secondary safety attachment.

• Confirm the support structure.

• Secure the power and DMX cabling.

• Keep ventilation openings clear.

• Keep the fixture dry.

• Aim laser effects away from uncontrolled eye-level exposure.

For floor or table use, position the fixture where guests cannot easily knock it over.

What's Included & Compatibility

Confirmed functionality includes remote control, but the exact supplier page does not provide a complete carton packing list.

The fixture can be used with compatible:

• DMX512 controllers

• DMX lighting infrastructure

• Lighting stands

• Aluminium truss

• Rated lighting clamps

• Secondary safety attachments

• Haze machines

• Other DMX stage-light fixtures

Do not state that a:

• DMX cable

• Clamp

• Safety cable

• Flight case

is included unless physical Stagify inventory confirms it.

What Does 5-in-1 Mean?

The supplier sells the product as a five-effect disco light.

However, its marketing and technical sections do not describe the five functions consistently.

The confirmed hardware contains:

• RGB magic-ball effect

• RGB colour wash

• White strobe

• Red/green laser

with additional rotating/pattern behaviour associated with the multi-effect optical system.

Do not specifically promise UV until the actual unit confirms a UV source.

Does It Have UV Light?

Dedicated UV LEDs are not confirmed in the exact technical specification.

Although the marketing paragraph says UV, neither the hardware table nor the matching GHM-X530 platform identifies a UV source.

Stagify should not advertise UV capability until physical verification.

How Much Power Does It Use?

The exact supplier lists:

30W rated power

How Many Magic-Ball LEDs Does It Use?

The exact specification lists:

3 × 3W 3535 Red / Green / Blue LEDs

for the magic-ball section.

How Many Wash LEDs Does It Have?

The exact specification lists:

3 × 3W 3-in-1 LEDs

for the colour-wash/dyeing effect.

How Many Strobe LEDs Does It Have?

The fixture contains:

2 × 10W white strobe LEDs

What Laser Does It Use?

The exact supplier lists:

• 100mW green

• 50mW red

What Is the Total Laser Output?

Adding the published modules gives a nominal:

150mW

However, this does not establish the fixture's formal laser classification.

What Are the Laser Wavelengths?

The wavelengths are not published.

Do not copy common red or green wavelength specifications from another party laser.

How Many DMX Channels Does It Use?

The exact specification confirms:

14 channels

Does It Work Without DMX?

Yes.

The supplier confirms:

• Auto / Self-Propelled

• Sound / Voice Control

• Master/Slave

• Remote Control

Does It React to Music?

Yes.

Voice/Sound Control is confirmed.

Does It Have a Remote Control?

Yes.

Remote control is explicitly listed as a control method.

The exact remote operating range is not published.

Does It Have Fan Cooling?

Yes.

A forced-air fan cooling system is confirmed.

What Voltage Does It Use?

The exact specification is:

AC90–240V / 50–60Hz

This covers UAE mains voltage.

Can It Be Used Outdoors?

The exact technical specification states:

Indoor

and no IP rating is published.

Use it in dry indoor environments.

What Is the Fixture Weight?

The exact net fixture weight is not published.

The supplier only confirms:

1.25 kg gross weight

What Is the Product Size?

The actual bare-fixture dimensions are not confirmed.

The supplier publishes a 24 × 17 × 16 cm package size only.

Contact Stagify for current availability and confirmation of the exact supplied accessories before ordering.
