DISCO BALL LED PATTERNS LIGHT

Disco Ball LED Patterns Light – Dynamic Lighting for Any Event

The Disco Ball LED Patterns Light is a compact 30W multi-effect fixture for DJs, weddings, parties, nightclubs and small entertainment stages. Instead of relying on one lighting effect, it combines four 3W pattern LEDs, a dedicated 10W white flashing light and a red-green beam effect, allowing one small fixture to produce moving patterns, colour effects, sharp beam accents and strobe-style flashes.

With 13-channel DMX512, Master/Slave, Auto and Music-Activated operation, 0–100% dimming and an included remote control, the fixture is particularly well suited to portable DJ rigs and smaller venues that want several entertainment effects without installing multiple individual lights.

Technical Specifications

Specification	Details
Product Type	Multi-Effect Disco / Pattern Light
Total Fixture Power	30W
Pattern Light Sources	4 × 3W Gobo LEDs
Flash / Strobe Source	1 × 10W LED
Additional Beam Effect	30mW Red-Green Beam
DMX Channels	13CH
Control Protocol	DMX512
Operating Modes	DMX512 / Master-Slave / Auto / Music Activated
Dimming	0–100% ultra-smooth dimming
Input Voltage	AC95–245V
Frequency	50Hz
Product Dimensions	190 × 185 × 155 mm
Net Weight	0.95 kg
Remote Control	Included
Recommended Environment	Dry indoor parties, DJ setups and entertainment venues

Three Lighting Systems Inside One Compact Fixture

The Disco Ball LED Patterns Light combines three main optical systems:

1. Four Gobo / Pattern LEDs
Four 3W LED sources create moving projected patterns.

2. Dedicated White Flashing LED
A separate 10W LED produces strobe-style flashes.

3. Red-Green Beam Effect
A 30mW red-green optical effect adds sharper lines or points alongside the LED patterns.

This combination creates more visual variety than a basic rotating magic-ball light.

4 × 3W Gobo Pattern LEDs

The primary pattern section uses:

4 × 3W Gobo LEDs

A gobo-style effect projects shapes or patterns rather than simply washing an area with colour.

This allows the fixture to create moving visual textures across:

• Walls

• Ceilings

• Dance floors

• DJ backdrops

• Small stages

• Party rooms

• Club interiors

The exact supplier page describes the overall output as multicolour but does not identify the colour of each individual 3W LED in its formal specification.

A matching manual for the same 30W / 13CH hardware platform provides separate red, green, blue and white LED modes, strongly indicating an RGBW-style four-colour pattern section.

For the Stagify hard specification, however, the safest wording remains:

4 × 3W Gobo LEDs

until the physical stock is checked.

Pattern Light Rather Than a Conventional PAR

This fixture should not be confused with an LED PAR.

A PAR light is mainly designed to provide relatively even colour coverage.

The Disco Ball LED Patterns Light is designed to create movement and projected effects.

Use it when the objective is:

• Dance-floor movement

• Decorative patterns

• Party effects

• Music-responsive lighting

Use a PAR fixture when the objective is:

• Stage wash

• Backdrop colour

• Performer illumination

• Wall uplighting

The two types of lights work particularly well together.

Dedicated 10W White Flashing LED

A separate 10W flashing LED provides the strobe-style component of the fixture.

This allows the white flash effect to operate independently from the pattern LEDs.

It can add impact during:

• DJ music drops

• Dance sequences

• Party finales

• Entrances

• Fast musical transitions

The dedicated source makes the effect more defined than simply flashing all of the pattern LEDs together.

Matching Platform Confirms Up to 20 Flashes Per Second

The exact supplier page confirms the 10W flashing LED but does not state its flash frequency.

However, a matching technical manual with the same:

• AC95–245V specification

• 30W total power

• 4 × 3W gobo LEDs

• 10W flash LED

• 30mW red-green beam

• 13CH DMX

• 0–100% dimming

lists a maximum strobe rate of:

20 flashes per second

This is a very strong hardware match.

For catalogue accuracy, Stagify can describe the fixture as having a fast strobe effect, while the 20 flashes/sec figure should ideally be checked against the actual supplied manual before being locked into the specification table.

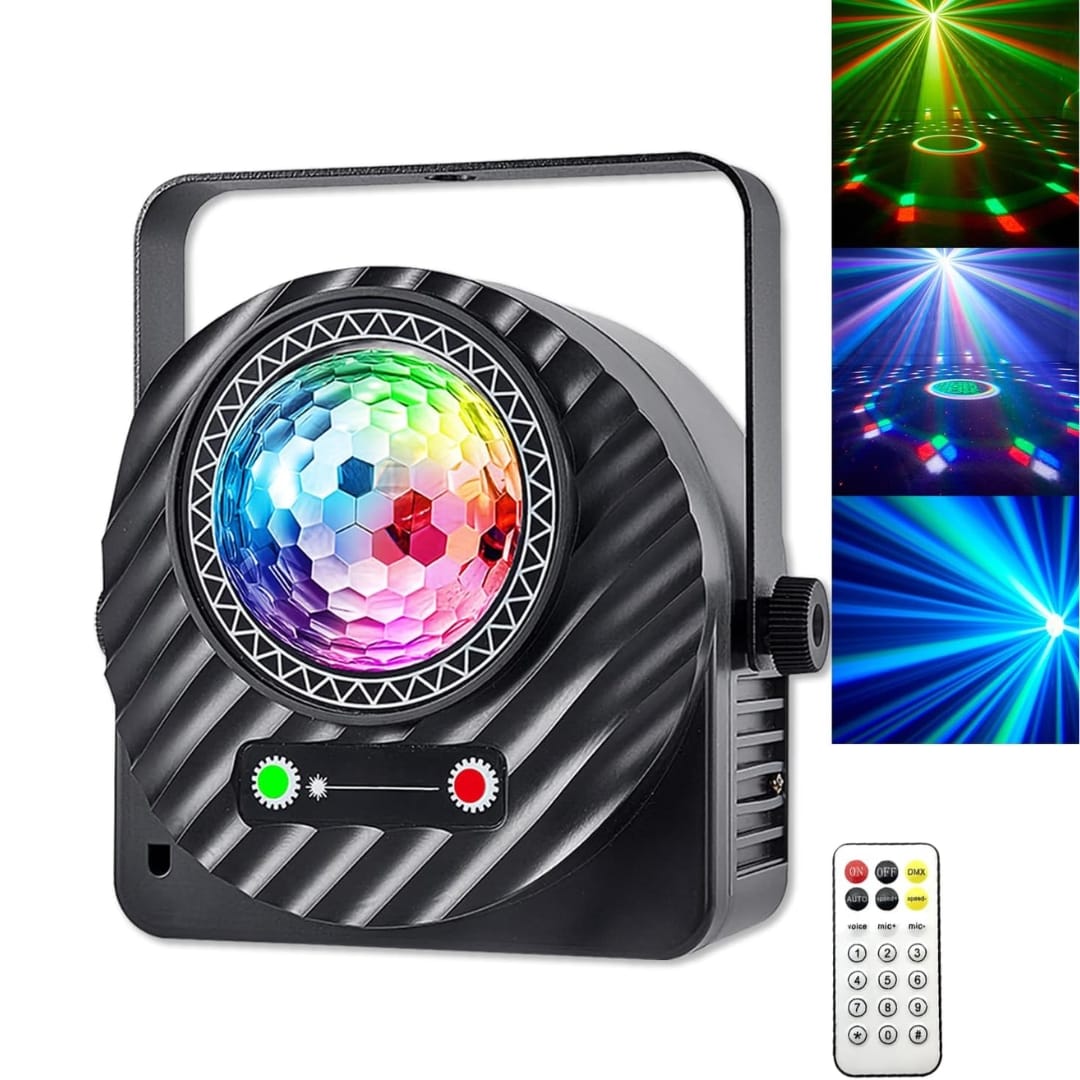

30mW Red-Green Beam Effect

The fixture also includes a:

30mW Red-Green Beam

This gives the light a second optical character beyond the LED patterns.

The red-green section can create sharper points, lines or beam-style effects that contrast with the broader projected gobo patterns.

The supplier does not provide a separate power breakdown for:

• Red source

• Green source

Therefore, do not divide the 30mW figure into assumed values such as 20mW red + 10mW green.

Important Red-Green Beam Safety Clarification

The supplier calls this component a red-green beam but does not publish:

• Wavelengths

• Laser class

• Separate red power

• Separate green power

• Optical aperture details

The matching 13-channel manual provides independent R Beam and G Beam dimming channels, which confirms that the red and green sources can be controlled separately on that platform.

However, Stagify should not assign a formal laser class without checking the physical safety label.

Not a Traditional Mirror Disco Ball

The product name uses the words Disco Ball, but this fixture is not a traditional mirrored sphere illuminated by a pin spot.

It is an active electronic effect light that projects patterns, flashing light and red-green beam effects.

This distinction is useful for customers.

A traditional mirror ball produces reflected points of light from an external source.

This fixture produces its effects internally using LEDs and the red-green beam system.

13-Channel DMX512 Control

The exact supplier specification confirms:

13CH DMX512

This is relatively detailed control for such a compact effects fixture.

DMX allows it to integrate with:

• LED PAR lights

• Moving heads

• Strobes

• Other effects lights

• DJ lighting systems

This makes the fixture useful for customers who want a compact party effect today but may later integrate it into a larger controlled lighting system.

Matching 13CH DMX Structure

The matching technical manual provides a complete 13-channel map.

The documented functions are:

1. Gobo motor

2. Rotation amplitude

3. Beam motor

4. Main dimmer

5. Flash

6. Gobo 1 dimmer

7. Gobo 2 dimmer

8. Gobo 3 dimmer

9. Gobo 4 dimmer

10. Red beam dimmer

11. Green beam dimmer

12. White flash

13. Macro / Auto / Sound function

This channel arrangement fits the supplier's exact hardware specification extremely closely.

For programming the Stagify unit, however, technicians should still compare this map with the manual supplied in the actual box before building a permanent fixture profile.

Motorised Pattern Movement

The matching manual confirms motorised control for the pattern section.

It shows a gobo motor capable of both:

• Position control

• Automatic rotation

This is what allows the projected patterns to move rather than remaining static.

Movement makes the light especially suitable for dance floors and music-driven events.

Rotation Range on Matching Platform

The matching manual documents:

0–180° gobo motor positioning

and an additional adjustable movement amplitude up to approximately:

150°

These values are not listed on the exact supplier product page.

Therefore, they are useful technical cross-reference data but should not be promoted as guaranteed Stagify specifications until the physical unit is checked.

Individual Pattern LED Control

The matching DMX manual includes independent dimmer channels for all four gobo LEDs.

This means a controller can potentially vary each pattern source rather than treating all four as one combined LED channel.

This can produce:

• Different colour combinations

• Layered effects

• Single-colour patterns

• Multi-colour pattern sequences

This is a useful advantage over simpler low-cost party lights that only provide fixed built-in programmes.

0–100% Ultra-Smooth Dimming

The exact supplier confirms:

0–100% ultra-smooth dimming

This lets the lighting operator adjust intensity rather than running the fixture continuously at full brightness.

Dimming is useful for:

• Slower event sections

• Wedding dinner periods

• DJ build-ups

• Transitions

• Blackout cues

It also makes the fixture easier to balance visually with larger stage lights.

Automatic / Self-Driving Mode

The supplier calls the standalone programme:

Self-Driving

This can be presented more naturally as Auto Mode.

The fixture can run its internal lighting sequences without a DMX controller.

This is particularly useful for:

• Birthday parties

• Small weddings

• Home entertainment

• Mobile DJs

• Karaoke

• Bars

Auto mode reduces setup time when detailed lighting programming is unnecessary.

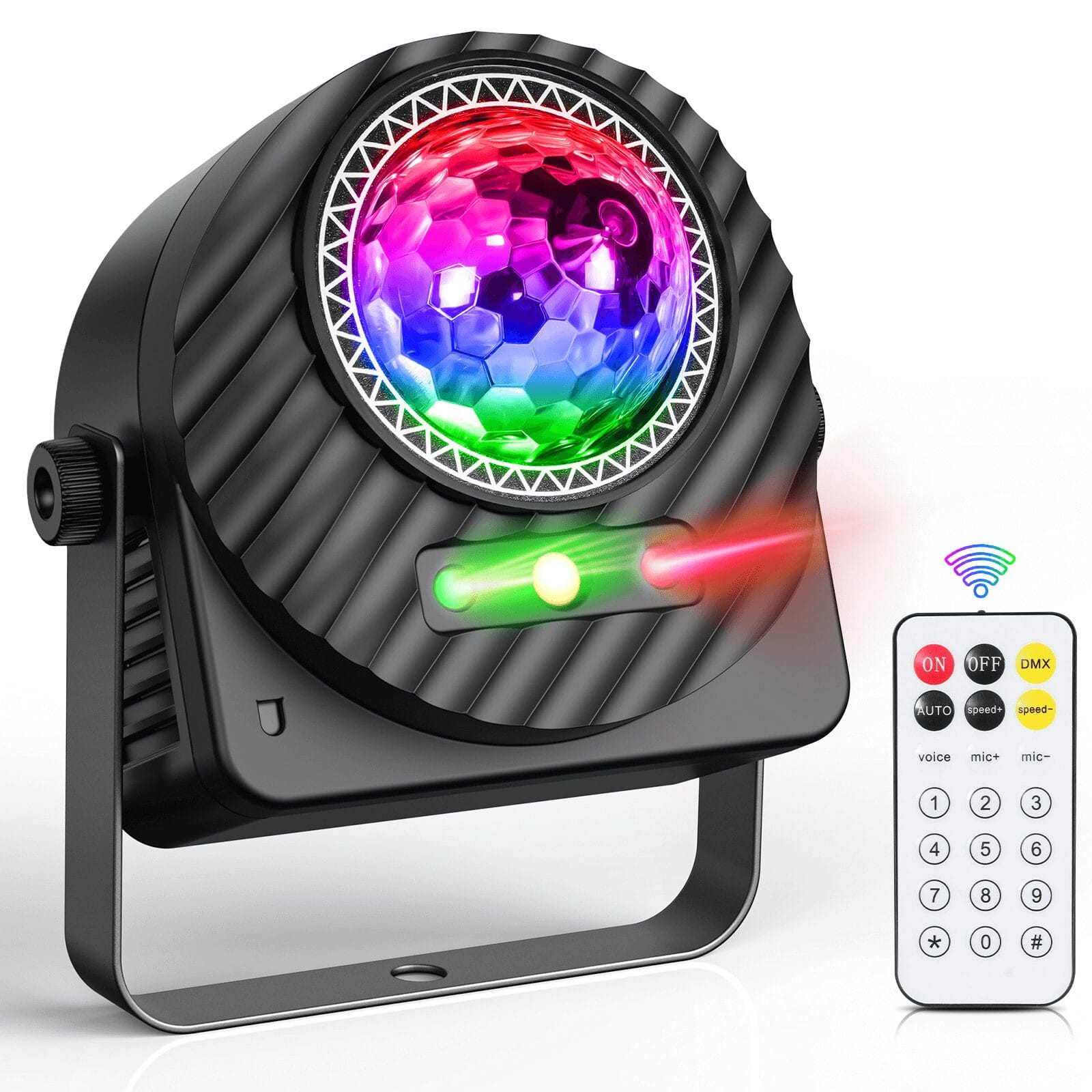

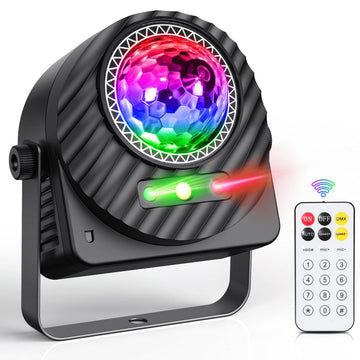

Music-Activated Operation

The exact supplier also confirms:

Music Activated

The fixture can respond to surrounding audio and run effects according to the music.

This makes it especially convenient for DJs and dance floors.

The matching manual additionally shows two Sound modes with adjustable sensitivity levels.

That suggests the platform provides more sound-response flexibility than a simple fixed microphone trigger.

Adjustable Sound Sensitivity on Matching Platform

The matching manual provides sensitivity settings from:

1–9

for its Sound modes.

This allows the effect to be adapted to different music levels.

For example:

A small party room may require greater microphone sensitivity.

A nightclub with high sound pressure may require less sensitivity to avoid constant triggering.

The exact supplier page does not state the sensitivity range, so this should be treated as matching-platform information unless the current Stagify manual confirms it.

Master/Slave Operation

Master/Slave mode is confirmed on the exact product page.

This allows compatible matching fixtures to work together without assigning every unit individually through a DMX console.

A typical installation might use:

• Two fixtures beside a DJ booth

• Two lights on opposite sides of a dance floor

• Several units around a small stage

For detailed individual control, DMX512 remains the better option.

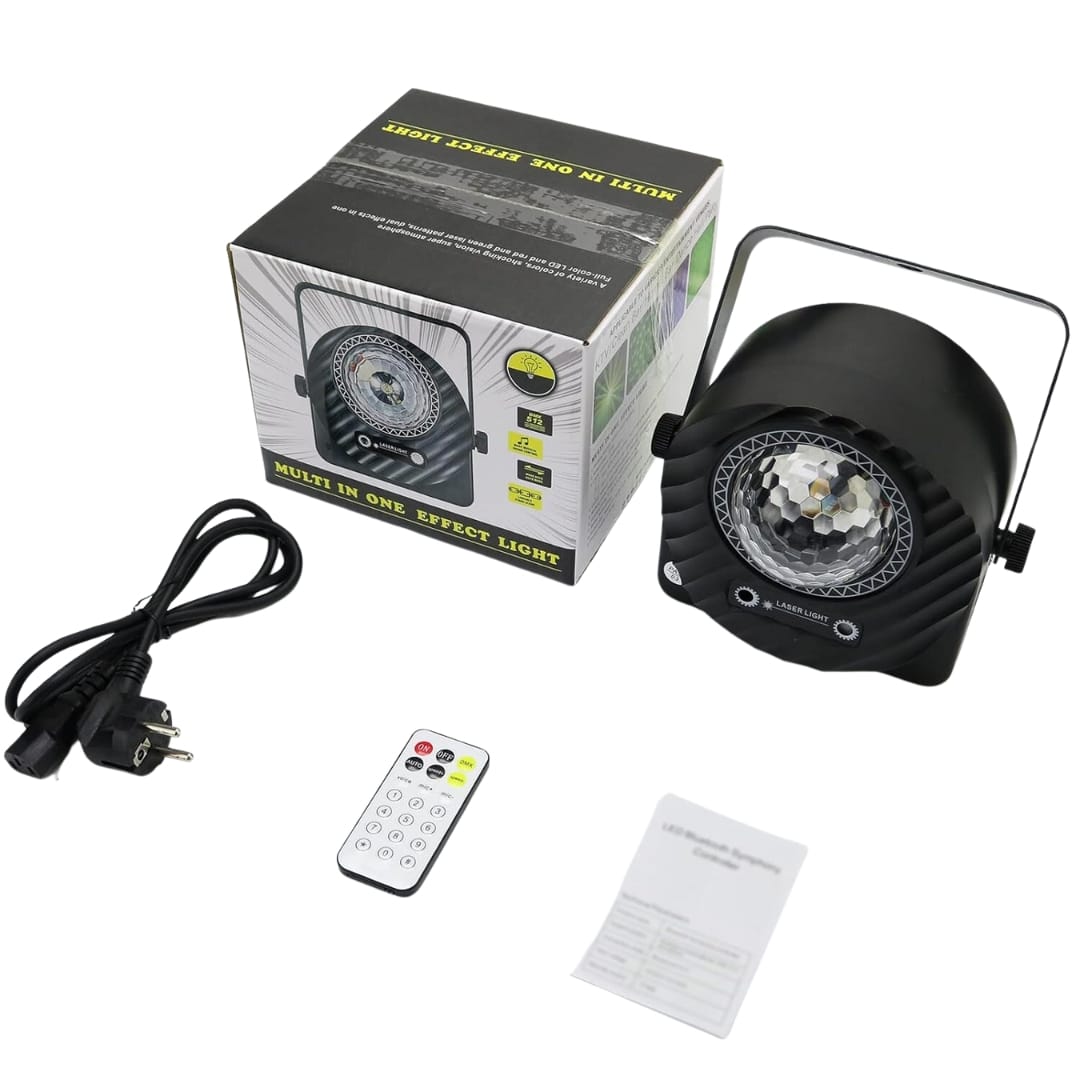

Included Remote Control

Unlike many basic stage-light products where a remote is uncertain, this exact supplier packing list explicitly includes:

1 × Remote Control

This makes standalone operation easier for small events.

The matching technical manual also contains a complete IR remote-control section.

Functions shown on the matching platform include:

• Power On/Off

• DMX mode

• Auto

• Speed adjustment

• Sound sensitivity

• Voice control

• Individual LED colour selection

• Beam-pattern selection

• White flashing effect

The Stagify package should still use the actual supplied remote instructions as the final reference.

Compact 30W Fixture

Total electrical power is:

30W

This makes the unit relatively economical compared with larger moving heads or stage wash fixtures.

Its purpose is not high-output stage illumination.

The 30W platform is intended to create multiple decorative effects within a compact body.

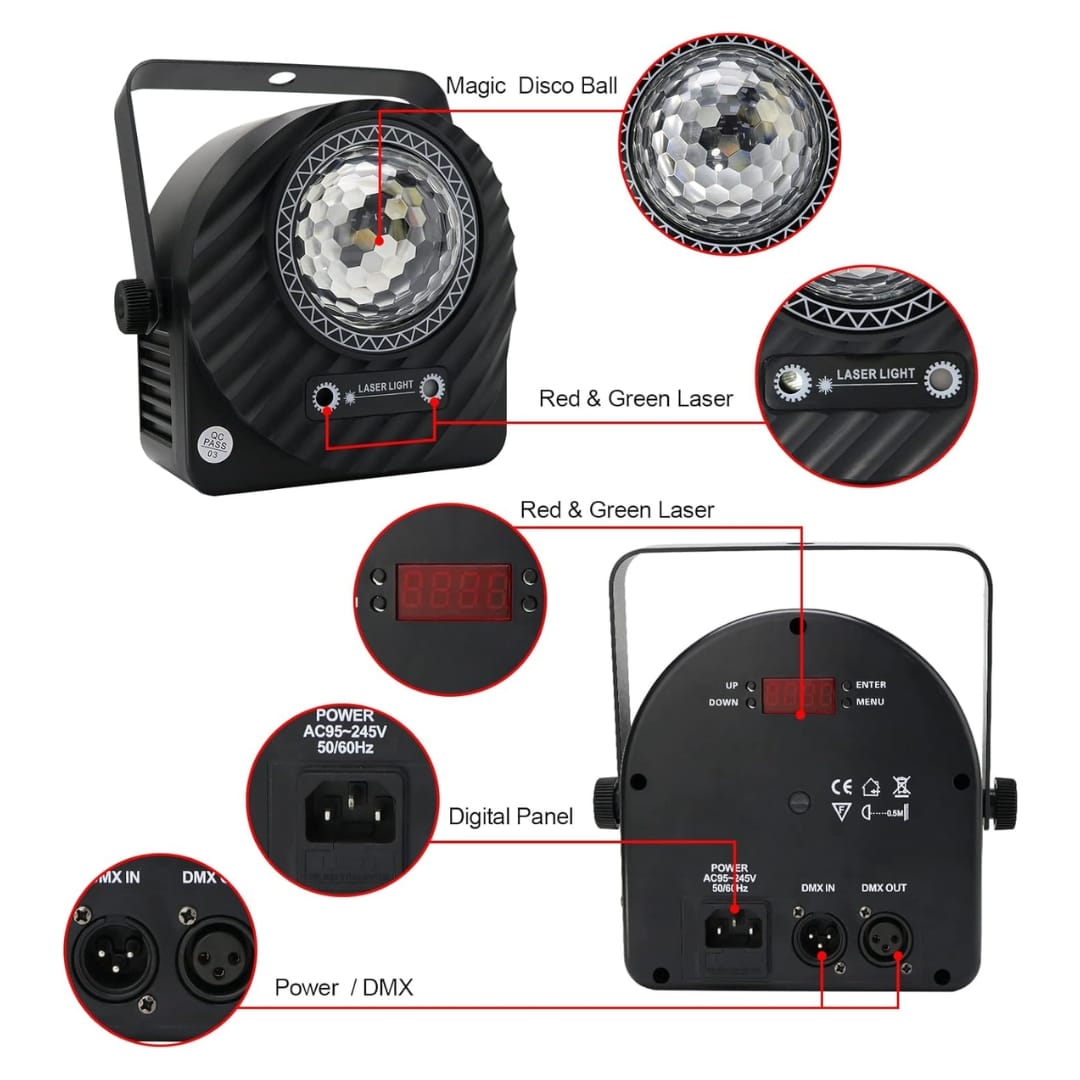

AC95–245V Wide-Voltage Input

The exact published electrical input is:

AC95–245V / 50Hz

This range includes the UAE's normal 220–240V / 50Hz supply.

Therefore, the published voltage specification supports UAE mains operation.

The exact wall plug attached to the supplied power lead is not documented.

Do not state that a UAE/UK Type G plug is included until current inventory is checked.

Important Frequency Detail

The supplier publishes:

50Hz

rather than 50/60Hz.

The matching technical manual also lists:

AC95–245V / 50Hz

For UAE use this is not a problem because standard UAE mains frequency is 50Hz.

However, Stagify should not rewrite the specification as 50–60Hz unless the actual rating label supports 60Hz.

Compact 190 × 185 × 155 mm Body

The exact product dimensions are:

190 × 185 × 155 mm

or:

19 × 18.5 × 15.5 cm

This compact size makes it easy to add to:

• Mobile DJ cases

• Small lighting stands

• Entertainment booths

• Party setups

• Small venue rigs

It provides multiple effects without occupying the space required by several separate fixtures.

Lightweight 0.95 kg Design

The fixture weighs only:

0.95 kg

This makes it particularly easy to transport.

A mobile DJ can carry several compact effect fixtures without adding the weight associated with full-size moving heads.

Even lightweight fixtures should still use properly rated mounting hardware when installed overhead.

Suitable for DJ Lighting

For DJs, this light can provide several visual layers from one fixture.

It can contribute:

• Projected gobo patterns

• Red-green beam effects

• White flashes

• Music-responsive movement

This makes it useful as a compact effect above or beside a DJ booth.

Wedding Entertainment

For weddings, the fixture is better suited to the entertainment and dance-floor section than formal stage illumination.

Useful moments include:

• Couple entrance

• Dance-floor opening

• DJ set

• Party section

• Finale

For speeches, photography and formal stage lighting, dedicated PAR, wash or follow-spot fixtures remain more appropriate.

Birthday and Private Party Lighting

The compact size, remote control and music-activated mode also make this fixture useful for:

• Birthday parties

• Private events

• Small celebrations

• Home entertainment

• Karaoke

These applications benefit from built-in modes because a DMX console is often unnecessary.

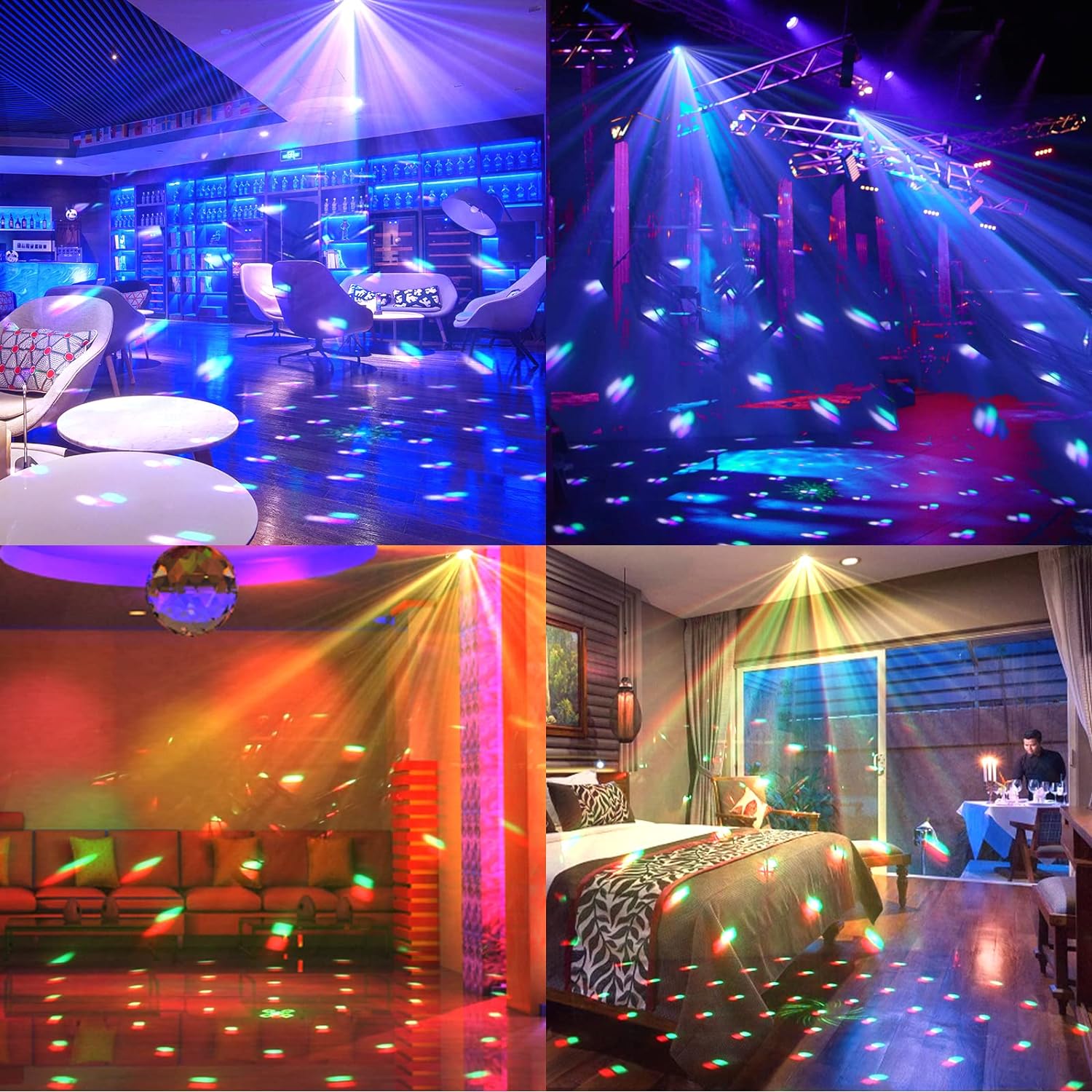

Nightclub and Bar Use

Clubs and bars can install several units around:

• Dance floors

• DJ booths

• Ceilings

• Rear-stage areas

DMX allows their effects to be coordinated with the venue's other lighting.

For simpler environments, Sound or Auto mode can operate the fixture independently.

Best For

The Disco Ball LED Patterns Light is particularly suitable for:

• Mobile DJs

• Weddings

• Birthday parties

• Clubs

• Bars

• Karaoke

• Dance floors

• Private events

• Small indoor stages

• Entertainment venues

• Rental companies

Its main catalogue strength is combining pattern LEDs, white strobe and red-green beam effects inside a very compact 30W fixture.

What This Fixture Is Not Best For

Another fixture should be considered where the application requires:

• High-output stage wash

• Long-throw beam lighting

• Full RGB laser animation

• Custom logo projection

• Outdoor weather protection

• Large concert-stage output

• Dedicated follow-spot illumination

• Pixel mapping

This is primarily a compact multi-effect party light, not a replacement for larger specialist stage fixtures.

Disco Ball LED Patterns Light vs Mini Magic Disco Ball

The Mini RGB LED Magic Disco Ball Light is a simpler product designed mainly for decorative rotating colour effects.

Choose the Mini Magic Ball when:

• Simple party lighting is enough

• Low complexity matters

• DMX is unnecessary

• Home or casual events are the main application

Choose the Disco Ball LED Patterns Light when:

• 13CH DMX is required

• Gobo patterns are wanted

• Dedicated strobe is useful

• Red-green beam effects are required

• Remote control and Master/Slave operation matter

This product is the more control-oriented option.

Disco Ball LED Patterns Light vs Derby 4-in-1

The Derby LED Butterfly Light 4 in 1 is another multi-effect product but uses a different optical system.

The Derby combines:

• RGBW butterfly beams

• White strobe

• Red/green laser

• RGB chase LEDs

This Disco Ball Patterns Light instead uses:

• Four 3W gobo LEDs

• 10W white flash

• 30mW red-green beam

• 13CH control

Choose the Derby for broader butterfly-style dance-floor beams.

Choose this model for compact moving pattern/gobo effects with detailed 13-channel control.

Disco Ball Pattern Light vs 36 LED PAR

A 36 LED RGBW PAR is mainly designed to create a colour wash.

This product creates moving effects.

36 LED PAR:
Colour coverage for stage and backdrops

Disco Ball LED Patterns Light:
Moving patterns, beams and flashing entertainment effects

Using both together can create a more complete small-event lighting rig.

Using Haze with the Beam Effect

Controlled haze can make the red-green beam paths easier to see through the air.

Without haze, much of the effect may appear only when projected onto:

• Walls

• Floors

• Ceilings

• Scenery

Before using haze:

• Check venue permission.

• Confirm smoke-detector requirements.

• Avoid excessive atmospheric density.

• Maintain clear exits.

Red-Green Beam Safety

Because the fixture includes a red-green beam optical system, avoid directing concentrated beam output into people's eyes.

The supplier does not publish formal laser-class information.

Before public or commercial installation, inspect the physical product label and manual for:

• Laser classification

• Wavelengths

• Output information

• Aperture warnings

• Operating instructions

Do not assume a regulatory class solely from the 30mW listed output.

Audience Scanning

Stagify should not promote uncontrolled direct audience scanning with this fixture.

Beam positioning should be arranged to avoid direct eye exposure.

This is particularly important when the unit is mounted above or beside a dance floor.

Outdoor Use Requires Caution

The supplier's marketing copy says the product can be used at indoor and outdoor events.

However, it publishes no IP rating or weather-protection specification.

For catalogue accuracy, Stagify should position this model for:

Dry indoor use

unless the physical fixture or manufacturer documents an appropriate IP rating.

Do not advertise it as:

• Waterproof

• Rainproof

• IP65

• Weather-resistant

based only on generic marketing text.

Installation and Rigging

For overhead installation:

• Use appropriately rated mounting hardware.

• Use a secondary safety attachment.

• Confirm the lighting stand or truss is stable.

• Secure the power cable.

• Keep the fixture dry.

• Maintain ventilation.

• Aim concentrated beam effects safely.

The product is lightweight, but normal stage-light rigging practices still apply.

What's Included

The exact supplier packing list confirms:

• 1 × Disco Ball LED Patterns Light

• 1 × Remote Control

• 2 × Screws

• 1 × Power Cord

• 1 × User Manual

This is a stronger package specification than many generic effect-light listings and can be safely included in the product description.

Does It Have a Remote Control?

Yes.

A remote control is explicitly included in the exact supplier packing list.

How Much Power Does It Use?

The fixture consumes:

30W

How Many Pattern LEDs Does It Have?

The exact specification lists:

4 × 3W Gobo LEDs

Does It Have a Strobe?

Yes.

It includes a dedicated:

10W flashing LED

A matching technical manual for the same hardware platform lists up to 20 flashes per second.

Does It Have a Laser?

The supplier describes a:

30mW red-green beam

The matching manual provides separate red and green beam control.

Because no formal laser classification is published, Stagify should use cautious beam-effect terminology and check the physical safety label.

Is the 30mW Figure for Each Colour?

No separate red and green power values are published.

Do not assume 30mW per colour.

The supplier simply lists:

30mW Red-Green Beam

How Many DMX Channels Does It Use?

The exact specification confirms:

13CH DMX512

Can Individual Effects Be Controlled Through DMX?

A matching manual for the identical technical platform includes separate channels for:

• Gobo motor

• Rotation

• Beam motor

• Main dimmer

• Flash

• Four gobo dimmers

• Red beam

• Green beam

• White flash

• Macro / Auto / Sound

Technicians should verify the supplied manual before creating the final Stagify fixture profile.

Can It Work Without DMX?

Yes.

Confirmed modes include:

• Master/Slave

• Auto / Self-Driving

• Music Activated

Does It React to Music?

Yes.

Music-Activated operation is explicitly confirmed.

Does It Have Dimming?

Yes.

The exact supplier lists:

0–100% ultra-smooth dimming

What Voltage Does It Use?

The exact specification is:

AC95–245V / 50Hz

This covers normal UAE 220–240V / 50Hz mains supply.

What Are the Dimensions?

The product measures:

190 × 185 × 155 mm

How Much Does It Weigh?

The exact weight is:

0.95 kg

Is It a Traditional Mirror Ball?

No.

It is an electronic pattern/effect light.

The “Disco Ball” wording describes its party-lighting function rather than a traditional rotating mirrored sphere.

Is It Waterproof?

No waterproof/IP specification is published.

Use it in dry, protected indoor environments.

Contact Stagify with your dance-floor model or controller details to confirm compatibility before purchase.
