Corner Block 29x29CM 1-6 directions

Corner Block 29x29CM 1-6 Directions for F34 Truss Systems

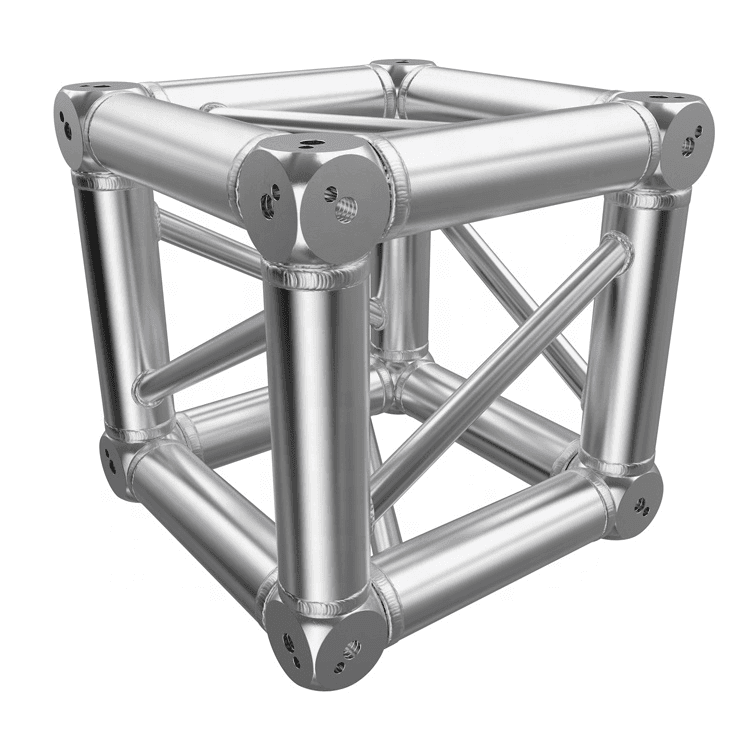

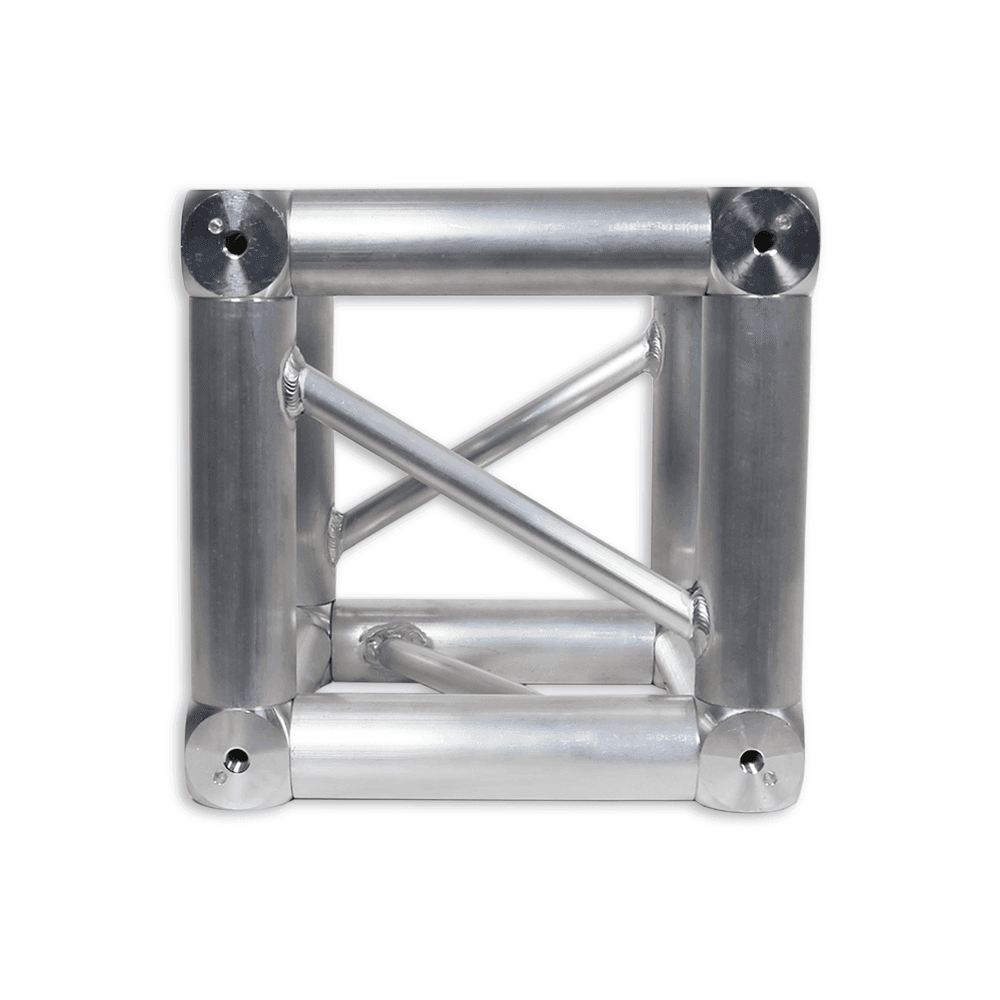

The Corner Block 29x29CM 1-6 Directions is a universal aluminium junction block for F34-style 290 mm square truss systems. Its six connection faces allow truss sections to extend in one to six directions, making it a flexible solution for stage structures, lighting grids, exhibition stands, goalposts and multi-directional event truss installations.

Technical Specifications

One Block for 1 to 6 Truss Directions

A fixed truss corner normally serves one specific layout. This six-way universal corner block provides connection positions on every face of the cube, allowing production teams to create multiple configurations from the same component.

Depending on the required structure, the block can be configured for:

• 1-direction connection

• 2-direction corner or straight connection

• 3-direction junction

• 4-direction cross or corner structure

• 5-direction structure

• Full 6-direction junction

This flexibility reduces the number of specialised corner pieces an event-production or rental company needs to keep in inventory.

29 × 29CM F34 Square Truss Format

The corner block is based on the professional 290 × 290 mm F34 square-truss format, commonly referred to as 29 cm or 12-inch box truss.

The structure uses approximately 50 mm main tubes with 2 mm walls and 20 mm diagonal braces, matching the geometry commonly used across professional F34 truss systems.

Its compact cube design allows truss runs to meet at a single junction without requiring long fixed corner sections, which is useful where installation space is limited or where a structure requires connections on several axes.

EN AW-6082 T6 Aluminium Construction

The corner block uses EN AW-6082 T6 aluminium alloy, a material widely used in professional modular truss construction because it combines structural strength with relatively low weight and corrosion resistance.

Aluminium construction is particularly useful for touring, rental and temporary event installations where components are repeatedly transported, assembled and dismantled.

The natural aluminium finish also matches standard silver F34 truss sections for a consistent professional appearance across the complete structure.

Conical Truss Connection System

The block is designed around the standard conical connection format used with F34-style square truss.

Compatible half conical couplers can be positioned on the required faces of the block, allowing crews to configure the junction according to each project rather than being limited to one permanently fixed direction.

Conical systems also support quick assembly and dismantling using the appropriate tapered pins and safety clips.

Always confirm connector compatibility before combining truss components from different manufacturers.

Build Corners, Crosses and Multi-Directional Structures

The six connection faces make the Corner Block suitable for much more than a standard 90-degree corner.

It can form a central junction within:

• Square lighting grids

• Stage goalposts

• Cube structures

• Exhibition stands

• Multi-level display structures

• Three-dimensional lighting structures

• Stage roof frameworks

• Entrance structures

• Retail displays

• Event décor structures

For production companies that regularly build custom layouts, the ability to change the number and direction of connected truss sections makes a universal block particularly practical.

Best For

The Corner Block 29x29CM 1-6 Directions is suitable for:

• Event-production companies

• Stage lighting installations

• Concert and festival structures

• Wedding stage setups

• Corporate events

• Exhibition booths and stands

• Trade-show structures

• Lighting grids

• DJ and entertainment setups

• Retail display structures

• Event-equipment rental companies

• AV installation contractors

• Temporary and permanent truss structures

What's Included & Compatibility

The core product is the 290 mm universal truss junction block.

It is designed for use with compatible:

• F34-style 290 × 290 mm square truss

• Half conical couplers

• Tapered truss pins

• Safety R-clips

• Base plates

• Truss tower systems

• Sleeve blocks

• Truss top sections

• Ground-support systems

• Compatible rigging accessories

The exact quantity of conical couplers, pins and clips supplied should be confirmed from the Stagify package configuration before publication.

What Is a 6-Way Truss Corner Block?

A 6-way corner block is a compact junction component with connection points on up to six faces.

It allows compatible square truss sections to extend horizontally, vertically or in multiple directions from a single connection point.

Can I Use It as a 2-Way or 3-Way Corner?

Yes. You do not need to use all six connection positions.

The same universal block can be configured for 1, 2, 3, 4, 5 or 6 directions, depending on the required truss layout and the position of the compatible connecting hardware.

What Size Truss Fits This Corner Block?

This configuration is designed around F34-style 290 × 290 mm square truss, also commonly described as 29 cm or 12-inch box truss.

Always check the exact connector dimensions before combining truss sections from different manufacturers.

What Is the Corner Block Made From?

This F34-format corner block uses EN AW-6082 T6 aluminium alloy with 50 mm main tubes and 20 mm diagonal bracing.

This construction format is widely used for professional modular event truss systems.

Can It Connect Truss Vertically and Horizontally?

Yes. Connection positions on all six faces allow truss to extend along the horizontal and vertical axes.

This makes the block particularly useful for three-dimensional grids, cubes, display structures and complex event-production layouts.

Can It Be Used for Stage Lighting?

Yes. The block can form part of truss structures used for lighting grids, stage structures and other professional production applications.

Any suspended lighting or equipment load must remain within the engineered limits of the complete truss structure.

What Is the Maximum Load Capacity?

A universal load capacity should not be assigned to the corner block without the engineering data for the exact truss system.

Permissible loading depends on the connected truss sections, span, support positions, connection arrangement, load distribution and complete structural design. Follow the applicable engineering and load tables for the complete system.

Rigging & Safety Requirements

The Corner Block 29x29CM is a structural truss component and should be installed by personnel experienced with professional event truss and rigging systems.

Do not determine allowable loads from the block's tube dimensions alone. Load calculations must consider the complete structure, including truss spans, junctions, supports, suspended equipment and connection hardware.

Use only compatible conical connectors, tapered pins and safety clips. Components should be inspected for deformation, damaged welds, excessive wear or damaged connection points before every installation.

Where the structure carries suspended loads or forms part of a ground-support system, installation and load planning should be handled by qualified rigging personnel.

Order 29CM Truss Corner Blocks in the UAE

Stagify supplies professional truss, rigging and stage-production equipment across Dubai and the UAE for event companies, AV installers, venues, exhibition contractors and equipment rental businesses.

The 1–6 direction Corner Block can be combined with compatible 290 mm square truss and related structural components to build custom event, lighting and exhibition configurations.
