30MM Clamp Hook Safety Rope Hanging Stage Light Hang on Truss

30MM Truss Clamp Hook with Safety Rope for Stage Lights UAE

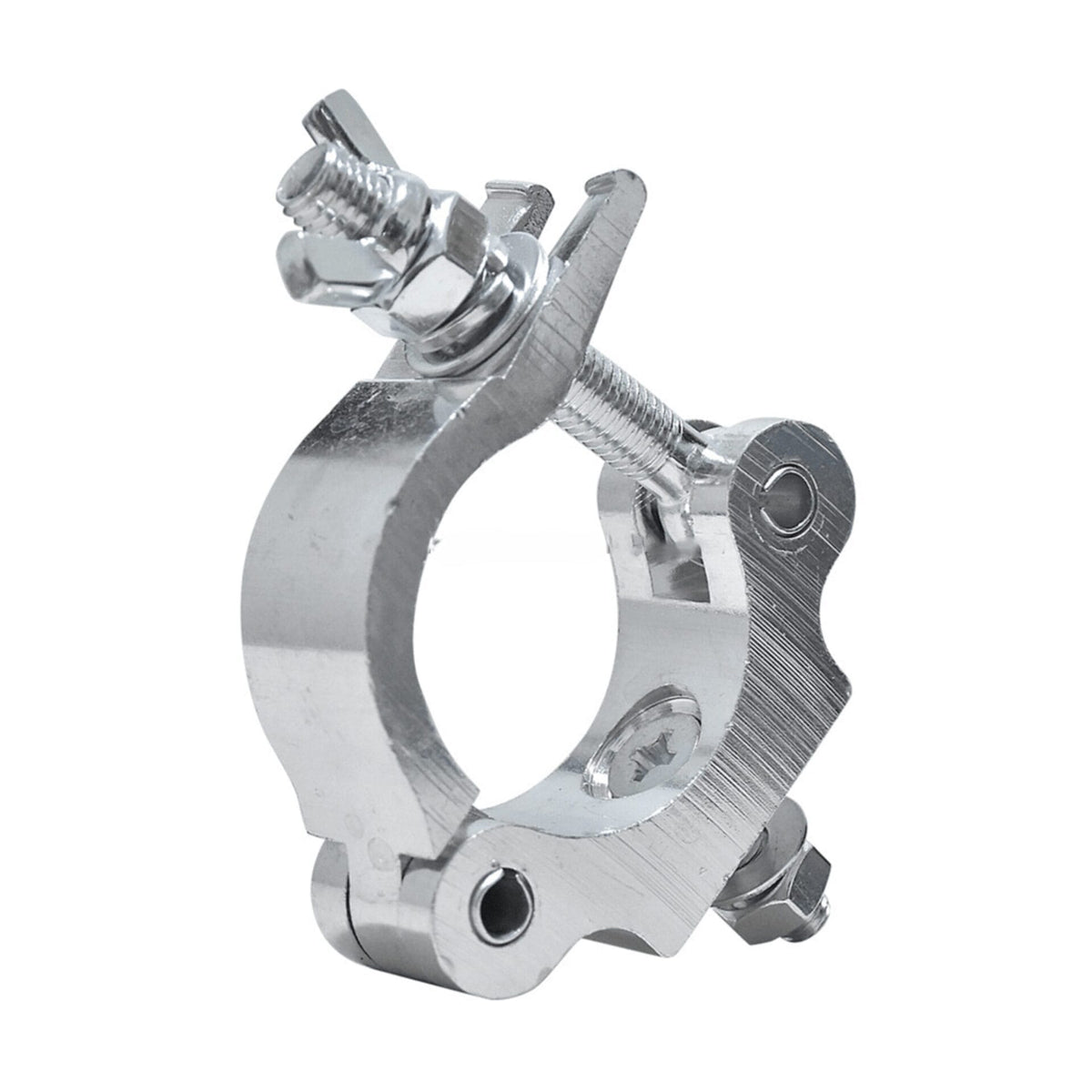

The 30MM Truss Clamp Hook with Safety Rope is a professional aluminium mounting clamp for suspending stage lighting from compatible truss and round tubes. Its slim 30 mm body fits between truss bracing, while the 48–51 mm clamp range suits standard lighting truss chords. A separate steel safety rope provides secondary fixture retention for overhead installations.

Technical Specifications

30MM Slim Clamp for Professional Truss Rigging

The 30 mm clamp width gives lighting crews a compact mounting solution for areas where wider clamps can interfere with diagonal truss braces.

This is particularly useful on square and triangular lighting truss where available mounting space between brace tubes can be limited.

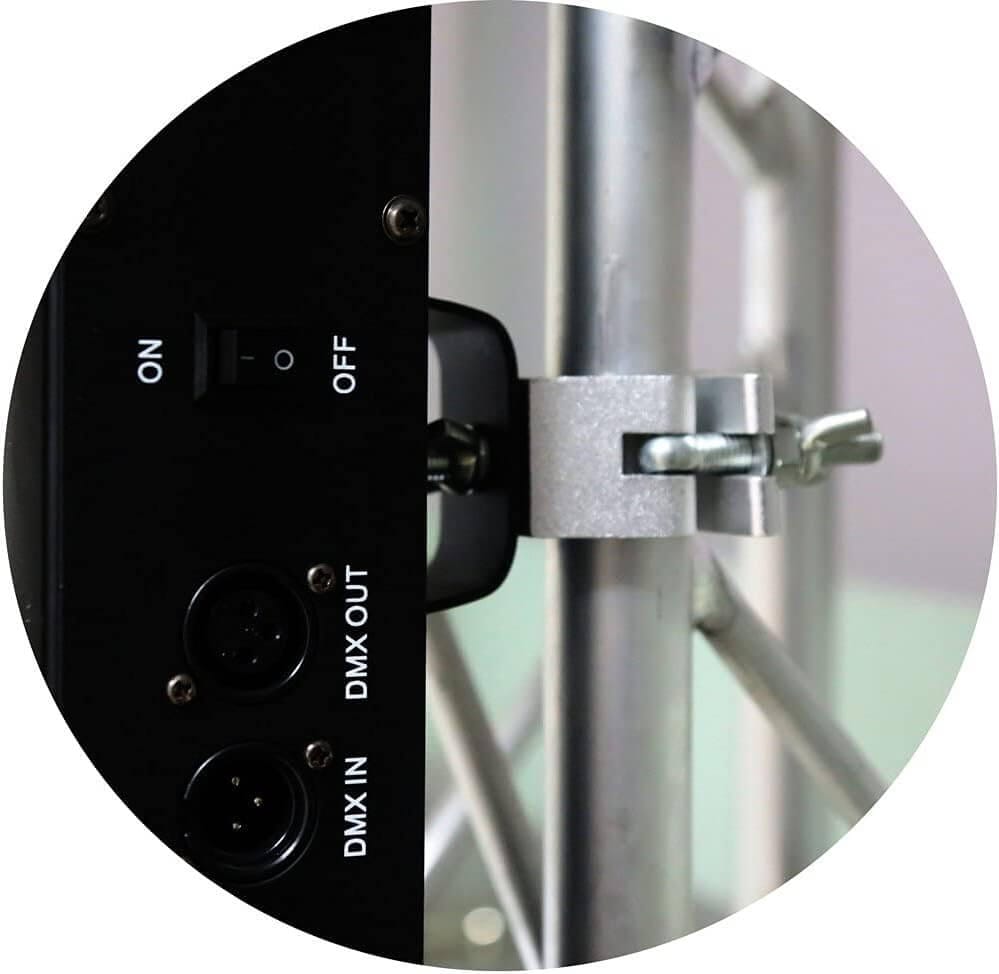

Despite its narrow profile, professional 30 mm aluminium clamps in this configuration are rated for loads up to 300 kg, giving them the capacity required for a wide range of professional lighting fixtures when installed correctly.

The clamp body is manufactured from 6061-T6 aluminium, combining mechanical strength with relatively low weight for touring, rental and permanent event installations.

Fits Standard 48–51MM Truss Tubes

The clamp is designed around 48–51 mm round tubing, the common chord diameter used across many professional stage-truss and lighting-bar systems.

This makes it suitable for mounting compatible fixtures onto:

• Square aluminium truss

• Triangular truss

• Lighting bars

• Round rigging tubes

• Stage lighting grids

• DJ truss systems

• Theatre lighting structures

Always check the actual tube diameter before installation. A clamp should close correctly around the tube without forcing, modification or improvised packing.

300KG Safe Working Load

The professional 30 mm clamp configuration carries a Safe Working Load of up to 300 kg.

This provides substantial capacity for stage-lighting applications, including heavier fixtures, but the clamp rating is only one part of the complete rigging calculation.

The fixture, mounting bracket, truss, suspension point, bolts and all related hardware must also have appropriate load ratings.

A 300 kg clamp rating does not automatically mean that every truss position can safely carry a 300 kg fixture.

M10 Fixture Mounting Point

An M10 device screw provides the connection between the clamp and the fixture mounting bracket.

This format is commonly used with:

• LED PAR lights

• Beam moving heads

• Wash moving heads

• Spot moving heads

• Strobe lights

• Effect lights

• Stage spotlights

• Other compatible professional luminaires

Before installation, confirm that the fixture's bracket is designed for the supplied mounting hardware.

M12 Wing-Nut Clamp Locking

The clamp uses an M12 wing-nut locking arrangement to secure the body around the truss chord.

The wing-nut format allows technicians to open, position and tighten the clamp without requiring complicated installation procedures during normal event setup.

The clamp should be tightened correctly without exceeding the manufacturer's recommended tightening method or damaging the aluminium truss chord.

Safety Rope for Secondary Protection

The included safety rope provides an independent secondary attachment for a suspended stage light.

The clamp remains the primary mounting method. The safety rope should be routed separately around a suitable load-bearing truss member and attached to the fixture's designated safety point.

This means that if the primary clamp or mounting hardware fails, the secondary attachment can help prevent the fixture from falling freely.

The safety rope should never simply be attached back to the clamp itself, because that would remove the independence of the secondary retention system.

Why Stage Lights Need a Secondary Safety

Overhead lighting is installed above performers, production crews and audiences. Professional installations therefore use a second securing method in addition to the primary clamp.

Before every installation, inspect the safety rope for:

• Broken wire strands

• Fraying

• Corrosion

• Damaged connectors

• Bent hardware

• Excessive wear

• Previous shock loading

The safety rope must also have an appropriate rating for the fixture being secured.

Best For

The 30MM Truss Clamp Hook with Safety Rope is suitable for:

• Moving head lights

• LED PAR lights

• Beam lights

• Spotlights

• Wash lights

• Strobe lights

• Stage effects fixtures

• Concert lighting systems

• Wedding stage lighting

• Corporate event production

• Theatre installations

• Nightclubs and entertainment venues

• DJ lighting rigs

• Exhibition lighting

• Event-equipment rental companies

What's Included & Compatibility

The mounting set includes:

• 1 × 30 mm aluminium truss clamp

• M10 fixture-mounting hardware

• M12 clamp locking hardware

• 1 × secondary safety rope

Designed for compatible 48–51 mm round truss chords and lighting tubes.

Before mounting a fixture, verify the fixture weight, bracket mounting hole, truss tube diameter and load capacity of the complete supporting structure.

Is 30MM the Truss Tube Size?

No. 30 mm refers to the width of the clamp body, not the diameter of the truss tube.

The clamp is designed for professional round truss chords approximately 48–51 mm in diameter.

What Size Truss Does the Clamp Fit?

The clamp fits round tubes with a diameter of approximately 48–51 mm.

This covers the standard chord diameter used by many professional aluminium stage-truss systems.

How Much Weight Can the 30MM Clamp Hold?

This professional slim-clamp configuration has a Safe Working Load of up to 300 kg.

The complete installation must still remain within the rated capacity of the truss, fixture bracket, mounting point, fasteners and other rigging components.

What Is the Clamp Made From?

The clamp uses 6061-T6 aluminium, a high-strength aluminium alloy commonly used for professional truss clamps and stage-rigging hardware.

It offers a useful combination of strength, relatively low weight and corrosion resistance.

Can I Use It for Moving Head Lights?

Yes. The clamp can be used with compatible moving head lights when the fixture weight, mounting bracket and M10 attachment are appropriate for the clamp.

Heavier fixtures must always be checked against the complete rigging system's load limits.

Why Is the Clamp Only 30MM Wide?

A slimmer body makes it easier to position the clamp between truss diagonal braces where a wider clamp may not fit comfortably.

This is useful when several fixtures need to be positioned along the same truss section.

Do I Need to Use the Safety Rope?

For overhead stage-lighting installations, an independently rated secondary safety attachment should be used in addition to the primary clamp.

The safety rope should connect the fixture's designated safety point directly to a suitable truss or supporting structure.

Can the Safety Rope Replace the Clamp?

No. The safety rope is a secondary retention system, not the primary fixture suspension method.

The lighting fixture must first be properly mounted with a correctly rated clamp and hardware.

How Should the Clamp Be Installed?

Open the clamp, place it around the compatible truss chord and secure the locking mechanism. Attach the fixture bracket using the M10 mounting point and confirm all hardware is correctly tightened.

Finally, connect the independent safety rope between the fixture's dedicated safety point and a suitable truss member.

Rigging & Safety Requirements

Any fixture installed overhead should use appropriately rated professional mounting hardware and an independent secondary safety attachment.

Check the clamp, bolts, safety rope, fixture bracket and truss before each installation. Components showing cracks, deformation, damaged threads, excessive wear or corrosion should be removed from service.

Never exceed the verified Safe Working Load, and do not calculate an installation's allowable load from the clamp rating alone.

Professional overhead rigging should be planned and installed by personnel familiar with stage-lighting loads, truss systems and safe working practices.

Order Stage Light Truss Clamps in the UAE

Stagify supplies professional stage-lighting, truss and rigging accessories across Dubai and the UAE for event-production companies, AV installers, DJs, venues, theatres and rental businesses.

The 30MM Truss Clamp Hook with Safety Rope provides a compact mounting solution for professional lighting fixtures on standard truss systems.
