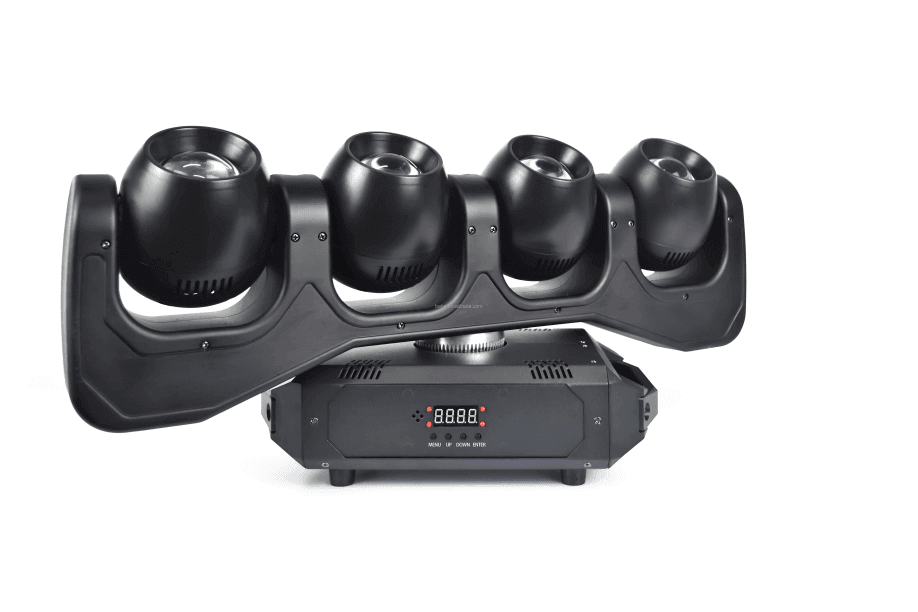

Bee Eye 4 X40W Led Beam Moving Head Light

Bee Eye 4 X40W LED Beam Moving Head Light – Powerful Multi-Beam Lighting for Dynamic Events

The Bee Eye 4 X40W LED Beam Moving Head Light is a compact RGBW effect fixture designed to switch between concentrated beam effects, wider colour washes and rotating kaleidoscope-style visuals. Four 40W RGBW LEDs, electronic zoom, 540° pan, 270° tilt and DMX512 control make it suitable for weddings, DJs, clubs, concerts and professional stage productions.

Technical Specifications

Four 40W RGBW LEDs

The fixture uses four 40W RGBW 4-in-1 LED sources.

Each LED combines:

• Red

• Green

• Blue

• White

The four-colour system provides both saturated entertainment colours and dedicated white output from the same optical platform.

This gives lighting programmers more flexibility than a basic RGB effects fixture.

For formal sections of an event, white or softer mixed colours can be used. During DJ performances or concerts, stronger RGB combinations can be introduced alongside movement, strobe and rotating Bee Eye effects.

Beam, Wash and Bee Eye Effects from One Fixture

The biggest advantage of this compact moving head is its ability to create several different types of lighting effects from one optical system.

Depending on the zoom and lens effect, the fixture can be used for:

• Concentrated beam-style output

• Wider colour wash

• Rotating Bee Eye effects

• Kaleidoscope-style patterns

• Moving aerial effects

• Colour transitions

• Strobe sequences

This makes the fixture particularly useful for event companies that want more visual variety without installing a completely different light for every effect.

Electronic Zoom

A built-in electronic zoom system changes the spread of the output from the lighting desk.

At a tighter setting, the fixture can create a more concentrated beam effect.

Opening the zoom spreads the RGBW output across a larger area, allowing the same light to work more like a moving wash.

This flexibility is useful for productions where lighting requirements change throughout the programme.

For example, the fixture can create narrow moving effects during a DJ sequence and then open wider to colour a stage or backdrop.

The exact minimum and maximum zoom angles vary between visually similar 4×40W versions, so Stagify should verify the physical unit before publishing a numerical range.

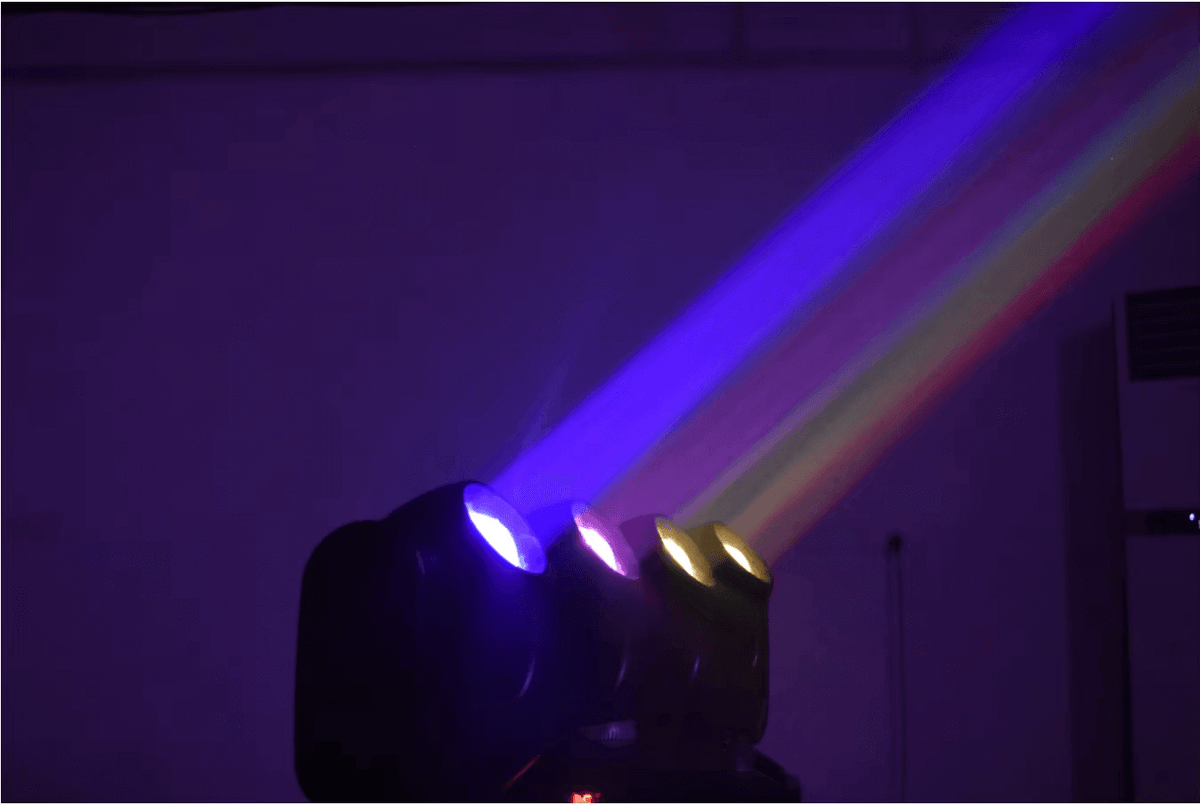

Rotating Bee Eye Lens

The front optical system can rotate to create the characteristic Bee Eye or kaleidoscope effect.

Rather than simply changing where the fixture points, the rotating lens changes the appearance of the projected light itself.

This creates dynamic visual effects that are particularly effective during:

• DJ performances

• Concert transitions

• Club shows

• Wedding entertainment

• Dance performances

The lens rotation can be combined with movement and RGBW colour changes for a much more active visual result than a standard moving wash.

Kaleidoscope-Style Stage Effects

The Bee Eye optical design allows the four main light sources to create changing geometric and multi-beam patterns.

These effects become especially visible when atmospheric haze is present.

Instead of producing one conventional wash, the fixture can generate rotating patterns that move across the air and surrounding surfaces.

This makes it well suited to productions where the lighting fixture itself is intended to become part of the visual show.

RGBW Colour Mixing

The dedicated RGBW system allows the fixture to produce:

• Strong red

• Green

• Blue

• Dedicated white

• Mixed RGB colours

• Pastel-style tones

• Colour transitions

The white channel is particularly useful for productions that need a cleaner neutral output alongside saturated entertainment colours.

For wedding stages, RGBW mixing can support softer scenic looks.

For clubs and concerts, faster colour changes can be combined with movement, strobe and lens rotation.

540° Pan Movement

The moving head provides approximately 540° of horizontal pan.

This gives the fixture a wide positioning range across a stage or venue.

Several units can be programmed to create:

• Mirrored movements

• Crossing effects

• Synchronized sweeps

• Symmetrical positions

• Circular stage looks

The wide movement range is particularly useful when multiple Bee Eye fixtures are distributed across overhead or rear truss.

270° Tilt Movement

Vertical movement reaches approximately 270°.

Combined with 540° pan, this allows the fixture to cover a substantial section of the performance space from one installation point.

Lights can be directed toward:

• Stage areas

• Backdrops

• Dance floors

• Side scenery

• Overhead aerial positions

This movement also allows programmers to combine physical motion with the rotating front lens for more complex effects.

16-Bit Movement Control

The documented movement system supports 16-bit positioning.

Fine movement is useful when several fixtures need to land accurately on matching positions.

It also helps produce smoother slow-speed movement for:

• Wedding entrances

• Corporate events

• Theatre scenes

• Scenic transitions

For DJs and concerts, the same fixtures can be programmed with much faster movement.

0–100% Linear Dimming

The fixture provides 0–100% LED dimming.

This allows the lighting operator to control overall intensity rather than running the fixture continuously at full output.

Dimming is particularly useful during mixed-format events.

Guest arrival: lower-intensity colour.

Wedding ceremony: softer movement and white output.

Entertainment: brighter RGB effects and kaleidoscope patterns.

DJ performance: stronger beam and strobe combinations.

This makes one lighting setup more adaptable across different stages of an event.

Electronic Strobe Effects

A high-speed electronic strobe adds another entertainment function.

Strobe can be combined with:

• RGBW colours

• Moving beams

• Rotating Bee Eye effects

• Sound-active programmes

The result is particularly useful for concerts, DJ shows, clubs and dance performances.

For formal events, the fixture can operate without strobe and function as a conventional moving colour effect.

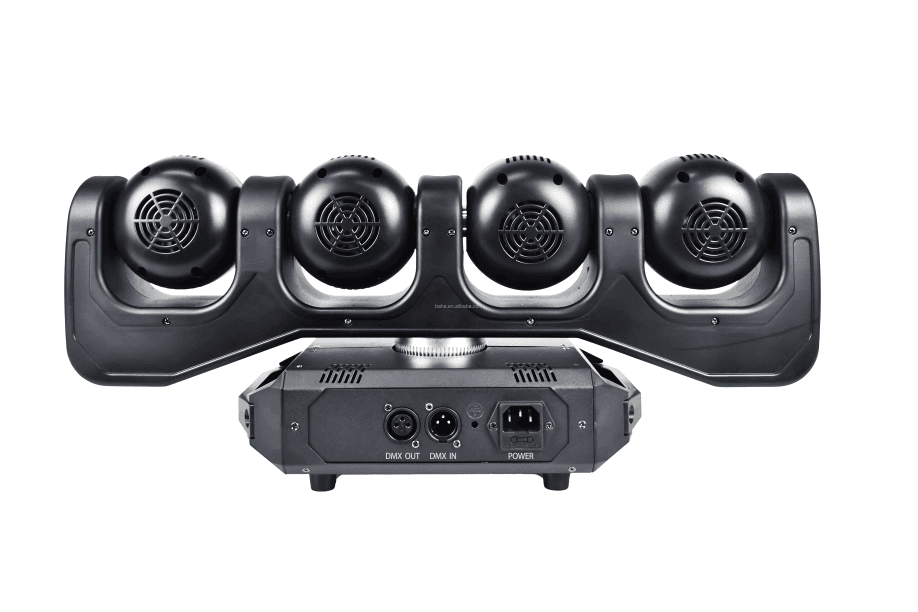

DMX512 Professional Control

The Bee Eye fixture supports DMX512, allowing it to integrate into professional stage-lighting systems.

A compatible console can coordinate it with:

• Beam moving heads

• Moving wash lights

• LED PAR fixtures

• Pixel bars

• Strobes

• Effect lights

This allows colour, zoom, movement and other supported functions to follow programmed event cues.

The exact DMX channel count differs between available 4×40W Bee Eye variants, so that figure should be taken from the actual Stagify fixture manual before publication.

Sound-Activated Operation

The fixture also supports sound-responsive operation.

This lets built-in programmes react to music without a dedicated lighting operator continuously controlling the unit.

Sound mode is particularly useful for:

• DJs

• Nightclubs

• Bars

• Private parties

• Wedding entertainment

For professional events with precise show cues, DMX control provides greater consistency.

Automatic Mode

Built-in automatic programmes allow the moving head to create colour, movement and optical effects without an external controller.

Auto mode is useful when quick setup matters more than detailed programming.

This can work well for smaller entertainment venues or mobile DJ setups.

Master-Slave Operation

Multiple compatible fixtures can be connected using Master-Slave operation.

One unit runs the programme while the other fixtures follow.

This is useful for creating matching effects across:

• DJ booths

• Wedding stages

• Club installations

• Small concert setups

For independent movement and different colours across each unit, individual DMX addressing is the better choice.

Compact Alternative to Larger Bee Eye Fixtures

Large Bee Eye moving heads commonly use 7, 19 or more high-power LEDs.

The four-LED configuration provides the same general concept in a more compact format.

This makes it particularly attractive to:

• Mobile DJs

• Wedding production companies

• Smaller venues

• Rental businesses

• Compact stage setups

It can deliver beam, wash and kaleidoscope-style effects without the size and power demand associated with much larger multi-cell Bee Eye fixtures.

Where This Fixture Fits Best

Choose this 4×40W Bee Eye when you need:

• RGBW colour mixing

• Beam and wash flexibility

• Rotating kaleidoscope effects

• Compact moving-head design

• DMX programming

• DJ and wedding entertainment effects

Choose a discharge beam moving head when extremely narrow, long-distance aerial beams are the priority.

Choose a conventional moving wash when smooth, broad stage illumination is more important than Bee Eye effects.

Choose a larger 7×40W, 19×40W or 37×40W Bee Eye fixture when greater scale and output are required for larger stages.

Best For

The 4×40W Bee Eye moving head is particularly suitable for:

• Wedding stages

• Mobile DJs

• Nightclubs

• Bars and lounges

• Concerts

• Live bands

• Dance performances

• Corporate entertainment

• Hotel ballrooms

• Event-production companies

• AV installers

• Lighting rental businesses

What's Included & Compatibility

Core product:

• 1 × Bee Eye 4 X40W LED Beam Moving Head Light

Compatible with suitable:

• DMX512 controllers

• Professional DMX cabling

• Aluminium stage truss

• Rated moving-head clamps

• Independent safety cables

• Professional event power systems

• Controlled haze equipment

The exact clamp, power lead, DMX cable, flight case and other package accessories should only be listed as included after checking the actual Stagify stock.

How Many LEDs Does the Bee Eye Moving Head Have?

The light uses 4 × 40W RGBW 4-in-1 LEDs.

Each LED combines red, green, blue and white output.

What Does Bee Eye Mean?

A Bee Eye moving head uses a multi-lens optical system that can create rotating and kaleidoscope-style effects in addition to standard colour output.

The rotating front lens gives this fixture a distinctive visual effect compared with a conventional moving wash.

Can It Produce Both Beam and Wash Effects?

Yes.

The electronic zoom allows the fixture to move between a tighter output for beam-style effects and wider coverage for wash applications.

The exact zoom-angle range should be confirmed on the Stagify model before publishing a numerical specification.

Does the Front Lens Rotate?

Yes.

Rotating Bee Eye / kaleidoscope lens operation is confirmed for the matching 4×40W platform, with adjustable effect speed.

What Are the Pan and Tilt Ranges?

The documented movement is:

• 540° pan

• 270° tilt

The matching platforms also specify 16-bit movement control.

Does It Support DMX512?

Yes.

DMX512 control is confirmed.

The exact channel personality should be checked from the actual Stagify unit because manufacturers currently publish different channel counts for visually similar 4×40W versions.

Can It Work Without DMX?

Yes.

Matching platforms support:

• Auto

• Sound Active

• Master-Slave

This allows the fixture to operate in both simple DJ installations and professional console-controlled systems.

Does It Work on UAE Power?

Yes.

The confirmed AC100–240V / 50–60Hz input range covers standard UAE 220–240V / 50Hz mains power.

The exact supplied plug type should still be checked on Stagify inventory.

Can It Be Used Outdoors?

The exact Stagify model's IP rating is not confirmed.

It should therefore not be marketed as waterproof or outdoor-rated until the product label or manufacturer documentation verifies an IP classification.

For exposed outdoor applications, select a moving head with a confirmed IP65 or IP66 rating.

Installation & Safety Requirements

For overhead installation:

• Use appropriately rated stage truss.

• Use a correctly rated moving-head clamp.

• Add an independent secondary safety cable.

• Allow clearance for 540° pan and 270° tilt.

• Keep power and DMX cables away from moving components.

• Maintain adequate ventilation.

• Protect the fixture from rain unless an outdoor IP rating is confirmed.

Professional overhead installations should be completed by personnel experienced with stage-lighting and rigging systems.

Professional Bee Eye Moving Head Lighting in the UAE

Stagify supplies professional Bee Eye lights, moving heads and stage-lighting equipment across the UAE for wedding companies, DJs, venues and event-production businesses.

The 4×40W platform is particularly useful for buyers who want RGBW beam, wash and rotating kaleidoscope effects from one compact moving fixture.

Contact Stagify for current availability and confirmation of the exact zoom range, DMX profile and supplied accessory package.
