Beam 230 Moving Head Light With Flight Case

Beam 230 Moving Head Light With Flight Case

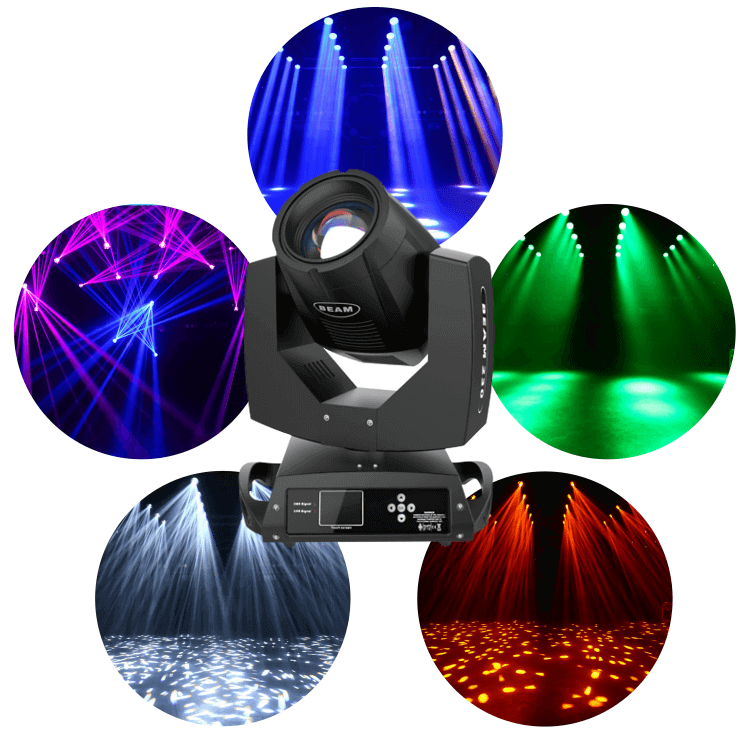

The Beam 230 Moving Head Light With Flight Case is a 230W 7R moving-head fixture supplied as a transport-ready package for wedding companies, DJs, concerts, clubs and event-rental businesses. Its 8000K lamp, 14-colour wheel, 17-gobo wheel, 16-facet prism, 540° pan, 270° tilt and 16-channel DMX512 control provide the focused aerial effects expected from a dedicated beam moving head, while the flight case makes the package better suited to regular event transport and rental use.

Technical Specifications

Specification	Details
Product Type	230W 7R Beam Moving Head Light
Lamp Source	7R 230W
Rated Lamp Power	230W
Colour Temperature	8000K
Colour Wheel	14 colours + white
Colour Effects	Full-colour / half-colour operation, rainbow effect
Gobo Wheel	17 gobos + open
Gobo Effect	Double-rotation rainbow effect
Prism	16-facet prism
Zoom	Yes
Dimmer	0–100% linear adjustment
Strobe	Up to 13 flashes/second
Pan	540°
Tilt	270°
Movement Resolution	16-bit
Position Correction	Electronic correction
Control Protocol	DMX512
DMX Channels	16CH
DMX Input	3-pin XLR
DMX Output	3-pin XLR
Display	LCD
Ballast	Electronic ballast
Housing	Composite plastic
Protection Rating	IP20
Input Voltage	AC100–240V
Frequency	50/60Hz
Supplier-Listed Net Weight	17 kg
Bundle	Moving Head Light + Flight Case
Applications	Weddings, concerts, clubs, DJs and rental productions

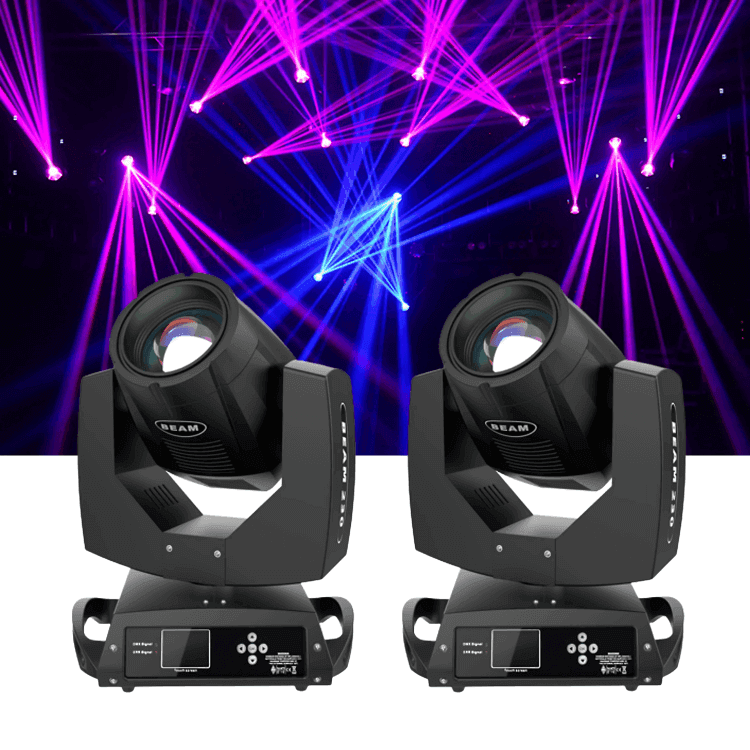

230W 7R Beam Source

The fixture is built around a 230W 7R lamp, a platform widely used for concentrated moving-beam effects.

Unlike an LED wash fixture designed to spread colour over a broad area, this moving head is intended to create a more focused aerial effect.

It is particularly useful for:

• Wedding entertainment

• Concert stages

• DJ performances

• Nightclubs

• Live bands

• Dance shows

• Corporate entertainment

• Event-rental inventories

When atmospheric haze is used correctly, the narrow projected light becomes visible through the air, creating the defined shafts commonly associated with beam moving heads.

8000K Colour Temperature

The lamp is specified at approximately 8000K.

This produces a cool white base output before the colour wheel is introduced.

Cool white works particularly well for aerial beam effects because it creates a crisp visual appearance in darker entertainment environments.

The white output can also be used by itself for:

• Concert sweeps

• Stage entrances

• Wedding reveals

• DJ drops

• High-energy lighting sequences

14 Colours Plus White

The fixture includes a 14-colour wheel plus white/open.

This provides a wide range of fixed colours from one lamp source.

Lighting programmers can use the colour wheel to move between different visual looks during a performance.

The supplier also confirms:

• Full-colour operation

• Half-colour operation

• Rainbow rotation effect

Half-colour positioning allows transitions where two adjacent colours can appear within the beam at the same time.

The rotating rainbow function adds continuous colour movement for more active stage sequences.

17 Gobos Plus Open

A fixed gobo wheel provides 17 gobos plus an open position.

Gobos change the visual structure of the projected light rather than simply changing its colour.

They can be used for:

• Pattern effects

• Aerial texture

• Stage movement

• DJ sequences

• Concert visuals

When haze is present, different gobos can make the beam appear broken, textured or shaped rather than remaining as one clean shaft.

The supplier also documents a double-rotation rainbow-style gobo effect.

16-Facet Prism Effect

The exact specification table confirms a 16-facet prism.

A prism divides or multiplies the original beam into several visible outputs, producing a much wider visual effect from one fixture.

This is particularly effective during:

• Concert finales

• DJ drops

• Wedding entertainment

• Dance performances

• Club lighting sequences

Prism can be combined with colour, gobos, movement and strobe to create layered effects.

The supplier's marketing introduction also mentions an 8-facet prism, but this is not repeated in the formal specification table, so the published Stagify specification should remain 16-facet prism until the physical fixture confirms otherwise.

Zoom Function

A zoom function is confirmed on the exact specification.

This provides additional control over the optical output.

However, the supplier does not publish a numerical zoom range for this SKU.

Stagify should therefore not claim a specific range such as 2°–10° or 0°–4° based on another 230W moving head.

The exact minimum and maximum beam angles should be taken from the physical fixture manual if buyers require those figures.

0–100% Linear Dimming

The moving head provides DMX-controlled 0–100% linear dimming.

This lets the operator reduce output smoothly rather than relying entirely on shutter effects.

Dimming can be useful across different parts of an event.

Guest arrival: lower-intensity movement.

Wedding entertainment: stronger beam effects.

DJ performance: high-output colour, prism and strobe combinations.

Concert finale: full-output multi-effect programming.

Up to 13 Flashes Per Second

The exact specification lists a 13 flashes-per-second strobe with additional free-strobe and pulse-strobe effects.

Strobe can be combined with:

• Colours

• Gobos

• Prism

• Movement

• Dimming

to create high-energy performance looks.

This is particularly useful during:

• Music drops

• Artist entrances

• Stage reveals

• Concert transitions

• Wedding entertainment

Rapid flashing should be used responsibly where attendees or performers may be sensitive to strobe effects.

540° Pan Movement

The fixture provides 540° horizontal pan with 16-bit control and electronic correction.

This gives the moving head a wide positioning range across the stage.

Multiple fixtures can be programmed to create:

• Crossing beams

• Symmetrical movement

• Mirrored positions

• Fan effects

• Wide stage sweeps

• Coordinated chases

Sixteen-bit positioning provides finer movement resolution than basic 8-bit control.

270° Tilt Movement

Vertical movement reaches approximately 270°.

Combined with 540° pan, this gives the fixture enough movement range for most conventional stage installations.

The moving head can be mounted:

• On overhead truss

• On rear stage truss

• On side truss

• On suitable floor structures

• Around DJ stages

Adequate clearance must be maintained so the fixture can complete its movement without striking nearby lights, cables or scenery.

16-Bit Movement Control

Both pan and tilt are documented with 16-bit fine control.

This is useful when fixtures need to make slow, controlled movements or accurately return to programmed positions.

Fine movement is especially relevant for:

• Wedding entrances

• Corporate shows

• Slow concert scenes

• Coordinated multi-fixture positions

The same system can also perform faster movement during DJ and nightclub programming.

Electronic Position Correction

The fixture includes electronic correction on its pan and tilt system.

This is intended to help the moving head maintain or recover its intended position if movement becomes misaligned.

For rental businesses using fixtures repeatedly across different events, reliable positional behaviour is particularly useful when programmed shows need to remain consistent.

16CH DMX512 Control

The formal technical specification confirms 16-channel DMX512 control.

A professional lighting console can integrate the Beam 230 with:

• Other beam moving heads

• Moving washes

• LED PAR lights

• Pixel bars

• Strobes

• Stage effects

DMX provides coordinated control of supported fixture functions including movement, colour, gobos, prism, dimming and strobe.

The supplier's introductory marketing copy also mentions 20 channels, but the formal specification table lists 16CH.

Stagify should therefore publish 16CH until the physical menu or manual confirms an additional 20CH personality.

3-Pin XLR DMX Input and Output

The fixture uses:

• 3-pin XLR DMX input

• 3-pin XLR DMX output

This makes it straightforward to connect multiple stage-lighting fixtures in a DMX chain.

For example:

Lighting Controller → Beam 230 #1 → Beam 230 #2 → Beam 230 #3

Professional DMX-rated cable should be used for reliable data transmission.

LCD Display

A built-in LCD display provides access to fixture settings.

Technicians can use the menu when configuring:

• DMX address

• Operating settings

• Fixture parameters

An LCD interface is particularly useful for rental companies where lights are frequently readdressed for different event layouts.

Electronic Ballast

The fixture uses an electronic ballast for the 230W discharge lamp.

This is a confirmed specification of the exact product.

The ballast is part of the lamp-power and ignition system and should only be serviced by personnel familiar with discharge-lamp moving heads.

Allow the fixture to cool properly before servicing or transporting it after extended operation.

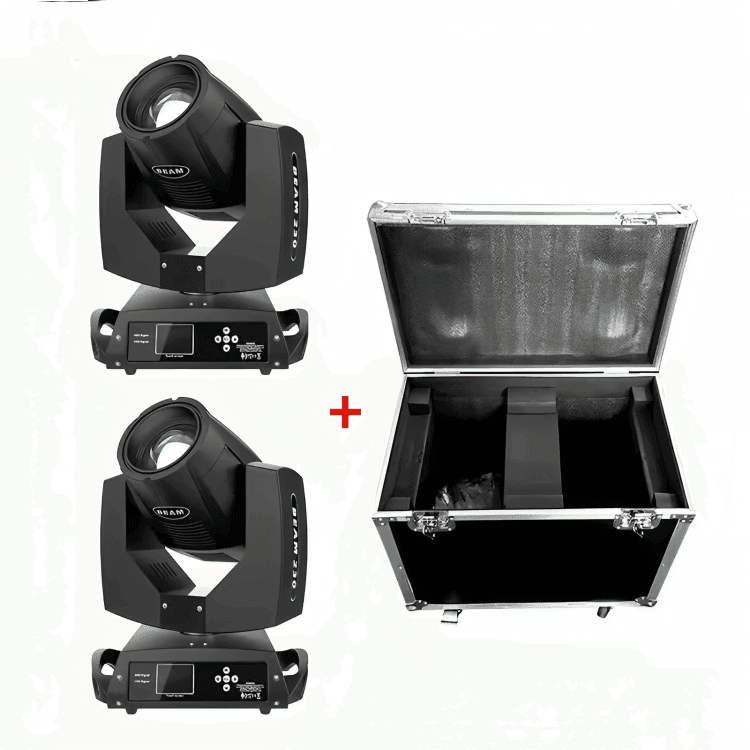

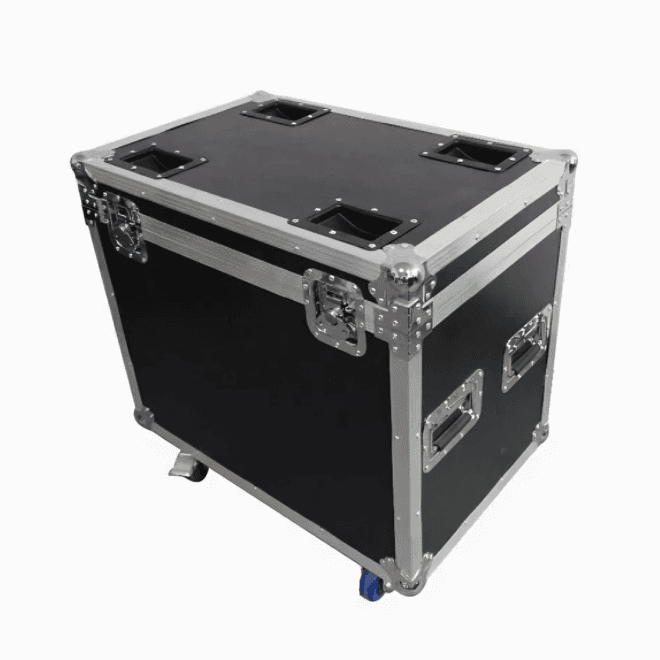

Flight Case Included for Transport

This product is specifically sold as the Beam 230 Moving Head Light With Flight Case.

The flight case is a major advantage for businesses that regularly move stage equipment between venues.

A protective case helps during:

• Warehouse storage

• Vehicle transport

• Hotel loading

• Concert setup

• Rental returns

• Touring use

Moving heads contain motors, optics, lamp assemblies and internal electronics that can be damaged by repeated unprotected transport.

For rental companies, the case therefore adds practical value beyond the lighting specification itself.

Built for Event-Rental Work

The combination of a 230W beam platform and flight-case package makes this version especially relevant to rental companies.

A rental fixture may be:

• Loaded into a van several times each week

• Transported through hotel loading areas

• Installed on different truss systems

• Re-addressed for different consoles

• Stored between events

A flight case helps protect the moving mechanism and optical components during that workflow.

17KG Supplier-Listed Net Weight

The exact supplier specification lists a 17 kg net weight.

This should be considered when planning:

• Truss loads

• Clamp selection

• Manual handling

• Storage

• Transport

The flight case adds additional weight, but the supplier does not publish a confirmed combined fixture + case weight.

Do not use the listed 18 kg gross carton weight as the flight-case bundle weight because the same supplier table separately describes standard carton packaging.

Composite Plastic Housing

The fixture uses a composite plastic housing.

This is common in moving-head designs where the enclosure needs to balance:

• Structural protection

• Weight

• Motor movement

• Ventilation

• Service access

The flight case is particularly useful in protecting this housing from transport impacts.

IP20 Indoor Protection

The exact product is rated IP20.

It should therefore be used in dry, protected environments such as:

• Hotel ballrooms

• Nightclubs

• Indoor wedding venues

• Concert halls

• Indoor stages

• Theatres

It should not be marketed as:

• Waterproof

• Rain-resistant

• IP65

• Outdoor-rated

For exposed outdoor events, choose a moving-head fixture with a confirmed outdoor IP rating.

AC100–240V / 50–60Hz Input

The fixture operates from AC100–240V at 50/60Hz.

This covers standard UAE 220–240V / 50Hz mains supply.

The exact power connector and plug supplied with Stagify inventory should still be checked before claiming that a UAE Type G plug is included.

Beam 230 vs LED Moving Head Wash

These fixtures serve different purposes.

Choose the Beam 230 when you need:

• Narrow aerial beams

• 7R lamp output

• Gobos

• Colour wheel

• Prism effects

• Long visible shafts through haze

• High-energy stage movement

Choose an LED Moving Wash when you need:

• Broad stage coverage

• Smooth RGB colour mixing

• Performer illumination

• Wider zoom ranges

• General stage wash

A professional event rig often uses both.

Beam 230 vs 17R 460W Beam

The 230W and 460W models should occupy different positions in the Stagify catalogue.

Beam 230W 7R

Best suited to:

• Weddings

• Mobile DJs

• Clubs

• Medium event stages

• Rental fleets

• Lower fixture investment

17R 460W Beam

Better suited to:

• Larger concerts

• Large ballrooms

• Major productions

• Higher-output requirements

• Longer-distance applications

The 230W model is the more practical choice where mobility, rental use and cost-per-fixture matter.

Where This Fixture Fits Best

The Beam 230 is strongest when the production needs concentrated moving aerial effects, rather than broad stage illumination.

Its main advantages are:

• 230W 7R source

• 14-colour wheel

• 17 gobos

• 16-facet prism

• 540° / 270° movement

• 16-bit positioning

• DMX512

• Flight-case bundle

That combination gives the product a clear role for mobile event and rental businesses.

Best For

The Beam 230 Moving Head Light is particularly suitable for:

• Wedding companies

• Mobile DJs

• Nightclubs

• Concert stages

• Live bands

• Hotel ballrooms

• Dance performances

• Corporate entertainment

• Event-production companies

• AV rental businesses

• Lighting rental fleets

What's Included & Compatibility

Bundle:

• 1 × Beam 230 Moving Head Light

• 1 × Flight Case

Compatible with suitable:

• DMX512 lighting controllers

• Professional 3-pin DMX cables

• Aluminium stage truss

• Rated moving-head clamps

• Independent secondary safety cables

• Professional event-power systems

• Controlled haze equipment

The exact standard package should be checked before additionally listing:

• DMX cable

• Clamp

• Safety cable

• Spare lamp

• Power cable accessories

as included.

What Lamp Does the Beam 230 Use?

The fixture uses a 230W 7R discharge lamp.

The published colour temperature is approximately 8000K.

How Many Colours Does It Have?

The colour wheel contains 14 colours plus white/open.

The fixture also supports full-colour, half-colour and rainbow-style operation.

How Many Gobos Does It Have?

The fixed gobo wheel contains 17 gobos plus an open position.

What Prism Does It Use?

The formal supplier specification confirms a 16-facet prism.

The supplier's introductory text additionally mentions an 8-facet prism, but this should not be published until the actual Stagify fixture confirms it.

Does It Have Zoom?

Yes.

Zoom is listed as a confirmed feature.

However, no numerical beam-angle or zoom range is published for this exact SKU.

What Are the Pan and Tilt Ranges?

The confirmed movement range is:

• Pan: 540°

• Tilt: 270°

Both axes use 16-bit control with electronic correction.

How Many DMX Channels Does It Use?

The formal specification lists 16CH DMX512.

A separate marketing paragraph mentions 16/20 channels, so Stagify should verify the fixture menu before advertising 20CH as an additional mode.

Does It Have a Strobe?

Yes.

The published strobe rate reaches approximately 13 flashes per second, with free-strobe and pulse-strobe effects.

Does It Work on UAE Power?

Yes.

Its AC100–240V / 50–60Hz input range covers standard UAE 220–240V / 50Hz mains power.

The exact supplied plug still needs physical verification.

Is the Flight Case Included?

The exact supplier product is sold under the title Beam 230 Moving Head Light With Flight Case.

The flight case should therefore be treated as part of this bundle.

However, Stagify should physically confirm whether the case is:

• Single-fixture

• Dual-fixture

• Wheeled

• Fitted with brakes

before publishing those additional details.

Is It Waterproof?

No.

The fixture is rated IP20 and should be used in dry indoor or fully protected environments.

Installation & Rigging Requirements

For overhead installation:

• Use an appropriately rated stage-light clamp.

• Use an independent secondary safety cable.

• Confirm the truss can support the fixture load.

• Maintain clearance for full pan and tilt movement.

• Keep cables clear of moving sections.

• Maintain ventilation around the fixture.

• Protect the light from rain and moisture.

• Allow the discharge lamp to cool before handling or packing.

The documented 17 kg fixture weight must be included when calculating truss loading.

Beam Moving Head Lights in the UAE

Stagify supplies beam moving heads, stage lighting and event-production equipment across the UAE for wedding companies, DJs, clubs and rental businesses.

This 230W package is positioned for buyers who want a 7R beam fixture with colour, gobos, prism and DMX control plus a protective flight case for mobile event use.

Contact Stagify for current availability and confirmation of the flight-case configuration, DMX personality and complete bundle contents before ordering.
