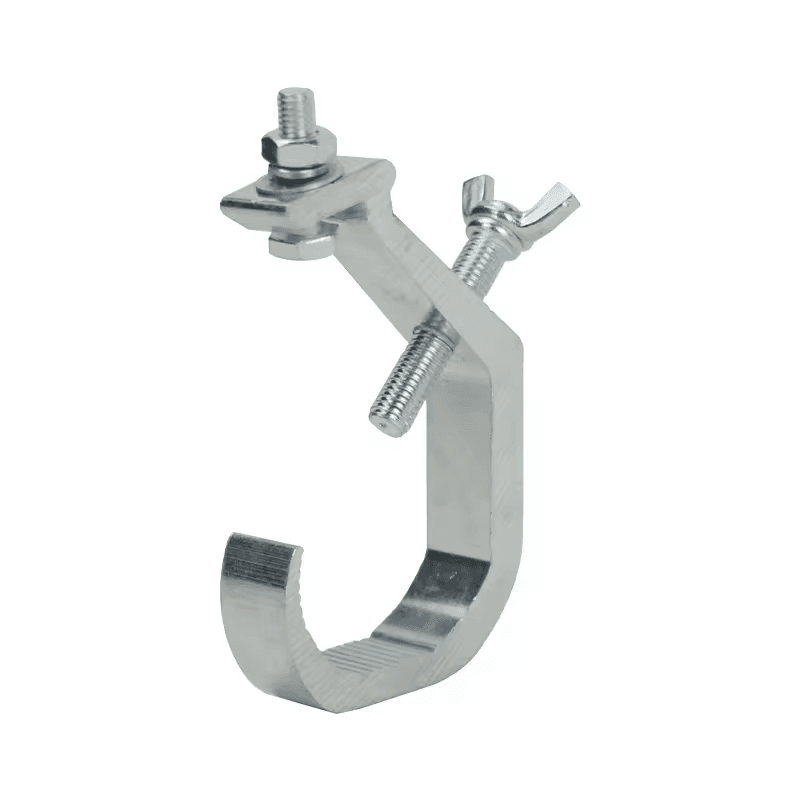

Aluminum Stage Light Hook

Aluminum Stage Light Hook for 48-50MM Truss UAE

The Aluminum Stage Light Hook is a professional mounting clamp designed to suspend compatible stage lights from 48–50 mm truss tubes. Made from lightweight 6061 aluminium alloy and rated for loads up to 100 kg, it provides a practical mounting solution for moving heads, PAR lights, spotlights and other event-lighting fixtures.

Technical Specifications

Professional Hook for Stage Lighting Truss

The Aluminum Stage Light Hook creates the mechanical connection between a lighting fixture and the truss structure above it.

Its 48–50 mm clamp range is suited to the round chord dimensions commonly found on professional aluminium stage truss. This allows technicians to mount compatible fixtures directly onto lighting grids, stage structures and truss systems without improvising attachment hardware.

The hook is manufactured from 6061 aluminium alloy, keeping the component relatively lightweight while providing the mechanical strength required for repeated professional use.

At approximately 0.62 kg, the hook is practical for touring and rental companies that may transport dozens of lighting clamps between venues.

100KG Load Capacity

The matched Aluminum Stage Light Hook configuration has a stated maximum load capacity of 100 kg.

That capacity makes the hook suitable for a wide range of professional lighting equipment, from smaller PAR fixtures to heavier moving heads where the fixture and mounting arrangement remain within the rated limits.

The 100 kg figure applies to the hook itself. It does not automatically establish the allowable load of the complete lighting structure.

The truss, fixture bracket, bolts, suspension points and all associated rigging components must also be rated for the installed load.

Fits 48–50MM Truss Tubes

The hook is designed for 48–50 mm diameter round tubes, making it compatible with many professional aluminium lighting-truss systems.

Typical applications include:

• Square box truss

• Triangular truss

• Lighting grids

• Horizontal lighting bars

• Stage structures

• DJ truss systems

• Exhibition lighting structures

Always verify the actual tube diameter before installation, particularly when combining components from different truss manufacturers.

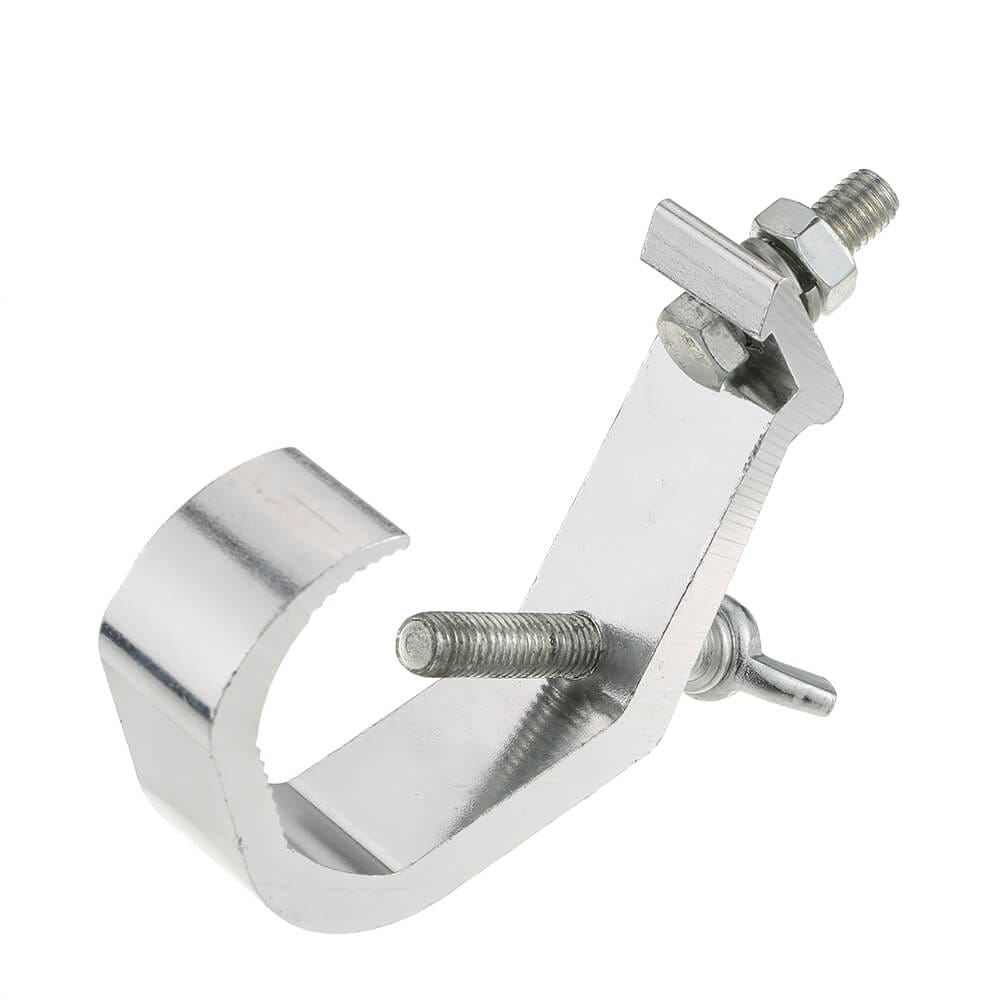

6061 Aluminium Alloy Construction

The stage light hook is manufactured from 6061 aluminium alloy, a material widely used for professional stage-lighting clamps because of its balance of strength and low weight.

Aluminium also offers practical resistance to corrosion during normal event-production use and reduces the amount of additional hardware weight attached to the lighting structure.

For production and rental companies, lower clamp weight becomes particularly useful when large quantities of fixtures and rigging accessories must be transported for each event.

Suitable for Moving Heads and Stage Fixtures

The Aluminum Stage Light Hook can be used to mount compatible:

• Beam moving head lights

• Wash moving heads

• Spot moving heads

• LED PAR lights

• Stage spotlights

• Strobe lights

• Effect lighting

• Theatre lighting fixtures

• DJ lighting

• Compatible AV equipment

The fixture bracket and mounting hardware must be checked before installation to make sure the connection is appropriate for the light being suspended.

Fast Setup for Event Production

Lighting crews frequently need to install and reposition fixtures during event setup.

A dedicated truss hook allows the fixture to be attached directly to the truss rather than relying on temporary or improvised fixing methods.

This is useful for productions where lighting positions change regularly, including weddings, concerts, corporate events, exhibitions and rental setups.

The hook can also remain attached to compatible fixture brackets between events where the equipment-storage method allows it, reducing setup time during the next production.

Best For

The Aluminum Stage Light Hook is suitable for:

• Wedding stage lighting

• Concert production

• Corporate events

• Moving head installations

• LED PAR lighting

• Theatre productions

• DJ lighting rigs

• Exhibition lighting

• Clubs and entertainment venues

• Hotels and ballrooms

• Event-production companies

• AV installation companies

• Stage-equipment rental businesses

What's Included & Compatibility

The package includes:

• 1 × Aluminum Stage Light Hook

Designed for compatible 48–50 mm round truss tubes and professional lighting fixtures with an appropriate mounting bracket.

A separately rated safety cable or safety rope should be used for overhead lighting installations.

Fixture-specific bolts, safety cables and other rigging accessories should be selected according to the equipment being mounted unless specifically supplied with the product.

What Is an Aluminum Stage Light Hook Used For?

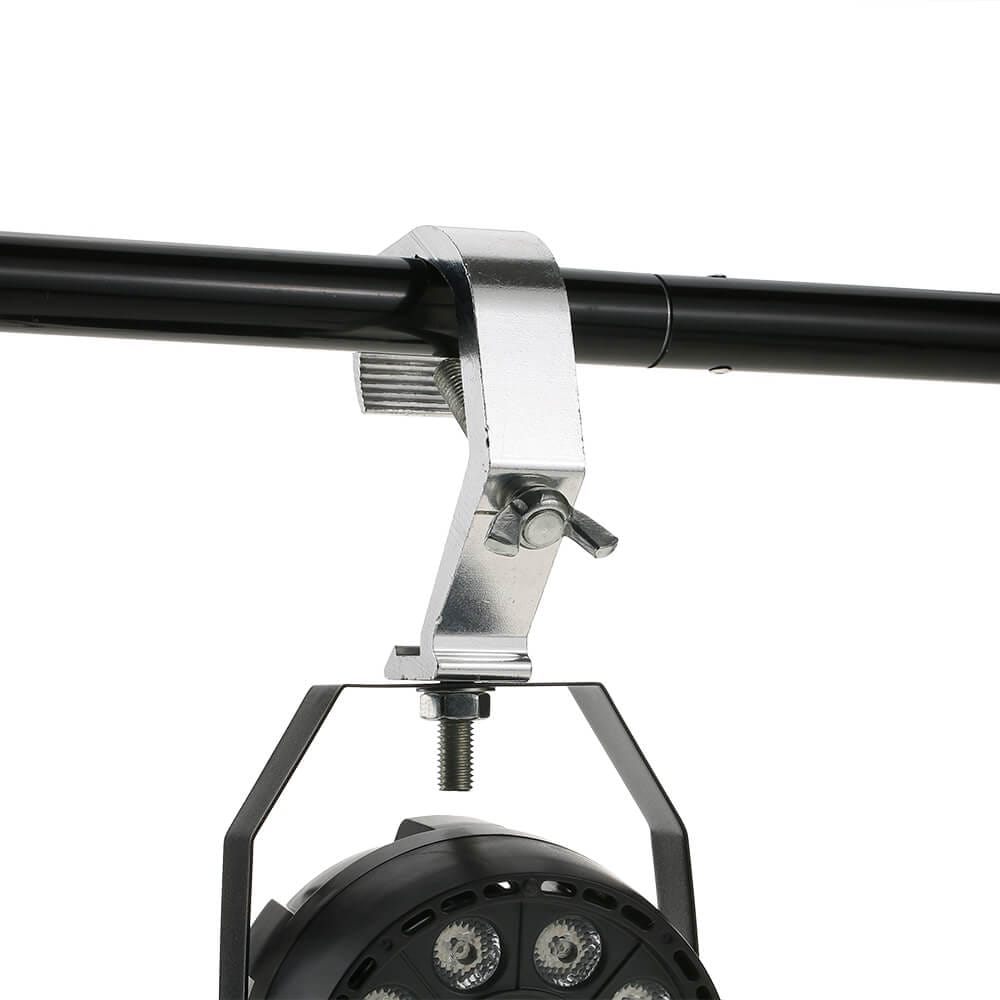

An Aluminum Stage Light Hook is used to attach a lighting fixture to an overhead truss, lighting bar or compatible round tube.

It creates the primary mechanical connection between the fixture bracket and the supporting truss structure.

What Size Truss Does the Stage Light Hook Fit?

This hook is designed for approximately 48–50 mm diameter truss tubes.

That range is suitable for many professional aluminium stage-truss systems using approximately 50 mm main chords.

How Much Weight Can the Aluminum Stage Light Hook Hold?

The matched configuration has a stated maximum load capacity of 100 kg.

The complete installation must also remain within the rated limits of the truss, mounting bracket, bolts and other rigging components.

What Is the Stage Light Hook Made From?

The hook is manufactured from 6061 aluminium alloy.

This provides a useful combination of mechanical strength, low weight and corrosion resistance for professional event-production environments.

How Much Does the Aluminum Stage Light Hook Weigh?

The documented product weight is approximately 0.62 kg.

Its aluminium construction helps keep the mounting system portable for production teams that regularly transport large quantities of stage-lighting equipment.

Can I Use It for a Moving Head Light?

Yes. The hook can be used with compatible moving head fixtures when the fixture weight, bracket and attachment hardware are appropriate.

Always check the fixture's mounting instructions and the complete rigging capacity before suspending the light.

Can It Be Used With LED PAR Lights?

Yes. LED PAR lights, spotlights and other compatible stage fixtures can be mounted using the hook where the fixture bracket supports the required connection.

Smaller fixtures still require properly rated mounting hardware and secondary retention when suspended overhead.

Do I Need a Safety Rope With a Stage Light Hook?

Yes, an independent secondary safety attachment is recommended for overhead stage-lighting fixtures.

The safety cable should connect the fixture's designated safety point directly to an appropriate supporting truss member rather than relying on the primary hook alone.

Can I Use the Hook Outdoors?

The aluminium hook can form part of an outdoor event-lighting installation, but outdoor rigging requires additional assessment.

Weather, wind loading, fixture IP rating, truss stability and the complete supporting structure must all be considered before equipment is installed outdoors.

Rigging & Safety Requirements

The Aluminum Stage Light Hook is a load-bearing stage-lighting accessory and should only be used within its verified working limits.

Do not exceed the stated 100 kg load capacity, and never determine the allowable load of the complete lighting structure from the hook rating alone.

Check the hook, mounting bolts, fixture bracket, safety cable and supporting truss before every installation. Hardware showing cracks, deformation, damaged threads, corrosion or excessive wear should be removed from service.

For overhead event installations, use an independently rated secondary safety attachment and ensure the complete setup is installed by personnel familiar with professional stage-lighting and truss rigging.

Order Aluminum Stage Light Hooks in the UAE

Stagify supplies professional stage lighting, truss and rigging accessories across Dubai and the UAE for event-production companies, DJs, AV installers, venues, theatres and rental companies.

The Aluminum Stage Light Hook provides a practical mounting solution for moving heads, PAR lights, spotlights and other compatible fixtures on standard 48–50 mm truss systems.
