888P LED Pixel Bar Light

888P LED Pixel Bar Light 200W for DJ, Wedding & Stage Events

The 888P LED Pixel Bar Light is a 200W linear RGB effects fixture built with 800 × SMD 5050 LEDs for stage washes, colour chases and animated bar effects. With DMX512, RDM, sound activation, 0–100% dimming and a 15°–30° beam, it suits weddings, clubs, DJ setups and professional event productions across the UAE.

Technical Specifications

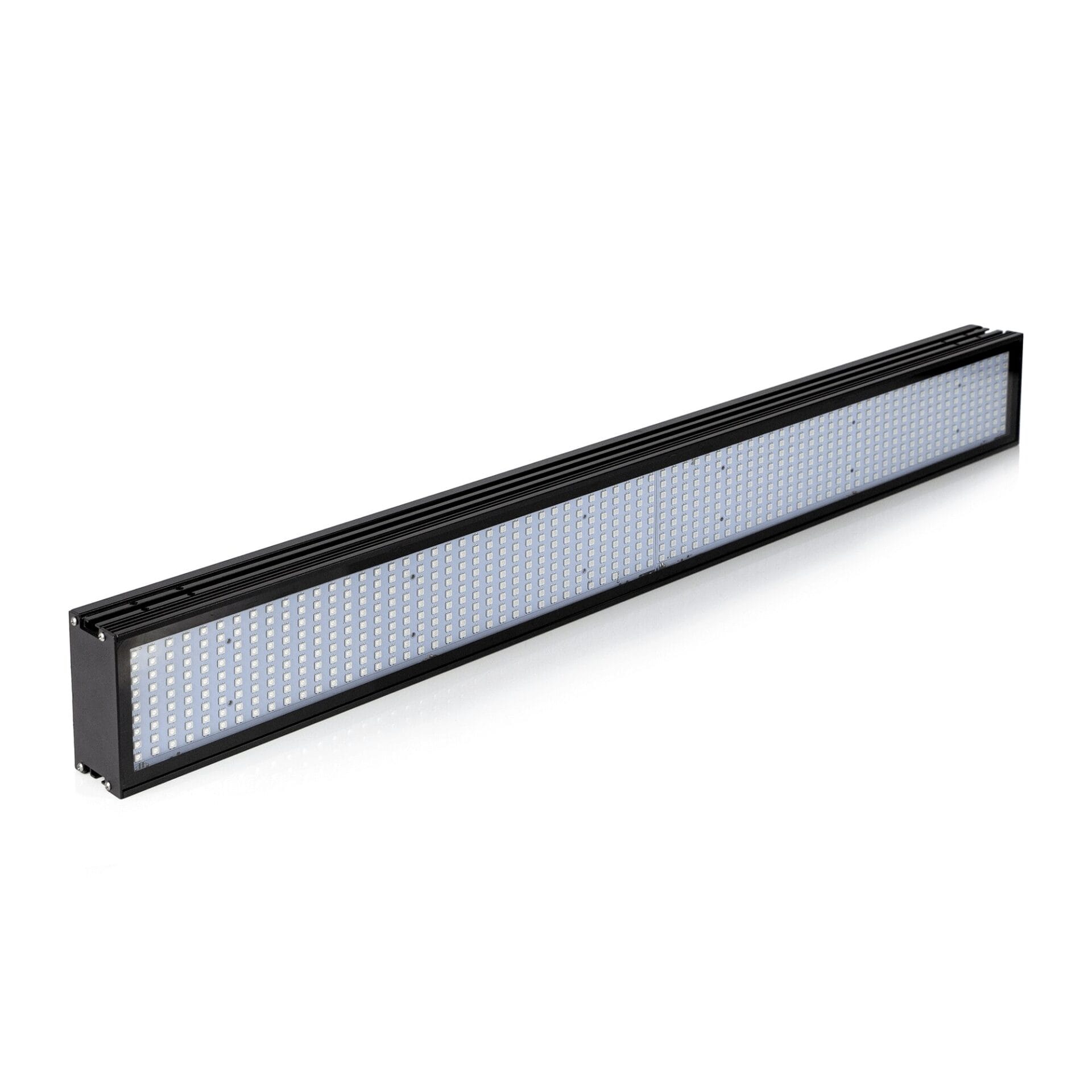

800 RGB LEDs Across a Linear Effects Bar

The fixture uses 800 SMD 5050 RGB LEDs distributed across its linear front surface.

Rather than concentrating light through a single lens, the long LED array creates a broad visual strip that can become part of the stage design itself.

RGB colour control allows red, green and blue sources to combine into different colours and transitions for applications including:

• Stage backdrop effects

• DJ booth lighting

• Colour chases

• Wedding stage accents

• Club lighting

• Concert effects

• Decorative linear lighting

This makes the fixture particularly useful when the audience can see the light source directly as part of the visual production.

200W Output for Stage and Event Effects

The complete fixture has a documented 200W power rating.

Its 800 LED sources create a continuous illuminated bar that can be programmed as a colour effect, animated strip or supplementary stage wash depending on the chosen operating mode.

For event designers, the advantage is not simply brightness. The long form factor creates a different visual geometry from conventional PAR lights.

Several units can be positioned:

• Horizontally along a stage

• Vertically beside LED screens

• Behind a DJ booth

• Along a wedding backdrop

• Across a truss structure

• Around performance areas

Multiple bars can create repeated lines of light that become more visually prominent when programmed together.

RGB Colour Effects for Different Event Styles

The RGB LED system provides colour mixing across the complete fixture.

Warm event looks can use red-dominant combinations, while blue and green tones work well for club, concert and electronic-music environments.

Programming can also introduce:

• Colour changes

• Fade transitions

• Chase-style effects

• Music-responsive sequences

• Strobe effects

• Static RGB colours

This gives lighting operators more options than a conventional single-colour strip fixture.

For weddings and corporate events, slower transitions can complement décor. For discos and DJ performances, faster sequences can create more active visual movement.

15°–30° Beam for Controlled Linear Coverage

The documented optical range is approximately 15°–30°.

This gives the fixture a relatively controlled spread instead of projecting light in every direction.

At tighter angles, the output appears more concentrated. A wider angle spreads the colour across more of the surrounding stage or backdrop.

Fixture position and distance from the target surface will affect the final coverage.

When using several bars across a stage, production crews can adjust spacing and placement to create either separated strips of colour or a more continuous lighting composition.

DMX512 with 3CH, 9CH and 10CH Modes

The fixture provides 3-channel, 9-channel and 10-channel DMX operating modes.

Different personalities allow operators to choose between simpler control and access to additional effect parameters according to the requirements of the lighting system.

DMX512 makes it possible to integrate the bar alongside other professional fixtures such as:

• Moving head beams

• Moving head washes

• LED PAR lights

• Strobes

• Effect lights

• Other linear fixtures

This is particularly useful for wedding, concert and club productions where colour changes need to follow programmed cues rather than running independently.

RDM for Professional Lighting Networks

The fixture also supports RDM, extending conventional DMX functionality with compatible remote device management.

In an RDM-capable system, supported fixture information and selected configuration parameters can be communicated through the lighting network without physically accessing every unit.

This can be useful when several pixel bars are mounted on truss or positioned around a large event setup.

RDM functionality depends on using an RDM-compatible controller and correctly configured signal infrastructure.

Auto and Sound-Activated Operation

A professional DMX desk is not required for every job.

Built-in automatic and sound-responsive modes allow the bar to produce effects without detailed console programming.

Sound mode is particularly useful for:

• DJs

• Bars

• Clubs

• Private parties

• Wedding entertainment

• Small live performances

For larger productions, switching to DMX control gives the lighting operator more predictable timing and coordination.

Master/Slave for Multi-Fixture Setups

Master/slave operation allows compatible fixtures to run coordinated effects without giving every bar independent programming from a large console.

One unit can provide the operating sequence while connected fixtures follow the same programme.

This is useful when several bars are being used to create:

• Matching stage lines

• Symmetrical DJ-booth lighting

• Wedding backdrop effects

• Repeated club-lighting patterns

For more advanced multi-fixture sequences, DMX control remains the more flexible option.

0–100% Linear Dimming

The fixture provides 0–100% linear dimming, allowing the output level to be adjusted rather than operating only at full intensity.

Dimming becomes especially useful during mixed-format events.

For example, the bars may run at lower intensity during:

• Guest arrival

• Dinner

• Speeches

• Corporate presentations

Output can then increase during performances, DJ sets or entertainment segments.

This gives the same installation more flexibility across different stages of an event.

Electronic Strobe Up to 25 FPS

The built-in electronic strobe operates from 0 to 25 flashes per second.

Strobe effects can add a sharper rhythmic layer during music-driven sequences, concert transitions and DJ performances.

Because the effect is generated electronically through the LEDs, operators can incorporate strobe changes into DMX programming without requiring a separate conventional strobe fixture for every position.

Strobe use should be considered carefully where guests or performers may be sensitive to rapid flashing effects.

LCD Display for Fixture Setup

An integrated LCD display provides access to fixture settings and operating modes.

Technicians can use the onboard interface when configuring:

• DMX addresses

• Channel mode

• Automatic programmes

• Sound mode

• Master/slave operation

• Other supported fixture parameters

The display is particularly useful during setup when several identical fixtures must be configured before being installed across a stage or truss.

Built for Indoor Event Production

The fixture uses a metal housing with built-in ventilation for professional event use.

Its documented IP20 rating means it should be treated as an indoor fixture.

Suitable environments include:

• Hotel ballrooms

• Nightclubs

• Indoor wedding venues

• Theatres

• Event halls

• Indoor stages

• Exhibition spaces

• DJ venues

It should not be exposed directly to rain or uncontrolled moisture.

For outdoor UAE events where weather exposure is possible, choose a properly verified IP65 or IP66 linear fixture instead.

6.5KG Fixture for Touring and Rental Use

The 888P Pixel Bar has a documented net weight of 6.5 kg, with a gross packed weight of approximately 7 kg.

For rental and event-production companies, fixture weight matters when several bars need to be transported, positioned and mounted for every event.

Its linear design allows multiple units to create repeating visual structures without requiring large individual moving-head housings at every position.

Best For

The 888P LED Pixel Bar Light is particularly suited to:

• Wedding stages and receptions

• DJs and mobile entertainment

• Nightclubs and discos

• Concert stages

• Bars and lounges

• Corporate events

• Stage backdrops

• Theatre productions

• Exhibition setups

• Event-production companies

• AV installers

• Professional lighting rental businesses

What's Included & Compatibility

The core product includes:

• 1 × 888P LED Pixel Bar Light

It can be integrated with compatible:

• DMX512 lighting controllers

• RDM-capable lighting systems

• Professional aluminium stage truss

• Rated lighting clamps

• Independent safety attachments

• DMX signal cabling

• Professional event power systems

The exact power cable, brackets, clamps and other accessories supplied with Stagify inventory should be confirmed before listing them as included.

Does the 888P Pixel Bar Have 888 LEDs?

No. 888P is the product/model designation.

The published technical specification lists 800 × 0.25W SMD 5050 RGB LED beads. The product should therefore not be advertised as containing 888 individual LEDs unless separate manufacturer documentation confirms that figure.

How Much Power Does the LED Pixel Bar Use?

The complete fixture is rated at 200W.

Its light source consists of 800 SMD 5050 RGB LEDs, each listed at 0.25W.

Can the Pixel Bar Be Controlled by DMX?

Yes.

The fixture supports DMX512 with 3CH, 9CH and 10CH operating modes, giving lighting programmers different control options depending on the show setup.

Does It Support RDM?

Yes. RDM support is listed in the fixture's documented control modes.

An RDM-compatible controller is required to use remote device management functions.

Can It Run Without a DMX Controller?

Yes.

The fixture supports automatic, sound-activated and master/slave operation, so it can produce effects without a professional lighting console.

What Is the Beam Angle?

The published beam range is approximately 15°–30°.

The final spread on a wall, backdrop or stage will also depend on mounting distance and fixture orientation.

Is the 888P LED Pixel Bar Suitable for Weddings?

Yes. Its long RGB lighting surface works well for wedding backdrops, stages, DJ areas and entertainment lighting.

Slower colour fades can complement formal event décor, while faster chases and sound-active effects can be used later during entertainment.

Can It Be Used Outdoors?

Not where the fixture can be exposed to rain or moisture.

The unit is rated IP20, so it should be used in dry indoor environments. Outdoor productions should use a fixture with a verified weather-resistant IP rating.

Does It Work on UAE Power?

Yes. The documented input range is AC100–240V, 50/60Hz, which includes UAE 220–240V / 50Hz mains power.

The supplied plug type should still be checked on the physical Stagify unit before the product page is published.

Installation & Safety Requirements

The fixture weighs approximately 6.5 kg, so overhead mounting requires appropriately rated clamps, truss and attachment hardware.

Use an independent secondary safety attachment whenever the unit is suspended overhead.

Keep ventilation openings clear and avoid positioning decorative fabric or other materials where they can obstruct cooling.

Because the product is rated IP20, install it only in dry environments unless suitable weather protection is provided by an appropriately engineered installation.

Power and DMX cables should be routed securely so that connectors are not placed under unnecessary strain.

LED Pixel Bar Lighting in the UAE

Stagify supplies professional LED stage lights, pixel effects and event-lighting equipment across Dubai and the UAE for production companies, venues, DJs, wedding contractors and rental businesses.

The 888P model combines 800 RGB LEDs, 200W power, DMX/RDM control and a 15°–30° beam in a linear fixture designed for decorative and music-driven stage effects.

Contact Stagify for current availability, project quantities and help integrating multiple pixel bars into a complete stage-lighting system.
