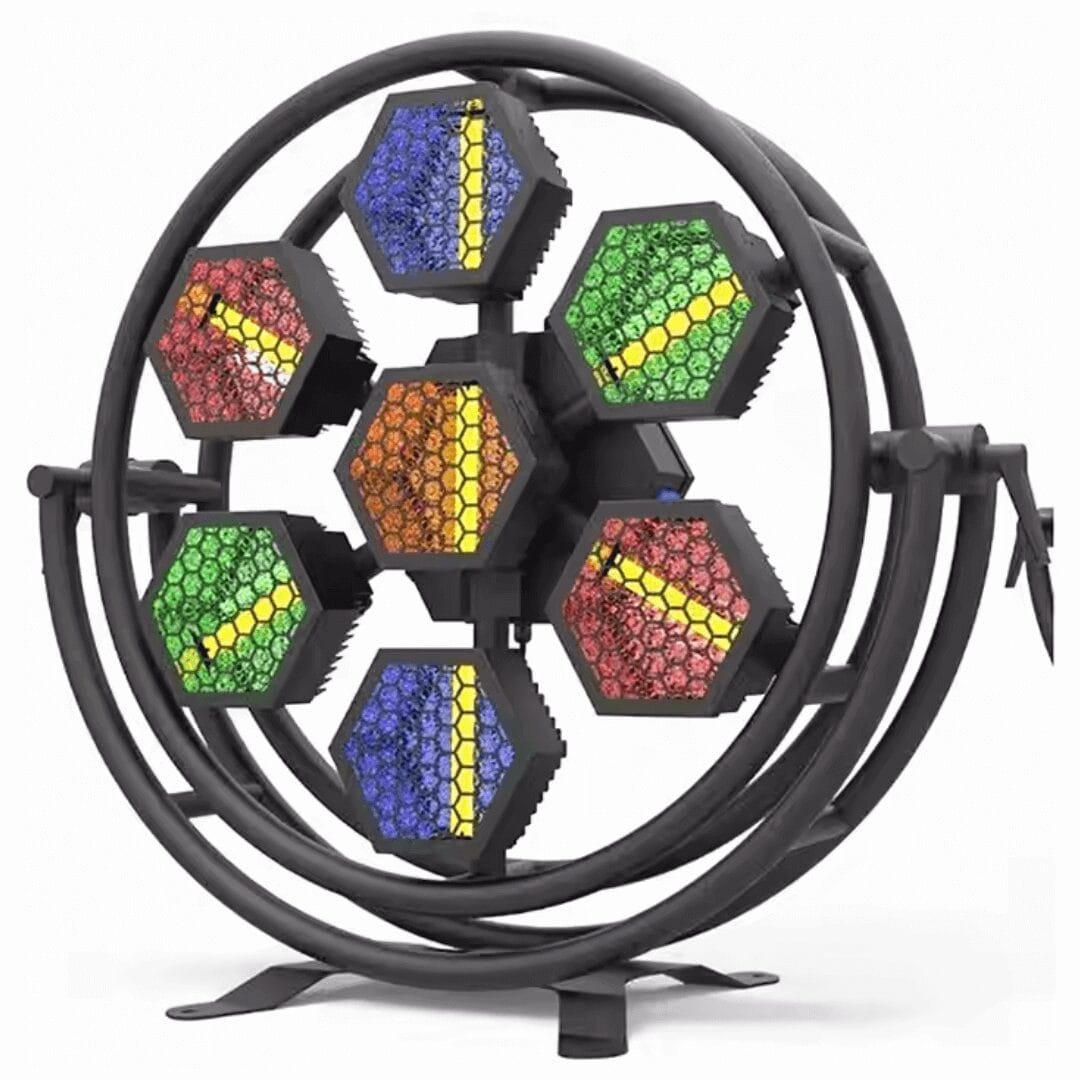

7p LED COB RGBW Par Retro Light

7P LED COB RGBW Par Retro Light

The 7P LED COB RGBW Par Retro Light is a large-format 520W scenic stage fixture combining seven 60W warm-white LED sources with 168 RGB SMD LEDs. Its 2200K retro output, colour backlighting and 9/10/28/38-channel DMX control make it suited to concert backdrops, wedding stages, music festivals, TV sets and large event productions.

Technical Specifications

Seven 60W Warm-White Sources

The visual centre of the fixture is formed by seven 60W LED sources arranged in a large retro-style pattern.

Their published colour temperature is 2200K, producing a noticeably warm appearance associated with traditional tungsten and vintage filament-style stage lighting.

This warm tone is particularly effective for:

• Wedding stages

• Live band backdrops

• Concert scenic lighting

• Television sets

• Award ceremonies

• Vintage-themed productions

Instead of using the fixture only to illuminate performers, designers can make the light itself part of the visible stage scenery.

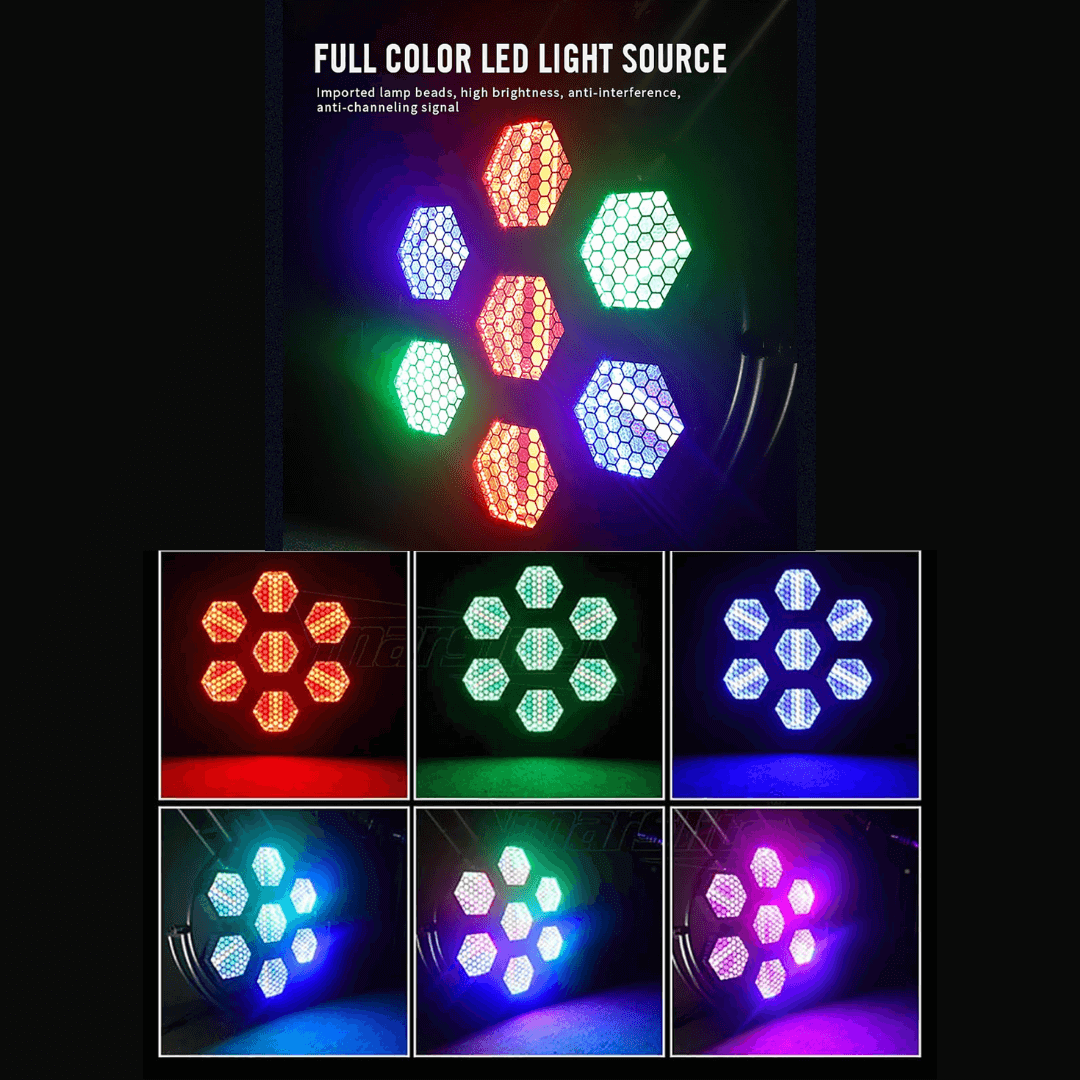

168 RGB LEDs Add Colour Behind the Retro Look

The warm-white sources are supported by 168 RGB SMD 5050 LEDs.

These additional LEDs introduce coloured background effects around the main warm-white elements, allowing the fixture to combine two different visual styles in one housing.

A lighting designer can use warm 2200K output for a classic stage appearance, then introduce RGB colour for more energetic sections of the programme.

This is particularly useful during concerts and wedding entertainment where the lighting needs to change from elegant scenic illumination to stronger music-driven effects without replacing fixtures.

2200K for a Genuine Warm Stage Appearance

The specified 2200K colour temperature is much warmer than conventional daylight-white stage lighting.

That makes this fixture useful where a production wants an intentionally amber-toned scenic look.

Typical applications include:

• Acoustic performances

• Live band stages

• Wedding décor

• Retro concert designs

• Theatre sets

• Broadcast backgrounds

The warm output can also contrast effectively with blue, cyan or purple RGB stage lighting positioned elsewhere in the rig.

Large 86CM Scenic Fixture

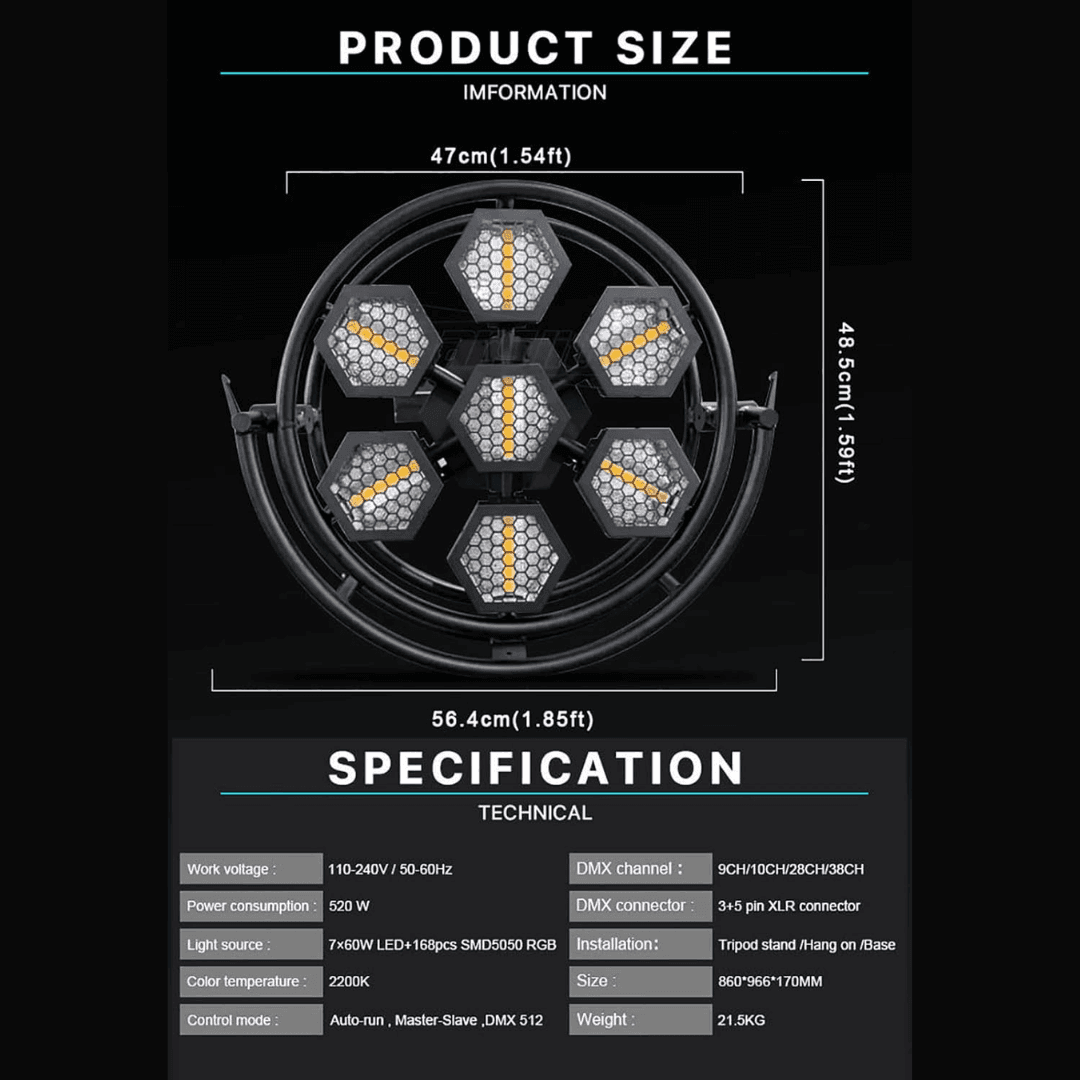

The body measures approximately 860 mm wide × 966 mm high × 170 mm deep.

This size is one of the main reasons to choose this model over a compact PAR or smaller retro fixture.

At nearly one metre high, the fixture remains visually noticeable even when installed behind artists, musicians or an LED-screen structure.

Several units can be positioned side by side to build a large repeating scenic wall.

For this reason, the 7P Retro Light is better considered part of the stage design rather than simply another small illumination fixture.

520W Complete Fixture Power

The documented total power consumption is 520W.

Production electricians should use this complete fixture figure when calculating circuit loading rather than simply adding individual nominal LED wattages.

For example, four fixtures represent approximately 2.08kW of published connected load before any moving heads, LED screens or other equipment are included.

This becomes important on large event stages where several retro fixtures may be operated simultaneously.

9CH and 10CH Modes for Simpler Programming

The fixture provides 9-channel and 10-channel DMX modes for shows that do not require the maximum available control detail.

Lower-channel personalities are useful when:

• Several fixtures need to be patched quickly

• DMX address space is limited

• The retro lights are supporting fixtures

• Simple coordinated effects are sufficient

This keeps programming practical for wedding productions, bands and smaller event setups.

28CH and 38CH Modes for Detailed Control

For larger productions, 28CH and 38CH DMX modes provide expanded control possibilities.

These modes are better suited to concerts, festivals and scenic installations where the retro fixture is a major visual element rather than simple background illumination.

The wider channel personalities give programmers more scope to build changing RGB and warm-white looks as part of a detailed show.

For multi-fixture installations, select the intended DMX personality before allocating addresses across the lighting console.

DMX512 for Programmed Stage Shows

DMX control allows the retro light to operate alongside other stage fixtures including:

• Beam moving heads

• Moving washes

• LED PAR lights

• Pixel bars

• Strobes

• Effect lights

This allows colour and scenic changes to follow the same show cues as the rest of the lighting rig.

For a concert, for example, the seven warm-white sources can become a dominant visual element during one section while RGB effects provide a different look later in the performance.

Sound-Controlled Operation

The fixture supports sound control, allowing built-in effects to respond to music.

This can be useful for:

• DJs

• Live bands

• Clubs

• Music events

• Entertainment stages

Sound mode provides a simpler workflow when a lighting operator is not continuously programming the fixture.

For precisely timed wedding entrances, broadcasts or concert cues, DMX remains the more predictable control method.

Automatic Operation

Built-in Auto mode allows the fixture to run without an external DMX console.

This makes it possible to use the retro light for standalone decorative or entertainment setups where detailed programming is unnecessary.

Automatic operation is particularly useful for smaller stages or venue installations that need continuous visual activity.

Master-Slave for Multiple Retro Lights

Multiple compatible fixtures can be connected using Master-Slave operation.

This lets several units run matching effects without programming each fixture individually.

The function is particularly useful when creating:

• Symmetrical stage backdrops

• Repeated retro-light patterns

• DJ stage walls

• Wedding scenic installations

For independently controlled units or more complex sequences, DMX addressing should be used instead.

21.5KG Full-Size Housing

The fixture weighs approximately 21.5 kg.

This confirms that the 7P Retro is a substantial scenic lighting unit rather than a lightweight portable PAR.

Fixture weight needs to be considered when planning:

• Stage structures

• Truss loading

• Transport

• Flight cases

• Crew handling

• Storage

For overhead installation, the complete installed load must also include clamps, brackets and secondary safety equipment.

Where This Model Fits in the Retro Light Range

This full-size 7P model is best selected when visual scale and scenic presence matter.

Its 520W power, 86 cm-wide housing and 21.5 kg weight distinguish it clearly from the smaller 7P Mini Retro platform.

Choose the full-size model when:

• The fixture itself must be visible from the audience

• Building a large stage backdrop

• Lighting concerts or festivals

• Creating TV or broadcast scenery

• Designing a substantial wedding stage

A smaller retro fixture is the better choice when portability, lower weight and compact vehicle storage are more important.

Best For

The 7P Retro Light is particularly suited to:

• Concert stages

• Wedding stages

• Music festivals

• Live band performances

• Television studios

• Broadcast sets

• Electronic music events

• Award ceremonies

• Theatre scenery

• Large DJ stages

• Event-production companies

• Lighting rental businesses

What's Included

The confirmed supplier package contains:

• 1 × 7P LED Retro Light

• 1 × user manual

• 1 × power cable

• 1 × DMX cable

Mounting clamps, safety cables, flight cases and additional accessories should only be listed as included when confirmed with Stagify inventory.

How Is This Different from the 7P Mini Retro Light?

The full-size model is significantly larger and more powerful.

This version is specified at 520W, 86 × 96.6 × 17 cm and 21.5 kg, while the smaller Mini Retro platform is a 350W design.

The full-size fixture is therefore better suited to scenic backdrops and large stages, while the Mini model is more practical when portability matters.

What Colour Temperature Are the Main Retro LEDs?

The seven main LED sources are rated at 2200K.

That produces a warm amber-white appearance intended to recreate the visual character of vintage stage and filament-style lighting.

Does the Fixture Produce RGB Colours?

Yes.

In addition to the seven warm-white 60W sources, the fixture uses 168 RGB SMD 5050 LEDs for coloured background and effect lighting.

How Many DMX Channels Does It Use?

The fixture supports four DMX personalities:

• 9CH

• 10CH

• 28CH

• 38CH

This gives programmers a choice between simpler control and more detailed show programming.

Can It Work Without DMX?

Yes.

The fixture supports Auto, Sound and Master-Slave modes in addition to DMX operation.

Is This a Small Portable PAR Light?

No.

At approximately 86 × 96.6 cm and 21.5 kg, this is a large-format scenic retro fixture.

For mobile DJs or productions prioritising compact transport, the smaller Mini Retro version may be more appropriate.

Does It Work on UAE Power?

The published input specification is AC110–240V, 50/60Hz, which includes UAE 220–240V / 50Hz electrical supply.

The exact plug fitted to Stagify stock should be physically confirmed before claiming that a UK Type G plug is supplied.

Can It Be Used Outdoors?

No outdoor IP rating is published for this exact SKU.

It should therefore not be advertised as waterproof or weather-resistant. Use it in dry, protected environments unless an IP classification is confirmed from manufacturer documentation.

Installation & Handling

Because this fixture weighs approximately 21.5 kg, any elevated installation requires appropriately rated mounting hardware and a structure capable of supporting the complete installed load.

For overhead mounting:

• Use properly rated clamps.

• Use independent secondary retention.

• Verify truss capacity.

• Secure power and DMX cables.

• Keep cooling areas unobstructed.

• Protect the unit from moisture.

Its large physical dimensions also require more clearance than a conventional PAR fixture.

Professional rigging should be carried out by personnel familiar with event-lighting and truss systems.

Stage Retro Lighting in the UAE

Stagify supplies retro lights, LED stage fixtures and event-production equipment for wedding companies, venues, AV contractors and rental businesses across the UAE.

The 7P Retro is positioned for productions where the lighting fixture needs to function as both illumination and visible stage scenery, backed by seven 60W warm-white sources and a large RGB background array.

Contact Stagify for stock availability, multi-unit quantities and help planning a retro-light stage setup.
