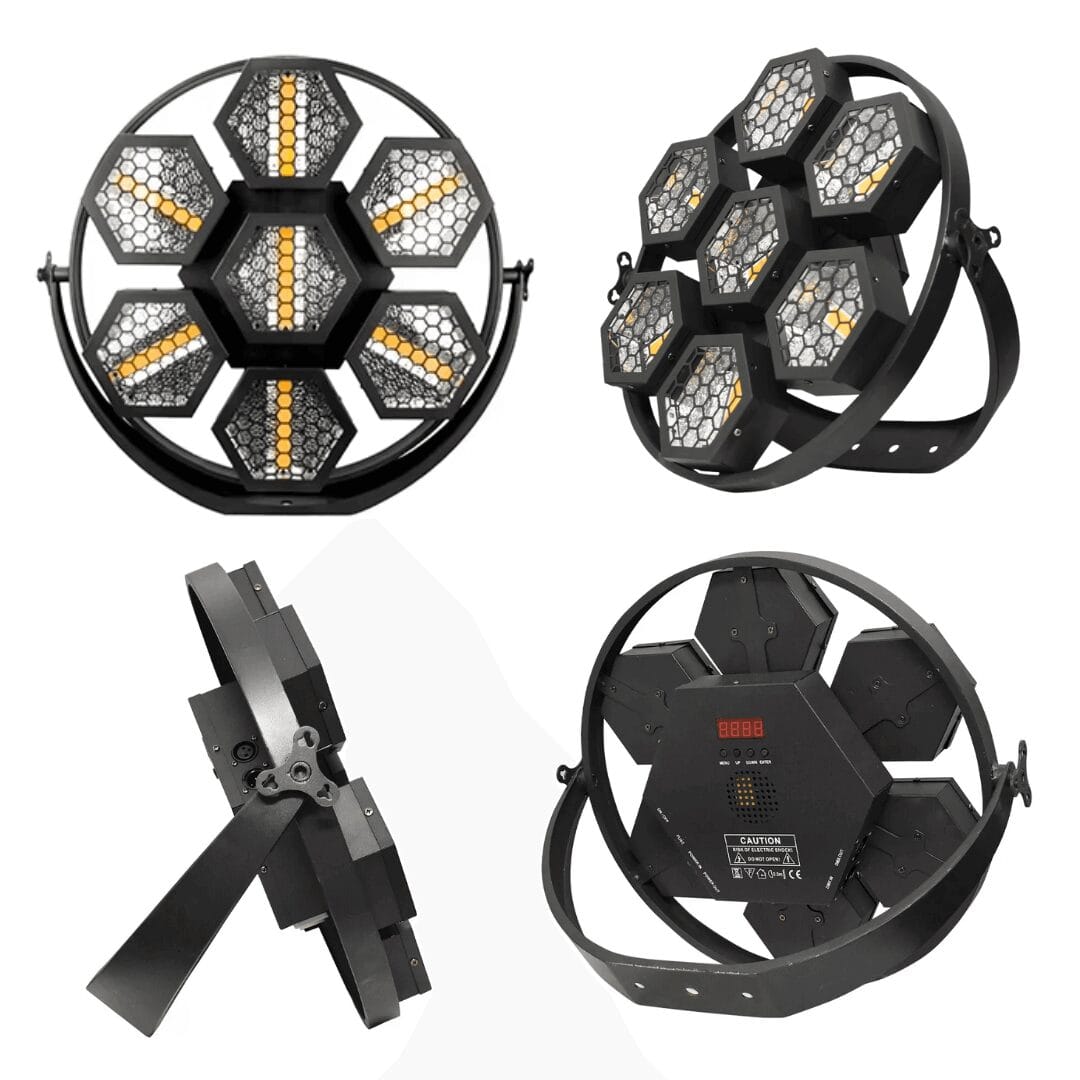

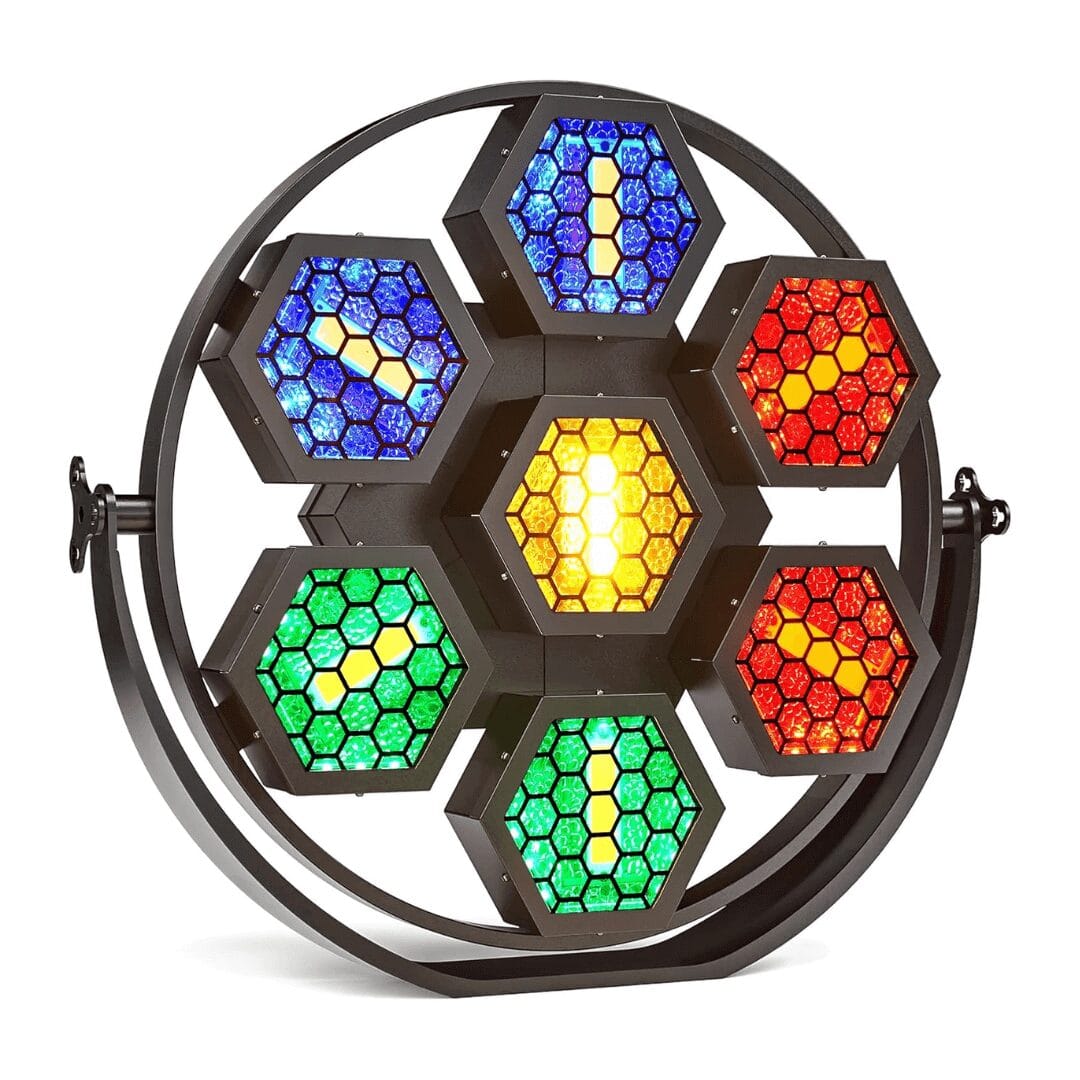

7p LED COB RGBW Par Mini Retro Light

7P LED COB RGBW Par Mini Retro Light

The 7P LED COB RGBW Par Mini Retro Light is a compact 350W scenic stage fixture combining seven 50W warm-white LED sources with 63 RGB effect LEDs. Its retro seven-lamp layout, 8CH/32CH DMX control, sound activation and 1–25Hz strobe make it suited to wedding stages, DJs, bands, concerts and indoor entertainment productions.

Technical Specifications

Seven 50W Retro-Style Light Sources

The visual centre of the Mini Retro is formed by seven 50W high-brightness LED sources arranged in a distinctive multi-cell pattern.

These larger central sources give the fixture its retro character.

Instead of hiding the lighting source inside a conventional PAR housing, the seven illuminated cells are intended to remain visible to the audience as part of the stage scenery.

That makes the fixture particularly effective behind:

• Singers and bands

• Wedding stages

• DJs

• Speakers

• Performers

• Scenic set pieces

• LED screens

The fixture can therefore contribute both illumination and visual design to a production.

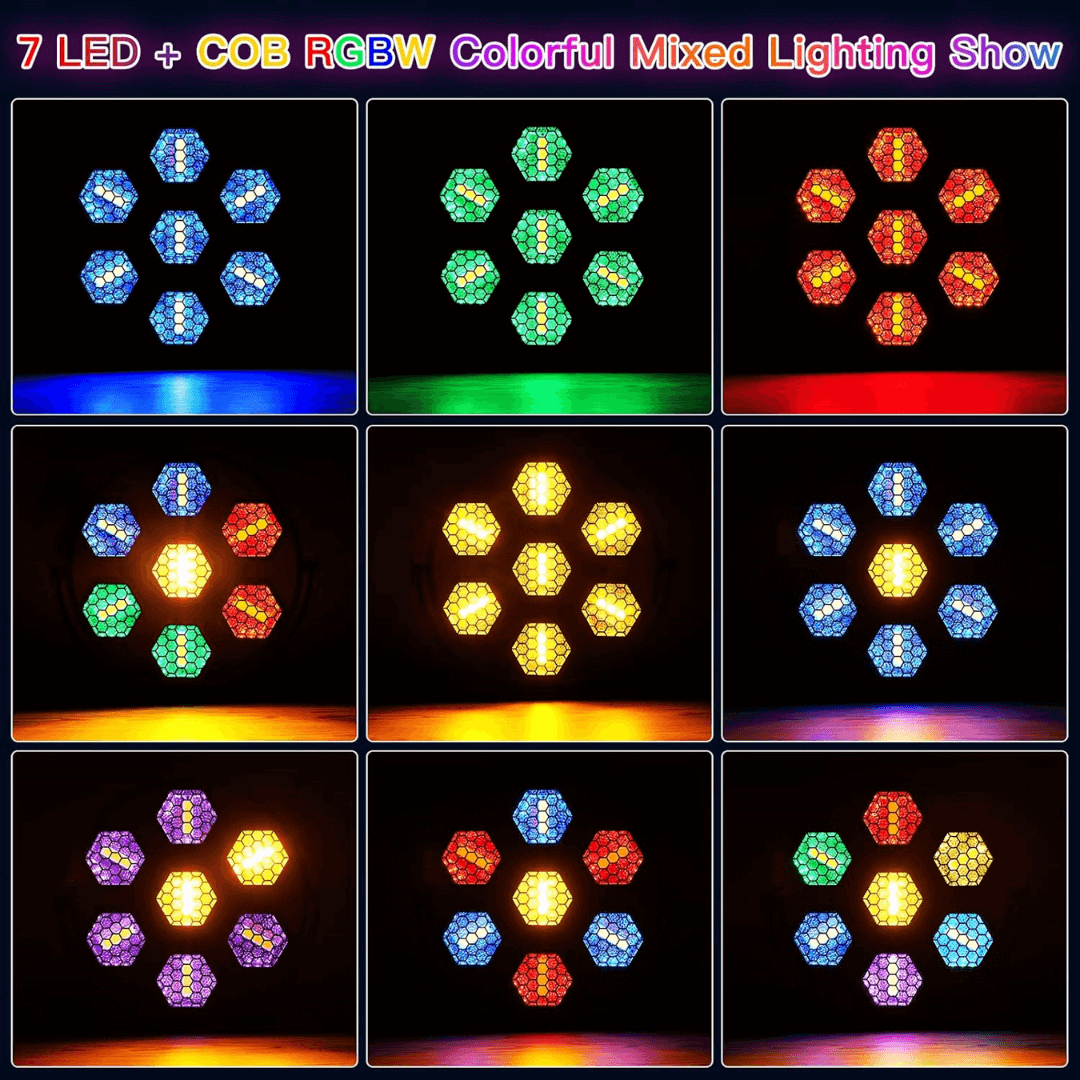

63 RGB LEDs Add a Second Lighting Layer

Surrounding the main light sources are 63 colour-effect LEDs, arranged as nine LEDs around each of the seven primary cells.

These RGB elements add a second visual layer behind the retro-style centre lamps.

Lighting designers can combine the two systems to create:

• Warm central illumination

• Coloured background effects

• Contrasting RGB looks

• Music-responsive sequences

• Strobe effects

• Animated scenic patterns

This dual-source design gives the Mini Retro more visual flexibility than a simple warm-white blinder.

350W Total Fixture Power

The complete fixture is rated at 350W.

This distinguishes the Mini version from the larger full-size 7P Retro fixture, which uses a substantially higher-power platform.

For production electricians, the 350W total figure should be used when calculating connected load.

For example:

• 2 fixtures: approximately 700W

• 4 fixtures: approximately 1.4kW

• 8 fixtures: approximately 2.8kW

Those figures cover the retro fixtures only. Moving heads, LED screens, effects and other stage equipment must also be included when planning the complete event-power system.

Designed as a Compact Scenic Retro Fixture

The word Mini is important to the positioning of this product.

The full-size 7P Retro is designed for large scenic walls and major production stages, while this version provides the same general seven-cell visual concept in a more transport-oriented format.

Its documented packing size is approximately 550 × 520 × 150 mm, with a gross packed weight of around 9 kg.

That makes it easier for mobile production teams to transport several units for:

• Wedding stages

• Band setups

• DJ shows

• Corporate entertainment

• Smaller concert rigs

The supplier does not publish a reliable fixture-only size or net weight, so those specifications should not be guessed from the packaging measurements.

Retro Lighting for Wedding Stage Design

Wedding stages benefit from fixtures that look attractive even when the light itself is visible.

Traditional PAR cans are normally positioned to illuminate décor. A retro fixture can become part of that décor.

The seven-cell arrangement works particularly well:

• Behind the couple's stage

• Beside LED screens

• Around live musicians

• On scenic risers

• Across rear truss

• Around DJ positions

During formal portions of the event, the main warm light sources can contribute to a softer scenic appearance.

During entertainment, RGB effects and strobe functions can create a more energetic look.

Ideal for Live Bands and Musicians

Retro-style lighting is particularly effective behind live musicians because the illuminated face remains visible on camera and to the audience.

Several fixtures can be positioned behind:

• Vocalists

• Guitarists

• Drummers

• Keyboard players

• Acoustic performers

The repeated circular light pattern helps create depth behind performers without relying entirely on an LED video wall.

For smaller live-music setups, two or four Mini Retro fixtures can provide a recognisable stage identity while remaining more transport-friendly than the full-size model.

1–25Hz Strobe Effects

The fixture includes a documented 1–25 flashes-per-second strobe range.

This allows the retro light to move from static scenic illumination into faster music-driven effects.

Strobe can be useful during:

• DJ drops

• Concert transitions

• Dance sections

• Band finales

• Stage reveals

The effect should be used responsibly where audience members or performers may be sensitive to rapid flashing.

For weddings, conferences and slower performances, the fixture can operate without strobe.

8CH DMX Mode for Efficient Programming

The 8-channel DMX mode provides a more economical control option when the fixture needs to share a DMX universe with many other lights.

This can be practical when the retro units are being used mainly as supporting scenic fixtures.

Lower channel consumption is useful for systems containing:

• Moving head beams

• Moving washes

• LED PAR fixtures

• Pixel bars

• Strobes

• Stage effects

The operator can allocate more of the available DMX address space to fixtures that require larger personalities.

32CH Mode for More Detailed Effects

The expanded 32-channel DMX mode provides greater programming flexibility.

This mode is better suited to productions where the Mini Retro itself is an important visual element in the lighting show.

The expanded personality allows more detailed manipulation of the fixture's lighting functions than the simplified mode.

For concerts and music-driven productions, the larger channel mode provides more room for creative programming.

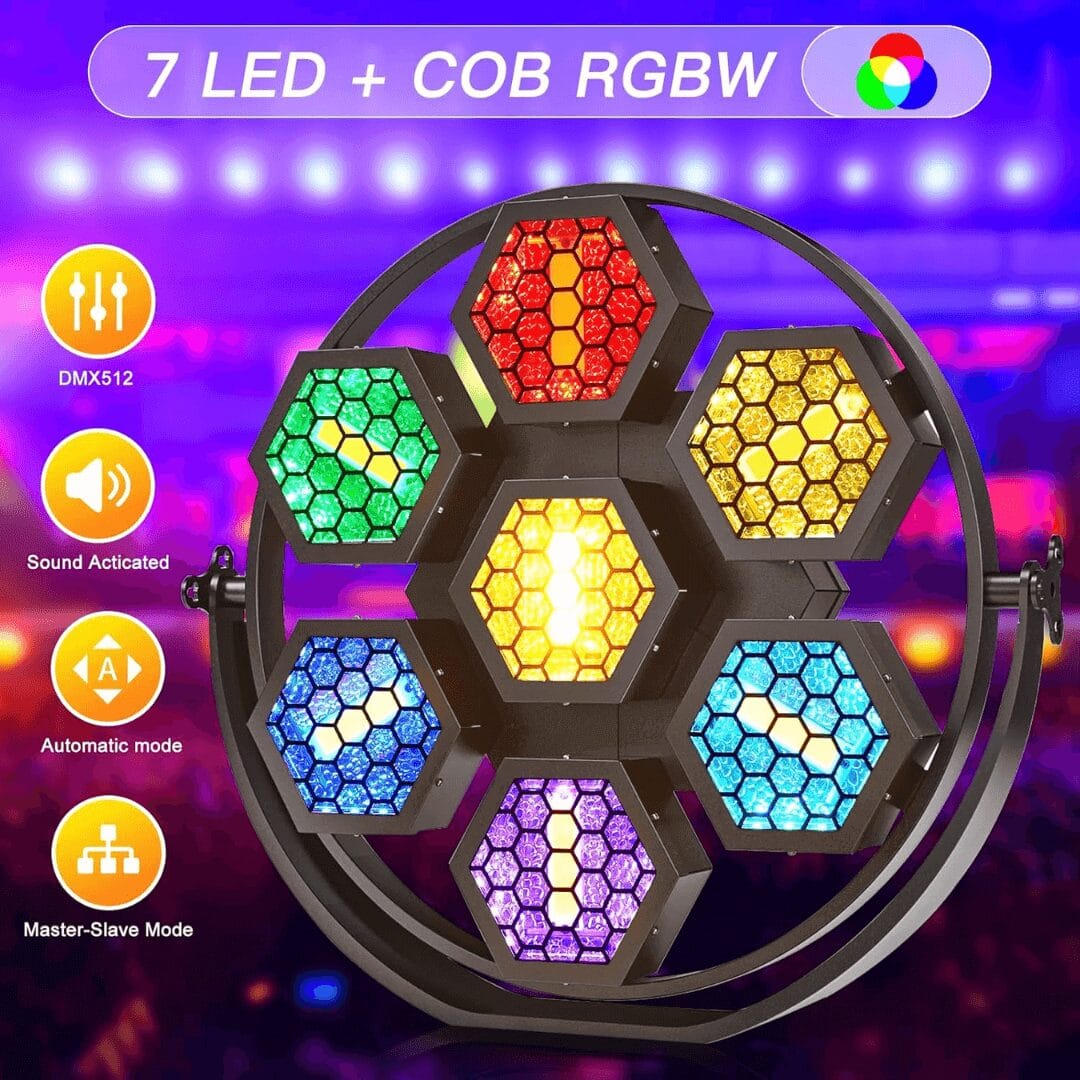

DMX512 Integration

DMX512 allows the Mini Retro to operate as part of a complete professional lighting rig.

A lighting operator can coordinate the fixture with:

• Beam moving heads

• Wash lights

• LED PAR fixtures

• Strobes

• Pixel effects

• Other retro lights

This makes it possible to change the scenic retro lighting at the same moment as the rest of the production.

For example, the retro lights can remain subdued during a speaker introduction and then increase intensity or introduce colour when the entertainment begins.

Automatic Operation

The fixture supports automatic programmes, allowing it to operate without a DMX console.

Auto mode can be useful for:

• Small events

• DJs

• Live bands

• Entertainment venues

• Private functions

This provides a faster setup where precise lighting cues are unnecessary.

For professional shows requiring repeatable transitions and coordination with other fixtures, DMX control provides greater precision.

Sound-Activated Effects

Built-in sound control lets the fixture respond to music.

This is particularly useful for smaller DJ and band applications where the lighting should follow the rhythm without a dedicated lighting operator.

Sound-active operation can provide dynamic effects for:

• Parties

• DJ sets

• Clubs

• Live music

• Wedding entertainment

For corporate events, theatre productions and planned wedding cues, DMX programming remains the more controlled option.

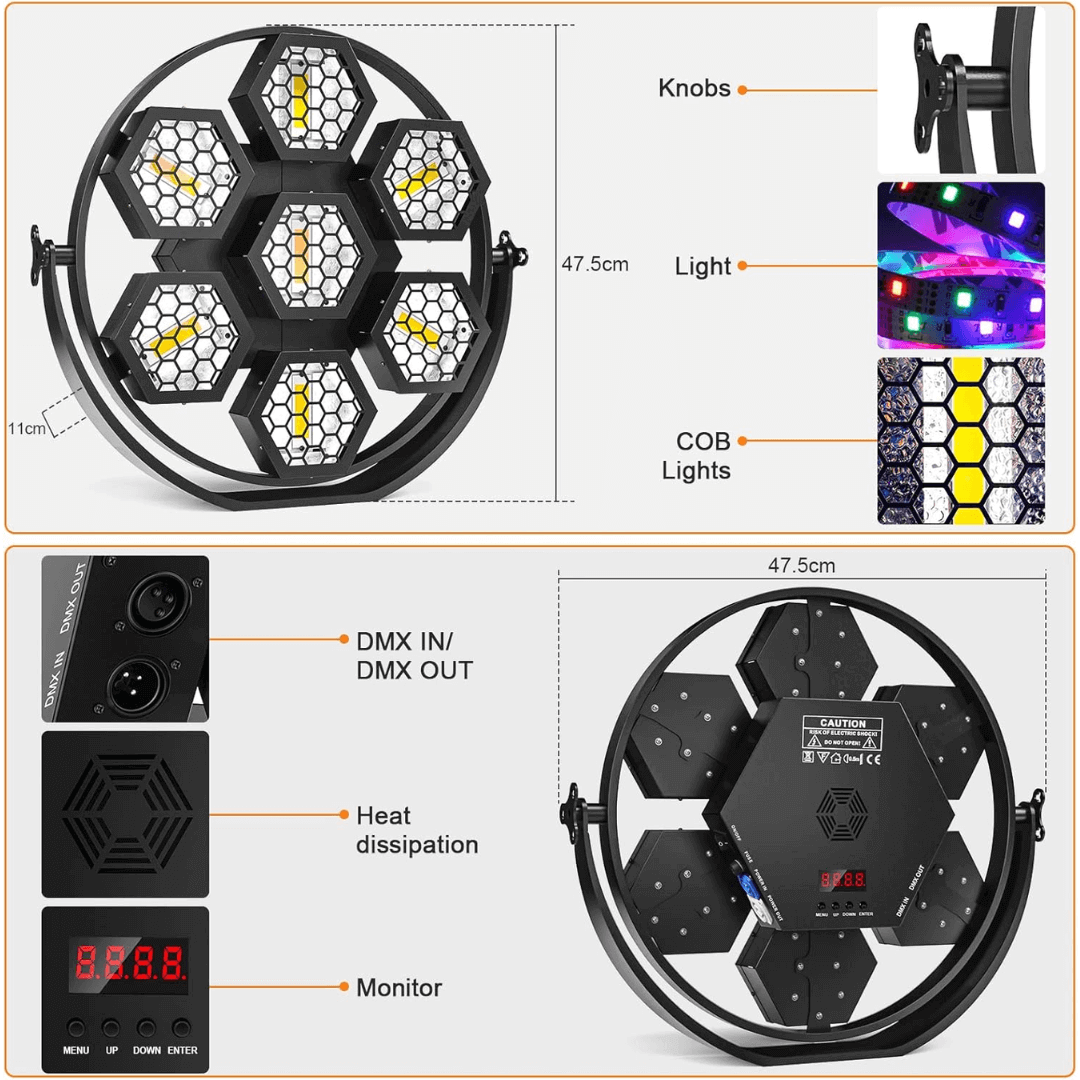

LED Digital Display

A built-in LED digital display provides access to fixture settings.

Technicians can use the display during setup to configure supported parameters such as:

• DMX address

• DMX mode

• Automatic operation

• Sound-control mode

This is useful when several identical fixtures need to be configured before installation.

Metal Heat-Conduction Cooling

The supplier specification lists metal heat conduction as the fixture's heat-dissipation method.

Heat management is important because seven 50W primary LED sources and the surrounding effect LEDs generate thermal load during continuous operation.

To support reliable operation:

• Keep ventilation areas unobstructed.

• Do not cover the fixture with fabric.

• Maintain clearance from scenery.

• Allow cooling before packing.

• Remove accumulated dust periodically.

The documented maximum ambient operating temperature is approximately 45°C.

AC90–240V Wide-Voltage Input

The fixture accepts AC90–240V at 50/60Hz.

This range covers the UAE's standard 220–240V / 50Hz mains supply.

The exact mains plug supplied with Stagify inventory should still be checked before claiming that a UAE Type G plug is included.

Professional event-power distribution should be used when multiple retro fixtures and other stage equipment operate on the same production.

Mini Retro vs Full-Size 7P Retro Light

The Mini and full-size products should not be positioned as interchangeable.

Choose the 7P Mini Retro when:

• Transport space matters

• The production needs several smaller scenic fixtures

• Working with mobile wedding or DJ setups

• Lower individual fixture power is preferred

• A 350W retro platform is sufficient

Choose the full-size 7P Retro when:

• The fixture must create a large scenic presence

• Building a major concert backdrop

• Working on large festival or broadcast stages

• The larger 520W platform is preferred

• Physical scale is part of the visual design

This difference gives each product a separate role within the Stagify catalogue and avoids unnecessary overlap between the sibling pages.

Best For

The 7P Mini Retro is particularly suitable for:

• Wedding stages

• DJs and mobile entertainers

• Live bands

• Concerts

• Parties

• Churches and houses of worship

• Corporate entertainment

• Hotel events

• Small-to-medium indoor stages

• Event-production companies

• Lighting rental businesses

What's Included & Compatibility

Core product:

• 1 × 7P LED COB RGBW Par Mini Retro Light

The fixture can be integrated with compatible:

• DMX512 lighting controllers

• 3-pin DMX cabling

• Aluminium stage truss

• Properly rated lighting clamps

• Independent safety attachments

• Professional event power distribution

• Other DMX stage-lighting fixtures

The supplier does not clearly document the complete package contents.

Power cables, DMX cables, mounting hardware, flight cases and other accessories should only be listed as included after checking actual Stagify inventory.

How Is the Mini Retro Different from the Full-Size 7P Retro?

The Mini version uses a 350W platform and has a documented packed weight of 9 kg.

The full-size sibling uses a substantially larger 520W platform and is intended to create a stronger scenic presence on larger stages.

The Mini is therefore the more practical choice where transport and installation space matter.

How Many Main LEDs Does the Mini Retro Have?

The fixture uses seven 50W high-brightness main LED sources.

These form the visible retro-style cells across the front of the fixture.

How Many RGB Effect LEDs Are Included?

The technical specification lists 63 RGB effect LEDs.

They are arranged as nine colour LEDs around each of the seven main lighting cells.

Is This an RGBW Fixture?

The overall lighting system combines RGB colour effects with separate high-output white main sources.

The supplier's marketing description calls the colour LEDs RGBW 4-in-1, while its technical table describes them as RGB 3-in-1.

Until the physical fixture or manufacturer DMX chart confirms the colour LED construction, Stagify should avoid claiming a dedicated white channel inside each of the 63 small LEDs.

How Many DMX Channels Does It Use?

The documented DMX personalities are:

• 8CH

• 32CH

The appropriate mode depends on the amount of fixture control required and the available DMX address space.

Can It Work Without a DMX Controller?

Yes.

The fixture supports Automatic and Sound-Controlled operation in addition to DMX512.

This makes it suitable for both simple standalone events and console-controlled professional productions.

What Is the Strobe Speed?

The published range is approximately 1–25 flashes per second.

The strobe can be used for music-driven effects during concerts, DJ shows and entertainment segments.

Does It Work on UAE Power?

Yes.

The specified AC90–240V / 50–60Hz range covers UAE 220–240V / 50Hz mains power.

The exact supplied plug type must still be confirmed from the physical Stagify stock.

Can It Be Used Outdoors?

No outdoor IP rating is published for this exact fixture.

It should therefore not be marketed as waterproof or weather-resistant.

Use it in dry, protected environments unless an outdoor protection rating is confirmed by manufacturer documentation.

Installation & Handling Requirements

When the fixture is mounted above people or equipment, use properly rated stage-lighting hardware and an independent secondary safety attachment.

Before operation:

• Check the mounting system.

• Inspect DMX and power connections.

• Keep cooling areas unobstructed.

• Maintain suitable clearance around the fixture.

• Protect the unit from rain and moisture.

• Allow the fixture to cool before packing.

Professional overhead installation should be completed by personnel familiar with stage-lighting and rigging equipment.

Mini Retro Stage Lights in the UAE

Stagify supplies professional retro stage lights, LED PAR fixtures and event-lighting equipment across Dubai and the UAE for wedding companies, DJs, venues, live bands and AV rental businesses.

The 7P Mini Retro is positioned as the more transport-friendly sibling in the range, combining 350W power, seven 50W main LEDs and 63 RGB effect LEDs in a format suited to mobile and medium-scale productions.

Contact Stagify for current availability, multi-unit pricing and help planning a retro-lighting setup for your stage or event.
