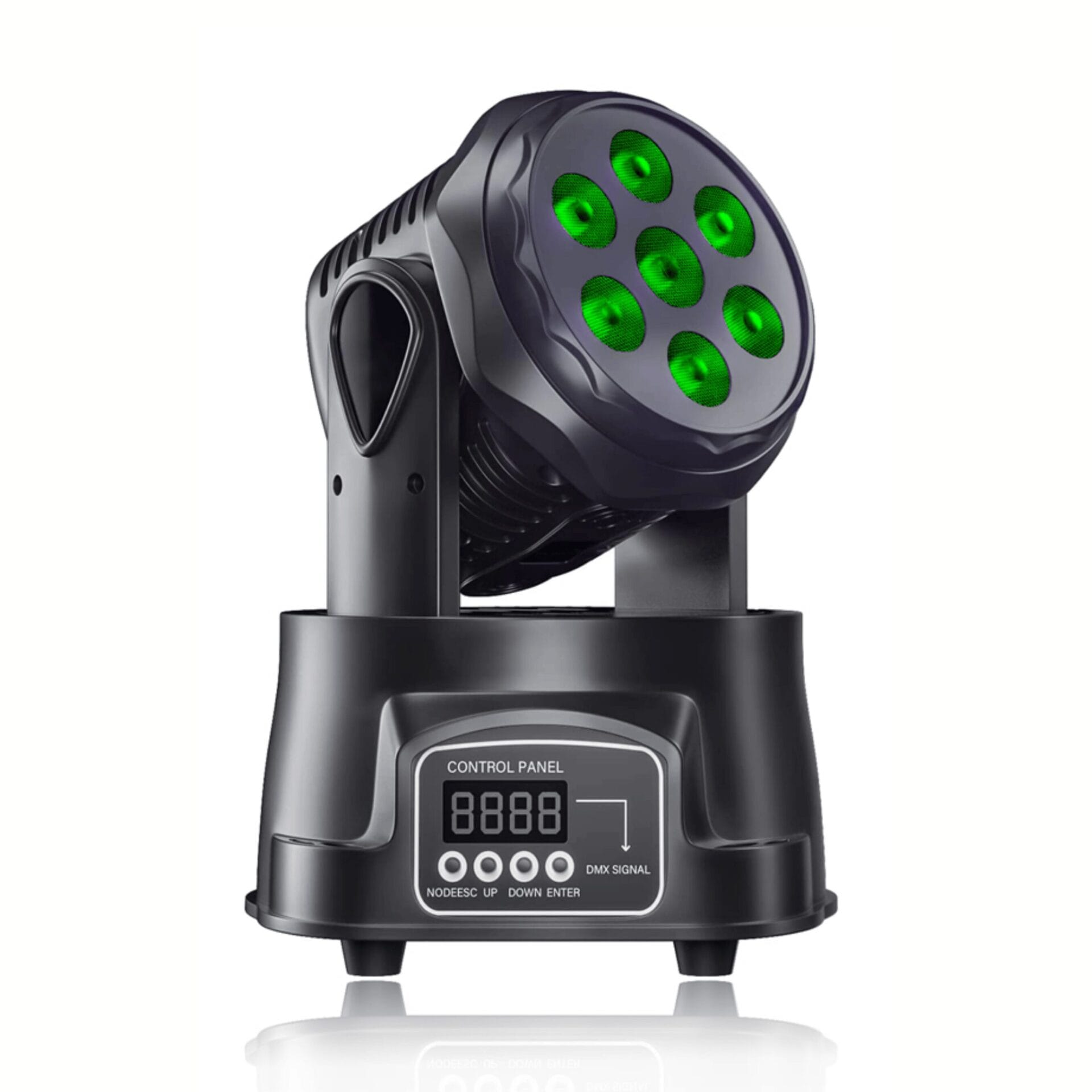

7 LED Moving Head Stage Light

7 LED Moving Head Stage Light for DJ, Wedding & Events UAE

The 7 LED Moving Head Stage Light is a compact RGBW wash fixture built with seven 10W 4-in-1 LEDs for mobile DJs, weddings, clubs and smaller stage productions. It combines a 25° beam, 4,100 lux output at 1 metre, 540° pan, 180° tilt and 9/14-channel DMX control in a lightweight moving-head format.

Technical Specifications

Seven 10W RGBW LEDs in a Compact Moving Head

The fixture uses seven 10W RGBW 4-in-1 LEDs arranged behind a compact optical face.

Each LED combines:

• Red

• Green

• Blue

• White

The dedicated white component gives the fixture more flexibility than a basic RGB moving head.

It can produce saturated entertainment colours, lighter mixed tones and white output from the same fixture, making it suitable for events where the visual style changes throughout the programme.

A wedding production can use softer RGBW combinations during formal sections, then switch to faster colour and movement effects during the reception or DJ set.

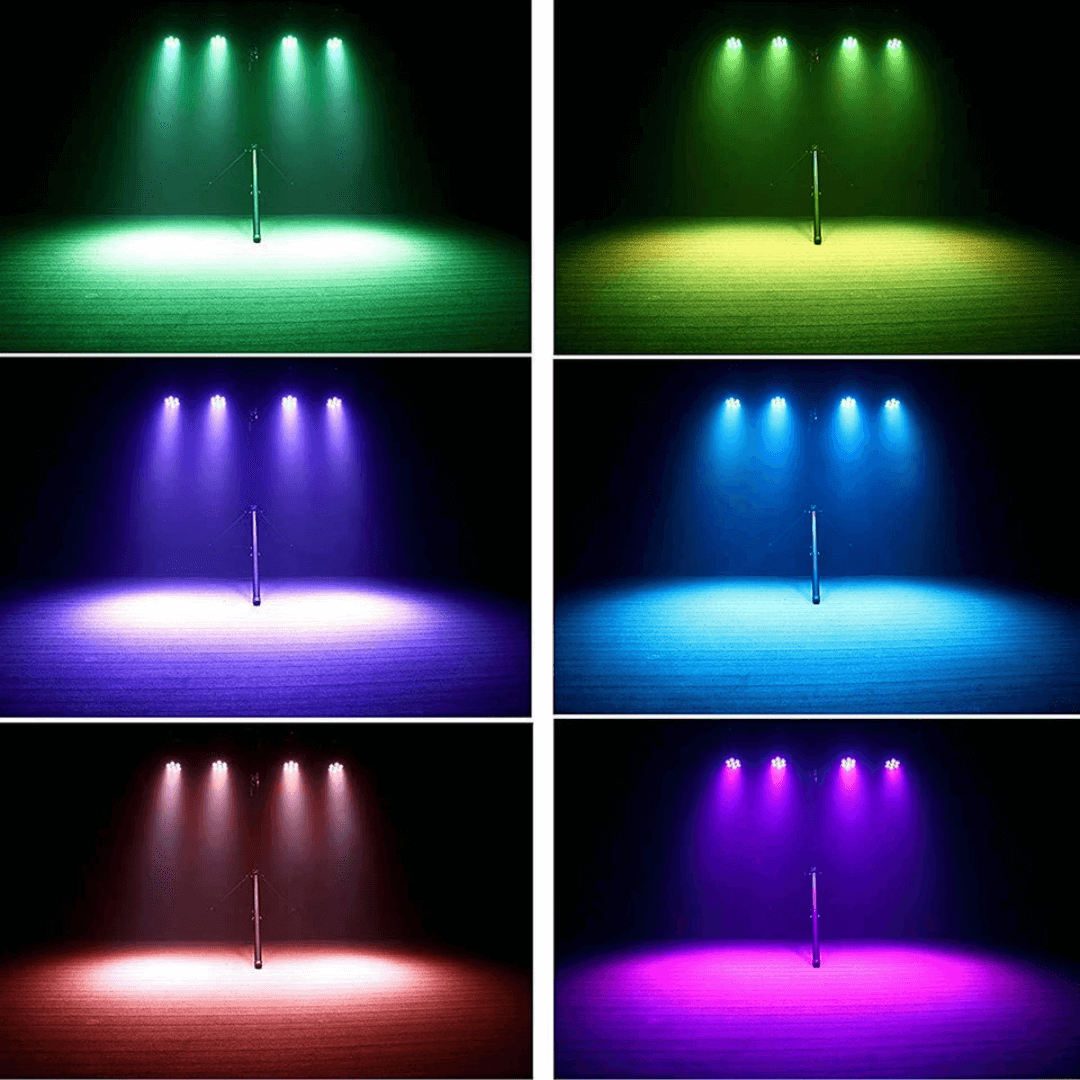

25° Beam for Focused Wash Coverage

The documented 25° beam angle places this fixture between a very narrow beam effect and a broad static wash.

It provides enough spread to colour performers, backdrops and dance-floor areas while retaining a more defined output than a wide-angle PAR fixture.

Typical applications include:

• Small and medium stages

• DJ booths

• Wedding backdrops

• Dance floors

• Club installations

• Performance areas

• Event décor

Several fixtures can be positioned across truss or lighting stands to create moving colour coverage throughout a venue.

4,100 Lux at 1 Metre

The supplier specifies approximately 4,100 lux at 1 metre.

This hard output figure gives production teams a more useful reference than general terms such as “bright” or “high output.”

Illuminance naturally falls as the fixture is moved farther away from the target, so actual performance will depend on mounting distance, ambient lighting and the colour combination being used.

The light is best positioned as a compact event wash rather than a long-throw concert beam.

RGBW Colour Mixing for Different Event Styles

The four-colour LED system allows red, green, blue and white output to be mixed according to the required stage look.

This gives operators flexibility for:

• Wedding themes

• Corporate colour schemes

• DJ performances

• Club lighting

• Dance shows

• Small concerts

• Private events

White can be used independently or blended with RGB values to produce lighter colour combinations.

For decorative applications, slower colour changes can provide a controlled backdrop.

For entertainment, colours can be combined with movement and strobe effects to create a more active show.

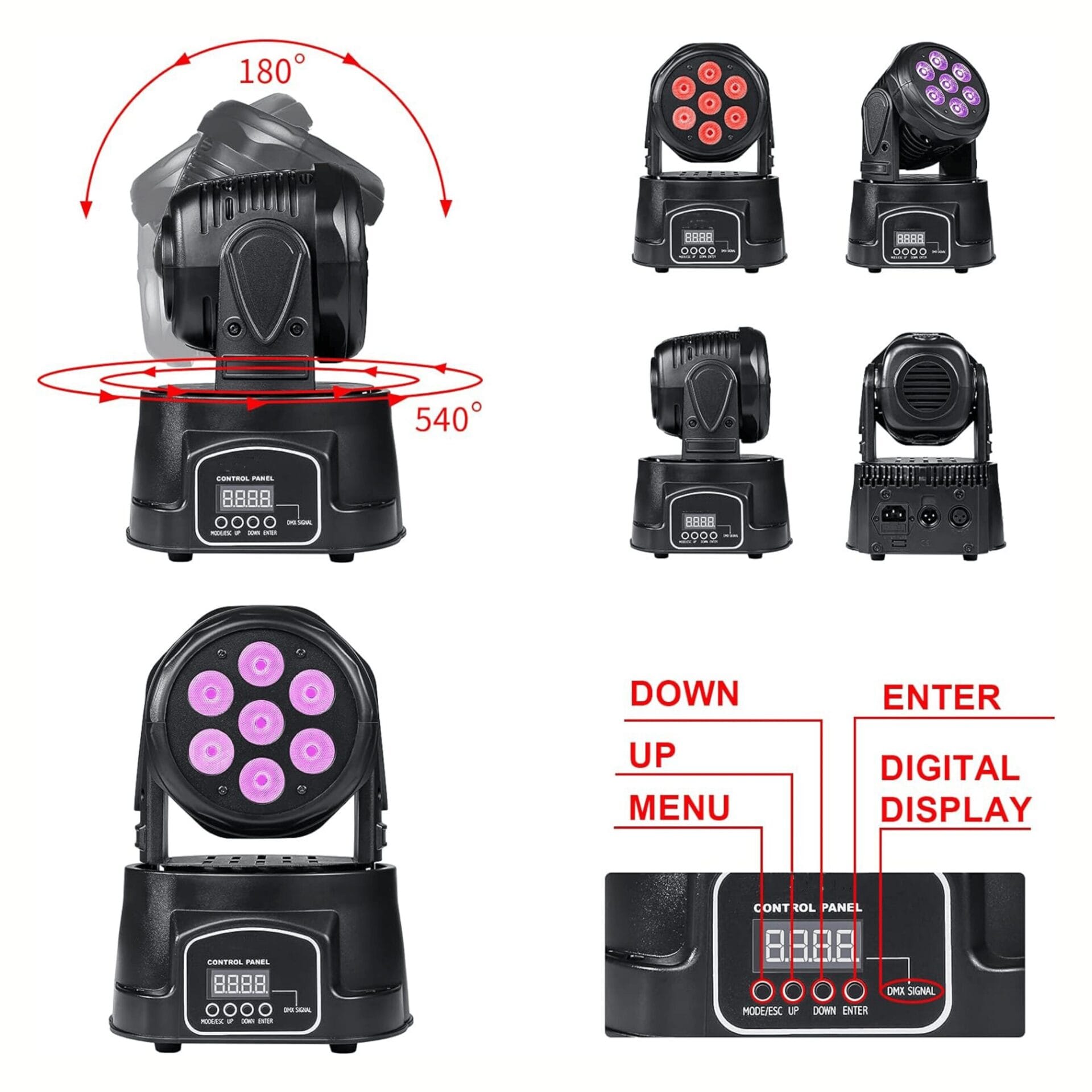

540° Pan Movement

The motorised head provides 540° horizontal pan movement.

This allows the fixture to redirect its wash across a wide area without technicians physically repositioning the unit.

With multiple fixtures, operators can programme:

• Opposing sweeps

• Mirrored positions

• Crossing movement

• Symmetrical stage looks

• Slow venue scans

• Fast DJ movement

Pan movement becomes particularly useful when fixtures are installed above a stage because one mounting position can serve several lighting directions during the same programme.

180° Tilt Movement

Vertical movement is approximately 180°.

Combined with 540° pan, this provides enough range for compact stage, ballroom and DJ applications.

The light can move between areas such as:

• Stage centre

• Backdrops

• Side-stage positions

• Dance floors

• DJ areas

• Scenic elements

Unlike larger professional moving heads with wider tilt ranges, this compact model is intended for smaller rigs where portability and straightforward operation are priorities.

9CH and 14CH DMX Control

The fixture supports 9-channel and 14-channel DMX modes.

Two channel personalities allow operators to choose the configuration that best suits the lighting system.

The lower-channel mode is useful where:

• DMX address space is limited

• Programming needs to remain simple

• Several fixtures are being controlled

The expanded mode provides access to additional supported parameters.

DMX512 makes the moving head suitable for integration with other professional fixtures rather than operating only as an independent DJ light.

Integrates with Professional DMX Systems

A compatible lighting console can coordinate the fixture with:

• LED PAR lights

• Moving head beams

• Moving wash fixtures

• Strobes

• Pixel bars

• Stage effects

This allows colour, intensity and movement cues to be programmed as part of a complete show.

For weddings, a console operator can create dedicated looks for entrances, first dances and entertainment sections.

For DJ and club use, faster movement and strobe sequences can be stored and recalled when required.

IR Remote Control for Simple Setups

The fixture supports IR remote operation, providing an easier control option for installations that do not require a professional lighting desk.

Remote operation can be useful for:

• Mobile DJs

• Small private events

• Home functions

• Small venues

• Quick lighting setups

The exact remote supplied with Stagify inventory should be checked before it is listed as included in the standard package.

DMX remains the preferred option where precise repeatable lighting cues are required.

Automatic Standalone Operation

Automatic operation allows the fixture to run built-in lighting behaviour without external DMX programming.

This makes setup simpler for smaller events where the main requirement is moving colour rather than a completely programmed production.

Auto mode can be useful for:

• DJs

• Parties

• Bars

• Small clubs

• Entertainment spaces

For professional stage use, DMX control provides more consistency and coordination.

Master-Slave for Multiple Fixtures

Master-Slave operation allows multiple compatible 7 LED moving heads to follow one fixture's programme.

This can simplify coordinated installations using:

• Two fixtures beside a DJ booth

• Four units across a wedding stage

• Multiple lights around a dance floor

• Matching lights in a small venue

For more creative movement and independent colour control, each fixture can instead be individually addressed from a DMX console.

1–25Hz Strobe Effects

The fixture includes a documented 1–25Hz strobe function.

Strobe can be introduced during:

• DJ drops

• Dance performances

• Concert transitions

• Stage reveals

• Club sequences

Because strobe is integrated into the moving head, smaller rigs can create flashing effects without installing a separate strobe fixture at every position.

Rapid flashing should be used responsibly around audiences who may be sensitive to strobe lighting.

0–100% Electronic Dimming

Electronic dimming provides 0–100% intensity control.

This allows the fixture to operate at lower levels during formal parts of an event and increase output during entertainment.

For example:

Guest arrival: lower RGBW wash levels.

Wedding ceremony: softer controlled lighting.

Speeches: reduced intensity.

DJ set: brighter colours, movement and strobe.

The same fixtures can therefore stay installed throughout the programme while their visual role changes.

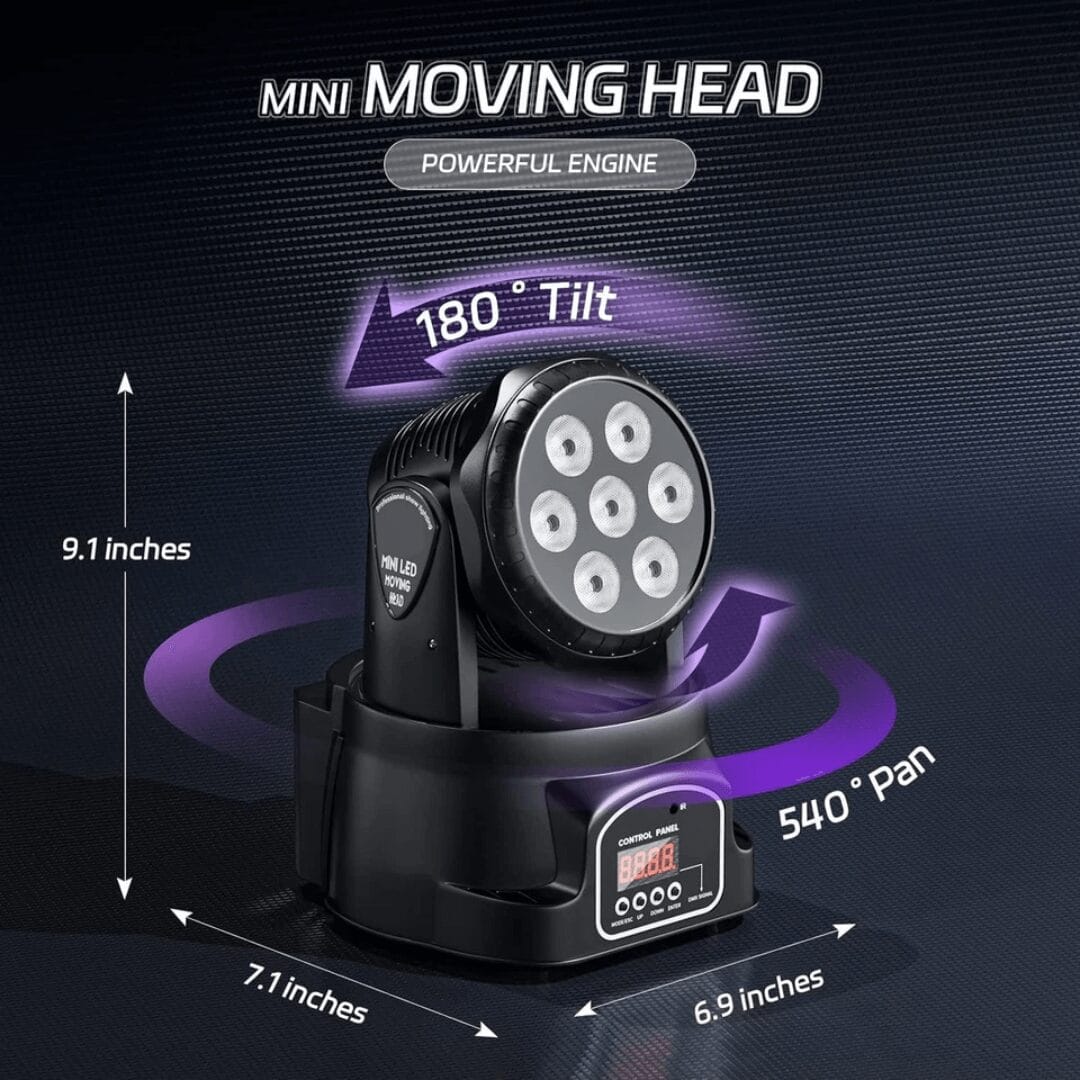

Compact Size for Mobile Event Production

The published fixture dimensions are approximately 180 × 173 × 239 mm, making this significantly smaller than many full-size moving heads.

That compact footprint is useful for mobile production businesses because multiple units can take up less:

• Vehicle space

• Storage space

• Stage area

• Flight-case capacity

The supplier also publishes a low single-fixture weight, making this model particularly relevant for lightweight DJ and small-event rigs.

PVC Housing

The housing is specified as PVC.

This contributes to the light weight and compact construction but also means the fixture should be treated differently from heavy-duty metal touring moving heads.

For mobile use:

• Protect the unit during transport.

• Avoid stacking heavy equipment directly on the fixture.

• Use suitable protective cases.

• Inspect the base and moving mechanism regularly.

This model is best positioned for mobile entertainment and lighter production duties rather than claiming the road-case durability of a large touring fixture.

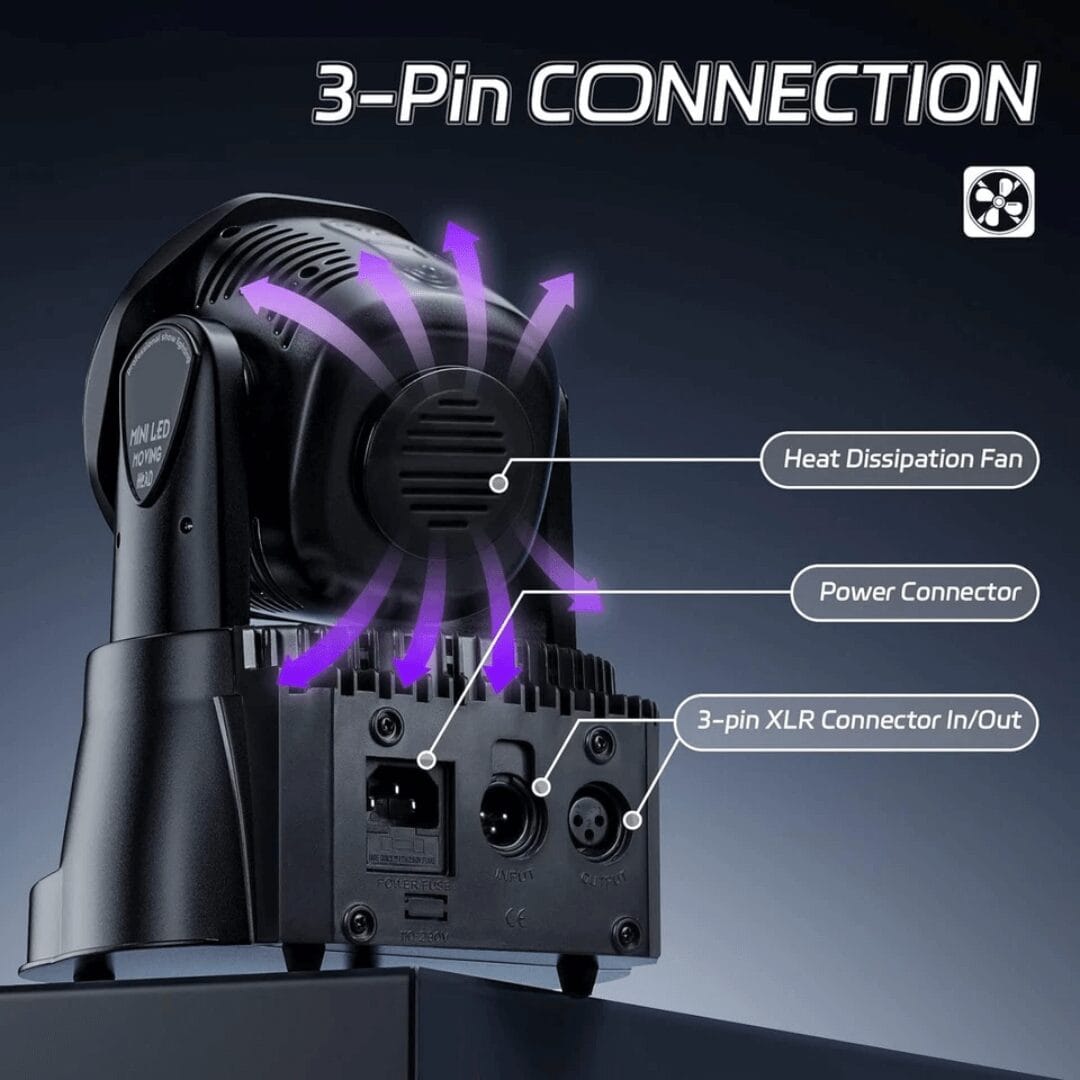

AC100–240V for UAE Event Power

The fixture accepts AC100–240V at 50/60Hz.

This input range covers UAE 220–240V / 50Hz mains power.

The actual plug supplied with Stagify stock should still be checked before stating that a specific UAE Type G plug is included.

Professional event systems should use suitable power distribution rather than relying on overloaded domestic extension boards when several stage lights are installed.

IP20 Indoor Fixture

The documented protection rating is IP20.

This means the moving head is intended for dry indoor locations.

Suitable environments include:

• Hotel ballrooms

• Wedding venues

• Nightclubs

• Indoor stages

• Bars

• Event halls

• DJ venues

• Small theatres

The fixture should not be exposed to rain, splashing water or uncontrolled moisture.

For exposed outdoor events, use a moving head with a verified weather-resistant IP rating.

Best For

The 7 LED Moving Head Stage Light is particularly suitable for:

• Mobile DJs

• Wedding stages

• Hotel ballrooms

• Nightclubs and bars

• Dance floors

• Private parties

• Small concert stages

• School performances

• Houses of worship

• Small theatres

• Event-production companies

• Lighting rental businesses

What's Included & Compatibility

Confirmed core product:

• 1 × 7 LED Moving Head Stage Light

The fixture is designed to work with compatible:

• DMX512 lighting controllers

• IR remote control

• DMX signal cables

• Stage-lighting stands

• Aluminium stage truss

• Properly rated lighting clamps

• Independent secondary safety cables

• Professional event power systems

Do not list a remote, clamp, power cable, DMX cable or carrying case as included until the actual Stagify package contents are confirmed.

Is This a Beam or Wash Moving Head?

This fixture is best described as a compact RGBW moving wash.

Its 25° beam provides wider colour coverage than the narrow optics normally associated with dedicated beam moving heads.

How Many LEDs Does the Moving Head Have?

It uses 7 × 10W RGBW 4-in-1 LEDs.

Each LED provides red, green, blue and white colour components.

How Bright Is the 7 LED Moving Head?

The supplier specifies approximately 4,100 lux at 1 metre.

Actual illuminance on a stage decreases as the distance between the fixture and the target increases.

What Is the Beam Angle?

The documented beam angle is 25°.

This makes the fixture suitable for compact stage washes, backdrops and dance-floor lighting.

How Many DMX Channels Does It Use?

The fixture supports 9CH and 14CH DMX modes.

This allows operators to choose between two programming configurations depending on the console and show requirements.

Does It Have a Remote Control Function?

Yes.

IR remote control is listed as a supported operating method.

The physical Stagify package should be checked before the remote itself is advertised as included.

Can It Work Without a DMX Controller?

Yes.

Automatic, standalone and Master-Slave operation are confirmed, so the fixture can be used without a dedicated console.

DMX is recommended when exact movement and colour cues are needed.

Does It Have Sound Activation?

A matching ZQ02018 7×10W RGBW platform documents sound-activated operation, but the exact supplier specification does not list sound mode.

Stagify should therefore confirm this function on the physical unit before advertising it.

Is It Suitable for Weddings?

Yes.

Its compact size, RGBW colour mixing and moving wash output make it useful for wedding stages, ballroom entertainment and dance-floor lighting.

Can It Be Used Outdoors?

Not in exposed weather.

The fixture is rated IP20 and should remain protected from rain and moisture.

Does It Work on UAE Power?

Yes.

The specified AC100–240V, 50/60Hz input range covers UAE 220–240V / 50Hz mains supply.

The supplied plug type still needs physical confirmation.

Installation & Safety Requirements

When mounting the moving head overhead, use properly rated professional hardware.

Before operation:

• Use a suitable lighting clamp.

• Add an independent secondary safety cable.

• Check the mounting structure.

• Maintain clearance for 540° pan and 180° tilt.

• Prevent cables from obstructing movement.

• Keep the fixture dry.

• Keep ventilation areas unobstructed.

• Disconnect power before servicing.

Avoid looking directly into the LED output at close range.

Professional overhead installations should be completed by personnel familiar with stage-lighting and rigging equipment.

Compact Moving Head Lighting in the UAE

Stagify supplies professional moving head lights, LED stage lighting and event-production equipment across Dubai and the UAE for DJs, wedding companies, venues, AV businesses and rental operators.

This compact 7×10W model is particularly useful where buyers need RGBW colour mixing, 25° wash coverage, DMX control and motorised movement without the size of a full-scale touring fixture.

Contact Stagify for current availability, quantity pricing and help matching moving heads with DMX controllers, truss and mounting accessories.
