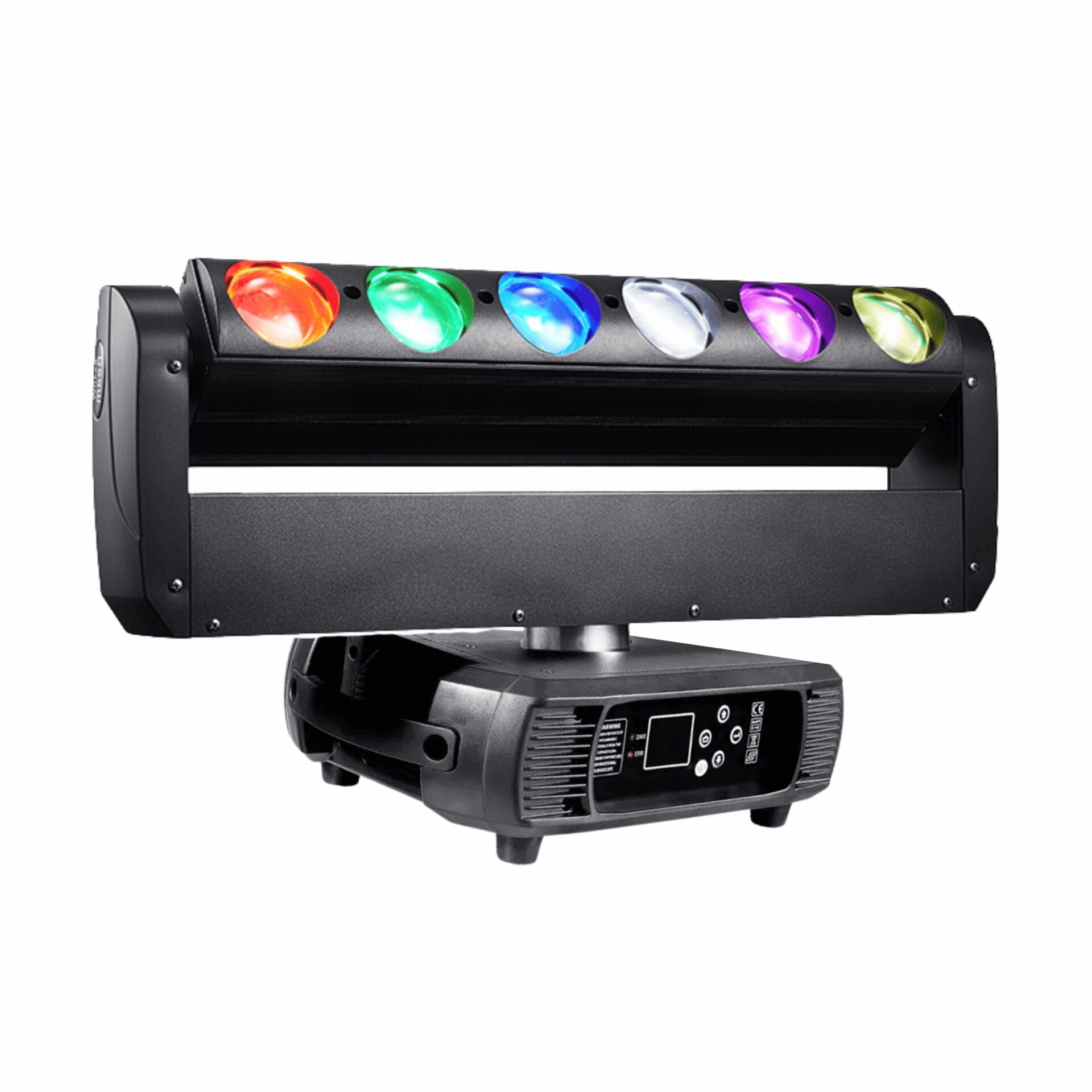

6x40w LED Moving Head Light 4 in 1

6x40W LED Moving Head Light 4 in 1 for Stage Events UAE

The 6x40W LED Moving Head Light 4 in 1 combines six high-output RGBW LEDs with continuous X-axis rotation, 230° Y-axis movement and professional DMX/RDM control. With 340W total power, 17/37-channel programming and smooth 32-bit dimming, it is designed for weddings, concerts, clubs, DJ stages and professional event productions.

Technical Specifications

Six 40W RGBW LEDs for Strong Multi-Colour Output

The fixture uses six 40W RGBW 4-in-1 LEDs, providing a combined LED source capacity of 240W within a 340W moving-head system.

Each 4-in-1 LED integrates:

• Red

• Green

• Blue

• White

The dedicated white component gives programmers an additional neutral output instead of creating every lighter colour through RGB mixing alone.

This makes the fixture useful for productions that move between saturated entertainment colours and cleaner white stage looks during the same event.

Wedding productions, for example, can use softer white or mixed tones for formal sections before changing to stronger RGB effects during entertainment.

Continuous X-Axis Rotation Creates Uninterrupted Movement

One of the defining functions of this fixture is its continuous X-axis rotation.

Unlike a conventional moving head that stops at a fixed pan limit and then reverses direction, the horizontal movement can continue rotating to create flowing visual effects.

This is particularly effective for:

• DJ performances

• Concert transitions

• Club lighting

• Wedding entertainment

• Stage reveals

• Dance productions

• Music-driven shows

Continuous motion also changes the visual character of the fixture itself, making it useful where the moving body is visible as part of the stage design.

0–230° Y-Axis Movement

Vertical movement covers approximately 0–230°, giving the fixture a wide scanning range across the stage and surrounding environment.

The combination of vertical movement and continuous horizontal rotation allows programmers to produce effects such as:

• Circular movement

• Sweeping beams

• Crossing patterns

• Repeated stage scans

• Rotating aerial effects

• Mirrored multi-fixture movement

When several fixtures are positioned across a truss, different movement directions can be combined to create a much larger visual composition.

RGBW Colour Mixing for Weddings, Clubs and Concerts

RGBW colour mixing gives operators direct control over four colour components.

The fixture can create:

• Saturated red, green and blue

• Clean white output

• Mixed RGBW colours

• Pastel-style combinations

• Music-driven colour changes

• Fast stage transitions

For corporate or wedding events, slower colour changes can complement scenic design and décor.

During concerts or DJ performances, faster changes can be combined with continuous movement and flashing effects for a more energetic look.

340W Complete Fixture Power

The documented total electrical power is 340W.

This is higher than the combined nominal 240W LED-source rating because the complete fixture also powers:

• Movement motors

• Cooling system

• Control electronics

• Internal power supplies

• Display and communication electronics

This distinction is important when calculating temporary event-power requirements.

Electrical planning should use the 340W complete fixture rating, not simply six LEDs multiplied by 40W.

32-Bit 0–100% Linear Dimming

The moving head provides 32-bit 0–100% linear dimming for precise intensity control.

Smooth dimming is useful when a fixture needs to work across different stages of an event rather than remaining at maximum output.

For example:

Guest arrival: lower-level ambient effects.

Wedding ceremony: controlled movement and softer output.

Corporate presentation: restrained lighting.

DJ set or live show: stronger colour, movement and flash effects.

Fine dimming also helps multiple fixtures fade together more consistently during programmed transitions.

17CH and 37CH DMX Modes

The fixture supports 17-channel and 37-channel DMX configurations.

Two personalities give programmers flexibility depending on the complexity of the lighting rig.

The lower-channel mode is useful when:

• DMX address space is limited

• Fast programming is required

• Several fixtures need simple coordinated control

The expanded mode is better when the production requires access to more detailed fixture functions.

For professional events, the appropriate channel mode should be selected before addressing and programming multiple units.

DMX512 for Professional Lighting Control

DMX512 support allows the moving head to integrate into a complete stage-lighting system.

From a compatible console, the lighting operator can coordinate supported parameters alongside other fixtures such as:

• Beam moving heads

• Wash lights

• LED PAR fixtures

• Strobes

• Pixel lights

• Effect fixtures

This makes the 6×40W model practical for professional AV and event companies that need fixtures to operate as part of a programmed show rather than as independent effects.

RDM Remote Device Management

The fixture also supports RDM, extending a compatible DMX network with two-way communication.

With suitable RDM equipment, technicians can remotely access supported configuration information without physically reaching every fixture.

This is particularly useful when lights are mounted:

• High on stage truss

• Above LED screens

• Across ballroom grids

• In permanent club installations

RDM capability can reduce setup time when larger quantities of fixtures are deployed.

Auto Mode for Standalone Operation

The moving head can operate without a DMX console using its built-in automatic mode.

This provides a practical option for smaller events and installations that do not require detailed show programming.

Auto operation can be useful for:

• Small parties

• DJs

• Clubs

• Entertainment venues

• Temporary event setups

For productions that require exact timing, fixture positions and coordinated effects, DMX control provides considerably more precision.

Sound-Activated Lighting Effects

A built-in sound-activated mode allows the fixture to react to music.

This can be useful for club, DJ and party applications where lighting effects need to follow the energy of the soundtrack without a dedicated lighting operator.

Sound mode is particularly practical for smaller setups.

For weddings, concerts and corporate shows with planned cues, console-based DMX programming remains the preferred control method.

Master-Slave for Multiple Fixtures

Master-Slave operation allows several compatible fixtures to run coordinated effects without individually programming each unit from a console.

This can simplify setups using two or more identical moving heads.

Typical arrangements include:

• Matched fixtures beside a DJ booth

• Four units across a wedding stage

• Multiple heads on rear truss

• Club lighting installations

For independent movements and more complex stage designs, each fixture can instead be individually addressed through DMX.

Air Cooling for High-Power LED Operation

Six 40W LED modules, motor systems and control electronics generate heat during operation.

The fixture therefore uses an air-cooling system to manage its internal operating temperature.

For reliable operation:

• Keep ventilation openings clear

• Do not cover the fixture with fabric

• Maintain clearance from scenery

• Remove accumulated dust periodically

• Allow cooling before maintenance

Good airflow becomes particularly important when several fixtures are operating continuously during long events.

Steel and Plastic Fixture Construction

The documented housing combines a steel structure with plastic exterior components.

This construction supports the movement mechanism and internal electronics while keeping the design suitable for professional event applications.

Rental fixtures should still be handled carefully during transport because repeated impact can affect movement alignment, connectors and internal optical components.

A correctly fitted flight case is recommended for equipment that moves frequently between venues.

IP20 for Indoor Stage Applications

The fixture carries an IP20 protection rating.

It should therefore be treated as an indoor stage light and protected from:

• Rain

• Water spray

• Uncontrolled moisture

• Exposed outdoor weather

Suitable environments include:

• Wedding ballrooms

• Indoor stages

• Nightclubs

• Theatres

• Concert halls

• Exhibition venues

• Event halls

• DJ venues

For exposed outdoor UAE events, use a moving head with a verified outdoor IP rating.

Wide AC100–240V Power Input

The fixture accepts AC100–240V at 50/60Hz.

This range covers standard UAE 220–240V / 50Hz mains power.

The wide-voltage input also makes the fixture suitable for professional rental operations where equipment may be deployed in different markets.

The exact plug fitted to Stagify stock should be confirmed before the product page states a specific plug type.

Best For

The 6x40W moving head is especially suitable for:

• Wedding stages and ballroom events

• DJ performances

• Nightclubs and discos

• Concert productions

• Theatre stages

• Corporate entertainment

• Exhibition events

• Dance performances

• Event-production companies

• AV installers

• Professional lighting rental companies

What's Included & Compatibility

Core product:

• 1 × 6x40W RGBW Moving Head Light

Compatible with professional systems including:

• DMX512 lighting consoles

• RDM-compatible control systems

• Aluminium stage truss

• Rated moving-head clamps

• Independent safety cables

• Professional DMX cabling

• Event power distribution systems

• Haze equipment for visible aerial effects

Only accessories physically supplied with the Stagify SKU should be listed as standard package contents.

What Does 4 in 1 Mean on This Moving Head?

“4 in 1” refers to the RGBW LED technology.

Each main LED combines red, green, blue and white output within one source, allowing broader colour mixing and dedicated white output.

How Many LEDs Does the Fixture Use?

The main light source consists of 6 × 40W RGBW 4-in-1 LEDs.

These are the primary high-output LEDs responsible for the moving beam and colour effects.

Does the Moving Head Rotate Continuously?

Yes. The documented X-axis movement is unlimited or continuous rotation.

The Y-axis has a defined movement range of approximately 0–230°.

How Many DMX Channels Does It Have?

The fixture supports 17CH and 37CH DMX modes.

This lets programmers choose between a more compact DMX personality and an expanded control mode.

Does It Support RDM?

Yes.

RDM support is included, allowing compatible systems to communicate supported device information and settings through the lighting-control network.

Can It Work Without a DMX Console?

Yes.

The fixture supports Automatic, Sound-Activated and Master-Slave modes in addition to professional DMX control.

Is It Suitable for Wedding Stage Lighting?

Yes.

The RGBW source, continuous movement and dimming functions make the fixture useful for wedding stages where the programme may require both controlled scenic colour and faster entertainment effects.

Can It Be Used Outdoors?

Not where it is exposed to weather.

The fixture is rated IP20, so it should be installed in dry indoor conditions. Use an appropriately IP-rated fixture for exposed outdoor events.

Does It Work on UAE Electrical Power?

Yes. The specified AC100–240V, 50/60Hz input includes UAE 220–240V / 50Hz mains power.

The supplied plug type should be confirmed from the physical Stagify stock before publication.

Installation & Safety Requirements

Because this is a motorised moving fixture, sufficient clearance must be maintained around the head throughout operation.

For overhead installations:

• Use properly rated truss and clamps.

• Use an independent secondary safety cable.

• Keep power and DMX cables away from rotating parts.

• Ensure surrounding fixtures do not obstruct movement.

• Keep cooling vents unobstructed.

The fixture's continuous X-axis rotation means cable routing is particularly important around the installation area.

Professional overhead installation should be completed by personnel familiar with stage-lighting and rigging systems.

Professional RGBW Moving Head Lighting in the UAE

Stagify supplies professional moving head lights, stage effects and event-lighting equipment across Dubai and the UAE for production companies, venues, DJs, AV contractors and lighting rental businesses.

This 6×40W fixture is particularly useful when a lighting design needs RGBW colour, continuous horizontal movement, flexible DMX programming and RDM support from one professional moving-head effect.

Contact Stagify for current availability, project quantities and help matching moving heads with DMX controllers, truss, clamps and other stage-lighting equipment.
