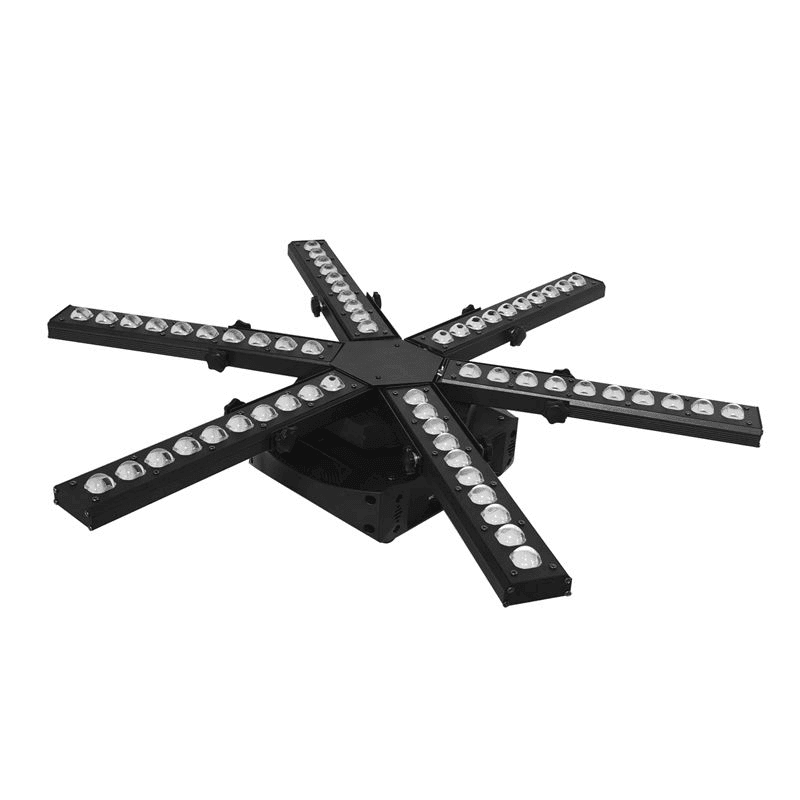

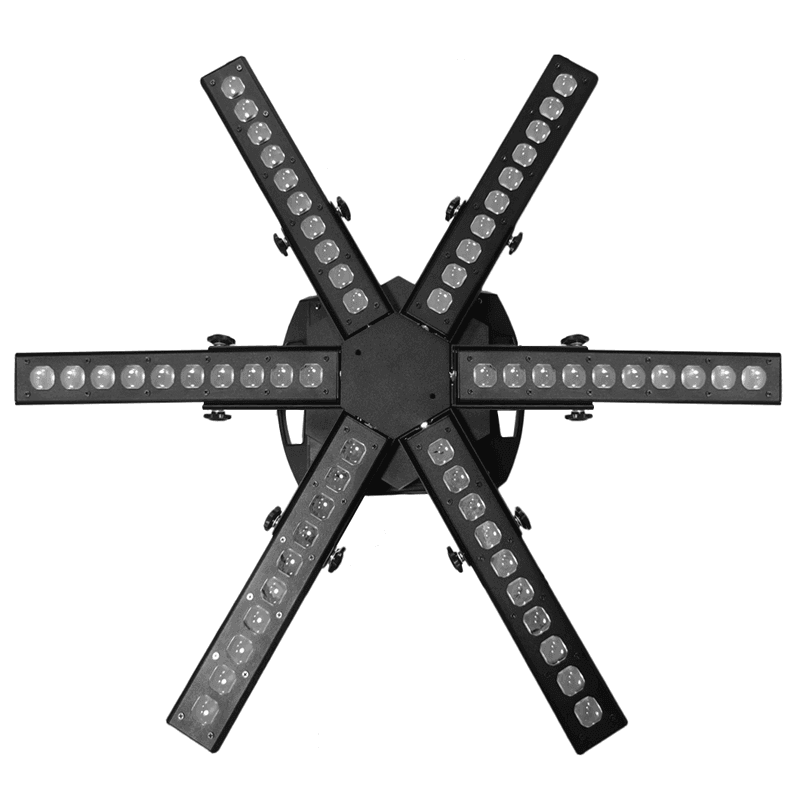

60P LED Swinging Moving Head Light

60P LED Swinging Moving Head Light – Chameleon Matrix Beam Bar

The 60P LED Swinging Moving Head Light combines 60 × 3W RGB LEDs with motorised movement, linear dimming and multi-zone matrix control for dynamic stage effects. Its 180W output, 10CH/35CH DMX modes and Auto, Sound and Master-Slave operation make it ideal for DJ stages, weddings, clubs, concerts and professional event productions.

Technical Specifications

60 × 3W LEDs Across a Moving Linear Bar

The fixture uses 60 individual 3W RGB LED sources arranged across a linear moving bar.

This creates a very different visual effect from a conventional round moving head. Instead of one concentrated lens, the long illuminated surface becomes part of the stage design and can produce moving lines, colour blocks, chases and sweeping effects.

The linear format works particularly well when several fixtures are arranged:

• Above a DJ booth

• Behind performers

• Along stage truss

• Beside LED screens

• Across wedding backdrops

• Around nightclub dance floors

Multiple bars can create repeated lines of light that move together or operate as separate visual elements.

180W RGB Output for Beam and Wash Effects

The published power rating is 180W, based on 60 × 3W LED sources.

The fixture combines characteristics of a beam bar and wash effect rather than functioning only as a conventional stage washer.

Programmers can use the LEDs for colourful linear washes while the moving bar adds physical motion to the entire effect.

This makes the fixture useful for productions that want movement without relying exclusively on conventional beam moving heads.

The result is particularly effective during music-driven moments, where colour, strobe, movement and pixel-style segmentation can operate together.

10 RGB Control Sections in 35CH Mode

One of the strongest features of this fixture is its 35-channel DMX personality.

The channel map divides the 60 LEDs into 10 separate RGB control groups.

Each section receives independent:

• Red control

• Green control

• Blue control

Ten sections × three colour channels creates 30 individual RGB channels, with the remaining channels managing movement, speed, master dimming, strobe and reset.

This segmented design allows programmers to create effects that would not be possible from a single-zone LED bar.

Examples include:

• Colour chases across the bar

• Alternating RGB sections

• Travelling colour effects

• Split-colour looks

• Sequential illumination

• Gradient-style programming

• Music-synchronised matrix effects

For professional programming, the 35CH personality provides the greatest creative control.

10CH Mode for Faster Programming

Not every event requires individual control of all ten RGB zones.

The 10-channel DMX mode provides a simpler control layout for productions where fast setup and lower channel consumption are more important.

The documented 10CH functions include:

1. Motor movement

2. Motor speed

3. Master dimming

4. RGB strobe

5. Red dimming

6. Green dimming

7. Blue dimming

8. Auto / Sound function

9. Auto / Sound speed

10. Reset

This mode is especially practical for mobile DJs, wedding production teams and smaller event rigs.

A programmer can control the complete fixture using only ten DMX addresses while retaining access to its main movement and colour functions.

Motorised Swinging Movement

The bar incorporates a motor-driven movement system instead of remaining fixed like a standard linear LED washer.

DMX provides separate controls for motor running position and movement speed, allowing the operator to combine physical movement with the lighting effects.

The platform is marketed with an infinite-rotation effect, giving the fixture a more continuous visual character than a conventional bar mounted permanently at one angle.

This movement can be combined with:

• Solid colours

• RGB changes

• Pixel sequences

• Strobe effects

• Automatic programmes

The combination of motion and segmented colour control is what gives the fixture its chameleon-style appearance.

Chameleon Matrix Effects for Stage Design

The term Chameleon Matrix describes the way the fixture combines colour segmentation with movement.

Rather than displaying one static colour across the full bar, the ten RGB sections can change independently in advanced DMX mode.

For example, the left side can display red while the centre runs blue and the remaining zones transition through other colours.

When these programmed sections are combined with motor movement, the complete lighting surface changes continuously from the audience's perspective.

This is especially effective when the fixture itself is visible as part of the scenic design.

Master Dimming for Controlled Event Lighting

The fixture includes a master dimming channel, allowing the complete output level to be adjusted independently from individual RGB values.

This helps lighting programmers adapt the same fixture to different stages of an event.

For example:

Guest arrival: lower-intensity decorative colour.

Wedding ceremony: slower, controlled background lighting.

Dinner or presentation: reduced intensity.

DJ or entertainment segment: brighter movement, colour chases and strobe.

The operator can therefore change the visual intensity without rebuilding the colour programming.

RGB Strobe for Music-Driven Effects

A dedicated RGB strobe function adds rapid flashes to the programmed colour output.

This can be combined with motor movement to create stronger transitions during:

• DJ drops

• Concert cues

• Stage reveals

• Dance performances

• Entertainment sequences

Because the effect is produced by the LED sources, strobe behaviour can be controlled directly from DMX.

Rapid flashing should still be used responsibly where audiences or performers may be sensitive to strobe effects.

Sound-Activated Operation for DJs and Clubs

The fixture supports Sound mode, allowing built-in effects to respond to music without continuous manual programming.

This makes it particularly practical for:

• DJs

• Clubs

• Bars

• Private parties

• Wedding entertainment

• Smaller live events

For a simple installation, the fixture can run without a full lighting console.

For professional productions where timing needs to match specific cues, DMX512 provides much more precise control.

Auto Mode for Standalone Operation

Automatic operation provides another option when the fixture needs to produce effects without an external controller.

Auto programmes are useful for installations such as:

• Clubs

• Entertainment venues

• Display stages

• Small parties

• Temporary event setups

The effect speed can also be controlled through the documented Auto/Sound speed channel when operating through DMX.

This makes the same fixture practical for both simple standalone jobs and programmed professional shows.

Master-Slave for Multiple Fixtures

When several identical lights are used together, Master-Slave operation can synchronise their built-in behaviour without independently programming every fixture.

This can be useful for symmetrical arrangements such as:

• Two bars above a DJ booth

• Four fixtures across stage truss

• Matching wedding-stage positions

• Repeated nightclub installations

For more complex pixel sequences or opposing movement, individual DMX addressing remains the better option.

Why 35CH Mode Is Better for Advanced Shows

The choice between 10CH and 35CH depends on the production.

10CH mode is better when:

• Fast setup matters

• DMX channels are limited

• Full-bar RGB control is enough

• The event requires simple movement

35CH mode is better when:

• Pixel-style effects are required

• Different sections need separate colours

• Complex chases are programmed

• The bar is a visible scenic element

• A larger professional console is available

This flexibility allows the same fixture to work in both simple entertainment setups and more detailed production environments.

Best For

The 60P LED Swinging Moving Head Light is especially suited to:

• Wedding stages and receptions

• Professional DJ setups

• Nightclubs and discos

• Concert stages

• Bars and lounges

• Corporate entertainment

• Dance performances

• Stage backdrops

• LED screen side lighting

• Live music venues

• Event-production companies

• AV installers

• Professional lighting rental companies

What's Included & Compatibility

The core product is:

• 1 × 60P LED Swinging Moving Head fixture

The light is designed to integrate with compatible:

• DMX512 lighting consoles

• Professional aluminium stage truss

• Properly rated stage-light clamps

• Independent safety cables

• DMX signal cabling

• Professional event power systems

• Other moving head and LED fixtures

The exact power cable, clamp, bracket, safety cable and flight-case configuration should be confirmed from Stagify inventory before those accessories are listed as included.

How Many LEDs Does the 60P Moving Head Have?

The current technical specification lists 60 × 3W LED sources.

The LEDs are arranged into ten RGB control sections when the fixture is operated in its 35-channel DMX personality.

Is This Light RGB or RGBW?

The current product title describes the fixture as RGBW, but the published technical specification and DMX table document red, green and blue channels only.

A dedicated white channel should therefore not be advertised until it is confirmed from the physical Stagify fixture or manufacturer documentation.

How Many DMX Channels Does the Moving Head Use?

The fixture supports 10CH and 35CH DMX modes.

10CH provides simplified full-fixture control, while 35CH provides access to ten separate RGB lighting sections for more detailed effects.

Can the LED Sections Be Controlled Separately?

Yes, in 35CH mode.

The channel map provides independent red, green and blue control for ten sections across the bar, giving the programmer 30 separate colour channels.

Does the Light Have Infinite Rotation?

The fixture is marketed as an infinite-rotation moving bar and its DMX map provides dedicated motor movement and motor-speed controls.

The technical documentation does not publish a specific movement angle, so a numerical pan or tilt value should not be added without manufacturer confirmation.

Can It Run Without a DMX Controller?

Yes.

The light supports Auto, Sound and Master-Slave modes, allowing standalone or synchronised operation without a dedicated console.

Is It Suitable for Wedding Stage Lighting?

Yes. The moving linear design works particularly well around wedding stages, LED screens, DJ areas and entertainment setups.

Slower colour and movement effects can support formal parts of the programme, while faster matrix and strobe effects can be introduced during performances or dancing.

Does It Work on UAE Power?

The exact published specification is AC110–220V, 50/60Hz.

Because UAE mains can reach 220–240V / 50Hz, Stagify should verify the physical fixture nameplate before describing this model as fully compatible with UAE 240V power.

The supplied plug type should also be confirmed before publication.

Installation & Safety Requirements

This is a motorised stage fixture, so installation must allow adequate clearance for the bar's complete movement.

For overhead mounting:

• Use appropriately rated stage truss.

• Use a correctly rated clamp or mounting bracket.

• Add an independent secondary safety attachment.

• Prevent cables from interfering with moving components.

• Keep the fixture's movement area clear of other lights and truss hardware.

The published data does not confirm an outdoor IP rating, so the fixture should not be advertised as weatherproof.

Professional overhead installations should be completed by personnel familiar with stage-lighting and truss systems.

Moving LED Bar Lighting for Professional Events in the UAE

Stagify supplies professional moving head lights, LED effects and stage-lighting equipment across Dubai and the UAE for production companies, venues, DJs, wedding contractors and rental businesses.

This 60 × 3W model is particularly useful for lighting designers who want linear RGB effects, segmented DMX control and motorised movement from a single fixture.

Contact Stagify for project quantities and help integrating multiple moving bars with DMX consoles, truss and other professional stage-lighting equipment.
