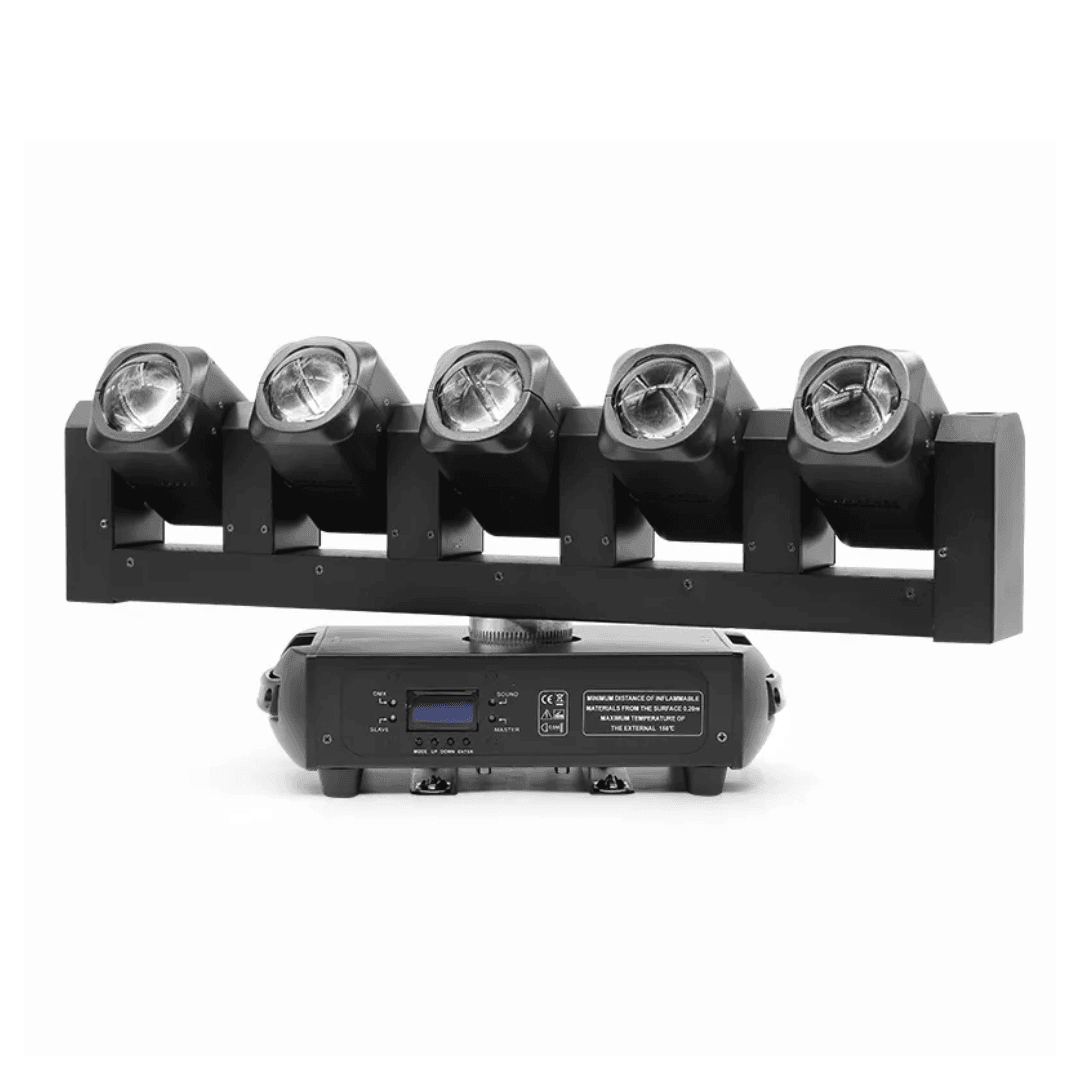

5×40W RGBW 4-in-1 Moving Head Beam Light

The 5×40W RGBW 4-in-1 Moving Head Beam Light combines five individually visible RGBW beam heads with six auxiliary white COB LEDs for beam, movement and strobe-style stage effects from one fixture. Its 2.5° beam, continuous horizontal rotation, 220° vertical movement and multi-mode DMX control suit DJ stages, clubs, concerts, weddings and entertainment venues.

Applications

Ideal for:

• DJ stages and mobile entertainment

• Nightclubs, discos and bars

• Wedding entertainment stages

• Concert and live music productions

• Dance performances

• Indoor event and rental setups

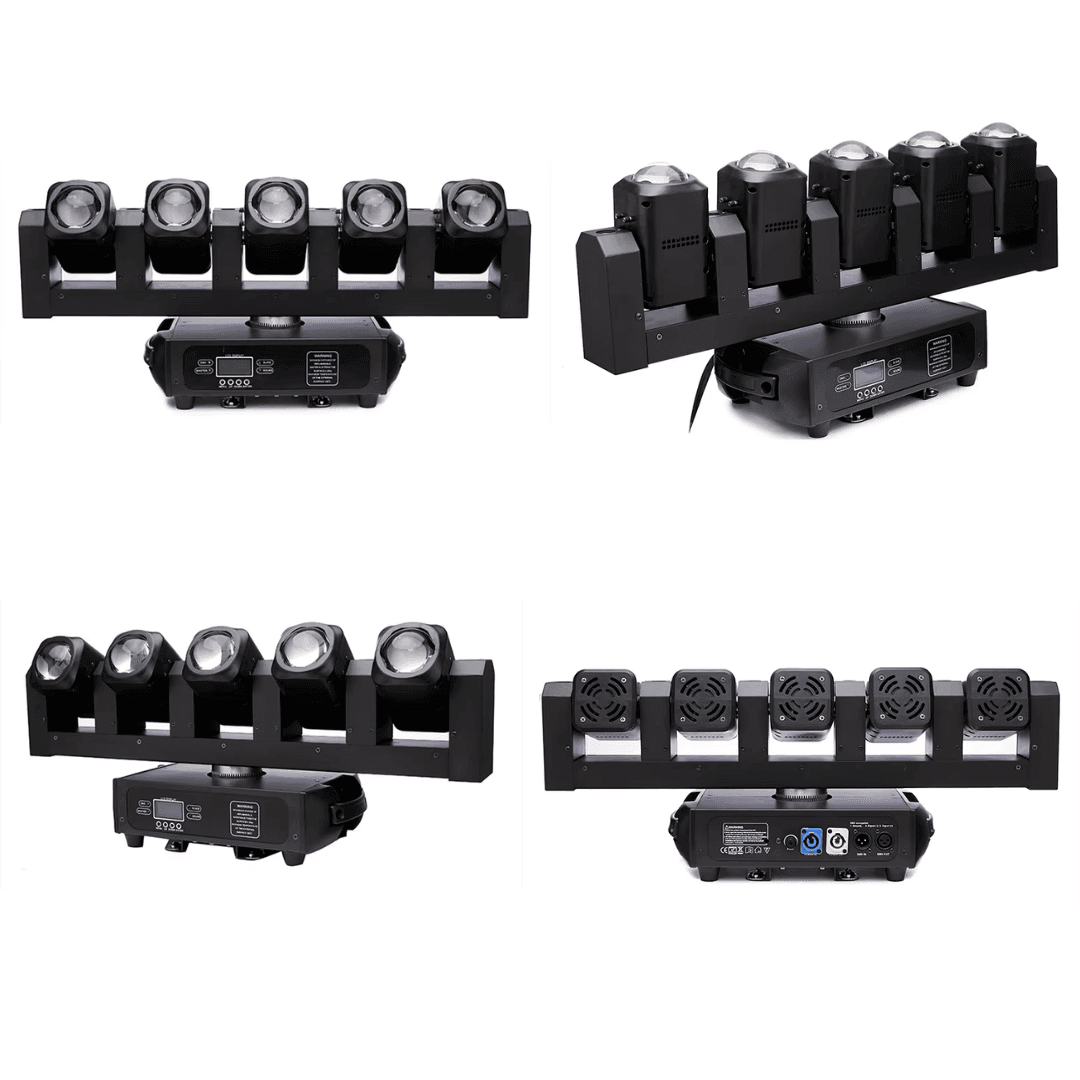

5 × 40W RGBW Beam Sources

The main optical system uses five 40W RGBW 4-in-1 LEDs, giving each visible head red, green, blue and white output from the same LED source.

The five-head arrangement creates several narrow shafts simultaneously, making the fixture more useful for animated stage patterns than a conventional single-head RGBW mover.

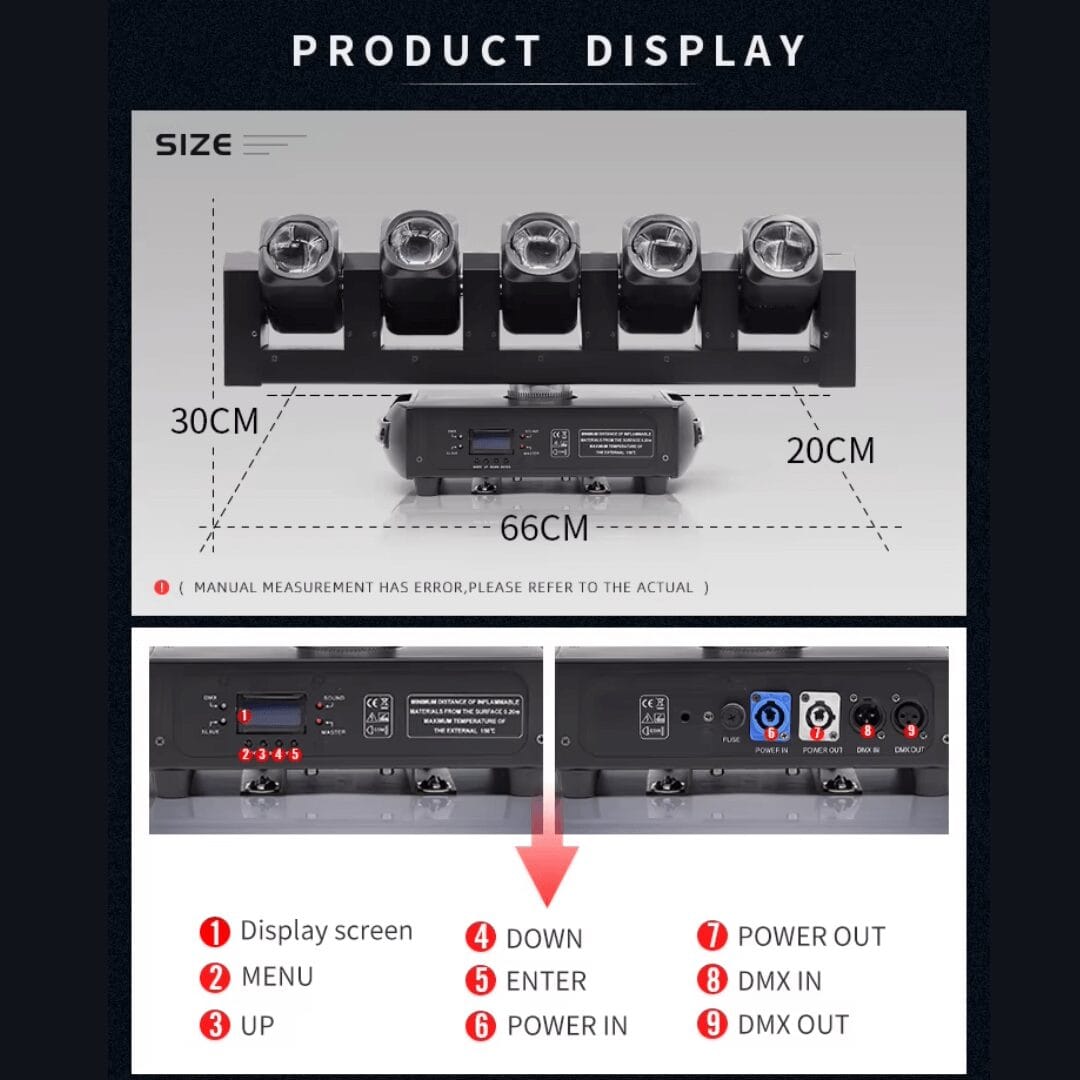

Six 20W White COB Auxiliary Lights

Alongside the five RGBW beam sources, the matching platform includes six 20W white COB LEDs positioned as an auxiliary effect.

These additional white sources can add flashing or accent effects around the main coloured beams, giving a programmer two distinct visual layers from one moving fixture.

2.5° Narrow Beam Angle

The documented main beam angle is 2.5°, placing this fixture firmly in the narrow-beam effects category.

With suitable haze, the five concentrated outputs remain visually separated through the air, making the fixture well suited to crossing beams, fan effects, rotating patterns and fast DJ sequences.

Continuous Horizontal Rotation

The X-axis supports continuous horizontal rotation rather than stopping at a conventional fixed pan limit.

That gives programmers uninterrupted spinning effects and makes the complete five-head assembly part of the visual show rather than simply acting as a positioning mechanism.

220° Vertical Movement

Vertical movement reaches approximately 220°, allowing the beam array to sweep from low stage positions through overhead and audience-facing scenic directions where appropriate.

Combined with continuous horizontal rotation, this produces more varied movement patterns than a standard fixed beam bar.

13 / 17 / 28 / 43CH DMX

The matching product platform provides 13CH, 17CH, 28CH and 43CH DMX personalities.

Lower-channel modes are useful for fast programming and smaller consoles, while expanded modes provide more detailed access to fixture functions when the light is a major part of the show design.

0–100% Linear Dimming

The fixture supports 0–100% linear dimming, allowing the main output to move smoothly between blackout and full intensity.

This is useful for productions that need slower fades during entrances or scenic moments as well as higher-output beam effects during DJ drops and concert sequences.

Adjustable Electronic Flash Effect

The matching fixture specification provides an adjustable electronic flash effect rated up to approximately 15 flashes per second.

Programmers can combine the flashing output with colour changes and moving-head rotation for more active music-driven sequences without installing a separate effect fixture at every position.

Auto, Sound and Master-Slave Modes

The moving head can operate through DMX512, automatic programmes, sound activation and Master-Slave operation.

This gives mobile DJs and smaller venues simple standalone options, while production companies can use DMX for repeatable show cues and multi-fixture programming.

Technical Specifications

Which Venues Suit This Fixture?

This five-head beam is best suited to small-to-medium indoor stages, wedding entertainment areas, clubs and DJ installations where visible aerial movement is a key part of the design.

Two fixtures can create symmetrical effects around a DJ booth or stage. Four or more units provide much stronger crossing and rotating beam patterns for larger entertainment setups.

For productions primarily needing broad stage colour coverage rather than narrow aerial beams, an RGBW moving wash is the better choice.

5×40W Five-Head Beam vs 6×40W Moving Matrix

Choose the 5×40W model when the priority is a tight five-beam visual effect rather than wider wash coverage.

Does Each Main LED Produce RGBW Colours?

Yes. The main fixture platform uses five 40W RGBW 4-in-1 LEDs, allowing red, green, blue and white output from the primary beam heads.

What Do the Six White COB LEDs Do?

The six additional 20W white COB sources provide a secondary bright-white effect around the RGBW beam system.

They are particularly useful for flashes and high-energy stage accents.

Does the Moving Head Rotate Continuously?

Yes. The matching platform specifies continuous horizontal rotation, while the vertical axis travels approximately 220°.

This allows spinning and sweeping effects that cannot be created by a conventional fixed beam bar.

Can It Work Without DMX?

Yes. Automatic, sound-responsive and Master-Slave operation are available in addition to DMX512.

DMX is recommended when exact colour, movement and effect timing are required.

Does It Work on UAE Power?

The documented electrical range is AC100–240V, 50/60Hz, which includes standard UAE 220–240V / 50Hz mains power.

The actual plug fitted to the Stagify unit should be confirmed before stating that a Type G plug is supplied.

Is This Better for Beam Effects or Stage Wash?

This model is primarily a beam/effect fixture because its documented main optics are only 2.5°.

Choose a moving wash fixture instead when the main requirement is broad, even illumination across performers or scenic surfaces.

Installation & Safety

The fixture requires sufficient clearance for both continuous horizontal rotation and its vertical movement.

For overhead installations, use correctly rated truss, mounting clamps and an independent secondary safety attachment. Power and DMX cables should be routed so they cannot enter the moving mechanism.

Keep cooling openings unobstructed during operation and protect the fixture from rain or uncontrolled moisture unless the exact Stagify unit has a verified outdoor IP rating.

Stage Beam Lighting in the UAE

Stagify supplies moving heads, beam lights and stage-lighting equipment for DJs, wedding productions, venues, AV companies and rental businesses across the UAE.

The five-head configuration is a useful choice for setups that need multiple narrow RGBW beams, continuous rotation and auxiliary white effects from one fixture rather than installing several individual compact beam lights.

Contact Stagify for current stock, quantity requirements and compatibility with DMX controllers, truss and mounting accessories.
