50W LED Logo Projector Indoor Ground Rotating Sign Pattern Led Advertising Projector

50W LED Logo Projector for Indoor Advertising & Events UAE

The 50W LED Logo Projector is a compact indoor gobo projector designed to display logos, welcome messages, patterns and branded graphics on floors, walls and other suitable surfaces. It uses a 50W cool-white LED, interchangeable 37.5 mm gobos, manual focus and selectable static or rotating projection for events, retail displays, weddings and promotional installations.

Technical Specifications

Turn Floors and Walls Into Branded Display Space

A printed sign remains in one physical position. This 50W gobo projector lets businesses place a visible logo, message or decorative pattern directly onto a suitable floor or wall without installing a permanent printed panel.

That makes it practical for spaces where branding may change between events.

A hotel ballroom, exhibition booth or wedding entrance can use one projection design today and a different gobo for the next production.

The compact projector can be aimed toward the required surface, manually focused and then switched between a stationary or rotating image depending on the desired presentation.

This makes the fixture useful for both commercial advertising and event decoration without requiring a complex lighting controller.

50W Cool-White LED for Clear Gobo Projection

The projector uses a single 50W cool-white LED source.

A white source is particularly suitable for gobo projection because the engraved or printed pattern determines the visible design while the LED provides the illumination needed to reproduce it on the target surface.

This format works well for:

• Company logos

• Brand symbols

• Wedding monograms

• Welcome messages

• Event graphics

• Product icons

• Decorative patterns

• Promotional signs

Projection visibility depends on ambient light, surface colour, projection distance and the design of the gobo.

For the clearest result, use a relatively plain projection surface and minimise strong competing light directly on the projected image.

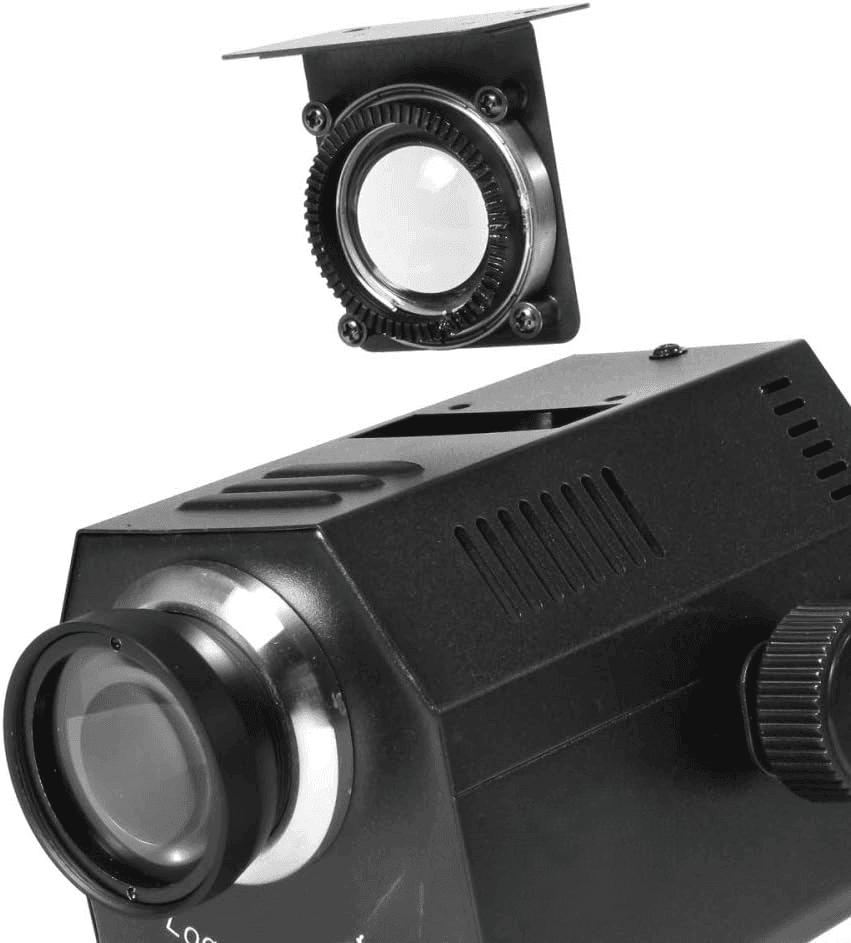

37.5MM Interchangeable Gobo System

The projector accepts an interchangeable gobo with an outer diameter of 37.5 mm.

The usable motif area is approximately 25 mm in diameter, which is the area available for the actual logo or pattern.

Both glass and metal gobos are supported.

This gives buyers flexibility depending on the artwork required.

Glass gobos are commonly selected when more detailed graphics or multi-element designs are needed, while metal gobos can be useful for simpler cut-out patterns and text.

A service lid provides access to the gobo area so the design can be replaced when a campaign or event changes.

Static or Rotating Logo Projection

A rear effect control lets the operator choose between static and rotating gobo operation.

In static mode, the projected logo remains fixed in one orientation.

This is useful for:

• Corporate logos

• Sponsor marks

• Directional graphics

• Store branding

• Formal wedding monograms

Rotating mode adds continuous movement to the projected design, making it more noticeable in entertainment and promotional environments.

This can work particularly well for entrance areas, product launches, clubs, event displays and branded activation spaces.

Manual Focus for Sharper Projection

The projector uses manual focus, allowing the operator to adjust image sharpness after the unit has been positioned.

This matters because the correct focus changes with projection distance.

After aiming the fixture:

1. Insert the required gobo.

2. Position the projector toward the projection surface.

3. Adjust the fixture angle.

4. Rotate the focus control until the image becomes sharp.

5. Select static or rotating gobo operation.

Manual focusing keeps operation straightforward and avoids unnecessary control complexity for installations where the projector normally remains in one position.

360° Adjustable Fixture Positioning

The aluminium fixture body can be adjusted through a wide positioning range of up to 360°, allowing the projection to be aimed toward floors, walls or other suitable surfaces.

This flexibility is useful when the projector cannot be installed directly opposite the target.

Depending on the venue, it may be positioned:

• Above an entrance

• Beside a wall

• On a display structure

• Near an exhibition stand

• Above a dance floor

• Around a stage

• Inside a retail space

The mounting point should remain secure and should not obstruct walkways or emergency routes.

Compact 1.35KG Aluminium Housing

The projector measures approximately 150 × 130 × 110 mm and weighs only 1.35 kg.

Its compact size makes it practical for temporary event installations where production teams may need several projectors without adding significant transport volume.

The aluminium-alloy housing also helps conduct heat away from the internal LED and electronics.

For event companies and exhibition contractors, the small form factor makes the projector easier to:

• Transport

• Position

• Store

• Reinstall

• Move between venues

This is particularly useful when different clients require custom gobos for separate events.

Built-In Cooling for Extended Operation

A 50W LED and its power electronics generate heat during operation.

The fixture therefore uses a built-in fan and dedicated heat-dissipation design to maintain airflow through the housing.

Ventilation openings should remain unobstructed during use.

Avoid covering the projector with décor, fabric or signage, and allow the unit to cool before opening the gobo compartment or performing maintenance.

Periodic removal of dust from ventilation areas will also help maintain consistent airflow.

Custom Logo Projection for Business Advertising

The interchangeable gobo system makes this projector useful as a physical advertising tool, not simply an event-lighting effect.

Businesses can create a custom gobo containing their:

• Company logo

• Brand name

• Campaign symbol

• Promotional graphic

• Product mark

• Event sponsor logo

The design can then be projected onto a floor or wall where customers naturally see it.

For retail and hospitality businesses, this provides a different presentation from conventional banners or illuminated signs because the branding becomes part of the surrounding space.

Wedding Logo and Welcome Projection

The projector can also be used for wedding and event decoration.

A custom gobo can display:

• Couple initials

• Wedding monograms

• Names

• Welcome messages

• Event dates

• Decorative motifs

The projection can be placed near an entrance, dance floor, stage backdrop or reception area.

Static mode is appropriate for formal monograms and names, while rotating mode can create a more dynamic decorative effect during entertainment segments.

Ideal for Retail and Exhibition Displays

Retail stores and exhibition booths often have limited space for physical signage.

A compact gobo projector can place branding onto an otherwise unused wall or floor without taking up significant display area.

This can be particularly effective around:

• Store entrances

• Product displays

• Exhibition booths

• Reception counters

• Promotional stands

• Brand activations

• Conference spaces

Changing the gobo also allows the same projector to be reused for a different campaign later.

Best For

The 50W LED Logo Projector is suitable for:

• Retail stores and showrooms

• Weddings and receptions

• Exhibition booths

• Trade shows

• Corporate events

• Product launches

• Hotels and ballrooms

• Restaurants and cafés

• Clubs and entertainment venues

• Brand activations

• Event-production companies

• Advertising displays

What's Included & Gobo Compatibility

The documented factory configuration includes a 37.5 mm glass gobo with a “Welcome” design.

The projector also supports interchangeable compatible:

• Glass gobos

• Metal gobos

• Custom company logos

• Wedding monograms

• Promotional graphics

• Decorative patterns

The maximum usable motif diameter is approximately 25 mm within the 37.5 mm outer gobo size.

Custom gobos should be prepared specifically for the projector's supported dimensions.

Can I Put My Own Logo in the Projector?

Yes. The projector uses an interchangeable 37.5 mm gobo system, so the original design can be replaced with a compatible custom logo or pattern.

The usable artwork area is approximately 25 mm in diameter.

Can the Logo Rotate?

Yes.

The projector provides selectable rotating or static gobo operation, allowing the image either to remain fixed or rotate continuously for a more dynamic effect.

Can It Project on the Floor?

Yes. The adjustable body can be aimed toward suitable floor surfaces, making it useful for entrance branding, event graphics and directional or decorative projections.

The final image quality will depend on the surface, ambient lighting and projection position.

Can It Project on a Wall?

Yes. Walls are one of the primary applications for this type of gobo projector.

For better clarity, use a relatively even, light-coloured surface without strong competing illumination.

What Size Gobo Does the 50W Logo Projector Use?

The supported gobo has an outer diameter of 37.5 mm with a maximum motif or image diameter of approximately 25 mm.

Compatible glass or metal gobos can be used.

Is the Focus Automatic?

No. The fixture uses manual focus.

Once the projector has been positioned at the required distance, adjust the focus until the projected logo or pattern appears sharp.

Is This Logo Projector Waterproof?

No.

The fixture is rated IP20, so it is intended for dry indoor environments and should not be exposed to rain, splashing water or uncontrolled moisture.

For outdoor advertising, use a projector with a verified outdoor IP rating.

Can It Be Used for Permanent Advertising?

It can be used for longer-term indoor branding installations when mounted securely and operated within its electrical and environmental specifications.

Ventilation should remain clear, and the fixture should be accessible for cleaning, gobo replacement and maintenance.

Electrical Compatibility for UAE Installations

The currently published specification for this projector is 110–220V, 50/60Hz.

The UAE uses approximately 220–240V / 50Hz mains power, so the actual Stagify fixture nameplate must be checked before this product is described as fully compatible with UAE mains.

Do not assume 240V compatibility from a published maximum rating of 220V.

The supplied plug type must also be confirmed from Stagify stock before publication.

Installation & Safety Requirements

The projector weighs approximately 1.35 kg, but it should still be mounted using hardware suitable for the installation surface and fixture weight.

For overhead installations, use appropriate secondary retention where required by the mounting arrangement.

Keep the cooling fan and ventilation openings unobstructed.

Because the fixture is rated IP20, installation should be limited to dry indoor environments.

Disconnect power and allow the unit to cool before replacing a gobo or carrying out maintenance.

Indoor Logo Projectors for Events & Advertising in the UAE

Stagify supplies professional event lighting, projection effects and stage equipment across Dubai and the UAE for event companies, wedding planners, retailers, hotels, exhibition contractors and AV businesses.

This compact 50W model is particularly useful for projects that need changeable branding, custom graphics and rotating or static projection without installing a permanent illuminated sign.

Contact Stagify for current availability and custom gobo requirements for logos, weddings, exhibitions and promotional events.
