4 LENS DJ DISCO STAGE LASER LIGHT

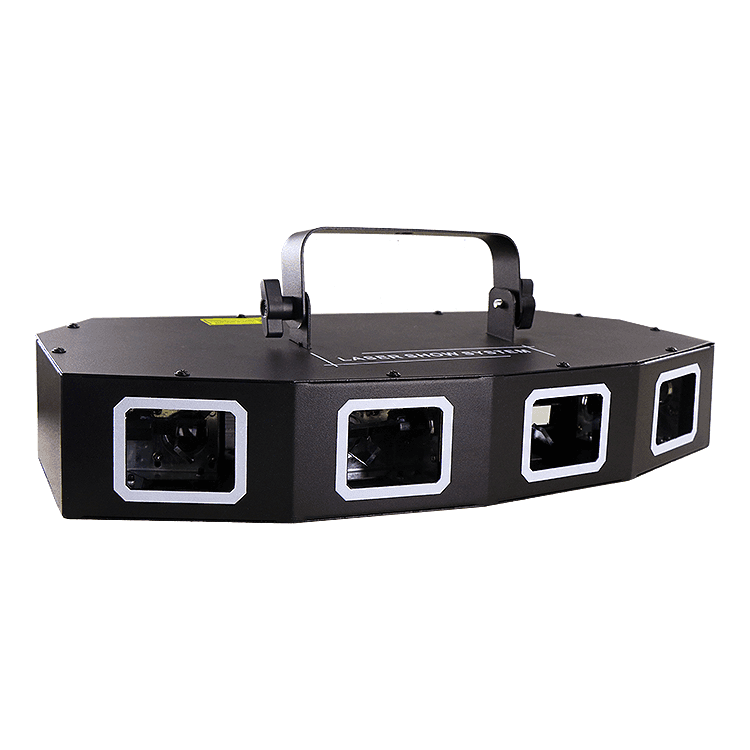

4 Lens DJ Disco Stage Laser Light – Bring Energy to Every Show

The 4 Lens DJ Disco Stage Laser Light is an RGB multi-pattern laser effect designed for DJs, clubs, weddings, parties and stage productions. It combines four laser outlets with 51 built-in patterns, a 14.4° scanning angle and 10-channel DMX512 control, while also supporting automatic, sound-activated and master/slave operation for flexible event setups.

Technical Specifications

The current product listing confirms the 51 patterns, 10-channel DMX system, 14.4° scanning angle, control modes, dimensions and 3.55 kg weight. The matching operating manual independently confirms the RGB output, stepper-motor scanning and DMX functions.

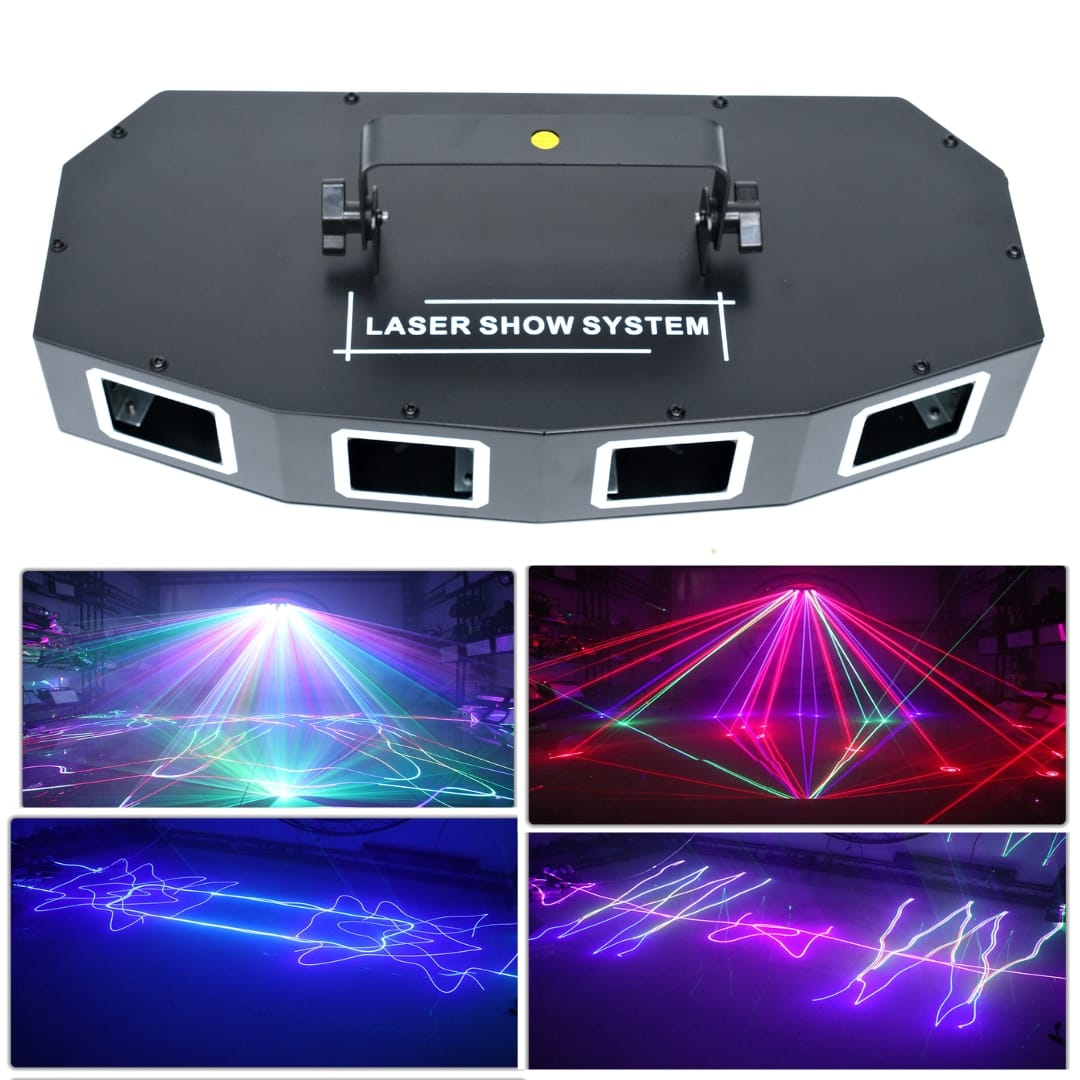

Four-Lens RGB Laser Effects for Wider Stage Coverage

Instead of producing effects from a single aperture, this 4 Lens DJ Laser Light uses four laser outlets to create a broader visual presentation across the performance area.

The RGB system produces red, green and blue laser effects, including single-colour and mixed-colour patterns. With 51 built-in patterns available, operators can create changing geometric and motion effects without depending entirely on an external lighting controller.

This makes the fixture practical for mobile DJs, clubs and event companies that need a compact laser effect capable of producing more visual movement than a conventional single-head party laser.

At just 3.55 kg and 44.3 cm wide, the fixture is also manageable for mobile production setups where lighting equipment needs to be transported and installed regularly.

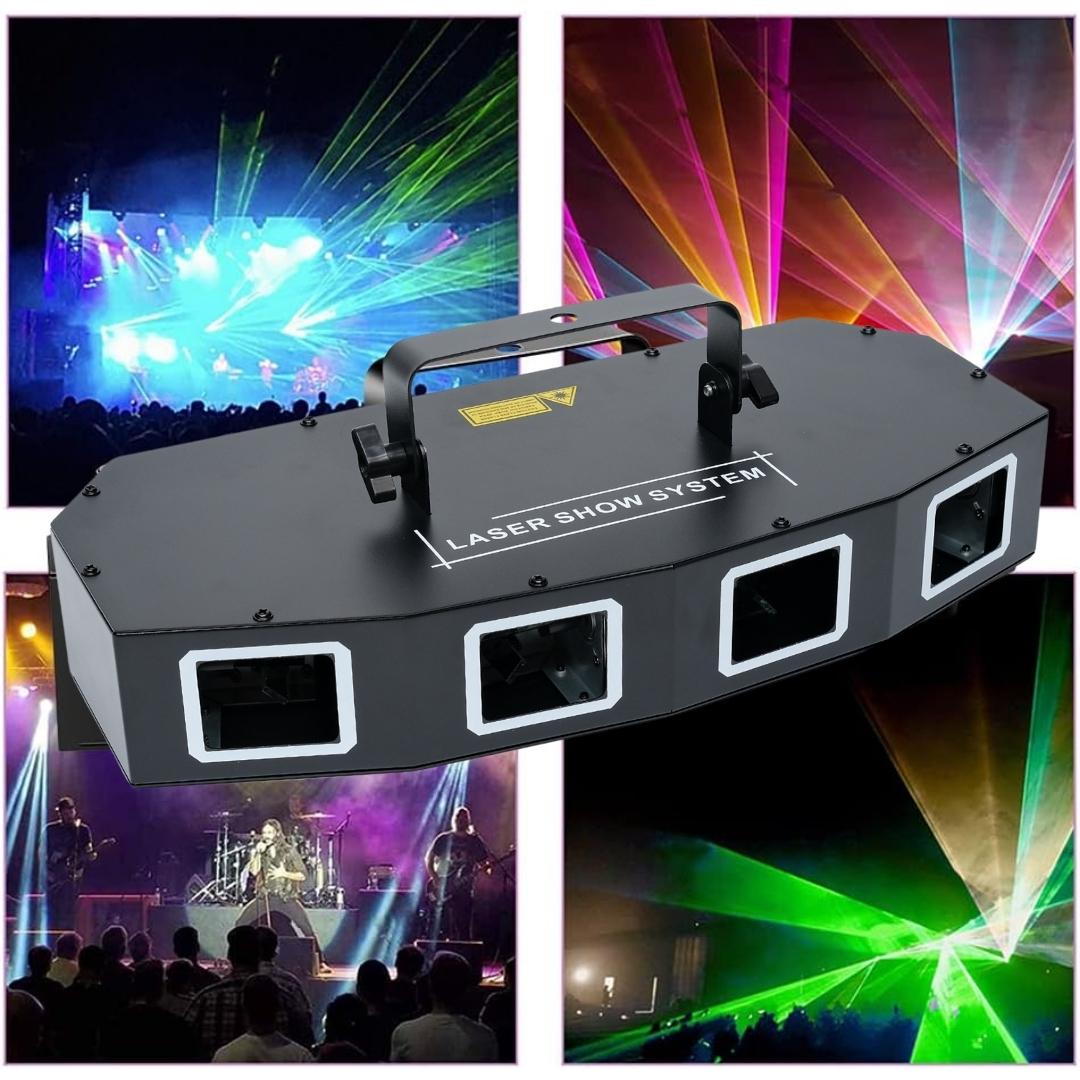

51 Built-In Laser Patterns

The fixture provides 51 built-in laser patterns, giving operators a selection of effects for different music styles and event environments.

Under DMX control, the pattern system supports functions including:

• Pattern selection

• 360° pattern rotation

• Clockwise rotation

• Anti-clockwise rotation

• Horizontal movement

• Vertical movement

• Left and right movement

• Up and down movement

• Pattern-size adjustment

• Automatic zoom effects

• Single-colour effects

• Mixed-colour effects

These controls allow the same fixture to produce both simple background patterns and more active laser sequences during DJ sets or live performances.

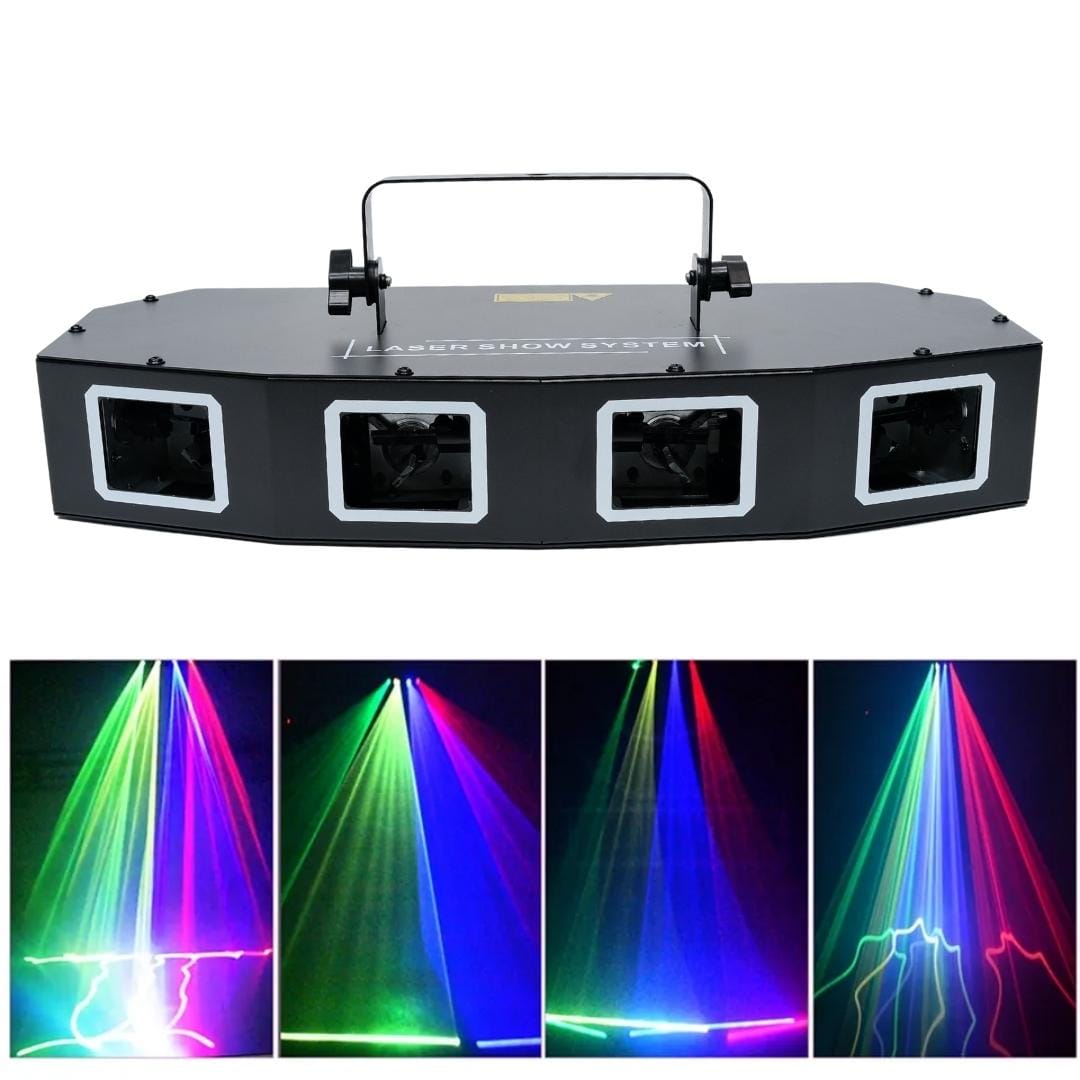

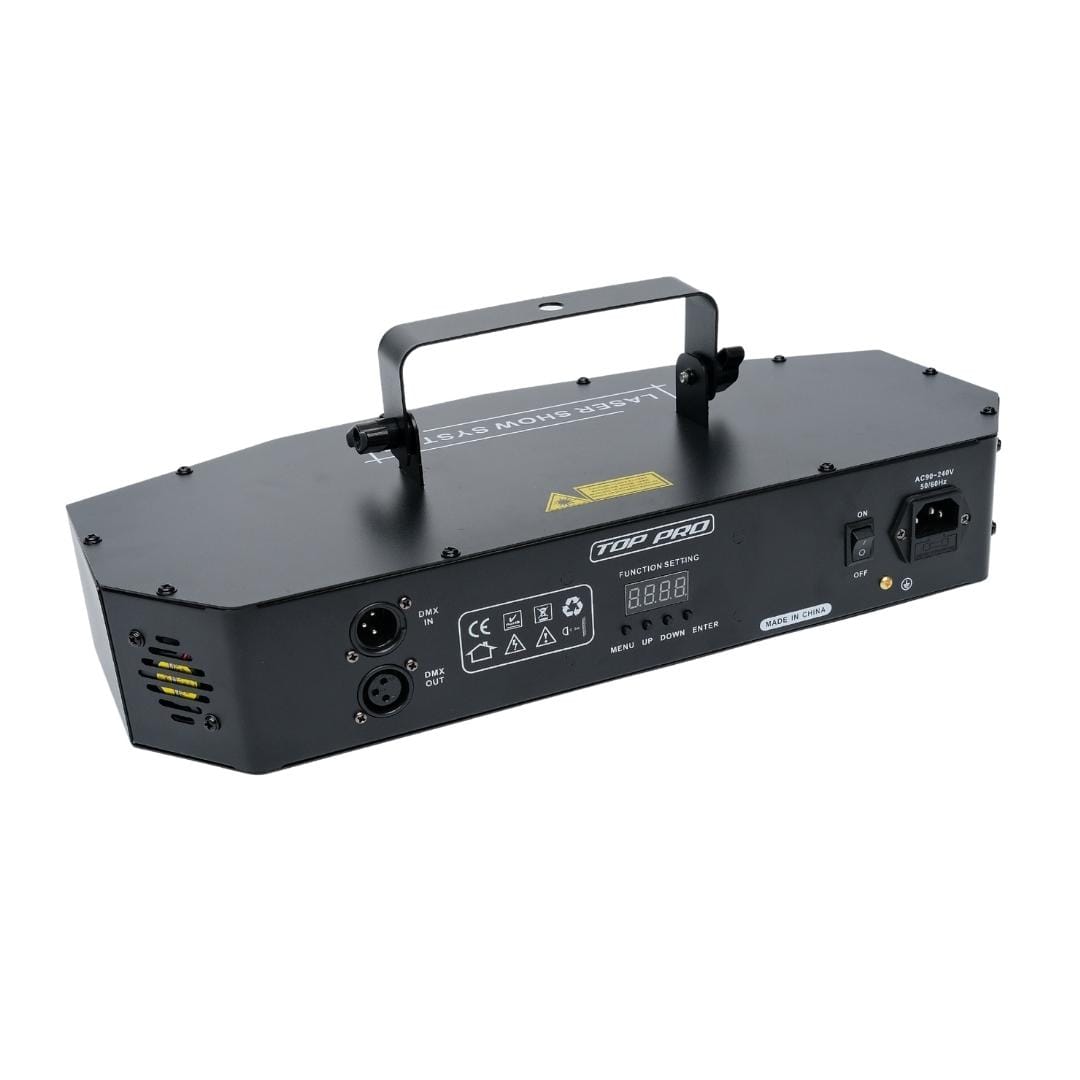

10-Channel DMX512 Control

For professional event setups, the laser can operate through 10 DMX channels.

The DMX implementation provides control over laser mode, pattern selection, rotation, horizontal and vertical movement, position movement, zoom and colour behaviour.

This makes the unit suitable for integration with existing DMX512 lighting systems, allowing a lighting operator to coordinate laser effects with moving heads, PAR lights, strobes and other stage fixtures.

DMX addresses can be set from A001 to A512, supporting integration into larger lighting rigs.

Auto and Sound-Activated Operation

A DMX controller is not required for basic operation.

The unit includes:

• 4 automatic programs

• 4 sound-activated programs

• 9 sound-sensitivity settings

• Master/slave operation

Sound mode allows the fixture to respond to music, making it particularly useful for DJs, parties, lounges and smaller entertainment venues where a dedicated lighting operator may not be available.

For multi-fixture installations, master/slave operation can help coordinate compatible units from a primary fixture.

Stepper-Motor Scanning System

The laser uses a stepper-motor scanning system with a 14.4° scan angle.

Rather than displaying only static beams, the scanning mechanism enables patterns to rotate, move, zoom and change position.

The combination of four lenses and motor-driven pattern movement creates a more active visual effect across dance floors and performance spaces.

Laser effects are especially visible when used with suitable atmospheric haze or fog, provided the venue permits atmospheric effects.

Best For

The 4 Lens DJ Disco Stage Laser Light is suitable for:

• Mobile DJ setups

• Nightclubs and lounges

• Wedding entertainment

• Private parties

• Concert stages

• Live music venues

• Dance floors

• KTV and karaoke venues

• Corporate entertainment

• Event-production companies

• Rental lighting inventories

• Small and medium indoor stage productions

Compatibility & Professional Setup

The laser can be integrated into professional lighting systems using:

• DMX512 lighting controllers

• Compatible DMX cables

• Master/slave lighting configurations

• Stage lighting truss

• Lighting stands

• Moving head lights

• LED PAR lights

• Strobe lights

• Fog or haze effects where venue rules allow

For DMX installations, the fixture uses 10 control channels, so sufficient DMX address space should be reserved when planning a larger lighting system.

Can the 4 Lens Laser Light Work Without a DMX Controller?

Yes. The fixture includes automatic and sound-activated operating modes, so it can run independently without an external DMX controller.

DMX512 is recommended when precise control and synchronisation with other stage lights are required.

How Many Patterns Does the Laser Light Have?

The fixture provides 51 built-in laser patterns.

Patterns can be selected and manipulated through its operating modes, with DMX providing additional control over rotation, position, movement, zoom and colour.

How Many DMX Channels Does It Use?

The 4 Lens Stage Laser Light uses 10 DMX channels.

These channels provide control over operating mode, patterns, rotation, X/Y movement, positioning, zoom and colour behaviour.

Does the Laser Respond to Music?

Yes. The fixture includes four sound-activated programs and nine levels of sound-sensitivity adjustment.

This allows patterns and movement to react to music without requiring manual programming during a DJ set or party.

What Colours Does the Laser Produce?

The unit uses red, green and blue laser colours.

Its control system supports both single-colour and mixed-colour effects, allowing different colour combinations to be incorporated into the built-in patterns.

Is It Suitable for Clubs and Wedding Events?

Yes. Its four-lens layout, built-in patterns, sound activation and DMX512 control make it suitable for clubs, DJs, wedding entertainment, parties and stage productions.

Venue size, ambient lighting and atmospheric conditions will affect how visible the projected laser effects appear.

Laser Safety & UAE Event Use

This product is listed as a Class 3B laser fixture. Laser beams should never be aimed directly into audience areas, people's eyes, reflective surfaces or uncontrolled public spaces.

Professional laser equipment should be installed and operated by trained personnel. Laser use at public events and venues in the UAE may be subject to venue requirements and relevant authority approval, depending on the installation and event.

The laser position, projection zone and beam height should be assessed before operation. Never assume that a laser effect is eye-safe simply because it is being used indoors. This safety treatment follows the laser-specific requirements in the Stagify SOP.

Order 4 Lens DJ Laser Lights in the UAE

Stagify supplies professional stage lighting and laser effects across Dubai and the UAE for DJs, event-production companies, clubs, venues, wedding planners and AV professionals.

The 4 Lens DJ Disco Stage Laser Light provides 51 patterns, 10-channel DMX512 control, RGB effects and multiple standalone operating modes in a compact 3.55 kg fixture.

Contact Stagify for project requirements, quantity orders or help matching the laser with DMX controllers and other stage-lighting equipment.
