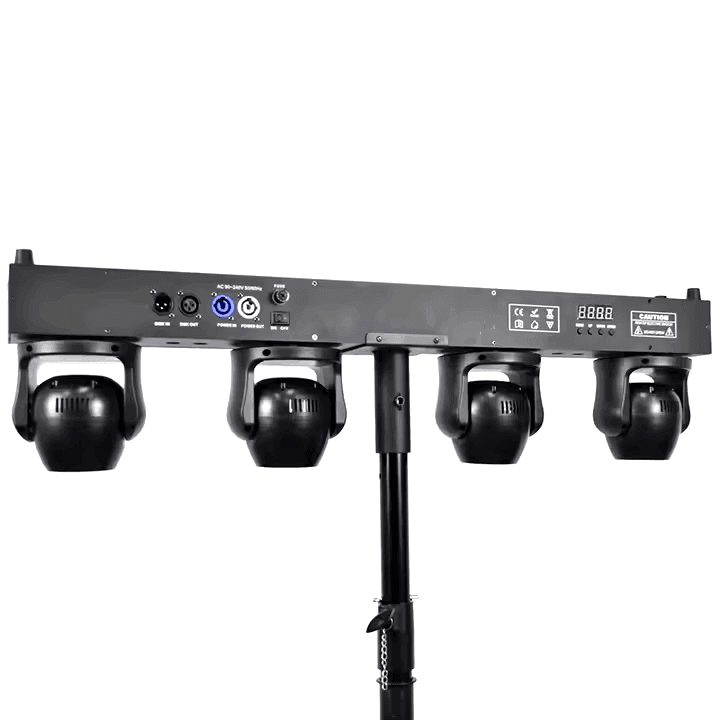

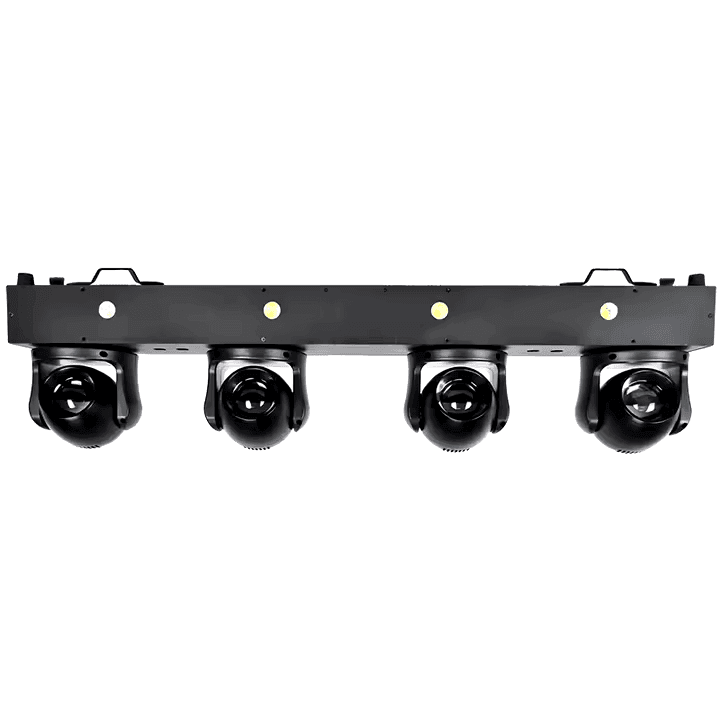

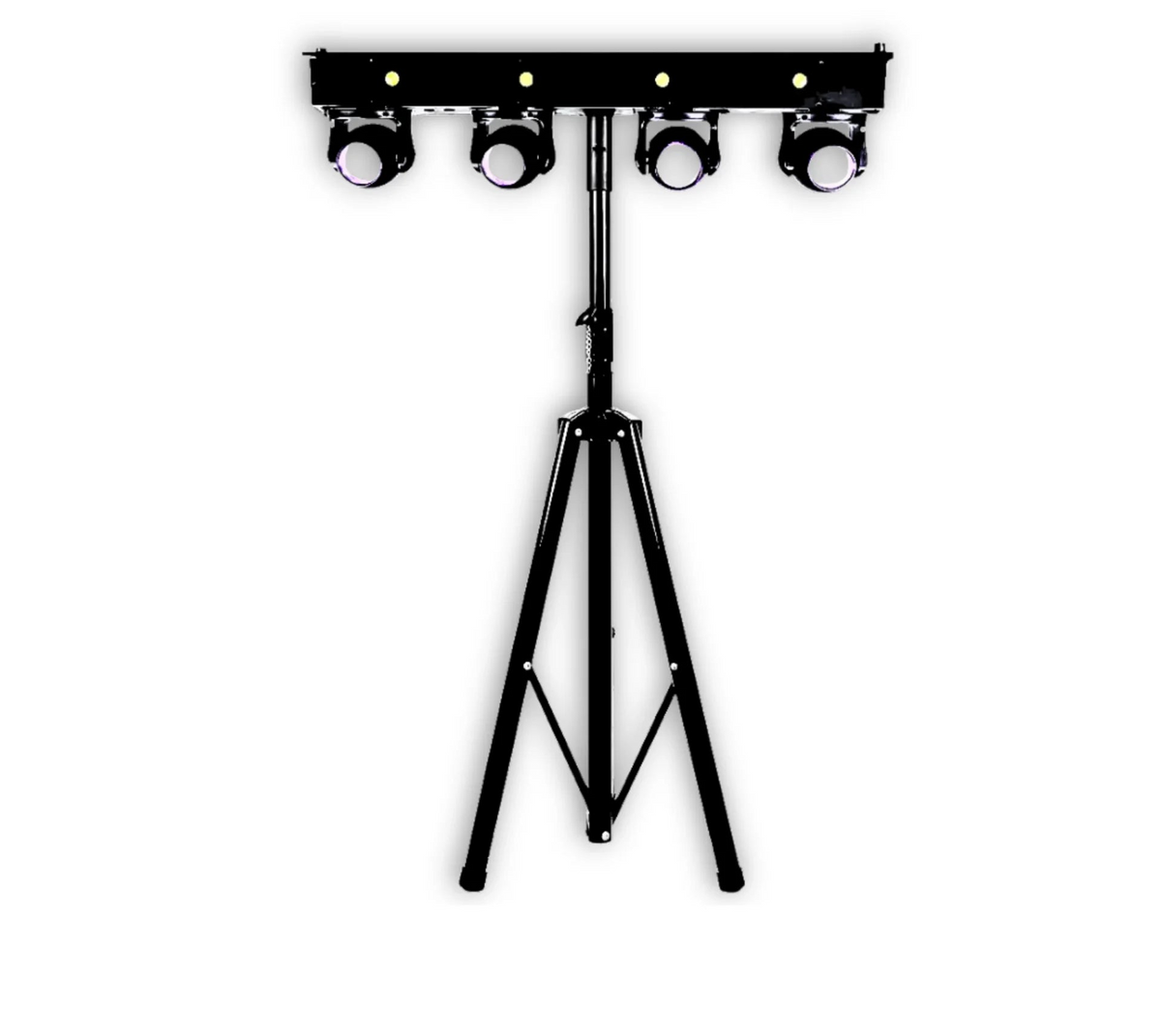

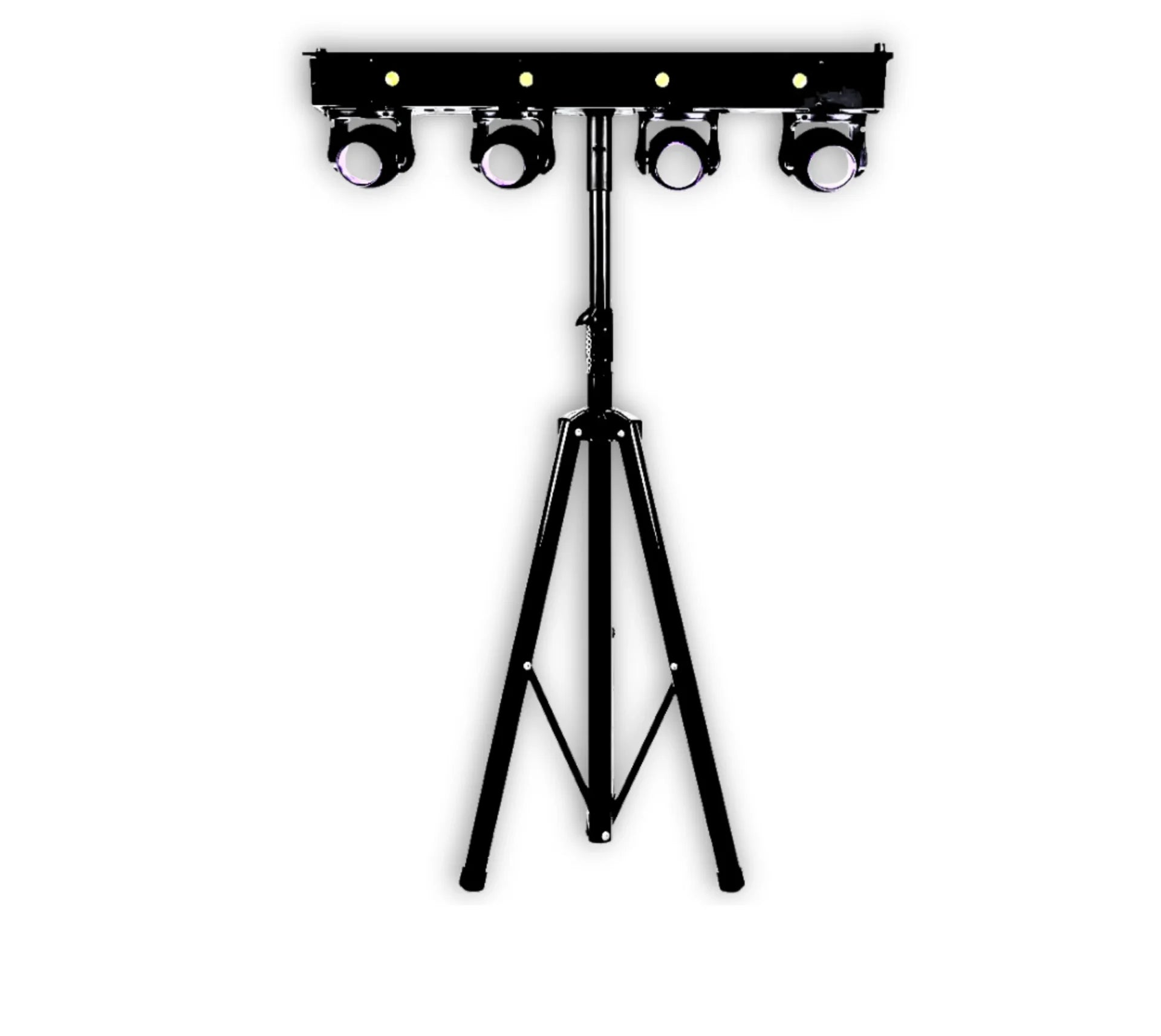

4 Heads Led Beam Strobe Moving Head Light 4x40W

4 Heads LED Beam Strobe Moving Head Light 4×40W – Multi-Head Stage Lighting for Events in Dubai

The 4 Heads LED Beam Strobe Moving Head Light 4x40W is a 200W professional multi-head effects fixture built around four independently controlled 40W RGBW beam LEDs and four additional 10W white LEDs. Its narrow 2° optics, prism effect, 540° pan, 270° tilt and 16/21/36-channel DMX control make it ideal for weddings, clubs, DJ stages and concert productions.

Technical Specifications

Four Independent 40W RGBW Beam Heads

The main optical system uses four 40W RGBW 4-in-1 beam LEDs, with each head capable of operating as an individual pixel.

This gives lighting programmers significantly more flexibility than a conventional moving head built around one light source.

The four heads can be used to create:

• Matching beam positions

• Alternating colour effects

• Sequential pixel chases

• Symmetrical stage looks

• Multi-direction aerial beams

• Fast music-driven sequences

Instead of every light source producing the same output at the same time, the fixture can create layered effects across its four optical heads.

That makes the design especially effective when the fixture itself remains visible as part of the stage show.

Independent Pixel Control

The supplier specifically confirms four-head pixel control, with each main LED treated as an independently controllable pixel.

Pixel control allows lighting programmers to create effects that would be difficult to reproduce with a traditional single-source moving head.

For example, the four beam heads can:

• Display different colours

• Illuminate sequentially

• Run chase patterns

• Alternate between heads

• Build progressive effects

• Create symmetrical colour combinations

The expanded 36-channel DMX mode is particularly relevant when the production requires detailed control over individual fixture functions.

Ultra-Narrow 2° Beam Angle

The optical system uses a 2° beam angle, producing a tight, concentrated output designed for aerial effects.

This is considerably narrower than a typical moving wash or LED PAR.

With controlled atmospheric haze, the fixture can produce defined shafts of light that remain visually distinct as the heads move around the venue.

The narrow beam works particularly well for:

• Concert stages

• DJ performances

• Nightclubs

• Wedding entertainment

• Dance floors

• Stage reveals

For broad stage illumination, a moving wash fixture should be used instead.

The 2° beam makes this model primarily an effects fixture rather than a general-purpose wash light.

Four Additional 10W White LEDs

Alongside the four RGBW beam sources, the fixture includes four 10W white LEDs.

These additional sources provide another visual element that can be combined with the RGBW beam system.

The product is specifically positioned as a Beam + Strobe moving-head effect, and the fixture also provides a high-speed electronic shutter/strobe function.

The white sources can contribute to brighter flash-style effects and visual contrast against the coloured beam output.

Stagify should avoid publishing a more specific white-LED channel map until the exact DMX manual is available.

High-Speed Strobe Up to 25 Flashes Per Second

The fixture provides a variable 1–25 flashes-per-second shutter/strobe effect.

This allows operators to change from slower pulsing sequences to rapid high-energy flashing.

Typical uses include:

• DJ drops

• Concert transitions

• Wedding entrances

• Artist reveals

• Club sequences

• Dance performances

Because the strobe speed is adjustable, it can be programmed to suit the pace of the production rather than running at one fixed rate.

Rapid strobe effects should be used responsibly where guests or performers may be sensitive to flashing light.

Prism Effect for Expanded Beam Patterns

A built-in prism effect changes the visual appearance of the narrow beam output.

Prism effects are useful when the operator wants more visual complexity than a clean single beam.

Combined with:

• RGBW colour

• Multi-head pixel control

• Movement

• Strobe

• Haze

the prism function can create a significantly larger visual effect from one fixture.

The supplier does not publish the prism facet count, so Stagify should not describe it as an 8-facet, 16-facet or other specific prism until the physical fixture or manual confirms that detail.

540° Pan Movement

The fixture provides approximately 540° of pan movement with electronic correction.

This gives the four-head optical system a wide horizontal positioning range.

Multiple fixtures can be programmed to create:

• Mirrored movement

• Crossing beam patterns

• Wide stage sweeps

• Symmetrical positions

• Alternating fixture movements

Electronic correction helps the fixture return accurately to its programmed movement range during operation.

270° Tilt Movement

Vertical movement reaches approximately 270°, also with electronic correction.

Combined with 540° pan, this allows the fixture to direct its four beams across a large section of the event space.

The movement system works particularly well when several fixtures are installed across:

• Rear truss

• Side truss

• DJ structures

• Wedding stages

• Club lighting grids

Adequate physical clearance should always be maintained so surrounding fixtures, cables or truss components do not interfere with movement.

0–100% Linear Dimming

The LEDs provide 0–100% linear dimming.

This allows the operator to control output intensity without changing the selected colour.

For mixed-format events, dimming helps the same fixture support different moments.

Guest arrival: lower intensity and slower movement.

Wedding entertainment: stronger RGBW colour.

DJ performance: high-output beams and rapid strobe.

Concert finale: prism, movement and pixel effects combined.

This gives programmers more control over how aggressive or subtle the fixture appears throughout the event.

16CH DMX Mode

The fixture supports a 16-channel DMX mode for productions where lower channel consumption is useful.

This can be practical when the lighting rig contains many other fixtures sharing the same DMX universe.

A smaller personality can simplify:

• Fixture addressing

• Show setup

• Basic programming

• Multi-unit operation

The exact parameter assignment should follow the manufacturer DMX chart.

21CH DMX Mode

A 21-channel mode provides another control option between the simplified and expanded configurations.

This gives lighting programmers greater flexibility when choosing how much control detail is required for a particular production.

For wedding companies and mobile event teams, the 21CH profile may provide a practical balance between functionality and DMX address usage.

36CH DMX Mode for Advanced Programming

The fixture also supports an expanded 36-channel DMX personality.

This mode is better suited to detailed programming where the four-head pixel system plays a major visual role.

Advanced lighting operators can use the larger personality for more precise control over available:

• Colours

• Pixel effects

• Movement

• Dimming

• Strobe

• Other effect functions

For several fixtures, calculate the complete channel requirement before assigning addresses.

DMX512 Professional Stage Control

The fixture uses USITT DMX512, allowing it to integrate into a professional lighting system.

It can be programmed alongside compatible:

• Beam moving heads

• Wash moving heads

• LED PAR lights

• Pixel bars

• Strobes

• Stage effects

This makes the four-head fixture particularly useful for production companies that need all stage effects coordinated from one lighting desk.

Sound-Activated Operation

The light supports sound-responsive operation, allowing built-in programmes to react to music.

This is useful for:

• Mobile DJs

• Clubs

• Bars

• Private parties

• Wedding entertainment

Sound mode provides a simpler workflow when a dedicated lighting operator is not available.

For professional productions with fixed cues, DMX control provides more accurate timing.

Automatic Operation

The fixture can also run in Auto mode.

Built-in programmes allow movement, colour and effects to operate without an external controller.

This provides an easy operating option for smaller venues or event setups where detailed programming is unnecessary.

Master-Slave Operation

Several compatible fixtures can be connected in Master-Slave mode.

One fixture runs the programme while the other units follow.

This can simplify symmetrical setups such as:

• Two units beside a DJ booth

• Four units across a wedding stage

• Repeated nightclub positions

• Small concert installations

For individually controlled beam patterns, separate DMX addressing is the more flexible option.

200W Total Fixture Power

The complete fixture consumes approximately 200W.

This should be used for electrical planning rather than calculating power only from the nominal LED ratings.

For example:

• 2 fixtures = approx. 400W

• 4 fixtures = approx. 800W

• 8 fixtures = approx. 1.6kW

These calculations cover only this fixture type.

The complete event electrical load must also include other lighting, LED screens, effects and AV equipment.

AC100–240V Wide-Voltage Input

The fixture accepts AC100–240V at 50/60Hz.

This operating range covers the UAE's standard 220–240V / 50Hz mains supply.

The exact plug fitted to Stagify inventory should still be physically confirmed before claiming that a UAE Type G plug is supplied.

Where This Fixture Fits Best

This model is best positioned as a multi-head beam and entertainment effect light.

Choose it when the production needs:

• Four independent RGBW beams

• Very narrow 2° optics

• Pixel-style control

• Strobe effects

• Prism effects

• Multi-head movement

• DMX programming

Choose a moving wash when broad and even stage coverage is required.

Choose a single high-output discharge beam when maximum long-distance beam intensity is the priority.

Choose this four-head platform when the main objective is to create several animated beam effects from one fixture.

Best For

The 4 Heads LED Beam Strobe Moving Head is particularly suitable for:

• Wedding stages

• Mobile DJs

• Nightclubs

• Discos

• Concert stages

• Live bands

• Dance performances

• Hotel entertainment

• Corporate events

• Event-production companies

• AV installers

• Lighting rental businesses

What's Included & Compatibility

Core product:

• 1 × 4 Heads LED Beam Strobe Moving Head Light 4x40W

Compatible with suitable:

• DMX512 lighting controllers

• Professional DMX cables

• Aluminium stage truss

• Rated moving-head clamps

• Independent secondary safety cables

• Professional event power systems

• Controlled haze equipment

The supplier page mentions remote operation, but the technical specification does not clearly confirm the exact standard package.

Do not list a remote, clamp, safety cable, DMX lead or flight case as included until the Stagify package is physically checked.

How Many 40W LEDs Does the Fixture Have?

The fixture uses four 40W RGBW 4-in-1 beam LEDs.

Each main head can be independently controlled as part of the four-pixel effects system.

Does It Have Additional White LEDs?

Yes.

The specification lists four additional 10W white LEDs alongside the four RGBW beam sources.

What Is the Beam Angle?

The beam angle is approximately 2°.

This is a very narrow optic intended primarily for concentrated aerial and entertainment effects.

Are the Four Heads Independently Controlled?

Yes.

The supplier confirms four-head pixel control, allowing each main LED/head to be controlled independently for layered and sequential effects.

Does It Have a Prism?

Yes.

A prism effect is listed in the exact product specification.

The prism facet count is not published, so a specific number should not be added without manufacturer confirmation.

What Are the Pan and Tilt Ranges?

The confirmed movement specification is:

• Pan: 540°

• Tilt: 270°

Electronic correction is listed for both axes.

How Fast Is the Strobe?

The high-speed shutter effect operates at approximately 1–25 flashes per second with variable speed control.

How Many DMX Channels Does It Use?

The fixture provides three DMX personalities:

• 16CH

• 21CH

• 36CH

This gives lighting programmers different options depending on the required control detail.

Can It Work Without a DMX Controller?

Yes.

The fixture supports:

• Auto operation

• Sound activation

• Master-Slave operation

DMX is recommended where exact movement, pixel and show-cue control is required.

Does It Work on UAE Power?

Yes.

The documented AC100–240V / 50–60Hz input covers UAE 220–240V / 50Hz mains power.

The exact supplied plug type should still be verified on Stagify stock.

Is It Suitable for Weddings?

Yes, particularly for wedding entertainment, entrances and dance-floor sequences.

The four narrow beams can create symmetrical stage looks, while RGBW colours and pixel effects provide more flexibility during later entertainment.

For general stage-face illumination, pair it with dedicated wash fixtures.

Can It Be Used Outdoors?

No outdoor IP rating is published for this exact SKU.

It should therefore not be described as waterproof or outdoor-rated.

Use the fixture in dry, protected conditions unless the physical Stagify unit or manufacturer documents a suitable IP classification.

Installation & Safety Requirements

For overhead mounting:

• Use appropriately rated professional truss.

• Use a correctly rated moving-head clamp.

• Add an independent secondary safety cable.

• Maintain clearance for 540° pan and 270° tilt.

• Keep cables clear of moving components.

• Keep ventilation openings unobstructed.

• Protect the fixture from rain unless an IP rating is confirmed.

Because four moving optical heads are operating within one fixture, surrounding clearance is especially important.

Professional overhead installations should be completed by personnel familiar with stage-lighting and rigging systems.

Professional 4-Head Beam Lighting in the UAE

Stagify supplies professional beam moving heads, multi-head effects and stage-lighting equipment across the UAE for wedding companies, DJs, clubs, venues and production businesses.

This 4×40W platform is particularly useful for lighting designers who need four independently controllable RGBW beams, 2° optics, pixel effects, prism and multi-channel DMX control from one 200W fixture.

Contact Stagify for current availability and to confirm the supplied accessory package before ordering for an event or rental fleet.
