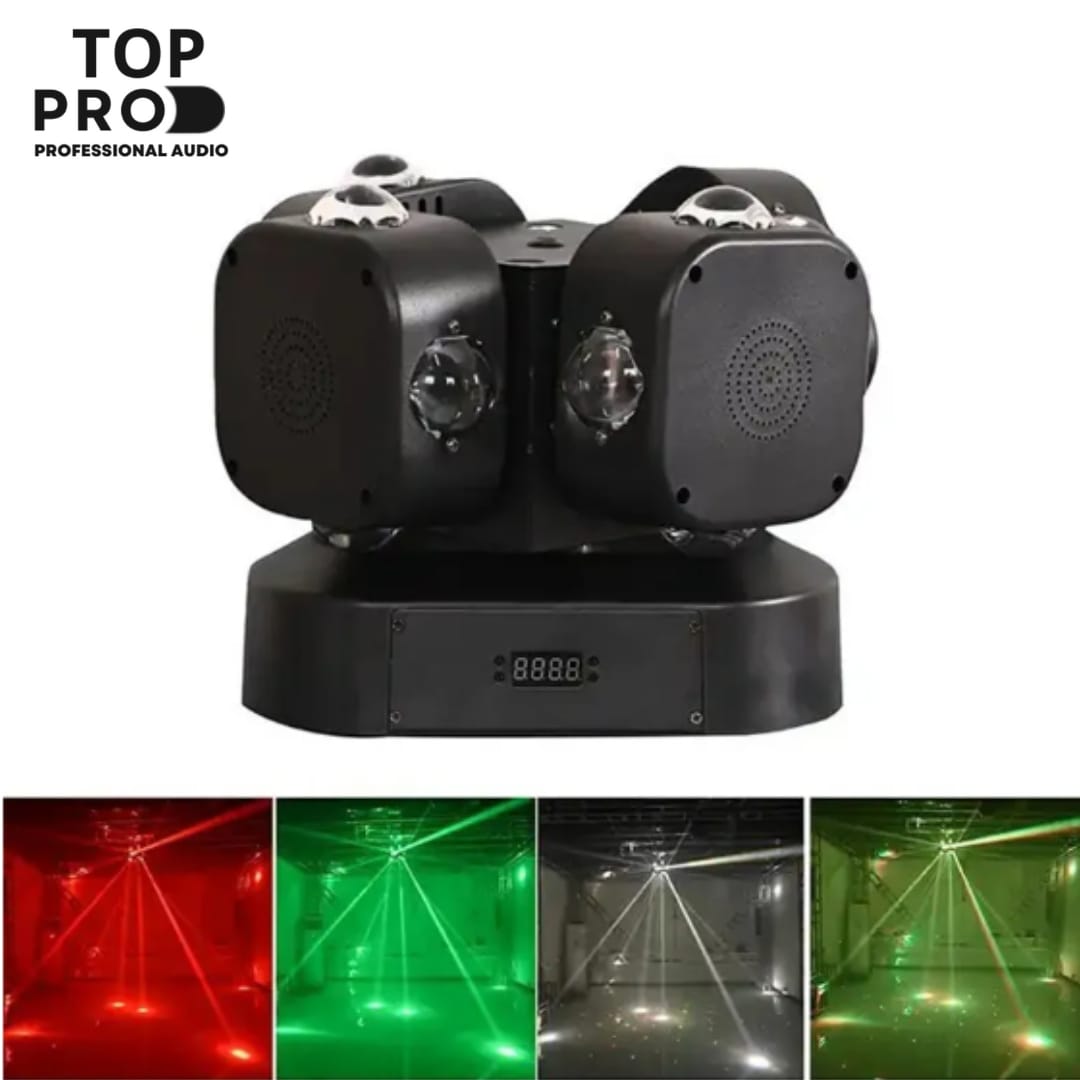

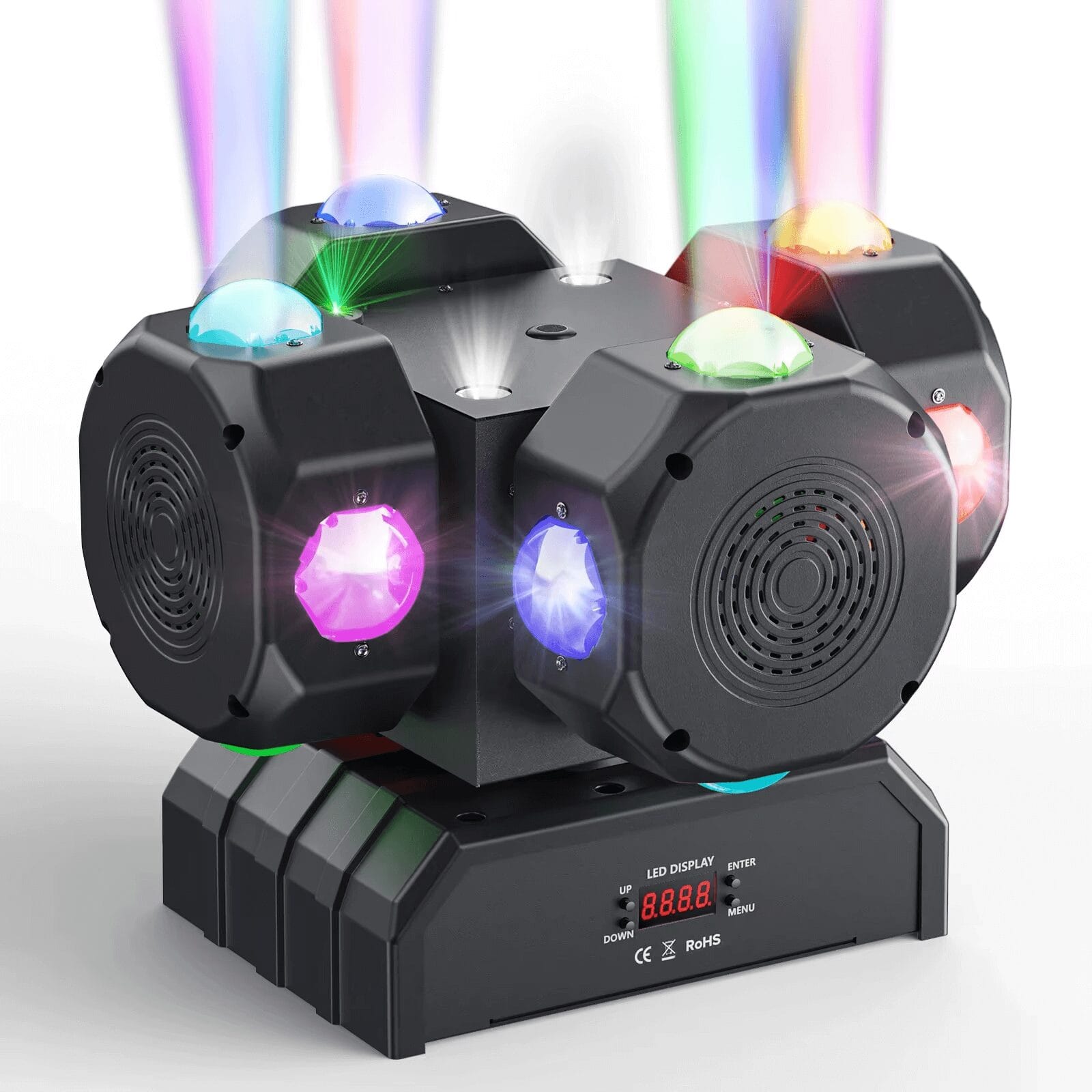

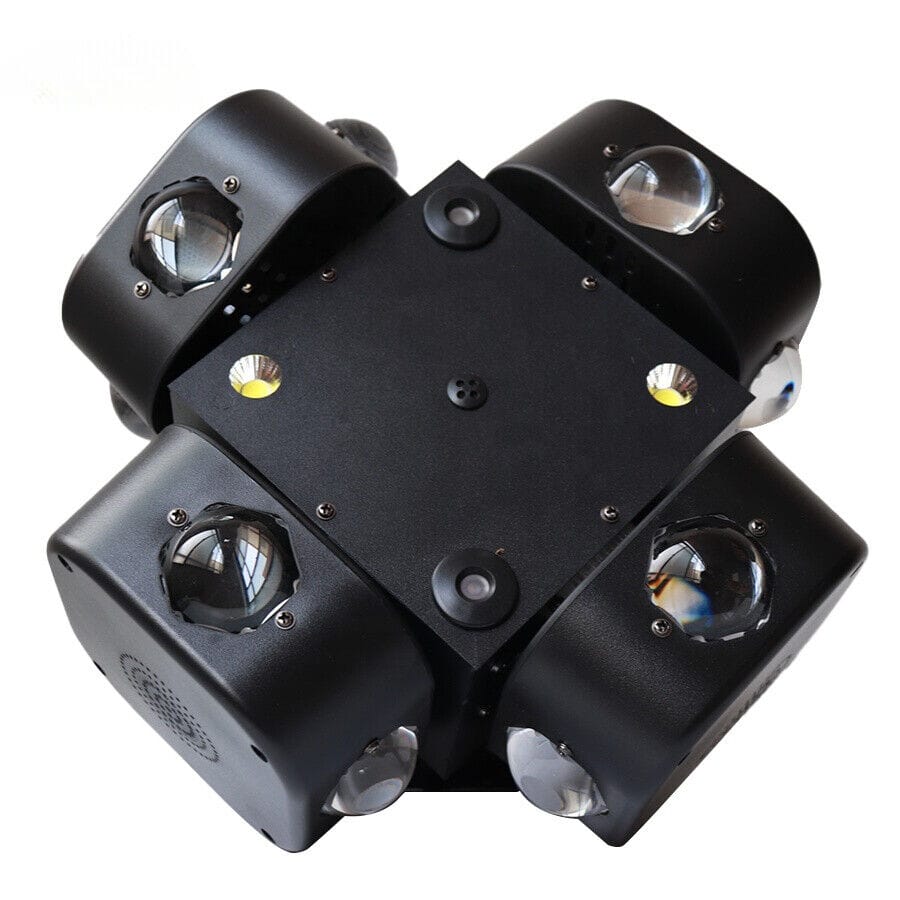

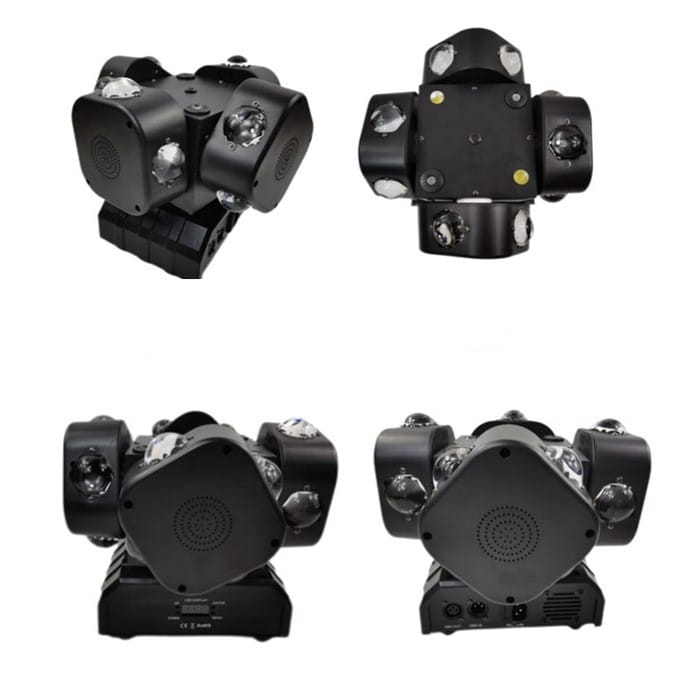

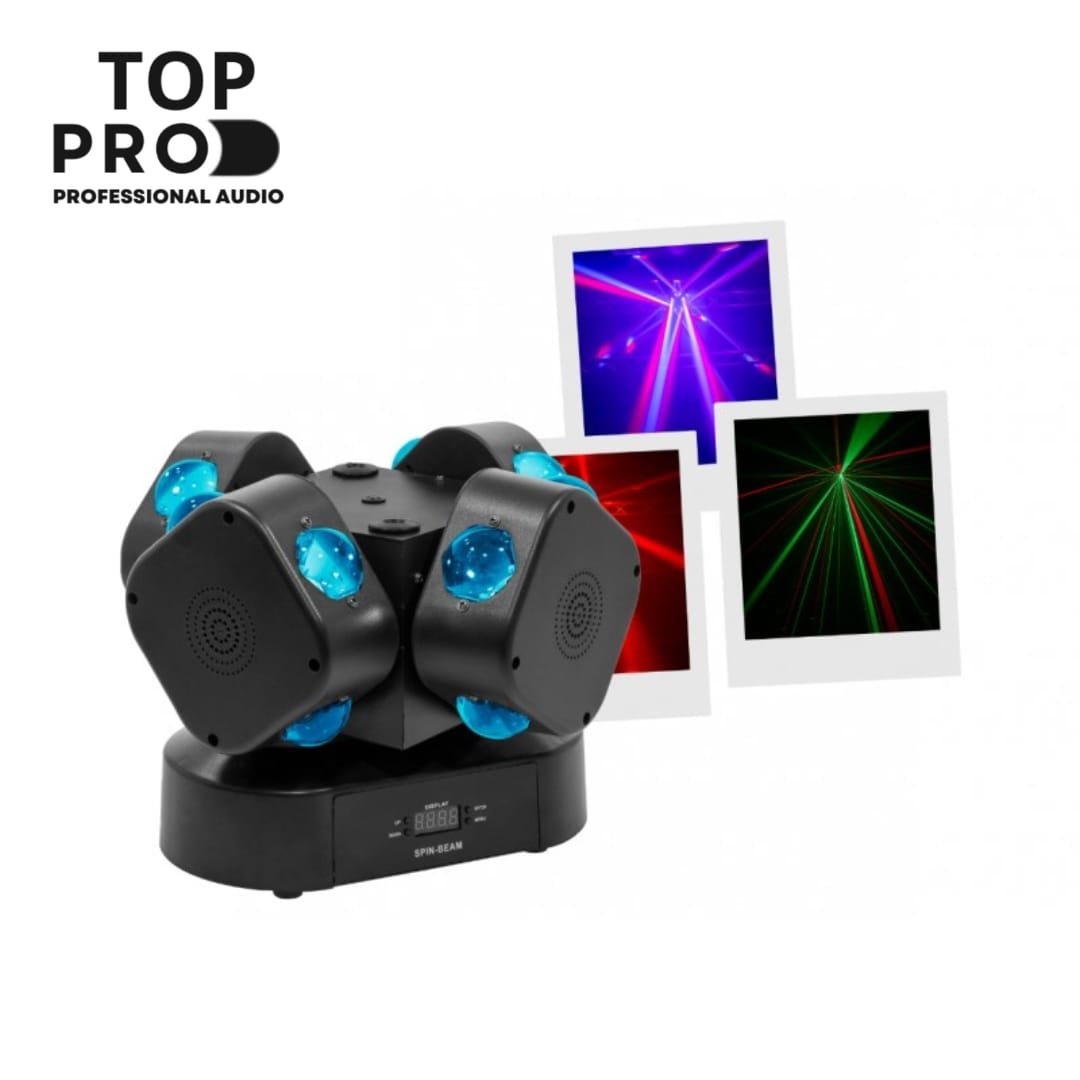

LED LASER MOVING LIGHT 4 HEADS

LED Laser Moving Light 4 Heads – RGBW Beam & Strobe Stage Light

The LED Laser Moving Light 4 Heads is a 200W multi-effect stage fixture combining RGBW LED beams, red and green laser effects and high-speed white strobing in one compact unit. With 16-channel DMX512 control, sound activation, automatic programs and master/slave operation, it is designed for DJ events, weddings, clubs, parties and professional stage productions.

Technical Specifications

These specifications are documented for the matching SF-LM026 four-head configuration.

Multi-Effect Lighting from One Fixture

The LED Laser Moving Light 4 Heads combines several stage-lighting effects that would otherwise require separate fixtures.

Its main lighting system uses 16 × 10W RGBW 4-in-1 LEDs, giving the fixture access to red, green, blue, white and mixed-colour beam effects. The four-head layout distributes these effects across different directions, helping create a wider and more animated lighting scene over dance floors and stages.

Laser effects add another visual layer. The documented configuration uses a 100mW red laser and 50mW green laser, producing sharper aerial effects that become particularly visible when used with suitable haze or fog.

Two additional 10W white LEDs provide strobe output, with speeds reaching approximately 20 flashes per second. This makes the fixture useful for energetic music sections, DJ drops and fast-paced stage transitions.

Instead of installing separate beam, laser and strobe units, production teams can use one compact fixture to create several complementary effects.

16 × 10W RGBW LED Beam System

The main light source consists of 16 RGBW LEDs rated at 10W each.

RGBW colour mixing provides more flexibility than basic RGB lighting because the dedicated white component can produce cleaner white beams while also improving pastel and mixed-colour effects.

The documented 8° beam angle keeps the output relatively focused, making the fixture better suited to visible beam effects and moving aerial patterns than broad wash lighting.

Red and Green Laser Effects

Integrated laser sources add narrow, high-contrast effects alongside the LED beams.

The verified configuration provides:

• 100mW red laser
• 50mW green laser

When used in suitable indoor environments with atmospheric effects, these lasers can create visible lines and aerial accents around the RGBW beam output.

This combination is particularly effective for clubs, DJs, entertainment venues and stage productions where continuously changing visual effects are required.

High-Speed White Strobe

The fixture includes two 10W white strobe LEDs.

Strobe speed can reach approximately 20 flashes per second, allowing operators to build everything from slower pulse effects to rapid flashes during high-energy parts of a performance.

The strobe can be combined with RGBW beams and laser output to create more complex multi-layer effects from a single unit.

DMX512 Control for Professional Programming

For programmed productions, the light supports 16-channel DMX512 control.

DMX gives lighting operators control over the fixture's available:

• Colours
• Beam effects
• Laser effects
• Strobe
• Dimming
• Movement
• Effect sequences

This makes the fixture suitable for integration with other DMX-controlled moving heads, PAR lights, strobes and stage effects.

Sound Active, Auto and Master/Slave Modes

A DMX controller is not required for every application.

The fixture supports:

• DMX512
• Sound-active operation
• Automatic programs
• Master/slave mode

Sound mode is useful for DJs, parties and smaller events where effects need to react automatically to music.

Auto mode provides pre-programmed lighting sequences, while master/slave operation allows compatible fixtures to run synchronised effects without separately programming every unit.

Smooth 0–100% Dimming

The LED system supports 0–100% smooth dimming, providing more control over brightness and scene transitions.

Instead of operating only at full output, lighting operators can reduce intensity for slower sections of an event before increasing output for dance sets, entrances or stage highlights.

Best For

The LED Laser Moving Light 4 Heads is suitable for:

• DJ performances
• Nightclubs and lounges
• Wedding receptions
• Dance floors
• Private parties
• Concerts
• Live music events
• Entertainment venues
• Stage productions
• Corporate entertainment
• Event-production companies
• Lighting rental companies

Compact Design for Mobile Event Production

Despite combining LED beam, laser and strobe effects, the documented fixture measures approximately 340 × 340 × 310 mm and weighs around 5.6 kg.

This relatively compact format makes it practical for mobile DJs, event-production teams and rental companies that regularly move lighting equipment between venues.

What Type of Effects Does This 4-Head Light Produce?

The fixture combines RGBW LED beam effects, red and green lasers, movement and white strobing.

These effects can operate together to create changing aerial patterns, colour sequences and high-energy dance-floor lighting.

How Powerful Is the LED System?

The main lighting system uses 16 × 10W RGBW 4-in-1 LEDs within a 200W fixture.

The LEDs produce focused output through an approximately 8° beam angle.

Does the 4-Head Moving Light Support DMX?

Yes. The documented configuration supports DMX512 using 16 control channels.

It can therefore be integrated into a programmed stage-lighting system with other compatible DMX fixtures.

Can I Use It Without a DMX Controller?

Yes.

Automatic, sound-active and master/slave modes allow the fixture to operate without a separate DMX console, making it practical for smaller DJ and party setups.

Does It Have a Strobe Effect?

Yes. Two 10W white strobe LEDs are included, with strobe speeds of up to approximately 20 flashes per second.

The strobe can be combined with the LED and laser effects.

Is It Suitable for Weddings and DJ Events?

Yes. The combination of multiple moving heads, RGBW beams, lasers and strobe effects makes this type of fixture particularly suitable for wedding dance floors, DJ stages, clubs and entertainment events.

For formal portions of an event, DMX control can be used to create more restrained lighting scenes before switching to faster effects later.

Laser Safety and UAE Event Use

This fixture contains 100mW red and 50mW green laser sources. Laser beams must never be intentionally directed into audience areas, people's eyes, traffic, aircraft or uncontrolled public spaces.

Public-event laser use in the UAE may be subject to venue and authority requirements. Operators should confirm the fixture's laser classification from the actual product label/documentation and obtain any required venue or authority approval before operation.

The laser class is intentionally not claimed here because I could not verify it for the exact Stagify unit. This follows the SOP requirement not to invent technical or regulatory information.

Order 4-Head LED Laser Moving Lights in the UAE

Stagify supplies professional stage lighting, moving lights, laser effects and DJ lighting equipment across Dubai and the UAE for event-production companies, DJs, venues, AV contractors and rental businesses.

The LED Laser Moving Light 4 Heads can be combined with moving heads, LED PAR lights, strobes, fog or haze effects and DMX controllers to create a complete event-lighting setup.

Contact Stagify for project quantities, compatibility advice and bulk event-lighting requirements.
