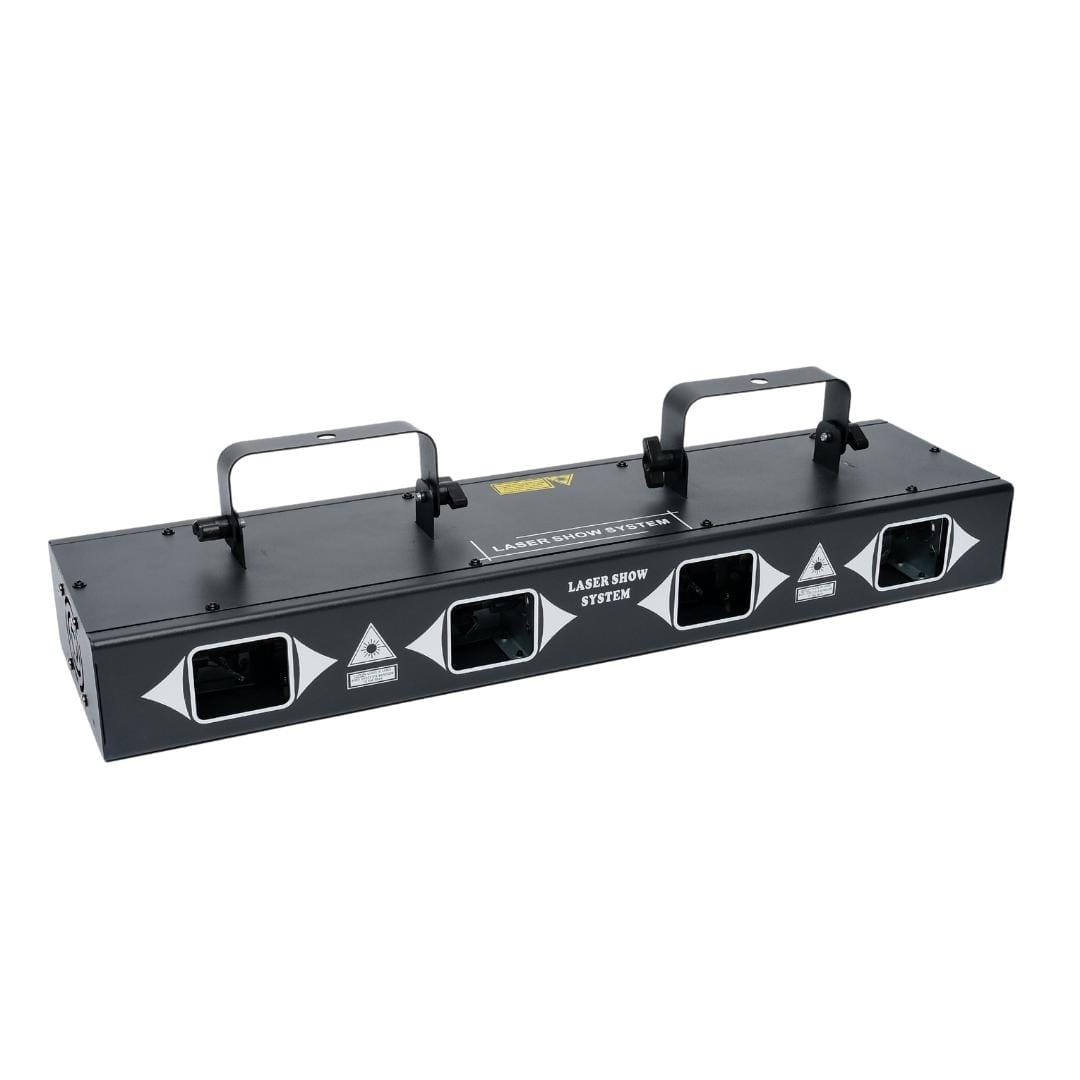

4 HEAD DISCO STAGE LASER LIGHT

4 Head Disco Stage Laser Light – 550mW RGYP DMX512

The 4 Head Disco Stage Laser Light is a 550mW Class 3B multi-beam laser fixture combining red, green, blue and purple laser output through four separate apertures. With DMX512, Auto, Sound Active and Master/Slave operation, it is designed for DJs, clubs, bars, entertainment venues and event stages that need wide, music-responsive laser effects.

Technical Specifications

The core specifications are independently documented for the matching D550RGBP / L640RGBP platform.

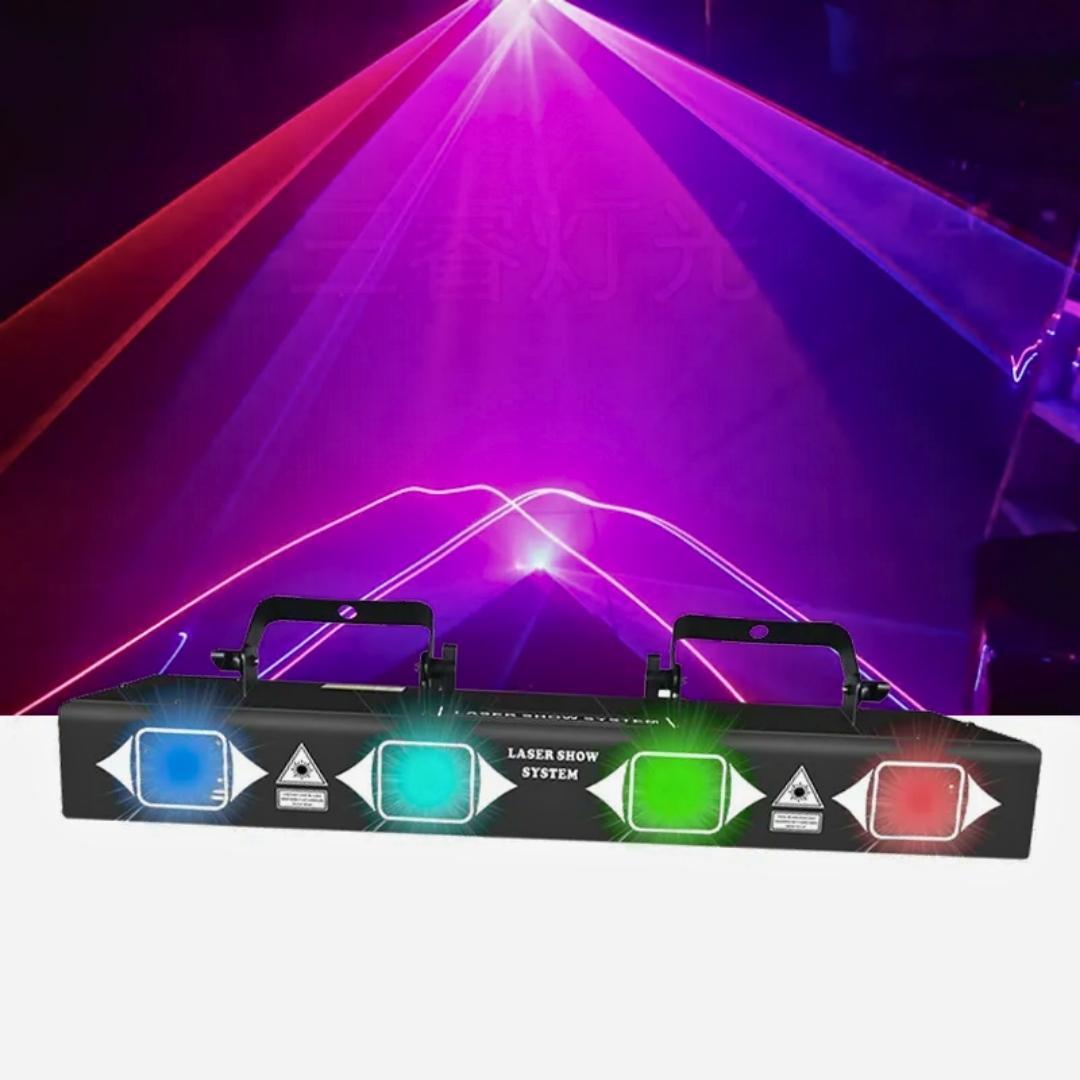

Four-Head RGYP Laser Beam System

Unlike a standard single-aperture party laser, this fixture uses four separate laser heads to spread beam effects across a wider visual area.

The four-colour system combines:

• 150mW red

• 50mW green

• 100mW blue

• 250mW purple

Together, the laser sources provide a documented 550mW total output. The multi-aperture arrangement produces separate coloured beams that can create fan-style, crossing and moving laser effects across dance floors, stages and entertainment spaces.

For DJs and venue operators, the main advantage is coverage. Rather than concentrating the entire effect through one opening, four projection apertures create a wider visual field that works well across club floors, bars and compact event stages.

More Than 100 Patterns and 300 Laser Effects

The fixture provides more than 100 programmed patterns and over 300 effects, giving operators a broad selection of movement and projection sequences without requiring external laser-design software.

The available effects are particularly useful when creating:

• DJ dance-floor effects

• Music-synchronised laser sequences

• Fan and beam patterns

• Fast-moving party effects

• Club lighting scenes

• Stage transitions

• Background laser movement

Operators can switch between automated playback and more controlled DMX programming depending on the production.

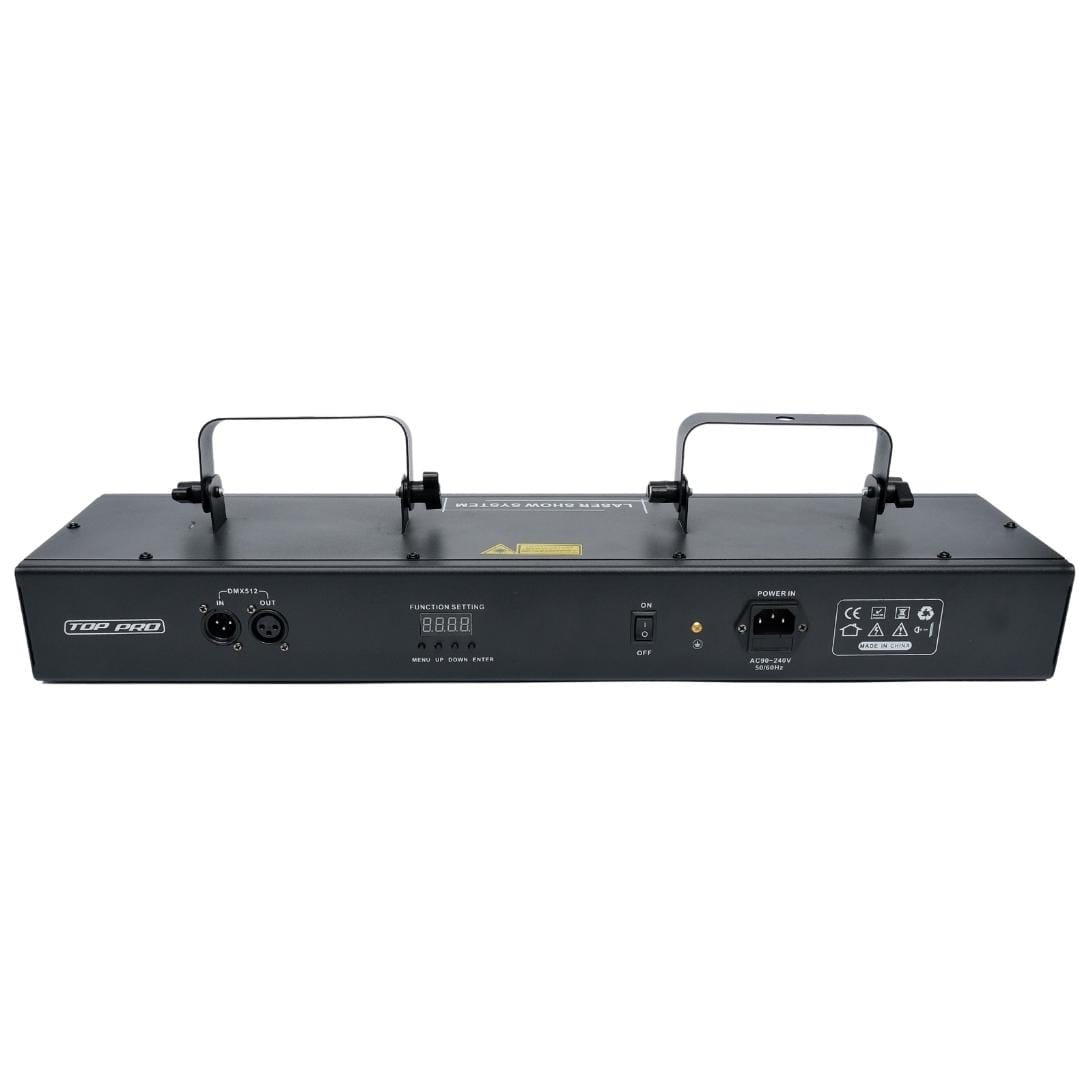

DMX512 7-Channel Control

For professional lighting setups, the laser supports 7-channel DMX512 control through 3-pin XLR connections.

DMX integration allows the unit to become part of a wider stage-lighting system alongside moving heads, LED PAR lights, strobes and other DMX-compatible fixtures.

This is particularly useful for event-production companies and clubs that want lighting cues controlled from a central DMX console rather than relying entirely on automatic programs.

Sound Active Mode for DJs and Parties

The built-in Sound Active mode allows the laser effects to respond to music without requiring manual programming.

This makes it useful for:

• Mobile DJs

• Dance floors

• Clubs

• Bars and pubs

• KTV rooms

• Parties

• Entertainment venues

For quick setups, Sound Active mode can provide music-responsive effects while reducing the amount of programming required from the operator.

Auto and Master/Slave Operation

The fixture also supports Auto and Master/Slave modes.

Auto mode runs built-in effects without an external controller, making it practical for smaller venues and simple installations.

Master/Slave operation allows compatible units to run together, which is useful when several fixtures need coordinated playback across a larger stage or dance floor.

For more precise event programming, DMX512 remains the better option.

Compact 445MM Wide Housing

Despite using four laser apertures, the fixture measures only 445 × 200 × 75 mm and has a documented net weight of 3.9 kg.

The low-profile design makes it practical for:

• Mobile DJ systems

• Lighting truss

• Club installations

• Stage lighting rigs

• Entertainment venues

• Rental inventories

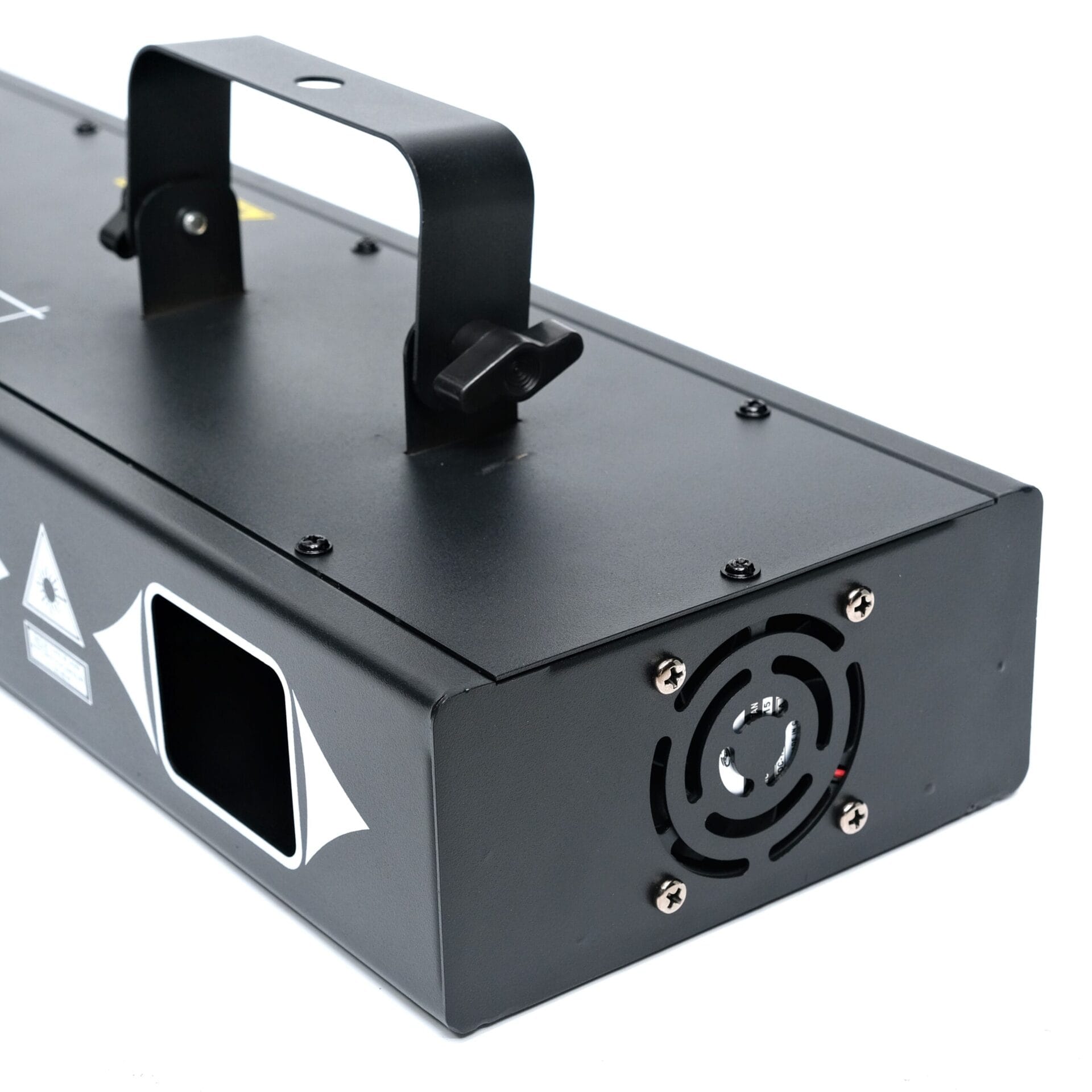

A built-in cooling fan helps manage operating temperature during extended lighting sessions.

Best For

The 4 Head Disco Stage Laser Light is suitable for:

• DJs and mobile entertainment setups

• Nightclubs and discos

• Bars and pubs

• KTV and karaoke venues

• Wedding after-parties

• Private events

• Dance floors

• Entertainment venues

• Small-to-medium indoor stages

• Event-production companies

• Lighting rental businesses

What's Included

The matching D550RGBP package is documented with:

• 1 × four-head laser projector

• 1 × power cable

• Safety keys

• User manual

The supplied mains plug format should be checked for the Stagify stock batch before publication because the available source documentation does not confirm a UAE Type G plug.

What Colours Does the 4 Head Laser Produce?

The fixture produces red, green, blue and purple laser beams, commonly described as an RGYP configuration.

Its four laser sources provide a combined documented output of 550mW.

How Powerful Is the 4 Head Disco Stage Laser Light?

The total laser output is 550mW, consisting of 150mW red, 50mW green, 100mW blue and 250mW purple output.

Because this is a Class 3B laser system, it must be positioned and operated appropriately for professional event use.

Can I Control This Laser With DMX?

Yes. The fixture supports DMX512 with 7 control channels and uses 3-pin XLR connections for DMX input and output.

This allows the laser to be incorporated into a wider stage-lighting setup and controlled from a compatible DMX console.

Does It Work Without a DMX Controller?

Yes. In addition to DMX512, the laser provides Auto, Sound Active and Master/Slave modes.

Sound Active operation is particularly useful for DJs and parties because effects can respond to the music automatically.

How Many Laser Effects Are Built In?

The matching fixture provides more than 100 patterns and over 300 laser effects.

These built-in programs allow the laser to create varied visual sequences without requiring dedicated laser-show software.

What Is the Size and Weight?

The unit measures 445 × 200 × 75 mm and weighs 3.9 kg. These figures match both the existing Top Pro Sound product listing and independent documentation for the same laser platform.

Is This Laser Suitable for Public Events?

The matching laser system is documented as Class 3B, so professional laser-safety practices are required.

For UAE public events and venues, installation may also be subject to venue or authority approval. The laser should never be aimed directly into audience areas, and operation should be handled by personnel familiar with stage-laser positioning and safety requirements.

This safety language follows the laser-specific requirements in the Stagify SOP.

Laser Safety & Installation

This product produces concentrated Class 3B laser radiation.

Do not stare directly into the apertures or position the fixture where direct beams can enter audience eye level. The unit should be securely mounted, properly aimed and operated by personnel familiar with professional laser-lighting equipment.

Before using lasers at public events in the UAE, confirm applicable venue and authority requirements. Never describe a laser installation as automatically safe or permit-exempt without project-specific confirmation.
