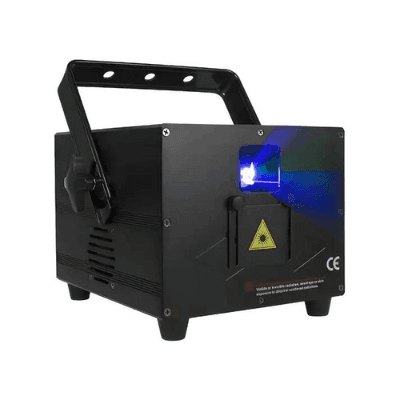

3W RGB Animation Laser Light

3W RGB Animation Laser Light

The 3W RGB Animation Laser Light is a full-colour professional laser projector designed for animated patterns, text-style effects, aerial beams and entertainment visuals. Its 3000mW RGB output combines 1000mW red, 1000mW green and 1000mW blue laser sources with ±30° optical scanning, 12-channel DMX512 and standalone operating modes for clubs, DJs, KTV venues and indoor stage productions.

Technical Specifications

True 3W RGB Laser Output

The projector provides a documented 3000mW total RGB laser output.

Unlike products where most of the rated power is concentrated in one colour, this model is specified with an even nominal distribution:

• Red: 1000mW

• Green: 1000mW

• Blue: 1000mW

This gives the projector substantial output across all three primary laser colours.

The three sources can be combined to create full-colour animation and stage effects suitable for entertainment applications.

1000mW Red at 638nm

The red laser operates at 638nm with a published power of 1000mW.

638nm provides a strong visible red component for:

• Animation patterns

• Geometric effects

• Text-style projection

• Aerial beams

• Mixed RGB colours

Red can operate independently or combine with the green and blue sources as part of full-colour effects.

1000mW Green at 520nm

The green laser is specified at 520nm / 1000mW.

Green is highly visible to the human eye and plays an important role in both aerial effects and projected graphics.

It can be used for:

• Scanning lines

• Geometric animation

• Tunnel-style effects

• Music-driven patterns

• Mixed colours

When haze is used in a properly controlled laser zone, green beams can become particularly visible through the air.

1000mW Blue at 450nm

The blue laser source is rated at 1000mW / 450nm.

Blue adds a deeper colour component to the RGB system and is particularly effective in darker club and concert environments.

Combining blue with red or green expands the projector's available colour palette beyond the three primary colours.

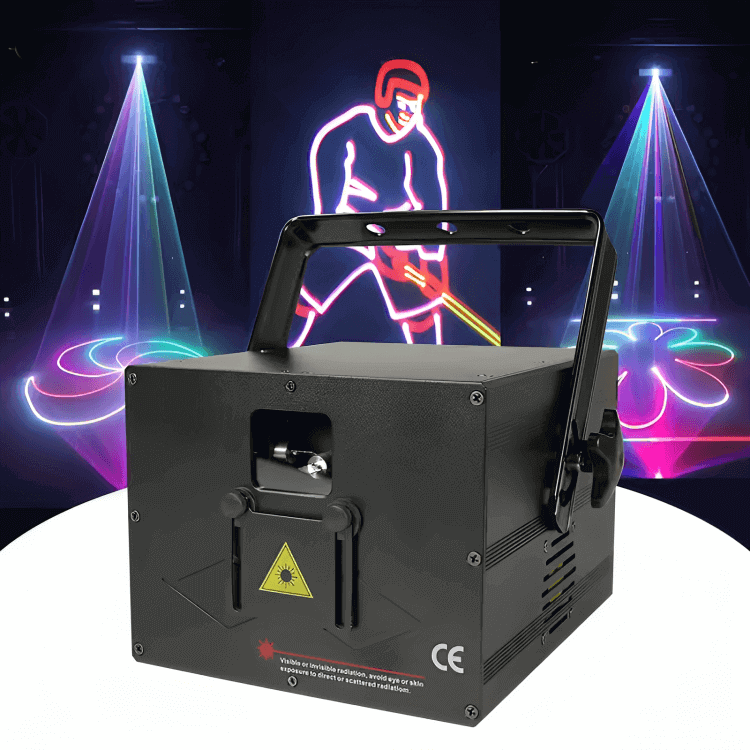

Full-Colour RGB Animation Effects

The three laser sources work together to produce multi-colour visual effects.

Potential output includes:

• Red

• Green

• Blue

• Mixed RGB colours

• Animated patterns

• Scanned lines

• Geometric shapes

• Moving effects

• Text-style visuals

The exact colour-mixing quality depends on the projector's modulation architecture.

The supplier does not specify TTL or analogue modulation for this exact model, so Stagify should not claim smooth analogue colour fading until the physical fixture or manufacturer manual confirms it.

Animation and Text Projection

The supplier specifically positions this fixture for animation and text projection.

This makes it different from simple party lasers that mainly project:

• Static dots

• Fixed stars

• Repeating beam arrays

An animation projector rapidly scans the laser beam to create recognisable moving shapes and patterns.

That makes this product more suitable for:

• Clubs

• Stage productions

• DJ performances

• KTV entertainment

• Branded event effects

However, software capabilities and file formats should only be advertised after the exact computer-control interface has been confirmed.

±30° Optical Scanning Angle

The documented optical scanning range is ±30 degrees.

This gives the projector a broad scanning field for animated effects.

A larger scan angle can help the unit cover a wider projection area, although actual projected size will depend on:

• Distance from the surface

• Pattern

• Scanner settings

• Show programming

The supplier does not publish a scanner-speed figure in Kpps.

Do not add 15K, 20K, 30K or 40K specifications from another animation laser.

High-Speed Galvo Animation System

The supplier describes the fixture as using a high-speed galvanometer scanning system for creating detailed animation and pattern effects.

Galvanometers rapidly direct the laser beam across the projection field to form visible images.

This enables effects such as:

• Moving shapes

• Geometric patterns

• Animated graphics

• Text-style effects

• Rotating visual patterns

The exact Kpps scanner speed remains unconfirmed for this SKU.

This matters because scanner speed determines how complex and smooth a laser graphic can be rendered.

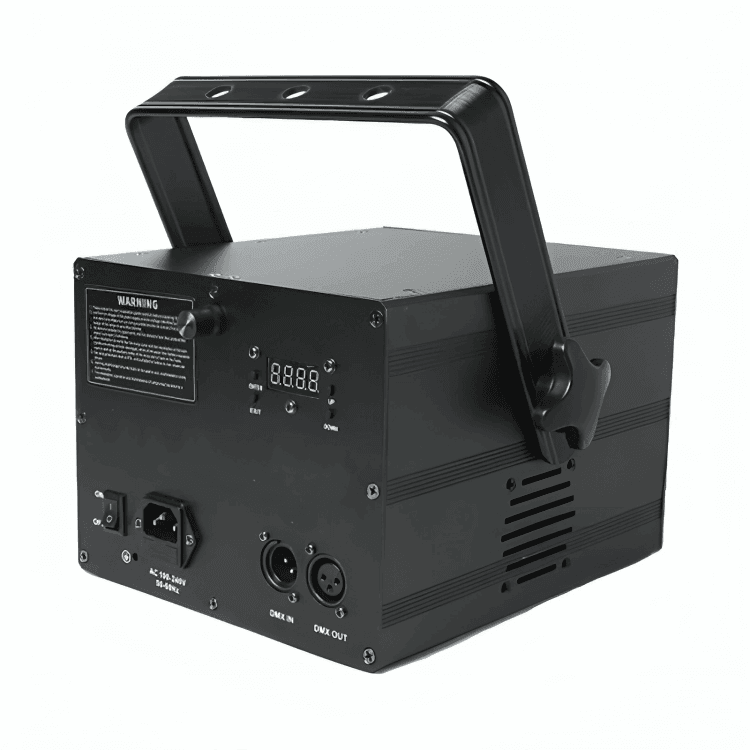

12-Channel DMX512 Control

The projector uses a confirmed 12CH DMX512 personality.

This allows the laser to operate from a professional stage-lighting controller alongside other DMX fixtures.

A lighting console can coordinate the projector with:

• Moving head beams

• Moving wash lights

• LED PARs

• Pixel bars

• Blinders

• Strobes

• Other laser effects

This makes DMX control particularly useful for concerts, wedding entertainment and nightclub installations where laser cues need to follow the rest of the lighting programme.

Voice / Sound-Activated Control

The fixture includes Voice Control, functioning as a sound-responsive operating mode.

This allows built-in effects to respond to music without requiring continuous manual programming.

Sound operation works particularly well for:

• DJs

• Clubs

• Bars

• KTV venues

• Parties

For productions requiring precise repeatable cues, DMX512 provides greater control.

Automatic Operation

The projector supports Auto mode.

This allows built-in animation and effect programmes to operate without an external console.

Auto mode is useful when:

• Fast setup is required

• A dedicated lighting operator is unavailable

• Built-in effects are sufficient

• The projector is used as part of a simple entertainment installation

The same fixture can later be switched to DMX for more detailed show control.

Master-Slave Operation

Multiple compatible laser fixtures can operate in Master-Slave mode.

One unit runs the programme while connected fixtures follow.

This can help create synchronised effects where several projectors are installed:

• Across a DJ stage

• Beside an entertainment platform

• Around a club

• Across a concert rig

For different effects from each unit, individual DMX programming is the more flexible solution.

Computer Control

The supplier also lists computer control as a supported operating method.

This could potentially allow more detailed animation programming than standalone modes.

However, the exact page does not document:

• Connector type

• Software name

• ILDA interface

• USB interface

• Ethernet protocol

• Supported operating system

• File format

For that reason, Stagify should state Computer Control only until the rear connections or manufacturer manual are inspected.

ILDA Is Not Confirmed

Many professional RGB animation lasers use ILDA control.

However, ILDA is not explicitly documented for this exact product.

Do not add:

• ILDA input

• ILDA output

• DB25 interface

• Pangolin compatibility

• LaserShowGen compatibility

• QuickShow compatibility

unless the physical fixture confirms those connections.

This distinction matters because several 3W projectors with nearly identical appearance have completely different control interfaces.

Designed for Clubs and DJs

Nightclubs are a strong application because the projector combines:

• Full RGB output

• Scanned animation

• Sound activation

• DMX control

• Automatic programmes

A properly designed laser installation can produce animated patterns and aerial effects that visually complement conventional moving lights.

For DJs, sound mode may simplify smaller events, while DMX control allows integration into larger programmed productions.

KTV and Karaoke Applications

The exact supplier also identifies KTV venues as a target application.

Animation lasers can add moving graphics and colourful patterns around music-focused entertainment spaces.

However, installation in smaller rooms requires particularly careful laser zoning because shorter distances do not reduce the hazard associated with a multi-watt projector.

Concert and Stage Applications

The projector can be used during specific stage moments such as:

• Artist entrances

• DJ drops

• Musical transitions

• Stage reveals

• Concert finales

Laser effects can contrast strongly with conventional LED lighting because their coherent beams remain narrow over distance.

Controlled haze can increase aerial beam visibility, but haze does not make unsafe beam placement acceptable.

350 × 240 × 240MM Fixture

The fixture measures approximately:

350 × 240 × 240 mm

and weighs approximately:

5.2 kg

These dimensions make it substantially larger and heavier than compact low-power party lasers.

The weight should be considered when planning:

• Truss installation

• Clamps

• Safety attachment

• Flight cases

• Transport

• Storage

A fitted flight case is sensible for rental companies moving the projector frequently between events.

AC90–250V / 50–60Hz Input

The exact specification lists AC90–250V at 50/60Hz.

This range covers standard UAE 220–240V / 50Hz mains power.

The exact plug supplied with Stagify inventory should still be physically checked before stating that a UAE Type G plug is included.

The supplier does not publish total electrical power consumption for this exact model.

Do not use the 3W laser optical output as though it were the fixture's mains consumption.

IP20 Indoor Protection

The fixture carries a confirmed IP20 rating.

It should therefore be positioned for:

• Indoor stages

• Clubs

• Ballrooms

• Bars

• KTV venues

• Indoor concert environments

It should not be advertised as:

• Waterproof

• Rainproof

• Weather-resistant

• Outdoor-rated

For outdoor laser events, use appropriately protected equipment and follow all applicable venue and authority requirements.

3W Animation Laser vs Multi-Eye Laser

These products serve different purposes.

Choose this 3W Animation Laser when you need:

• Animated patterns

• Text-style effects

• Scanned graphics

• Geometric projections

• A single full-colour animation projector

Choose a multi-eye laser when you need:

• Several simultaneous beam apertures

• Wide multi-beam aerial effects

• Repeating beam arrays

• Strong fixture-visible effects

The animation projector is more suitable when scanned visual content is important.

3W vs ZT-2WRGB 2W Animation Laser

The 3W model also occupies a clear position above Stagify's 2W ZT-2WRGB.

3W RGB Animation Laser

• 3000mW RGB output

• 1000mW each R/G/B

• ±30° scan angle

• 12CH DMX

• 5.2 kg

• Larger 350 × 240 × 240 mm chassis

ZT-2WRGB 2W

• 2000mW total RGB

• 15K documented scanner

• Compact chassis

• 1.7 kg format

• Better portability

The 3W model should therefore be positioned for buyers prioritising higher optical output and balanced 1W-per-colour RGB power, while the ZT-2WRGB fills the more compact mobile-animation role.

Best For

The 3W RGB Animation Laser Light is particularly suitable for:

• Nightclubs

• Professional DJs

• KTV venues

• Bars

• Concert stages

• Wedding entertainment

• Music events

• Live performances

• Event-production companies

• AV rental businesses

• Indoor laser shows

What's Included & Compatibility

Core product:

• 1 × 3W RGB Animation Laser Light

Compatible with suitable:

• DMX512 lighting controllers

• Professional DMX cabling

• Stage truss

• Properly rated lighting clamps

• Independent secondary safety retention

• Controlled haze equipment

• Professional event-power distribution

The exact supplier page does not clearly document the standard accessory package.

Do not list a:

• ILDA cable

• Computer interface

• Software licence

• DMX cable

• Clamp

• Safety cable

• Flight case

as included unless actual Stagify inventory confirms it.

What Is the Total Laser Power?

The projector is rated at 3000mW / 3W total RGB laser output.

The published individual sources are:

• Red: 1000mW

• Green: 1000mW

• Blue: 1000mW

What Laser Wavelengths Does It Use?

The exact specification lists:

• 638nm red

• 520nm green

• 450nm blue

Does It Support Animation?

Yes.

The product is specifically designed for animation, patterns and text-style projection.

What Is the Scanner Speed?

The exact supplier page does not publish a Kpps value.

It describes high-speed galvanometer scanning and gives a ±30° optical scan angle, but no numerical scanning speed.

Do not copy a Kpps specification from another 3W laser.

Does It Support DMX512?

Yes.

The exact model uses 12CH DMX512.

Can It Work Without DMX?

Yes.

Confirmed control methods include:

• Voice/Sound

• Automatic

• Master-Slave

• DMX512

• Computer

Does It Support ILDA?

ILDA is not confirmed on the exact supplier specification.

Computer control is documented, but the interface and protocol are not.

Check the rear panel or manual before advertising ILDA compatibility.

Does It Use Analogue Modulation?

The modulation type is not confirmed.

Other 3W animation lasers use either TTL or analogue modulation, so this specification must not be borrowed from another model.

Does It Work on UAE Power?

Yes.

The confirmed AC90–250V / 50–60Hz input range covers UAE 220–240V / 50Hz mains.

The supplied plug still needs physical verification.

Is It Waterproof?

No.

The exact product is rated IP20.

It should be used in dry indoor or fully weather-protected conditions.

Is a 3W Laser High-Power Equipment?

Yes.

A 3W / 3000mW entertainment laser is far above low-power presentation or pointer-level lasers.

FDA guidance identifies professional laser light-show projectors among the higher laser-hazard categories and notes that improperly operated systems can cause eye injury, skin injury and fire hazards.

The actual class of this specific fixture should be taken from its physical laser-warning label, not inferred from the supplier's vague “Laser Safety Factor: 4” field.

Laser Safety Requirements

The projector should be operated as professional laser-show equipment.

Before use:

• Verify the manufacturer's laser-class label.

• Establish controlled projection zones.

• Keep hazardous direct beams away from audience eye level.

• Keep beams away from staff and performers.

• Avoid uncontrolled reflections from mirrors and polished surfaces.

• Secure the projector with appropriately rated mounting hardware.

• Install independent secondary retention for overhead mounting.

• Prevent unauthorised access to the projector.

• Follow manufacturer operating limits.

• Use personnel familiar with professional laser-show safety.

FDA guidance notes that compliant high-power laser shows keep hazardous emissions away from audiences and identifies eye injury, skin burns and fire among the risks of improperly handled laser systems.

Laser Displays in Dubai

Dubai Civil Aviation Authority operates a formal No Objection Certificate service for laser and pyrotechnic displays in the Emirate of Dubai.

Dubai legislation also lists conducting a laser show without the required DCAA NOC as an offence.

Event organisers should therefore confirm applicable DCAA, venue and other authority requirements before operating a professional laser display.

Professional 3W RGB Animation Lasers in the UAE

Stagify supplies animation lasers, laser effects and professional stage-lighting equipment across the UAE for DJs, clubs, wedding companies and event-production businesses.

This 3W model fills a clear position in the range: balanced 1000mW red + 1000mW green + 1000mW blue output, ±30° scanning and 12CH DMX control, rather than the lower-output portable format of smaller animation lasers.

Contact Stagify for current availability and confirmation of the scanner speed, computer-control interface, laser-class label and supplied accessories before ordering.
