DISCO TILES LED DANCE FLOOR 3D

DISCO TILES 3D LED Dance Floor for Events & Weddings UAE

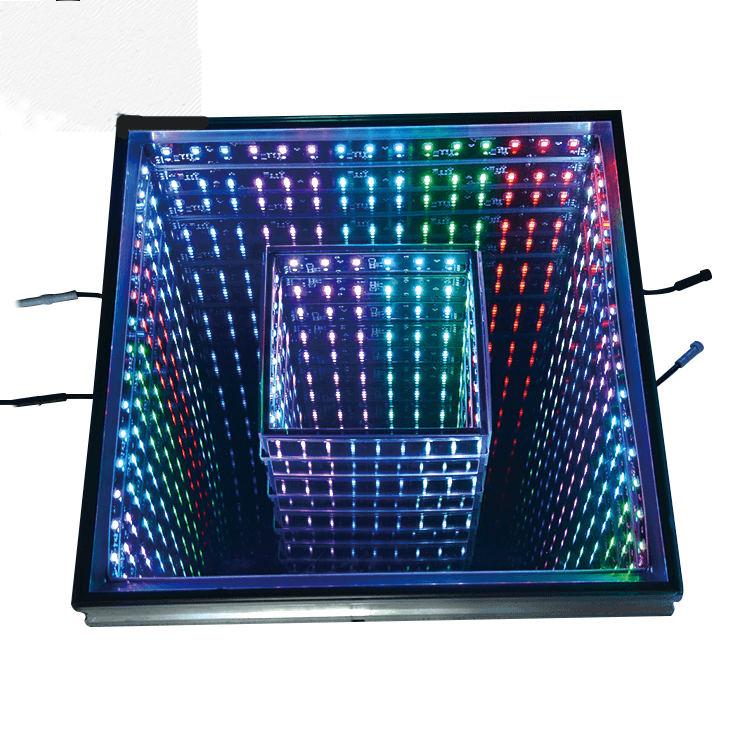

The DISCO TILES 3D LED Dance Floor is a modular RGB infinity-mirror flooring system designed for weddings, DJ events, clubs, stages and corporate productions. Each 50 × 50 cm tile uses a 10 mm tempered-glass surface with SMD5050 RGB LEDs to create illuminated tunnel-style 3D effects, while magnetic connections allow multiple panels to form larger dance floors.

Technical Specifications

These specifications correspond to documented 50 × 50 cm professional 3D LED dance-floor systems.

Create a 3D Infinity Effect Across the Dance Floor

Unlike a standard illuminated floor that simply lights from underneath, a 3D LED dance floor uses reflective surfaces and RGB lighting to create the visual impression of light extending below the floor.

The result is an infinity-style tunnel effect that adds depth to the dance area without requiring a physically deep platform.

This makes the floor particularly effective for wedding entrances, first dances, nightclub installations and DJ events where the flooring itself needs to become part of the visual production.

RGB LEDs allow the floor to move between individual colours, mixed-colour patterns and animated effects, giving operators greater flexibility to coordinate the dance floor with surrounding moving heads, washes, lasers and stage effects.

50 × 50CM Modular Dance Floor Tiles

Each standard panel measures 50 × 50 cm, allowing the complete floor to be built according to the dimensions of the venue.

Because four 50 × 50 cm panels cover approximately 1 m², production teams can calculate the required tile quantity from the intended floor size.

For example:

The modular design is useful for event-rental businesses because the same inventory can be rearranged into different floor sizes for different venues.

10MM Tempered Glass Surface

The walking surface uses 10 mm tempered glass, providing a rigid transparent layer above the internal lighting and mirror system.

This allows the RGB LEDs to remain visible while giving guests a proper surface for dancing and normal event foot traffic.

Professional 3D dance-floor manufacturers consistently use tempered glass for this product category because conventional glass would not be appropriate for repeated event use.

The panels should nevertheless be transported in suitable protective cases and inspected before installation, particularly around the glass edges and connection points.

RGB SMD5050 LED Lighting

The 50 cm panel configuration uses 60 SMD5050 RGB LEDs to generate the internal colour effects.

RGB colour mixing allows the system to produce:

• Red
• Green
• Blue
• Mixed RGB colours
• Single-colour displays
• Colour-changing sequences
• Starlight effects
• Animated lighting patterns

This gives event operators more control than a fixed white or single-colour dance floor.

The lighting can be coordinated with the wider event design, such as warm tones for wedding entrances, dynamic multicolour sequences for DJ sets or corporate colours for branded events.

DMX, Computer, App and Remote Control

The 3D LED dance floor supports several control methods depending on how detailed the production needs to be.

Documented systems support:

• DMX control
• Computer control
• Mobile app control
• Remote control

DMX and computer operation are useful for professional productions where the dance floor needs to follow programmed lighting cues.

Remote or app control provides a simpler option for weddings, mobile DJ setups and smaller events where operators primarily need to change colours or select built-in effects.

Professional 3D floors are also available with sound-responsive and programmable control systems depending on the controller supplied.

Magnetic Connection for Faster Installation

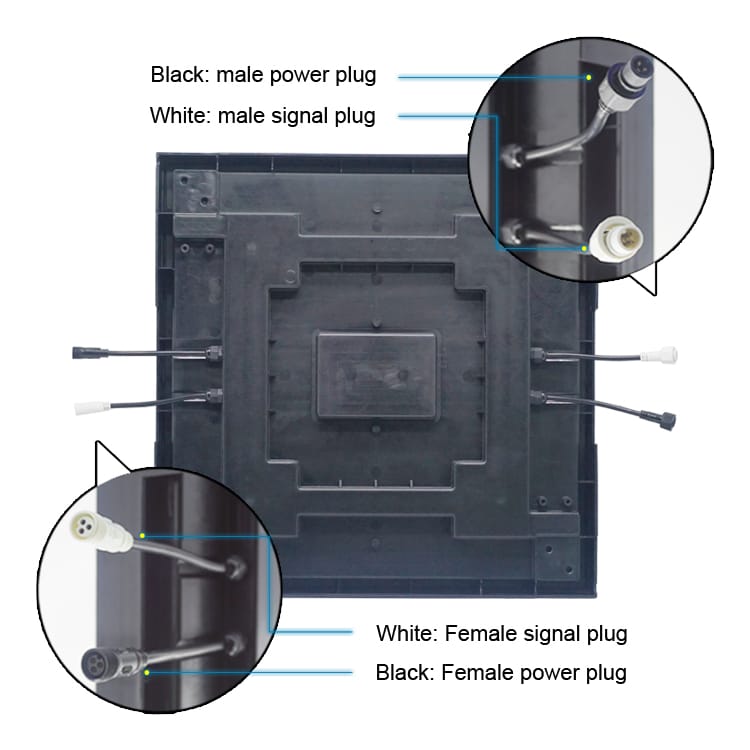

Individual panels use a magnetic connection system, allowing tiles to connect together without treating every panel as an isolated fixture.

This is particularly useful for event-production and rental companies that repeatedly install and dismantle dance floors.

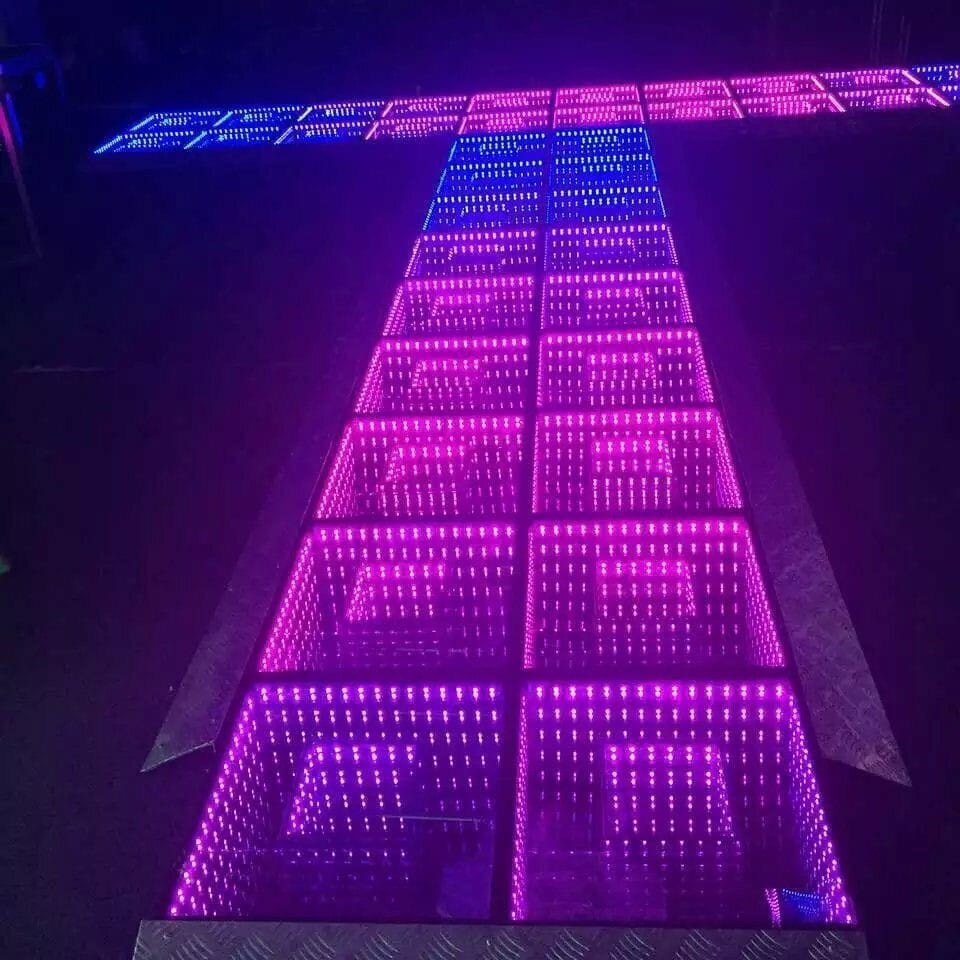

A modular magnetic system helps crews create square, rectangular or runway-style layouts according to available venue space.

Power distribution and controller connections should still be planned correctly for the total number of panels being installed.

Low Power Requirement Per Tile

The documented 50 × 50 cm configuration uses approximately 15W per panel and operates internally at DC 12V.

For example, using the documented 15W panel figure:

• 16 panels ≈ 240W
• 36 panels ≈ 540W
• 64 panels ≈ 960W
• 100 panels ≈ 1,500W

Actual system power requirements should include the appropriate controller, power distribution and operating headroom.

The system accepts AC 90–260V at 50/60Hz through its power supply, making the documented configuration compatible with UAE mains voltage when supplied with the correct UAE-compatible power connection.

Best For

The DISCO TILES 3D LED Dance Floor is suitable for:

• Wedding receptions
• Wedding entrances and first dances
• DJ events
• Nightclubs and lounges
• Concerts
• Corporate events
• Product launches
• Fashion shows
• Exhibition stands
• Hotel ballrooms
• Private parties
• Stage productions
• Event-rental companies
• AV and production companies

Ideal for UAE Wedding and Event Productions

LED dance floors are particularly useful in hotel-ballroom and wedding-production environments because they combine functional flooring with a lighting effect.

Instead of adding another standalone effect around the dance area, the floor itself becomes part of the visual design.

For wedding companies, larger modular inventories also make it possible to offer different floor dimensions according to guest count and ballroom space rather than maintaining separate fixed-size floors.

Rental companies can combine the floor with moving heads, LED PAR lights, lasers, cold spark effects and stage lighting to build complete event packages.

What's Included & System Requirements

A complete 3D LED dance-floor installation normally requires:

• 3D LED floor panels
• Compatible power distribution
• Dance-floor controller
• Power cables
• Data/control connections
• Edge ramps where required
• Remote or DMX/computer interface
• Suitable transport cases

The exact Stagify package quantity should be listed according to whether the product is sold per tile, per square metre or as a complete floor package.

How Does a 3D LED Dance Floor Create the Infinity Effect?

The floor combines RGB LEDs with reflective surfaces to create repeated reflections underneath the tempered-glass top.

These reflections produce the visual illusion of a deep illuminated tunnel even though each documented panel is only around 7 cm high.

What Size Is Each 3D LED Dance Floor Tile?

The standard panel covered by this configuration measures 50 × 50 × 7 cm.

Because each panel covers 0.25 m², approximately four tiles are required for every square metre of finished dance floor.

How Many Tiles Do I Need for a 4 × 4 Metre Dance Floor?

A 4 × 4 metre dance floor covers 16 m².

Using 50 × 50 cm panels requires approximately 64 panels to build that floor size.

Can the LED Dance Floor Change Colours?

Yes. The floor uses SMD5050 RGB LEDs, allowing individual colours, mixed RGB effects, animated sequences and starlight-style effects.

The available effects depend on the controller and programming method being used.

Can It Be Controlled by DMX?

Yes. Documented professional 3D LED dance-floor systems support DMX control, allowing them to be integrated into a wider event-lighting setup.

Computer, mobile app and remote-control options are also available with this system format.

Is the Surface Made From Glass?

Yes. The documented configuration uses a 10 mm tempered-glass walking surface over an ABS housing.

Panels should be installed on an appropriately level surface and inspected before every event.

Can the Floor Be Used for Weddings?

Yes. Weddings are one of the main applications for 3D infinity LED dance floors.

They are particularly effective for entrances, first dances and evening receptions where the floor needs to coordinate with the overall stage and lighting design.

Installation & Electrical Safety

Install the dance-floor tiles on a flat, stable and clean surface before connecting power.

Inspect the tempered glass, panel housing, electrical connectors and cabling before each installation. Damaged glass or electrical connections should not remain in service.

Keep power distribution protected from guest traffic and use suitable cable management around the installation.

Although professional versions are available with splash-resistant housings, the exact IP rating of the Stagify SKU should be verified before making any outdoor or waterproof-use claim.

Order 3D LED Dance Floor Tiles in the UAE

Stagify supplies professional LED dance floors, stage lighting and event-production equipment across Dubai and the UAE for wedding companies, event planners, hotels, venues, DJs and production businesses.

The modular design allows floor dimensions to be planned around the venue and event requirement. Contact Stagify for panel quantities, complete-floor configurations and project pricing for larger wedding, rental and event installations.

Contact Stagify for product compatibility, project requirements and bulk stage-lighting enquiries.
