3D 10W Animation Moving Head Laser Light

3D 10W Animation Moving Head Laser Light for Professional Lighting Effects

The 3D 10W Animation Moving Head Laser Light combines full-colour RGB laser projection with 540° pan, 270° tilt and a 30KPPS scanning system. Its 256 built-in animations, DMX512, ILDA and Art-Net control make it suitable for professional concerts, clubs, wedding productions, live stages and programmed laser shows across the UAE.

Technical Specifications

Full-Colour 10W RGB Laser Engine

The optical system combines 3W red, 3W green and 4W blue laser sources to produce a total RGB output of 10W.

Rather than working as a single-colour beam fixture, the three laser channels can combine to produce a broad range of colours for graphics, geometric effects, aerial looks and animated sequences.

The different wavelengths are approximately 638nm red, 525nm green and 447nm blue, providing clearly separated RGB sources for full-colour programming.

For professional lighting designers, this makes the fixture useful where a show needs more than static beams. Colour, movement, animation and projection can all be incorporated into the same programmed cue.

30KPPS Scanning for Animation and Graphics

A laser's visual quality depends on its scanner as much as its optical wattage.

This model uses a 30KPPS galvanometer scanning system, allowing the beam to move quickly enough to create recognisable patterns, geometric drawings and animation effects.

The ±20° scanning field supports effects including:

• Geometric shapes

• Pattern rotation

• Scrolling animations

• Pattern segmentation

• Gradual drawing

• Position movement

• Size changes

• Colour transitions

• Flicker and strobe-style effects

For projection onto suitable surfaces, the faster scanner helps maintain cleaner outlines than basic low-speed effect lasers.

256 Built-In Animation Patterns

The fixture carries 256 internal laser patterns, allowing operators to produce varied effects without connecting a computer for every show.

This makes standalone operation practical for DJs, clubs, wedding productions and smaller events where fast setup is more important than custom programming.

Built-in patterns can be manipulated through supported control modes rather than remaining fixed. Operators can adjust movement, rotation, scrolling, segmentation, colour and sizing to create different visual looks from the same pattern library.

For more advanced productions, ILDA control provides another level of programming beyond the internal effects.

Moving Head Positioning Adds a Second Layer of Motion

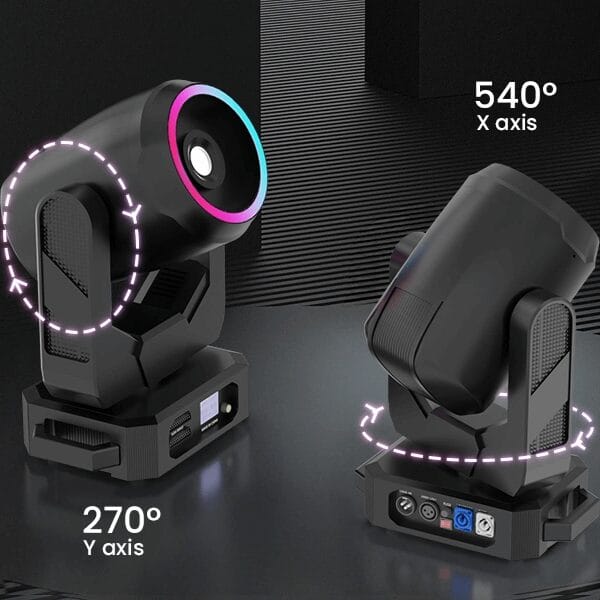

A conventional animation laser projects from a fixed physical position. This fixture adds a motorised moving-head system with 540° pan and 270° tilt.

That creates two independent types of movement.

The galvanometer scanner controls what the laser draws, while the moving head determines where the complete projection is aimed within the programmed show area.

This combination can create transitions that a fixed projector cannot achieve as easily. A graphic can move across different scenic surfaces, while aerial effects can be redirected between stage positions during a performance.

For multi-fixture installations, several units can also be positioned at different angles to create a wider visual composition.

DMX512 Integration for Stage Lighting Consoles

The RGB laser supports 20-channel and 25-channel DMX512 personalities.

This allows lighting programmers to integrate the fixture into a conventional stage-lighting system alongside:

• Beam moving heads

• Wash fixtures

• LED PAR lights

• Strobes

• Effect lights

• Other DMX-controlled equipment

Depending on the selected DMX mode, operators can access parameters including head movement, pattern selection, colour, rotation, scrolling, zoom-style pattern sizing and other animation functions.

For event companies already programming their productions from a DMX desk, this reduces the need to operate the laser as an isolated effect.

ILDA Control for Custom Laser Shows

The ILDA interface is intended for more advanced laser programming.

Compatible laser-control hardware and software can be used to replace or extend the built-in animation library with custom show content.

The documented system supports workflows using platforms such as Pangolin QS with FB3/FB4 hardware and compatible Phoenix software.

ILDA programming can be particularly useful for:

• Brand activations

• Corporate events

• Artist shows

• Product launches

• Custom graphics

• Event logos

• Choreographed concert sequences

• Venue-specific laser programming

This makes the fixture more adaptable than an auto-only DJ laser.

Art-Net for Networked Lighting Systems

The fixture also supports Art-Net over Ethernet, giving larger productions another method of transporting lighting control data.

Art-Net can be useful where conventional DMX cable runs become restrictive or where stage lighting is already being managed through an Ethernet-based control network.

Production companies can therefore choose between conventional DMX operation, network control and dedicated ILDA programming depending on the complexity of the event.

Auto and Sound Modes for Faster Setup

Not every event requires a lighting console or computer.

Automatic programs provide preconfigured effects, while sound-responsive operation allows the fixture to react to music.

These modes are practical for:

• DJ performances

• Clubs

• Wedding entertainment

• Private events

• Mobile productions

A rental company can therefore supply the same fixture for simple standalone applications or more advanced programmed shows.

RGB Laser with Integrated LED Visual Effect

The moving-head assembly also incorporates a multi-layer LED aperture effect around the laser section.

This gives the physical fixture additional visual presence while the laser performs its projected animation.

For stages where the moving head itself remains visible to the audience, the additional LED effect can contribute to the overall appearance of the rig rather than leaving the unit visually inactive between projected effects.

The combination is particularly useful in club and concert environments where fixtures form part of the stage scenery.

Fan-Forced Cooling for Professional Operation

A 10W RGB laser system contains laser modules, galvanometers, motors and control electronics that generate heat during operation.

The fixture uses fan-forced cooling to move heat away from these components.

The documented operating-temperature range is approximately 0°C to 35°C.

For reliable operation, cooling vents should remain unobstructed and the fixture should be kept as free as possible from heavy dust accumulation.

This is particularly important in venues that regularly use haze, fog or atmospheric effects.

Best For

This professional animation laser is suited to:

• Concert and live-music stages

• Nightclubs and entertainment venues

• Professional DJ productions

• Wedding stages and ballroom shows

• Corporate events and product launches

• Theatre and performance productions

• AV production companies

• Stage-lighting rental companies

• Programmed indoor laser shows

• Brand and promotional events

What's Included & Compatibility

The core product includes:

• 1 × 3D RGB animation moving head laser fixture

The fixture is designed to integrate with compatible:

• DMX512 lighting controllers

• ILDA laser-control systems

• Pangolin-compatible control workflows

• Art-Net lighting networks

• Professional stage truss

• Rated lighting clamps

• Independent secondary safety cables

• Haze or fog effects where permitted by the venue

Only accessories confirmed as part of the Stagify package should be listed as included on the final Shopify page.

Is 10W the Laser Output or the Fixture Power?

The 10W rating refers to the combined RGB optical laser output: approximately 3W red, 3W green and 4W blue.

The complete moving-head fixture has a documented electrical rating of approximately 300W because power is also required for the scanners, motors, cooling, LEDs and control electronics.

Can This Moving Head Laser Run Without a DMX Controller?

Yes. Automatic and sound-responsive operating modes allow the fixture to run without a dedicated lighting console.

DMX512, ILDA or Art-Net should be used when the production requires precise cueing and coordinated effects.

What Does 30KPPS Mean on an Animation Laser?

30KPPS means the galvanometer system is designed to scan approximately 30,000 points per second under its specified conditions.

Scanning speed affects how smoothly and clearly the projector can reproduce animated lines and geometric patterns.

Can Custom Graphics Be Programmed?

Yes. The ILDA interface allows compatible professional laser hardware and software to control the projector.

This makes custom animations, logos and programmed show sequences possible when suitable external control equipment is used.

Can a 10W Laser Be Aimed Into the Audience?

No. A high-output professional show laser should not be directed into audience areas or other uncontrolled viewing zones.

Beam positioning, scanning zones and installation should be planned by personnel experienced with professional laser-show safety.

Laser Classification & Safety

A visible-output laser system at 10W is within Class 4 power levels. Class 4 lasers can create serious eye hazards from direct exposure and may also present hazards from reflected beams. Appropriate professional control measures are therefore required.

The actual classification label on the specific Stagify-supplied fixture should still be checked before publication, because the SOP requires the product's own classification documentation rather than relying only on general power thresholds.

Do not aim the projector toward audience areas, operators, performers or uncontrolled reflective surfaces.

The fixture should be installed so that programmed beams remain within an appropriate controlled projection zone.

Laser displays at public events in the UAE may also be subject to venue and relevant authority approval, depending on the installation and location. Outdoor or skyward projection requires particular care because laser beams can create aviation hazards.

Operation should be handled by trained personnel familiar with professional laser-show programming and safety procedures.

Installation Requirements

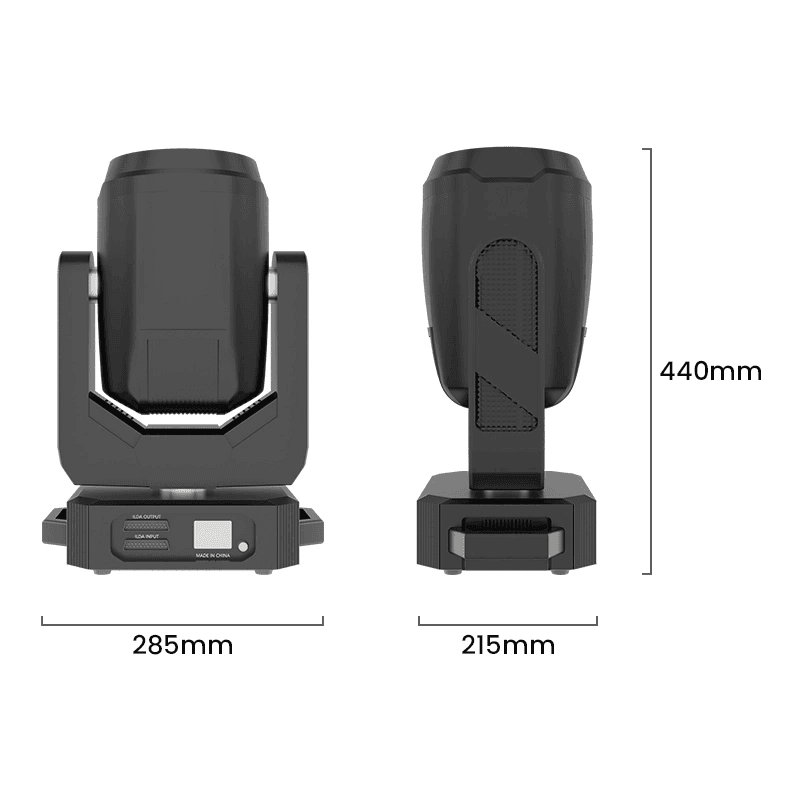

The fixture weighs approximately 10 kg, so overhead mounting requires properly rated truss, clamps and connection hardware.

Use an independent secondary safety attachment whenever the unit is suspended.

Allow sufficient physical clearance for the full:

• 540° pan movement

• 270° tilt movement

The fixture should be installed in a dry location within its specified operating conditions and positioned so ventilation openings remain clear.

Professional Laser Effects for Events in the UAE

Stagify supplies professional laser lights, moving heads and stage-effects equipment across Dubai and the UAE for production companies, AV installers, venues, DJs and rental businesses.

This 10W RGB model is particularly suited to operators who need a combination of animation scanning, motorised positioning and advanced control protocols rather than a basic fixed-pattern laser.

Contact Stagify for project quantities, system compatibility and professional lighting requirements for concerts, venues and event productions.
