380W Beam Moving Head Light

380W Beam Moving Head Light – Powerful, Sharp Beams for Stage and Event Lighting

The 380W Beam Moving Head Light is a full-size discharge-lamp beam fixture for concerts, wedding productions, clubs, DJ shows and large indoor event stages. Built around a 380W 19R lamp, the fixture combines a 7800K light source with 19-channel DMX512 control, dual prism effects, colour and gobo systems, linear dimming and a dedicated rotating glass-pattern wheel.

With a documented 610W total fixture power and 22.45 kg body weight, this model is positioned above smaller portable beam fixtures for installations where a larger 19R optical platform and a more developed effects system are required.

Technical Specifications

Specification	Details
Product Type	Beam Moving Head Stage Light
Light Source	380W 19R discharge bulb
Total Fixture Power	610W
Colour Temperature	7800K
Listed Lamp Life	Approx. 1500 hours
Ballast	Electronic ballast
Dimming	0–100% linear adjustment
DMX Channels	19CH
Control Protocol	DMX512
Motors	15 silent motors
Pan/Tilt Motor System	XY three-phase motors
Prism System	8-facet + 24-facet
Prism Rotation	Independent two-way rotation
Colour Wheel	White + 11 colours
Static Gobo System	Fixed pattern wheel
Dynamic Effect Wheel	Dynamic pattern/effect system
Rotating Glass Gobo Wheel	White/Open + 7 glass patterns
Input Voltage	AC90–275V
Frequency	50–60Hz
Fuse	7A
Housing Material	Flame-rated plastic
Protection Rating	IP20
Product Dimensions	390 × 290 × 550 mm
Product Weight	22.45 kg
Recommended Environment	Dry indoor stage and entertainment applications

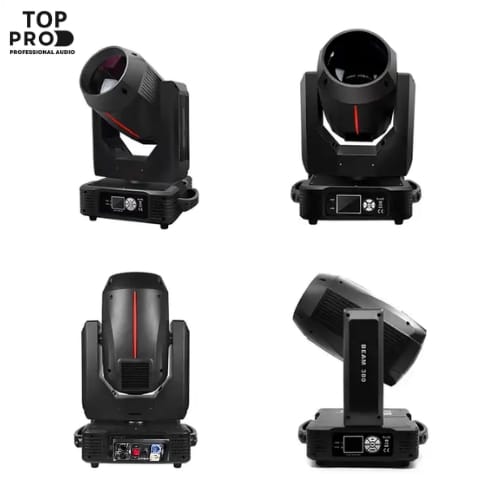

380W 19R Discharge Lamp

The optical system is based on a 380W 19R discharge lamp.

This places the fixture in a different category from lower-power LED moving heads and compact 7R beam fixtures.

A discharge-lamp beam fixture is primarily selected when the lighting design calls for concentrated aerial effects that remain visually defined across a larger stage environment.

Typical applications include:

• Concert stages

• Wedding entertainment

• DJ productions

• Nightclubs

• Hotel ballrooms

• Touring shows

• Live music events

• Large indoor stages

The fixture is designed as a dedicated beam-effect moving head, rather than a general-purpose wash light.

Important Lamp-Power Clarification

The exact technical table contains an internal conflict.

It lists:

Light Source: 380W 19R bulb

but separately lists:

Bulb Power: 460W

These should not be treated as two interchangeable descriptions of the same lamp.

For Stagify, the safest published specification is:

Light Source: 380W 19R discharge lamp

and:

Total Fixture Power: 610W

The unexplained 460W bulb-power figure should remain out of the customer-facing specification until the actual lamp and ballast label are checked.

610W Total Fixture Power

The complete fixture is rated at 610W total power consumption.

This is the number that matters when planning stage electrical load.

For example:

• 2 fixtures: approximately 1.22kW

• 4 fixtures: approximately 2.44kW

• 8 fixtures: approximately 4.88kW

These calculations only cover the moving heads.

LED screens, audio systems, haze machines, lasers and other stage equipment must be added separately when planning distribution.

AC90–275V Wide-Voltage Input

The published input range is:

AC90–275V / 50–60Hz

This comfortably covers standard UAE 220–240V / 50Hz mains power.

The wide voltage range can also make the fixture practical for touring and rental companies operating across different electrical environments.

The actual mains plug fitted to Stagify inventory is not documented.

Do not specifically advertise a UAE/UK Type G plug until current stock is checked.

7800K Colour Temperature

The exact specification lists a colour temperature of:

7800K

This is a cool-white discharge source typical of beam-effect lighting.

The cooler source helps create a visually crisp white beam before colour filters or other effects are introduced into the optical path.

A comparable established 380W beam platform from ACME also uses a 7800K source, supporting 7800K as a realistic specification for this lamp class. However, the exact Stagify fixture should still be described according to its own supplier data rather than borrowing the rest of the ACME specification.

Listed 1500-Hour Lamp Life

The supplier publishes an approximate average lamp life of:

1500 hours

Lamp life should be treated as an expected service figure rather than a guaranteed operating duration.

Actual life can be affected by:

• Power cycling

• Cooling

• Operating temperature

• Lamp quality

• Transport vibration

• Maintenance

• Installation conditions

Rental companies should track lamp hours and maintain replacement stock according to their operating schedule.

Electronic Ballast

An electronic ballast is confirmed.

The ballast regulates the discharge lamp and forms an important part of the fixture's lamp-power system.

Because the lamp generates substantial heat, both ballast operation and cooling condition should be inspected during routine maintenance.

0–100% Linear Dimming

The fixture includes 0–100% linear dimming.

This allows the operator to adjust beam intensity throughout a show rather than relying only on full output and blackout.

Dimming can be used for:

• Smooth entrances

• Build-ups

• Music transitions

• Blackouts

• Reduced-intensity looks

• Layering several beam fixtures

This is especially useful when the 380W beams operate alongside fixtures with different output levels.

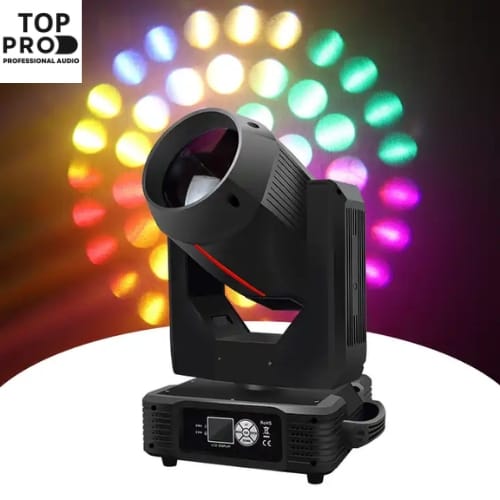

19-Channel DMX512 Control

The exact specification confirms:

19 DMX channels

using the international DMX512 protocol.

A 19-channel personality gives the lighting operator access to the fixture's movement and optical-effect systems while remaining manageable within a standard DMX universe.

Several fixtures can therefore be programmed into:

• Symmetrical beam fans

• Crossing patterns

• Chase sequences

• Mirrored movements

• Prism effects

• Colour transitions

• Gobo sequences

The detailed channel map should be taken from the exact fixture manual before building a controller profile.

15 Silent Motors

The supplier specifies 15 silent motors, with XY three-phase motors used for movement.

This motor system supports the fixture's moving and optical mechanisms.

The description should not be interpreted as meaning the fixture is completely silent.

A discharge-lamp moving head will still generate sound from:

• Cooling fans

• Motor movement

• Internal mechanical systems

For concerts, clubs and wedding entertainment this is normally less significant than it would be in very quiet theatre or broadcast environments.

Pan and Tilt Movement

The supplier confirms fast pan and tilt movement and an XY three-phase motor system.

However, the exact product page does not publish numerical pan and tilt ranges.

For that reason, Stagify should not automatically write:

• 540° pan

• 270° tilt

• 16-bit pan/tilt

even though those values are common on 380W moving heads.

The exact physical menu or manual should be checked first.

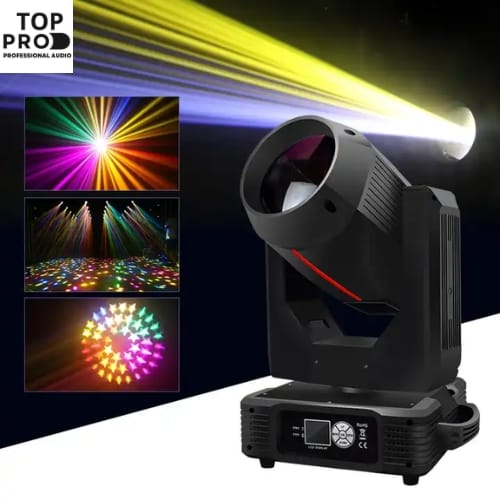

Dual Prism Effect System

The specification confirms two prism effects:

• 8-facet prism

• 24-facet prism

Prisms divide the original beam into multiple beam points, allowing one moving head to create a much larger aerial pattern.

This is useful for:

• Concert finales

• DJ drops

• Wedding entertainment

• Club effects

• Large stage sequences

The supplier also specifies independent two-way rotation.

Independent Prism Rotation

Bidirectional prism rotation allows the effect to move clockwise or counter-clockwise.

Changing the prism rotation direction can significantly alter the character of a beam sequence.

The prism system can be combined with:

• Colour changes

• Gobos

• Movement

• Dimming

• Haze

to produce more complex aerial effects from one fixture.

Prism Combination

The supplier wording states that the 8-facet and 24-facet systems can be superimposed.

This appears to indicate that prism effects can be combined or layered.

However, the wording does not clearly explain the resulting facet count.

Do not publish a claim such as:

• 32-facet combined prism

• 192 beams

• 24+8 = 32 prism

without the manufacturer effect chart.

It is more accurate to state simply that 8-facet and 24-facet prism effects with independent rotation are confirmed.

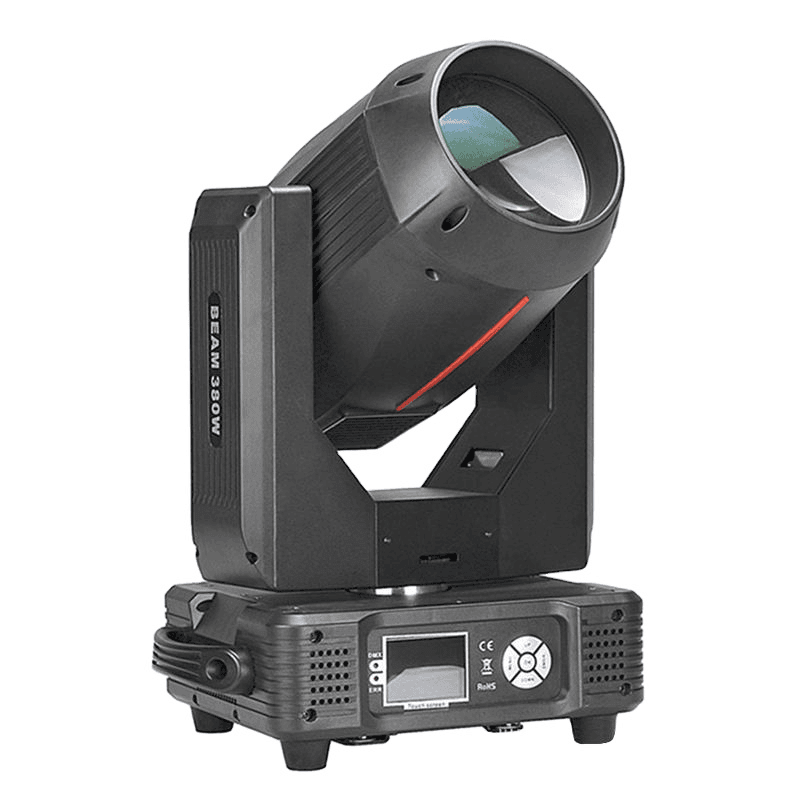

White + 11 Colour Wheel

The exact colour wheel contains:

White + 11 colours

This gives the operator a range of fixed colour options from the white discharge source.

Colour changes can be programmed for:

• Music cues

• Wedding themes

• Stage entrances

• Concert sequences

• Club effects

The supplier does not publish the individual colour list, so specific colours should not be promised without checking the physical wheel.

Fixed Colour Effects

A fixed colour wheel works differently from RGB LED colour mixing.

The lamp remains white internally, and individual colour filters move into the optical path.

This means the fixture should not be advertised as:

• RGB

• RGBW

• CMY colour mixing

unless an additional mixing system is physically confirmed.

The exact supplier only confirms the fixed wheel with white plus 11 colour positions.

Static Gobo Effects

A static gobo wheel is confirmed.

Gobos insert shapes into the beam to create different aerial patterns.

The supplier's table describes the static wheel as:

“6 White + 9 Patterns”

The phrase “6 White” is technically unclear and may be a translation or data-entry issue.

For that reason, the customer-facing specification table should simply state:

Fixed pattern wheel

until the physical gobo layout is checked.

Why Gobo Effects Matter

A plain beam creates a strong straight shaft.

A gobo modifies the beam shape.

This can create more variation during:

• Concert tracks

• DJ sequences

• Theatre-style effects

• Wedding entertainment

• Live performances

Gobos become even more visually interesting when combined with prism rotation.

Dynamic Gobo / Effect Wheel

The exact supplier specification also lists a dynamic gobo wheel.

Its wording includes:

• White

• Aperture

• 3 circular arcs

• Dynamic effect patterns

This suggests that the fixture contains a second mechanical effect system rather than relying only on one fixed gobo wheel.

Because the translated terminology is unclear, Stagify should avoid inventing names or counts beyond what is physically verified.

Separate Rotating Glass Pattern Wheel

Another unusual feature in the exact specification is a separate:

Metal Rotating Wheel: White + 7 Glass Patterns

This indicates an additional rotating glass-pattern system.

That provides the fixture with more optical variety than a basic beam moving head equipped with only one static gobo wheel.

The exact pattern designs and replacement dimensions are not documented on the supplier page.

Multi-Wheel Optical System

Taken together, the documented effect architecture includes:

• Fixed colour wheel

• Static gobo system

• Dynamic effect wheel

• Rotating glass-pattern wheel

• 8-facet prism

• 24-facet prism

This is the key differentiator of this 380W model.

It is not simply a higher-wattage version of a compact beam fixture; it has a more extensive internal effects system intended for varied stage programming.

Adjustable Focus

The exact supplier description confirms adjustable focus.

Focus control allows the lighting operator to optimise beam and pattern sharpness according to projection distance and selected effect.

This is particularly useful when using gobos or rotating glass patterns.

The exact page does not explicitly identify the focusing mechanism as manual or motorised in the technical table.

Therefore, avoid stating a specific motorised focus range unless the manual confirms it.

Beam Angle Requires Verification

Unlike many 380W moving heads, the exact supplier page does not state the beam angle.

Independent 380W fixtures commonly use approximately 1–2° beam optics. For example, ACME's 380W BOOTES platform uses a 2° beam, while other manufacturers offer 1° or 2° versions.

However, that is industry comparison data, not proof of this exact SKU.

Do not publish a 1°, 1.5° or 2° beam angle until the Stagify unit or manual confirms it.

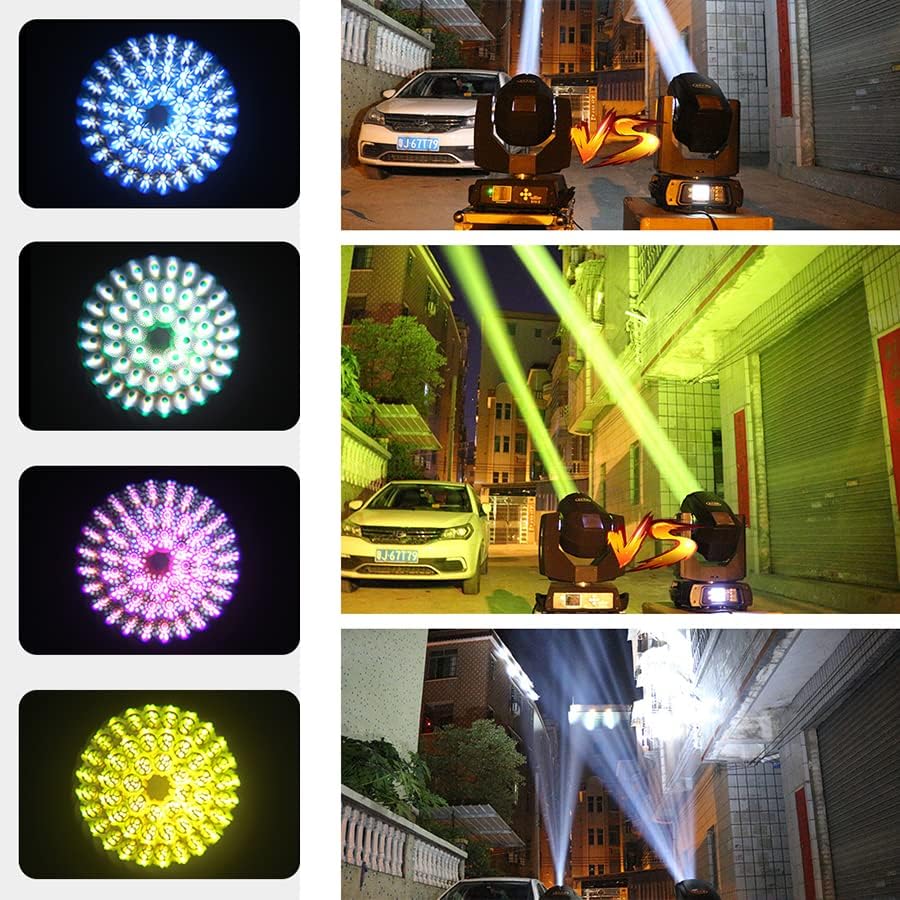

Suitable for Aerial Beam Effects

Even without publishing an unverified beam angle, the product is clearly designed as a dedicated beam moving head.

Its 380W discharge source and prism/gobo system make it suited to concentrated aerial looks.

Typical programming can include:

• Beam fans

• Crossed beams

• Symmetrical sweeps

• Prism bursts

• Moving gobo structures

• Colour chases

• Concert blackouts

These effects become much easier to see when appropriate haze is present.

Using the 380W Beam with Haze

Atmospheric haze makes the light path visible through the air.

Without haze, much of the effect is visible only where the beam reaches a surface.

With controlled haze, the audience can see:

• Beam shafts

• Prism multiplication

• Crossing patterns

• Moving fans

• Gobo effects

This is why beam fixtures and haze machines are frequently used together in concerts and DJ productions.

Venue Haze Considerations

Before using haze:

• Obtain venue approval.

• Check smoke-detection requirements.

• Maintain clear emergency exits.

• Avoid excessive atmospheric density.

• Follow the haze-machine manufacturer's instructions.

Hotels and ballrooms may apply stricter atmospheric-effect rules than clubs or concert venues.

Full-Size 22.45 kg Fixture

The exact product weight is:

22.45 kg

This makes the fixture substantially heavier than mini beam moving heads.

The greater physical size should be considered when planning:

• Truss capacity

• Clamp selection

• Flight cases

• Vehicle loading

• Warehouse storage

• Installation labour

Its weight also reinforces the product's positioning as a full-size stage fixture rather than a compact mobile light.

Product Dimensions

The published fixture dimensions are:

390 × 290 × 550 mm

or:

39 × 29 × 55 cm

When planning truss spacing, allow additional room for the moving head itself to rotate freely.

Never position moving fixtures so closely that the heads or yokes can collide during programmed movement.

Flame-Rated Plastic Housing

The supplier specifies a flame-rated plastic body.

This should not be rewritten as:

• Aluminium body

• Steel enclosure

• Fireproof housing

unless additional manufacturer data supports those claims.

The plastic outer shell should still be protected from impacts during transport.

IP20 Protection Rating

The exact fixture is rated:

IP20

This means it should be installed in dry, protected indoor environments.

Suitable applications include:

• Concert halls

• Hotel ballrooms

• Clubs

• Indoor stages

• Wedding venues

• Auditoriums

• Indoor entertainment spaces

Not a Waterproof Moving Head

IP20 does not support exposed outdoor operation.

Do not market this SKU as:

• Waterproof

• Rainproof

• IP65

• Weather-resistant

• Outdoor-rated

The supplier's generic marketing copy mentions outdoor events, but the formal IP20 specification should take priority.

Best For

The 380W Beam Moving Head Light is particularly suited to:

• Concert stages

• Large wedding productions

• DJ shows

• Nightclubs

• Live bands

• Hotel entertainment

• Corporate events

• Indoor festivals

• Touring shows

• Theatre-style entertainment

• Lighting rental companies

• Event-production companies

Its main catalogue role is a full-size 19R discharge beam with a developed gobo, prism and rotating-effect system.

What This Fixture Is Not Best For

Consider another light when the requirement involves:

• Wide stage wash

• Soft facial illumination

• Battery-powered operation

• Outdoor weather exposure

• Small portable setups

• Silent studio operation

• RGBW colour mixing

• Decorative ambient lighting

This fixture is primarily intended to create concentrated stage effects.

380W Beam vs 295W Beam

The 380W and 295W moving heads occupy different positions in the Stagify range.

Choose the 380W Beam when:

• A 19R lamp platform is preferred

• A full-size 22.45 kg fixture is acceptable

• Multiple effect wheels are useful

• 8-facet and 24-facet prism effects are required

• The production needs the higher lamp class

Consider the 295W Beam when:

• A smaller 295W platform is sufficient

• Lower fixture weight is preferred

• Transport and installation space matter more

• The event does not require the larger 19R system

This creates a clear upgrade path rather than positioning both simply as “bright beam lights”.

380W Beam vs 460W 17R Moving Head

The 17R 460W Beam Moving Head Light sits above the 380W fixture in Stagify's moving-head range.

The 460W platform is better positioned where customers require:

• A higher lamp-power class

• More advanced moving-head specifications

• Larger production applications

The 380W 19R product remains a strong middle-to-upper option where its specific colour, gobo and dual-prism effects meet the production requirement.

380W Beam vs Compact 230W Beam

A compact 230W-class beam can make more sense when:

• Rig weight must stay low

• More fixtures are needed within a fixed budget

• Transport space is limited

• Smaller venues are the main application

The 380W model is better suited to customers who accept a 22.45 kg full-size body and 610W fixture load in exchange for its larger discharge-lamp platform and expanded optical effects.

Lamp Maintenance

A discharge lamp requires different maintenance from an LED source.

Recommended operating practice includes:

• Track lamp hours.

• Allow the fixture to cool before transport.

• Avoid unnecessary rapid lamp cycling.

• Keep cooling fans clean.

• Inspect ventilation regularly.

• Replace the lamp according to manufacturer guidance.

• Avoid touching replacement lamp glass with bare fingers where prohibited by the lamp manufacturer.

The supplier lists an approximate 1500-hour average life, but actual service life can vary.

Cooling and Ventilation

The supplier markets the fixture as having an advanced cooling system, but the exact technical table does not publish fan quantity or airflow values.

For normal use:

• Keep vents clear.

• Do not cover the housing.

• Remove dust periodically.

• Maintain clearance around the fixture.

• Allow cooling after operation.

Heat management is especially important because the fixture combines a discharge lamp, electronic ballast and several motors inside one housing.

Installation and Rigging

At 22.45 kg, the fixture requires appropriately rated stage hardware.

For overhead installation:

• Use properly rated moving-head clamps.

• Use an independent secondary safety cable.

• Check the truss load capacity.

• Maintain sufficient movement clearance.

• Secure power and DMX cabling.

• Keep ventilation unobstructed.

• Keep the fixture dry.

Rigging should be completed by personnel familiar with stage-lighting installations.

Electrical Planning

The documented 610W total fixture power should be used when designing temporary event power.

Do not calculate the electrical load using only the 380W lamp rating.

The fixture also powers:

• Ballast

• Motors

• Fans

• Control electronics

• Optical-effect mechanisms

The complete fixture load is therefore higher than the lamp wattage.

What's Included & Compatibility

Confirmed core product:

• 1 × 380W Beam Moving Head Light

Compatible system categories include:

• DMX512 lighting controllers

• Compatible DMX cabling

• Aluminium stage truss

• Rated moving-head clamps

• Secondary safety cables

• Haze machines

• Professional power distribution

• Other DMX stage lights

The exact product page does not document the complete carton contents.

Do not claim that a:

• Clamp

• Safety cable

• DMX cable

• Flight case

• Spare lamp

is included unless Stagify stock confirms it.

Is This a 380W LED Moving Head?

No.

The exact specification identifies the light source as a:

380W 19R bulb

This is a discharge-lamp platform, not an LED moving head.

How Much Power Does the Complete Fixture Use?

The supplier specifies:

610W total power supply

This is the appropriate figure for electrical-load planning.

Why Does the Supplier Also List 460W Bulb Power?

The exact page lists both:

• 380W 19R light source

• 460W bulb power

without explaining the difference.

Because these values conflict, the 460W claim should remain unpublished until the physical lamp/ballast information is checked.

What Is the Colour Temperature?

The documented colour temperature is:

7800K

What Is the Lamp Life?

The supplier lists approximately:

1500 hours average

Actual service life depends on operating conditions.

How Many DMX Channels Does It Use?

The exact specification confirms:

19 DMX channels

using DMX512.

Does It Have Dimming?

Yes.

The fixture provides 0–100% linear dimming.

How Many Colours Does It Have?

The documented colour wheel contains:

White + 11 colours

The exact individual colour list is not published.

Does It Have Gobos?

Yes.

The exact page confirms multiple gobo/effect systems including:

• Static pattern wheel

• Dynamic effect wheel

• Rotating glass-pattern wheel

The exact supplier wording around individual counts is partially unclear, so physical verification is recommended before publishing a detailed gobo inventory.

What Prisms Does It Have?

The supplier confirms:

• 8-facet prism

• 24-facet prism

with independent bidirectional rotation.

What Is the Beam Angle?

The exact supplier page does not publish a beam-angle figure.

Do not copy a 1° or 2° specification from another 380W beam model.

What Is the Pan Range?

Numerical pan travel is not published on the exact product page.

Fast pan and tilt operation is advertised, but the exact degrees should be confirmed from the manual.

What Is the Tilt Range?

Numerical tilt travel is also not published.

Do not assume the common 270° figure.

Does It Have Focus?

Yes.

Adjustable focus is mentioned in the exact product description.

The detailed focusing range is not published.

Does It Support Auto and Sound Modes?

The supplier's product features state that the fixture supports:

• DMX512

• Auto

• Sound-Activated operation

Does It Work on UAE Power?

Yes.

The AC90–275V / 50–60Hz input range covers normal UAE mains voltage.

The supplied plug type is not confirmed.

Is It Waterproof?

No.

The exact fixture is rated IP20, so it should be used in dry indoor environments.

How Large Is It?

The exact published product size is:

390 × 290 × 550 mm

How Much Does It Weigh?

The exact product weight is:

22.45 kg

Contact Stagify with your dance-floor model or controller details to confirm compatibility before purchase.
