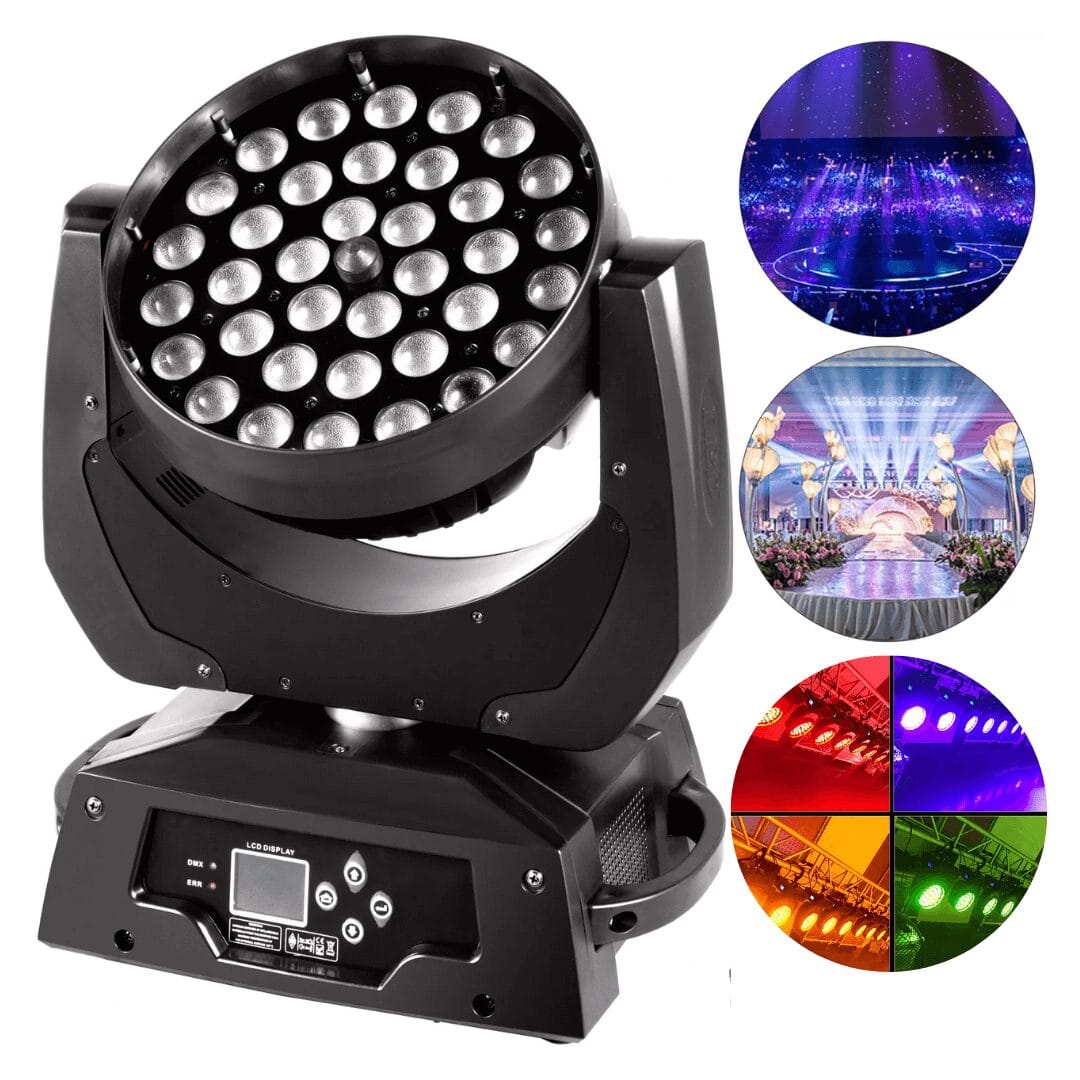

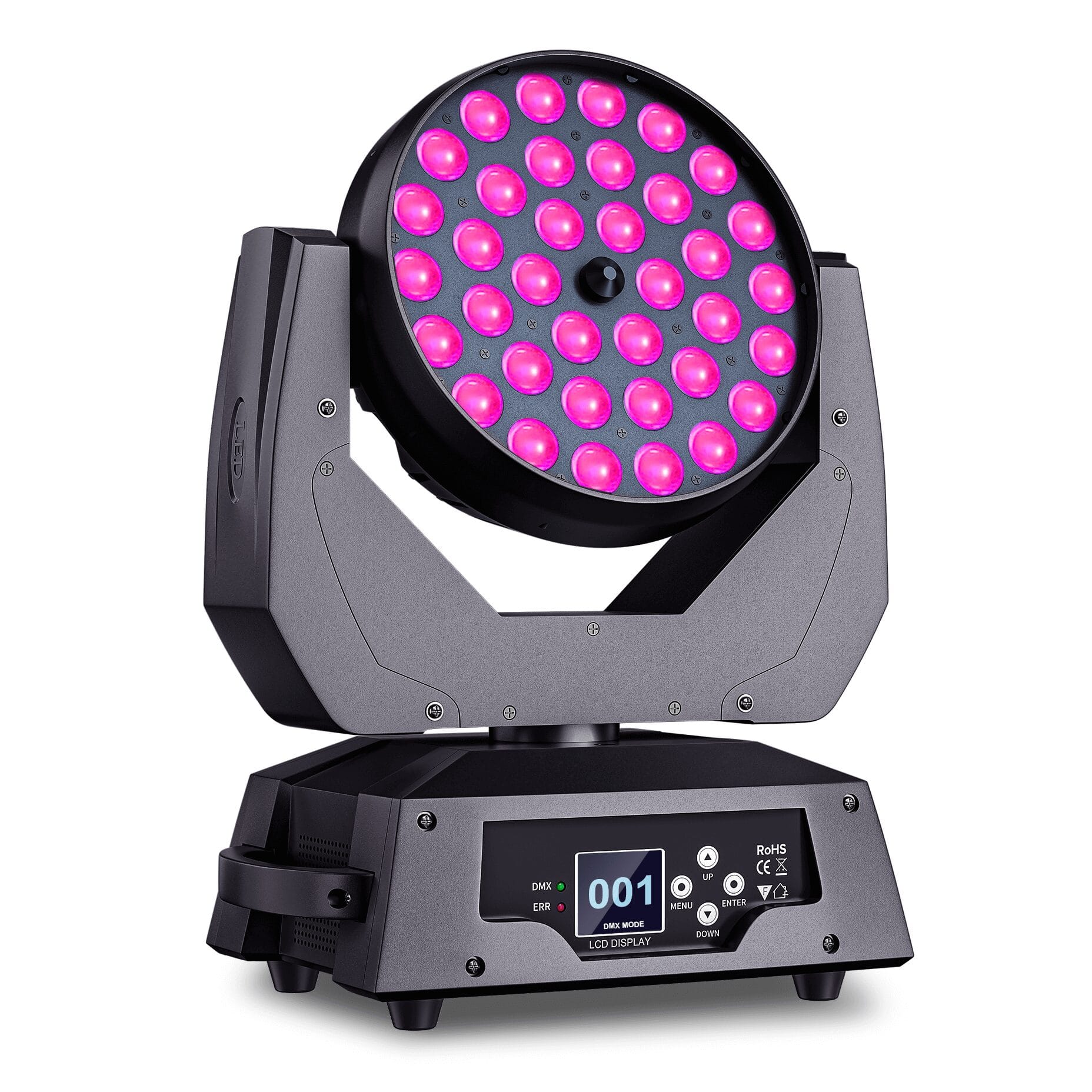

36X10W RGBW LED Zoom Moving Wash Light

36X10W RGBW LED Zoom Moving Wash Light

The 36X10W RGBW LED Zoom Moving Wash Light is designed for productions that need broad colour coverage with the flexibility to tighten or widen the output from the lighting desk. Its 36 RGBW 4-in-1 LEDs, motorised zoom, 540° pan and 265° tilt make it suited to wedding stages, ballrooms, theatres, concerts and venue lighting.

Technical Specifications

36 × 10W RGBW LED Array

The fixture uses 36 individual 10W RGBW 4-in-1 LED sources, creating a dense wash-light array for illuminating stages, backdrops and performance areas.

Red, green, blue and white elements are combined within the LED system, allowing the fixture to create saturated colours as well as cleaner white and lighter mixed tones.

For production teams, the higher LED count gives this model a different role from compact moving heads built mainly around concentrated beams or decorative effects.

It is better suited to jobs where coverage and colour wash are the priority.

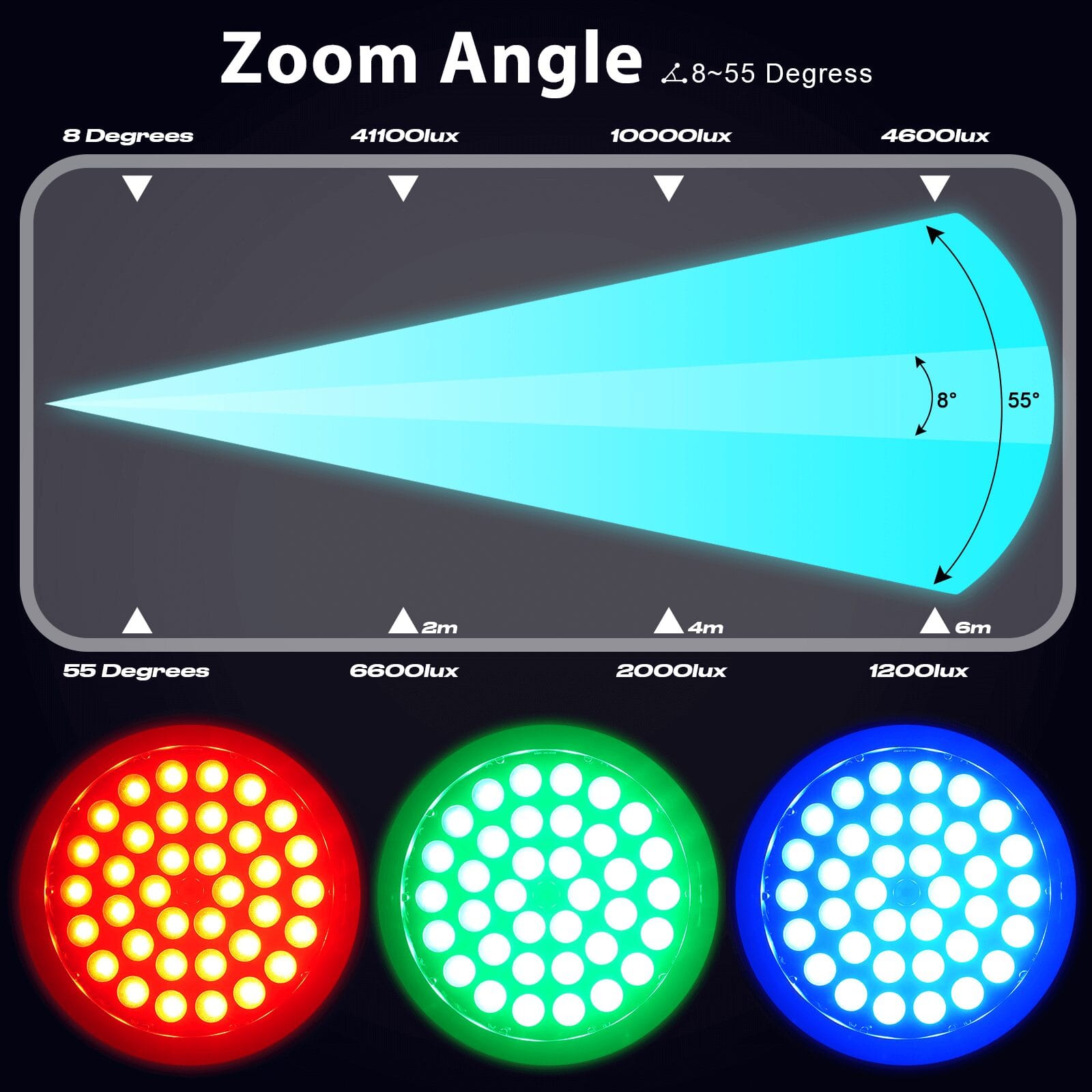

Motorised Zoom for Variable Stage Coverage

The built-in motorised zoom lets the lighting operator change the spread of the output without physically adjusting the fixture.

A tighter zoom can concentrate the wash on a smaller performance area, while a wider setting can cover more of a stage, wall or backdrop.

This is useful when one production requires several lighting looks.

For example, the fixture can provide more concentrated coverage for a performer during one cue and then open wider for a full-stage colour wash during the next.

The exact minimum and maximum zoom angles are not published for this SKU, so Stagify should not add a numerical range until it is confirmed from the fixture manual or physical unit.

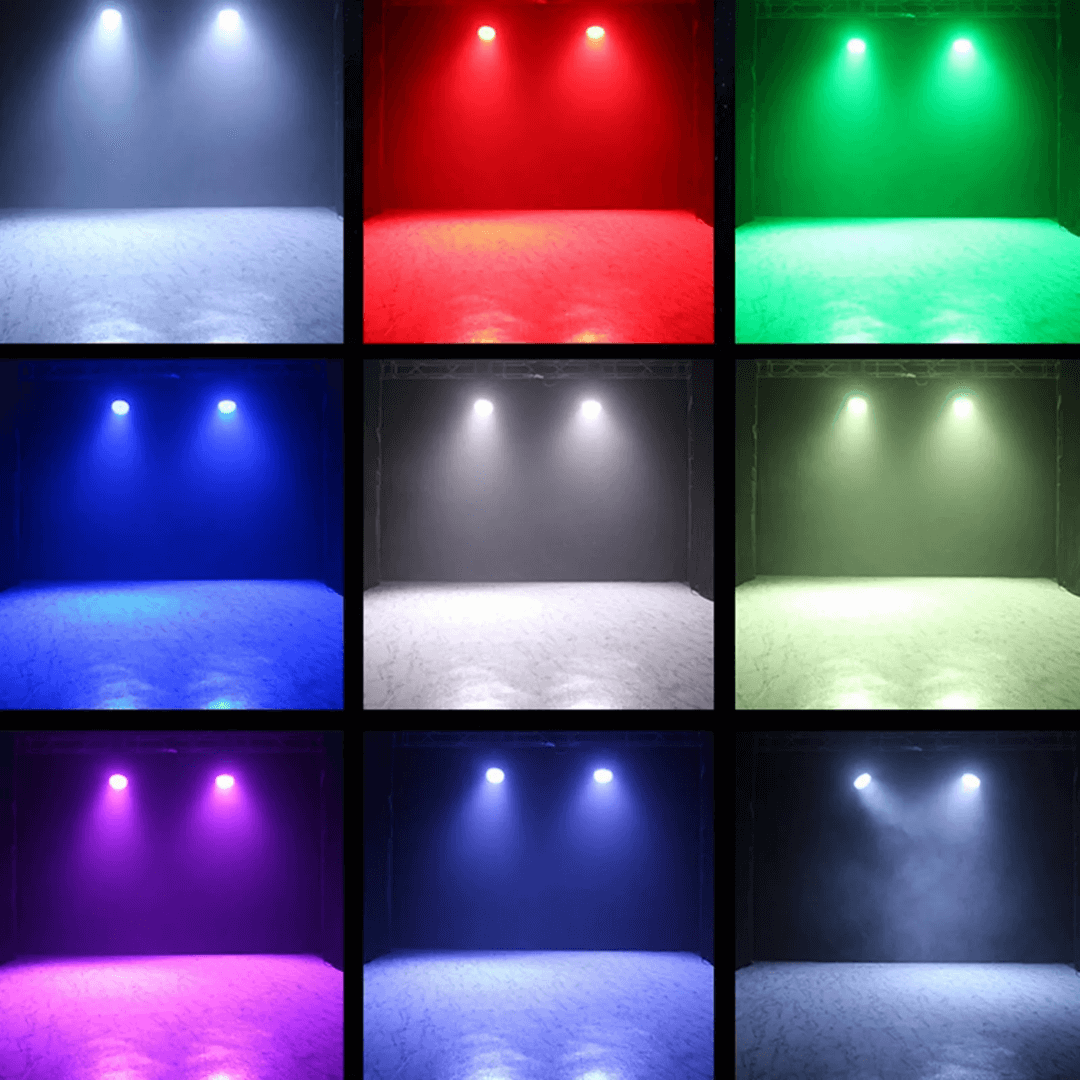

RGBW 4-in-1 Colour Mixing

Each LED combines red, green, blue and white output.

The dedicated white component expands the usable colour range beyond standard RGB mixing.

Lighting designers can create:

• Saturated stage colours

• White illumination

• Pastel-style colour mixes

• Slow colour transitions

• Music-responsive effects

• Decorative venue washes

For weddings and corporate events, white and softer mixed colours can support formal sections of the programme.

For clubs, concerts and DJ performances, stronger RGB colour changes can be combined with movement and sound-responsive effects.

540° Pan Movement

The moving head provides 540° of pan travel, allowing the output to be repositioned across a wide horizontal area.

This is useful when several fixtures are arranged along rear or overhead truss.

Multiple units can be programmed to create:

• Mirrored movements

• Opposing sweeps

• Crossing wash positions

• Symmetrical stage looks

• Slow scenic transitions

Because the fixture is intended primarily as a wash light, movement can be used not only for visible aerial effects but also to reposition colour coverage across different areas of the stage.

265° Tilt Movement

Vertical movement reaches approximately 265°.

Combined with the 540° pan range, this gives the fixture enough movement to cover multiple stage positions from one mounting point.

A wash can be directed toward:

• Centre stage

• Side-stage performers

• Backdrops

• Scenic structures

• Dance floors

• Audience-facing décor where appropriate

When several moving washes are programmed together, their movement can significantly change the visual shape of the venue without requiring technicians to manually reposition fixtures.

8-Bit and 16-Bit Movement

The supplier specification confirms 8-bit and 16-bit pan/tilt operation.

16-bit movement provides finer positioning control than basic coarse movement alone.

This becomes particularly useful during slow wedding, theatre or corporate cues where visible stepping in the movement would be distracting.

Fine positioning also helps when several moving heads need to point at matching locations across a stage.

For fast DJ and concert movement, operators can still programme more aggressive sweeps and transitions.

DMX Control for Programmed Shows

The fixture supports DMX control, allowing it to integrate into a larger lighting system.

From a compatible console, the wash can be coordinated with equipment such as:

• Beam moving heads

• LED PAR lights

• Pixel bars

• Strobes

• Effect fixtures

• Other moving washes

DMX is the preferred operating method when lighting changes must follow specific wedding entrances, music cues, theatre scenes or presentation sequences.

The exact DMX channel count is not published on the current supplier page, so it should be confirmed before being added to the Shopify specification table.

Automatic Mode for Standalone Operation

Built-in automatic operation allows the fixture to produce lighting effects without a DMX controller.

This can be useful for smaller setups where detailed programming is unnecessary.

Typical applications include:

• DJs

• Clubs

• Small parties

• Entertainment venues

• Temporary event setups

For larger productions where exact movement, colour and zoom positions are required, console control provides a more predictable workflow.

Sound-Activated Operation

The fixture also supports sound control, allowing its built-in programmes to respond to music.

This makes it useful for DJ and nightlife applications where the lighting needs to follow the energy of the soundtrack without a dedicated operator continuously running the desk.

Sound mode is convenient for simple entertainment use.

For weddings, corporate shows and theatre productions with fixed cues, DMX programming is the better choice.

Master-Slave for Multiple Moving Washes

Master-Slave operation allows compatible fixtures to run together without programming every unit separately.

This can simplify setups using several identical moving heads.

Examples include:

• Four fixtures across a wedding stage

• Matched units around a DJ booth

• Rear-truss wash positions

• Club installations

For more detailed movement patterns and independently selected colours, each fixture can instead receive its own DMX address.

Designed for Wash Coverage Rather Than a Narrow Beam

This model should be positioned as a zoom moving wash, not as a substitute for a dedicated narrow-angle beam moving head.

A beam fixture is the better choice when the primary requirement is a sharp aerial shaft visible over a long distance.

The 36×10W moving wash is better suited to:

• Colouring stages

• Illuminating backdrops

• Covering performance areas

• Creating moving washes

• Changing coverage through zoom

That difference gives the product a clearer role within the Stagify moving-head range.

9KG Net Weight

The documented net fixture weight is approximately 9 kg, with a packed gross weight of approximately 11 kg.

Fixture weight matters for both transport and rigging.

For a production using eight units, the fixtures alone represent around 72 kg before clamps, cables and other rigging equipment are considered.

Rigging calculations should always use the actual installed fixture and accessory weights.

AC100–240V Power Input

The fixture accepts AC100–240V at 50/60Hz, covering standard UAE 220–240V / 50Hz electrical supply.

The supplier page does not publish the complete fixture power consumption.

The product name describes the LED source as 36 × 10W, but that should not be interpreted as confirmed 360W mains consumption because motors, electronics, LED drive levels and power-supply efficiency affect actual electrical demand.

Stagify should confirm the fixture nameplate power rating before adding a total wattage figure.

The supplied plug type should also be checked before stating that a UAE Type G plug is included.

Best For

The 36×10W RGBW moving wash is especially suited to:

• Wedding stages

• Hotel ballrooms

• Concert stages

• Theatre productions

• Corporate events

• Clubs and discos

• Live music venues

• DJ setups

• Houses of worship

• Event-production companies

• AV rental businesses

• Permanent venue lighting

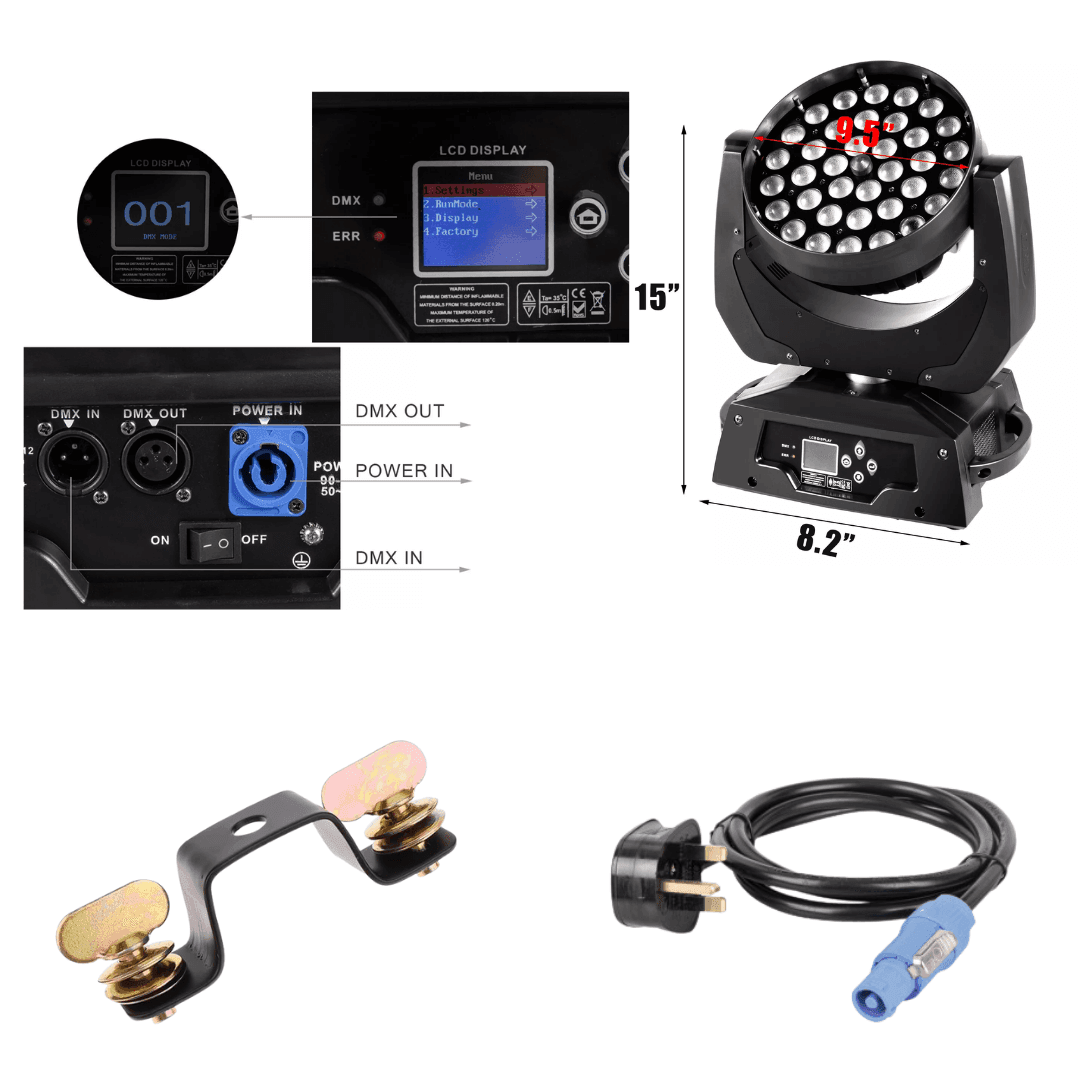

What's Included & Compatibility

Core product:

• 1 × 36X10W RGBW LED Zoom Moving Wash Light

The supplier confirms dual mounting brackets for fixture installation.

The moving wash can be used with compatible:

• DMX lighting controllers

• Aluminium stage truss

• Properly rated lighting clamps

• Independent secondary safety cables

• Professional DMX signal cabling

• Event power-distribution systems

Only accessories confirmed in the actual Stagify package should be listed as standard contents.

How Many LEDs Does the Moving Wash Have?

The fixture uses 36 × 10W RGBW 4-in-1 LEDs.

Each LED system provides red, green, blue and white colour components for stage wash and mixed-colour effects.

Does the Light Have Zoom?

Yes.

The fixture has a motorised zoom system, allowing the operator to change the coverage without manually adjusting the fixture.

The exact zoom-angle range should be confirmed before a numerical figure is published.

What Is the Difference Between This and a Beam Moving Head?

This model is primarily designed to create adjustable colour wash coverage, while a dedicated beam moving head is designed around a much narrower concentrated beam.

Choose this fixture when stage coverage and RGBW colour are more important than an extremely tight aerial shaft.

What Are the Pan and Tilt Ranges?

The published movement specification is 540° pan and 265° tilt.

Both 8-bit and 16-bit movement control are documented.

Does It Support DMX?

Yes.

DMX control is confirmed, alongside automatic, sound and Master-Slave operating modes.

The supplier does not currently publish a reliable DMX channel count for this exact SKU.

Can It Work Without a Lighting Console?

Yes.

Automatic and sound-control modes allow standalone operation, while Master-Slave mode can synchronise compatible fixtures.

A DMX controller is recommended when specific lighting cues, zoom positions and movement sequences are required.

Is It Suitable for Wedding Stage Lighting?

Yes.

The combination of RGBW colour mixing, motorised zoom and moving-head positioning makes it useful for wedding stages and hotel ballrooms, where fixtures may need to alternate between decorative washes and entertainment lighting.

Can It Be Used Outdoors?

The supplier does not publish an IP rating for this exact model.

It should therefore not be advertised as waterproof or outdoor-rated.

Until an IP classification is verified, use the fixture only in dry, protected environments.

Does It Work on UAE Power?

Yes.

The published AC100–240V, 50/60Hz input range includes UAE 220–240V / 50Hz mains power.

The exact plug type and total fixture power draw should be physically confirmed before publication.

Installation & Safety Requirements

At approximately 9 kg, overhead installation requires properly rated truss, clamps and mounting hardware.

Use an independent secondary safety attachment whenever the fixture is suspended.

Before operation:

• Check mounting hardware.

• Inspect power and DMX cables.

• Keep adequate clearance for 540° pan and 265° tilt.

• Keep moving components clear of surrounding fixtures.

• Keep ventilation areas unobstructed.

• Protect the fixture from water unless an IP rating is confirmed.

Professional overhead installations should be completed by personnel experienced with stage-lighting and rigging systems.

RGBW Zoom Moving Wash Lights in the UAE

Stagify supplies moving head wash lights, stage lighting and event-production equipment across Dubai and the UAE for venues, wedding companies, production teams and AV rental businesses.

This 36×10W model is positioned for buyers who need high-density RGBW wash output, motorised zoom and wide pan/tilt movement rather than the narrow optics of a dedicated beam fixture.

Contact Stagify for current stock, project quantities and help matching moving washes with DMX controllers, truss and rigging accessories.
