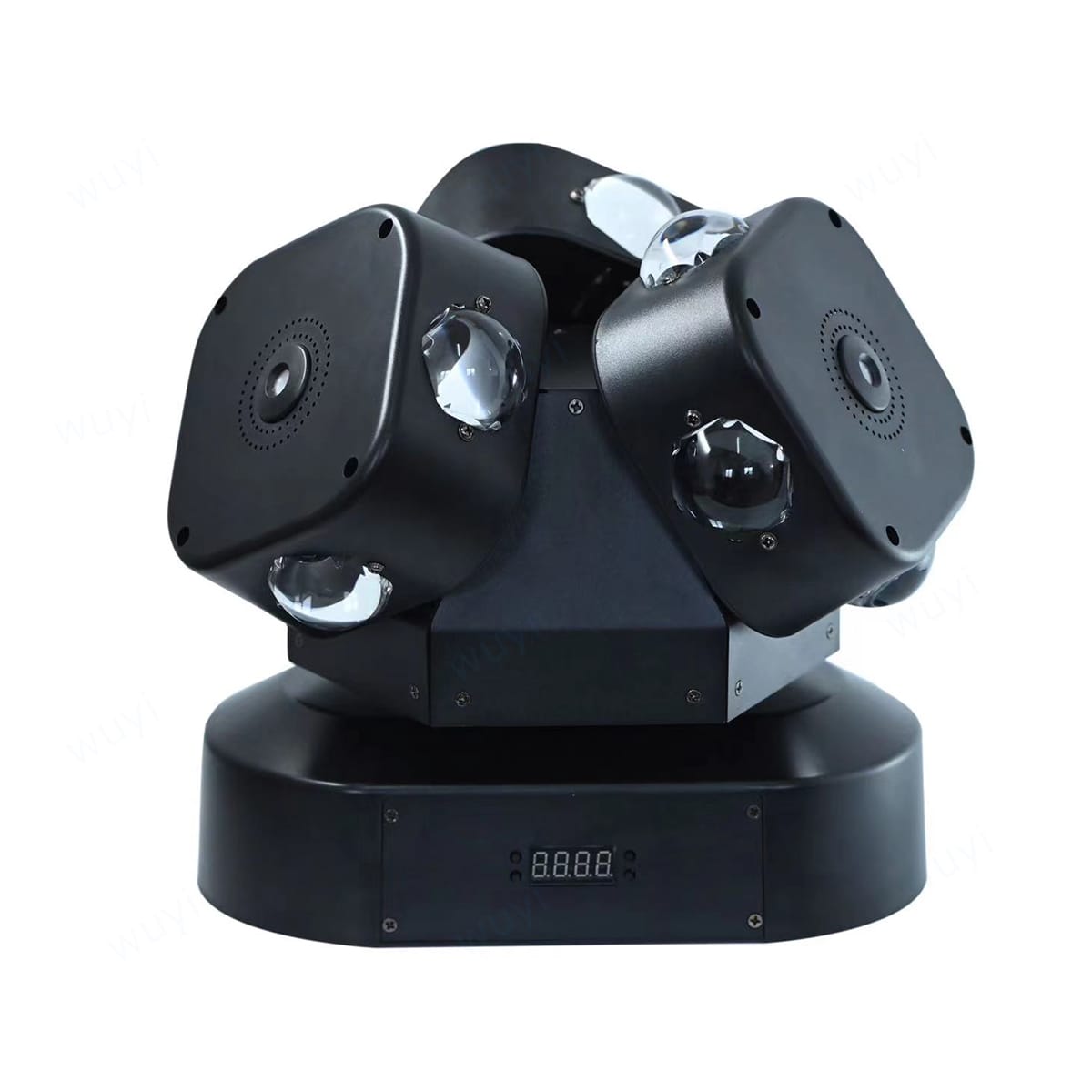

3 HEAD MOVING LED LASER LIGHT

3 Head Moving LED Laser Light – Stunning Visual Effects for Any Event

The 3 Head Moving LED Laser Light combines RGBW LED beams, RGB laser effects, movement and strobe functions in one 150W stage-lighting fixture. Built with 12 × 10W RGBW LEDs and 30mW red, green and blue laser sources, it supports 21-channel DMX512, sound control and master/slave operation for DJs, clubs, weddings and live-event productions.

Technical Specifications

These specifications are documented for the matched XS-F803S configuration.

3-in-1 Beam, Laser and Strobe Stage Effect

Instead of requiring separate fixtures for narrow beams, laser colour and stroboscopic effects, this 3 Head Moving LED Laser Light combines multiple visual elements in one compact unit.

The main lighting system uses 12 × 10W RGBW 4-in-1 LEDs, allowing red, green, blue and white colours to be mixed into narrow moving beams. A 2–3° beam angle keeps the beams concentrated, which is useful when the fixture is paired with haze or fog to make aerial movement more visible.

The integrated laser section adds separate 30mW red, 30mW green and 30mW blue laser sources, producing additional RGB laser effects alongside the LED output. The fixture also incorporates RGB ring lighting and electronic strobe effects, giving lighting operators several layers of visual movement from a single unit.

For DJs, clubs and smaller production companies, this combination can reduce the number of individual effect lights required to create an active dance-floor or stage-lighting setup.

12 × 10W RGBW LED Beam System

The fixture uses twelve 10W RGBW LEDs, providing a total LED array designed around concentrated beam effects.

RGBW colour mixing gives the operator access to saturated primary colours as well as cleaner white output and mixed colour combinations. This makes the fixture useful for both fast-changing party effects and coordinated stage-lighting scenes.

The narrow 2–3° beam angle is especially effective for aerial lighting. When atmospheric haze is present, the narrow beams become visible through the air rather than simply producing coloured spots on surrounding surfaces.

RGB Laser Effects

Alongside the LED beams, the fixture integrates individual red, green and blue 30mW laser sources.

Combining RGB lasers with moving LED beams creates a more varied effect than a standard LED moving head alone. The fixture can therefore contribute both sharp beam movement and laser-style visual effects during music-driven shows.

Laser output should always be positioned and programmed responsibly. Never direct laser beams into audience areas, eye level, roadways, aircraft paths or uncontrolled public spaces.

540° Movement and Endless Rotation

The moving system provides up to 540° movement on the X axis, while the Y axis supports continuous rotation.

This creates sweeping and rotating lighting movements that are particularly suited to dance floors, DJ booths and stage backgrounds.

Rather than relying on a fixed projection position, the movement allows the fixture to distribute beam and laser effects around a larger visual area during programmed or music-controlled sequences.

21-Channel DMX512 Control

For professional lighting setups, the fixture supports 21-channel DMX512 control.

DMX allows a lighting operator to integrate the unit with other stage fixtures and control parameters from a compatible lighting console.

This makes it more appropriate for programmed event productions than effect lights that operate only through automatic presets.

The documented operating options also include:

• DMX512 control
• Sound-active operation
• Master/slave operation

Sound control is useful for mobile DJs and smaller installations where the fixture needs to react automatically to music, while master/slave operation allows compatible fixtures to operate together without programming every unit individually.

Smooth 0–100% Dimming and Strobe Effects

The fixture supports 0–100% electronic dimming, allowing LED intensity to be adjusted progressively rather than operating only at full output.

Electronic strobe effects can then introduce rapid flashes and rhythmic changes for higher-energy sections of a performance.

This combination gives the operator more flexibility when transitioning from slower stage scenes to fast club, DJ or dance-floor effects.

IP20 for Indoor Event Use

The documented fixture carries an IP20 rating, so it should be treated as an indoor stage-lighting product.

Suitable environments include:

• Hotel ballrooms
• Clubs and lounges
• Wedding venues
• Indoor stages
• Event halls
• DJ booths
• Theatres
• Entertainment venues

IP20 does not provide weather protection. The fixture should not be exposed directly to rain, water spray or uncontrolled outdoor weather conditions.

Best For

The 3 Head Moving LED Laser Light is suitable for:

• Mobile DJ lighting setups
• Nightclubs and lounges
• Wedding receptions
• Dance floors
• Concert stages
• Corporate entertainment
• Hotel ballrooms
• Live performances
• Party venues
• Event-production companies
• Stage-lighting rental businesses

What's Included & Compatibility

The fixture can be integrated with professional stage-lighting systems using:

• DMX512 lighting controllers
• Compatible DMX cables
• Lighting truss
• Lighting stands
• Haze machines
• Fog machines
• LED PAR lights
• Moving head fixtures
• Strobe and effect lights

Using haze or controlled atmospheric effects can make the narrow LED and laser beams considerably more visible through the air.

How Powerful Is the 3 Head Moving LED Laser Light?

The documented fixture has a 150W total power rating and uses 12 × 10W RGBW LEDs.

It also incorporates separate 30mW red, green and blue laser sources for additional laser effects.

How Many DMX Channels Does It Use?

The fixture uses 21 DMX channels.

DMX512 control allows the light to be incorporated into programmed stage-lighting shows alongside compatible PAR lights, moving heads, strobes and other effects.

Does the Light Work Without a DMX Controller?

Yes. In addition to DMX512, the documented configuration provides sound-control and master/slave operating modes.

Sound-active operation is useful for DJ and party applications where automatic response to music is preferred.

What Is the Beam Angle?

The RGBW LED beam system has a documented 2–3° beam angle.

This narrow output creates concentrated beam effects that become especially visible when used with suitable haze or fog.

How Far Does the Moving Head Rotate?

The fixture supports 540° movement on the X axis and continuous rotation on the Y axis.

This movement creates sweeping, circular and rotating effects across stages and dance floors.

Is It Suitable for Outdoor Events?

The fixture carries an IP20 rating, so it is primarily intended for indoor or properly protected installations.

For outdoor events, it must be protected from rain, moisture and weather exposure.

Does It Work on UAE Power?

Yes. The documented power supply accepts AC100–240V, 50/60Hz, which includes the UAE's 220–240V / 50Hz electrical supply.

Laser Safety Requirements

This product contains visible red, green and blue laser sources. Laser fixtures should only be positioned and operated by personnel who understand appropriate laser safety and venue requirements.

Never aim laser output directly into audience areas or at eye level. Public-event laser use in the UAE may also be subject to venue requirements or authority approval depending on the installation and application.

The exact laser safety classification should be confirmed from the supplier documentation for the Stagify unit before publication or professional deployment, as the matched manufacturer information specifies output power but does not publish a laser class. This follows the laser-specific compliance requirement in the Stagify SOP.

Order 3 Head Moving LED Laser Lights in the UAE

Stagify supplies professional stage lighting and event effects across Dubai and the UAE for DJs, event-production companies, AV installers, venues, rental houses and entertainment businesses.

The 3 Head Moving LED Laser Light can be integrated with DMX controllers, truss systems, haze machines and other stage-lighting fixtures to create coordinated event productions.

Contact Stagify for product availability, system compatibility, bulk quantities and project pricing.
