New 3 head led laser pattern Moving Head light

New 3 Head LED Laser Pattern Moving Head Light

The New 3 Head LED Laser Pattern Moving Head Light combines three independently moving heads, 18 × 10W RGBW LEDs, RGB laser effects and a 1–20Hz strobe system in one multi-effect stage fixture. With DMX512, Sound, Auto and Master-Slave control, it is designed for DJs, wedding entertainment, clubs, concerts and stage productions that need beam, colour, laser and movement effects from a single unit.

Technical Specifications

Specification	Details
Product Type	3-Head LED Beam + Laser Moving Head Effect
Moving Heads	3 independent heads
Main LED Source	18 × 10W RGBW 4-in-1 LEDs
LED Colours	Red, Green, Blue, White
Red Laser	100mW
Green Laser	50mW
Blue Laser	50mW
Main Effects	LED Beam + Laser + Strobe
Dimming	0–100% linear dimming
Strobe	1–20 flashes/second
Control Protocol	DMX512
Operating Modes	DMX512, Auto, Sound, Master-Slave
Input Voltage	AC110–240V
Frequency	50/60Hz
Published Packing Size	310 × 220 × 400 mm
Applications	DJ, stage, club, disco, events, bars and entertainment venues

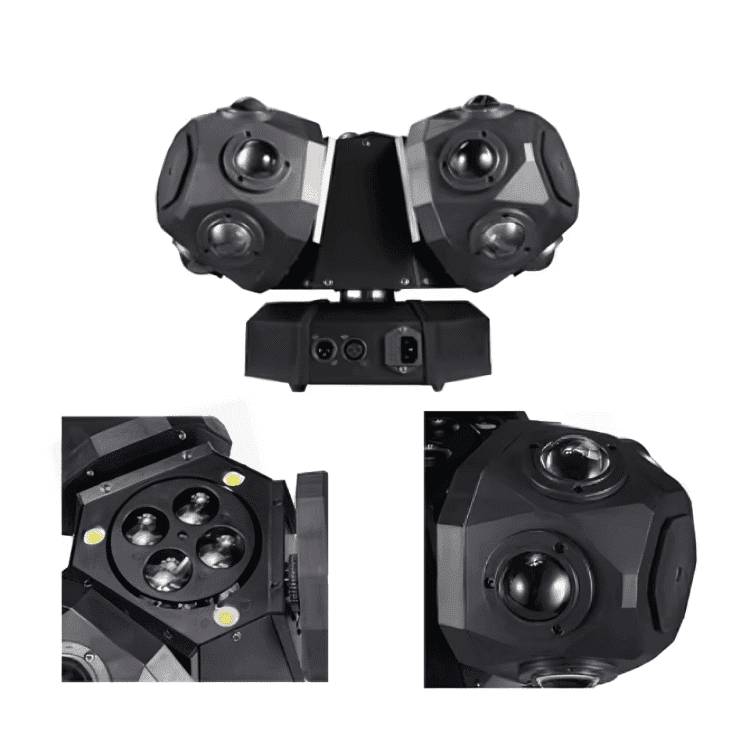

Three Independently Moving Heads

The defining feature of this fixture is its three-head moving design.

Instead of directing all lighting effects through one conventional moving-head body, the fixture uses three independently moving sections to spread effects in several directions.

The exact supplier specifically confirms independent head operation, allowing separate beam paths to create broader and more visually active stage coverage.

This design works particularly well for:

• DJ stages

• Wedding entertainment

• Nightclubs

• Concerts

• Dance performances

• Live bands

• Bars

• Event stages

The movement itself becomes part of the effect, especially when multiple fixtures are programmed together.

18 × 10W RGBW 4-in-1 LEDs

The primary LED system contains 18 × 10W RGBW 4-in-1 LEDs.

RGBW provides four colour components:

• Red

• Green

• Blue

• White

The dedicated white component provides another visual option beyond RGB colour mixing.

Lighting programmers can create:

• Saturated colours

• Mixed RGB shades

• Clean white beams

• Multi-colour sequences

• Colour chases

• Music-driven effects

Because the light source is distributed across the three-head structure, the fixture can create a more complex moving look than a basic single-head LED effect.

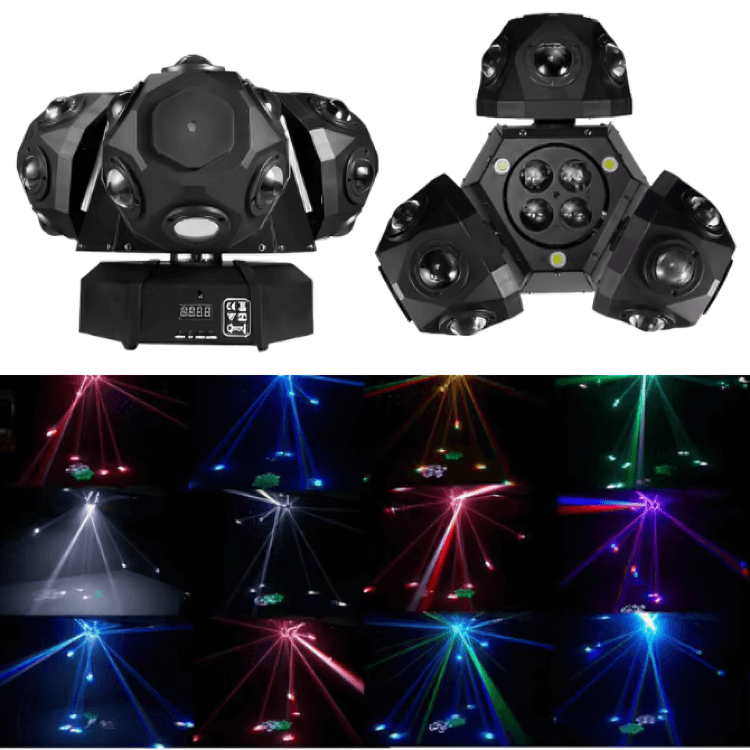

RGBW Beam Effects

The RGBW LEDs form the main beam-lighting component of the fixture.

This lets the product work as more than just a laser projector.

The LEDs can produce visible moving beams for:

• Dance floors

• DJ booths

• Stage backgrounds

• Concert effects

• Wedding entertainment

When used with appropriate atmospheric haze, the LED beam paths become more visible through the air.

The fixture therefore combines conventional LED moving effects with additional laser output instead of requiring two completely separate products.

Integrated RGB Laser System

The fixture also contains a confirmed three-colour laser system.

The exact published outputs are:

Red: 100mW
Green: 50mW
Blue: 50mW

These figures are independently reproduced on a matching 18×10W three-head platform.

The RGB system adds sharper laser effects alongside the broader RGBW LED beams.

This creates two different visual layers:

RGBW LED effects provide coloured moving illumination.

RGB laser effects provide narrow, defined laser lines and patterns.

The combination makes the fixture particularly effective in entertainment environments.

Laser Pattern Effects

The supplier confirms that DMX control can manage the fixture's patterns as part of the available laser and movement functions.

However, it does not publish:

• Number of patterns

• Pattern library

• Scanner speed

• Animation resolution

• ILDA compatibility

For that reason, this fixture should be positioned as a laser-pattern moving effect, not as a professional graphics or logo-animation projector.

If buyers specifically need text, logos or custom ILDA artwork, a dedicated RGB animation laser is the better product category.

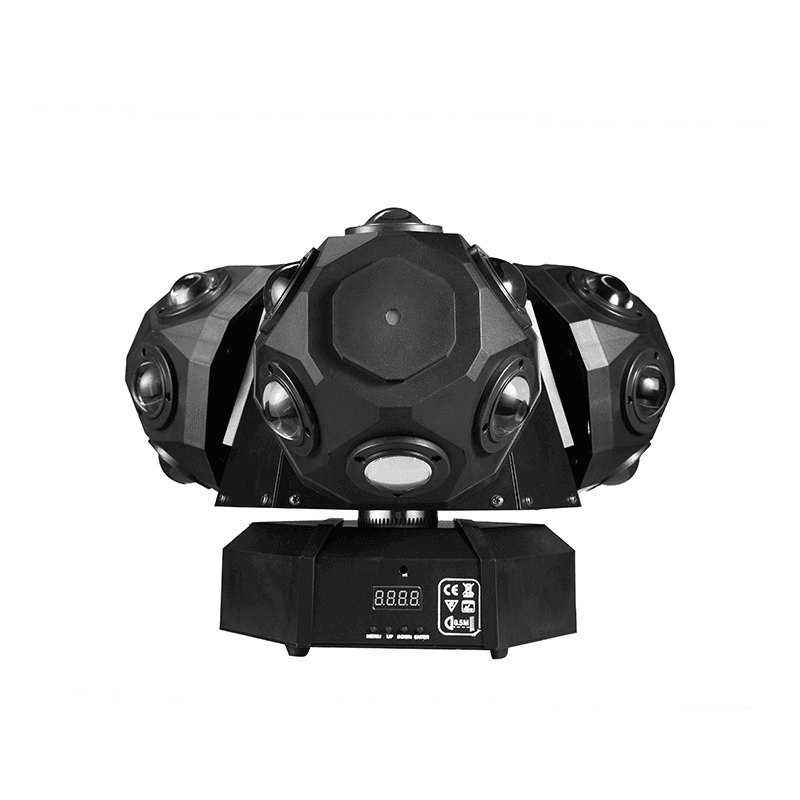

Beam + Laser + Strobe in One Fixture

One of the strongest catalogue advantages is that the unit combines several stage effects.

The confirmed effect system includes:

• RGBW LED beams

• RGB laser effects

• Moving-head effects

• Strobe

This makes it particularly relevant for mobile production companies that want multiple effects without installing several separate fixtures.

For example, one stage could use the fixture for colourful moving beams during general music and then introduce laser and strobe effects during higher-energy sections.

1–20Hz Strobe Effects

The fixture provides a documented 1–20 flashes-per-second strobe range.

At slower settings, the fixture can create pulse-style effects.

At higher settings, it can generate much faster flashing sequences for:

• DJ drops

• Concert transitions

• Stage reveals

• Dance performances

• Wedding entertainment

Strobe effects should be programmed responsibly where attendees may be sensitive to rapid flashing.

0–100% Linear Dimming

The RGBW LED system provides 0–100% linear dimming.

This allows lighting designers to adjust LED intensity instead of operating only at maximum output.

Dimming is useful when changing between different parts of an event.

For example:

Guest arrival: lower output and slower movement.

Entertainment: stronger colour effects.

DJ performance: higher intensity with laser and strobe combinations.

Finale: coordinated movement, laser and rapid effects.

DMX512 Control

The fixture supports standard DMX512 control.

This allows it to operate within a larger professional lighting system alongside:

• Beam moving heads

• Moving washes

• LED PAR lights

• Strobes

• Pixel bars

• Other laser effects

With a lighting console, operators can coordinate the fixture's:

• Movement

• Colours

• Patterns

• Dimming

• Strobe

• Laser effects

with the rest of a programmed event show.

DMX Channel Count Is Not Confirmed

The exact supplier page does not publish a DMX channel count.

This is worth noting because visually similar three-head fixtures are sold with several different DMX personalities.

Depending on manufacturer and hardware revision, comparable units may use 13CH, 16CH, 21CH or another personality.

None of those values should be copied into this SKU until the Stagify fixture menu or manual is checked.

Sound-Activated Mode

The fixture supports Sound control.

This allows built-in effects to respond to music without requiring continuous operation from a DMX console.

Sound mode is particularly useful for:

• Mobile DJs

• Parties

• Clubs

• Bars

• Wedding entertainment

• KTV-style environments

For structured professional productions, DMX remains the better option because exact cues can be programmed and repeated.

Automatic Mode

Auto mode allows the fixture to run built-in sequences independently.

This is useful where:

• A lighting console is unavailable

• Fast setup is important

• Detailed programming is unnecessary

• The light needs to continuously create entertainment effects

This gives smaller venues and mobile DJs an easy standalone operating option.

Master-Slave Operation

Multiple compatible fixtures can be linked through Master-Slave mode.

One fixture operates as the master while other units follow its programme.

This is useful for creating coordinated effects across:

• DJ stages

• Dance floors

• Club installations

• Wedding stages

For more complex shows where every fixture should move differently, individual DMX programming provides greater flexibility.

Designed for Multi-Directional Stage Effects

The three-head architecture helps spread effects across more than one direction at the same time.

A conventional moving head normally creates one primary moving output.

This fixture is designed to create multiple simultaneous paths, giving it stronger visual movement around the performance area.

The exact supplier describes the three heads as capable of separate multi-directional projection.

This makes it particularly useful when the fixture itself is visible as part of the show.

Good Fit for DJs

For mobile DJs, the combination of effects can reduce the number of separate fixtures needed for a compact setup.

One product provides:

• RGBW beams

• Laser effects

• Strobe

• Movement

• Sound mode

• Automatic programmes

This can work well behind or beside a DJ booth where the audience can clearly see the moving-head action.

Wedding Entertainment

During wedding entertainment, the light can be used around:

• DJ booths

• Dance floors

• Performance stages

• Couple entrances

• Entertainment finales

The RGBW LEDs provide colour effects while the lasers and strobe can be introduced selectively during more energetic sections.

For speeches and formal photography, profile, Fresnel or wash fixtures remain more suitable for illuminating people naturally.

Club and Disco Applications

The fixture's multi-effect format fits club environments particularly well.

RGBW beams can provide general movement while the integrated lasers create sharper aerial lines.

Sound mode can be used for simpler setups, while DMX enables the fixture to follow programmed club scenes.

Several three-head units can create a much larger visual field when positioned around the dance floor.

3-Head Laser Light vs Standard Moving Head Beam

These products perform different jobs.

Choose the 3 Head LED Laser Pattern Moving Head when you need:

• Multiple moving outputs

• RGBW colour effects

• Integrated RGB laser

• Strobe effects

• DJ and dance-floor visuals

• Multiple effects from one fixture

Choose a traditional Beam Moving Head when you need:

• A concentrated long-distance beam

• Gobo wheels

• Colour wheels

• Prisms

• Conventional precise pan/tilt positioning

The three-head unit is primarily a multi-effect entertainment fixture rather than a replacement for a dedicated 230W or 460W beam.

3-Head Laser vs RGB Animation Laser

A dedicated animation laser uses high-speed scanners to draw:

• Graphics

• Text

• Logos

• Complex geometric patterns

This three-head fixture instead combines LED beam effects, movement, laser patterns and strobe.

Choose this product when the priority is dynamic club and DJ effects.

Choose an animation projector where graphic projection is the main requirement.

Suitable Applications

The product is particularly suitable for:

• Mobile DJs

• Wedding entertainment

• Nightclubs

• Discos

• Bars

• Live bands

• Concert stages

• Dance performances

• Event-production companies

• Entertainment venues

• Rental businesses

Published Packing Size

The exact supplier publishes a packing size of:

310 × 220 × 400 mm.

This should be treated as packaging information, not confirmed fixture dimensions.

Do not use it for:

• Truss-clearance planning

• CAD layouts

• Flight-case sizing

• Fixture dimensional drawings

until the actual unit is measured.

AC110–240V / 50–60Hz Input

The fixture accepts AC110–240V at 50/60Hz.

This range covers standard UAE 220–240V / 50Hz mains power.

The exact supplied mains connector and plug should still be inspected before advertising a UAE Type G plug as included.

Fixture Power Consumption Is Not Confirmed

Although there are 18 × 10W LEDs, that does not mean the fixture should automatically be described as a 180W or 200W mains fixture.

The LED ratings describe the nominal light sources.

Total electrical consumption also includes:

• Motors

• Lasers

• Driver electronics

• Control circuitry

• Cooling system

The exact supplier does not publish complete power consumption, so Stagify should omit that figure until the physical rating plate is checked.

IP Rating Is Not Confirmed

No numerical IP rating is published for the exact product.

Some externally similar versions are rated IP20, but that specification should not automatically be transferred.

Until Stagify confirms the fixture label, position it for dry, protected entertainment environments.

Do not describe this exact SKU as:

• Waterproof

• IP65

• Rainproof

• Weather-resistant

The supplier's broad marketing reference to outdoor events does not substitute for a documented enclosure rating.

What's Included & Compatibility

Core product:

• 1 × New 3 Head LED Laser Pattern Moving Head Light

Compatible with suitable:

• DMX512 controllers

• Professional DMX cabling

• Stage truss

• Appropriately rated clamps

• Independent secondary safety retention

• Controlled haze equipment

• Professional power distribution

The exact package does not clearly document whether it includes:

• DMX cable

• Mounting clamp

• Safety cable

• Power cable

• Remote control

• Flight case

Confirm the Stagify package before listing any of these as included.

How Many LEDs Does the Fixture Have?

It contains 18 × 10W RGBW 4-in-1 LEDs.

These provide the primary coloured beam effects.

How Many Moving Heads Does It Have?

The exact supplier confirms three independently moving heads.

This allows multiple effect directions from one fixture.

What Laser Colours Does It Have?

The documented laser system contains:

• Red: 100mW

• Green: 50mW

• Blue: 50mW

These values are also reproduced by an independent listing for the same 18×10W platform.

Does It Create Laser Patterns?

Yes.

The supplier describes pattern control through DMX.

However, the number of patterns and scanner specifications are not published.

Does It Support DMX512?

Yes.

DMX512 is a confirmed control method.

The exact channel count is not currently confirmed.

Can It Work Without DMX?

Yes.

Confirmed modes include:

• Auto

• Sound

• Master-Slave

• DMX512

Does It Have Strobe?

Yes.

The documented range is 1–20 flashes per second.

Can the Brightness Be Adjusted?

Yes.

The LED system supports 0–100% linear dimming.

What Is the Pan and Tilt Range?

The exact supplier confirms independent movement but does not provide numerical pan or tilt angles.

Do not transfer values such as 540°, 270° or infinite rotation from another three-head moving light.

Does It Work on UAE Power?

Yes.

The documented AC110–240V / 50–60Hz input covers UAE 220–240V / 50Hz mains power.

The actual plug type still needs verification.

Is It Waterproof?

No confirmed IP rating is published.

Use it in dry, protected conditions unless the physical unit confirms an outdoor protection rating.

Laser Safety Requirements

The published 100mW red, 50mW green and 50mW blue outputs are substantially above low-power pointer levels, so this product should be treated as professional laser-show equipment.

FDA guidance notes that improperly handled entertainment lasers can present eye-injury, skin-burn and fire risks, and that hazardous laser radiation should be kept away from audience areas.

For installation:

• Verify the actual laser-class label on the fixture.

• Keep hazardous direct beams out of audience eye level.

• Avoid uncontrolled reflections from mirrors and glossy surfaces.

• Establish controlled projection zones.

• Use trained operators.

• Secure the fixture using appropriately rated hardware.

• Add independent secondary retention for overhead installation.

• Keep unauthorised people away from the fixture controls.

• Follow venue and authority requirements.

Atmospheric haze may improve visibility of the beams, but it does not reduce the hazard from direct laser exposure.

Do Not Assume the Laser Class

The supplier publishes individual laser output powers but does not state the complete fixture's certified hazard class.

Stagify should therefore not invent Class 3B or Class 4 in the product specification.

The correct classification must come from:

• Physical warning label

• Manufacturer documentation

• Compliance certificate

This is particularly important because the finished optical system—not simply the arithmetic sum of diode powers—determines how the product is classified.

Dubai Laser Display Requirements

Dubai Civil Aviation Authority provides a formal service for obtaining a No Objection Certificate to conduct laser or pyrotechnic displays in the Emirate of Dubai.

Event organisers and production companies should confirm applicable DCAA and venue requirements before operating professional laser displays, particularly where beams could project into open air or affect aviation.

Professional 3-Head Moving Laser Effects in the UAE

Stagify supplies moving heads, laser lights and professional stage effects across the UAE for DJs, wedding companies, clubs, venues and production businesses.

This product fills a specific position in the range: three independently moving outputs combined with 18×10W RGBW LEDs, RGB laser effects and strobe functionality, rather than the single-beam architecture of a conventional moving head.

Contact Stagify for current availability and confirmation of the DMX channel personality, movement angles, power consumption, IP rating and laser-class label before final technical deployment.
