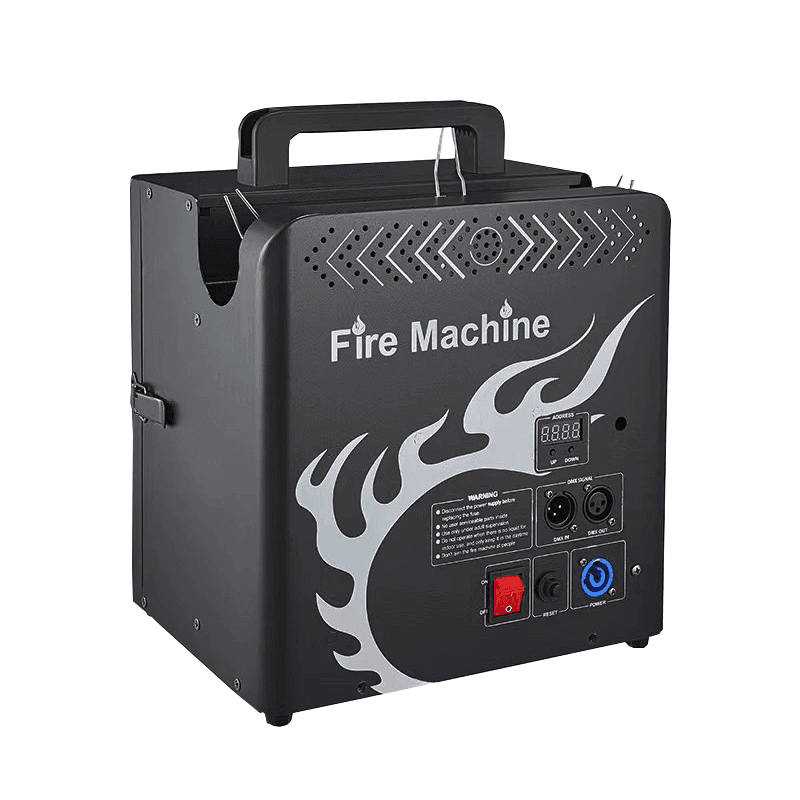

3 Head Fire Machine DMX 512

3 Head Fire Machine DMX 512 for Professional Stage Effects UAE

The 3 Head Fire Machine DMX 512 is a professional triple-output flame effect machine designed for concerts, festivals, stage shows and large event productions. It produces approximately 1–3 metre flame effects from three directional outlets, with 6-channel DMX512 control, 180W power and a 220–240V / 50Hz configuration suitable for professional UAE event systems.

Technical Specifications

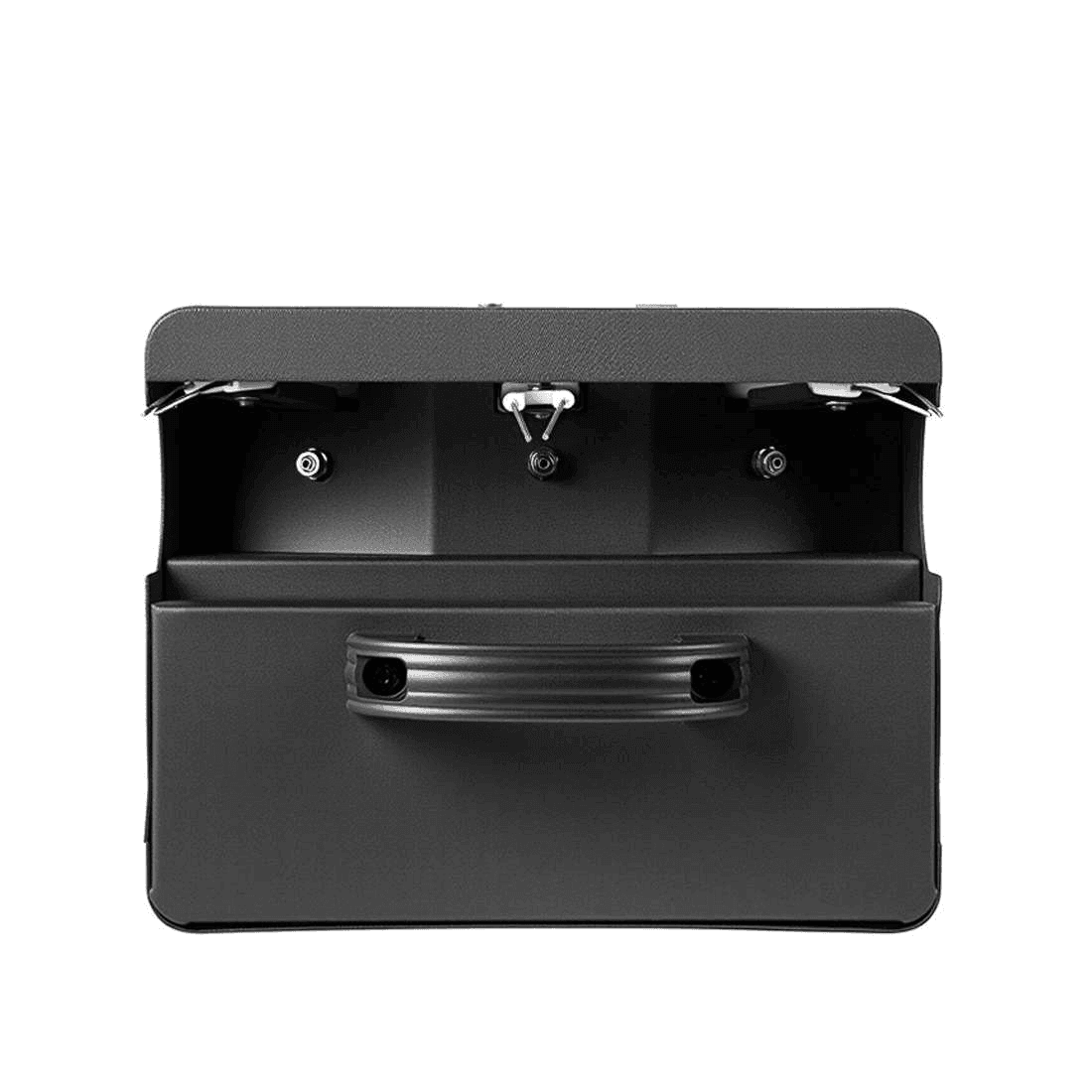

Three-Direction Flame Effects from One Fixture

The triple-head configuration is designed to create a wider visual effect than a conventional single-output flame machine.

Three outlets are arranged to produce flame effects toward the left, upward centre and right, giving production designers a broader stage look from one compact unit.

This configuration works particularly well during high-impact moments such as:

• Concert drops

• Artist entrances

• Festival transitions

• Stage reveals

• DJ performances

• Opening sequences

• Live entertainment cues

Instead of placing several separate single-head units in the same position, the three-head design can generate multiple flame directions from one fixture.

For larger stages, multiple units can also be incorporated into an appropriately designed DMX-controlled effects system to create symmetrical flame positions across the performance area.

1–3 Metre Flame Height for High-Impact Stage Moments

The documented flame output reaches approximately 1 to 3 metres, depending on the approved configuration and operating conditions.

That height makes the machine suitable for professional productions where the flame effect needs to remain visually prominent alongside:

• Moving head beams

• LED screens

• Stage washes

• Laser effects

• Concert lighting

• Atmospheric effects

A flame effect is fundamentally different from conventional stage lighting because it introduces real heat and combustion into the production environment.

For that reason, flame height should never be treated simply as a visual specification. Clearance, venue conditions, surrounding materials, performer positions and authority requirements must all be considered before the machine is used.

6-Channel DMX512 Control

The machine supports DMX512 control through six channels, allowing it to become part of a professional stage-effects control system.

DMX integration is particularly useful when flame effects need to be coordinated with lighting, music and other production cues.

Rather than relying on uncontrolled manual triggering, a professional DMX workflow allows the effects department to integrate the machine into a planned show sequence.

This is useful for productions involving:

• Concert lighting desks

• Festival show control

• Theatre effects

• Synchronized stage cues

• Multi-machine flame installations

The exact firing logic and safety-channel configuration should always follow the manufacturer's operating documentation and the production's approved safety plan.

Dedicated Safety Channel and Fall Protection

The documented triple-head platform incorporates a safety-channel function intended to reduce unintended firing from accidental DMX commands.

It also includes a fall or tilt safety sensor designed to interrupt operation if the fixture is no longer in its intended position.

These features provide additional layers of control, but they do not make a real-flame effect inherently risk-free.

Professional operation still requires:

• Correct positioning

• Appropriate clearances

• Controlled access

• Trained operators

• Venue approval

• Emergency planning

• Suitable firefighting provisions

Safety electronics should therefore be treated as part of the overall control system rather than a substitute for professional flame-effect procedures.

Compact 8KG Design for Event Production

The fixture measures approximately 285 × 220 × 330 mm and has a documented net weight of approximately 8 kg.

Its relatively compact footprint allows production teams to integrate the machine into stage layouts without requiring the space associated with some larger flame systems.

This is particularly useful when several units are required across:

• Festival stages

• Concert risers

• DJ platforms

• Large entertainment stages

• Outdoor production areas

The smaller housing also makes transportation and storage more manageable for professional effects and rental companies.

Designed for Multi-Machine Stage Effects

One unit can create a three-direction flame effect, but larger productions can incorporate several machines into the same approved control system.

Multiple fixtures can be positioned across a stage to create:

• Symmetrical flame sequences

• Alternating stage effects

• Centre-stage accents

• Multi-position concert cues

• Wider festival flame looks

DMX512 provides the control infrastructure required to coordinate compatible units as part of a planned show.

The actual quantity and placement of machines should be determined by the event's effects designer and safety team rather than simply adding units to increase visual intensity.

180W Electrical System

The flame machine itself has a documented 180W electrical power rating.

The electrical system powers the ignition, valves, DMX electronics and internal control systems rather than generating the visible flame through electrical heating.

For UAE stock, the applicable manufacturer configuration is 220–240V / 50Hz, which matches standard UAE mains voltage.

Professional event power distribution should still be used, particularly where multiple effects machines and lighting fixtures share the same production infrastructure.

Best For

The 3 Head Fire Machine DMX 512 is suited to professional applications including:

• Concert and touring productions

• Music festivals

• Large DJ performances

• Outdoor entertainment stages

• Television and broadcast productions

• Theatre special effects

• Product launches

• Sports-event entertainment

• Professional event-production companies

• Stage-effects rental companies

This is a professional flame-effects product and is not intended to be treated as a general-purpose decorative party device.

What's Included & Compatibility

The documented manufacturer package includes:

• 1 × 3 Head Fire Machine

• 1 × power cord

• 1 × DMX cable

The system is compatible with:

• DMX512 controllers

• Professional stage-effects control systems

• Compatible approved fuel canisters

• Multi-unit DMX installations

• Professional stage power distribution

The DMX controller and fuel should not be described as included unless confirmed in the actual Stagify package.

The supplied UAE plug type should also be physically verified before publication.

How High Does the 3 Head Fire Machine Shoot Flames?

The documented output range is approximately 1–3 metres.

Actual operation must remain within the machine's manufacturer instructions, approved venue layout and required safety clearances.

Can Each Flame Head Create a Different Direction?

The three-head configuration is arranged for left, upward and right flame directions, creating a wider visual composition than a single-head machine.

The documented DMX platform supports professional control of the effect through its six-channel configuration.

Does the Flame Machine Support DMX512?

Yes. The machine uses 6-channel DMX512 control.

This allows it to integrate into professional stage-effects systems where flame cues can be coordinated with other elements of a production.

Does the 3 Head Fire Machine Work on UAE Power?

The manufacturer offers a 220–240V / 50Hz configuration, which matches UAE mains specifications.

The exact Stagify unit must be confirmed as the 220–240V version, and the supplied plug type should be verified before the page is published.

Can This Fire Machine Be Used at Events in Dubai?

Use is subject to the requirements of the venue and relevant authorities.

Dubai Civil Defence event requirements state that flame shows and pyrotechnics must not be conducted at events without Civil Defence approval. Event organisers should obtain the necessary approvals and arrange any required inspection before operation.

Is This Suitable for Indoor Events?

A real-flame machine should not automatically be described as suitable for every indoor venue.

Indoor use depends on the venue's fire-safety requirements, available clearances, surrounding materials, ventilation, evacuation arrangements and Civil Defence or other required approvals.

Flame Effect Safety & UAE Compliance

The 3 Head Fire Machine produces a real flame effect and should only be operated by trained professional personnel.

It must not be described as “cold flame,” “fireproof,” or inherently safe.

For events in Dubai, Civil Defence's event requirements state that flame shows and pyrotechnic effects require Civil Defence approval. The same guidance requires event organisers to arrange inspection before event commencement and to provide appropriate fire-extinguishing provisions around stage areas.

Before use, the production team should assess:

• Flame clearance

• Overhead clearance

• Distance from performers and audiences

• Combustible scenery and décor

• Stage materials

• Emergency access

• Fire extinguishing provisions

• Venue-specific requirements

• Required authority approval

Only the fuel type specified by the manufacturer should be used with the machine.

Do not modify the ignition, valve, fuel or safety systems.

Professional Flame Effects Equipment in the UAE

Stagify supplies professional stage effects and event-production equipment across Dubai and the UAE for production companies, concert organisers, venues, AV contractors and rental businesses.

The three-head configuration provides a practical option for productions that need multi-direction flame effects, DMX512 integration and approximately 1–3 metre output from a compact professional unit.

Contact Stagify for project quantities, compatibility requirements and professional stage-effects enquiries.
