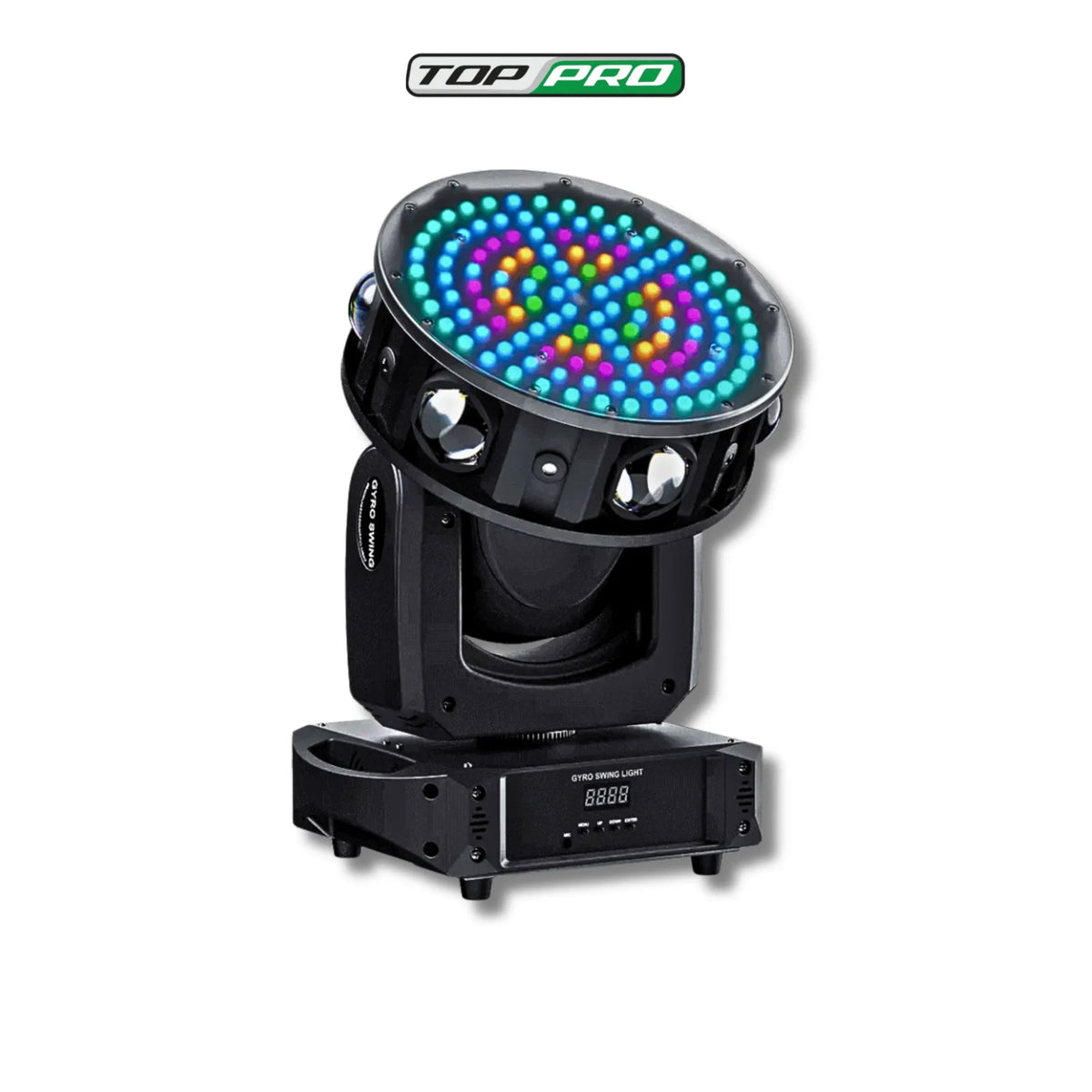

3-Axis Moving Head Gyro Swing Light

3-Axis Moving Head Light in UAE– Triple-Motion Gyro Effects | Pro Stage Lighting

The 3-Axis Moving Head Gyro Swing Light is a 200W multi-effect stage fixture built around true three-axis movement, six 15W RGBW LEDs and a 126-pixel RGB colour system. Unlike a conventional moving head limited to pan and tilt, its X, Y and Z movement creates rolling, swinging and multidirectional effects for DJs, clubs, concerts, weddings and entertainment stages.

Technical Specifications

Three-Axis Movement Changes the Way the Fixture Performs

The defining feature of this light is its three-axis movement system.

Traditional moving heads normally work across two axes:

• Pan

• Tilt

This fixture adds a third rotational axis, allowing the lighting body to create a more complex gyro-style movement.

The published movement range is:

• X-axis: 540°

• Y-axis: 180°

• Z-axis: 360°

Combining all three creates rolling and swinging motion that looks noticeably different from a standard beam or wash moving head.

This makes the product particularly effective when the movement of the fixture itself is part of the visual show.

Gyro Swing Effects for High-Energy Shows

The gyro-style design is intended to create flowing multi-direction movement instead of repeatedly sweeping only left/right and up/down.

This can produce visual sequences that work particularly well for:

• DJ performances

• Club dance floors

• Concert transitions

• Wedding entertainment

• Stage entrances

• Live bands

• Dance performances

Several fixtures can be programmed together to create mirrored or alternating gyro movements across a stage.

The result is especially visible when the fixture is installed where audiences can see both the light output and the moving body.

6 × 15W RGBW 4-in-1 LEDs

The primary lighting system consists of six 15W RGBW 4-in-1 LEDs.

RGBW provides:

• Red

• Green

• Blue

• White

The dedicated white component gives the fixture another lighting option beyond saturated RGB colours.

Lighting programmers can create:

• Strong primary colours

• Mixed RGB effects

• White beam effects

• Pastel-style colour combinations

• Fast colour changes

• Music-driven sequences

For wedding entertainment, RGBW allows the fixture to move between softer colour looks and more energetic effects as the event progresses.

126 RGB Pixel LEDs

The fixture also includes 126 × 5050 RGB LEDs rated at 0.3W each.

These smaller LEDs provide a separate pixel-style colour layer around the main lighting system.

Rather than relying only on six high-output sources, the fixture can use the larger RGB pixel array to create:

• Colour chases

• Pixel colouring

• Background illumination

• Animated surface effects

• Multi-colour transitions

This is one of the main features that separates the Gyro Swing from a conventional compact RGBW moving head.

Main Beam Plus Pixel Effects

The fixture is therefore capable of producing two distinctly different visual layers.

Main RGBW LEDs:
Provide the stronger primary lighting effect.

126 RGB pixels:
Add colour animation and decorative pixel effects around the fixture.

When combined with three-axis movement, these layers create a much more visually active effect than a conventional single-source moving head.

This is particularly useful for DJs and clubs where the audience often looks directly toward the lighting rig.

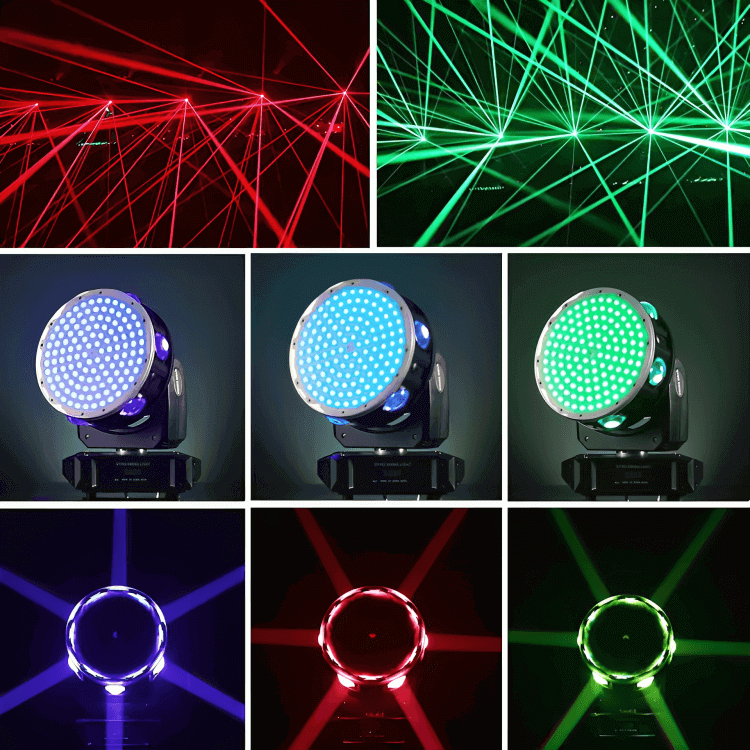

Additional Red and Green Effect Sources

The supplier specification lists:

• 3 × Red LS

• 3 × Green LS

These additional sources create another visual element alongside the RGBW LEDs and RGB pixels.

The exact supplier page does not provide a power rating for the individual LS sources, so Stagify should not add specific milliwatt values to the product specification without checking the physical unit.

Independent documentation for matching XYZ three-axis hardware identifies these components as red and green laser sources, but the exact Stagify stock should be checked before publishing laser specifications.

1–30Hz Strobe Effects

The fixture provides a documented 1–30Hz strobe range.

This allows the light to change from slower pulsing effects to rapid flashing sequences.

Strobe can be useful for:

• Music drops

• Stage reveals

• Concert finales

• DJ transitions

• Dance sequences

• Club effects

Because 30 flashes per second is a rapid effect, strobe programming should be used responsibly where guests or performers may be sensitive to flashing light.

20CH DMX Mode

A 20-channel DMX mode provides the more economical control option.

It is useful where:

• Many fixtures share one DMX universe

• Simplified programming is preferred

• The operator does not require every advanced effect separately

A smaller personality also makes fixture addressing easier for mobile productions.

57CH DMX Mode for Detailed Programming

The fixture also provides a much larger 57-channel DMX personality.

This expanded mode is one of the strongest indicators that the Gyro Swing is designed for more detailed effect programming.

The larger channel mode is better suited to shows where the operator wants more control over the fixture's:

• Three-axis movement

• Colours

• Pixels

• Strobe

• Effect functions

For several Gyro Swing fixtures, the operator should calculate the total DMX requirement before assigning addresses.

For example, four fixtures in 57CH mode require 228 DMX channels.

Standard DMX512 Protocol

The fixture uses standard DMX512 control, allowing it to operate inside a wider professional lighting system.

It can be programmed alongside compatible:

• Beam moving heads

• Moving washes

• LED PAR lights

• Pixel bars

• Strobes

• Effect fixtures

A lighting controller can coordinate the Gyro Swing's movement and lighting effects with the rest of the production.

This is particularly useful for concerts, wedding stages and clubs where effects need to follow specific music cues.

Sound-Activated Operation

The fixture supports Sound Active mode.

Built-in programmes can respond to music without requiring continuous DMX programming.

This is useful for:

• Mobile DJs

• Clubs

• Bars

• Parties

• Wedding entertainment

Sound operation provides a faster setup for smaller events.

For productions where the exact movement must repeat at precise moments, DMX control remains the better option.

Automatic Programs

The fixture also supports self-running / Auto operation.

This allows pre-programmed movement and lighting sequences to run without an external controller.

Auto mode can be practical for:

• Small entertainment venues

• Bars

• DJ setups

• Party rooms

• Temporary installations

The same fixture can therefore work in simple standalone environments as well as more complex console-controlled productions.

Master-Slave Operation

Multiple compatible units can operate through Master-Slave mode.

One fixture runs the selected programme while linked fixtures follow.

This makes it easier to create synchronised effects where two or more units are placed:

• Across a DJ booth

• On opposite sides of a stage

• Behind performers

• Around a dance floor

DMX should be used instead where every fixture needs independent movement or colour programming.

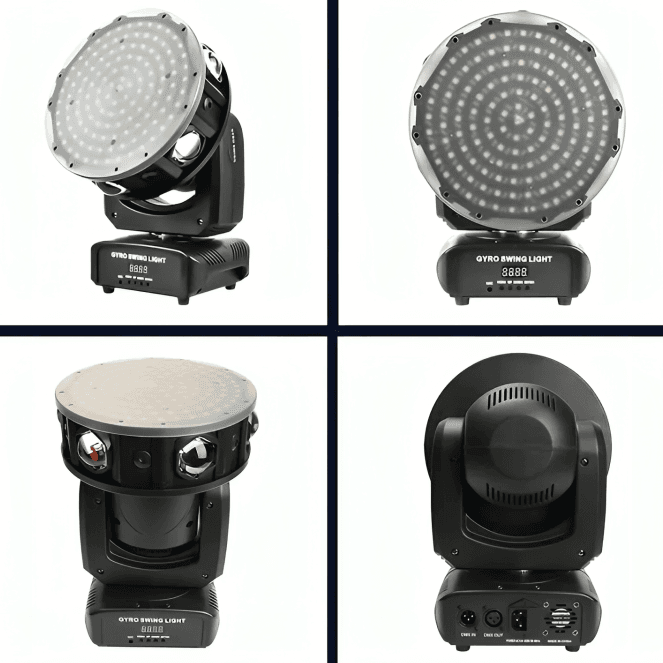

3-Pin XLR DMX Connections

The documented data connection uses 3-pin XLR input and output.

This allows the DMX signal to pass from:

Lighting controller → Fixture 1 → Fixture 2 → Fixture 3

and onward through the rig.

Use proper DMX data cable rather than assuming every microphone cable will perform reliably across long or complex lighting runs.

4-Digit Digital Display

A four-digit digital display is built into the fixture for menu navigation.

Technicians can use the display to configure supported settings such as:

• DMX address

• DMX channel mode

• Standalone operation

• Sound mode

• Master-Slave configuration

This makes setup easier when several identical fixtures need to be addressed before an event.

200W Rated Fixture Power

The complete fixture is rated at 200W.

For event-power planning:

• 2 fixtures = approximately 400W

• 4 fixtures = approximately 800W

• 8 fixtures = approximately 1.6kW

These figures cover the Gyro Swing fixtures only.

Audio systems, LED screens, moving heads, fog machines and other equipment must also be included when calculating the total electrical load.

AC110–240V / 50–60Hz Wide-Voltage Input

The documented power range is AC110–240V at 50/60Hz.

This covers the UAE's standard 220–240V / 50Hz mains supply.

The actual plug supplied with Stagify stock should still be physically checked before claiming that the fixture includes a UAE Type G plug.

Aluminium Alloy and Plastic Housing

The fixture uses an aluminium alloy and plastic enclosure.

This combination is common in compact moving effects because the structure must balance:

• Mechanical strength

• Weight

• Motor movement

• Heat management

• Transport requirements

Because the fixture contains three moving axes, it should be transported so the moving components are protected from impact.

A fitted flight case is recommended for regular rental or touring use.

IP20 Indoor Protection

The fixture carries a documented IP20 protection rating.

This means it should be positioned as an indoor stage-lighting product.

Suitable environments include:

• Hotel ballrooms

• Nightclubs

• Indoor wedding venues

• Concert halls

• Bars

• Indoor event stages

It should not be marketed as waterproof or weather-resistant.

For outdoor events, the fixture requires suitable environmental protection, and the better solution for exposed installations is equipment with a confirmed outdoor IP rating.

Gyro Swing vs Standard Moving Head

The main difference is movement.

A conventional moving head generally provides:

• Pan

• Tilt

The Gyro Swing adds another rotational axis, allowing the body to produce a much more dynamic movement pattern.

Choose the 3-Axis Gyro Swing when the priority is:

• Eye-catching movement

• DJ and dance-floor effects

• Pixel animation

• Fixture-visible scenic effects

• Multiple effects from one unit

Choose a conventional beam moving head when the priority is:

• Long-distance concentrated beams

• Gobos

• Colour wheels

• Prisms

• Precise traditional beam positioning

Choose a moving wash when broad, even stage coverage is more important than complex movement.

Where This Fixture Fits Best

This product is primarily an effect fixture, not a general stage wash.

Its strongest differentiators are:

• 3-axis movement

• Six 15W RGBW LEDs

• 126 RGB pixels

• 20/57CH DMX

• 1–30Hz strobe

• Additional red/green effect sources

That makes it well suited to venues where dynamic visual movement matters more than conventional front-lighting coverage.

Best For

The 3-Axis Moving Head Gyro Swing Light is particularly suited to:

• Mobile DJs

• Nightclubs

• Discos

• Wedding entertainment

• Bars and lounges

• Concert stages

• Live bands

• Dance performances

• Corporate entertainment

• Hotel ballrooms

• Event-production companies

• Lighting rental businesses

What's Included & Compatibility

Core product:

• 1 × 3-Axis Moving Head Gyro Swing Light

The fixture is compatible with suitable:

• DMX512 controllers

• 3-pin DMX cabling

• Aluminium stage truss

• Properly rated lighting clamps

• Independent secondary safety attachment

• Professional event power distribution

• Controlled haze equipment

The exact Stagify package should be checked before publishing clamps, safety cables, power cables, DMX cables or a flight case as included.

How Many Main LEDs Does the Gyro Swing Light Have?

The fixture uses 6 × 15W RGBW 4-in-1 LEDs as its main high-output light sources.

It additionally contains 126 RGB pixel LEDs and six red/green LS effect sources.

How Many RGB Pixel LEDs Does It Have?

There are 126 × 0.3W 5050 RGB pixel LEDs.

These provide decorative colour and pixel-style effects in addition to the six primary RGBW LEDs.

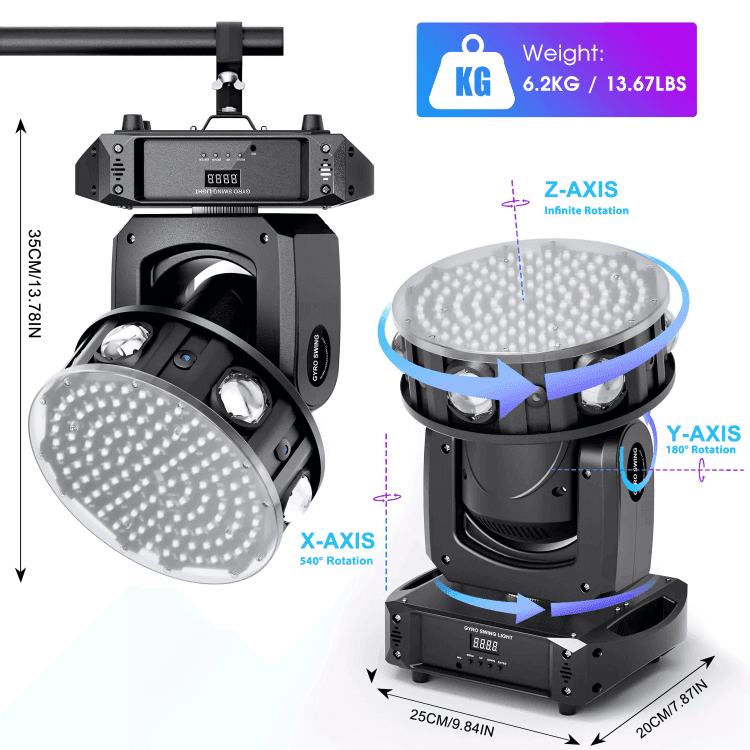

What Does 3-Axis Movement Mean?

Instead of moving on only pan and tilt axes, this fixture adds a third rotational axis.

The supplier publishes:

• X: 540°

• Y: 180°

• Z: 360°

This creates rolling and gyro-style motion that is visually different from a conventional two-axis moving head.

Does the Z-Axis Rotate Continuously?

The exact supplier specification currently publishes 360° Z-axis movement.

Independent documentation for closely matching hardware describes the third axis as infinite rotation.

Because those descriptions differ, Stagify should publish 360° unless the actual fixture demonstrates continuous rotation.

Does It Support DMX512?

Yes.

The fixture supports standard DMX512 with two channel personalities:

• 20CH

• 57CH

The 57-channel mode is suited to more detailed programming.

Can It Work Without DMX?

Yes.

Confirmed operating modes include:

• Auto

• Sound Active

• Master-Slave

• DMX

This makes the fixture suitable for both simple entertainment setups and programmed professional lighting rigs.

How Fast Is the Strobe?

The specified strobe range is 1–30Hz.

This provides both slower pulse effects and rapid entertainment strobes.

Does It Work on UAE Power?

Yes.

The published AC110–240V / 50–60Hz input covers standard UAE 220–240V / 50Hz power.

The exact mains plug supplied should still be checked on physical inventory.

Is It Waterproof?

No.

The fixture is rated IP20 and should be used in dry indoor environments.

It should not be exposed directly to rain, water or outdoor weather conditions.

Are the Red and Green LS Sources Lasers?

The exact supplier specification refers to them as “Red LS” and “Green LS” rather than publishing a complete laser specification.

Matching independent documentation for the same 6×15W + 126-pixel XYZ platform identifies them as red and green laser sources.

However, Stagify should verify the actual product label before stating laser output power or hazard class.

Installation & Safety Requirements

Three-axis movement requires enough physical clearance around the fixture.

For overhead installation:

• Use appropriately rated stage truss.

• Use a rated moving-head clamp.

• Install independent secondary retention.

• Keep power and DMX cables away from moving sections.

• Maintain clearance around all three movement axes.

• Keep ventilation areas unobstructed.

• Protect the IP20 fixture from moisture.

Do not physically restrict the moving mechanism while the fixture is powered.

If the red/green LS elements on the Stagify unit are confirmed as lasers, follow all manufacturer laser warnings and do not deliberately direct hazardous laser output into audience eye level.

Professional Gyro Effect Lighting in the UAE

Stagify supplies professional effect lights, moving heads and stage-lighting equipment across the UAE for wedding companies, DJs, clubs, venues and production businesses.

The 3-Axis Gyro Swing fills a specific role in the lighting range: multidirectional XYZ movement combined with RGBW output and a 126-pixel colour system, rather than the conventional optics of a standard moving beam.

Contact Stagify for current availability and confirmation of the LS source specification, supplied accessories and exact fixture package.
