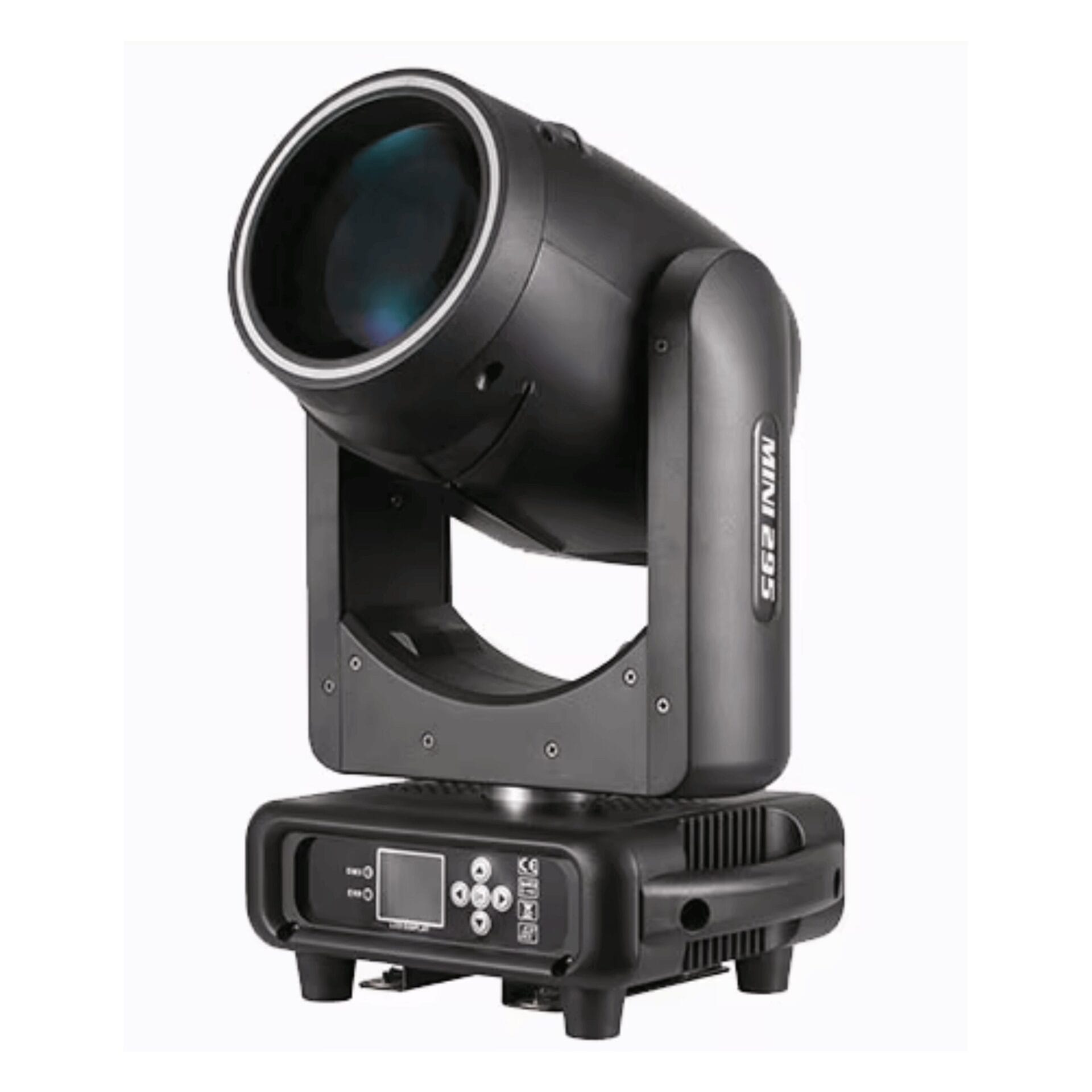

295W Mini 7R Beam Moving Head Light

295W Mini 7R Beam Moving Head Light for Stage Lighting UAE

The 295W Mini 7R Beam Moving Head Light is a compact professional beam fixture built around a 230W 7R discharge lamp. Its narrow beam, 14-colour wheel, DMX512 control and 540° pan with 270° tilt make it well suited to weddings, clubs, concerts, hotel ballrooms and event-production lighting systems across the UAE.

Technical Specifications

The core specifications above are consistently documented across professional Mini 7R fixtures and 7R technical manuals.

Sharp 7R Beam for Mid-Air Lighting Effects

The main purpose of a beam moving head is not broad stage illumination. It is designed to create a tight, concentrated shaft of light that remains visually defined over distance.

The Mini 7R platform uses a 230W short-arc discharge source with a narrow beam angle of approximately 3.8° or less, depending on the optical configuration.

That concentrated output works especially well with atmospheric haze, where the complete path of the beam becomes visible through the air.

For production crews, this makes the fixture useful for creating:

• Crossing aerial beams

• Fan effects

• Stage sweeps

• Symmetrical beam looks

• Fast music-driven movement

• Entrance and reveal effects

• Dance-floor lighting

• Concert-style overhead effects

Unlike a wash fixture, which spreads light across a wide area, this unit is intended to create defined visual lines and movement.

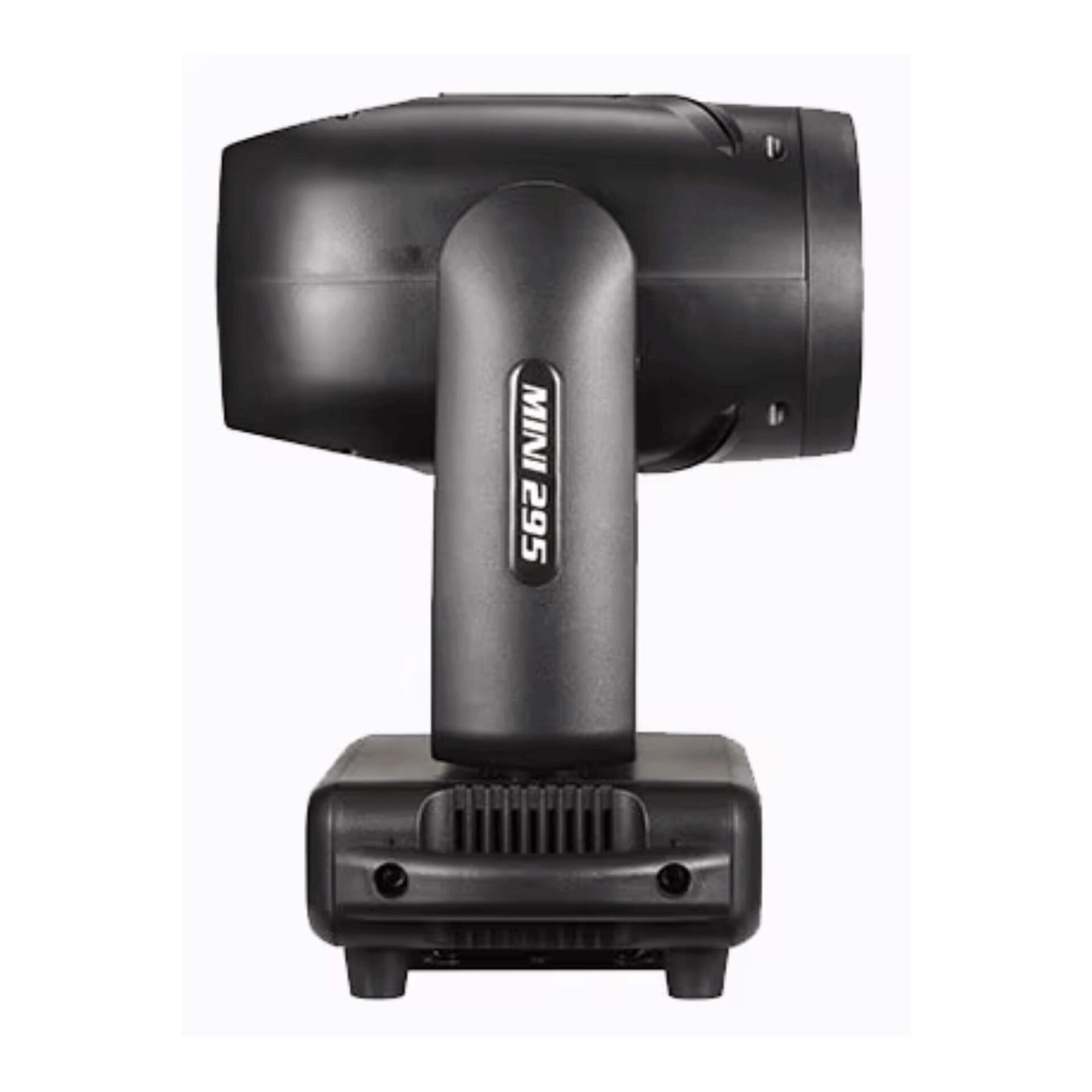

230W 7R Discharge Lamp

The fixture uses the established 230W 7R discharge-lamp format, a common light-source platform for compact professional beam moving heads.

The lamp produces a cool white source around 7,800–8,000K, which then passes through the colour, gobo, prism and optical systems inside the fixture.

This type of source is particularly effective for beam applications because the compact arc allows the optics to concentrate the output into a narrow column.

The documented lamp life for professional 7R systems is approximately 2,000 hours, although actual operating life can vary with power cycling, ventilation, ambient temperature and maintenance.

14 Colours Plus White for Fast Colour Changes

A dedicated colour wheel provides 14 colours plus open white, allowing programmers to switch quickly between different looks without relying on RGB mixing.

Colour-wheel effects are especially effective on beam fixtures because each colour remains concentrated within the narrow optical path.

Lighting operators can use the colour system for:

• Single-colour beam scenes

• Rapid colour changes

• Alternating fixture colours

• Rainbow effects

• White aerial beams

• Music-synchronised colour sequences

For weddings and corporate productions, slower colour transitions can support different programme segments. Clubs and concerts can use faster sequences for energetic visual effects.

Gobos Add Texture to the Beam

The fixed gobo system changes the physical shape and texture of the projected output.

Instead of producing only a clean circular beam, different gobo patterns allow programmers to introduce more complex aerial looks and projected effects.

Gobos become particularly noticeable when used with haze or when projected onto:

• Stage scenery

• Floors

• Walls

• Backdrops

• Screens

• Architectural surfaces

Combined with movement and colour changes, the gobo wheel increases the number of looks available from a single fixture.

Rotating Prism for Multi-Beam Effects

The rotating prism system takes the original beam and divides it into multiple visible outputs.

This transforms a single narrow shaft into a broader multi-beam effect that can rotate across the stage or venue.

Prism effects are particularly useful for:

• Music drops

• DJ performances

• Dance floors

• Concert transitions

• Wedding entrances

• High-energy show moments

The result is visually different from simply adding more fixtures because the split beams move as part of the same optical effect.

540° Pan and 270° Tilt Movement

The motorised head provides approximately 540° of pan and 270° of tilt, giving lighting programmers a wide positioning range.

This allows the beam to move:

• Across the stage

• From floor to ceiling

• Between performers

• Across scenic elements

• Through audience-safe overhead zones

• Between different programmed positions

Fine movement control is important when multiple units are used together.

Several fixtures can be programmed into mirrored, symmetrical or crossing positions, creating larger visual compositions from relatively compact moving heads.

16-Channel DMX512 Control

The Mini 7R platform supports 16-channel DMX512 control, making it suitable for integration with professional lighting consoles.

DMX programming provides access to functions such as:

• Pan

• Fine pan

• Tilt

• Fine tilt

• Movement speed

• Dimmer

• Strobe

• Colour selection

• Gobo selection

• Prism

• Prism rotation

• Focus

• Lamp control

• Reset functions

A 16-channel personality also makes universe planning straightforward.

For example, a single 512-channel DMX universe can theoretically address up to 32 fixtures at 16 channels each, before allocating channels to other lights or effects.

Auto and Sound-Activated Modes

A DMX console is not required for every installation.

Automatic programmes allow the fixture to run built-in sequences, while sound-active operation can synchronise movement and effects with music.

These standalone modes are particularly useful for:

• Mobile DJs

• Smaller wedding setups

• Clubs

• Bars

• Private events

• Temporary entertainment installations

For larger productions, DMX control gives the operator far more accurate control over movement, timing and effects.

0–100% Dimming and Variable Strobe

The beam can be adjusted using 0–100% linear dimming, allowing it to move from blackout to full output through the supported control range.

The variable strobe function creates additional rhythmic effects.

This gives programmers the ability to combine beam intensity, movement, colour and prism effects rather than operating the fixture at full brightness continuously.

For more structured shows, dimming can also be used to bring groups of fixtures in and out of a scene without changing their programmed positions.

Compact Beam Fixture for Rental Fleets

One of the main reasons to choose a Mini 7R format is the balance between beam performance and physical size.

Large-format moving heads can become difficult to transport when a production requires 8, 12 or 20 fixtures.

A smaller beam fixture reduces the space needed for:

• Flight cases

• Delivery vehicles

• Storage racks

• Truss loading

• Stage installation

For UAE rental companies covering weddings, corporate functions and venue installations, compact fixtures can make multi-unit deployments more practical.

Best For

The Mini 7R Beam Moving Head is suitable for:

• Wedding stages and hotel ballrooms

• Concerts and live performances

• Professional DJ setups

• Nightclubs and lounges

• Corporate events

• Product launches

• Theatre productions

• Dance-floor lighting

• Stage entrances and reveals

• AV production companies

• Event-equipment rental businesses

• Entertainment venues

Compatibility & System Integration

The fixture can be integrated with:

• DMX512 lighting consoles

• Professional aluminium stage truss

• Rated moving-head clamps

• Independent safety cables

• DMX signal cables

• Compatible power distribution

• Haze machines

• Fog machines where venue rules permit

• Other beam, wash and effect fixtures

For the strongest visible aerial effect, pair beam fixtures with controlled haze rather than relying only on clear air.

What Is the Difference Between a 7R Beam and an LED Moving Head?

A 7R beam uses a short-arc discharge lamp rather than an LED light engine.

The concentrated arc source is well suited to producing the very narrow, intense beam associated with classic beam moving heads. LED fixtures can offer longer source life and lower maintenance, but the optical character and performance depend heavily on the individual model.

Why Is This Product Called 295W if a 7R Lamp Is 230W?

The 7R designation refers to the 230W discharge-lamp platform.

The product's 295W naming should not be interpreted as a 295W 7R lamp. Professional 295W discharge lamps are typically associated with higher-output 14R-class beam fixtures.

For purchasing and replacement-lamp purposes, always identify the installed lamp by its actual specification rather than by the product-page title alone.

How Narrow Is the Beam?

Professional Mini 7R fixtures commonly produce a beam of approximately 3.8° or narrower, depending on the optical design.

This tight angle is what creates the concentrated aerial shaft associated with beam moving-head lighting.

How Many Colours Does the Moving Head Produce?

The colour wheel provides 14 colours plus white.

It also supports rainbow-style colour effects for faster continuous transitions during programmed shows.

Can the 7R Beam Be Controlled by DMX?

Yes. The fixture supports DMX512 with a 16-channel control mode.

DMX gives lighting operators direct control over movement, dimming, colour, gobos, prism effects and other fixture parameters.

Can It Run Without a Lighting Console?

Yes.

Auto, sound-activated and master/slave modes allow the fixture to operate without a dedicated DMX console, making it suitable for simpler DJ and event installations.

Does the Fixture Work on UAE Power?

Yes. The documented electrical range is AC100–240V, 50/60Hz, which includes the UAE's 220–240V / 50Hz mains supply.

The exact plug supplied with Stagify stock should be verified from the physical unit before publication.

Is the Mini 7R Suitable for Outdoor Events?

The verified Mini 7R platform is IP20, which means it should be treated as an indoor fixture.

For outdoor UAE installations where the equipment may be exposed to dust or moisture, use a properly rated IP65 or IP66 moving head instead.

Does a Beam Light Need Haze?

A beam fixture will still project light without haze, but its mid-air shaft becomes far more visible when fine atmospheric particles are present.

Haze is therefore commonly used for concerts, clubs and stage productions where visible aerial effects are required.

Always confirm venue rules before operating haze or fog systems.

Installation & Safety Requirements

The 295W Mini 7R Beam Moving Head Light should be mounted using appropriately rated stage truss, clamps and suspension hardware.

Whenever the fixture is installed overhead, use an independent secondary safety cable attached to a suitable safety point.

Allow sufficient clearance for the full 540° pan and 270° tilt movement, and keep ventilation openings unobstructed.

Because this is a discharge-lamp fixture, the lamp and internal optical system can become hot during operation. Allow adequate cooling before maintenance or lamp replacement.

The IP20 enclosure is intended for dry indoor environments and should not be exposed directly to rain or uncontrolled moisture.

Professional overhead installations should be carried out by personnel familiar with stage lighting and truss systems.

Professional Beam Moving Head Lights in the UAE

Stagify supplies professional beam moving heads, stage lighting and event-production equipment across Dubai and the UAE for production companies, venues, DJs, AV installers and rental businesses.

The Mini 7R format is particularly useful for buyers who need a compact narrow-beam fixture with DMX control, colour, gobo and prism effects without moving to a larger touring-size moving head.

Contact Stagify for project quantities, multi-fixture setups and help matching beam lights with truss, clamps, DMX control and atmospheric effects.
