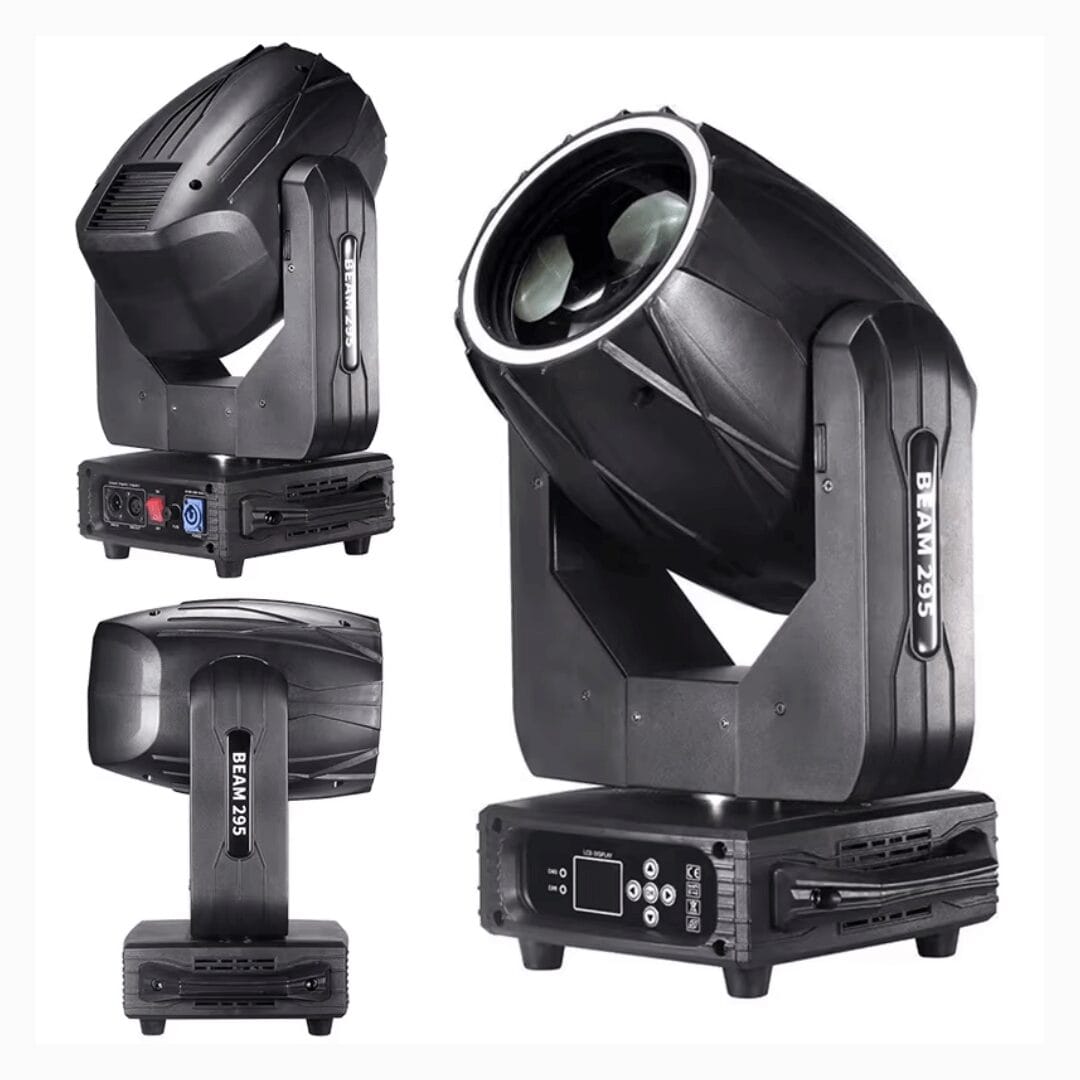

295W Beam Moving Head Stage Light

295W Beam Moving Head Stage Light

The 295W Beam Moving Head Stage Light is a discharge-lamp moving beam fixture built for concentrated aerial effects across concerts, wedding stages, clubs, DJ productions and indoor event venues. Its 295W lamp, narrow 2° beam, electronic focus, linear dimming and motorised pan movement allow lighting designers to create sharp shafts of light that remain visually defined when used with suitable atmospheric haze.

The fixture supports DMX512 control, colour and gobo effects, prism effects, electronic movement correction and built-in programmes, positioning it above compact mini beams when stronger output and a more developed effect system are required.

Technical Specifications

Specification	Details
Product Type	Beam Moving Head Stage Light
Light Source	295W discharge lamp
Beam Angle	2°
Dimming	0–100% linear dimming
Focus	Electronic focus
Strobe	0.5–9 flashes/second
Control Protocol	DMX512
Horizontal Movement	540° with electronic error correction
Movement Motor	Two-phase motor
Colour System	Fixed colour wheel
Gobo System	Fixed gobo wheel
Prism System	Multi-prism effects
Built-In Effects	Yes
Protection Rating	IP20
Input Voltage	AC110–240V
Frequency	50–60Hz
Housing	ABS
Product Dimensions	380 × 350 × 510 mm
Product Weight	13.2 kg
Recommended Environment	Dry indoor stage and entertainment venues

295W Discharge Lamp Beam Engine

The fixture uses a 295W discharge lamp rather than an LED source.

This distinction matters when comparing different moving lights.

Discharge-based beam fixtures are commonly selected when the objective is a concentrated, visually prominent aerial beam rather than a broad wash.

The exact supplier page also lists optional lamp configurations including domestic, Phoenix and Philips bulbs, indicating that the fixture may be supplied in different lamp-source versions.

Stagify should therefore confirm which lamp brand is installed in current inventory before naming a specific manufacturer in the product specification.

Important: This Is Not Confirmed as a 295W LED

Some third-party UAE listings describe this product as a 295W LED moving head.

That conflicts directly with the exact supplier page, which calls it a 295-watt discharge lamp and separately discusses bulb options.

For the Stagify listing, use:

295W discharge lamp

Do not publish:

295W LED

unless the physical unit is clearly a different hardware revision.

Tight 2° Beam Angle

The exact technical table specifies a 2° beam angle.

This narrow beam is one of the most important characteristics of the fixture.

Rather than spreading light over a large area, it concentrates the output into a tight shaft that can create strong aerial effects.

A narrow 2° beam works particularly well for:

• Concert stages

• DJ shows

• Wedding entertainment

• Clubs

• Live performances

• Stage entrances

• Music drops

• Large indoor event spaces

Several fixtures can be programmed together to produce symmetrical fans, crossing beams and moving aerial structures.

Designed for Aerial Beam Effects

A beam moving head serves a different role from a wash or spot fixture.

Its main purpose is to produce a tight visible shaft of light.

The effect becomes particularly noticeable when suitable haze is present.

Without haze, the beam will still illuminate surfaces and scenery, but the light path through the air will be less visible.

This makes beam moving heads especially useful for music-driven event production.

Electronic Focus

The fixture includes electronic focusing.

This allows the operator to adjust focus through the fixture's control system rather than physically refocusing the lens by hand.

Electronic focus is useful when:

• Gobo patterns need sharper edges

• Projection distance changes

• Several fixtures need coordinated adjustment

• Beam effects are being programmed through a lighting console

This makes setup more practical for rental companies and venues where fixtures may be mounted above the stage.

0–100% Linear Dimming

The exact technical specification confirms 0–100% linear dimming.

That allows the fixture to transition gradually between darkness and full intensity.

Dimming can be used to create:

• Smooth entrances

• Lighting fades

• Music transitions

• Build-ups

• Blackouts

• Layered stage looks

It also lets operators balance the 295W beam against other fixtures in the lighting rig.

0.5–9Hz Strobe

The exact specification lists a double-chip strobe from approximately 0.5 to 9 flashes per second.

Strobe effects can add impact during:

• DJ drops

• Concert finales

• Dance sequences

• Stage reveals

• High-energy transitions

The strobe does not need to run continuously.

In most productions, it works best as a short-duration accent within a wider lighting sequence.

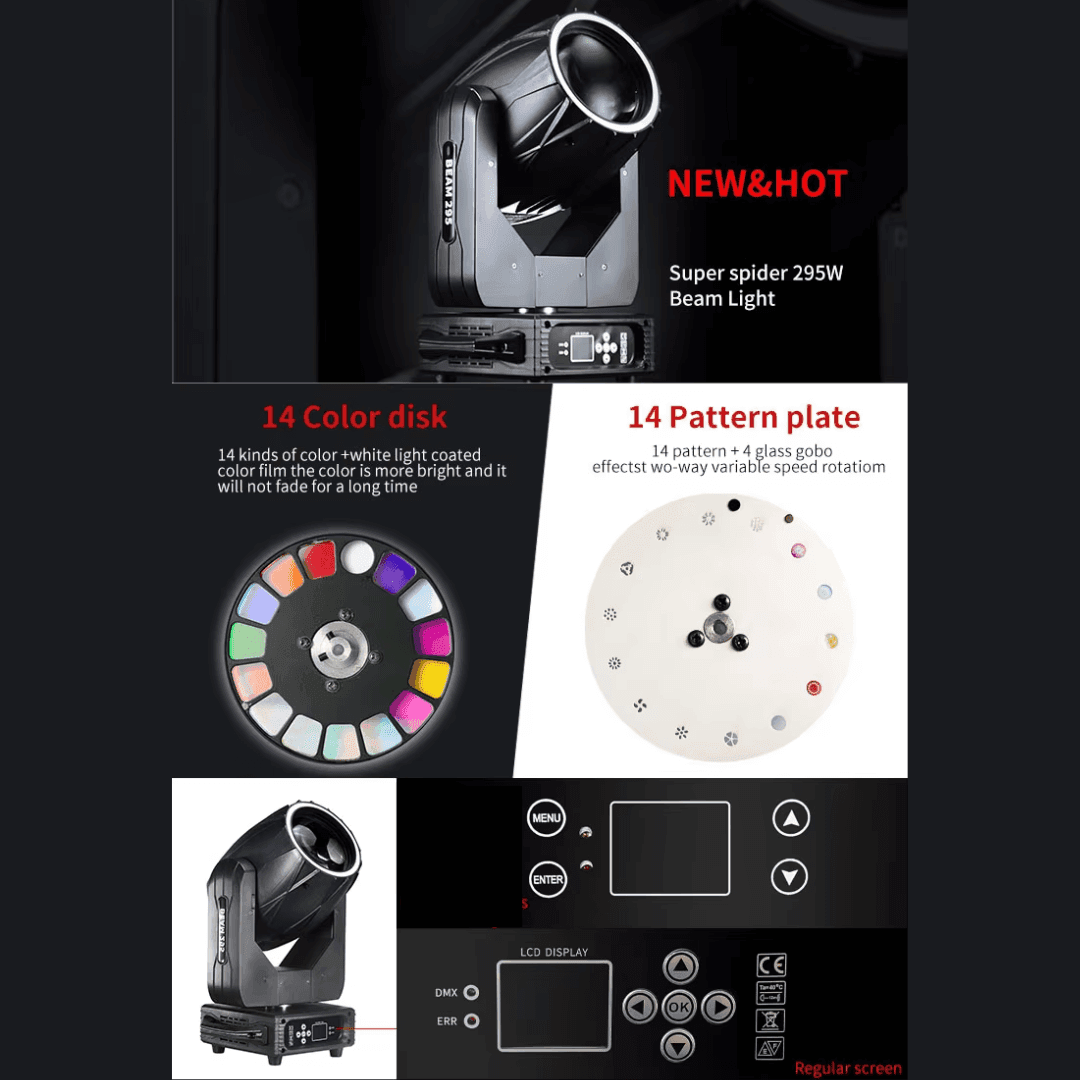

Fixed Colour Wheel

The fixture includes a fixed colour wheel.

This allows the white lamp source to be changed into different colours as the wheel rotates through the optical path.

Possible production uses include:

• Matching stage themes

• Creating alternating colours

• Rainbow-style transitions

• Half-colour effects

• Coordinating beams with music

The exact supplier page conflicts on the number of colour positions.

Its feature section states 14 colours + white, while its formal specification states 13 colours + white.

For that reason, the exact colour count should be checked on the physical fixture before Stagify publishes it as a hard specification.

Half-Colour and Rainbow Effects

The supplier's feature section confirms half-colour and rainbow-style effects.

These allow the colour wheel to be used dynamically rather than only switching from one static colour to another.

This can help create:

• Fast colour transitions

• Continuous scrolling effects

• Split-colour beams

• Music-driven sequences

The actual programming behaviour should be taken from the final DMX chart supplied with the fixture.

Fixed Gobo Wheel

A fixed gobo wheel is also confirmed.

Gobos introduce shapes into the beam, allowing one fixture to create multiple visual patterns rather than only a plain circular shaft.

They can be useful for:

• Concert effects

• Clubs

• Wedding entertainment

• DJ productions

• Dance shows

The exact supplier page consistently indicates a fixed-pattern system, but the full count should be verified from the supplied fixture before publication because other 295W OEM platforms often use different gobo wheels.

Prism Effects

The 295W moving head includes a multi-prism effect system.

Prisms divide one beam into several smaller beams, creating larger aerial patterns.

This can turn a single moving head into a multi-beam effect.

Prism effects are especially useful for:

• Large fan effects

• Rotating beam structures

• DJ drops

• Concert transitions

• Stage finales

The exact prism configuration is disputed within the supplier's own page.

One section says:

16 + 8 prism

while the specification table says:

48 honeycomb + 8 prism

Because these are significantly different optical systems, Stagify should verify the installed prism wheel before publishing the facet count.

Prism Rotation

The feature section confirms that at least part of the prism system supports rotation.

Rotating prisms can make the multiplied beams move around one another, creating a more animated effect than a static prism.

Prism rotation is particularly effective when combined with:

• Colour changes

• Movement

• Gobos

• Haze

• Strobe

The exact rotational directions and speed range are not published clearly enough to include as hard technical data.

540° Pan Movement

The horizontal movement is confirmed at:

540° pan

The fixture also includes electronic error correction, allowing the system to recover its position following certain movement errors or accidental displacement.

This is useful in installations where several moving heads must remain synchronised.

Vertical Movement Requires Verification

The supplier page contains an internal conflict.

The feature section states:

270° vertical movement

while the formal technical specification lists:

250° vertical scan.

Both values are plausible for beam moving heads, but only one can describe the exact physical range.

Therefore, Stagify should not publish a definitive tilt angle until the manual or actual fixture has been checked.

Electronic Position Correction

The exact supplier describes an intelligent photoelectric reset correction system.

This system is designed to help restore the fixture's original positioning if movement is disturbed.

This can be useful in:

• Touring rigs

• Wedding productions

• Clubs

• Temporary event stages

• Rental installations

Moving-head positioning accuracy becomes increasingly important when several fixtures are programmed to create matched patterns.

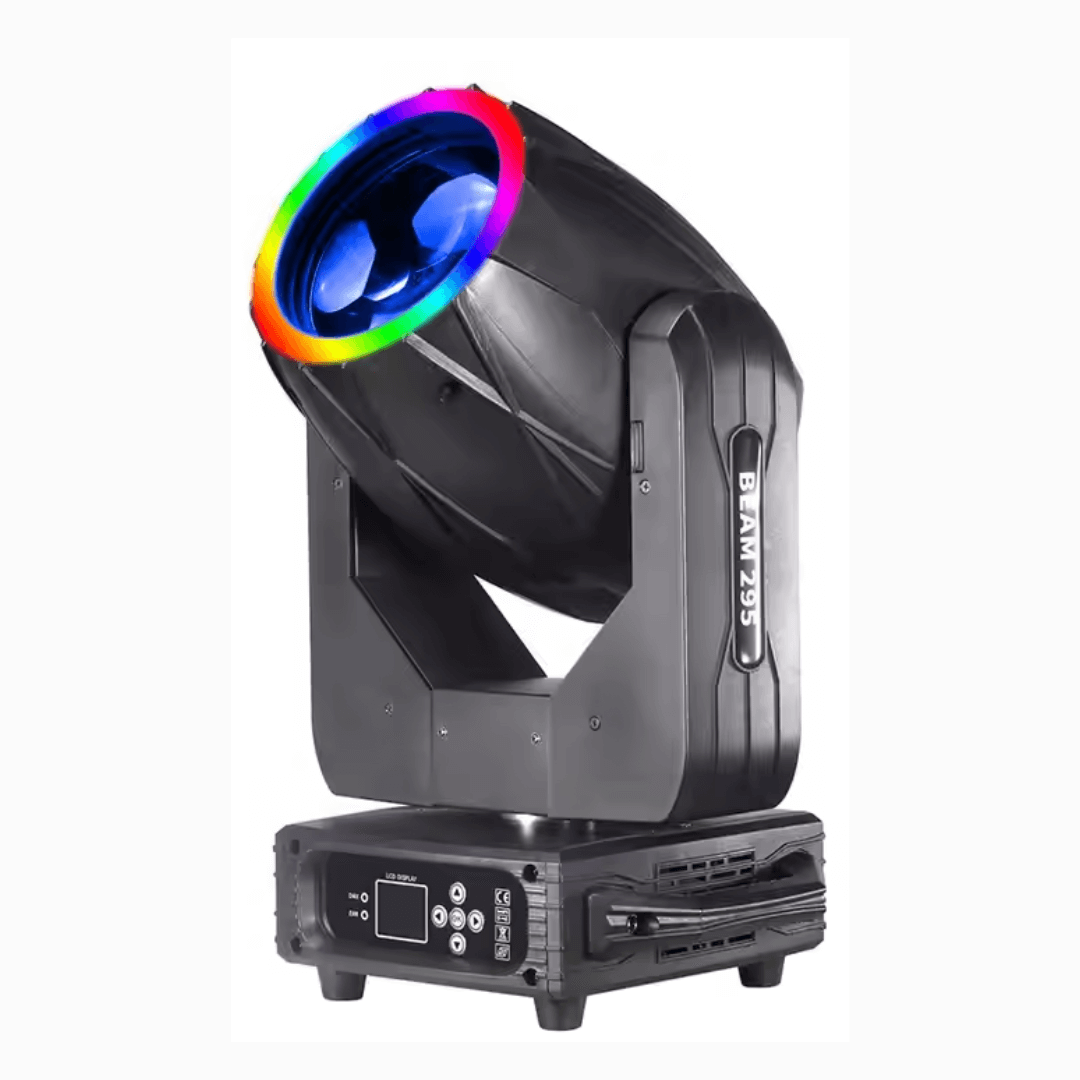

DMX512 Control

DMX512 is confirmed.

This allows the fixture to integrate with lighting consoles and larger stage-lighting systems.

DMX can be used to coordinate:

• Pan

• Tilt

• Dimmer

• Strobe

• Colours

• Gobos

• Prism effects

• Focus

• Other supported fixture functions

This makes the 295W beam suitable for programmed shows rather than only standalone entertainment effects.

DMX Channel Count Requires Verification

The exact supplier page contains another major conflict.

Its features section states:

16 DMX channels

and even describes 16CH as the factory standard.

The formal specification table lists:

20 CH.

An independent 295W platform also supports both 16CH and 20CH, which suggests that multiple personalities are common in this fixture class.

However, Stagify should not assume this exact unit supports both modes until the physical DMX menu or manual confirms it.

For the main product table, use simply:

DMX512

until verified.

Built-In Programmes

Built-in effects are confirmed.

This means the fixture can provide internal lighting sequences rather than relying exclusively on cue-by-cue external programming.

The exact programme count is not published.

Do not invent a specific number of:

• Auto programmes

• Sound programmes

• Macros

• Preset shows

without checking the manual.

Cooling System

The supplier describes a multi-fan cooling arrangement designed around forced airflow through the lamp and base.

Cooling is especially important in a discharge-lamp fixture because both the lamp and internal optical system generate substantial heat.

For normal operation:

• Keep ventilation openings clear.

• Remove accumulated dust.

• Do not cover the fixture.

• Maintain space around cooling vents.

• Allow cooling before packing.

• Inspect fans during maintenance.

The supplier reports that the cooling design was evaluated at approximately 40°C ambient temperature, but this should not be interpreted as an outdoor-weather rating.

IP20 Protection

The exact fixture is rated:

IP20

This means it should be installed in dry, protected indoor environments.

Suitable locations include:

• Ballrooms

• Clubs

• Indoor concerts

• Theatre stages

• Hotel event halls

• Indoor wedding venues

• Auditoriums

It should not be marketed as waterproof.

Not an Outdoor Weatherproof Fixture

IP20 does not provide protection for exposed outdoor use.

Do not market the product as:

• Waterproof

• Rainproof

• IP65

• Weather-resistant

• Outdoor-rated

Outdoor productions require suitable weather protection or a dedicated outdoor-rated moving head.

ABS Housing

The formal specification identifies the housing as ABS.

This is common for moving-head fixtures where the outer enclosure surrounds the internal metal chassis, motors and optics.

Do not describe it as a full aluminium housing unless confirmed separately.

Product Dimensions

The exact specification lists:

380 × 350 × 510 mm

or:

38 × 35 × 51 cm

This information is useful for:

• Flight-case planning

• Truss spacing

• Warehouse storage

• Transport

• Installation clearance

Remember to leave enough space around the head for full movement.

13.2 kg Fixture Weight

The published product weight is:

13.2 kg

This makes rigging specifications important.

When installing overhead, the clamp, truss and secondary safety system should all be selected with adequate rated capacity.

Best For

The 295W Beam Moving Head Stage Light is well suited to:

• Concerts

• Wedding stages

• DJ productions

• Clubs

• Dance floors

• Live bands

• Corporate entertainment

• Indoor festivals

• Hotel ballrooms

• Houses of worship

• Event-production companies

• Lighting-rental companies

Its primary catalogue role is a full-size 295W discharge beam fixture for tight 2° aerial effects and programmable stage lighting.

What This Fixture Is Not Best For

Another fixture may be more suitable where the requirement involves:

• Wide stage wash

• Soft performer illumination

• Battery-powered operation

• Outdoor weather exposure

• Silent theatre environments

• Compact mobile setups

• RGBW LED colour mixing

• Low-power decorative lighting

This is a focused beam-effect fixture, not a general-purpose wash light.

295W Beam vs 295W Mini Beam

Stagify also carries a 295W Mini 7R Beam Moving Head Light.

These products should not be treated as identical just because both titles contain 295W.

The full-size 295W model documented here uses:

• 38 × 35 × 51 cm body

• 13.2 kg published weight

• 2° beam

• Full colour/gobo/prism effect system

The Mini should be positioned around its own confirmed size, optical system and portability advantages.

Internal linking between the products can help customers choose based on rig size and transport requirements rather than wattage alone.

295W Beam vs 230W Beam

A 230W beam fixture can be a more economical option where:

• Smaller rigs are being built

• Lower fixture cost matters

• Lower lamp power is sufficient

• More fixtures are required within a fixed budget

The 295W model is better positioned as the step up when the customer needs a stronger full-size discharge beam platform.

295W Beam vs 380W Beam

The 380W Beam Moving Head Light sits above this model in the Stagify range.

The 380W product uses a higher-power lamp platform and is better positioned for customers prioritising greater output and a larger touring-style fixture.

The 295W model offers a useful middle position between smaller 230W class beams and larger 380W fixtures.

Using the Beam with Haze

A narrow beam becomes much easier to see through the air when controlled atmospheric haze is present.

Haze allows the audience to see the shaft itself rather than only the point where it lands.

This is particularly effective when several 295W beams are programmed into:

• Fans

• Crosses

• Parallel lines

• Sweeps

• Rotating prism patterns

Always check venue rules before using haze.

Venue Haze Considerations

Before operation:

• Confirm venue approval.

• Check fire-alarm restrictions.

• Avoid excessive haze concentration.

• Maintain visibility of exits.

• Follow the haze-machine instructions.

Hotels and ballrooms can have stricter atmospheric-effect requirements than dedicated clubs or concert venues.

AC110–240V Wide-Voltage Input

The exact electrical range is:

AC110–240V / 50–60Hz

This covers the UAE's normal 220–240V / 50Hz electrical system.

The supplied plug type is not published.

Stagify should therefore not claim that a UAE/UK Type G mains plug is included until current stock is physically checked.

Discharge Lamp Handling

Unlike an LED fixture, a discharge-lamp moving head requires appropriate lamp care.

Good operating practice includes:

• Allowing proper cooling before transport

• Avoiding unnecessary rapid power cycling

• Keeping ventilation clean

• Checking lamp condition during maintenance

• Replacing lamps according to the installed lamp manufacturer's guidance

Lamp life is not reliably specified on the exact supplier page, so do not publish a life-hours figure based on another 295W bulb.

Installation and Rigging

For overhead installation:

• Use properly rated moving-head clamps.

• Use an independent secondary safety cable.

• Verify the truss load capacity.

• Maintain sufficient clearance for movement.

• Secure power and DMX cables.

• Keep ventilation unobstructed.

• Protect the fixture from moisture.

The fixture weighs 13.2 kg, so mounting hardware must be selected accordingly.

What's Included & Compatibility

Confirmed core product:

• 1 × 295W Beam Moving Head Stage Light

Compatible system categories include:

• DMX512 lighting controllers

• Compatible DMX cabling

• Aluminium stage truss

• Rated moving-head clamps

• Secondary safety cables

• Haze machines

• Power distribution systems

• Other DMX stage-lighting fixtures

The exact supplier page does not clearly document the complete carton contents.

Do not claim that a clamp, safety cable, DMX lead, flight case or specific lamp brand is included unless current Stagify inventory confirms it.

Is the Light Source LED?

No.

The exact supplier page identifies the source as a 295W discharge lamp.

Third-party descriptions calling it a 295W LED are inconsistent with the primary product page.

What Is the Beam Angle?

The exact technical specification lists a narrow:

2° beam

This is designed primarily for concentrated aerial effects.

Does It Have Electronic Focus?

Yes.

Electronic focus is confirmed.

Does It Have Dimming?

Yes.

The fixture provides:

0–100% linear dimming

Does It Have Strobe?

Yes.

The exact technical table lists approximately:

0.5–9 flashes per second

Does It Have Colours?

Yes.

A fixed colour wheel with white and multiple colour positions is confirmed.

The exact supplier page conflicts between 13 and 14 colours, so verify the physical wheel before publishing the count.

Does It Have Gobos?

Yes.

A fixed gobo wheel is confirmed.

The formal specification lists 13 gobos plus open/white, but the physical wheel should be checked before Stagify locks the count into the final catalogue.

Does It Have Prisms?

Yes.

A multi-prism system is confirmed.

However, the exact page conflicts between 16+8 prism and 48 honeycomb+8 prism, so the installed prism configuration must be verified.

What Is the Pan Range?

The horizontal movement is confirmed at:

540°

with electronic position correction.

What Is the Tilt Range?

The exact supplier page conflicts between:

250°

and:

270°

Verify the fixture or manual before publishing one as final.

How Many DMX Channels Does It Use?

DMX512 is confirmed, but the same supplier page lists both:

16CH

and:

20CH

Check the fixture menu/manual before publishing the exact mode.

Does It Have Auto and Sound Modes?

The exact supplier FAQ states that the fixture supports DMX512 together with Auto and Sound operation.

The final available modes should still be confirmed from the supplied control menu.

What Are the Dimensions?

The exact specification lists:

380 × 350 × 510 mm

How Much Does It Weigh?

The published product weight is:

13.2 kg

Is It Waterproof?

No.

The fixture is rated IP20 and should be used in dry indoor environments.

Does It Work on UAE Power?

Yes.

Its documented AC110–240V / 50–60Hz range covers normal UAE mains voltage.

The exact supplied plug type remains to be confirmed.

Contact Stagify with your dance-floor model or controller details to confirm compatibility before purchase.
