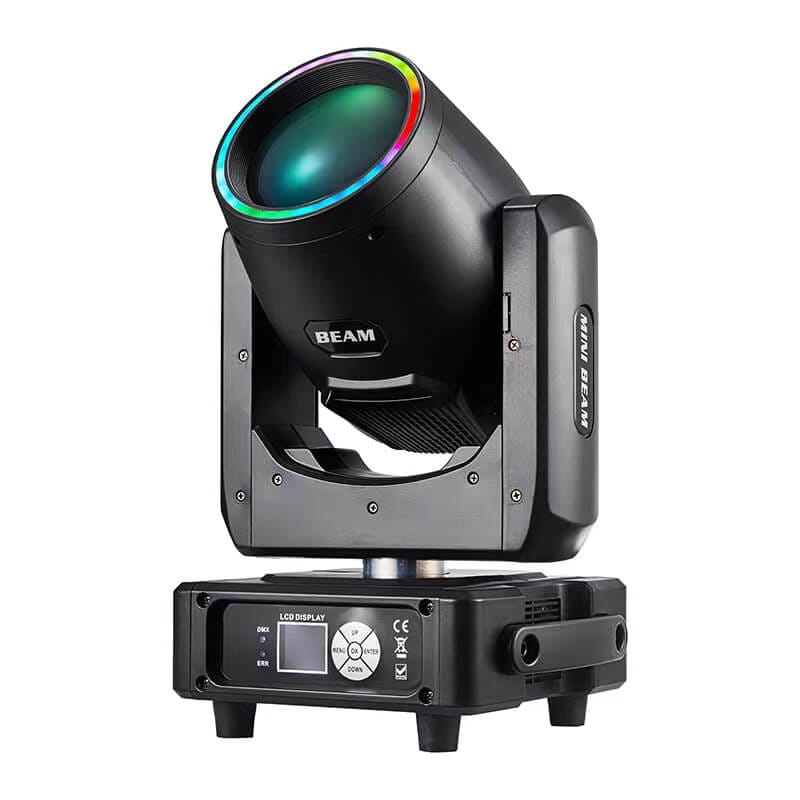

260W Beam Moving Light For Wedding Stage Event

260W Beam Moving Light for Wedding Stage Event – Stunning Lighting for Special Occasions

The 260W Beam Moving Light For Wedding Stage Event is a narrow-beam moving-head fixture built for wedding stages, concerts, clubs and live productions that need strong aerial effects. Its 1.8° optical beam, 14-colour wheel, 17-gobo wheel, dual 8-facet and 16-facet prisms, motorised focus and 540°/270° movement give lighting operators a wide range of programmable beam effects from one fixture.

Technical Specifications

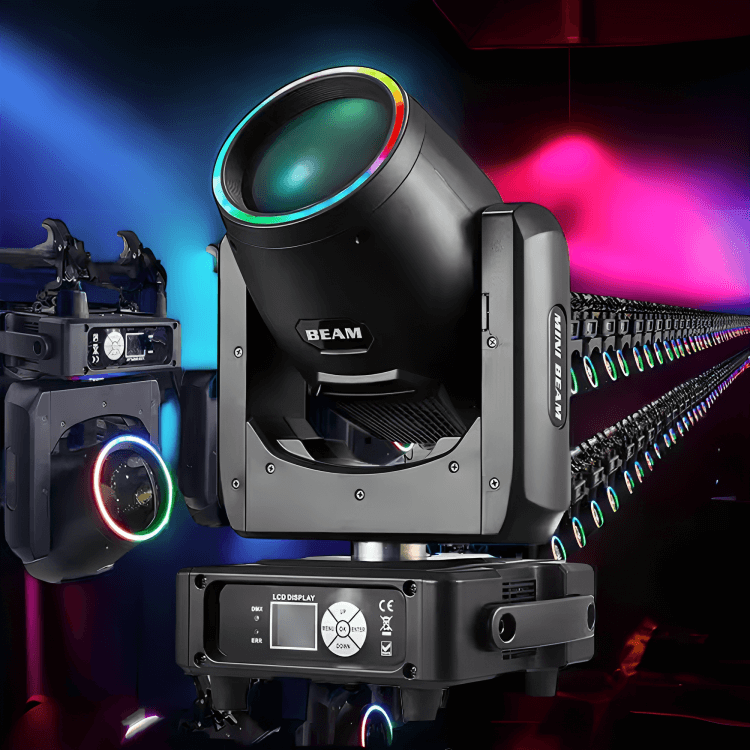

Narrow 1.8° Beam for Visible Aerial Effects

The fixture uses a documented 1.8° optical beam.

A narrow beam concentrates the light into a defined shaft rather than producing the wide coverage expected from a wash fixture.

This makes the unit particularly useful for:

• Wedding stage entrances

• DJ performances

• Concerts

• Ballroom events

• Dance floors

• Live bands

• Clubs

• Award ceremonies

The beam becomes especially visible when suitable theatrical haze is present, allowing the light path itself to become part of the stage design.

540° Pan and 270° Tilt

Movement is specified at:

• 540° pan

• 270° tilt

Fine adjustment is also listed by the supplier.

This gives lighting programmers enough positioning range to create sweeping, crossing and symmetrical movements across a stage.

Pairs or groups of fixtures can be programmed to create:

• Mirrored movements

• Fan effects

• Crossing beams

• Stage sweeps

• Audience-facing aerial patterns

• Entrance sequences

For repeatable professional shows, DMX control gives substantially more precision than standalone operation.

14 Colours Plus White

The colour wheel provides 14 colours plus white.

A rainbow effect is also documented.

This lets the fixture change quickly between different visual looks without needing RGB colour mixing.

For wedding production, colours can be coordinated with décor or entertainment cues, while concerts and DJ events can use faster colour changes for more energetic sequences.

17 Gobos Plus Open

The fixture contains a 17-position gobo selection plus open beam according to the exact supplier specification.

Gobos alter the appearance of the projected beam and provide another layer of visual variation.

The supplier also lists:

• Gobo shake

• Rotating/rainbow-style effect

This allows operators to move between a clean beam and patterned effects without changing fixtures.

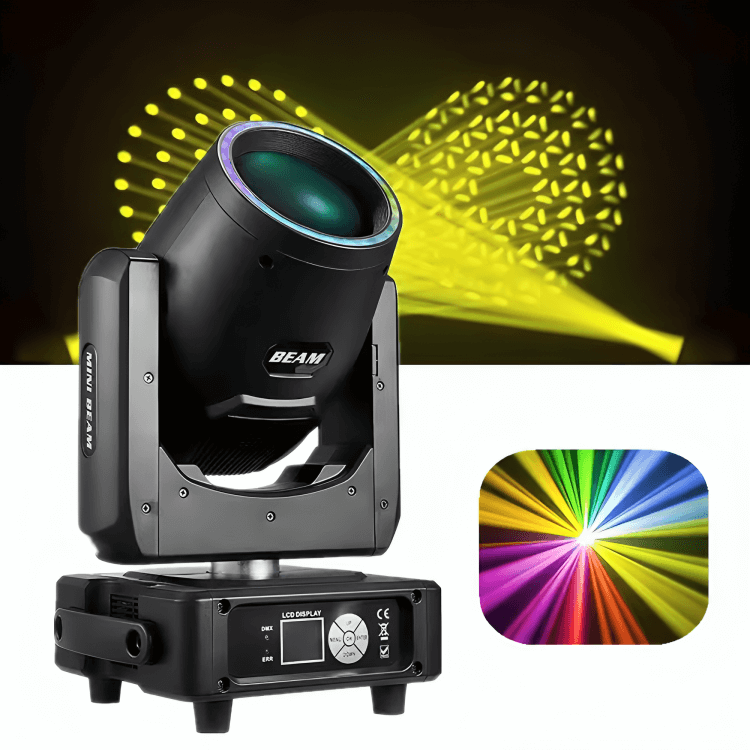

Dual 8-Facet and 16-Facet Prisms

Two prism options are documented:

8-facet prism
Splits the original beam into multiple visible rays.

16-facet prism
Creates a denser multi-beam effect.

Prisms are particularly effective when combined with:

• Haze

• Movement

• Colour changes

• Gobos

• Fast show cues

For wedding stages and DJ performances, the prism system can turn a single narrow beam into a much larger aerial pattern.

Motorised Focus

The fixture provides 0–100% motorised focus.

Focus can therefore be adjusted from the lighting system rather than requiring the technician to manually refocus the fixture at the head.

This is useful when switching between different:

• Gobos

• Throw distances

• Prism effects

• Stage positions

Motorised focus is particularly helpful when fixtures are mounted overhead where physical access during the event would be impractical.

Adjustable Frost Effect

A frost effect is also included.

The supplier publishes an adjustment range of 2°–30° for this function.

Frost softens and spreads the otherwise narrow beam, giving the fixture another visual option beyond concentrated aerial shafts.

That can be useful when a production needs a softer effect for selected cues without changing to a separate wash fixture.

The fixture should still primarily be treated as a beam-effect moving head, not as a replacement for a dedicated moving wash.

0–100% Mechanical Dimming

The moving head provides 0–100% mechanical linear dimming.

This lets operators control intensity from full blackout through to maximum output.

Mechanical dimming is particularly relevant to discharge-lamp beam fixtures because the light source itself does not dim in the same way as an LED emitter.

0–20Hz Strobe

The documented strobe range is 0–20Hz.

This allows everything from slower flashing effects to rapid performance cues.

Typical uses include:

• DJ drops

• Wedding entrances

• Concert finales

• Stage reveals

• Dance performances

Rapid flashing effects should be used responsibly where attendees may be sensitive to strobe lighting.

16CH and 20CH DMX Control

The fixture supports two DMX personalities:

• 16CH

• 20CH

The smaller mode helps conserve DMX addresses.

The larger mode is more suitable where the programmer needs more detailed access to fixture functions.

This makes the moving head suitable for both relatively simple event rigs and more detailed console-programmed productions.

RDM Support

RDM support is confirmed.

RDM adds bidirectional communication to compatible DMX installations and can make fixture configuration and status management easier when used with compatible control equipment.

This can be particularly helpful when many moving heads are installed across a large truss system.

Auto, Sound and Master-Slave Modes

The fixture can also operate without continuous DMX programming.

Confirmed operating modes include:

• Auto

• Sound Active

• Master-Slave

• DMX512

Auto mode is useful for simple self-running shows.

Sound Active mode allows built-in effects to react to music.

Master-Slave mode lets several compatible fixtures follow one lead unit.

For weddings and concerts where effects must happen at precise moments, DMX programming remains the preferred approach.

3-Pin DMX Input and Output

The fixture has documented 3-pin DMX input and output connections.

This enables multiple fixtures to be linked in a normal DMX data chain.

Use proper DMX cable for reliable operation, especially with multiple fixtures or longer cable runs.

Power Input and Output

Power input and output connections are also documented.

Power output can simplify cabling when compatible fixtures are installed together, but technicians must calculate the total connected electrical load and respect the connector/manufacturer limits.

Do not connect an unlimited number of fixtures through one power chain.

AC90–260V, 50/60Hz

The specified electrical input is:

AC90–260V, 50/60Hz

This covers standard UAE 220–240V / 50Hz mains supply.

The exact mains plug fitted to Stagify inventory should still be checked before advertising the fixture as supplied with a UAE Type G plug.

13 kg Fixture Weight

The published weight is 13 kg, with dimensions listed as:

500 × 360 × 460 mm

These values should be taken into account when planning:

• Truss loading

• Transport

• Flight cases

• Rigging positions

• Clamp selection

For overhead mounting, use appropriately rated hardware and an independent secondary safety attachment.

IP20 Indoor Protection

The fixture carries an IP20 rating.

It is therefore intended for dry indoor environments such as:

• Wedding halls

• Hotel ballrooms

• Clubs

• Indoor concert stages

• Auditoriums

• Event venues

Do not describe it as waterproof or outdoor-rated.

For exposed outdoor production, use equipment with a confirmed weather-resistant IP rating.

260W Beam vs Moving Wash

These fixtures serve different purposes.

Choose the 260W Beam Moving Light when you need:

• Narrow aerial beams

• Gobos

• Prisms

• Long visible shafts

• High-energy movement

• Wedding and DJ effects

Choose a Moving Wash when you need:

• Broad stage coverage

• Performer wash

• Smooth colour coverage

• Larger illuminated areas

Professional stage systems frequently use both.

Best Applications

The 260W Beam Moving Light is well suited to:

• Wedding stages

• Concerts

• DJs

• Nightclubs

• Live bands

• Corporate entertainment

• Hotel ballrooms

• Award ceremonies

• Event-production companies

• AV rental companies

What's Included & Compatibility

Core product:

• 1 × 260W Beam Moving Light

Compatible with suitable:

• DMX512 controllers

• 3-pin DMX cabling

• Stage truss

• Rated moving-head clamps

• Secondary safety cables

• Professional power distribution

• Haze machines

Do not advertise a clamp, safety cable, DMX cable or flight case as included unless the physical Stagify package confirms it.

Is This a 260W LED Moving Head?

It should not currently be described as an LED moving head.

The supplier's marketing paragraph mentions LED technology, but its formal specification lists a 7R electronic-ballast light-source system.

Stagify should use the technical specification and avoid the LED claim unless the physical fixture proves otherwise.

How Narrow Is the Beam?

The published optical angle is 1.8°, providing the concentrated aerial effect expected from a beam moving head.

How Many Colours Does It Have?

The colour wheel contains 14 colours plus white, along with a rainbow effect.

How Many Gobos Does It Have?

The exact specification lists 17 gobos plus open, with gobo shake functionality.

What Prisms Are Included?

The fixture provides:

• 8-facet prism

• 16-facet prism

These split the original beam into multiple rays.

Does It Support DMX512?

Yes.

It supports 16CH and 20CH DMX512 modes as well as RDM.

Can It Work Without a DMX Controller?

Yes.

Auto, Sound Active and Master-Slave operation are also confirmed.

Can It Be Used Outdoors?

No.

The fixture has an IP20 protection rating and should be used in dry indoor conditions.

Does It Work with UAE Power?

Yes.

Its AC90–260V / 50–60Hz input range covers UAE mains power.

The supplied plug type still requires verification.

Installation & Rigging Safety

For overhead use:

• Use a properly rated moving-head clamp.

• Fit an independent secondary safety cable.

• Include the 13 kg fixture weight in truss calculations.

• Maintain clearance for full 540° pan and 270° tilt movement.

• Keep cables clear of moving sections.

• Keep ventilation openings unobstructed.

• Protect the IP20 fixture from moisture.

260W Beam Moving Head for UAE Wedding & Stage Events

The 260W Beam Moving Light For Wedding Stage Event is best positioned for production companies that need a traditional narrow-beam moving head with 1.8° optics, dual prisms, 17 gobos, 14 colours, motorised focus and full DMX/RDM control.

It is particularly useful for wedding ballrooms, DJ stages and live-event rigs where strong aerial effects are a major part of the lighting design.

Contact Stagify with your dance-floor model or controller details to confirm compatibility before purchase.
